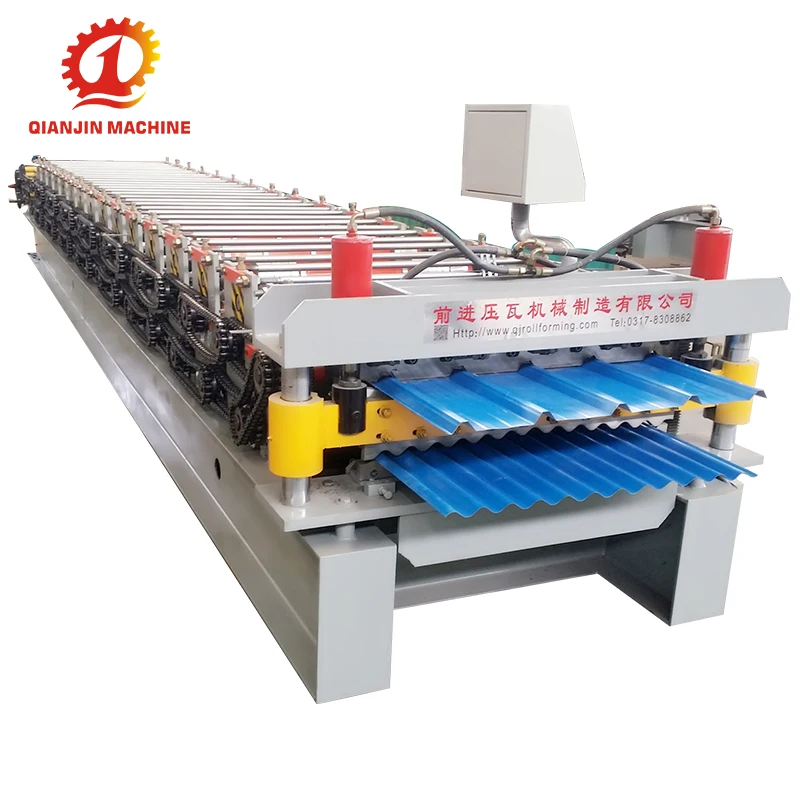

Metal Roofing Sheet Double Layer galvanized sheet manufacturing machine Double layer tile press
- Category: >>>
- Supplier: Hebei Forward Science And Technology Co. Ltd.
Share on (1600465260330):
Product Overview
Description
Specification For double layer roll forming machine | ||||||||
Raw Material | Feeding Coild Width | mm | up layer 1000 down layer 1000 | |||||
Effective Width | mm | up layer 820 down layer 836 | ||||||
Thickness | mm | 0.3-0.8 | ||||||
Main performance parameters of double layer roll forming machine | Roller material | high grade 45# steel plated with hard chrome | ||||||
Diameter of shaft | mm | 70 | ||||||
Roller stations | steps | up layer 16 down layer 18 | ||||||
Electrical motor power | KW | 5.5 | ||||||
Hydraulic pump Station | KW | 3 | ||||||
Control system | PLC BRAND | DELTA OR MITSUBISHI | ||||||

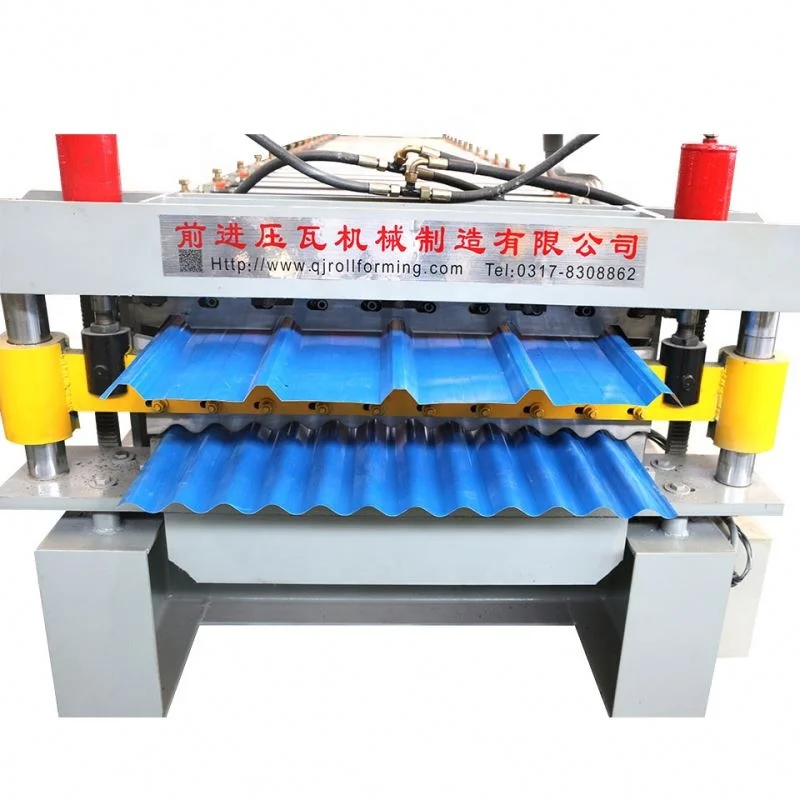

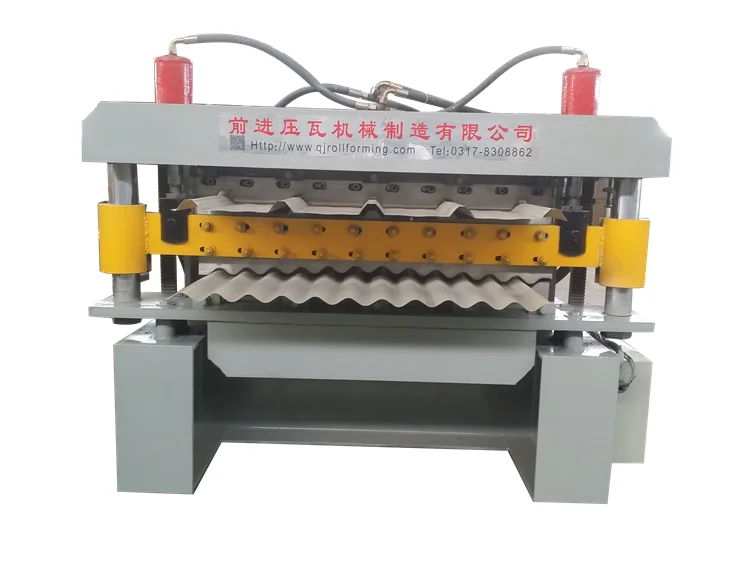

Double layer roofing sheet roll forming making machine is design for both trapezoidal and corrugated color steel roof sheet roll forming. it contains five parts and two layer, whole line is about 12m long and needs two workers for smoothly using.

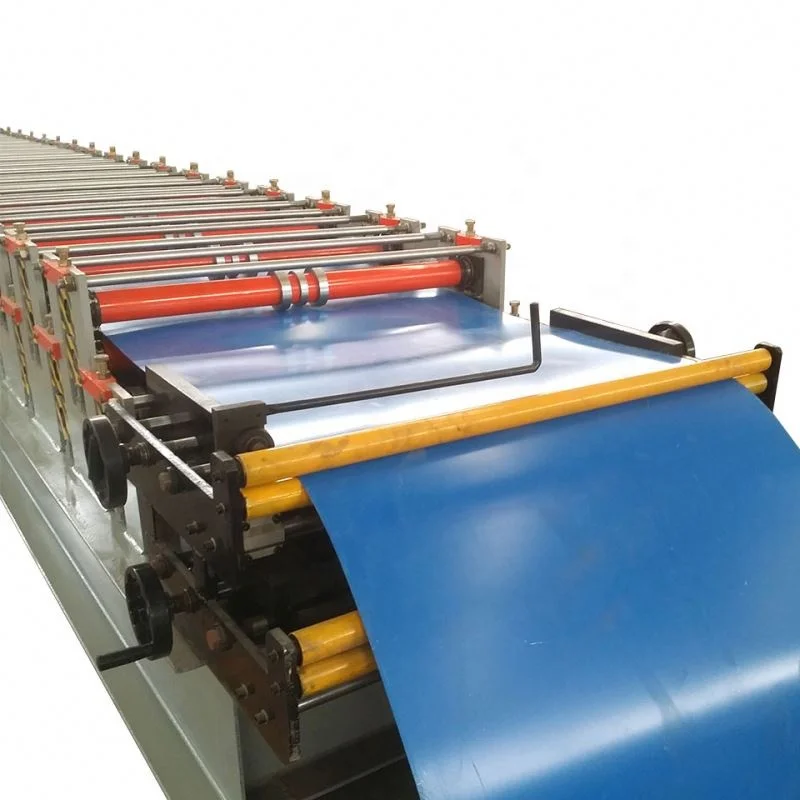

Feeding platform
Frame structure : steel plate welded manual pre-cutting device.
Roller flattening system : let the feeding fluently.
Roll Forming M/C
Machine Under Frame: 400H-beam
Sidewall plate thickness: 16mm

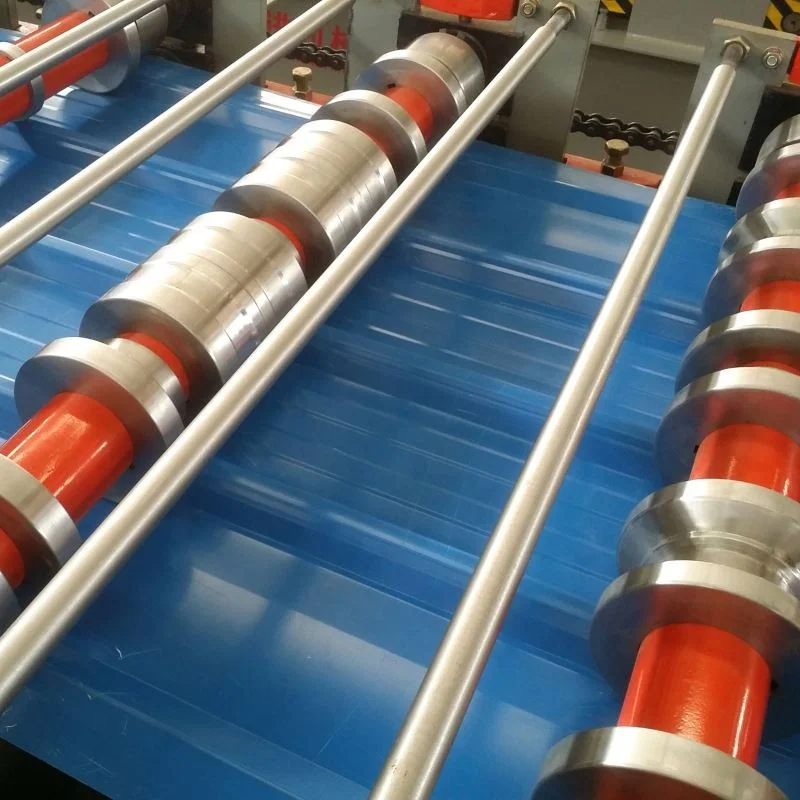

Roller stations: 16
Shaft Diameter: 70mm
Main shaft material: 45# steel with finish turning
Roller material: 45# forging steel with chromium plate
Chromium plate thickness: 0.05mm
Chain wheel and cycle chain: 1inch
Roll forming speed: 10-15m/min(adjusted with frequency changer)
Hydraulic cutting system
It adopts hydraulic drive and automatic location system to decide the dimension and cut the target.
Working method: stop to cut then post cut.
Hydraulic tank: 1 set
Hydraulic pump station: 3kw
Cutting length tolerance:10m+1mm
PLC Control Cabinet
The target piece length is adjustable and digit of it can be adjusted
PLC Control System: Delta;
Frequency Converter:Delta;
Voltage:3phase/380V/50Hz(For confirmation)
The target piece length is adjustable and digit of it can be adjusted
PLC Control System: Delta;
Frequency Converter:Delta;
Voltage:3phase/380V/50Hz(For confirmation)
Exit Rack
Function: Load Steel Pur line.
Length/set: 6 meters.
Welded with square pipe.
Function: Load Steel Pur line.
Length/set: 6 meters.
Welded with square pipe.
FAQ
Q1. What's your payment terms and delivery time?
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: (1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
(2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
A6: (1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
(2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
