JY30 with counting time control timing board power control board design can set the time

Product Overview

Description

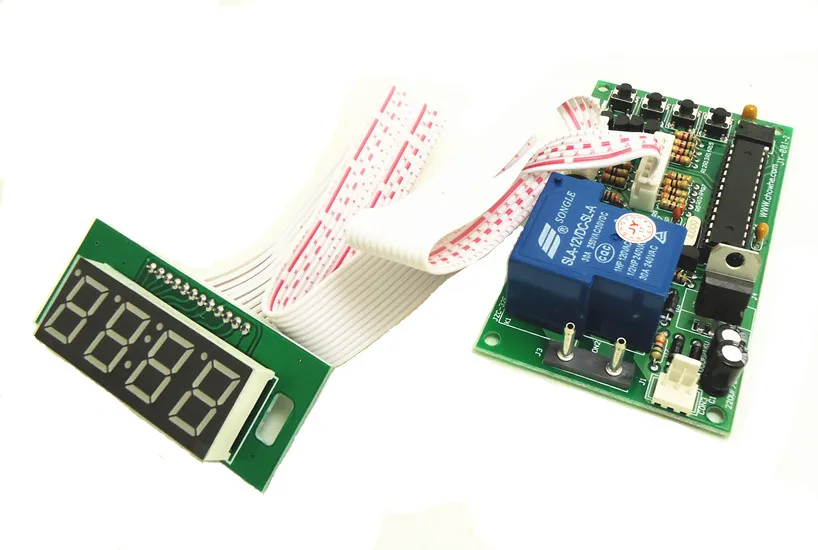

JY-30 with counting time control timing board power control board design can set the time

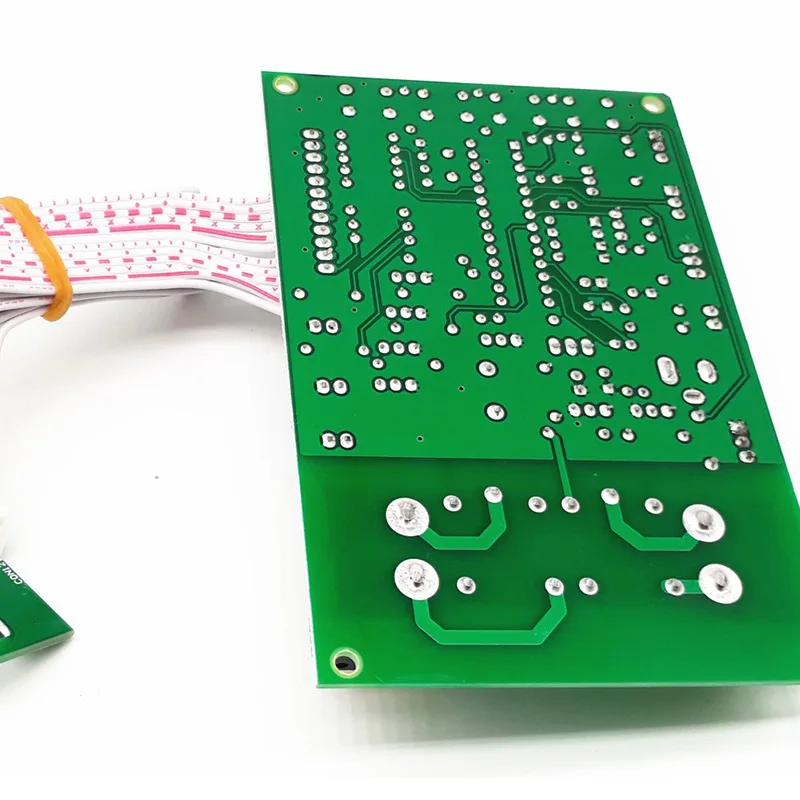

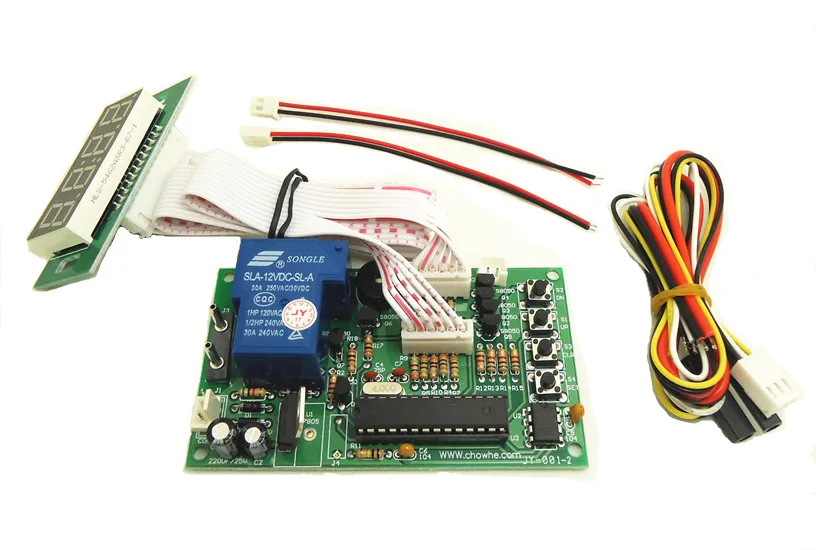

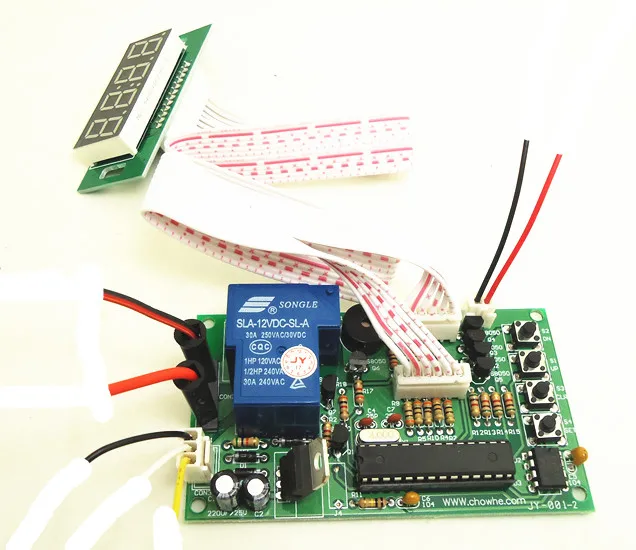

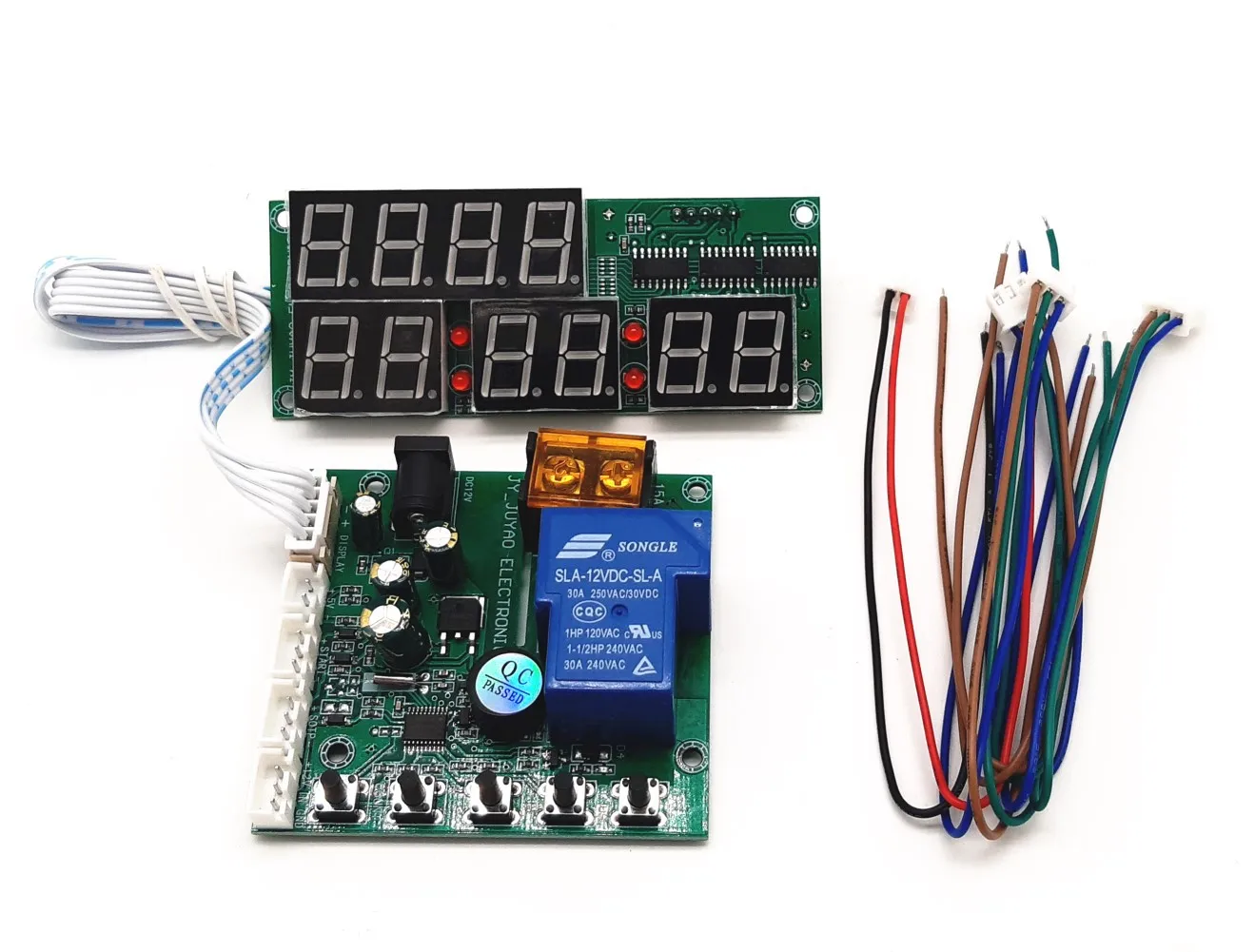

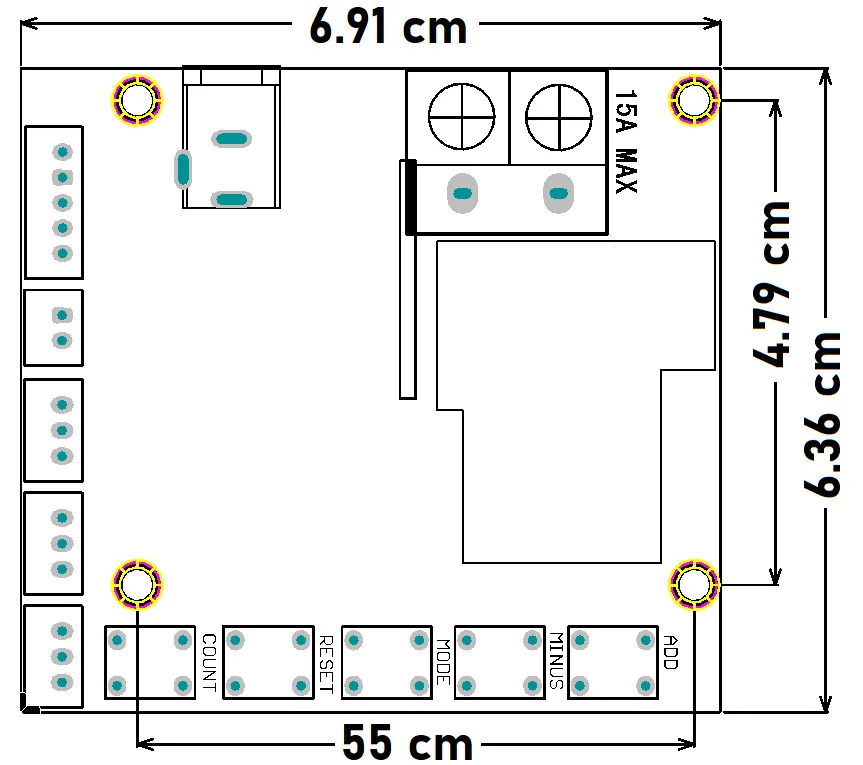

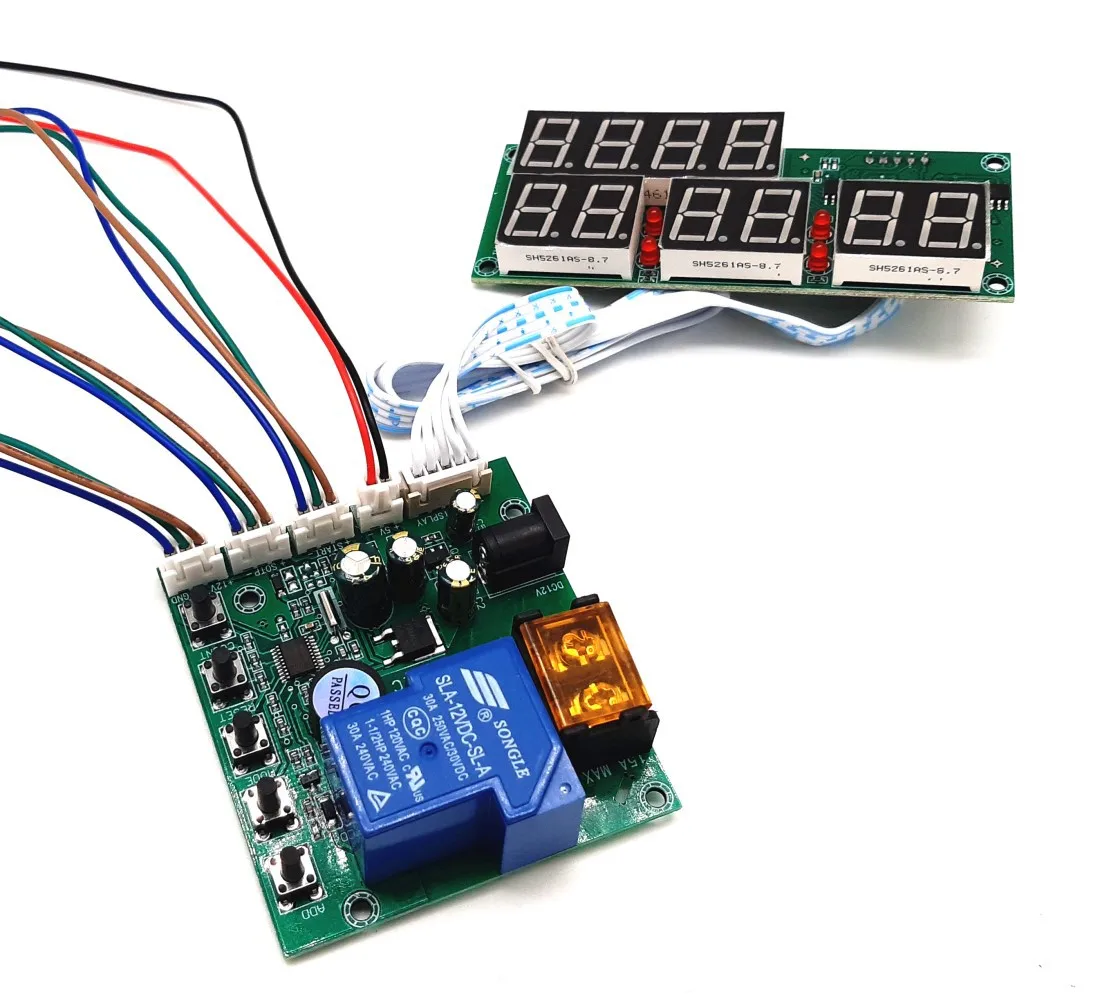

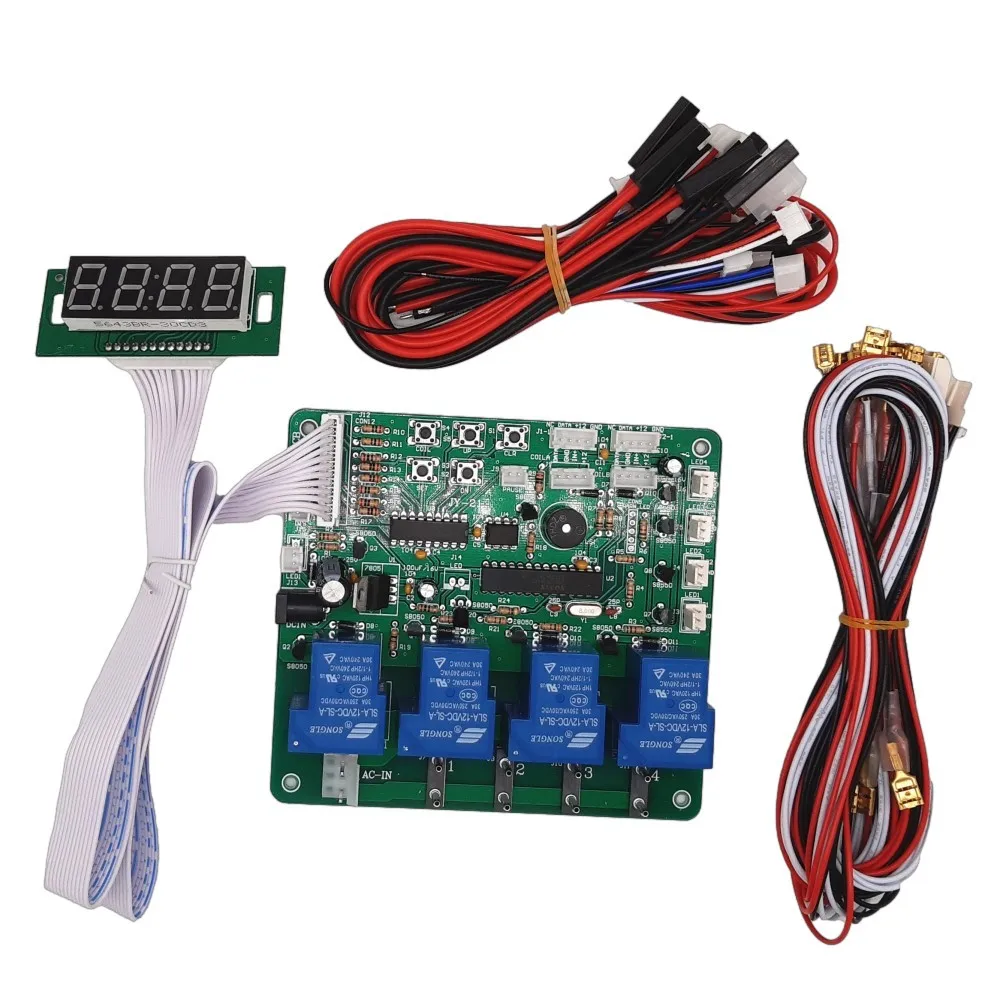

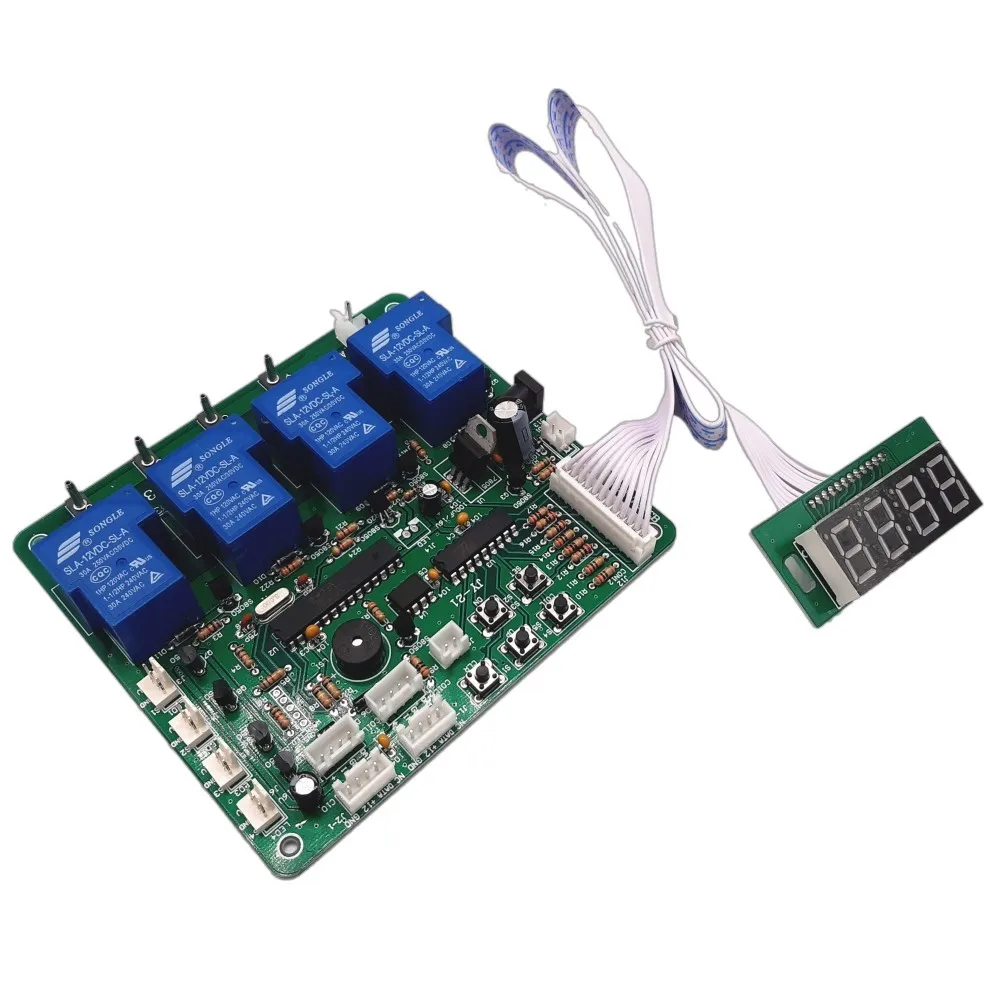

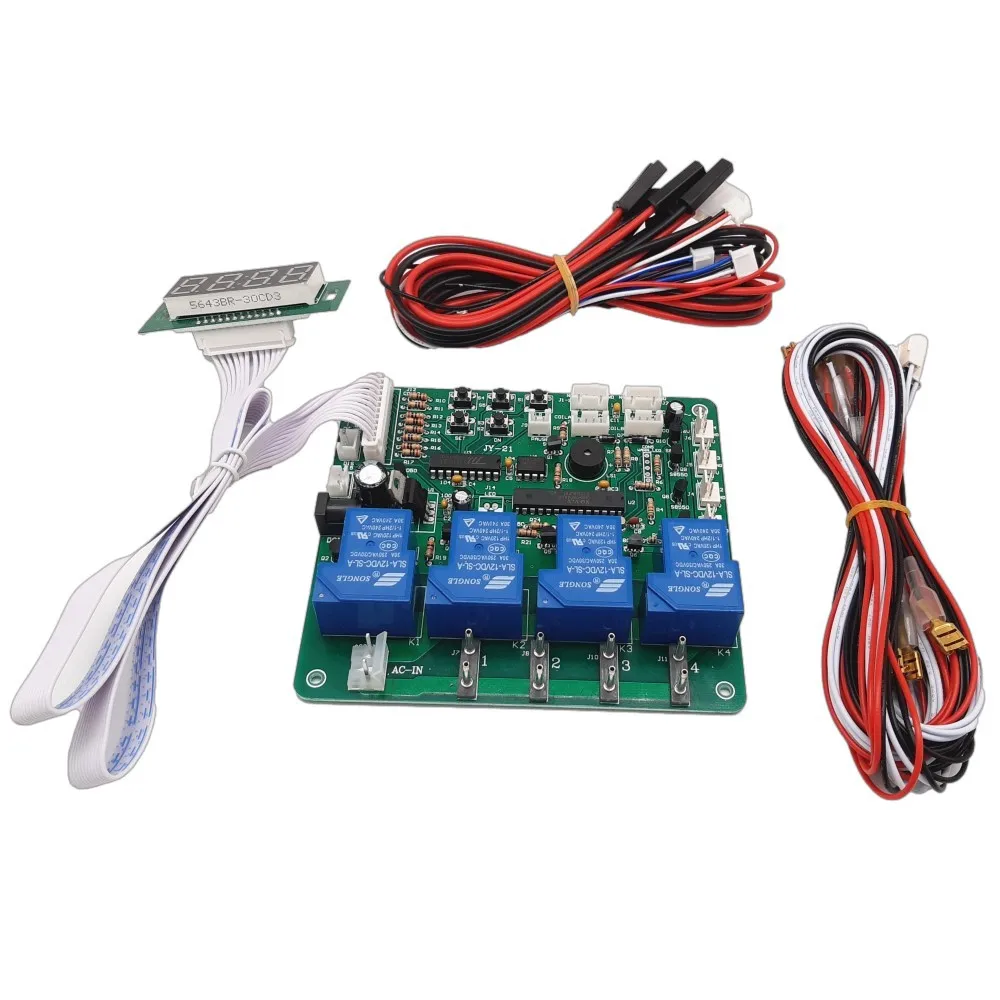

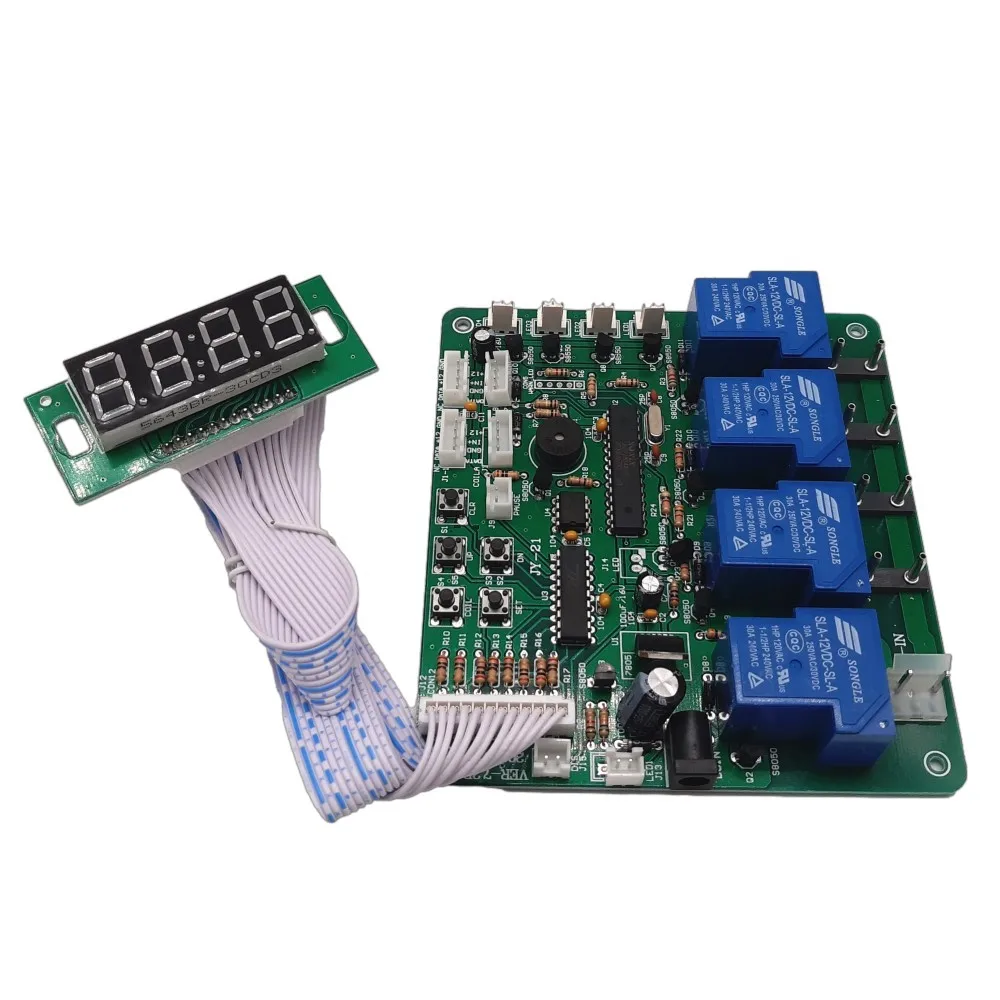

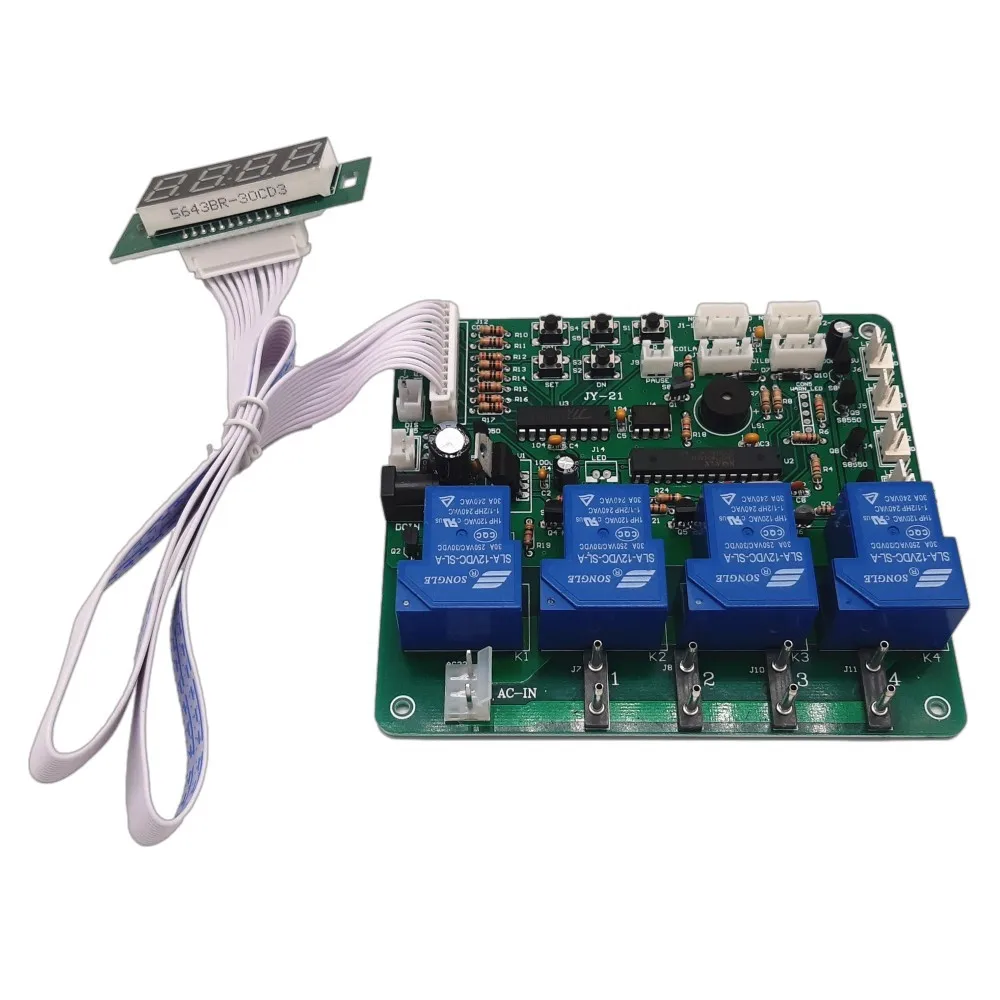

 JY-21 4-way coin-operated countdown time control board timing board 4-way relay control power supply





Input voltage: DC 12V
Output voltage: consistent with the voltage input by interface 13
Main functions: coin input → press the start button of the device → time countdown, the device works → the time ends → the device stops working
Can control 1-4 devices
Load: The sum of the equipment at work does not exceed 15A
Price and time can be set individually for each route
You can check the balance and show the remaining time
Pulse input such as coin acceptor and banknote device can be connected
Accessible counters to query income









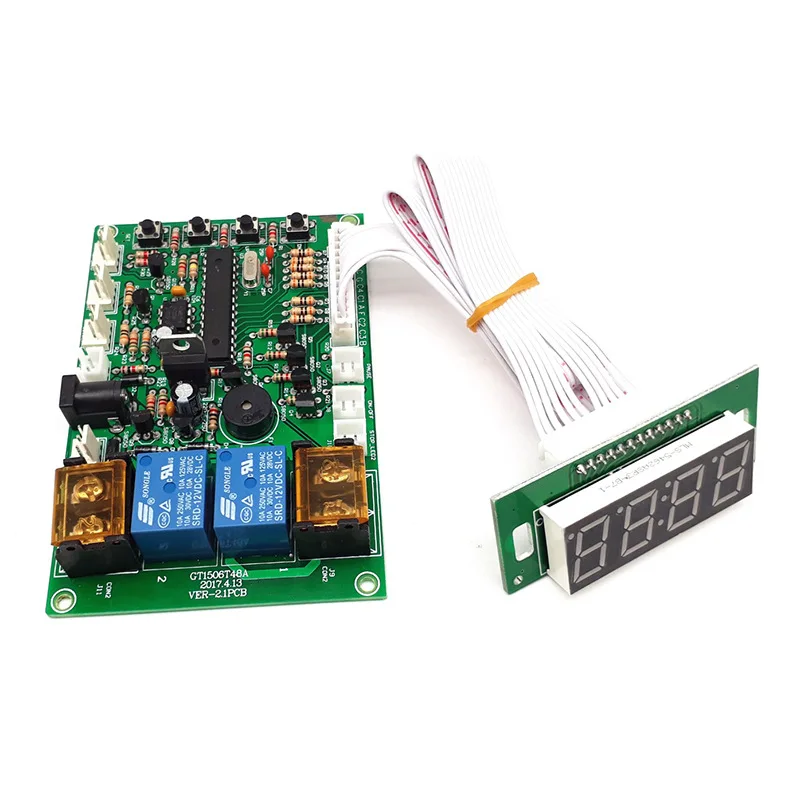

Product Description:

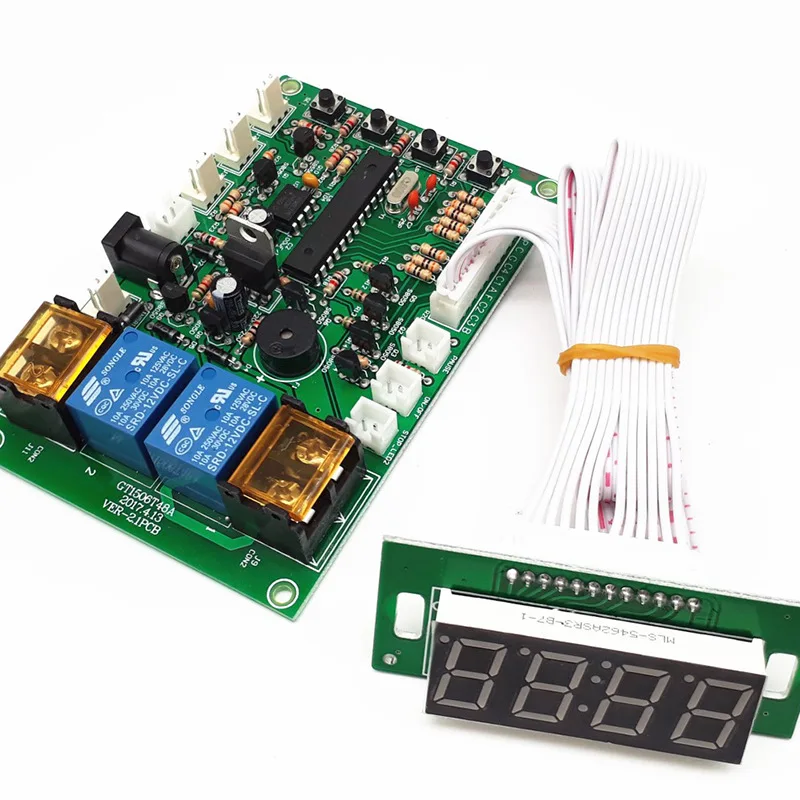

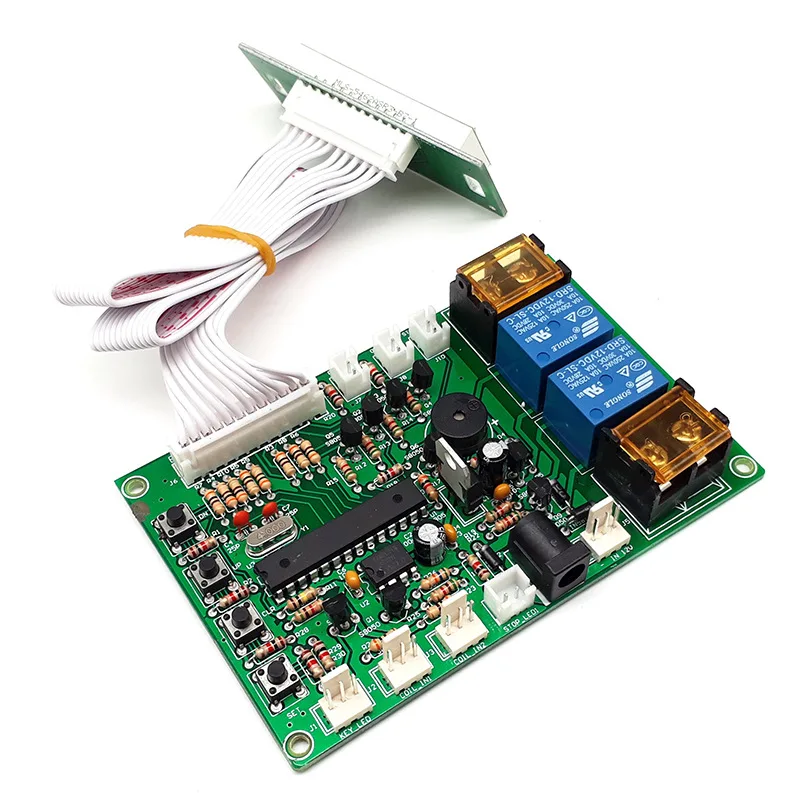

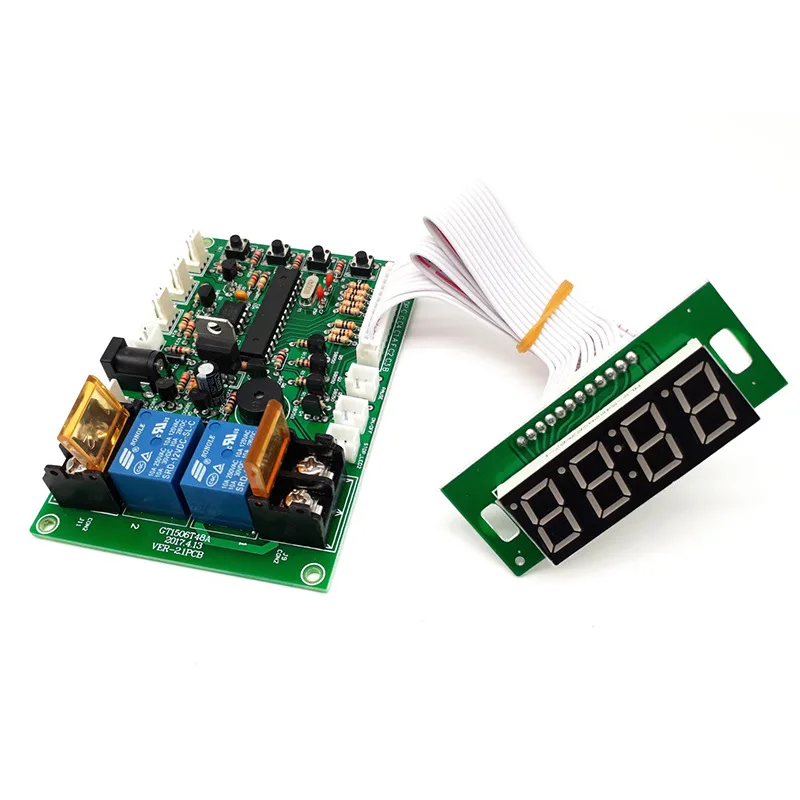

1: Display screen 2: White cable 3: Mode 01: 02 Pause interface

4: If interface 11 reaches the maximum setting value, this interface outputs 5V

5: Power output: switch control relay 1 (code: 02) 6: power output: switch control relay 2 (code: 03) 7: Input device: coin acceptor, card reader or banknote device can be connected in parallel:

Yellow: DC 12V, White: Signal line, Black: Ground line

8: DC power socket: 5.5mm*2.1mm

9: If interface 10 reaches the maximum set value, this interface outputs 5V

10: Input: Interface 6 device sensor signal input

11: Input: Interface 5 device sensor signal input

12: Mode 01: 02 Start interface

13-16: Setting buttons S4, S3, S2 and S1





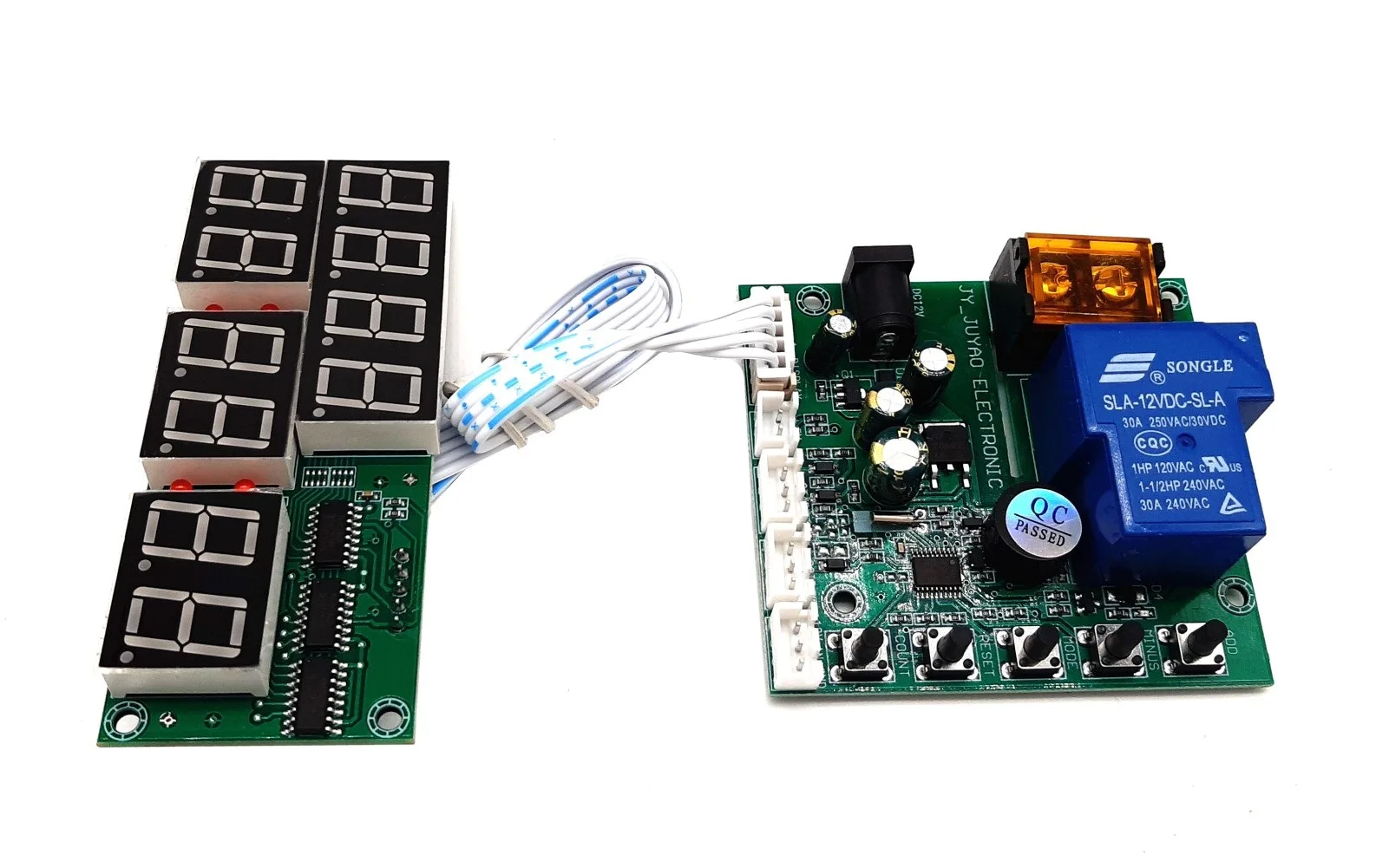

15B

2 section price and time:

First section price and time for Machine start working- First use

Second section price and time when machine is working- CONTINUOUS USE

Example setting: First use- 2 dollar for 10 mins, CONTINUOUS USE- 1 dollar for 6 mins.

Insert 2 dollars--> machine start working for 10 mins-> Insert 1 dollar in 10 mins--> add 6 mins.

User has to insert 2 dollars when machine is standby.



Detail Function



Input Voltage	DC+12V
Standby	Display shows:00:00, reply: Normal Open (NO)
Accumulated time	Yes, add time if receive signals again when time is running
Max current load	15A
How it works
Mode 1	Time runs down after receive signals-> Display shows remaining time and supply power to device-> it cuts off power after time runs out
Pause (connect a button)	Push button pause: it cuts off power when pause, display shows remaining time.                                        Re-supply power after push button pause again

















 Connection and Position

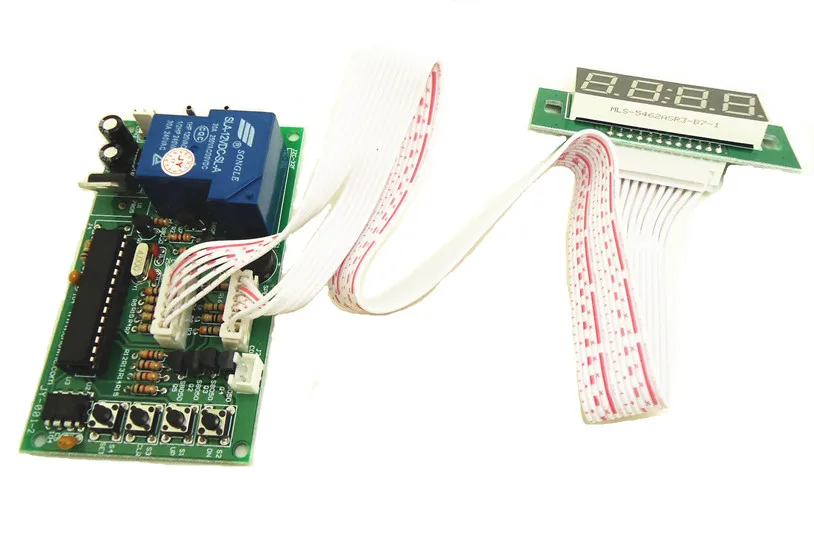

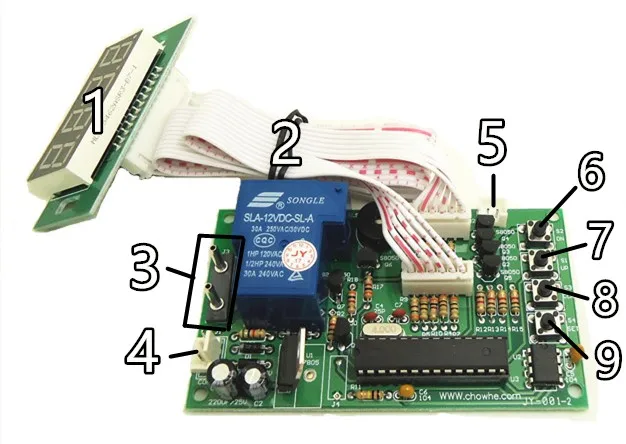

1: Display                         2: 40 cm white lead
3: Switch controls device power wire:
    control “L” or “N” of device power wire
4: To input device:
    YELLOW: DC12V, WHITE: input signal, BLACK: GND
5: Pause
6-9:Setting Buttons: S2, S1, S3, and S4

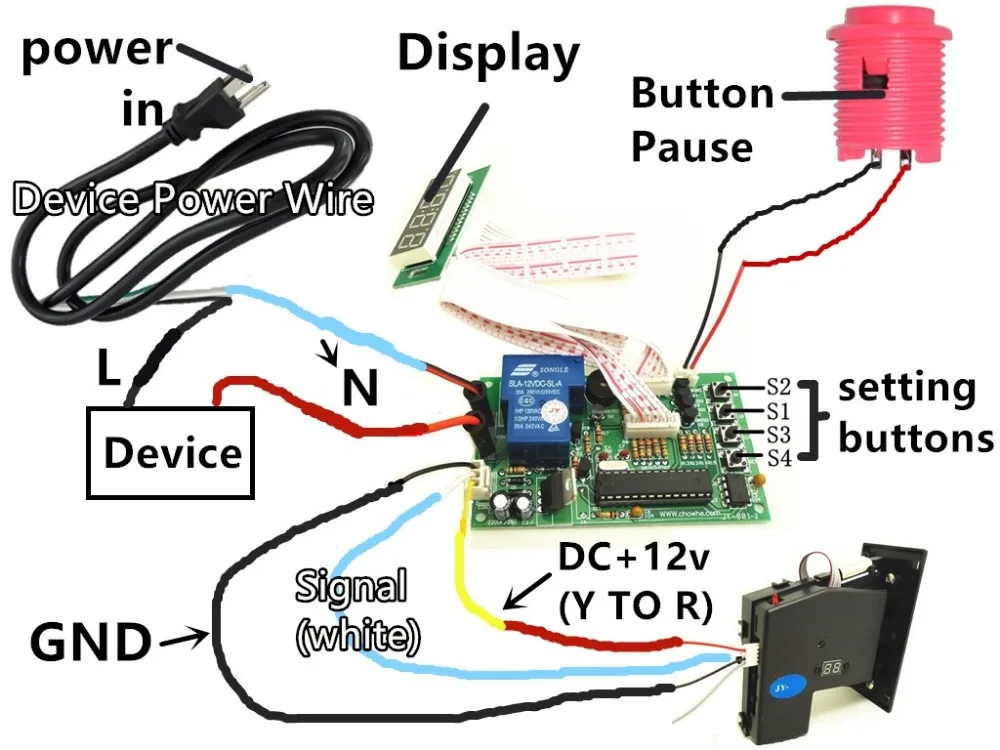

Connection Example
