Product Overview
Description
Product Display

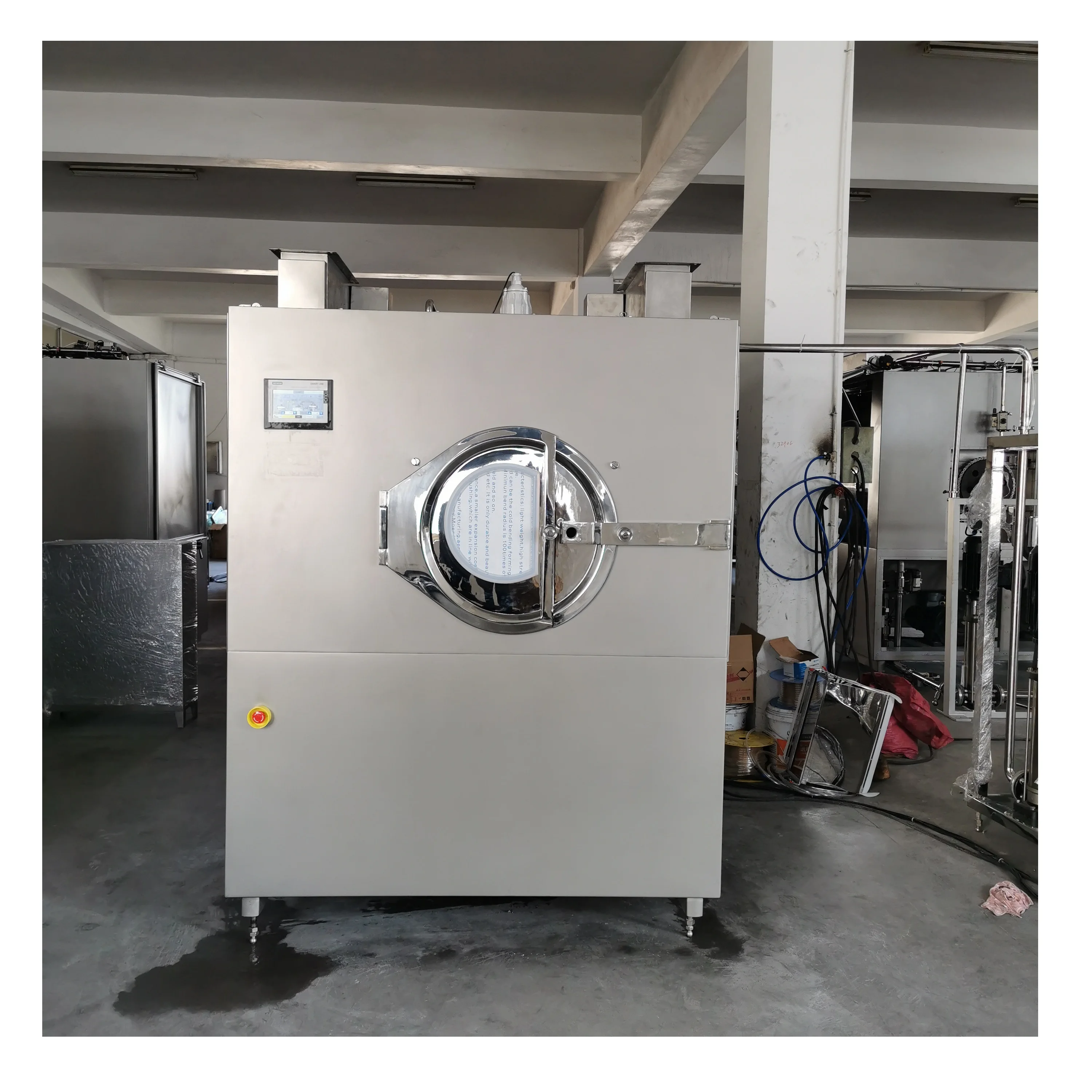

BG-150E Coating Machine

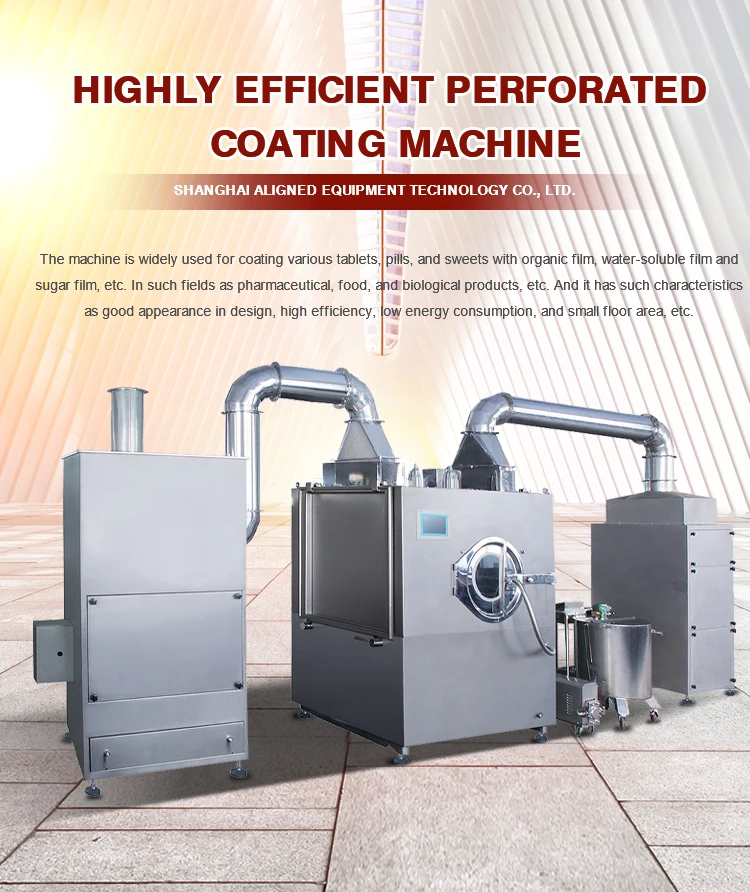

The machine is widely used for coating various tablets, pills, and sweets with organic film, water-soluble film and sugar film, etc. In such fields as pharmaceutical, food, and biological products, etc. And it has such characteristics as good appearance in design, high efficiency, low energy consumption, and small floor area, etc.
Model | BG-150E | ||
Max. Capacity | 100-150kg | ||
Rotation Speed Of Coating Pan（RPM） | 2-15 | ||
Power Of Main Machine(KW) | 2.2 | ||
Temperature range of hot air | ~800C | ||
Air flow of air inlet cabinet(m³/h) | 2356 | ||
Air flow of air exhaust cabinet(m³/h) | 7419 | ||
Dimension of main machine(mm) | 1570*1260*2030 | ||
Coating Pan Dia. | Φ1200mm | ||
Power of main machine | 2.2kw | ||
Power of air inlet cabinet | 5.5kw | ||

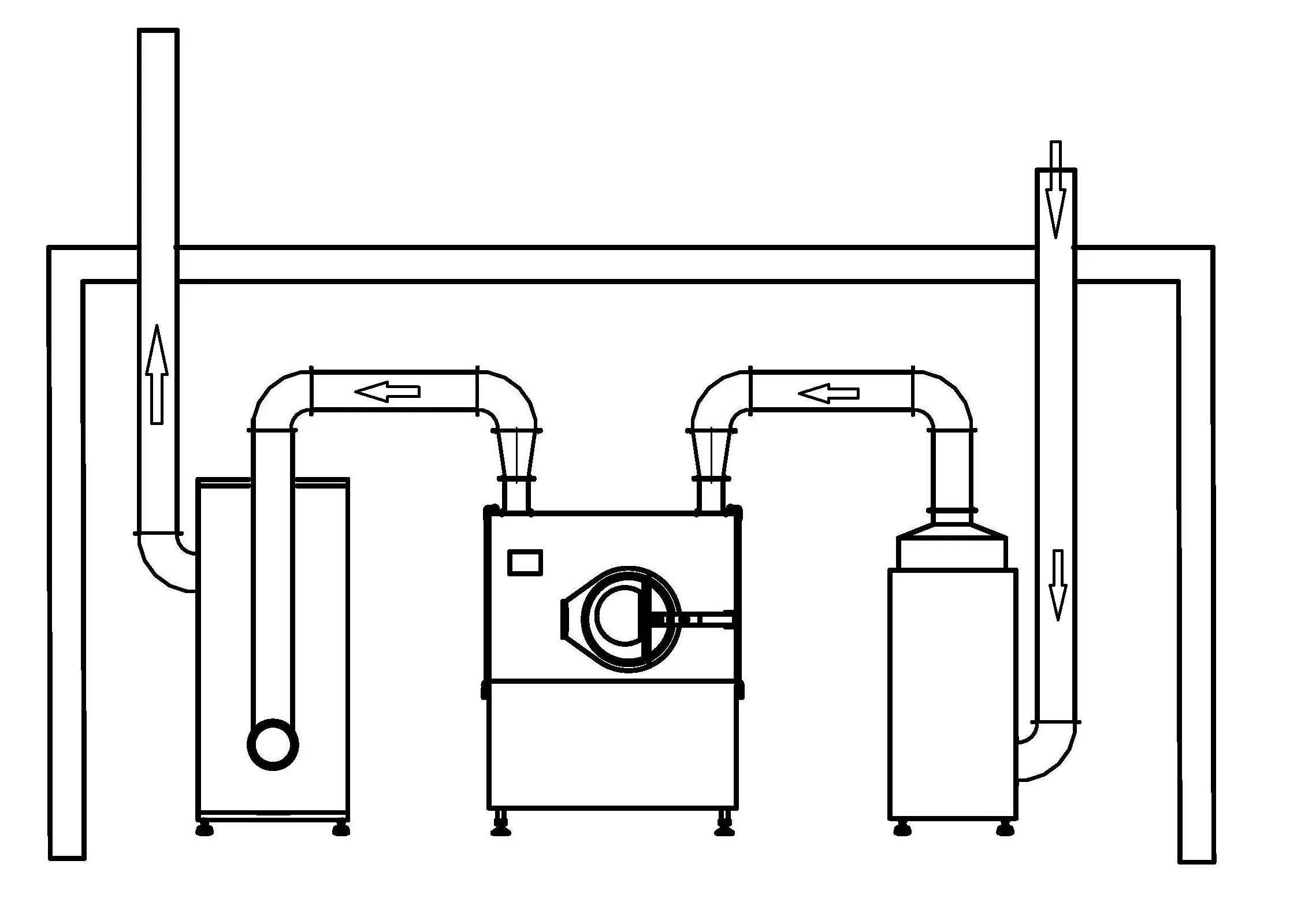

Model BG Series Advanced Film Coating Machines are widely used in pharmaceutical, nutraceutical, herbal, chemical, food and confectionary industries. This machine features high quality, advanced design and is manufactured in conformance to the cGMP standard. Our film coating machines are ideal equipment for coating tablets, pills, capsules or candies with organic film, water-soluble film, slow and controlled release film, and sugar film. They are high-efficiency, energy saving, and easy to clean, with minimal waste material. Tablet coating machines work on the simple principle of applying the coating solution through a set of spray guns on a group of tablets inside the coating pan in a bed that may move horizontally or vertically. A concurrent flow of heated air helps to evaporate and dry the coating solution. The coating is equally distributed to the tablets through the rotation of the pan. The rotating motion causes the tablets to tumble within the pan. Coating solution is applied to the rotating tablet bed by spraying it in atomized form, which provides a faster and more even distribution. Spraying nozzles are positioned inside the drum to evenly coat the tablets as they are tumbling inside

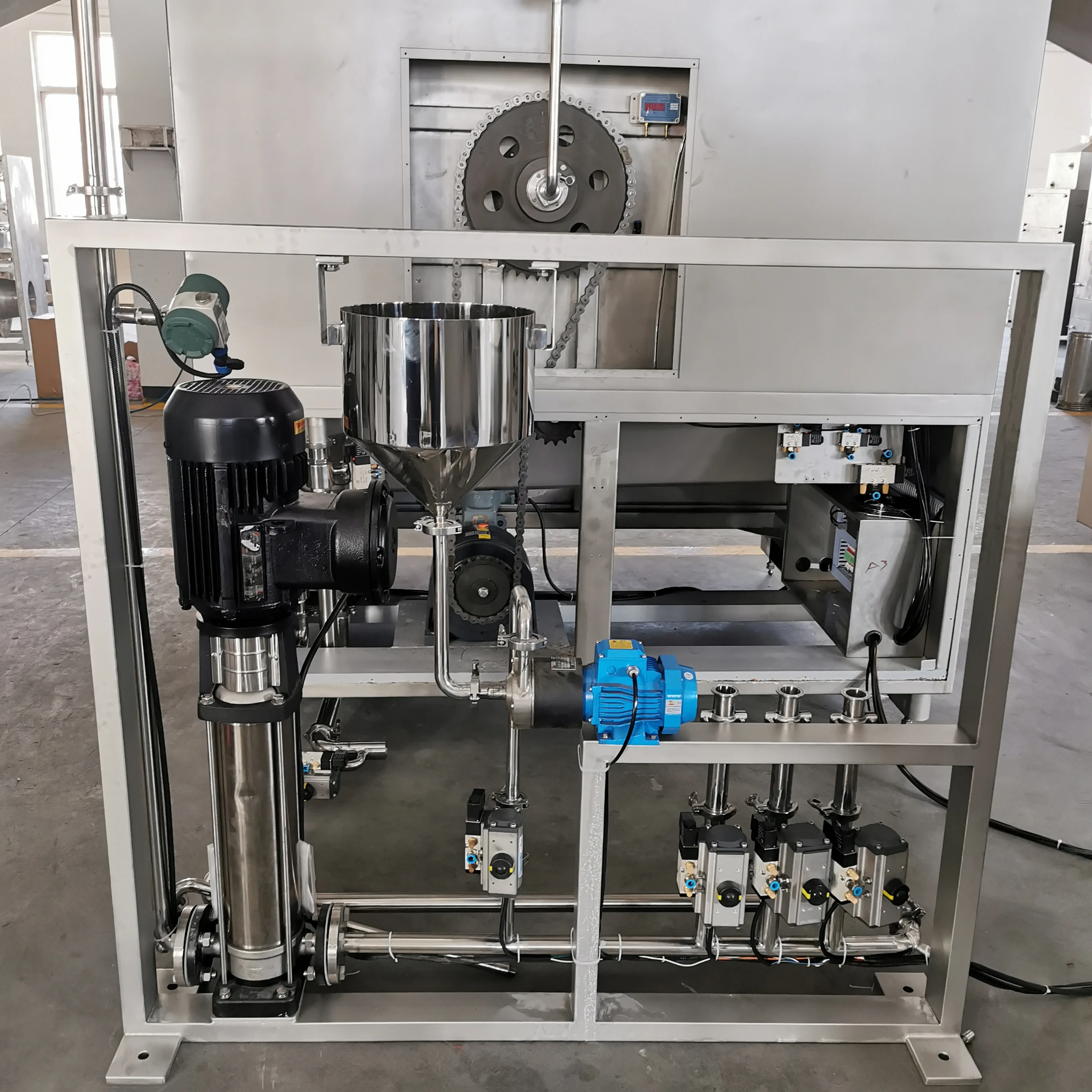

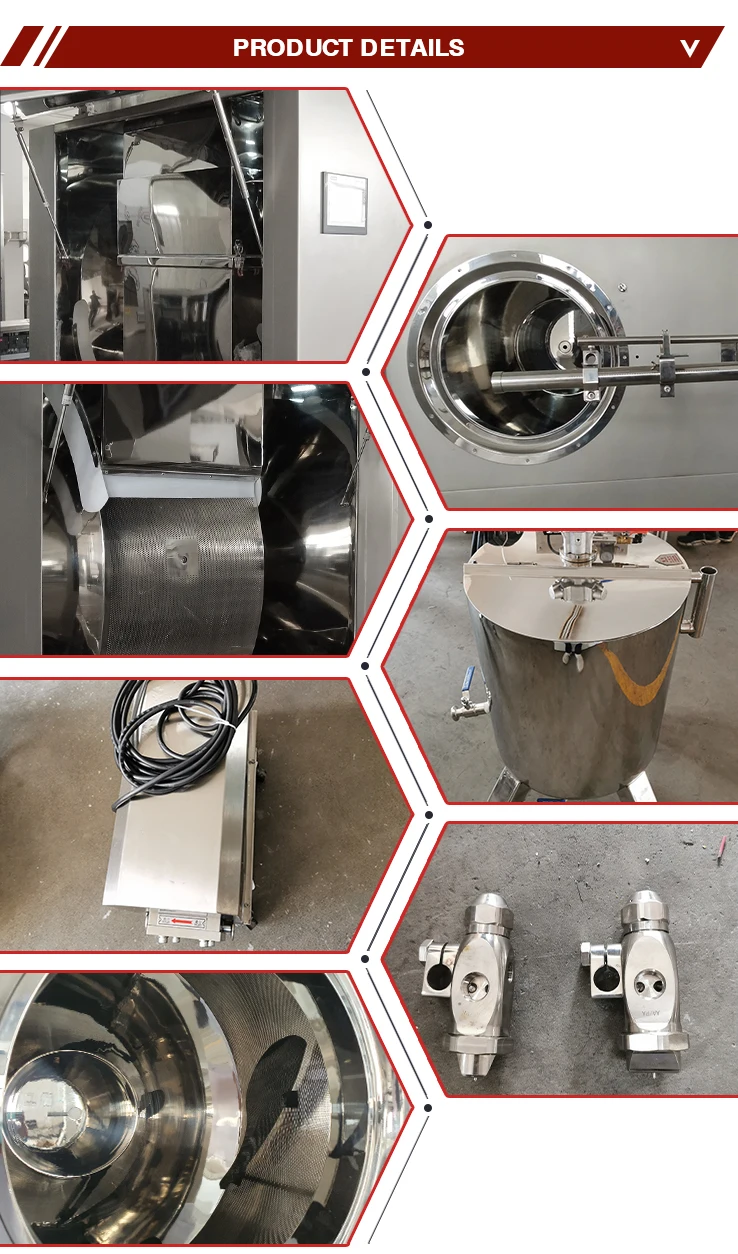

1.The distance between the spray gun and the coating pan and the spray angle can be adjusted, and the air pressure and flow can be adjusted to fully meet the requirements of different situations.
2.The adjustment lever of the spray gun is marked with a scale to record the adjustment position during production.

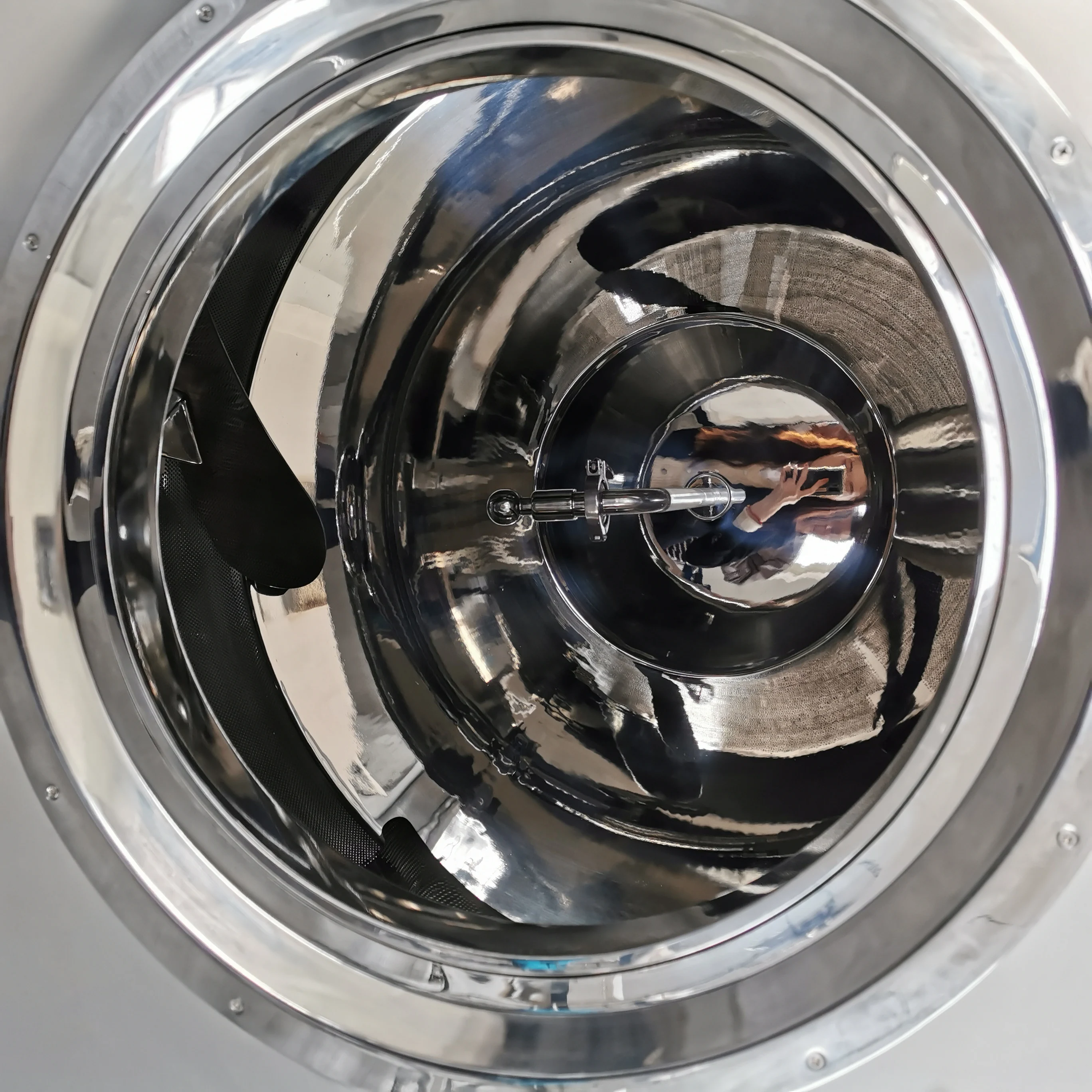

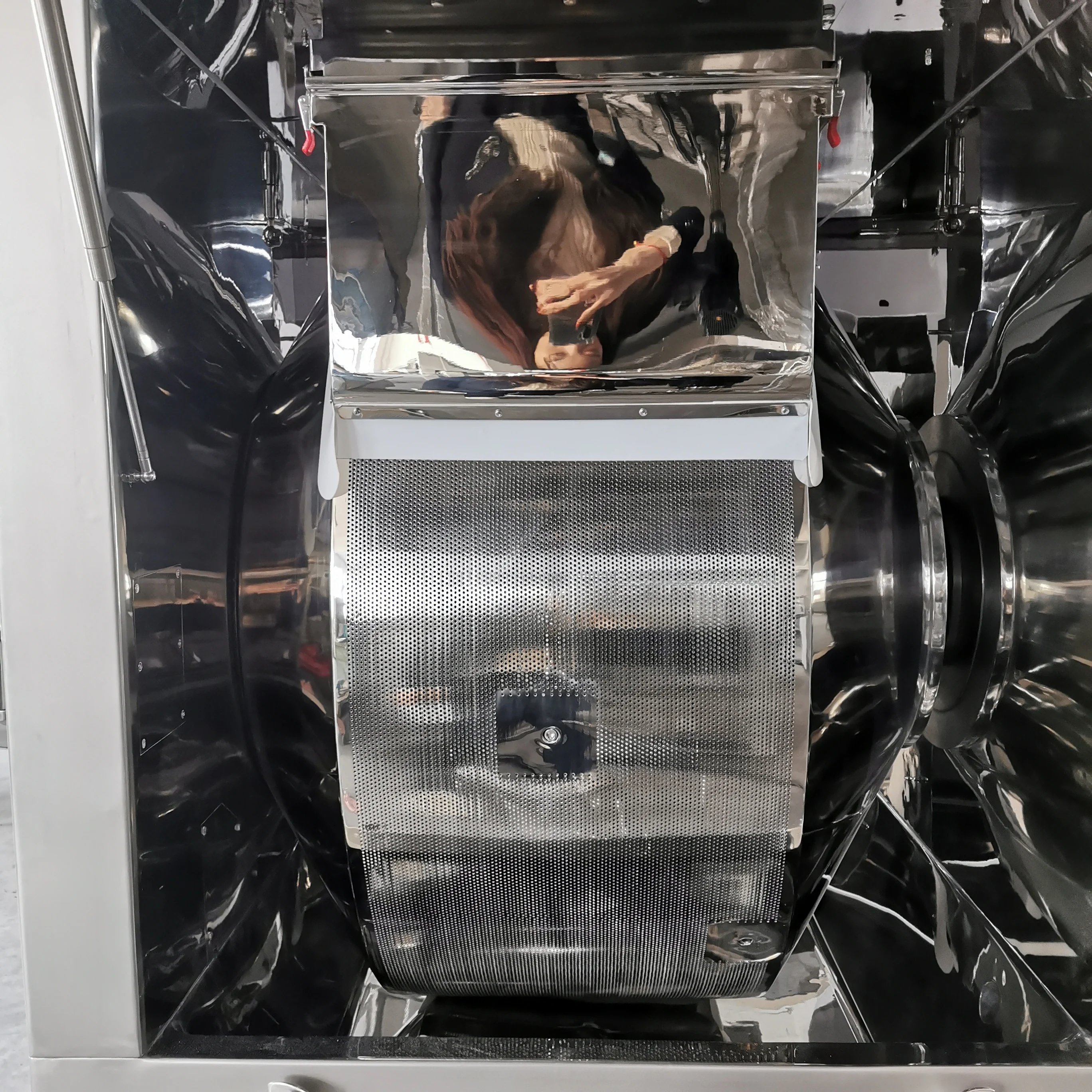

3.The coating pan adopts a 2.5mm perforated, which effectively allows the hot air to pass through the mesh holes, improves the drying efficiency, and at the same time can discharge the powder generated by the collision of the tablets.
4.Negative pressure function to prevent the operator from blowing out the powder and being inhaled when the operator opens the door.
5.The two doors adopt an openable structure, which can be opened and closed freely, and the cleaning is convenient and quick.
6.Optional one-way and three-way cleaning systems.
7. The pan can option fully perforated or nonperforated on central section.
8. It’s can set the spray rate and spray pattern
