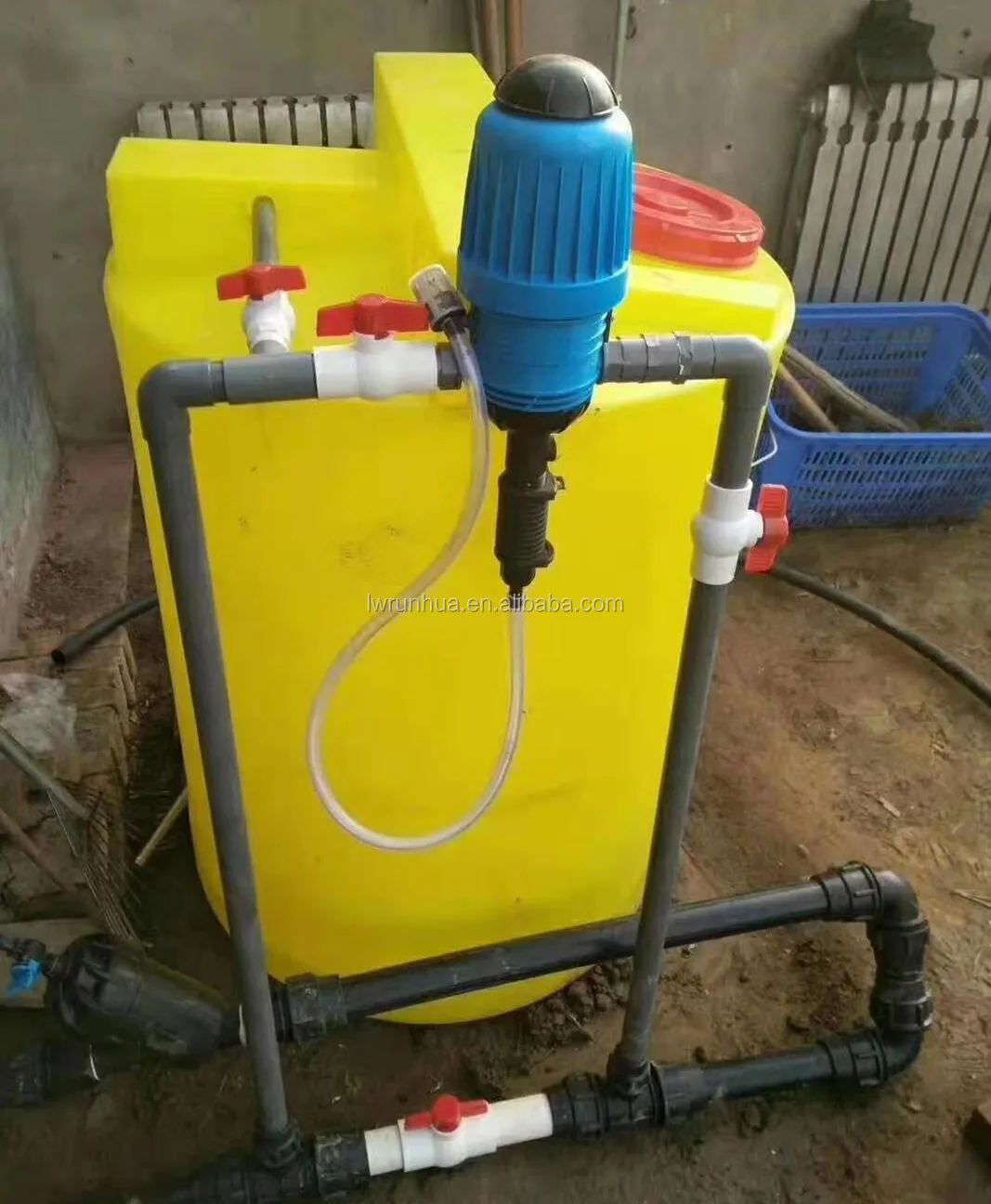

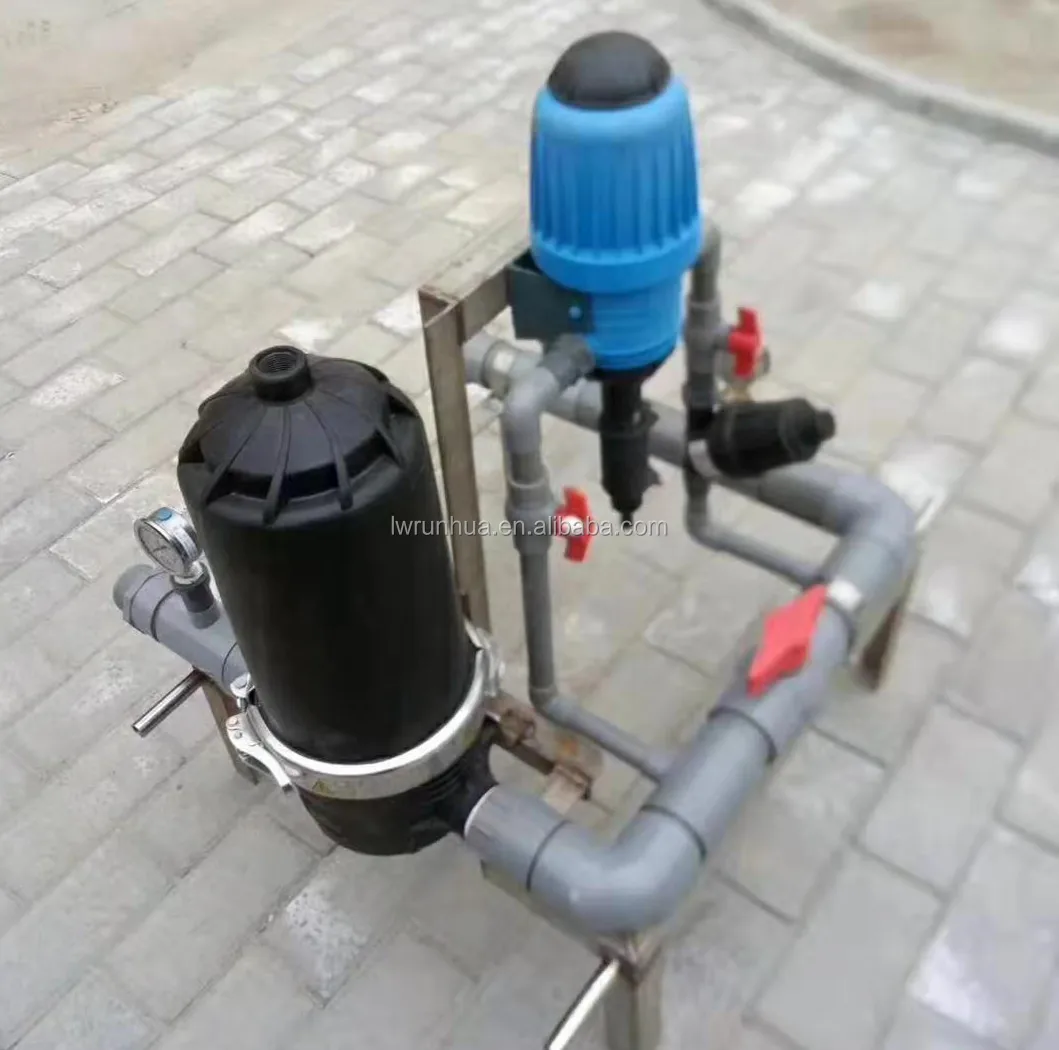

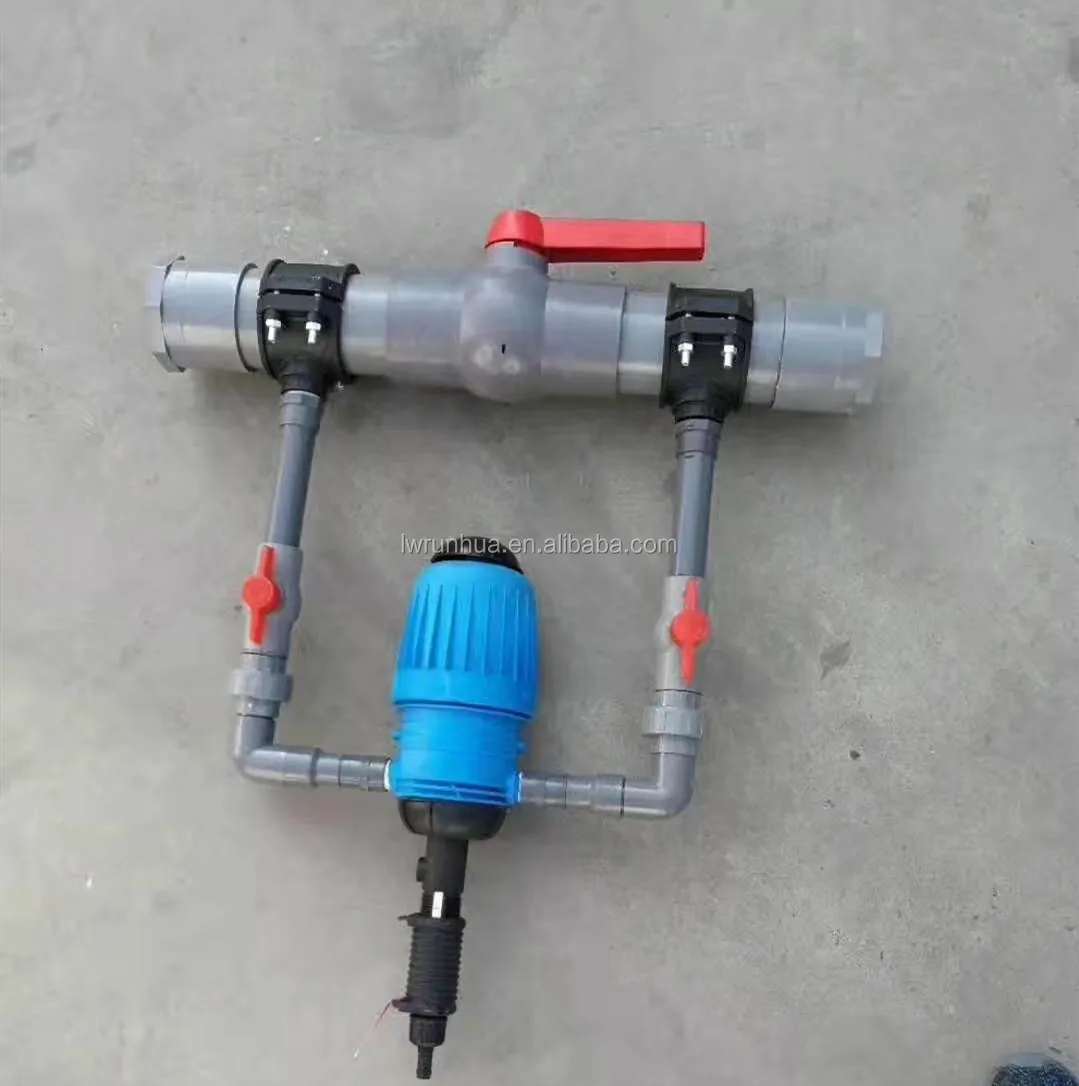

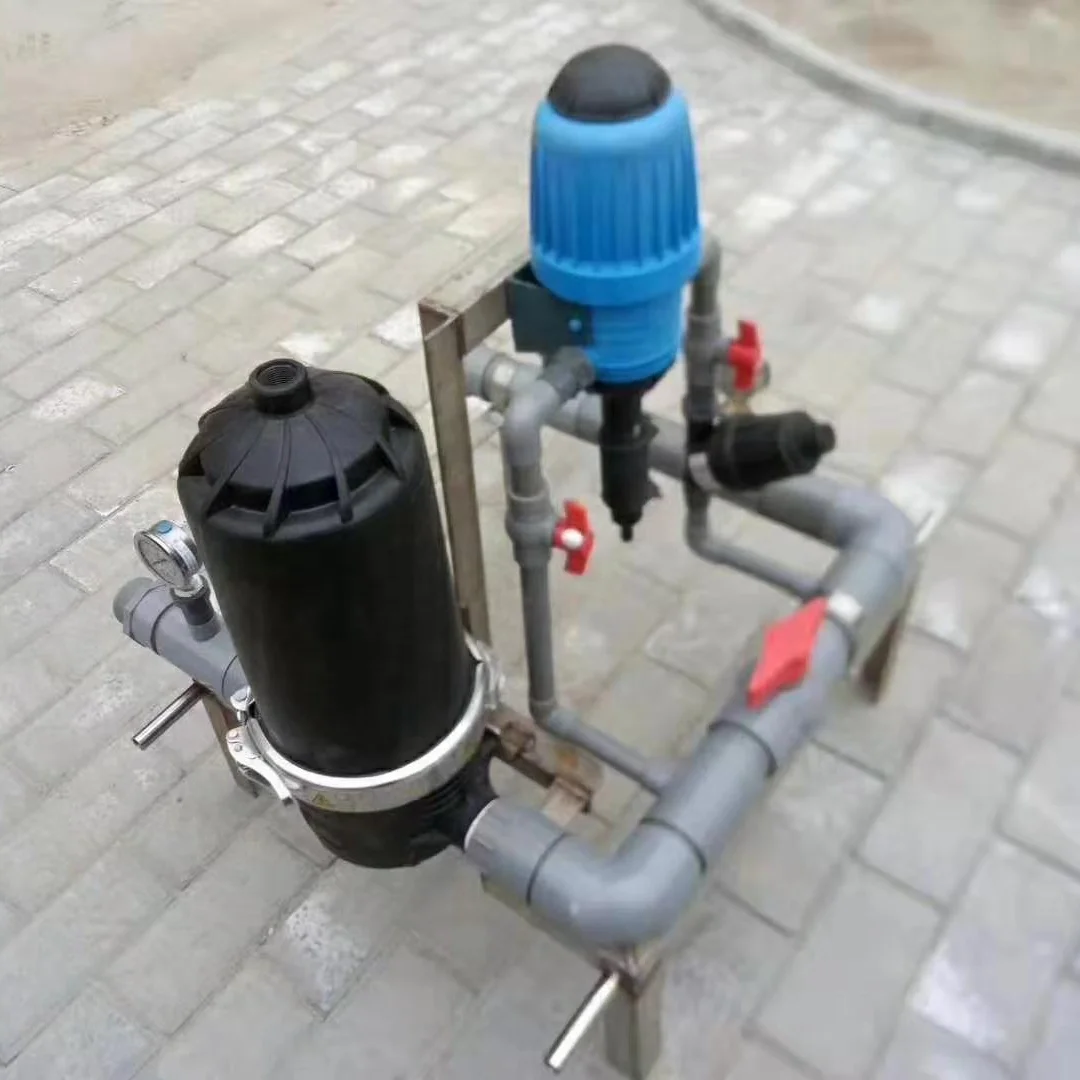

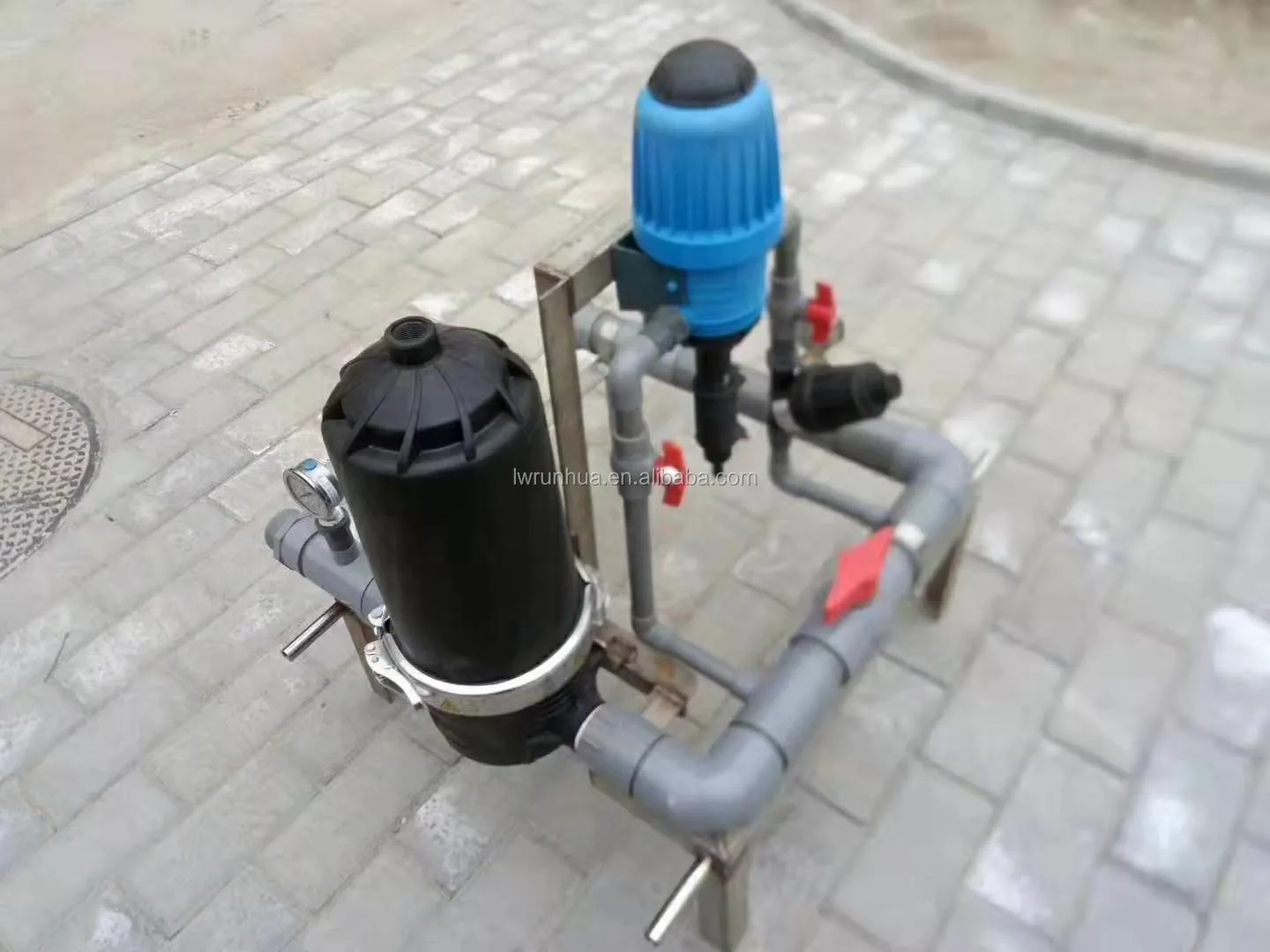

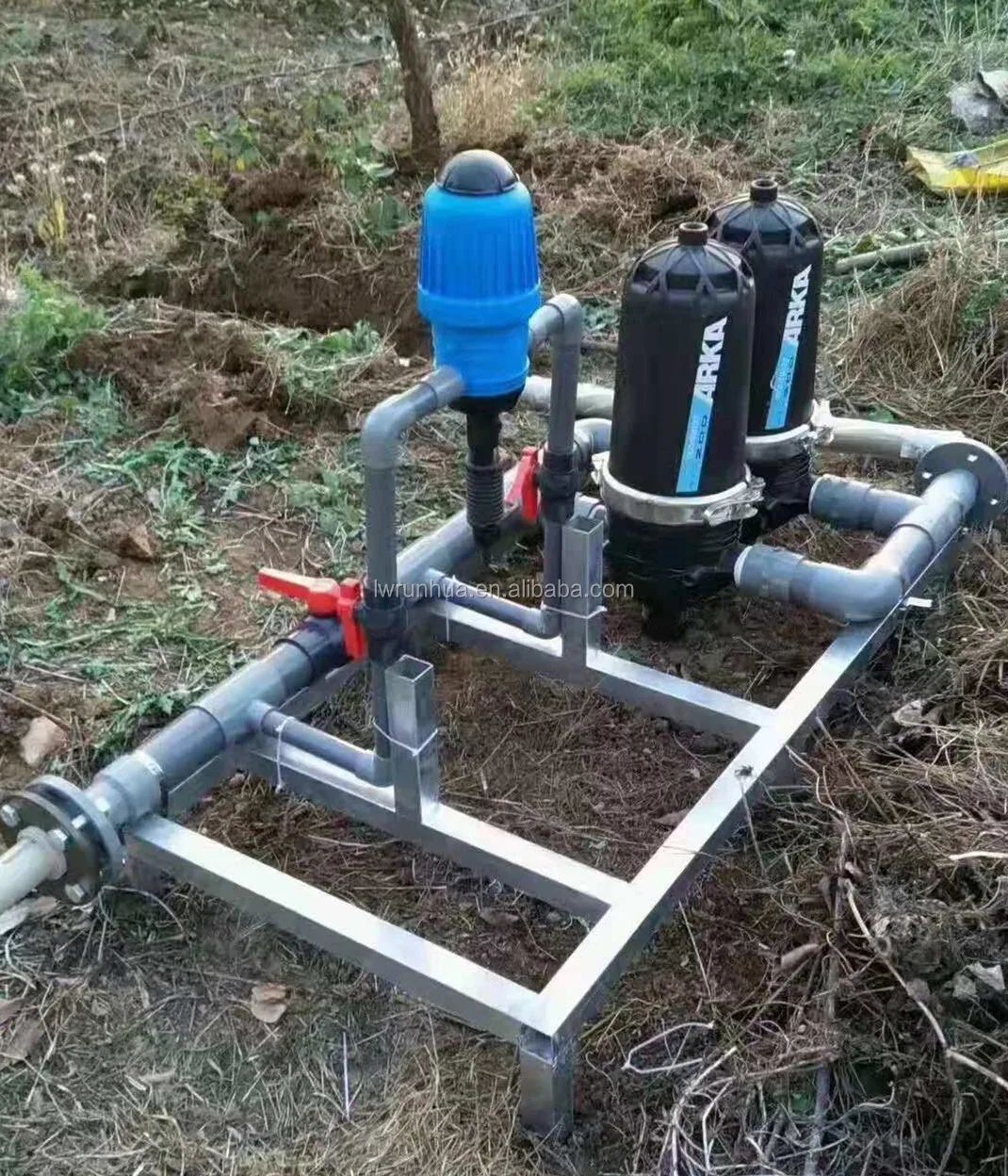

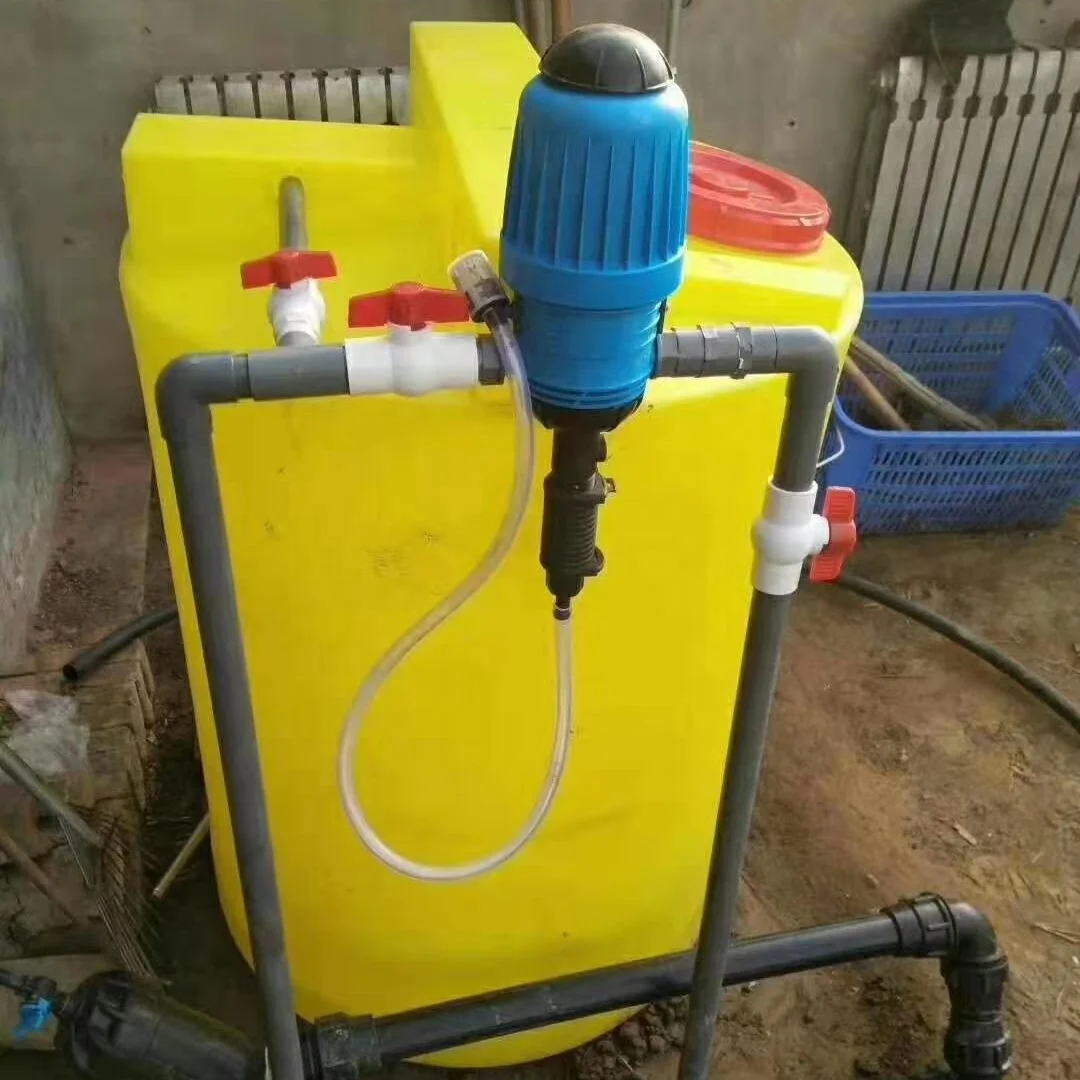

Proportioner Fertilizer Agriculture irrigation hose Venturi Injector Fertilizer Sprinkler Irrigation System

 Specification:

Proportional Range:  0.4%-4%

Flow-rate range: 20-2500 L/H

Flow temperature: 4℃-30℃

Working water pressure: 0.2-6kg

Caliber of water inlet and water outlet: 32mm/25mm

Working Principle:

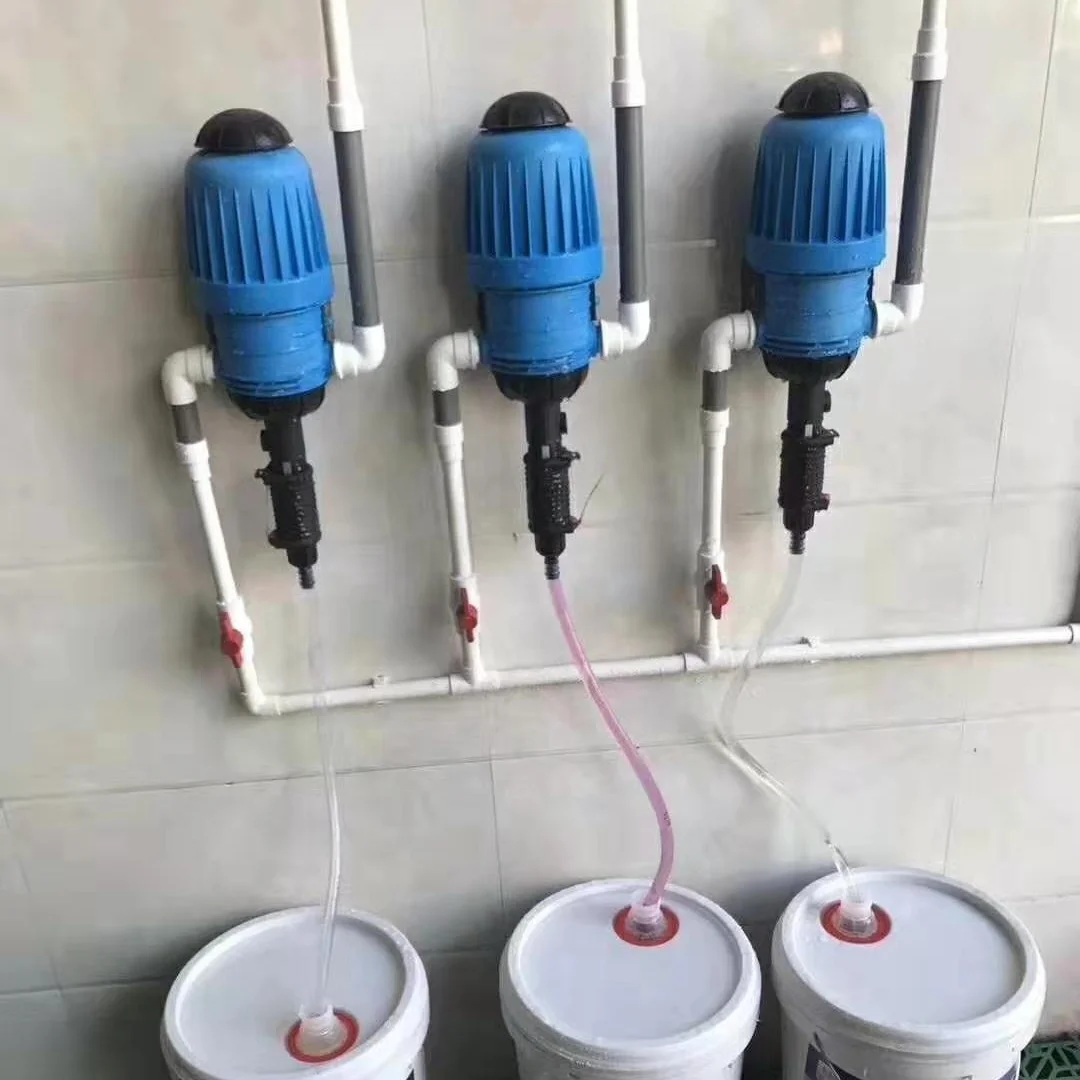

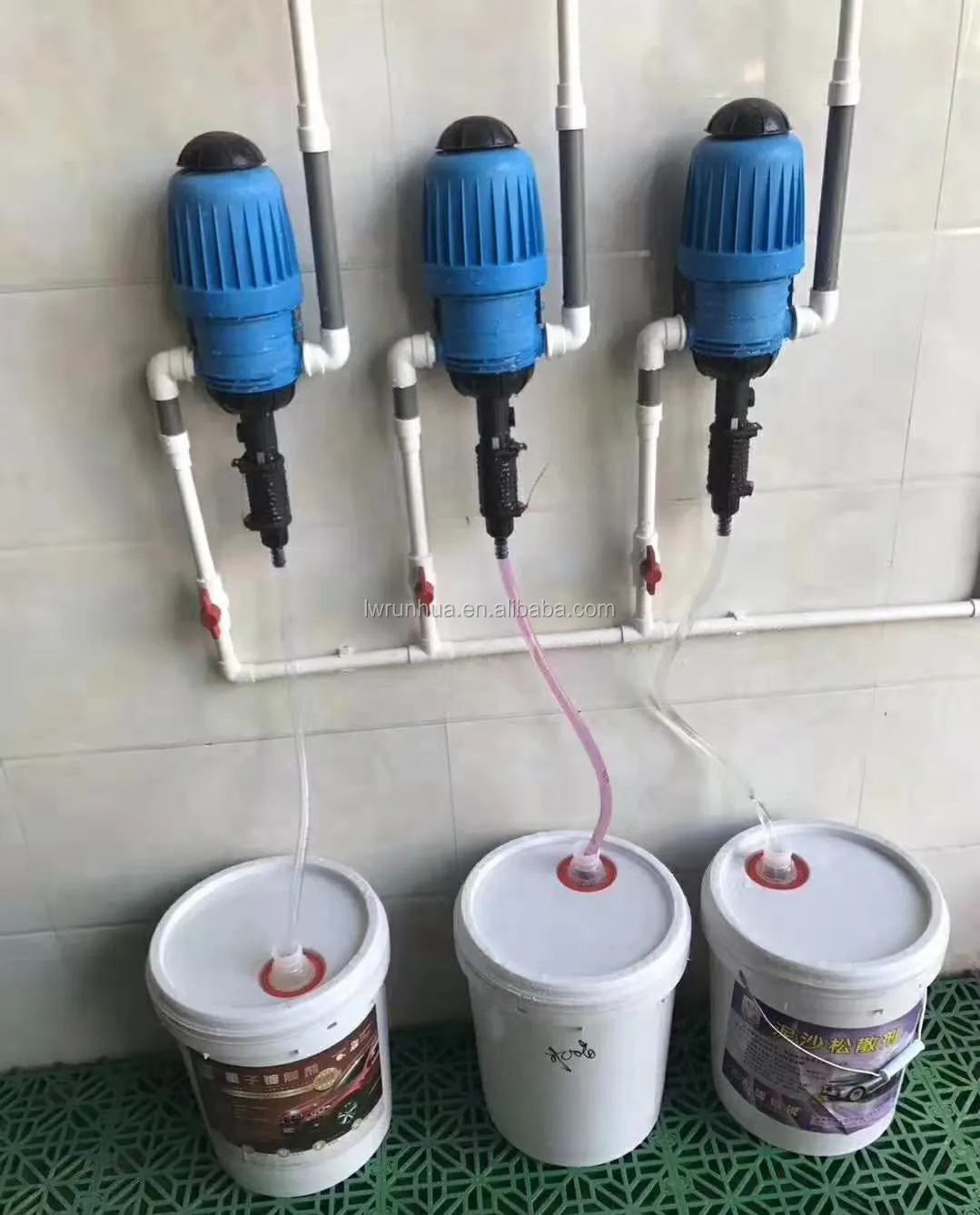

The proportional pump takes the flowing pressure water as power, having small water pressure loss, without any other power facilities. It uses water power of the proportional pump as engine which drives the piston and the connecting rod inside the proportional pump, sucks up the liquid additive directly and makes it dissolve in the water flow. This device moves up and down in a cylinder. When pressing out the water, it uniformly sucks the additives loaded at the bottom of the container into the water flow through a tube. Repeat the up-and-down motion until the effect is achieved that the additive is added to the flowing water evenly and constantly.

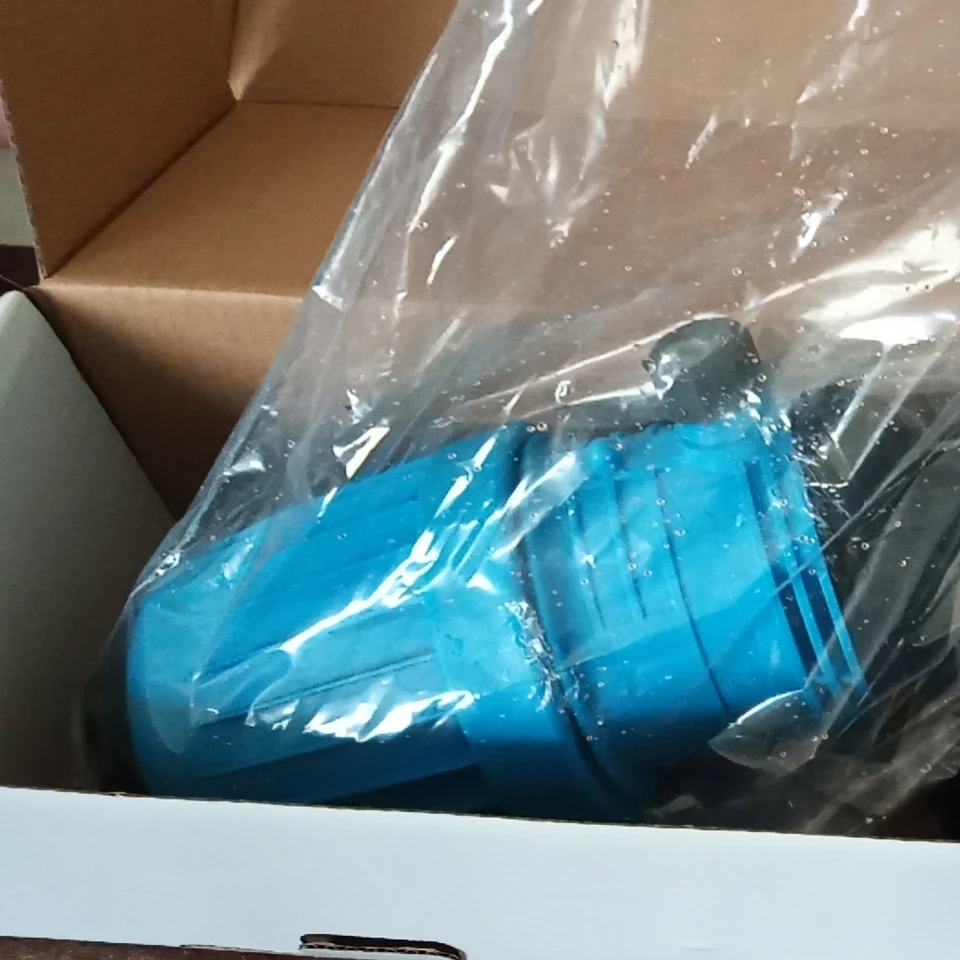

 Packing by Carton, 1 pc in a carton.

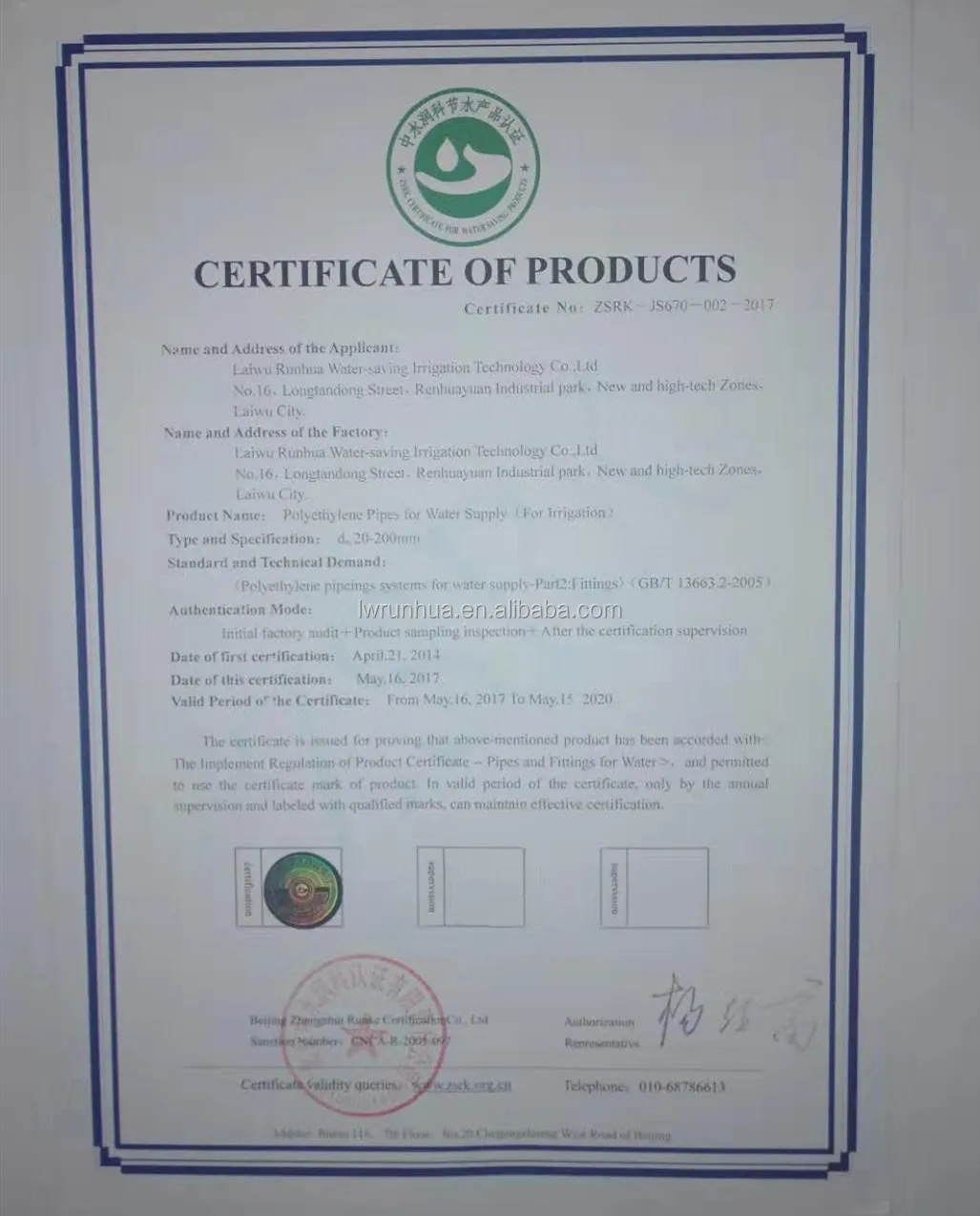

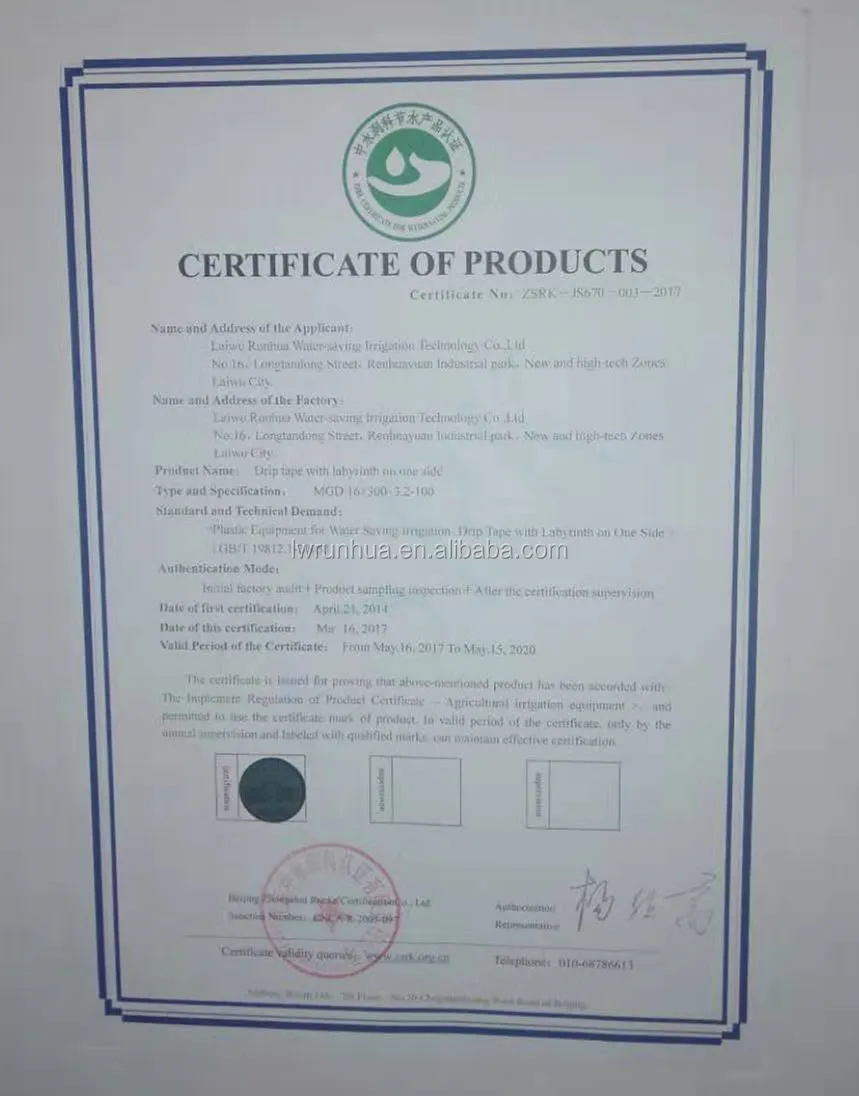

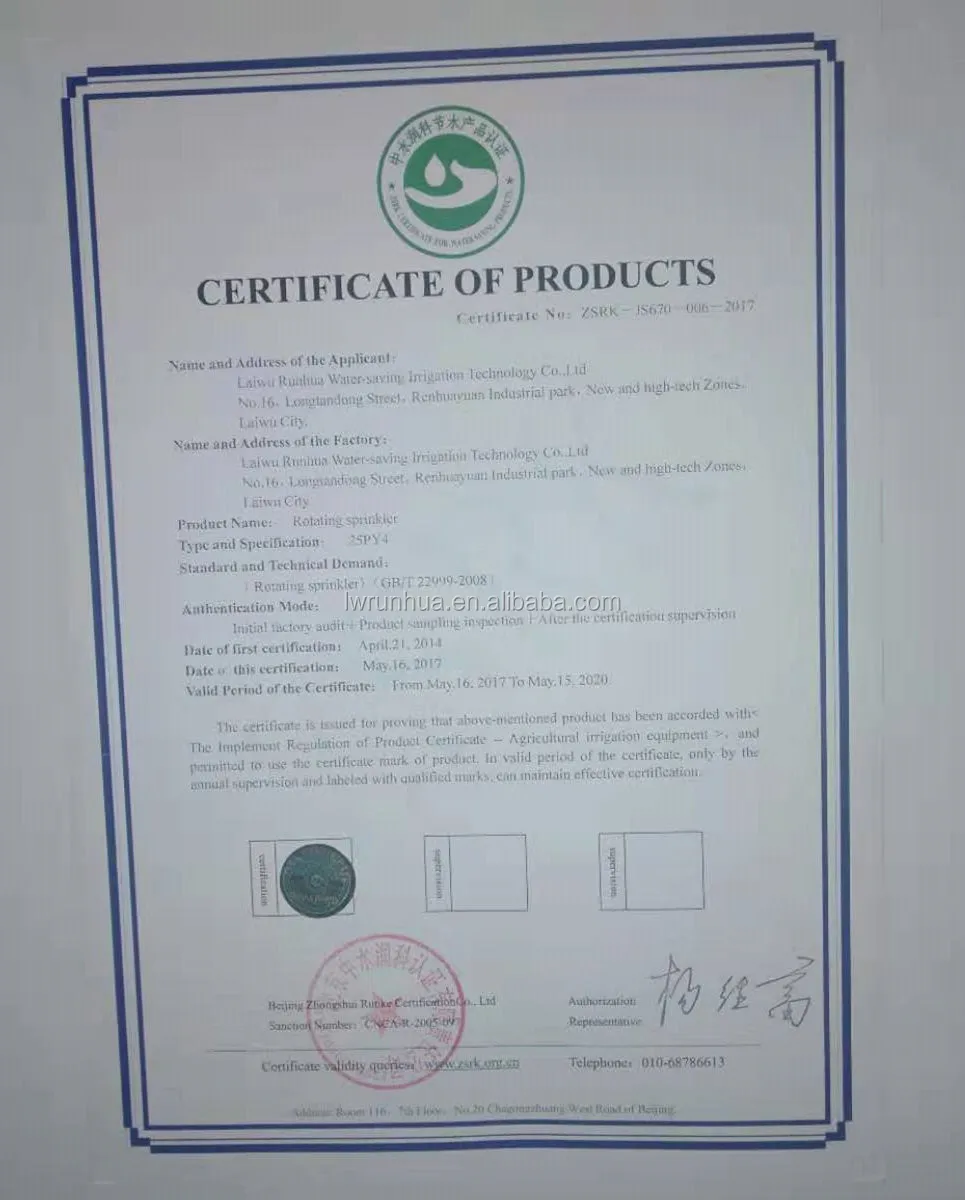

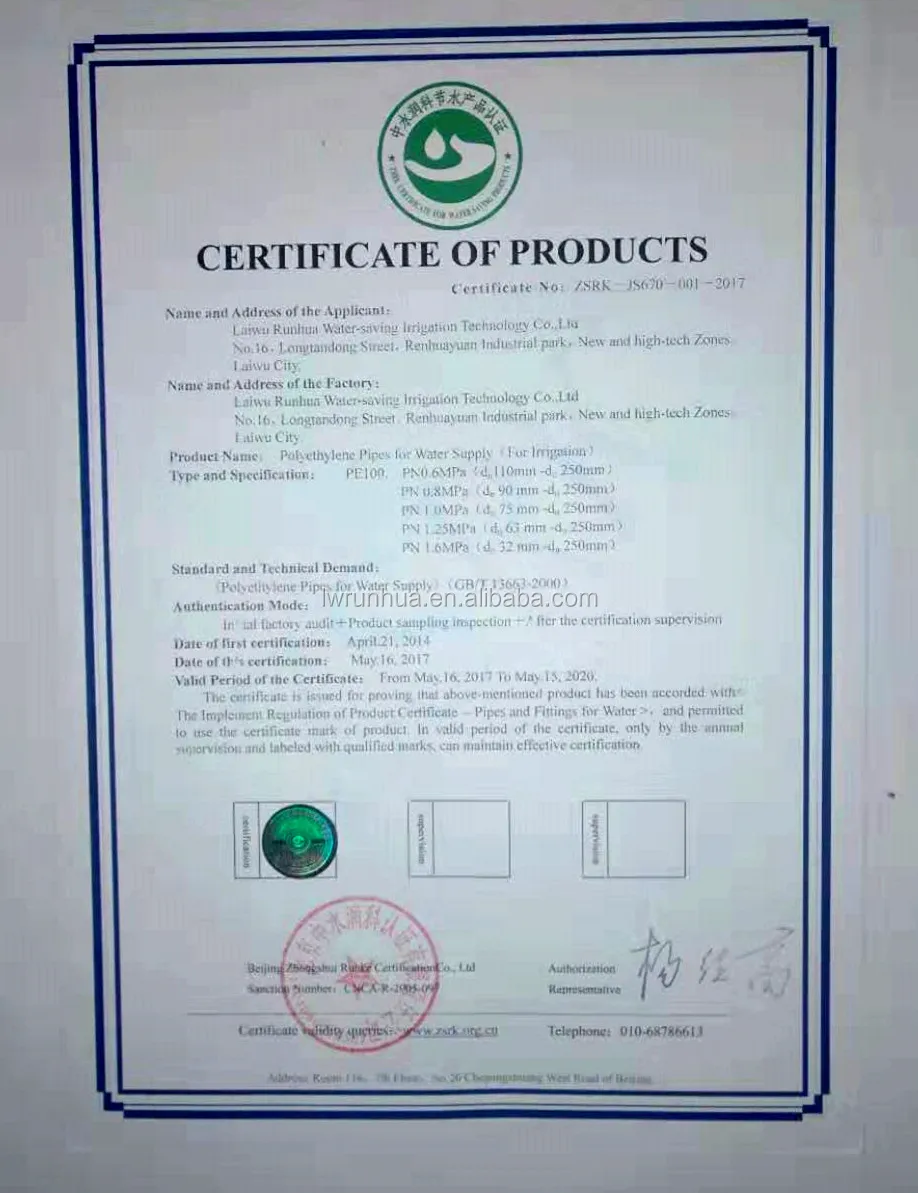

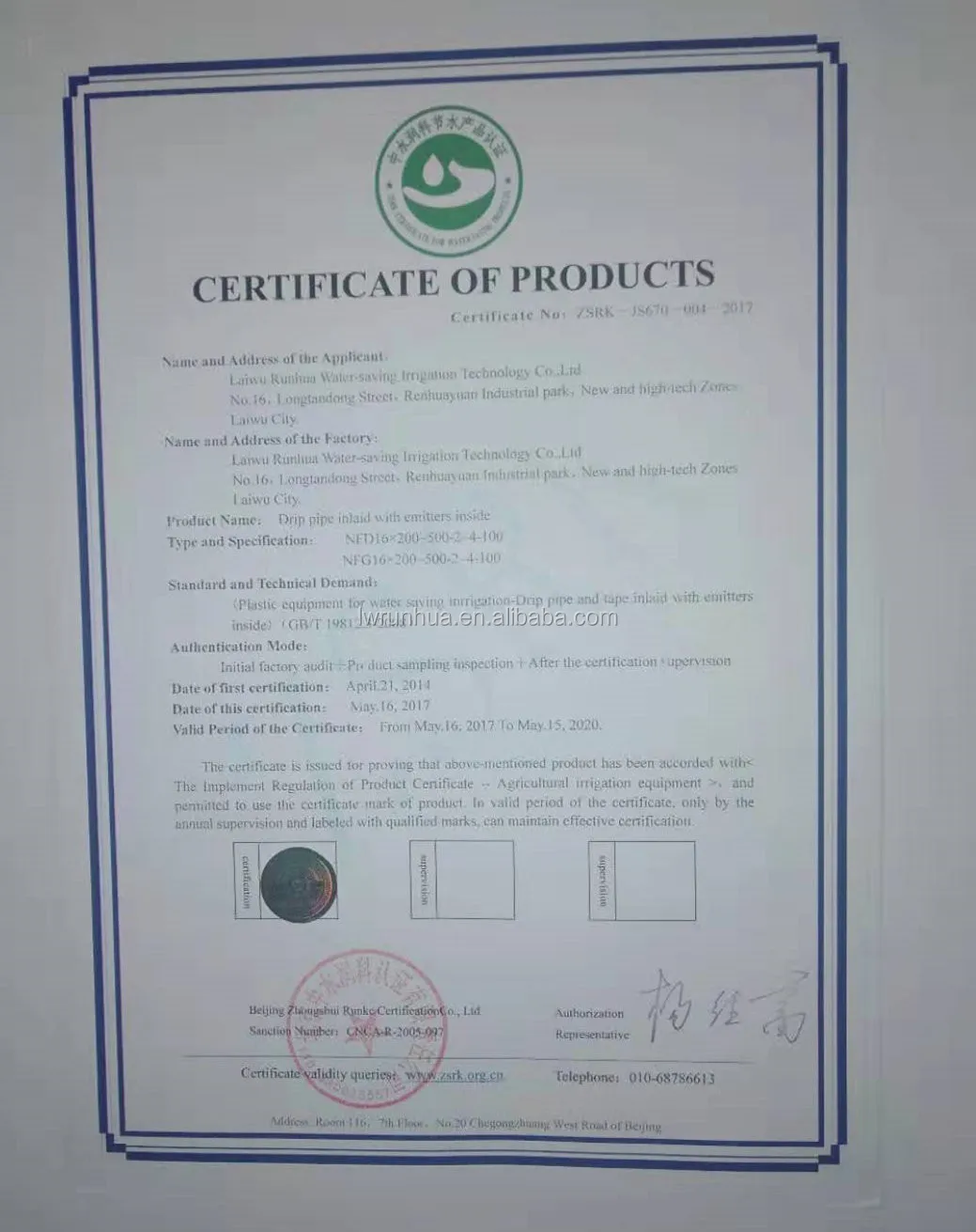

Certification:

ISO9001:2008

IS04001:2015

CB/T 28001-2011 IDTOHSAS 18001:2007
