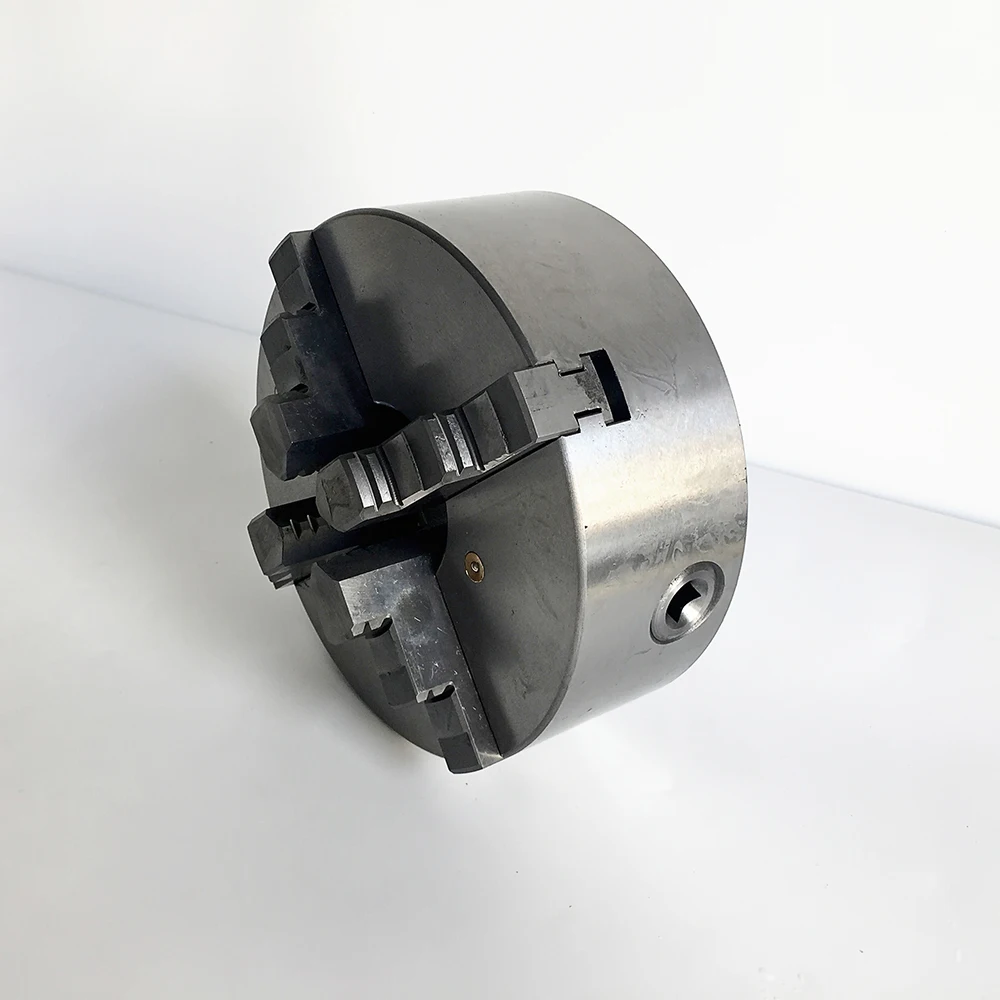

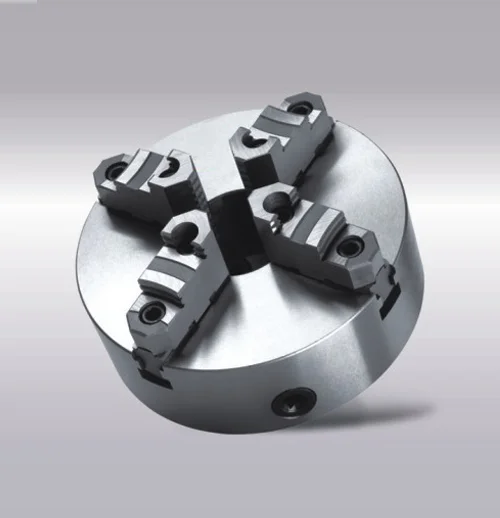

DEM K12 200 4 jaw self centering lathe chucks welding chuck
- Category: >>>
- Supplier: DEM Machinery Co. Ltd.
Share on (1600465300501):
Product Overview
Description
Products Description

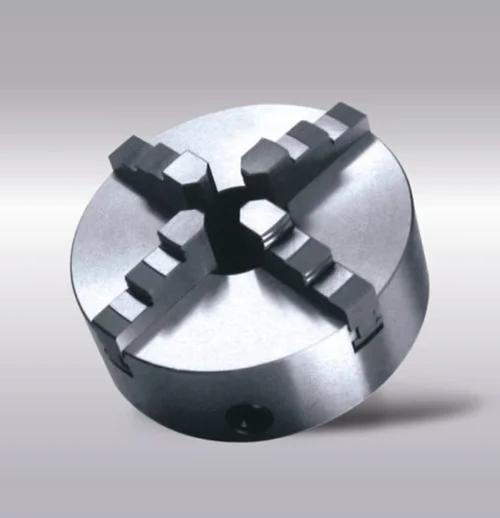

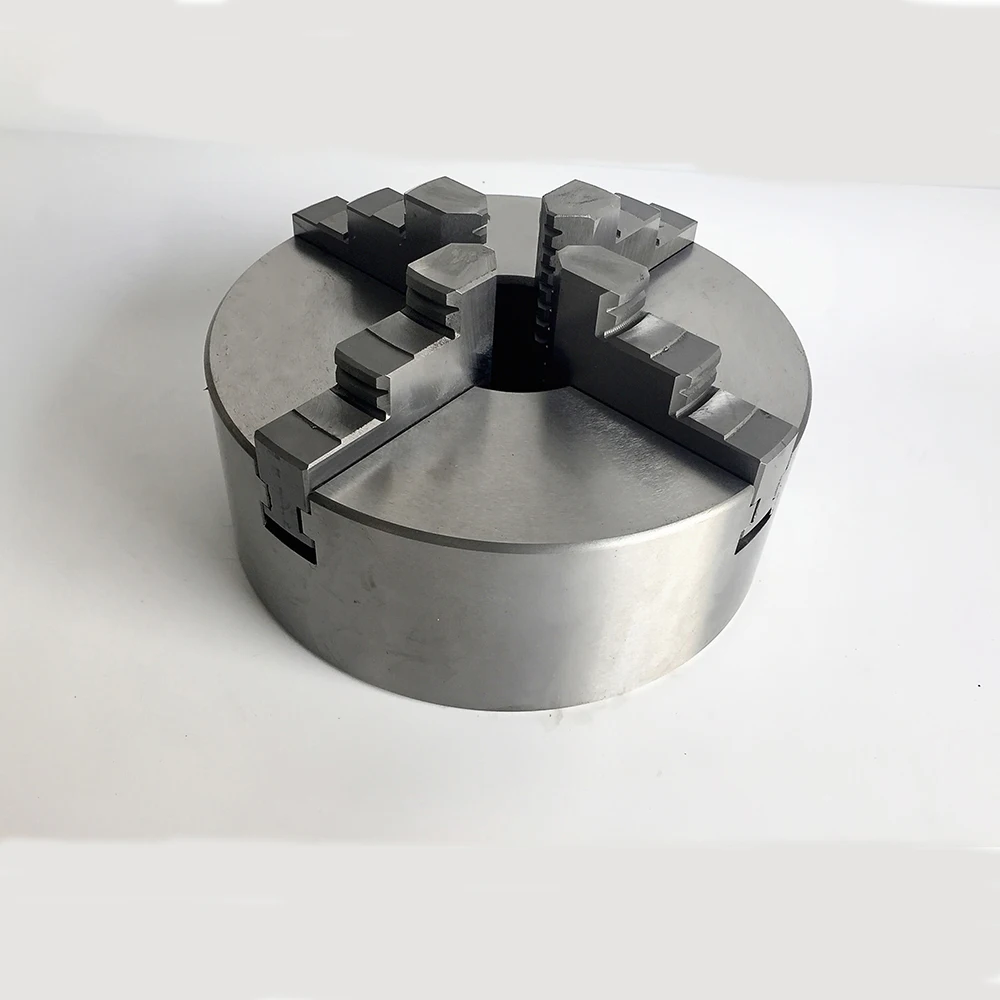

K12 series four-jaw self-centering chuck is suitable for the processing of various square, octagonal and other parts with a

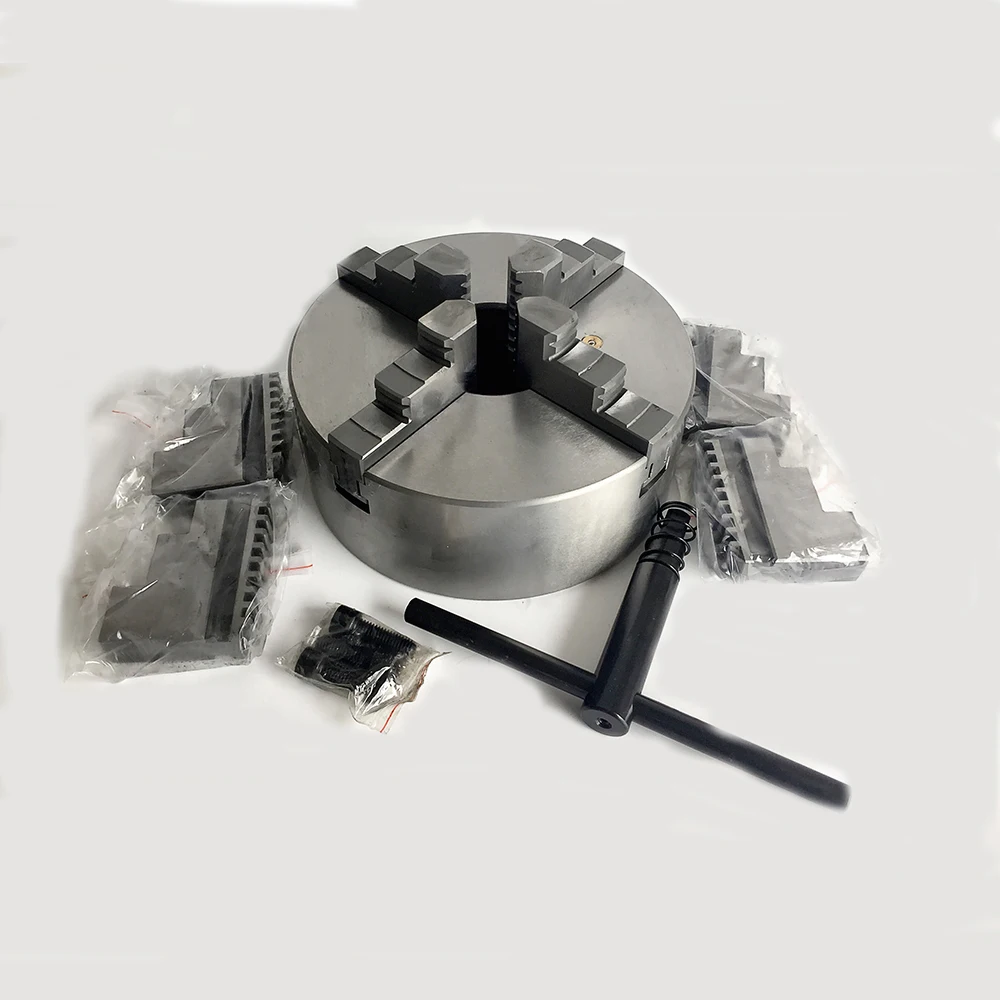

certain batch. It can be automatically centered and quickly clamped. Type K12 is equipped with a pair of positive and negative claws, which can be used separately.
certain batch. It can be automatically centered and quickly clamped. Type K12 is equipped with a pair of positive and negative claws, which can be used separately.

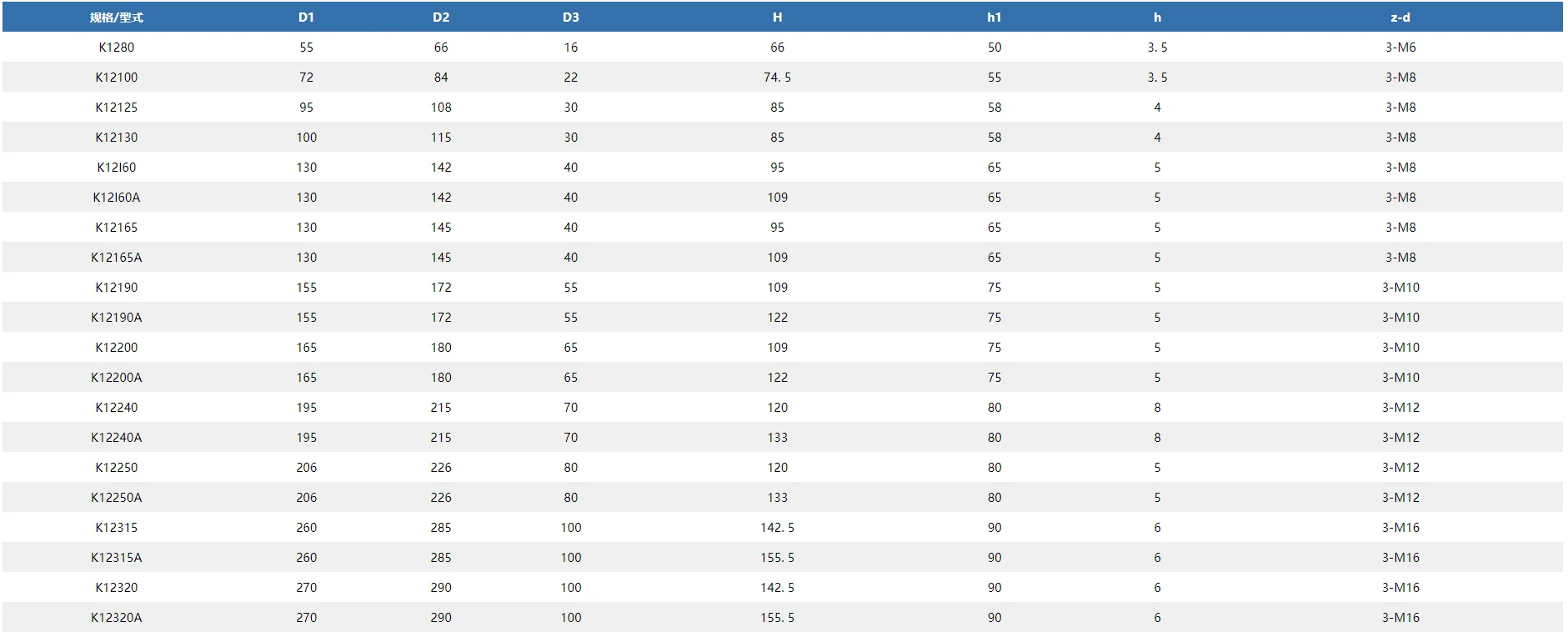

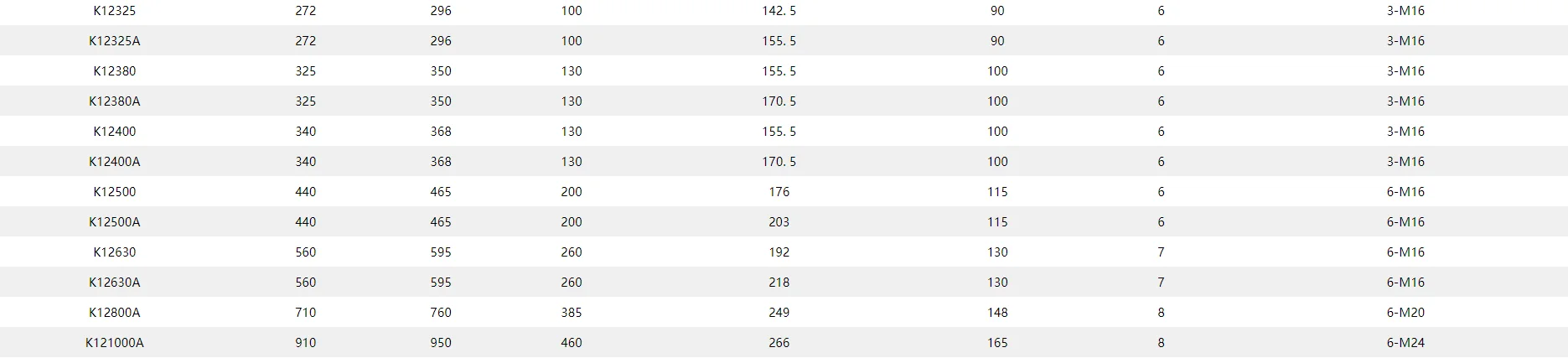

Product Paramenters

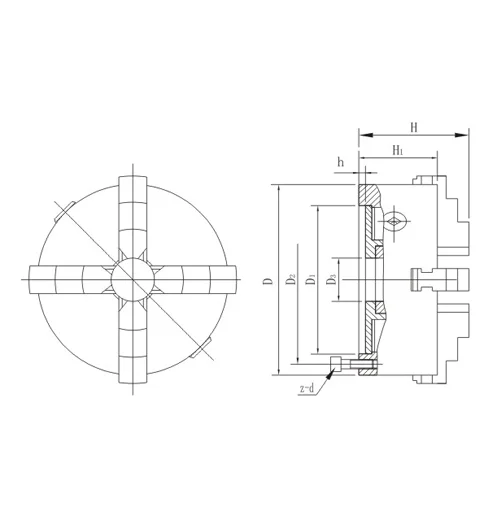

Model | D1 | D2 | D3 | H | H1 | h | z-d |
K12-160 | 130 | 142 | 40 | 95 | 65 | 5 | 3-M8 |
K12-200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 |
K12-250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 |
Easy Operate
The main structure of the chuck is composed of a disc body, a wire and a jaw. The disc body is made of cast iron, and the wire and jaws are made of 45 steel.
Precise Positioning
Working principle: By rotating the wrench connected to the coil, the helix on the coil is engaged with the jaws, so that the three T-slot positioning and guiding jaws on the coil can move at the same time to realize the self-centering of the workpiece For clamping,
Custom design
There is a margin between the jaws, the wire and the body. Therefore, when the welding heat rises, there will be no stuck
situation.
situation.

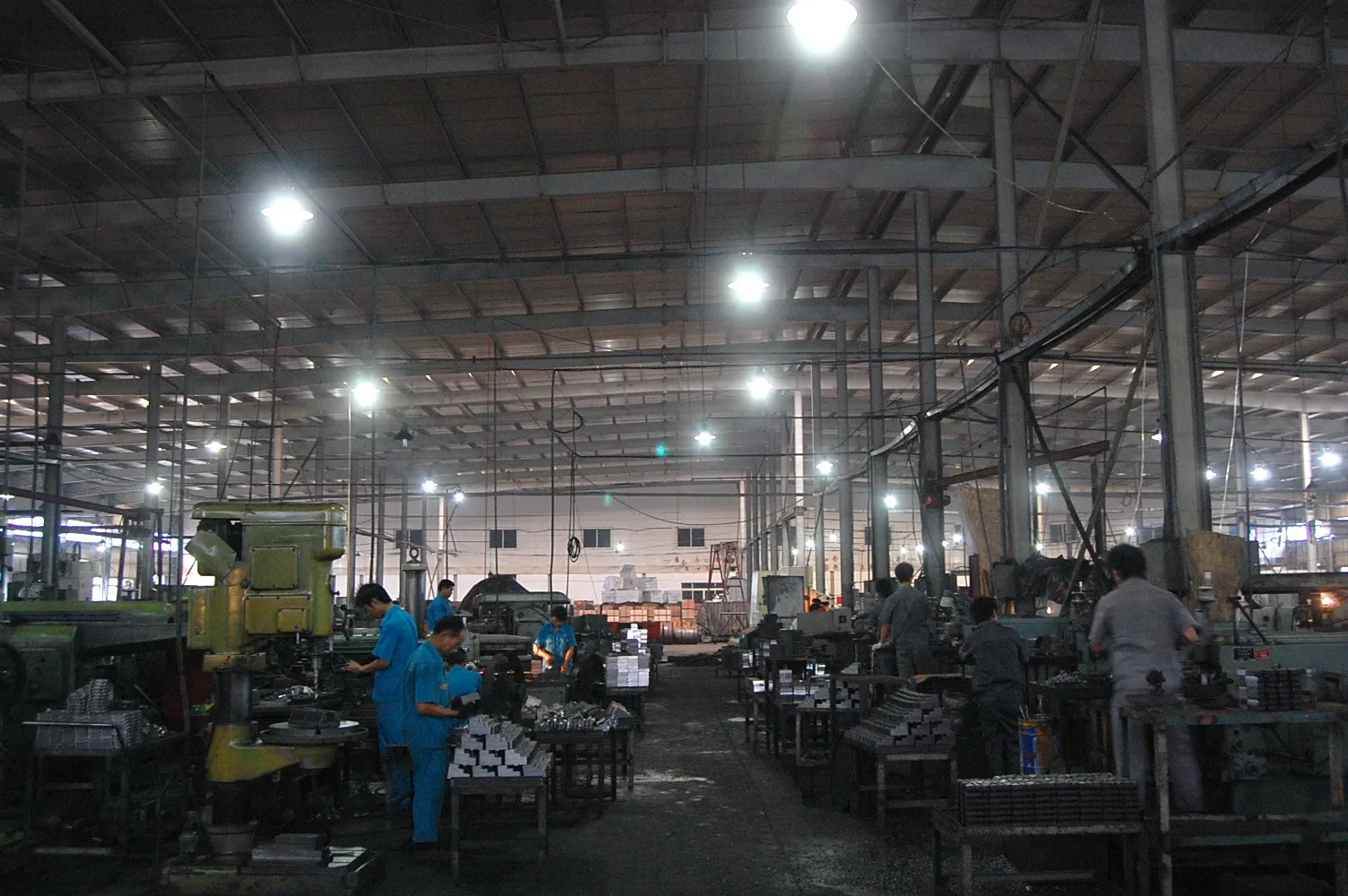

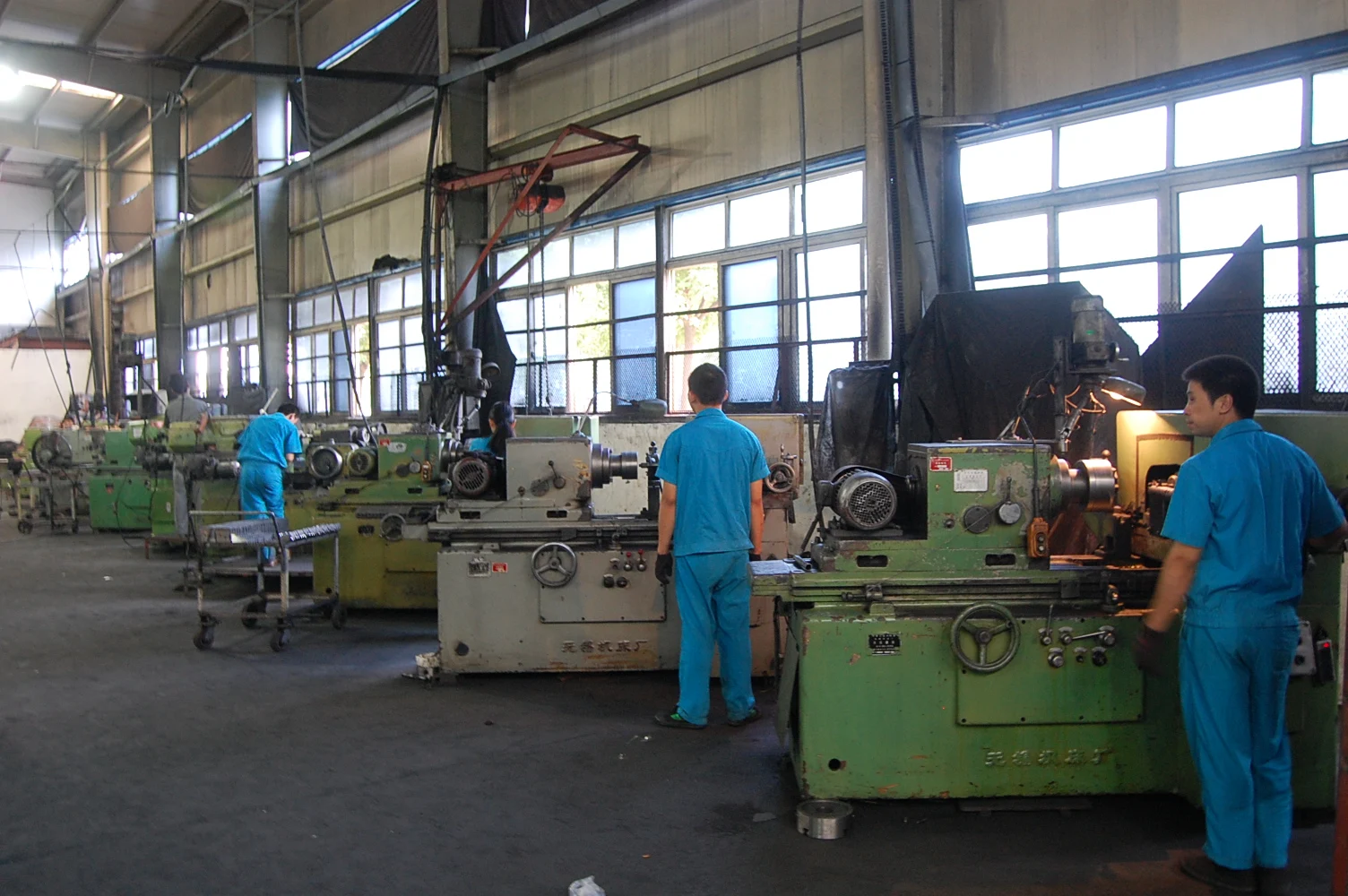

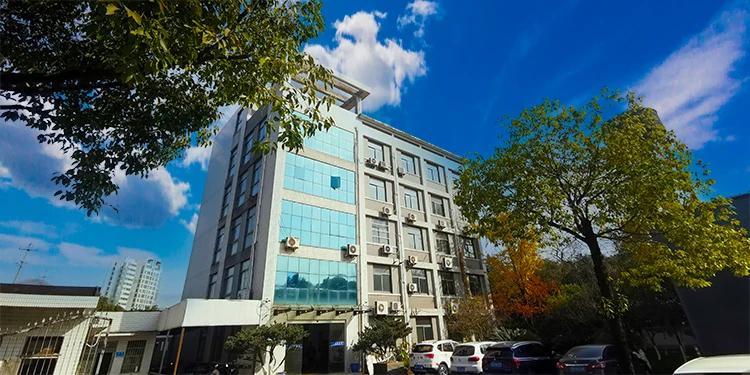

Our Factory
