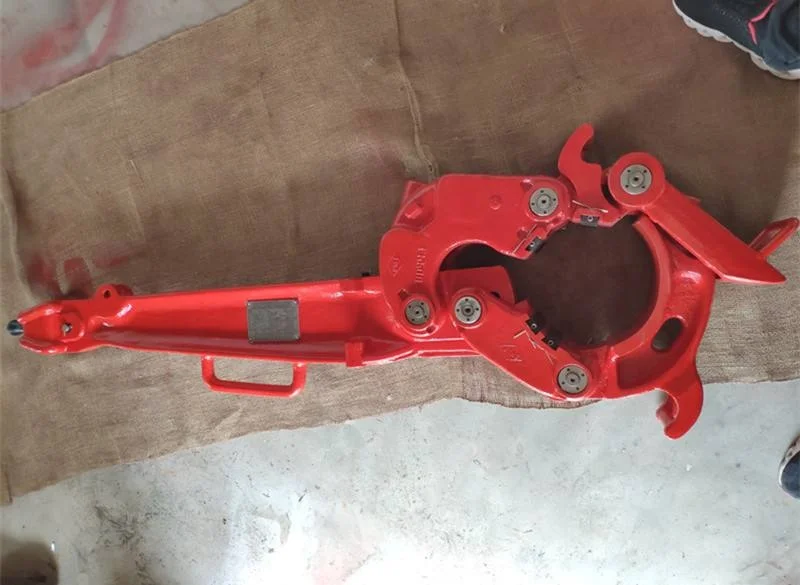

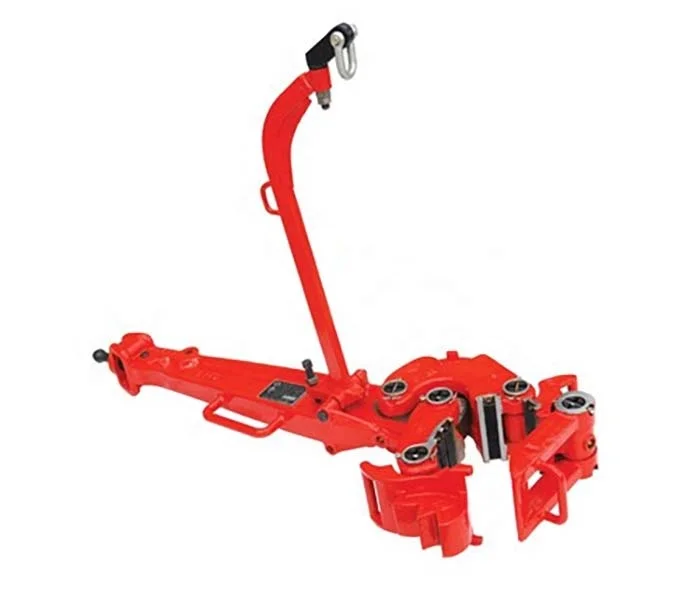

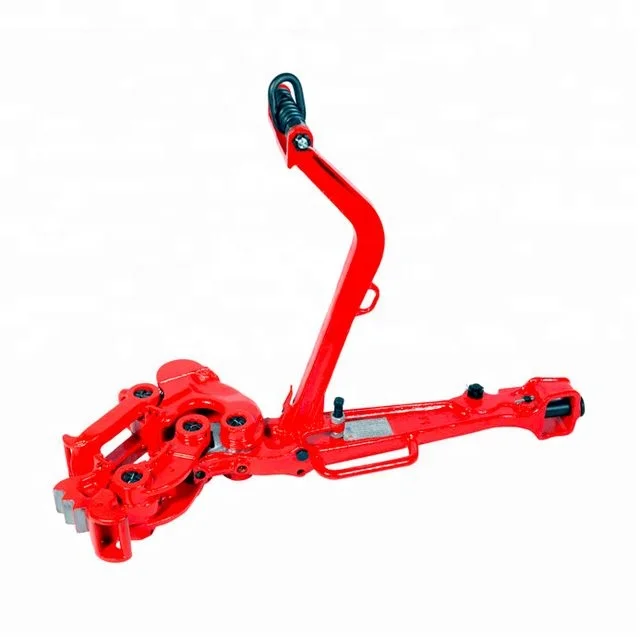

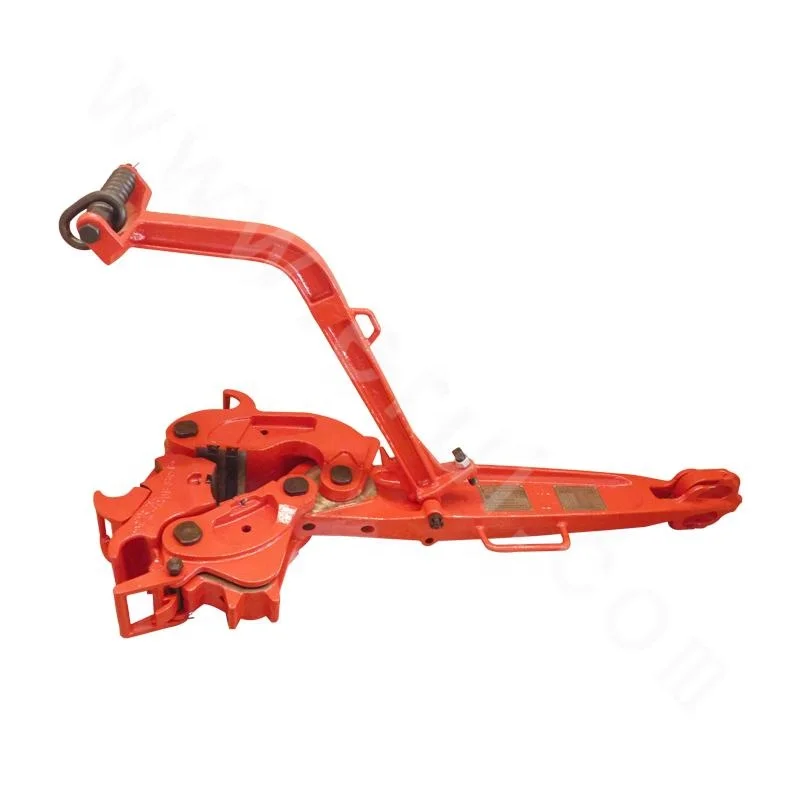

China supplier API 7K standard drilling rig wellhead tools manual tong type SB for oilfield
- Category: >>>
- Supplier: Yantai Sunrise Machinery Co. Ltd.
Share on (1600465302247):
Product Overview
Description
Product Paramenters
Manual Tong Type SB 3.1/2~13.3/8-75KN.M | ||||||||||||||
Model | Size range | Lug Jaw | Size Range | Rated cap | Similar model | |||||||||
No | Latch step | inch | KN.M | lbs.ft | ||||||||||
Type SB | 3.1/2-13.3/8 | #1 | 1 | 3.1/2-4.1/8 | 75 | 55,000 | HT55 | |||||||
2 | 4.1/8-5 | |||||||||||||
#2 | 1 | 4 1/4-5.1/4 | 75 | 55,000 | ||||||||||
2 | 5-5.3/4 | |||||||||||||
3 | 6-6.3/4 | |||||||||||||
#3 | 1 | 6.5/8-7.1/4 | 75 | 55,000 | ||||||||||
2 | 7.3/8-8 | |||||||||||||
3 | 8.1/2-9 | |||||||||||||
#4 | 1 | 9-9.5/8 | 55 | 40,000 | ||||||||||
2 | 10.5/8-10.3/4 | |||||||||||||
#5 | 1 | 11.3/4 | ||||||||||||
#6 | 1 | 12.3/4-13 | 40 | 30,000 | ||||||||||
#7 | 1 | 13.3/8 | 40 | 30,000 | ||||||||||
API Spec 7k handling tools type SB 3 3/8in~13 3/8in manual tongs for well drilling
Manual tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Manual tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

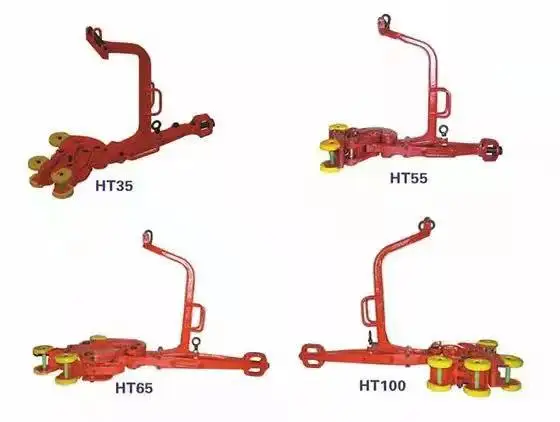

MANUAL TONG SELECTION CHART
Model/Type | Pipe Range (inch) | Max Torque capacity | ||||
KN.M | Ft Lbs | |||||
Type DB | HT65 | 3.1/2-17 | 90 | 65,000 | ||
Type SB | HT55 | 3.1/2-13.3/8 | 75 | 55,000 | ||
Type B | - | 3.3/8-13.3/8 | 75 | 55,000 | ||
Type C | HT35 | 2.3/8-10.3/4 | 48 | 35,000 | ||
Type LF | HT14 | 2.3/8-7 | 22 | 14,000 | ||
Type SDD | HT100 | 4-17 | 136 | 100,000 | ||
Q2.3/8-10.3/4/35 | Workover tong | 2.3/8-10.3/4 | 35 | 25,000 | ||
Type AAX | - | 2.7/8-13.3/8 | 75 | 55,000 | ||
Type WWB | - | 2.3/8-10.3/4 | 48 | 35,000 | ||
Type WWC | - | 2.3/8-10.3/4 | 27 | 20,000 | ||
Q13.3/8-5.1/2/35 | Casing tong | 13.3/8-25.1/2 | 35 | 25,000 | ||
Q25.1/2-36/35 | Casing tong | 25.1/2-36 | 35 | 25,000 | ||
