CQ2B series compact air pneumatic cylinder

Product Overview

Description

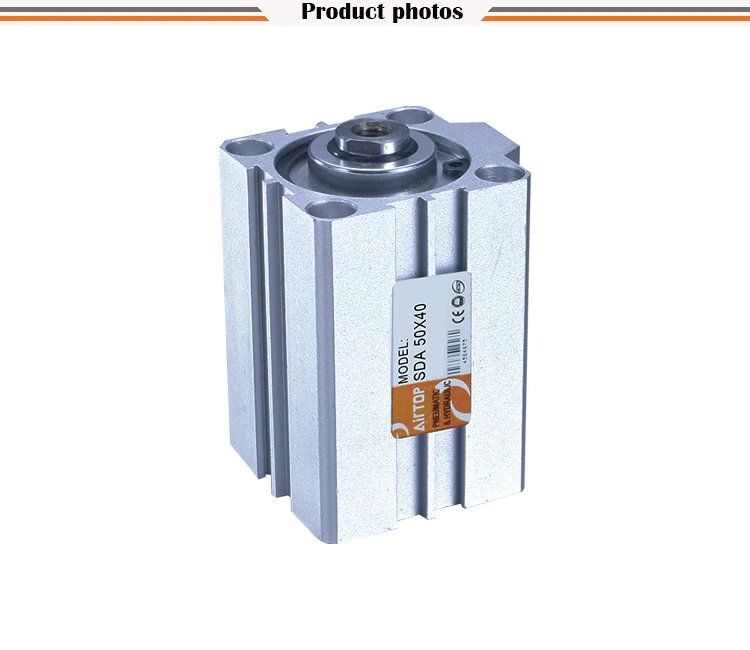

 SDA series compact air pneumatic cylinder

 Detailed Production Introduction:

  1: Under the circumstance of same drivers, only 50% of the standard Cylinder installation space is needed.

  2: Proximity transducer is flush mounted inside sensor groove, no need of extra mounting package, prevent sensor from mechanical damage.

  3: Extra buffering ring at terminal place can absorb residual energy of movement at a high speed and machine  circulation.

  4: Accessories are abundant in variety, which makes cylinder can be installed almost at any place.

  5: The compact structure of SDA series cylinder can save the mounting space effectively;

  6.:Bore size ranges from φ12mm to φ100mm;

  7: The internal part of the cylinder barrel would be treated with hard anodizing after finish machining, which

  forms an excellent abrasion resistance and better durability;

  8.:There are slots around the cylinder barrel, which is convenient for the installation of the magnet switch;

  9: Different specifications and mounting accessories are optional.



Specification:

Bore Size (mm)		12	16	20	25	32	40	50	63	80	100
Acting Type		Double Acting
		Single Acting-push, Single Acting-pull						—
Working Medium		Air
Rod End Fitting		I Fitting, Y Fitting, FK Floating Fitting, SGS Pearl Eye Fitting
Working Pressure	Double Acting	0.1 ~ 0.9 MPa
	Single Acting	0.2 ~ 0.9 MPa						—
Max. Pressure		1.5 MPa
Working Temperature		-5 ~ +70℃
Speed Range (mm/s)		30 ~ 500						30 ~ 350		30 ~ 250
		100 ~ 500						—
Cushion Type		Rubber Bumper
Port Size		M5X0.8				G1/8		G1/4		G3/8



* Note: NPT, PT thread also available.

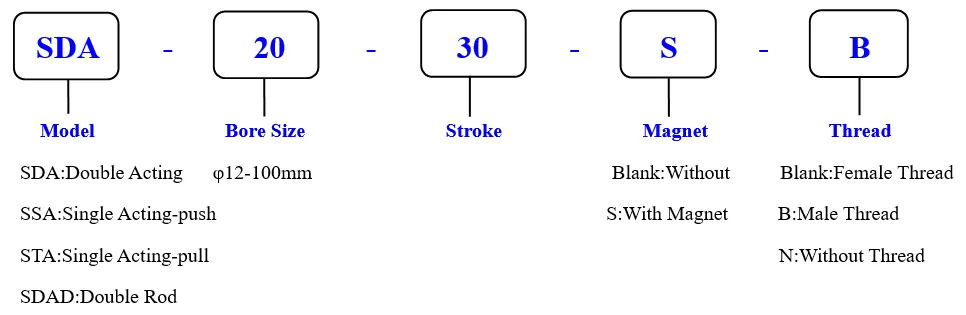

How to order ?
