TY plastic 2' to 6' water supply wafe pvc butterfly valve PVC
- Category: Tools & Hardware >>>
- Supplier: Zhejiang Tianyan Holding Co. Ltd.
Share on (1600465305408):
Product Overview
Description
Company Profile
Zhejiang Tianyan Holding Co., Ltd is a well-known solution provider for plastic piping system in the world, whose customers come from more than 70 countries and regions. Building piping system application, industrial piping system application, agricultural piping system application, and their professional solutions are our mainly business.

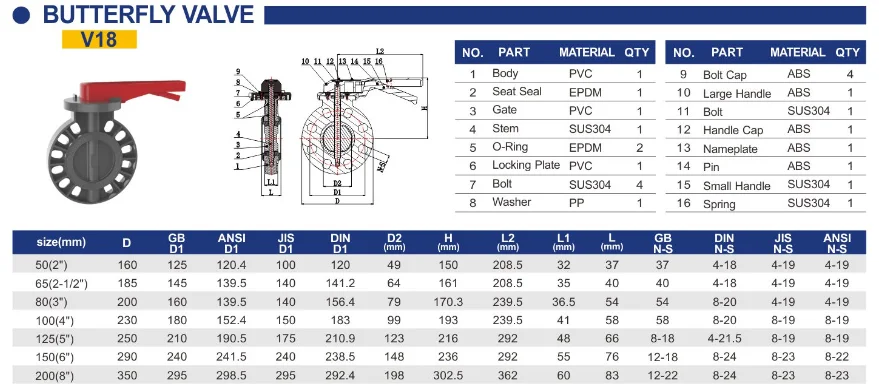

Specification
Product Description
product name | butterfly valve |
material | PVC |
size | 50-200mm |
application | deliver water |
color | grey & red |
packing | carton |
sample | offer free samples |
OEM & ODM | Yes |
Features:
2. The body is light and easy to install.
3. Strong corrosion resistance and wide application range.
4. The material is hygienic and non-toxic.
5. Wear-resistant, easy to disassemble, easy to maintain
1. The appearance is compact and beautiful.
2. The body is light and easy to install.
3. Strong corrosion resistance and wide application range.
4. The material is hygienic and non-toxic.
5. Wear-resistant, easy to disassemble, easy to maintain

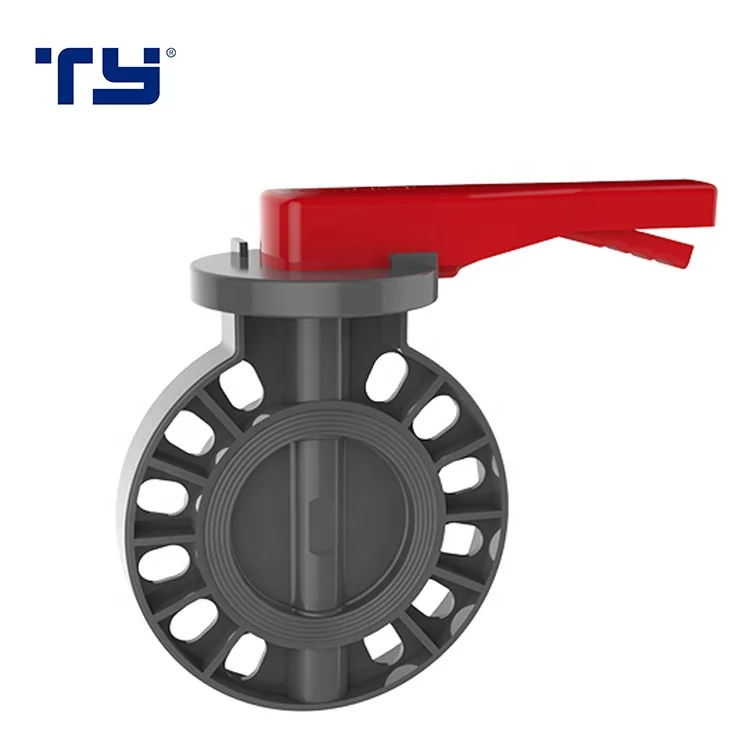

The butterfly valve has the characteristics of simple structure, small size, light weight, low material consumption, small installation size, rapid switching, 90° reciprocating rotation, and small driving torque. It is used to cut off, connect and adjust the medium in the pipeline. The fluid control characteristics and closing and sealing performance.
The plastic butterfly valve can transport mud, and the liquid accumulation in the pipe mouth is the least. Under low pressure, good sealing can be achieved. Good adjustment performance.
The streamlined design of the butterfly plate makes the fluid resistance loss small, which can be described as an energy-saving product.
The valve stem is a through-rod structure, after quenching and tempering, it has good comprehensive mechanical properties, corrosion resistance and scratch resistance. When the butterfly valve is opened and closed, the valve stem only rotates and does not move up and down. The packing of the valve stem is not easy to be damaged and the sealing is reliable. It is fixed with the butterfly plate cone pin, and the extended end is designed to prevent the valve from breaking out to prevent the valve stem from collapsing when the connection between the valve stem and the butterfly plate is accidentally broken.
The plastic butterfly valve can transport mud, and the liquid accumulation in the pipe mouth is the least. Under low pressure, good sealing can be achieved. Good adjustment performance.
The streamlined design of the butterfly plate makes the fluid resistance loss small, which can be described as an energy-saving product.
The valve stem is a through-rod structure, after quenching and tempering, it has good comprehensive mechanical properties, corrosion resistance and scratch resistance. When the butterfly valve is opened and closed, the valve stem only rotates and does not move up and down. The packing of the valve stem is not easy to be damaged and the sealing is reliable. It is fixed with the butterfly plate cone pin, and the extended end is designed to prevent the valve from breaking out to prevent the valve stem from collapsing when the connection between the valve stem and the butterfly plate is accidentally broken.
FAQ
1. Are you a manufacture or trading company?
♦We are a well-known solution provider for plastic piping system in the world with 30 years professional experience. Welcome to visit our factory, you would find our uniqueness.
2. Do you offer OEM service?
♦Yes. We have our famous brand name TY. And we can also offer OEM service with the same quality. We are able to comment on customer's design, and we can also design based on customer requirements by our professional R&D team.
♦We are a well-known solution provider for plastic piping system in the world with 30 years professional experience. Welcome to visit our factory, you would find our uniqueness.
2. Do you offer OEM service?
♦Yes. We have our famous brand name TY. And we can also offer OEM service with the same quality. We are able to comment on customer's design, and we can also design based on customer requirements by our professional R&D team.
3.Why Choose Us?
♦Trust in our experience.
We supply many different standards products to more than 70 countries and areas in the world.
♦Trust in our authority.
We had many professional inspections and certificates. We had passed inspections of CE, NSF, SGS, and get the certificates of ISO 9001, ISO 14001, OHSAS 18001, and WRAS, and so on.
♦Trust in our solutions.
We have professional R&D team, QA&QC team, marketing team. Having many patents and awards, we can supply highest quality OEM products and help you to settle any kind of logistical problems.
♦Trust in our production capacity.
We have more than 30 pipe extruding machines, and 200 injection molding machines. And those figures still increase each year.
♦Trust in our financial management capacity.
We obtain the “Zhejiang Top Export Brand” by government. We have the ability to make each your US cent efficient. Each cent you pay us is worthwhile
4.How to get a Sample?
♦Please apply sample.
♦We can apply free sample for inspection, after the prices confirmed.
Sample is free.
♦We would supply you sample for free, and freight is collected once you need a sample to confirm. You can also pay freight to us in advance, and let us prepaid freight, if you think the prepaid freight is lower than the collected freight.
Freight is free.
♦We will undertake the freight, and pay the money back into your deposit once you give the order to us finally.
♦Trust in our experience.
We supply many different standards products to more than 70 countries and areas in the world.
♦Trust in our authority.
We had many professional inspections and certificates. We had passed inspections of CE, NSF, SGS, and get the certificates of ISO 9001, ISO 14001, OHSAS 18001, and WRAS, and so on.
♦Trust in our solutions.
We have professional R&D team, QA&QC team, marketing team. Having many patents and awards, we can supply highest quality OEM products and help you to settle any kind of logistical problems.
♦Trust in our production capacity.
We have more than 30 pipe extruding machines, and 200 injection molding machines. And those figures still increase each year.
♦Trust in our financial management capacity.
We obtain the “Zhejiang Top Export Brand” by government. We have the ability to make each your US cent efficient. Each cent you pay us is worthwhile
4.How to get a Sample?
♦Please apply sample.
♦We can apply free sample for inspection, after the prices confirmed.
Sample is free.
♦We would supply you sample for free, and freight is collected once you need a sample to confirm. You can also pay freight to us in advance, and let us prepaid freight, if you think the prepaid freight is lower than the collected freight.
Freight is free.
♦We will undertake the freight, and pay the money back into your deposit once you give the order to us finally.
