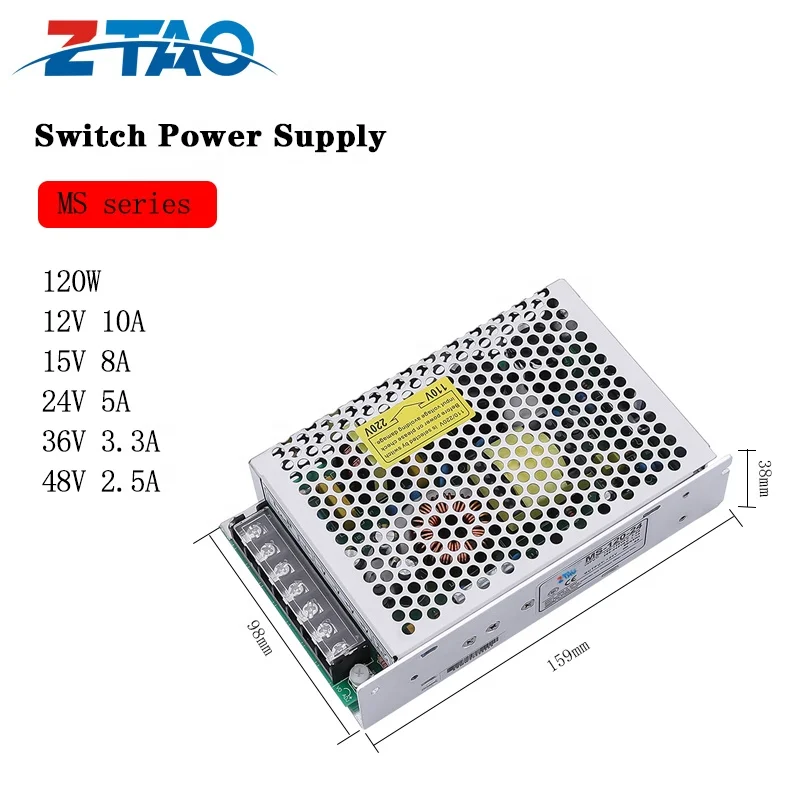

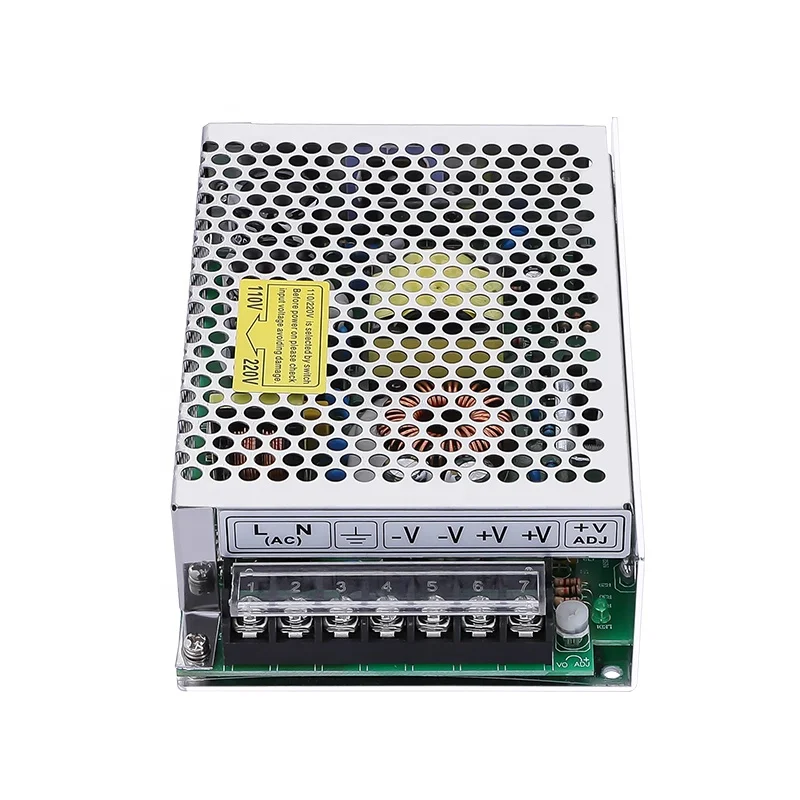

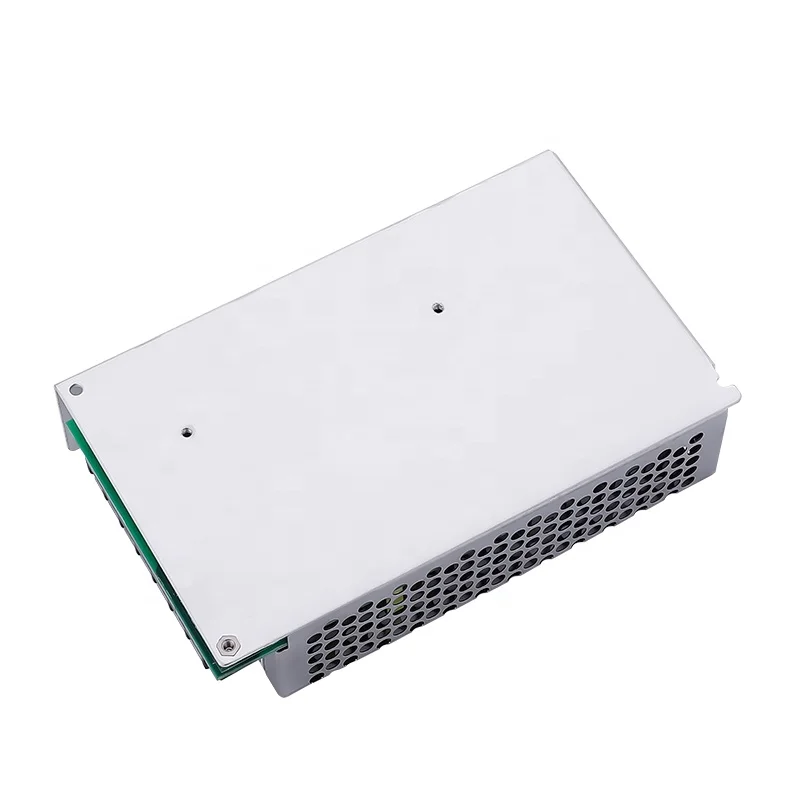

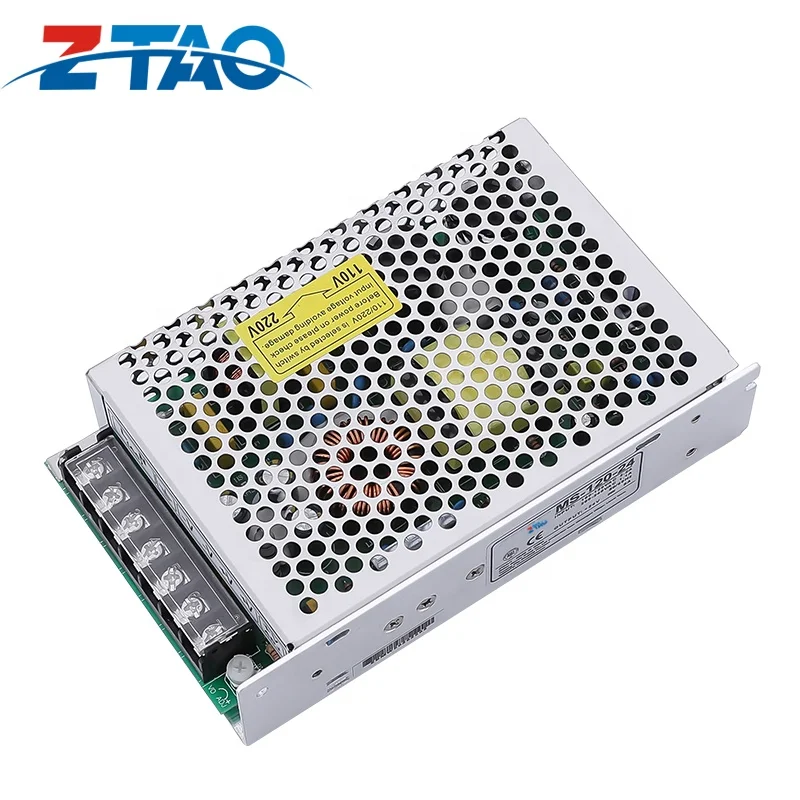

MS 120 24 120 watt 12V 10A 24V 4A Ac Dc Transformer 120W 24v 5 amp Switching Power Supply
- Category: >>>
- Supplier: Zhitao Electric Group Co. Ltd.
Share on (1600465311147):
Product Overview
Description

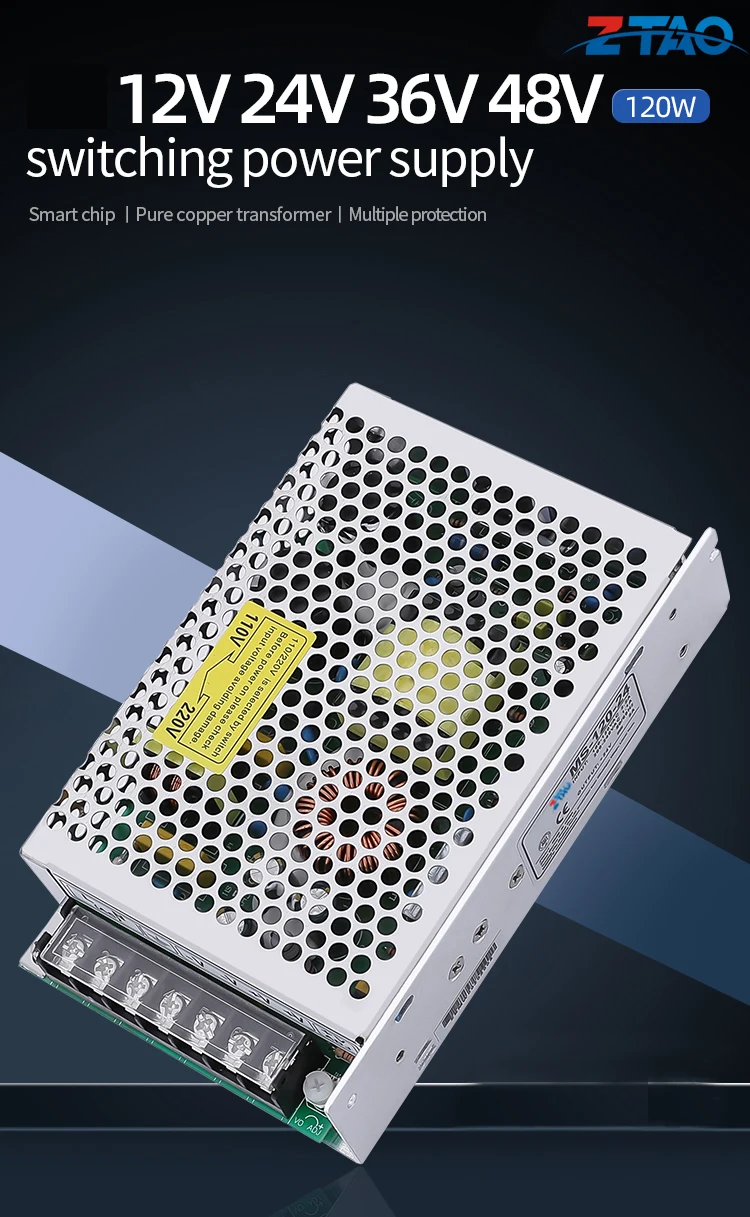

AC to DC 24V 5A 120W switching power supply
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise

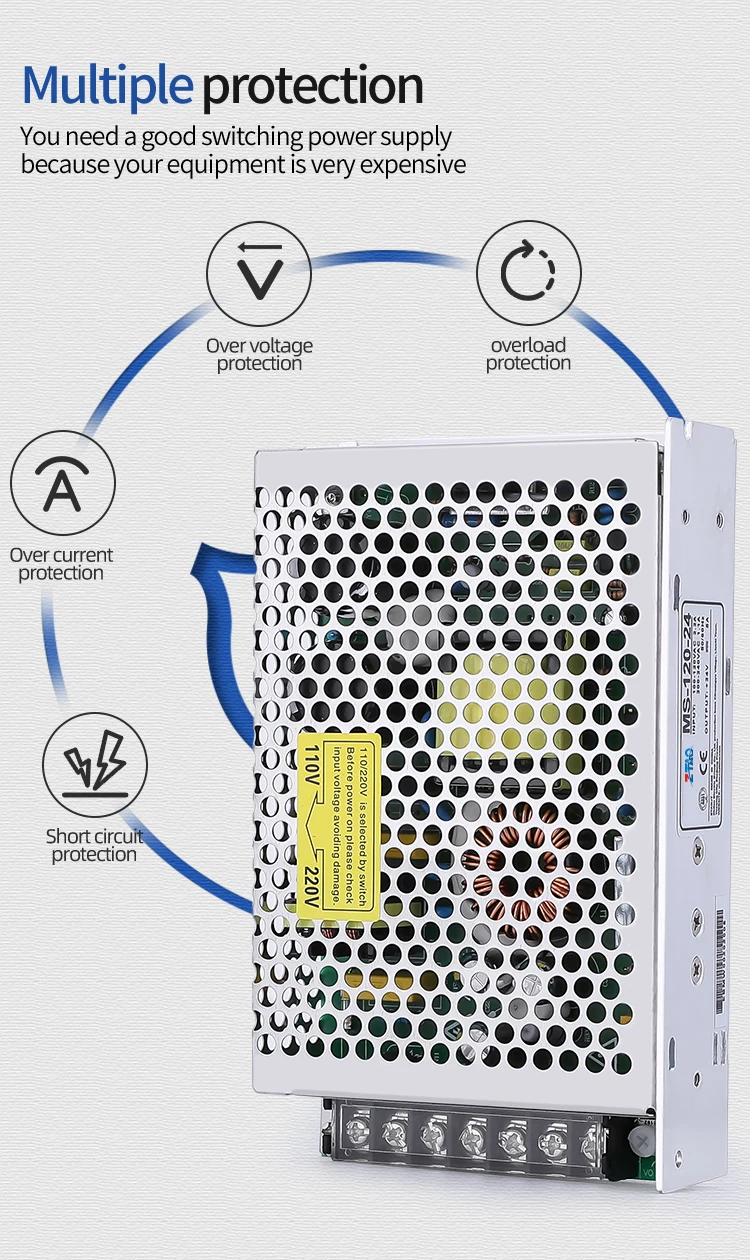

5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.THREE YEARS WARRANTY!
7.Direct Manufacturer
Product Description

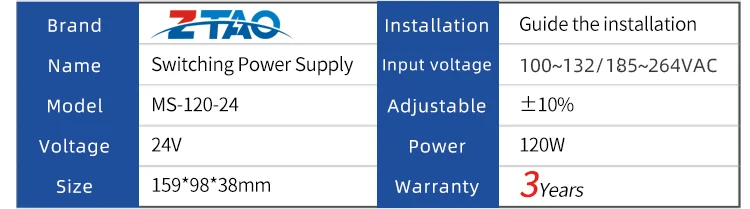

Model | MS-120-5 | MS-120-12 | MS-120-24 | MS-120-36 | MS-120-48 | ||||
DC Voltage | 5V | 12V | 24V | 36V | 48V | ||||
Rated Current | 20A | 10A | 5A | 3.4A | 2.5A | ||||
Current range | 0~20A | 0~10A | 0~5A | 0~3.4A | 0~2.5A | ||||
Rated power | 100W | 120W | 120W | 122.4W | 120W | ||||
Ripple&noise | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | ||||
Voltage ADJ. | 4.5~5.5V | 10.2~13.8V | 24~28V | 32.4~39.6V | 43.2~52.8V | ||||
Efficiency | 80% | 81% | 84% | 85% | 85% | ||||
115%~150% in rated output power | |||||||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||
5.75~6.9V | 13.8~16.2V | 28.8~33.6V | 41.4~48.6V | 55.2~64.8V | |||||
Protection mode, tum off output voltage, restart to recover | |||||||||
Details Images

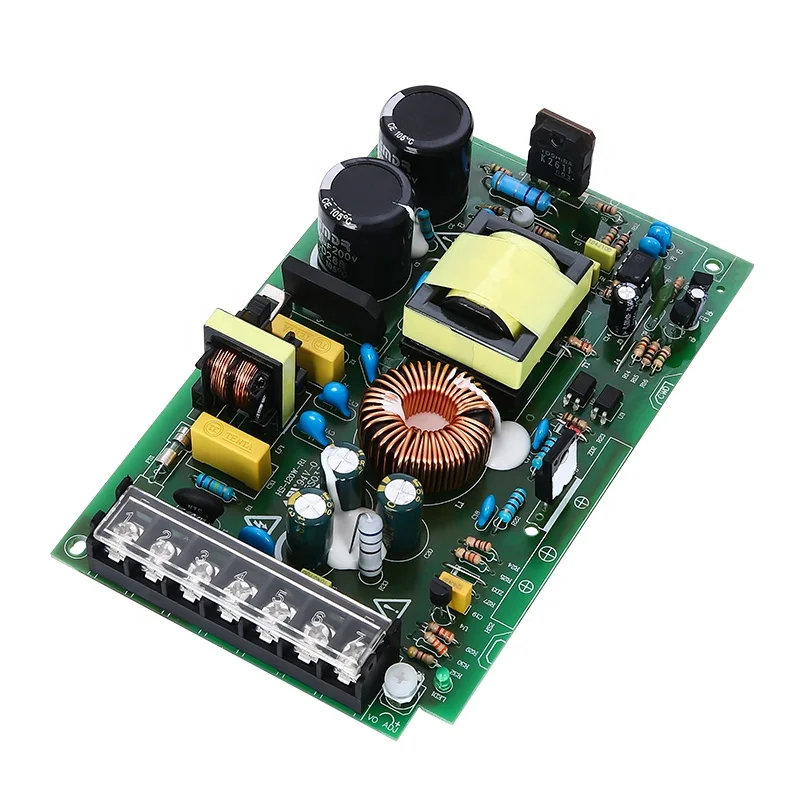

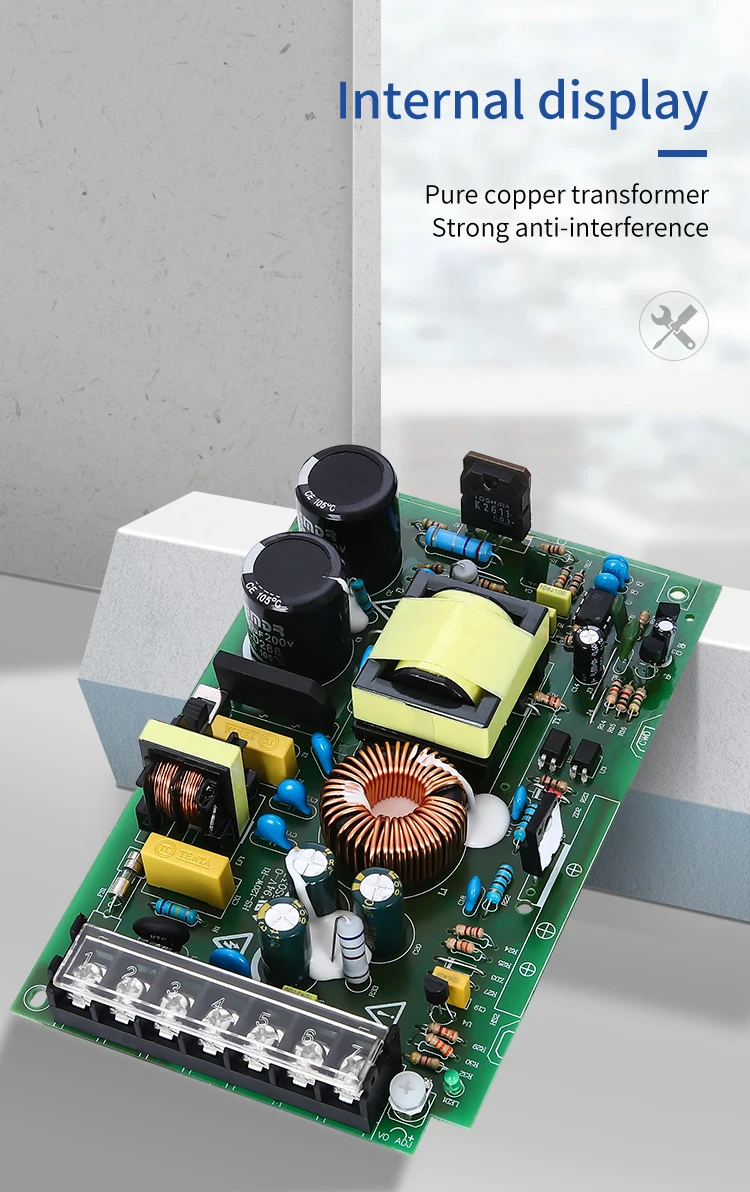

01.
PURE COPPERTRANSFORMER
High temperature resistance of enameled wire with excellent magnetic core
02.
FILTER CAPACITOR
High voltage withstand,low loss and large capacity
03.
DUST PROTECTION COVER Prevent accidental touch and improve safety performance
Related Products
Product Usage
Product usage introduction
AND Our Services & Strength
1. 3 years warranty
2. Supply at factory price
3. Faster delivery: Sample order in stock,and 3-7days for bulk production
4. Sales return,refund and replacement
5. Had awarded CE,FCC & ROHS certification
6. Any inquiries will be replied within 24 hours
2. Supply at factory price
3. Faster delivery: Sample order in stock,and 3-7days for bulk production
4. Sales return,refund and replacement
5. Had awarded CE,FCC & ROHS certification
6. Any inquiries will be replied within 24 hours
Packing&Shipping
Company Introduction
Zhitao Electric Group Co., Ltd is focusing on offering LED switch power, ip67waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection.
Zhitao wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 100% full loading burn-in testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
Zhitao wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 100% full loading burn-in testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
FAQ
Q1:What is your MOQ of switch power?
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:three years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in zhejiang
Q5.How many voltage you can supply?
A:5V, 12V, 15V, 18V, 24V, 36V ,48V,50V,60V , 110V (Depend on items).
Q6. What certification do you have for your products?
A:we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
A:Our MOQ is 1 piece.
Q2:How many year warranty of your Led driver?
A:three years.
Q3:Do you offer sample of power?
A:Yes,We offer free sample,but you need pay the shippment.
Q4:Do you have switch power factory?
A:Yes,we are OEM & ODM manufacturer in zhejiang
Q5.How many voltage you can supply?
A:5V, 12V, 15V, 18V, 24V, 36V ,48V,50V,60V , 110V (Depend on items).
Q6. What certification do you have for your products?
A:we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.
