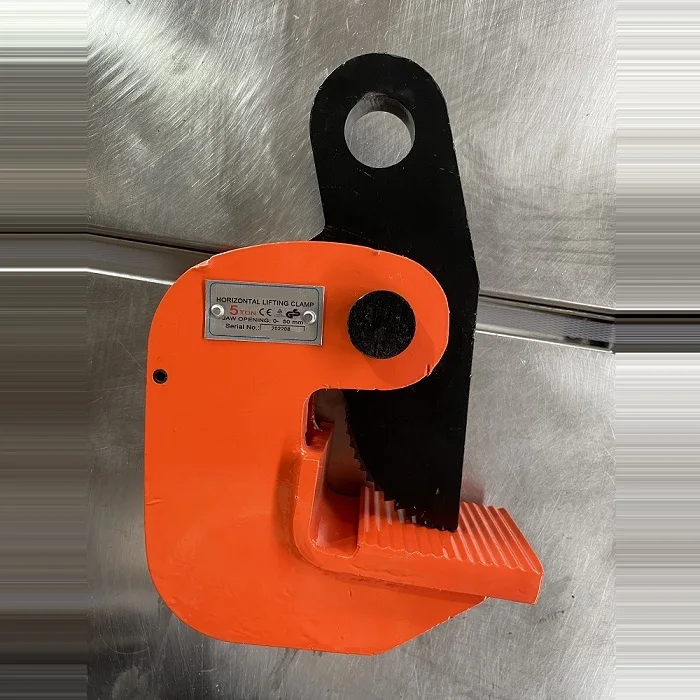

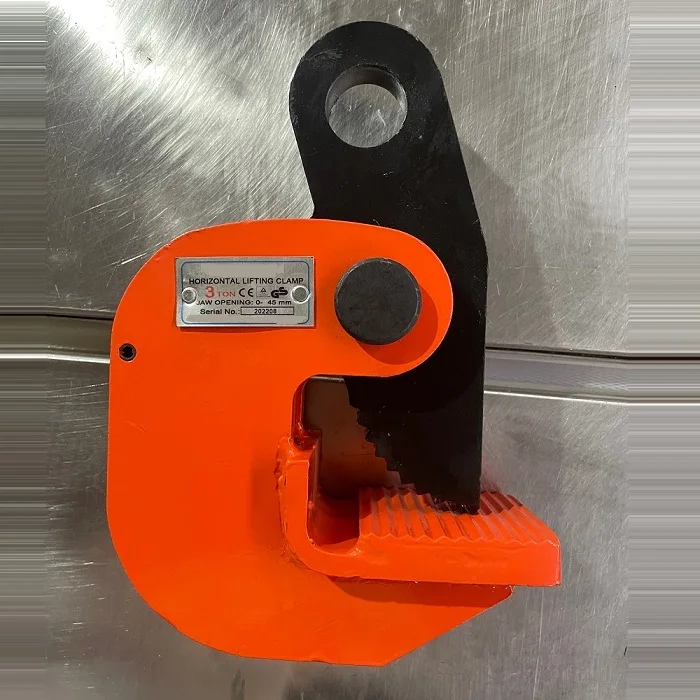

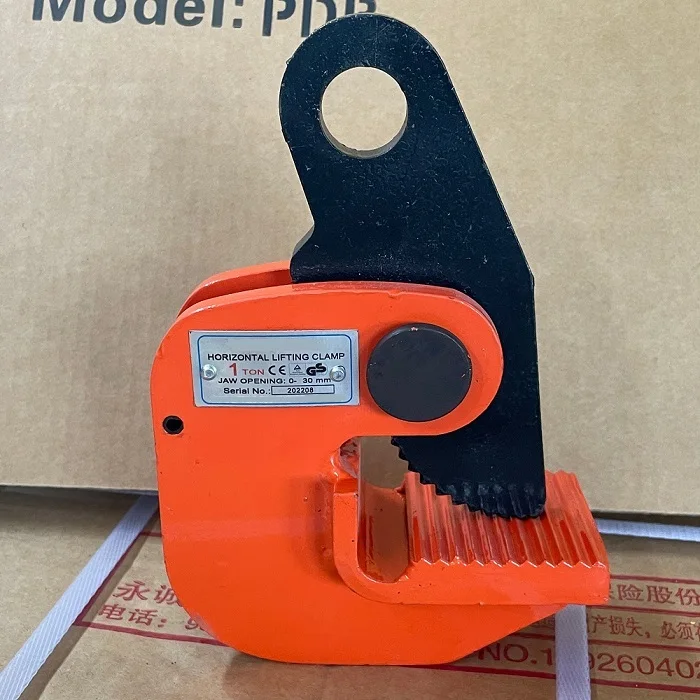

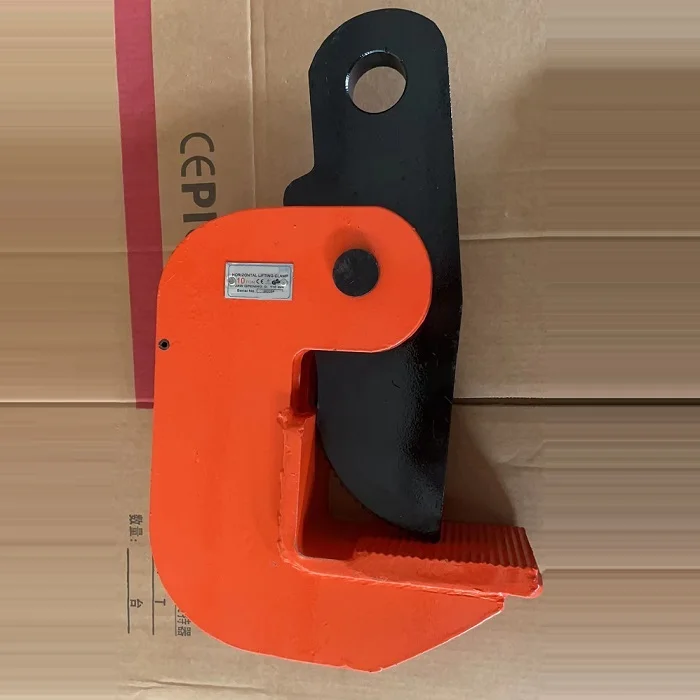

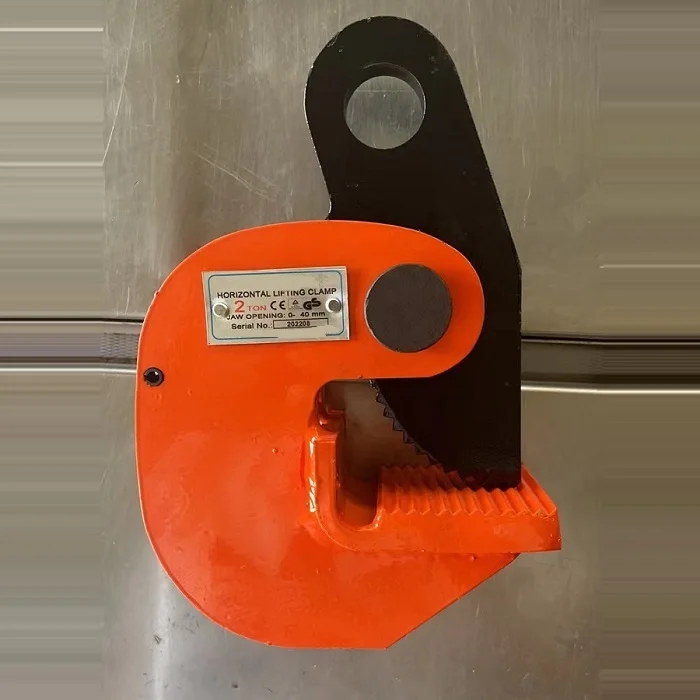

Good price plate sheet metal lifting clamps low carbon alloy steel horizontal block lifting clamp
- Category: >>>
- Supplier: Guangdong Gongyou Lift Slings Machinery Co. Ltd.
Share on (1600465311891):
Product Overview
Description
VR
Product Description
Product Features:
The PDB Horizontal Plate Clamp is used in the lifting and transfer in horizontal position of non-sagging materials or of bundles of non-sagging material. The base is slotted to allow the clamps to be used from end of beams as well as from flange. These clamps must be used in pairs or more.
1. High quality alloy steel, strong impact resistance property, safe and reliable.
2. Easy to use, wide range of applications.
3. Compact structure, small size, light weight.
4. Reasonable design, easy to installation.
5. Good bearing capacity, the clamp body is high toughness.
1. High quality alloy steel, strong impact resistance property, safe and reliable.
2. Easy to use, wide range of applications.
3. Compact structure, small size, light weight.
4. Reasonable design, easy to installation.
5. Good bearing capacity, the clamp body is high toughness.
Product Item No. | PDB075 | PDB150 | PDB250 |
Rated Load Capacity(Single)(t) | 0.75t | 1.50t | 2.50t |
Rated Load Capacity(Double)(t) | 1.50t | 3.00t | 5.00t |
Test Load Capacity(Single)(t) | 1.13t | 2.25t | 3.75t |
Test Load Capacity(Double)(t) | 2.25t | 4.50t | 7.50t |
Jaw Opening(mm) | 0~25mm | 0~25mm | 0~40mm |

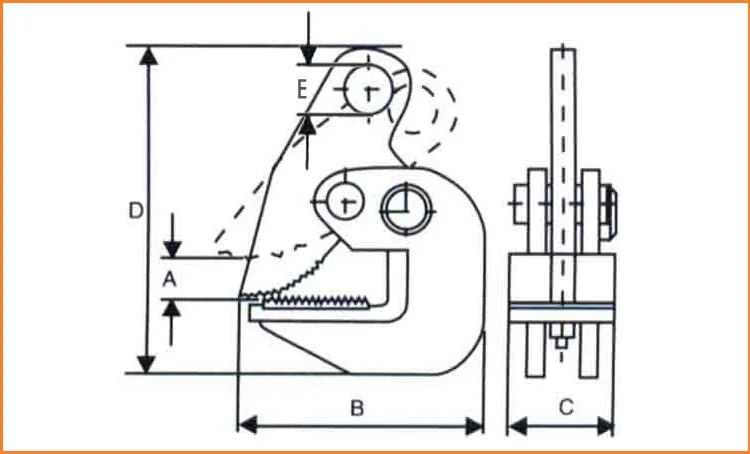

Dimensions(A)(mm) | 25mm | 30mm | 50mm |
Dimensions(B)(mm) | 125mm | 157mm | 231mm |
Dimensions(C)(mm) | 50mm | 65mm | 90mm |
Dimensions(D)(mm) | 175mm | 204mm | 310mm |
Dimensions(E)(mm) | Φ25mm | Φ30mm | Φ40mm |
Net Weight(kg) | 2.4kg | 3.9kg | 14.0kg |
Product Item No. | Rated Load Capacity(t/2pc) | Jaw Opening(mm) | Net Weight(kg) |
PDB0.8 | 0.8 | 0~25 | 2.5 |
PDB1 | 1 | 0~30 | 3.5 |
PDB1.6 | 1.6 | 0~30 | 4 |
PDB2 | 2 | 0~40 | 5 |
PDB3.2 | 3.2 | 0~45 | 6 |
PDB4 | 4 | 0~50 | 6.6 |
PDB5 | 5 | 0~55 | 7.5 |
PDB6 | 6 | 0~130 | 22 |
PDB8 | 8 | 0~130 | 26 |
PDB10 | 10 | 0~140 | 28 |
PDB16 | 16 | 50~150 | 50 |
PDB30 | 30 | 100~270 | 108 |

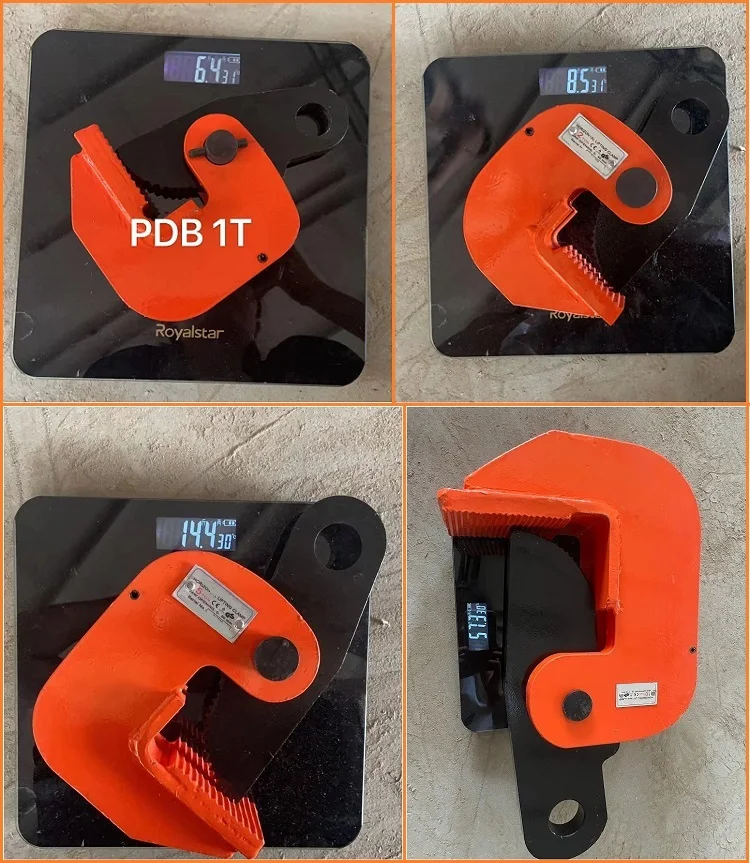

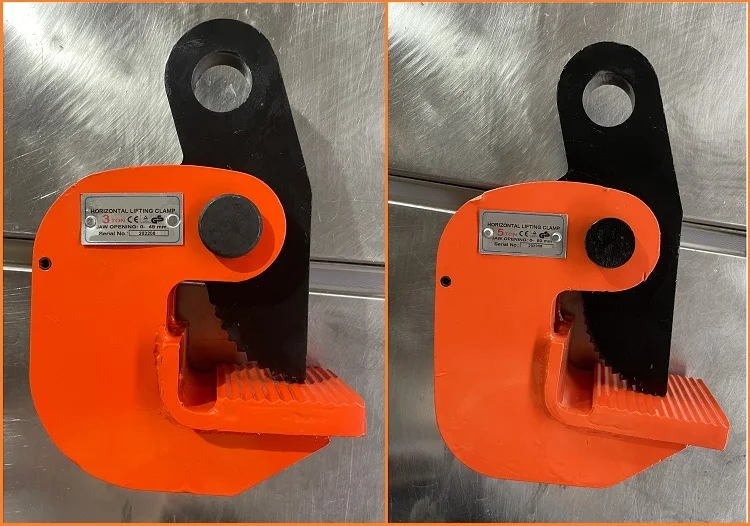

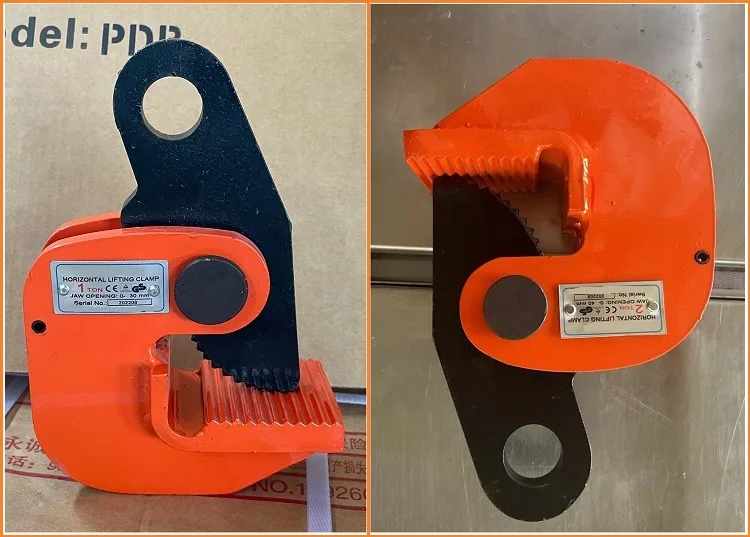

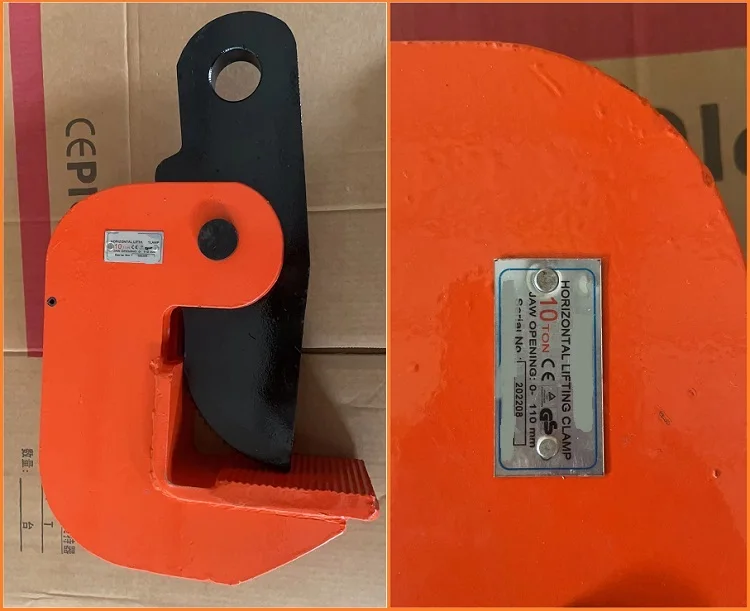

Details Images
