Easy Operation Led Smart Heating Digital Thermostat For Egg Incubator
- Category: >>>
- Supplier: Toky Electrical Co. Ltd.
Share on (1600465321532):
Product Overview
Description
Products Description

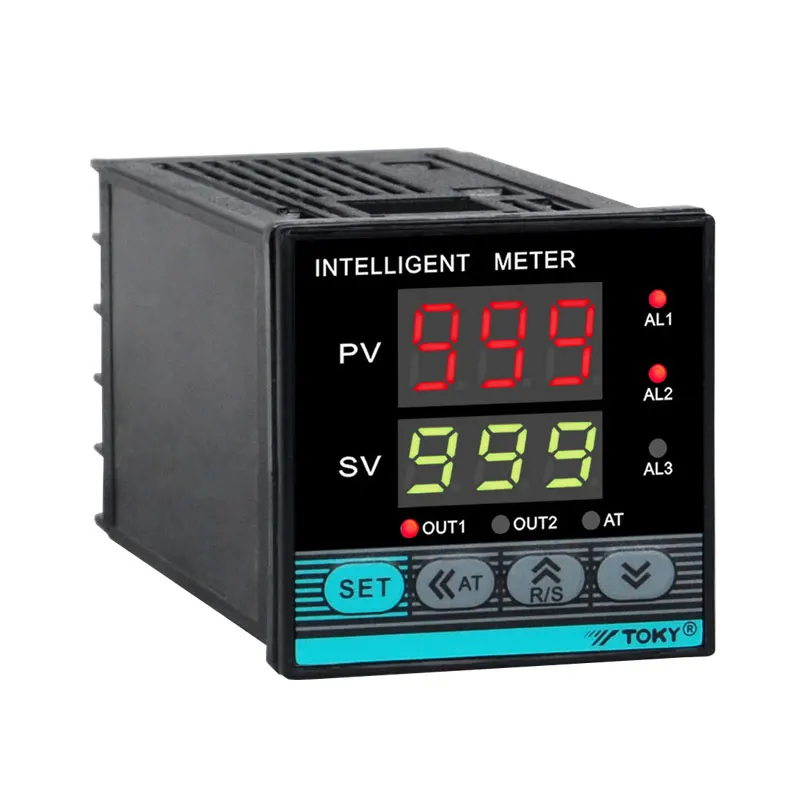

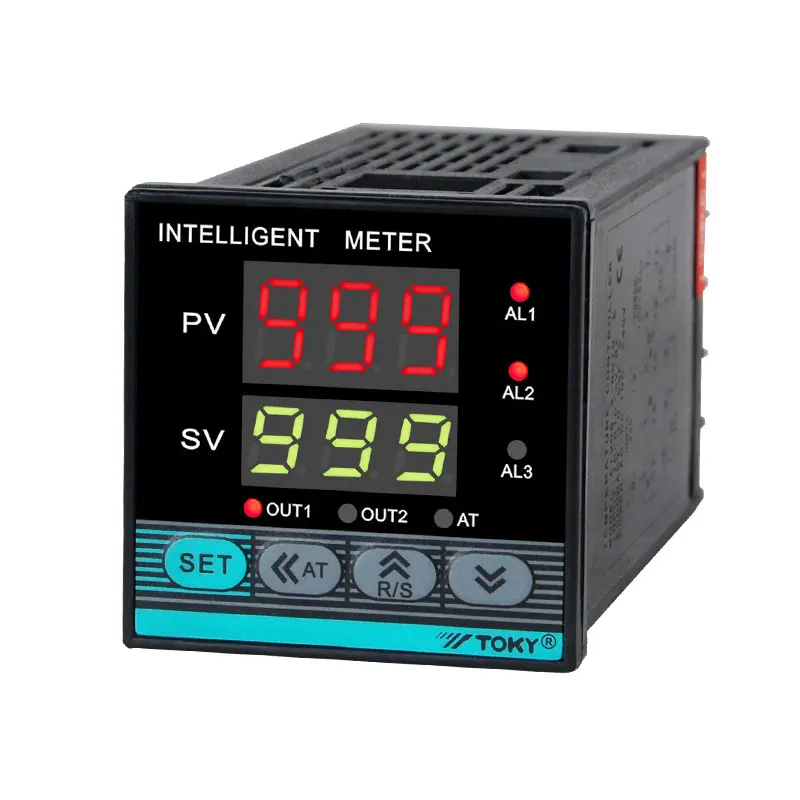

Easy operation LED smart heating digital thermostat for egg incubator
Model | Version | Panel size | Alarm | Control output | Input type | Power supply | Code |
AI208-4/6/7/8-R/SB10 | Eversion | 4:48W×48H 6:48W×96H 7:72W×72H 9:96W×96H 80:160W×80H | 1 loop | S: SSR R: Relay K: SCR (to be ordered) | Universal input (TC/RTD) | AC/DC 100~240V | B0170AI01 |
AI208-9/80-R/SB10 | B0190AI01 | ||||||
AI208-4/6/7/8-R/SC10 | B0215AI01 | ||||||
AI208-9/80-R/SC10 | B0225AI01 |
Sampling speed | 2 times per second |
Relay capacity | AC 250V /3A Life of rated load>100 thousand times |
Power supply | AC/DC 100 ~ 240V(85-265V) |
Total consumption | < 6VA |
Ambient environment | Indoor use, temperature: 0 ~ 50℃, no condensation, humidity:<85%RH, altitude<2000m |
Storage environment | -10 ~ 60℃, no condensation |
SSR output | DC 24V impulse level, load<30mA |
Insulation impedance | Input, output, power to cabinet>20MΩ |
ESD | IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B |
Pulse traip anti-interference | IEC/EN61000-4-4 ±2KV perf.Criteria B |
Surge immunity | IEC/EN61000-4-5 ±2KV perf.Criteria B |
Voltage drop & short interruption immunity | IEC/EN61000-4-29 0% ~ 70% perf.Criteria B |
Dielectric strength | Signal input & output & power 1500VAC 1min,<60V Low voltage circuit between DC500V, 1min |
Weight | About 400g |
Shell material | PC/ABS (flame class UL94V-0) |
Panel material | PET(F150/F200) |
Power-off protection | 10 years, times of writing:1 million times |
Panel protection class | IP65(IEC60529) |
Safe standard | IEC61010-1 Overvoltage category Ⅱ, pollution level 2, level Ⅱ (Enhanced insulation) |
Promotion
Company Profile
Recommend Products
FAQ
Q1.Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.What is your terms of payment?
Usually,we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, full payment before delivery the goods.
Q3.What is the lead time?
For standard models, lead time is about 3~5 days after order confirmed and payment received.
For OEM orders, the delivery is about 2~3 weeks after data confirmed and payment received.
Q4.What is your terms of packing?
Under TOKY brand, the standard packing is 1pc item in a colour box or brown inner box, then into standard export carton.
For OEM order, usually 1pc item in a brown inner box, then into standard export carton.
Q5.What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q6.How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.
Q7.Do you have any MOQ limit for the order?
Low MOQ, 1pc for sample checking is available.
Q8.Is it OK to print my logo on the product?
Yes, OEM service is available.
Please confirm with our sales team formally before production and confirm the design firstly based on our sample.
Q9.Are you manufacturer or trading company?
We are manufacturer for over 30 years. Welcome to visit our factory at anytime.
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.What is your terms of payment?
Usually,we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, full payment before delivery the goods.
Q3.What is the lead time?
For standard models, lead time is about 3~5 days after order confirmed and payment received.
For OEM orders, the delivery is about 2~3 weeks after data confirmed and payment received.
Q4.What is your terms of packing?
Under TOKY brand, the standard packing is 1pc item in a colour box or brown inner box, then into standard export carton.
For OEM order, usually 1pc item in a brown inner box, then into standard export carton.
Q5.What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q6.How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.
Q7.Do you have any MOQ limit for the order?
Low MOQ, 1pc for sample checking is available.
Q8.Is it OK to print my logo on the product?
Yes, OEM service is available.
Please confirm with our sales team formally before production and confirm the design firstly based on our sample.
Q9.Are you manufacturer or trading company?
We are manufacturer for over 30 years. Welcome to visit our factory at anytime.
