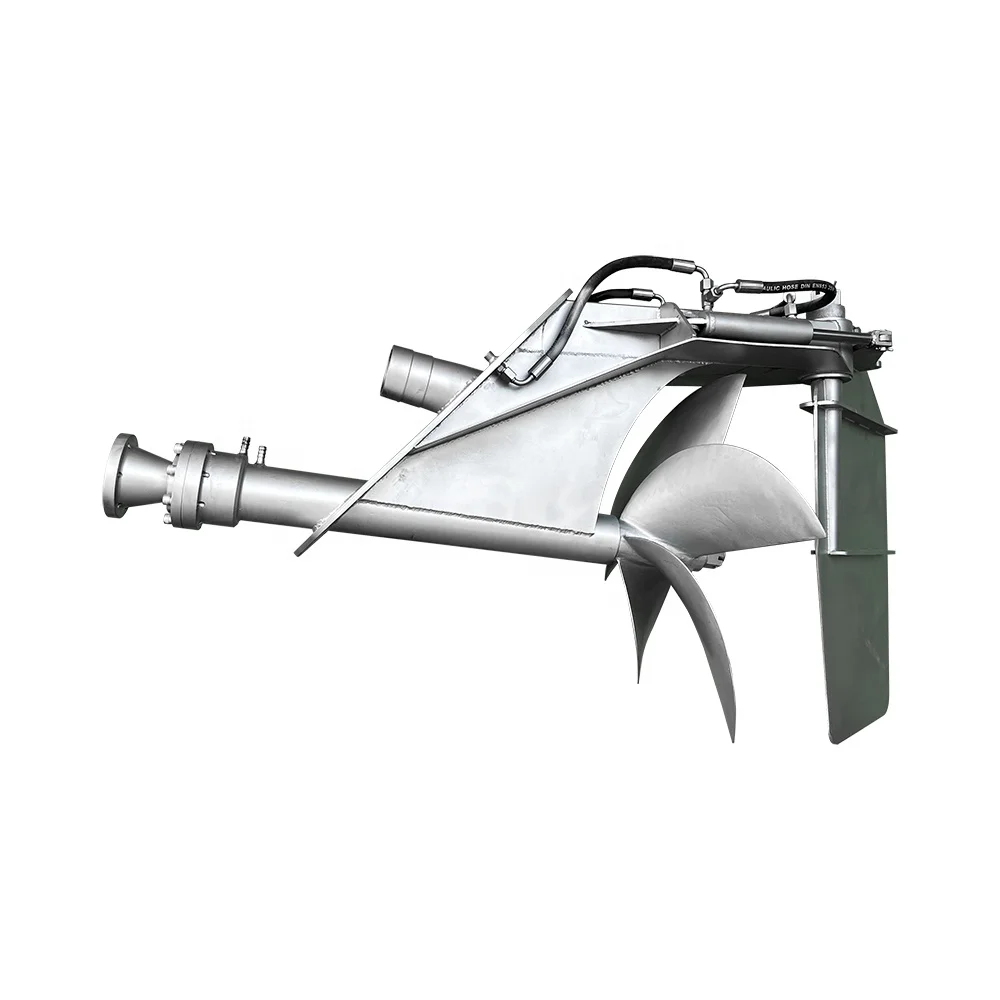

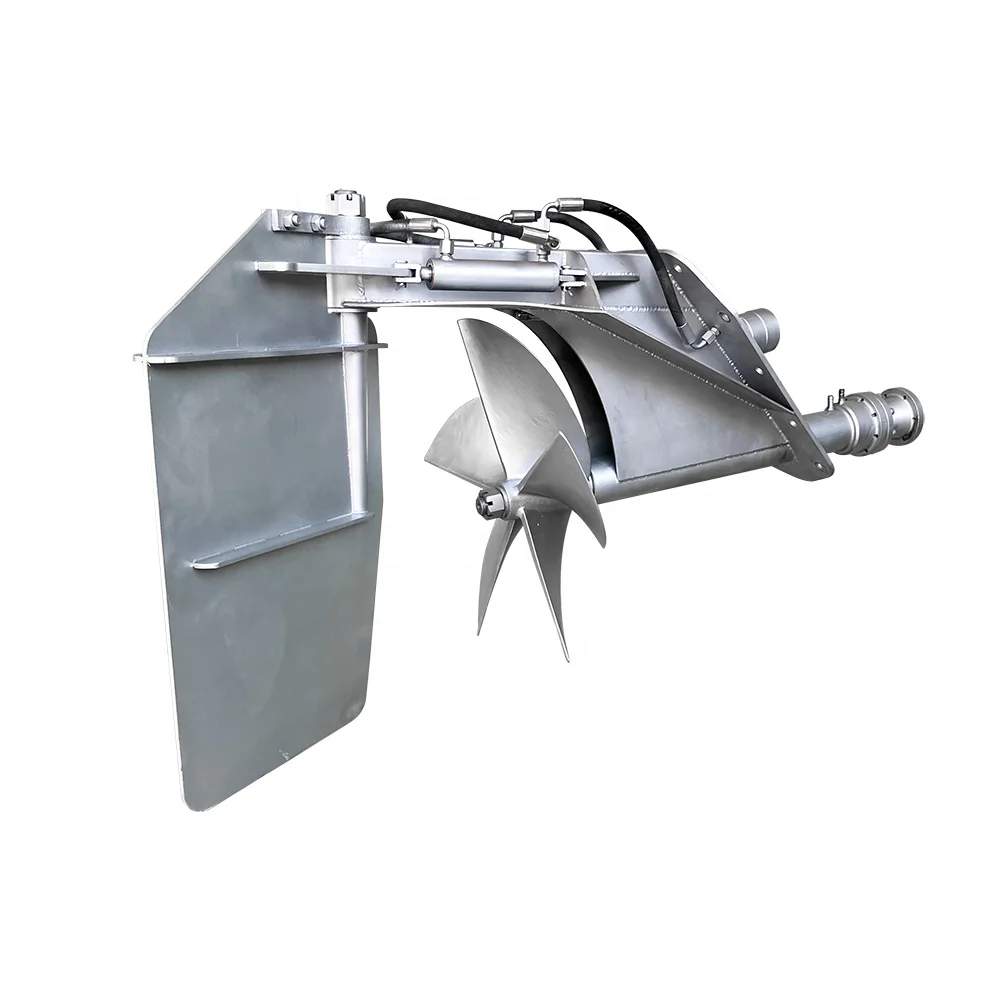

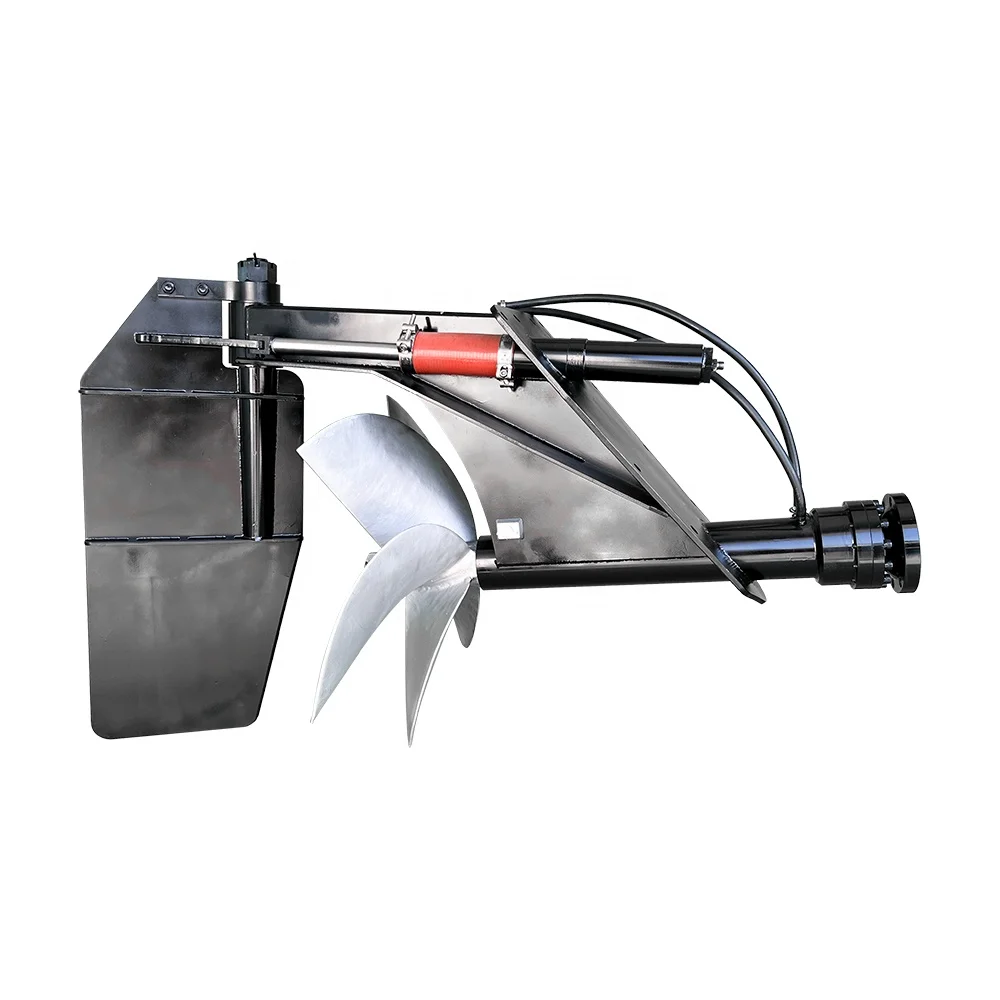

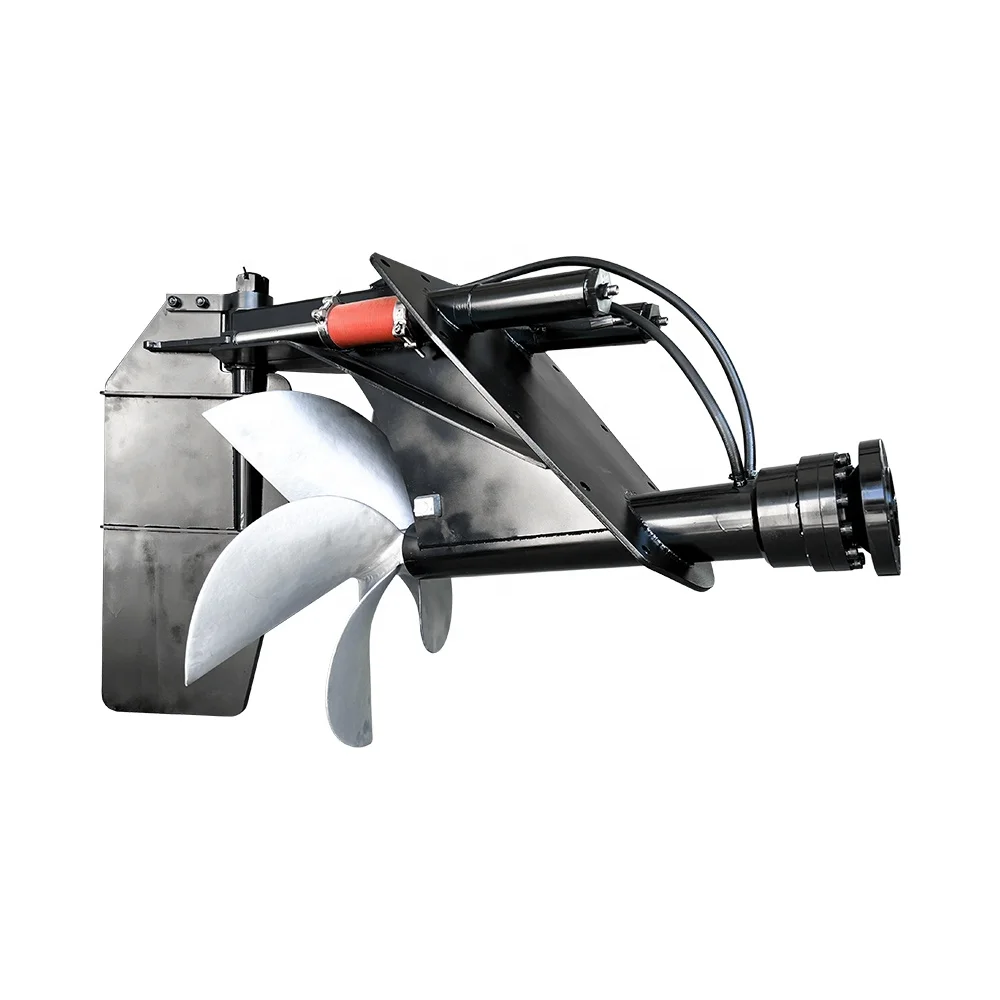

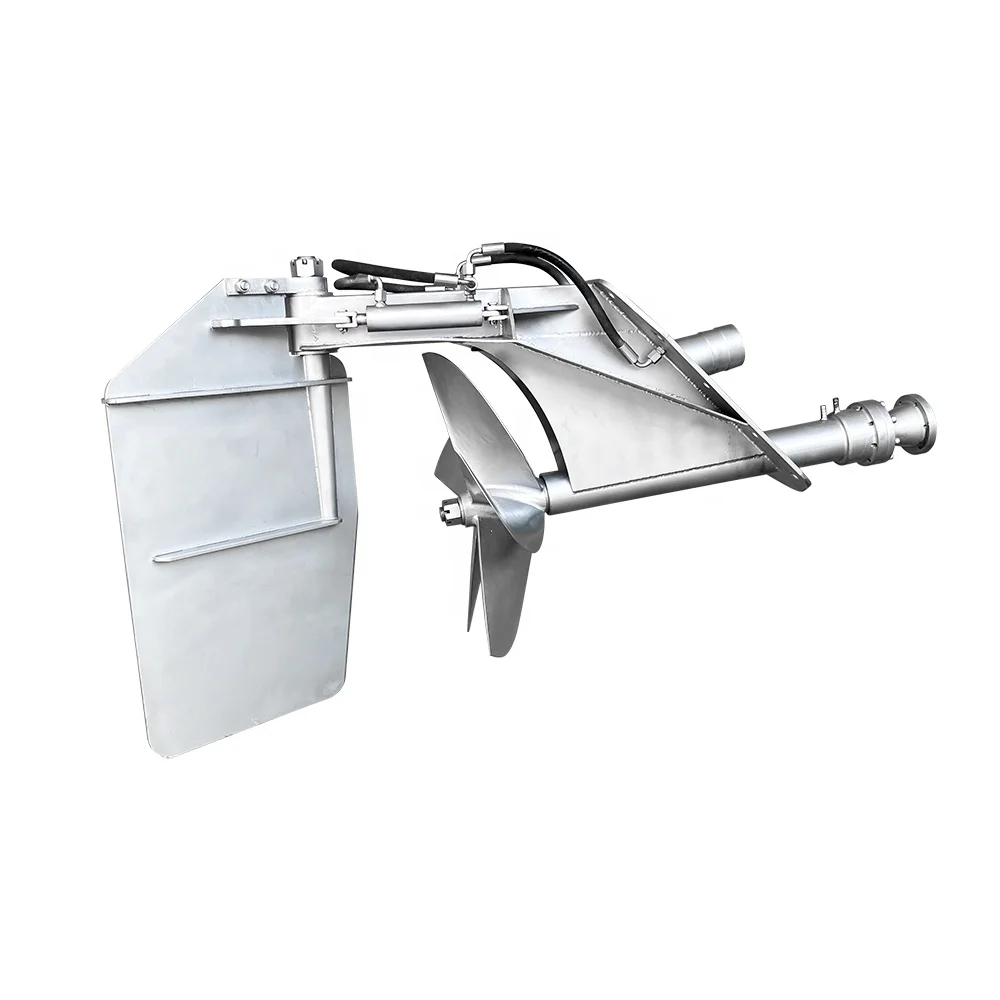

RS Approved Marine Rudder Propeller
US $1000-$100000
TSD внутрибортовой привод, высококоррозионные морские детали, высокоэффективная система внутреннего привода дизельного двигателя
- Category: Marine Propellers >>>
- Supplier: Xiamen Tofoo Electronic Engineering Co. Ltd.
Share on (1600465323236):
Product Overview
Description
Product Description

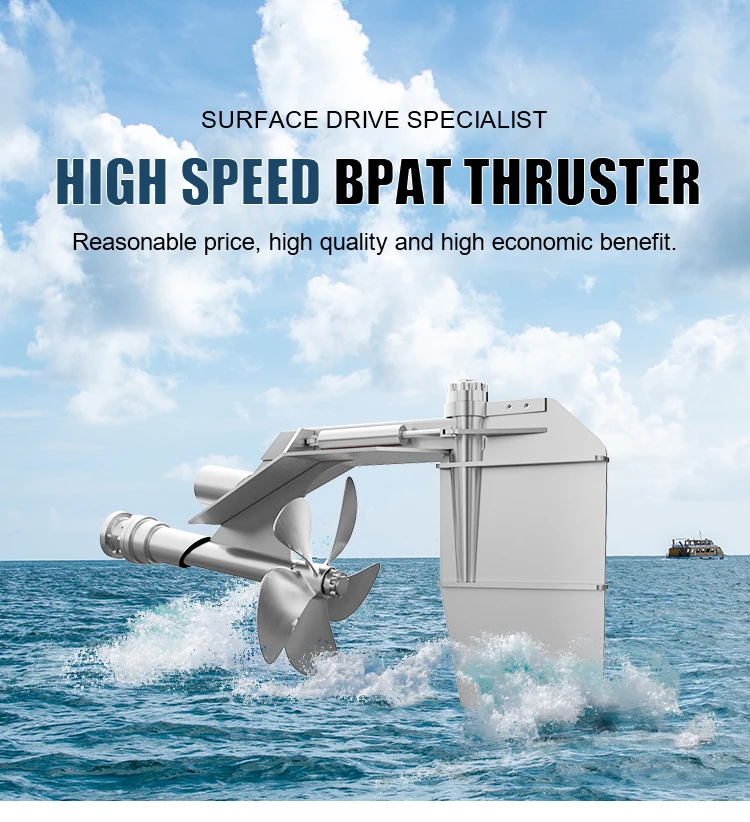

The surface drive propulsion system (also known as semi-submerged propeller) independently developed by Tofoo Electronics Engineering Co., Ltd. for TSD type high-speed boats has been tested in Changsha, China, with a maximum measured speed of 78.9 km/h, which has been successfully used in high-speed boats. This technology has obtained a number of utility model patents and invention patents. The success of this test voyage fully demonstrated the maturity of the key technology and core technology of the high-speed surface propeller device, marking that the surface propeller device and surface propeller technology for domestic TSD high-speed boats have gradually matured, and the application direction of the product will be more mature. It is safe, efficient and cost-effective.
PRODUCT PARAMETERS
BG550 | BG600 | BG660 | BG750 | BG750L | |
Adaptable blade diameter | 500/550mm | 600mm | 660mm | 660/750mm | 750mm |
Number of adaptable blades | 4,5,6 | 4,5,6 | 4,5,6 | 4,5,6 | 4,5,6 |
| Adapted power | 60Hp-200Hp | 150Hp-300Hp | 250Hp-400Hp | 350Hp-600Hp | 600Hp-1000Hp |
Maximum input torque N.m | 1600N.m | 2000N.m | 3000N.m | 5000N.m | 8000N.m |
Single machine weight (KG) | 85KG | 110KG | 150KG | 200KG | 260KG |
Minimum intput speed of main engine r/min | 1000 | 1000 | 1000 | 1000 | 1000 |
Maximum intput speed of host r/min | 2500 | 2500 | 2500 | 2500 | 2500 |
Maximum suitable ship weight for single machine (T) | 2.5T | 4.5T | 6T | 9T | 12T |
Maximum suitable ship weight for dual engines (T) | 5T | 10T | 15T | 22T | 25T |
Standard accessories | Cardan shaft, oil pot (alarm) | Cardan shaft, oil pot (alarm) | Cardan shaft, oil pot (alarm) | Cardan shaft, oil pot (alarm) | Cardan shaft, oil pot (alarm) |

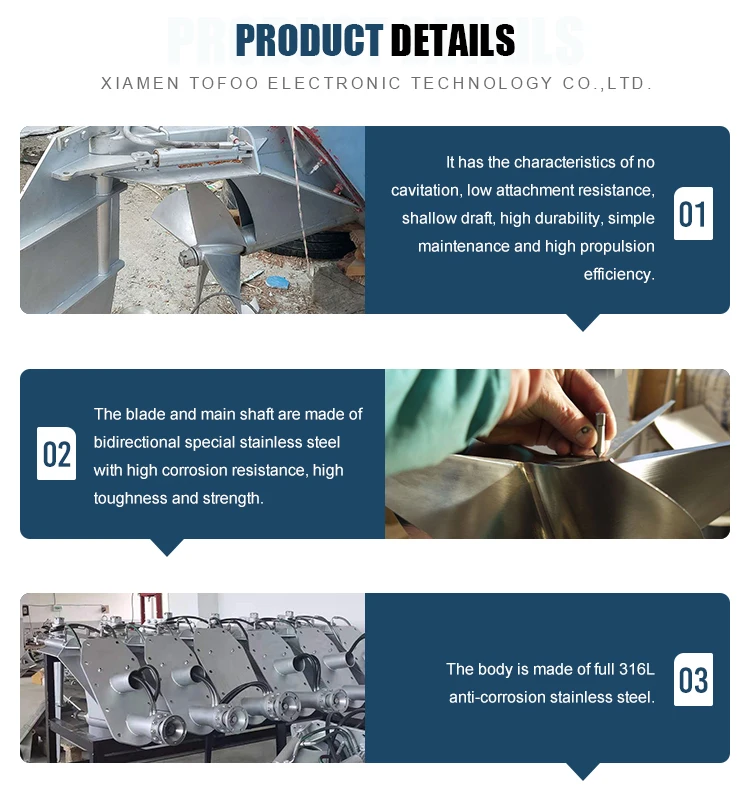

Product Advantage
