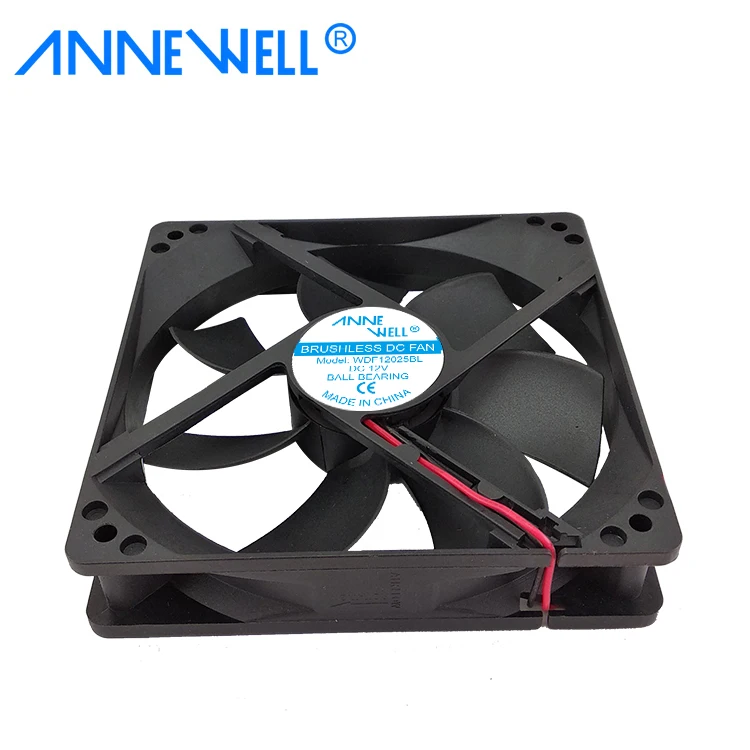

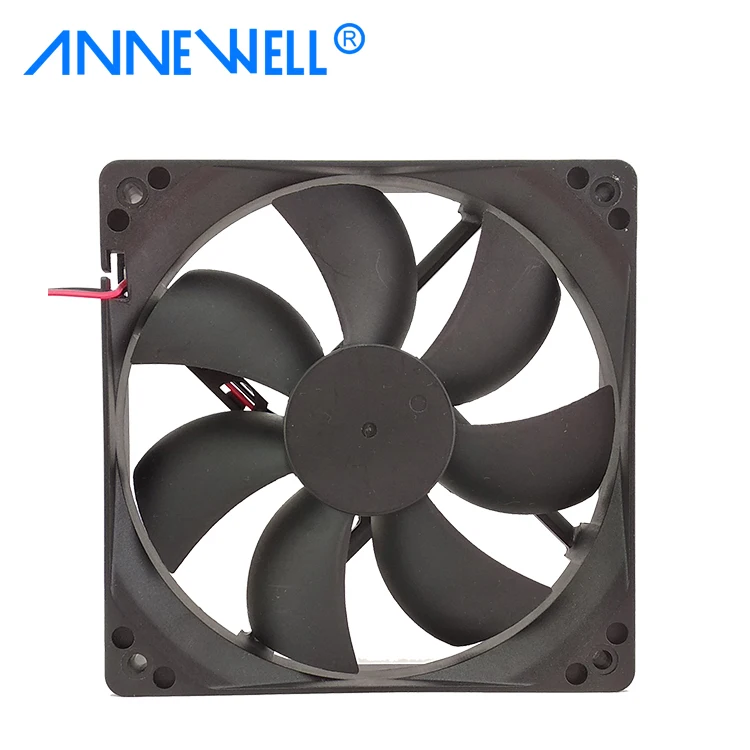

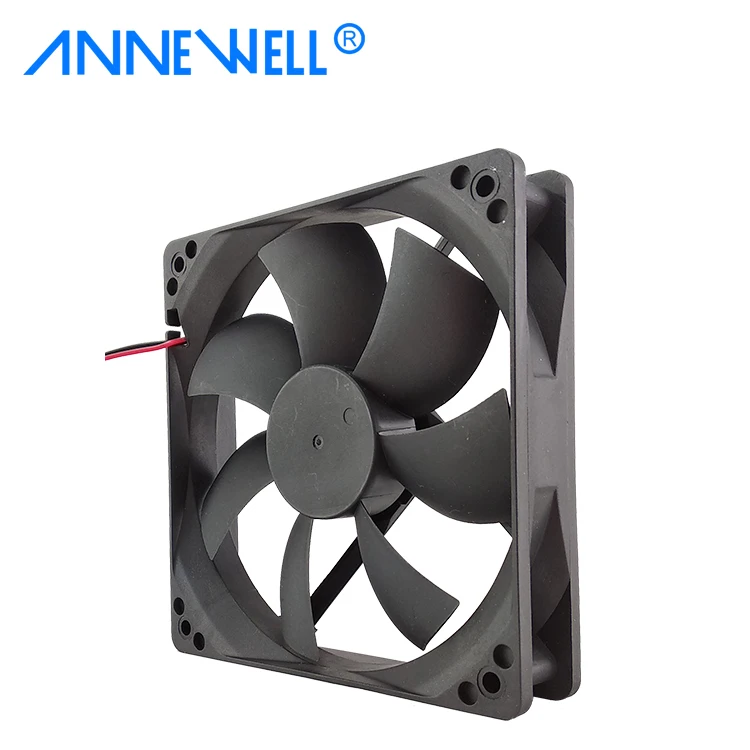

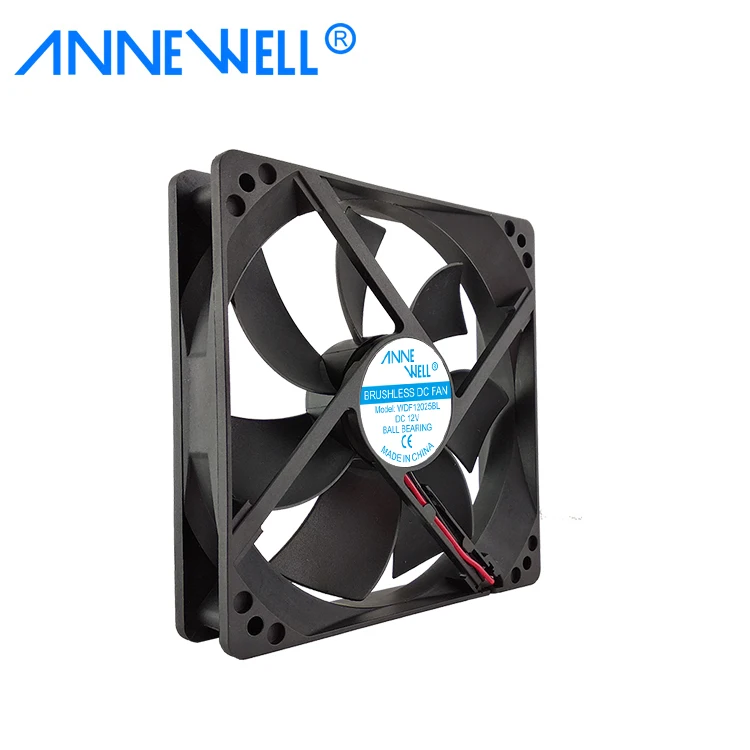

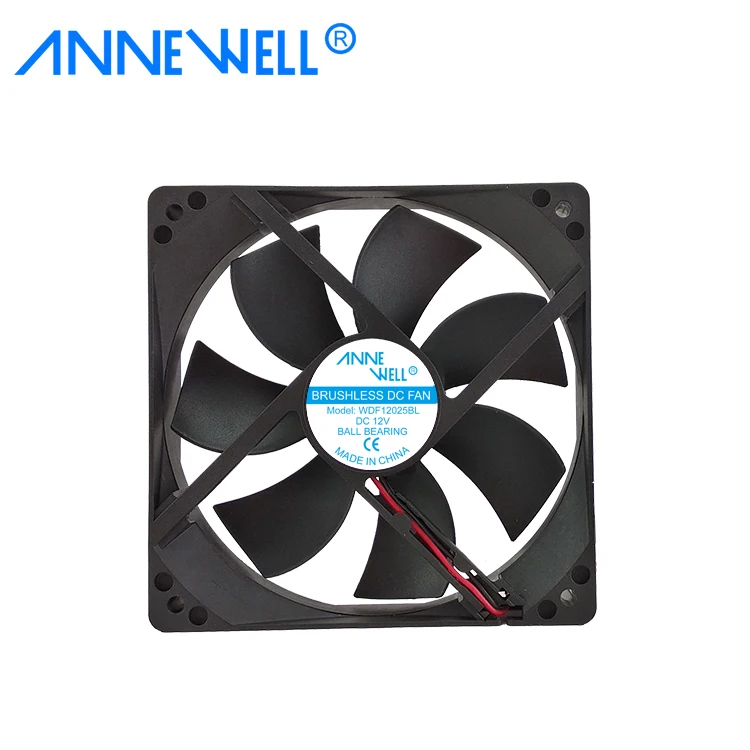

| Model | WDF12025 | Size | 120x120x25mm |
| Frame | Thermal Plastic,UL 94V-0 | Impeller | Thermal Plastic,UL 94V-0 |
| Bearing Type | Sleeve/Ball | Lead Wire | UL Type |
| Motor | Copper Motor | Insulation | Above 10M Between Lead wire and Frame DC500V |
| Weight | 135g | Rated Voltage | 12v |
| Application | 3D printers,Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer.Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine.CPU cooler,Case. | ||

| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Rated Power | Speed | Air Flow | Static Pressure | Noise Level | Available Features(Optional) | Weight | |||
| VDC | VDC | AMP | W | RPM | CFM | mmH2O | dBA | FG | RD | Thermal Control | PWM | G | ||
| WDF12025XS/B | Sleeve/ Ball | 12 | 5.0~14.0 | 0.50 | 6.00 | 3,000 | 114.72 | 5.78 | 45.9 | * | * | * | * | 135 |
| WDF12025DS/B | 5.0~14.0 | 0.26 | 3.12 | 2,500 | 91.43 | 3.91 | 41.0 | * | * | * | * | |||
| WDF12025HS/B | 5.0~14.0 | 0.20 | 2.40 | 2,000 | 72.75 | 2.65 | 35.6 | * | * | * | * | |||
| WDF12025MS/B | 5.0~14.0 | 0.15 | 1.80 | 1,700 | 60.17 | 1.85 | 30.3 | * | * | * | * | |||
| WDF12025LS/B | 5.0~14.0 | 0.10 | 1.20 | 1,400 | 39.48 | 1.23 | 25.1 | * | * | * | * | |||
| WDF12025XS/B | Sleeve/ Ball | 24 | 12.0~26.0 | 0.30 | 7.20 | 3,000 | 114.72 | 5.78 | 45.9 | * | * | * | * | |
| WDF12025DS/B | 12.0~26.0 | 0.20 | 4.80 | 2,500 | 91.43 | 3.91 | 41.0 | * | * | * | * | |||
| WDF12025HS/B | 12.0~26.0 | 0.14 | 3.36 | 2,000 | 72.75 | 2.65 | 35.6 | * | * | * | * | |||
| WDF12025MS/B | 12.0~26.0 | 0.09 | 2.16 | 1,700 | 60.17 | 1.85 | 30.3 | * | * | * | * | |||
| WDF12025LS/B | 12.0~26.0 | 0.06 | 1.44 | 1,400 | 39.48 | 1.23 | 25.1 | * | * | * | * | |||








| Q:Are you a factory or trading company? |
| A:We are a factory. |
| Q:What is the products of our factory ? |
| A: The products are Dc cooling fans , Ac cooling fans, Blower cooling fans, Cpu cooling fan, VGA cooling fan.Our fans from 20mm-220mm . We can also do cooling fans as customers' requirement. |
| Q: Do you provide samples ? is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: It needs to be decided on the basis of the situation. |
| Q: How long is your delivery time? |
| A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |
| Other Dimension | |||||
| 20*20*6mm | 20*20*10mm | 25*25*7mm | 25*25*10mm | 35*35*10mm | 40*40*10mm |
| 40*40*10mm | 40*40*20mm | 40*40*28mm | 50*50*10mm | 50*50*15mm | 60*60*15mm |
| 60*60*20mm | 60*60*25mm | 70*70*25mm | 80*80*10mm | 80*80*15mm | 80*80*25mm |
| 90*90*25mm | 92*92*38mm | 120*120*25mm | 120*120*38mm | 135*135*38mm | 140*140*25mm |
| 140*140*38mm | 150*150*50mm | 172*150*38mm | 170*152*51.5mm | 180*180*60mm | 200*200*60mm |
| 220*220*60mm | 225*255*80mm | 280*280*80mm | |||
