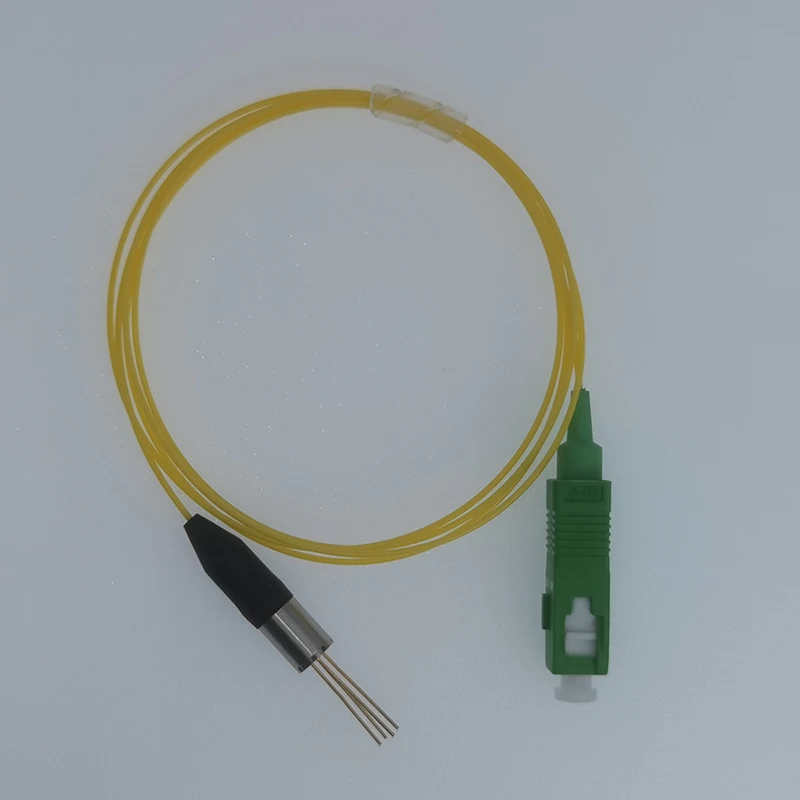

Factory Wholesale Cheap High Quality 1550nm Ld 0.9mm Optical Fiber For Cable Tv
- Category: >>>
- Supplier: Digital Network Technology Company Limited
Share on (1600465328523):
Product Overview
Description
1. AbsoluteMaximum Ratings
Item | Unit | Min | Max | Note |
Forward Current for LD | mA | -- | 150 | |
Reverse Voltage for LD | V | -- | 2 | |
Forward Current for MPD | mA | -- | 1 | |
Reverse Voltage for MPD | V | -- | 6 | |
Operating Temp | °C | -40 | 85 | |
Storage Temperature | °C | -40 | 85 | |
Storage Relative Humidity | % | -- | 85 | |
Solder Reflow Temperature | °C | -- | 260 | (*1) |
(*1): For soldering by iron and 10 seconds on leads
2. Electro-Optical Characteristics (TC=25°C)
2. Electro-Optical Characteristics (TC=25°C)
Item | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
Threshold Current | Ith | CW | -- | 10 | 15 | mA |
Optical Output Power (*2) | Pf | CW,If=30mA | 2.75 | -- | -- | mW |
Forward Voltage | Vf | CW,If=30mA | -- | 1.2 | 1.5 | V |
Central Wavelength | lc | CW,If=30mA | 1530 | 1550 | 1570 | nm |
Spectrum Width (RMS) | Dl | CW,If=30mA | -- | -- | 5 | nm |
Monitor Current | Im | CW,If=30mA , Vpd= -2V | 100 | -- | 800 | mA |
(*2): Launched into 9/125mm SMF, measured with a master plug and an extra receptacle
3.Dimension Outline
3.Dimension Outline
4. Pigtail Fiber Characteristics
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Mode Field Diameter | 8 | 9 | 10 | mm | ||
Gladding Diameter | 123 | 125 | 127 | mm | FC/APC connector | |
Fiber BendingRadius | 30 | -- | -- | mm | ||
Fiber Diameter | 0.8 | 0.9 | 1 | mm | Red | |
Fiber Length | 1350 | 1400 | 1450 | mm | L | |
Tension Force on Pigtail Fiber | 5 | -- | -- | N |
5. Test requirements and data formats
Laser length: 75cm
1550 nm laser pigtail color:red
All the lasers need to be testedby APDtest-setandrecordthetestresultontestdata
Test data format as below.
Product: 1550nm FP laser Part No: JZSZLDFP1550E LOT No:
Test Condition: Test Date:
Laser length: 75cm
1550 nm laser pigtail color:red
All the lasers need to be testedby APDtest-setandrecordthetestresultontestdata
Test data format as below.
Product: 1550nm FP laser Part No: JZSZLDFP1550E LOT No:
Test Condition: Test Date:
