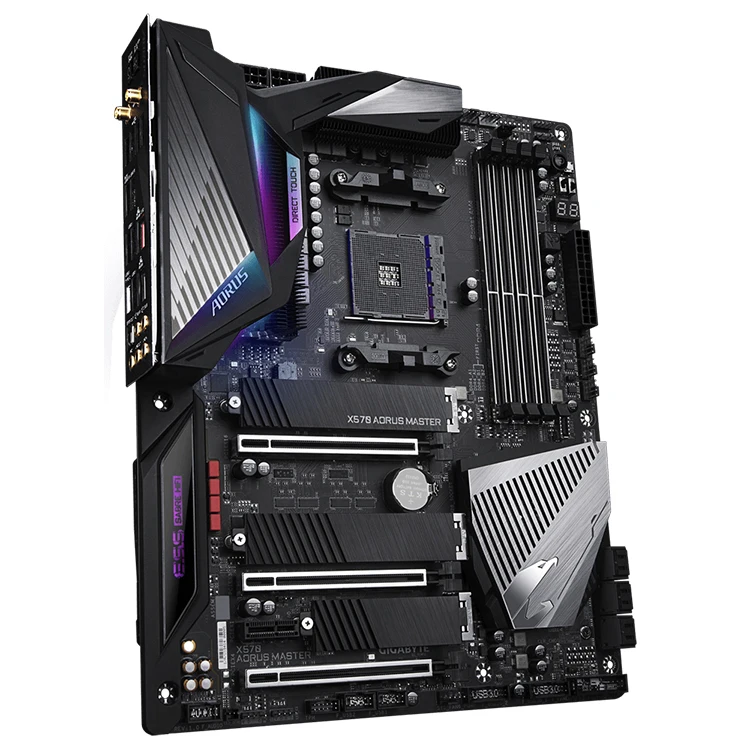

New board for GIGABYTE X570 AORUS MASTER Motherboard . DDR4 128GB Memory 3rd And 2nd Generation AMD Ryzen processors For Gaming
- Category: >>>
- Supplier: Shenzhen Huixin Tengda Trading Co. Ltd.
Share on (1600465337264):
Product Overview
Description

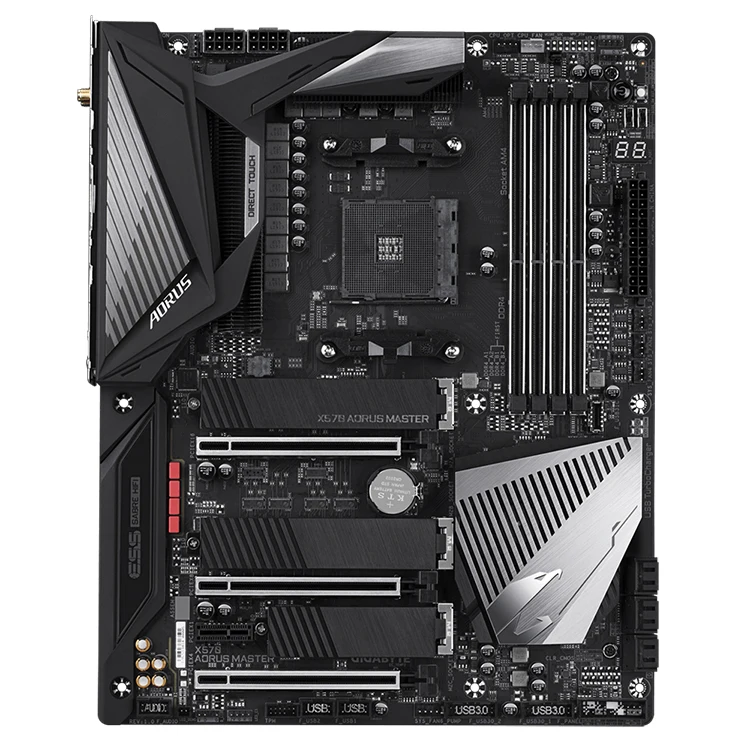

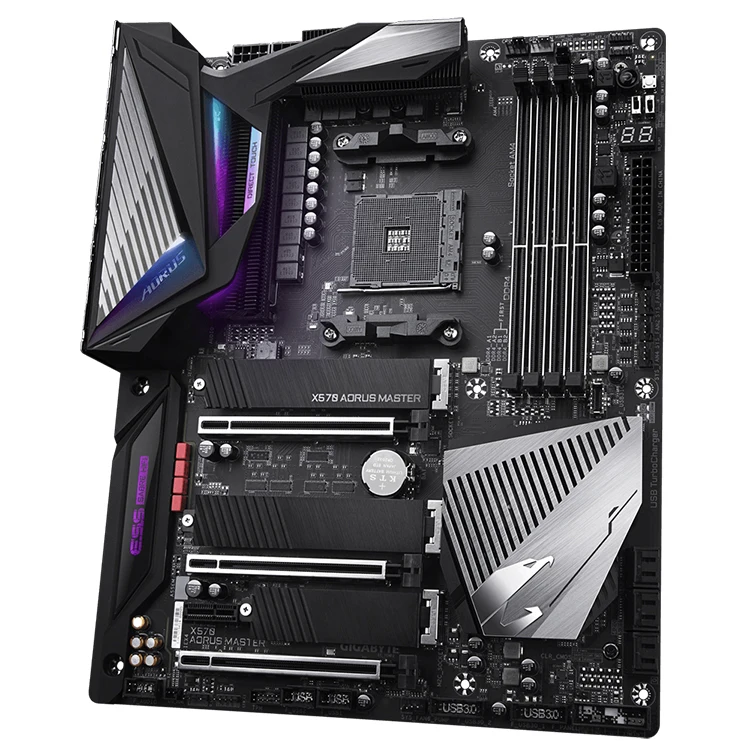

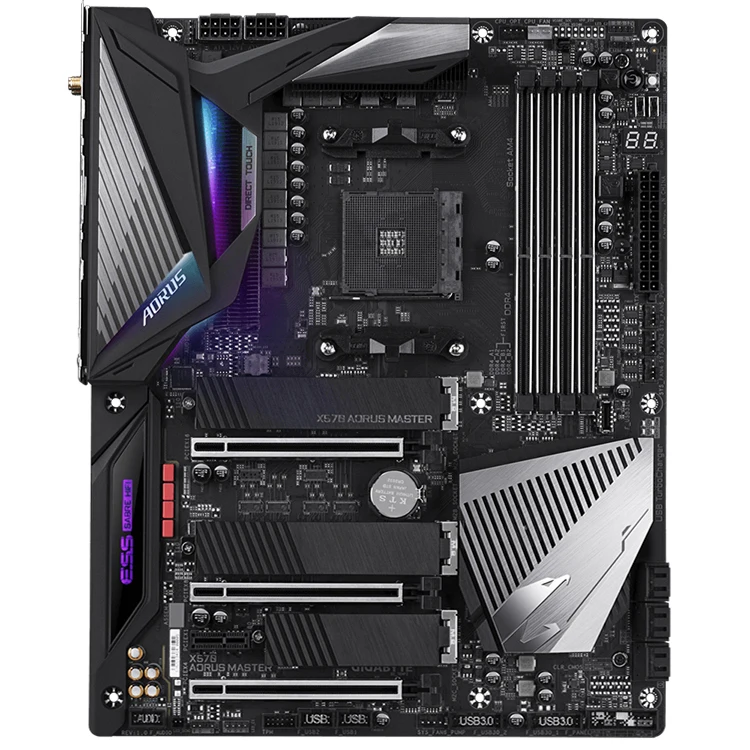

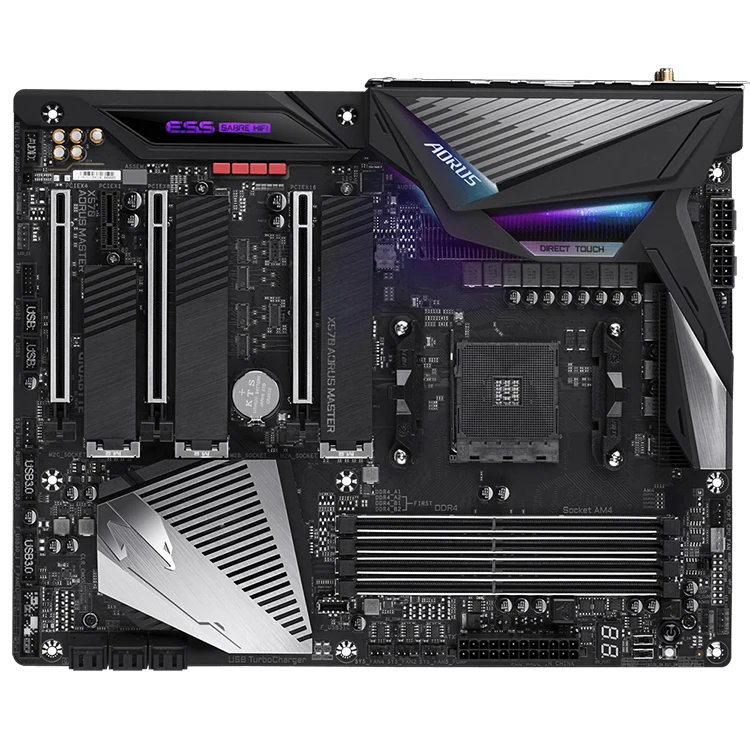

AMD X570 AORUS Motherboard with Direct 14 Phase Infineon Digital VRM, Fins-Array Heatsink & Direct Touch Heatpipe, Triple PCIe 4.0 M.2 with Thermal Guards, Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9118, 2.5GbE+1GbE LAN, USB Type-C, RGB Fusion 2.0
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 14 Phases Infineon Digital VRM Solution with PowIRstage
- Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
- Intel® WiFi 6 802.11ax 2T2R & BT 5
- Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio Capacitors
- Realtek® 2.5GbE + Intel® Gigabit LAN with cFosSpeed
- USB TurboCharger for Mobile Device Fast Charge Support

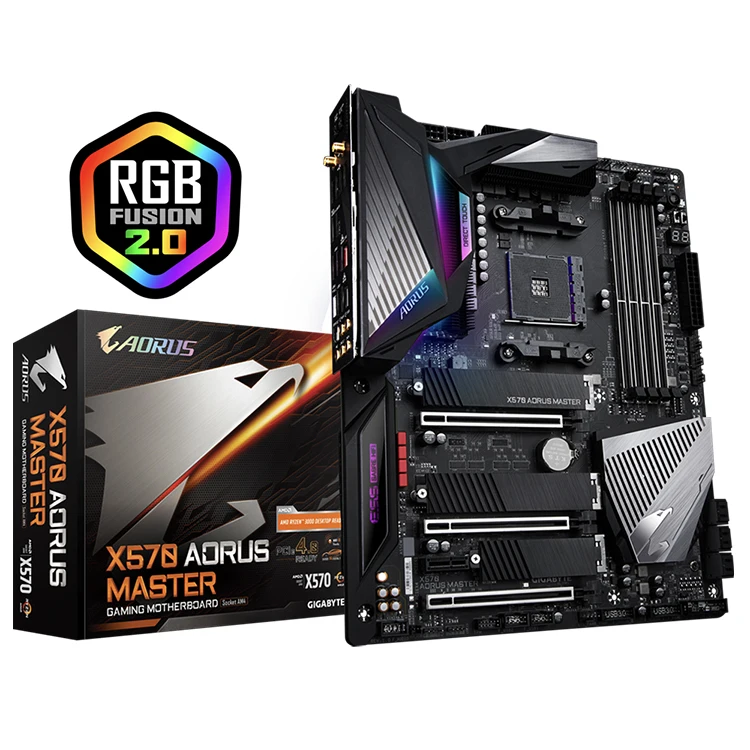

- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
- Front & Rear USB 3.2 Gen2 Type-C™ Headers
- Adopts a high quality ball bearing fan which guarantees 60,000 working hours.
- Integrated Base Plate & I/O Shield Armor
- Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
- CPU
\t- AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
\t\t
\t
\t
\t
(Please refer "CPU Support List" for more information.)
- Chipset
\t- AMD X570
\t\t
\t
\t - Memory
\t- 3rd Generation AMD Ryzen™ processors:
\t\t Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules - 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
\t\t Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
\t\t * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors. - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t
\t - 3rd Generation AMD Ryzen™ processors:
\t
\t
(Please refer "Memory Support List" for more information.)
- Audio
\t- Realtek® ALC1220-VB codec
\t\t * The front panel line out jack supports DSD audio. - ESS SABRE9118 DAC chip
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
\t\t
\t\t
\t\t
\t\t
\t\t
\t
\t - Realtek® ALC1220-VB codec
- LAN
\t- 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
- 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)
\t\t
\t\t
\t
\t - Wireless Communication module
\t- Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
- BLUE.TOOTH 5.0
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
\t\t * Actual data rate may vary depending on environment and equipment.
\t\t
\t\t
\t\t
\t
\t - Expansion Slots
\t
\t
\t
\t
Integrated in the CPU (PCIEX16/PCIEX8):
\t- 3rd Generation AMD Ryzen™ processors:
\t\t 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
\t\t 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) - 2nd Generation AMD Ryzen™ processors:
\t\t 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
\t\t 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
\t\t * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
\t\t * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. - 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
\t\t 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
\t\t
\t\t
\t\t
\t
\t- 3rd Generation AMD Ryzen™ processors:
\t
Integrated in the Chipset (PCIEX4/PCIEX1):
\t- 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
\t\t * For 3rd Generation AMD Ryzen™ processors only. - 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0
\t\t * For 3rd Generation AMD Ryzen™ processors only.
\t\t
\t\t
\t
\t- 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
- Multi-Graphics Technology
\t- Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
\t\t
\t
\t
\t
\t
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
- Storage Interface
\t
Integrated in the CPU (M2A_SOCKET):
\t- 3rd Generation AMD Ryzen™ processors:
\t\t 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) - 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
\t\t 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
\t\t
\t\t
\t
\t- 3rd Generation AMD Ryzen™ processors:
\t
Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
\t- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
\t\t * For 3rd Generation AMD Ryzen™ processors only. - 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
\t\t * For 3rd Generation AMD Ryzen™ processors only. - 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10
\t\t * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
\t\t
\t\t
\t\t
\t\t
\t
\t- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
- USB
\t
\t
Integrated in the CPU:
\t- 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
\t\t * For 3rd Generation AMD Ryzen™ processors only. - 2 x USB 3.2 Gen 1 ports on the back panel
\t\t
\t\t
\t
\t- 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
\t
Integrated in the Chipset:
\t- 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers
\t\t
\t\t
\t\t
\t\t
\t
\t
\t
Chipset+USB 2.0 Hub:
\t- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
\t\t
\t
\t- Internal I/O Connectors
\t- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 2 x system fan/water cooling pump headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 3 x M.2 Socket 3 connectors
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 2 x temperature sensor headers
- 1 x power button
- 1 x reset button
- 2 x BIOS switches
- 1 x Clear CMOS jumper
- Voltage Measurement Points
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t

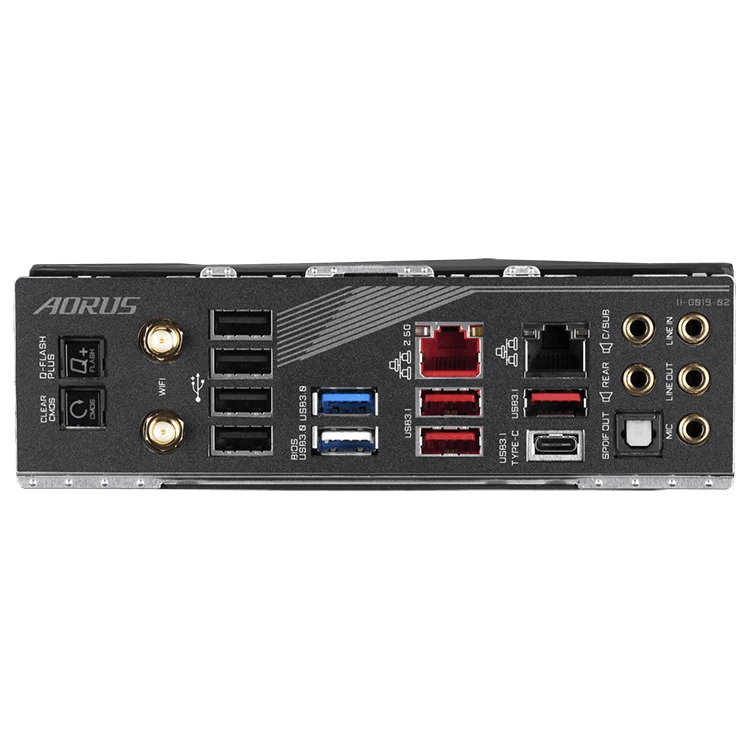

\t - Back Panel Connectors
\t- 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 2 x SMA antenna connectors (2T2R)
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
\t\t * For 3rd Generation AMD Ryzen™ processors only. - 1 x USB 3.2 Gen 2 Type-A port (red)
- 2 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x RJ-45 ports
- 1 x optical S/PDIF Out connector
- 5 x audio jacks
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t
\t - I/O Controller
\t- iTE® I/O Controller Chip
\t\t
\t
\t - H/W Monitoring
\t- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
\t\t * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. - Noise detection
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t
\t - BIOS
\t- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
\t\t
\t\t
\t\t
\t\t
\t
\t - Unique Features
\t- Support for APP Center
\t\t * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
\t\t @BIOS
\t\t AutoGreen
\t\t Cloud Station
\t\t EasyTune
\t\t Fast Boot
\t\t Game Boost
\t\t RGB Fusion
\t\t Smart Backup
\t\t Smart Keyboard
\t\t Smart Survey
\t\t System Information Viewer
\t\t USB Blocker
\t\t USB TurboCharger - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
\t\t
\t\t
\t\t
\t\t
\t
\t - Support for APP Center
- Bundled Software
\t- Norton® Internet Security (OEM version)
- cFosSpeed
- XSplit Gamecaster + Broadcaster (12 months license)
\t\t
\t\t
\t\t
\t
\t - Operating System
\t- Support for Windows 10 64-bit
\t\t
\t
\t - Form Factor
\t- ATX Form Factor; 30.5cm x 24.4cm
\t\t
\t
\t - Remark
\t- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
