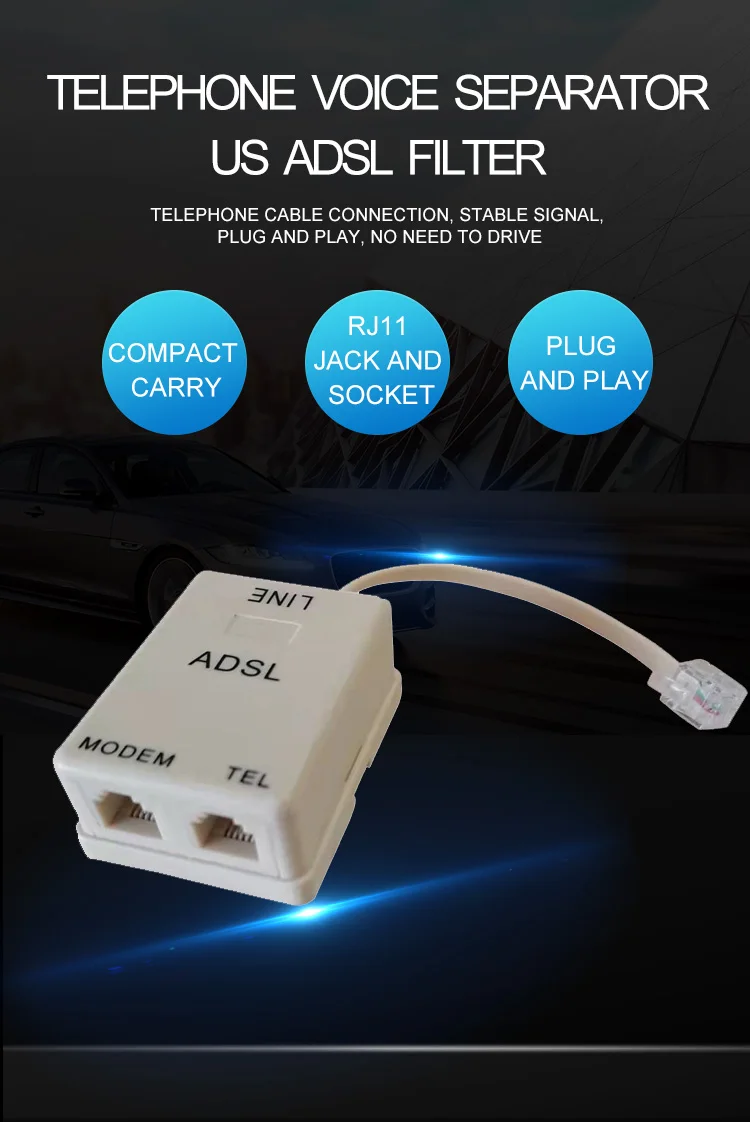

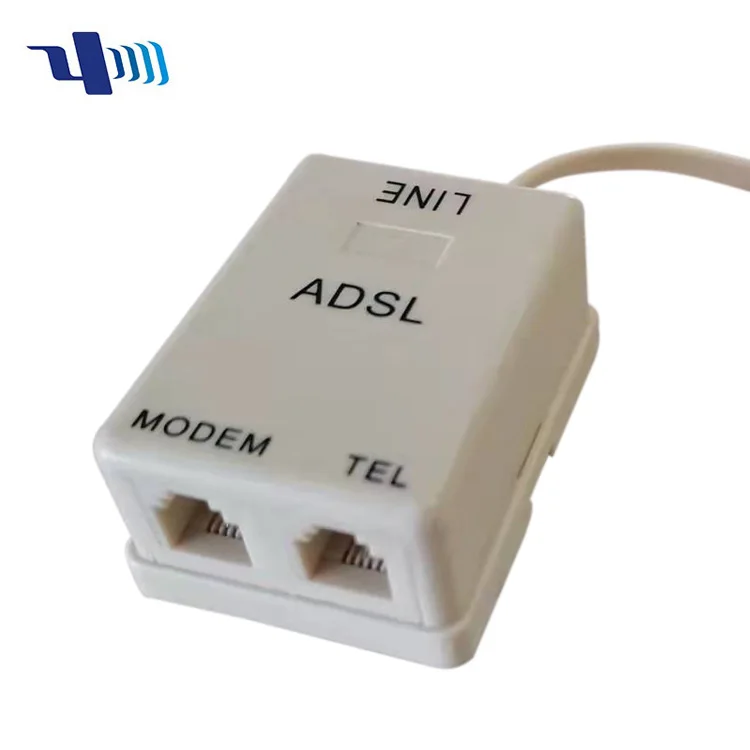

US ADSL RJ11 6P2C Telephone Splitter with Cable 100mm
- Category: Telephones & Accessories >>>
- Supplier: Shenzhen Zhongkezhixun Technology Co. Ltd.
Share on (1600465404662):
Product Overview
Description
Our Advantages
Our Advantages
1.We are a factory which can help you to save costs, there is no lowest price but reasonable price.
2.With 18 years experience and professional engineer team, we can always offer you the product with high quality.
3.Our delivery is punctual, if we can't send you the shipment in punctual, we would let you know in advance, and confirm the update time with you
4.Our service is superior, you can contact with us at any time, we would reply you at the first time.
Splitter parameter | Electrical Requirements | |||
Range | values | |||
Splitter bandwidth | / | DC to 4KHz | ||
Nominal voice bandwith | / | 300Hz to 3.4KHz | ||
Ringing Frequence | / | 15Hz to 68Hz | ||
ADSL band | / | 30KHz to 1.1MHz | ||
Line impedance | 300Hz to 3.4KHz | 600Ω | ||
Modem impendance | 30KHz to 110KHz | 100Ω | ||
Operation voltage voice band | ||||
Nominal signal | 21mVpp to 5.4Vpp | |||
Ringing signal | 40Vrms to 150Vrms | |||
DC voltage | 0 to 105V | |||
Max AC voltage | / | 150Vrms | ||
Operation current voice band | ||||
Loop current | / | <100mA | ||
DC resistance | Tip to Tip and Ring to Ring | <25 ohm | ||
Isolation resistance | Tip to Ring | >100M ohm | ||
Voice band characteristics | ||||
Insertion loss resistive single filter | 1KHz | <0.5dB | ||
With 3 filters | 1KHz | <1.0dB | ||
Insertion loss distortion resistive single filter | 0.2KHz~4KHz | <1.0dB | ||
Return loss | 300Hz to 500Hz | >14dB | ||
500Hz to 2KHz | >18dB | |||
2KHz to 3.4KHz | >14dB | |||
ADSL band attenution | 30KHz to 200KHz | >30dB | ||
200KHz~1.1MHz | >50dB | |||
Unbalance about earth | 200Hz to 1KHz | >46dB | ||
1KHz to 4KHz | >40dB | |||
Delay distortion | 300Hz to 3.4KHz | <250us | ||
Insertion loss distortion | 30KHz to 1.1MHz | <0.25dB | ||
Company Profile
Shenzhen Zhongkezhixun Technology Co., Ltd has specialized in manufacturing Network cable, ADSL Splitter/Filter, Telephone Adapter, Telecom parts and accessories over 20 years, which covers an area of 8000 square meters and has professional staffs over 300.
With more than 20 years experiences, ZKZX has armed with advanced automatic equipments and featured a professional team who gets rich experiences in design, technology, and quality control, which make us to be a long-term supplier from Gigaset, Panasonic, Sagemcom, Huawei etc.
Certificated by ISO9001, we have built up an efficient ISO and RoHs operating system which guarantee your satisfaction at our highest quality and best service.
With more than 20 years experiences, ZKZX has armed with advanced automatic equipments and featured a professional team who gets rich experiences in design, technology, and quality control, which make us to be a long-term supplier from Gigaset, Panasonic, Sagemcom, Huawei etc.
Certificated by ISO9001, we have built up an efficient ISO and RoHs operating system which guarantee your satisfaction at our highest quality and best service.
Certifications
Customer Photos
FAQ
♦ What is your MOQ? Can you offer us samples?
Our MOQ is 3000pcs as usual, it all depends.
2-3pcs samples are free, if it is our regular product. If we make the samples according to your requirement, there would be
samples fee,but we would return to you after we cooperated.
♦ What is the trade term?
The trade term is Ex-works, FOB, FCA, CIF, DDP and so on.
♦ What is the payment term?
40% payment by T/T in advance, balance 60% paid before delivery.
♦ Can you tell us what is your gurantee for quality?
All of our products are passed ISO 9001 and CE certificate.
♦ What is the delivery time?
The lead time is about 20 days after we confirm got your deposit. It all depends.
♦ How can we know what is the type of your business, factory or trading company?
Our company is factory direct, located in Luokeng Industrial Zone, Fumin Community, Longhua Area, Shenzhen. Welcome to visit our factory at any time.
Our MOQ is 3000pcs as usual, it all depends.
2-3pcs samples are free, if it is our regular product. If we make the samples according to your requirement, there would be
samples fee,but we would return to you after we cooperated.
♦ What is the trade term?
The trade term is Ex-works, FOB, FCA, CIF, DDP and so on.
♦ What is the payment term?
40% payment by T/T in advance, balance 60% paid before delivery.
♦ Can you tell us what is your gurantee for quality?
All of our products are passed ISO 9001 and CE certificate.
We can make sure each product is qualificated product before delivery.
♦ What is the delivery time?
The lead time is about 20 days after we confirm got your deposit. It all depends.
♦ How can we know what is the type of your business, factory or trading company?
Our company is factory direct, located in Luokeng Industrial Zone, Fumin Community, Longhua Area, Shenzhen. Welcome to visit our factory at any time.
