Name | Combination Eye Wash & Shower | ||||||||||
Brand | WELKEN | ||||||||||
Model | BD-560/G/H/K/N | ||||||||||
Head | 10” stainless steel or ABS | ||||||||||

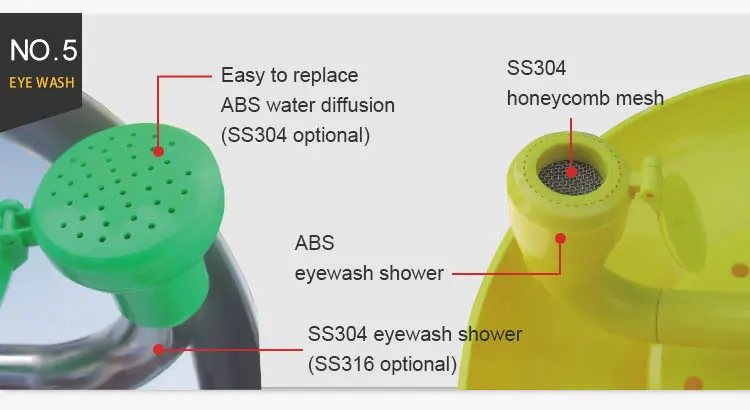

Eye Wash Nozzle | ABS spraying with 10” waste water recycle bowl | ||||||||||
Shower Valve | 1” 304 stainless steel ball valve | ||||||||||

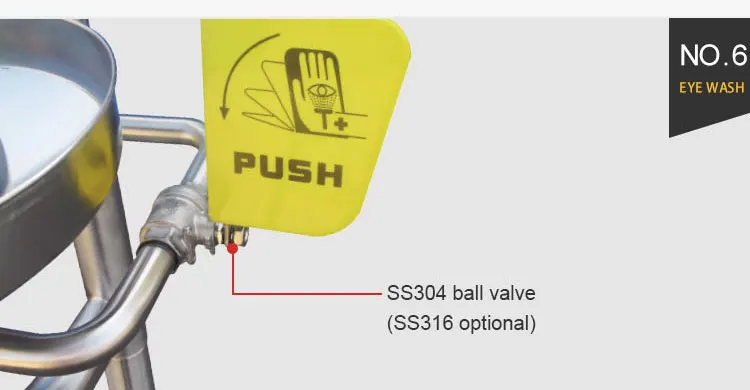

Eye Wash Valve | 1/2” 304 stainless steel ball valve | ||||||||||
Supply | 1 1/4" FNPT | ||||||||||
Waste | 1 1/4" FNPT | ||||||||||
Eye Wash Flow | ≥11.4 L/Min | ||||||||||
Shower Flow | ≥75.7 L/Min | ||||||||||
Hydraulic Pressure | 0.2MPA-0.6MPA | ||||||||||
Original Water | Drinking water or filtered water | ||||||||||
Using Environment | Places where has hazardous substance splashing, such as chemicals, hazardous liquids, solid, gas and so on. | ||||||||||
Special Note | If the acid concentration is too high, recommend to use 316 stainless steel. | ||||||||||
When using ambient temperature below 0℃, use antifreeze eye wash. | |||||||||||
The eye wash & shower is made of high quality 304 stainless steel. | |||||||||||
Can install anti-scalding device to avoid the media temperature is too high in the pipe after the sun exposure and cause user scalding. The standard anti-scalding temperature is 35℃. | |||||||||||
Standard | ANSI Z358.1-2014 | ||||||||||
