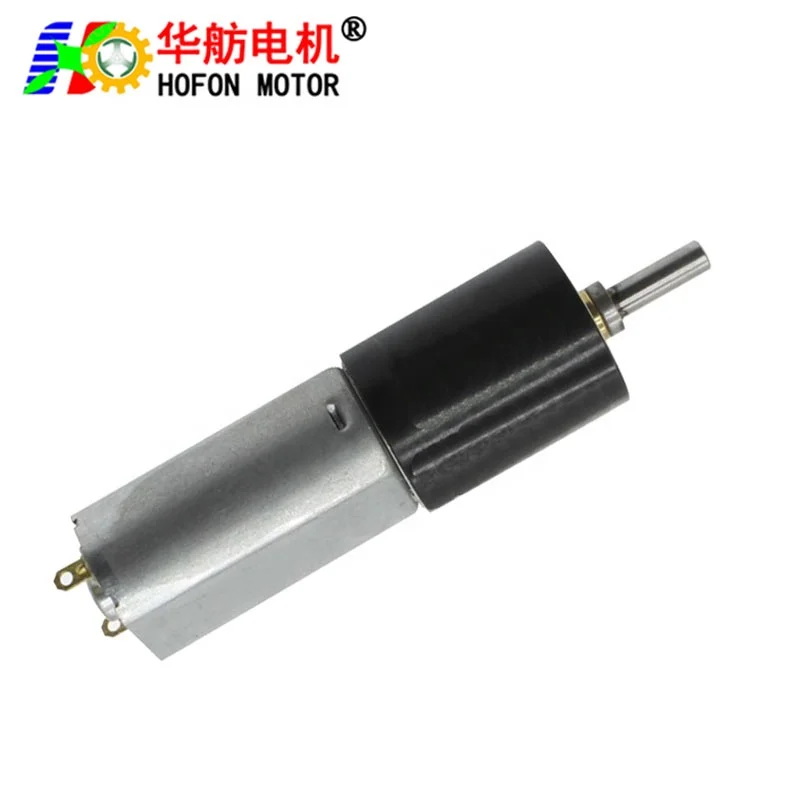

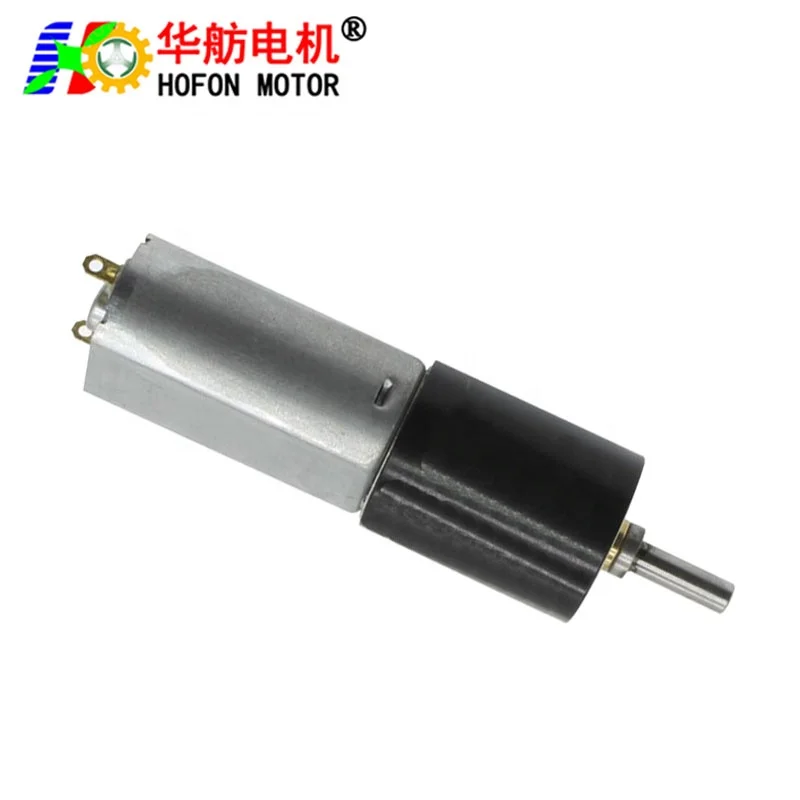

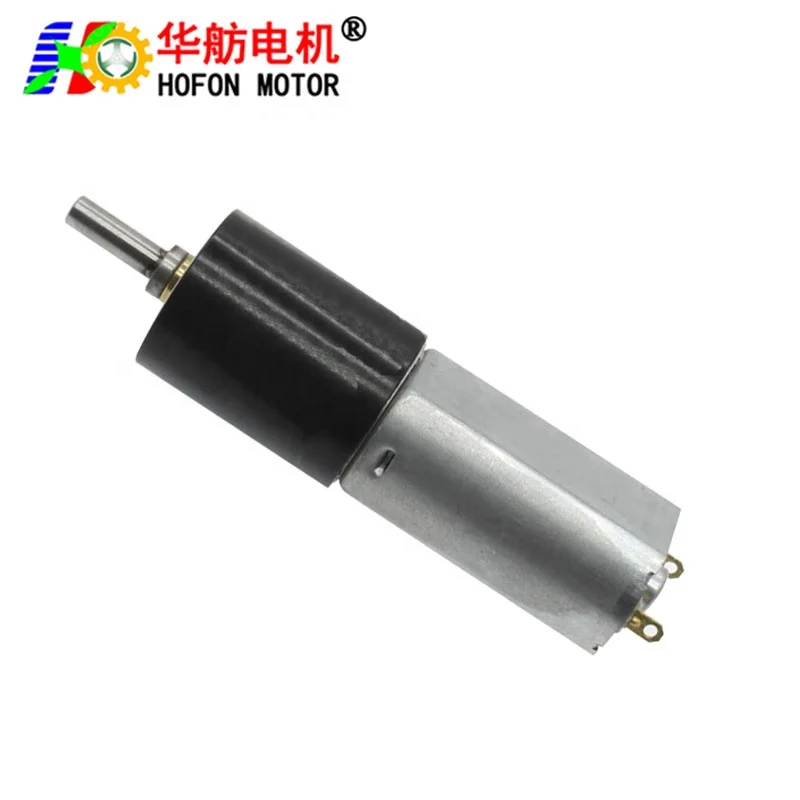

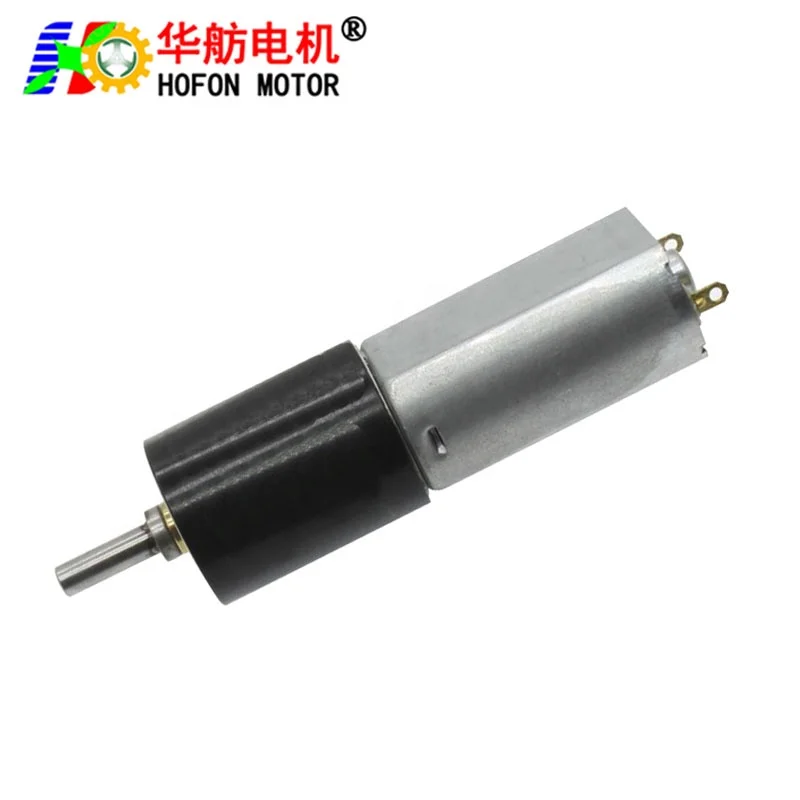

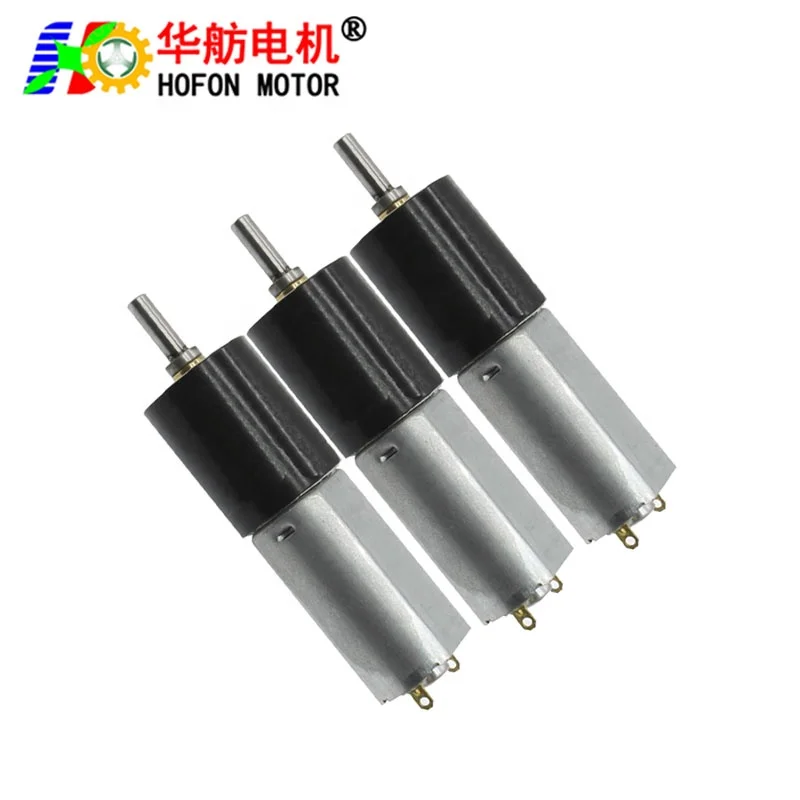

Hofon16mm DC Planetary 3v 4.5v 5v 6v 9v 12 volt geared Motor PG16 050SH Planetary gear high torque motor for model airplane
- Category: >>>
- Supplier: Shenzhen Hofon Electronic Technology Co. Ltd.
Share on (1600465459678):
Product Overview
Description
Specification
Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine
Voltage, speed, torque and other performance parameters can be customized according to requirements.

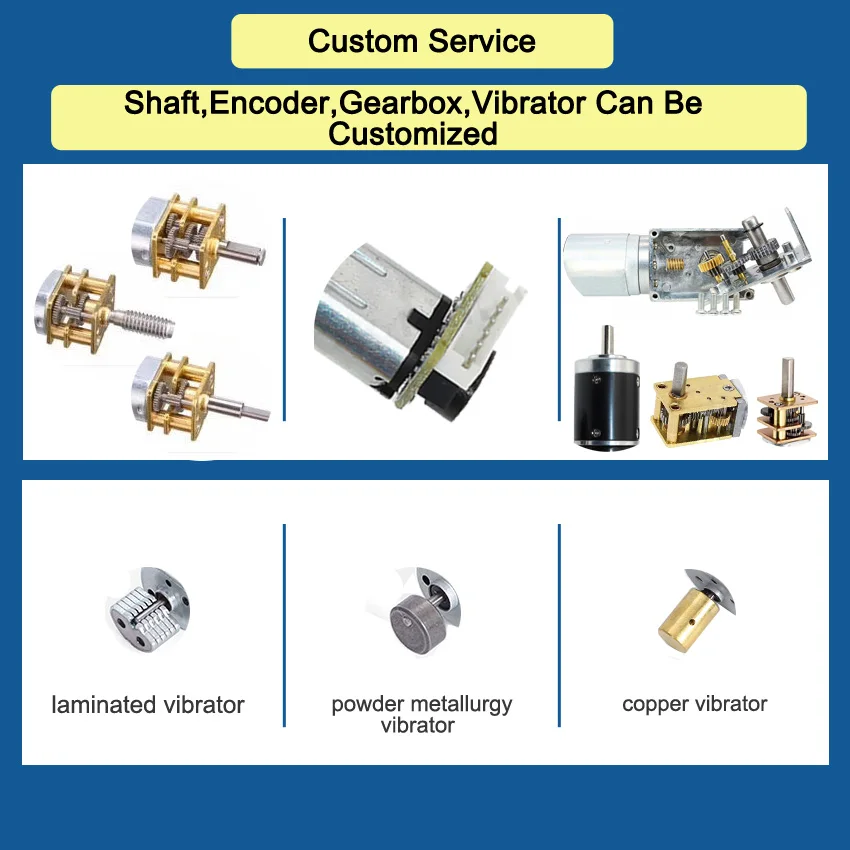

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.
Representative Performance:
| Model: PG16-050SHV01 DC 6V | ||||||||||||||
| REDUCTION RATIO | 1:4 | 1:16 | 1:22.5 | 1:64 | 1:76 | 1:90 | 1:107 | 1:256 | 1:304 | 1:361 | 1:428 | 1:509 | ||
| No-load Speed(RPM) | 3000 | 750 | 530 | 185 | 155 | 130 | 110 | 45 | 39 | 33 | 28 | 23 | ||
| No-load Current(mA) | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ≤75 | ||
| Rated Torque(Kg.cm) | 0.04 | 0.16 | 0.22 | 0.64 | 0.76 | 0.9 | 1.1 | 2.5 | 3.0 | 3.6 | 4.2 | 5.0 | ||
| Rated Torque(N.m) | 0.004 | 0.016 | 0.022 | 0.064 | 0.076 | 0.09 | 0.11 | 0.3 | 0.3 | 0.36 | 0.42 | 0.50 | ||
| Rated Speed(RPM) | 2325 | 580 | 410 | 140 | 120 | 100 | 85 | 35 | 30 | 25 | 20 | 18 | ||
| Rated Current(A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||
| Stall Current(A) | ≤1.3 Do not start repeatedly or turn forward and backward continuously | |||||||||||||
| Stall Torque(Kg.cm) | ≥0.16 | ≥0.64 | ≥0.90 | ≥2.0 | ≥2.2 | ≥2.3 | ≥2.5 | ≥3.0 | ≥4.0 | ≥4.0 | ≥4.0 | ≥4.0 | ||
| Model: PG16-050SHV02 DC 12V | ||||||||||||||
| REDUCTION RATIO | 1:4 | 1:16 | 1:22.5 | 1:64 | 1:76 | 1:90 | 1:107 | 1:256 | 1:304 | 1:361 | 1:428 | 1:509 | ||
| No-load Speed(RPM) | 4000 | 1000 | 710 | 250 | 210 | 175 | 145 | 62 | 52 | 44 | 37 | 30 | ||
| No-load Current(mA) | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ||
| Rated Torque(Kg.cm) | 0.048 | 0.192 | 0.27 | 0.76 | 0.9 | 1.08 | 1.2 | 3.0 | 3.5 | 4.2 | 5.0 | 6.0 | ||
| Rated Torque(N.m) | 0.0048 | 0.0192 | 0.027 | 0.076 | 0.09 | 0.108 | 0.1 | 0.3 | 0.4 | 0.4 | 0.5 | 0.6 | ||
| Rated Speed(RPM) | 3200 | 800 | 560 | 200 | 165 | 140 | 115 | 50 | 42 | 35 | 28 | 25 | ||
| Rated Current(A) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||
| Stall Current(A) | ≤1.6 Do not start repeatedly or turn forward and backward continuously | |||||||||||||
| Stall Torque(Kg.cm) | ≥0.2 | ≥0.8 | ≥1.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ≥5.0 | ||
| REDUCTION RATIO | 1:4 | 1:16 | 1:22.5 | 1:64 | 1:76 | 1:90 | 1:107 | 1:256 | 1:304 | 1:361 | 1:428 | 1:509 | 1:1024;1216;1444 1714;2036;2418 | |

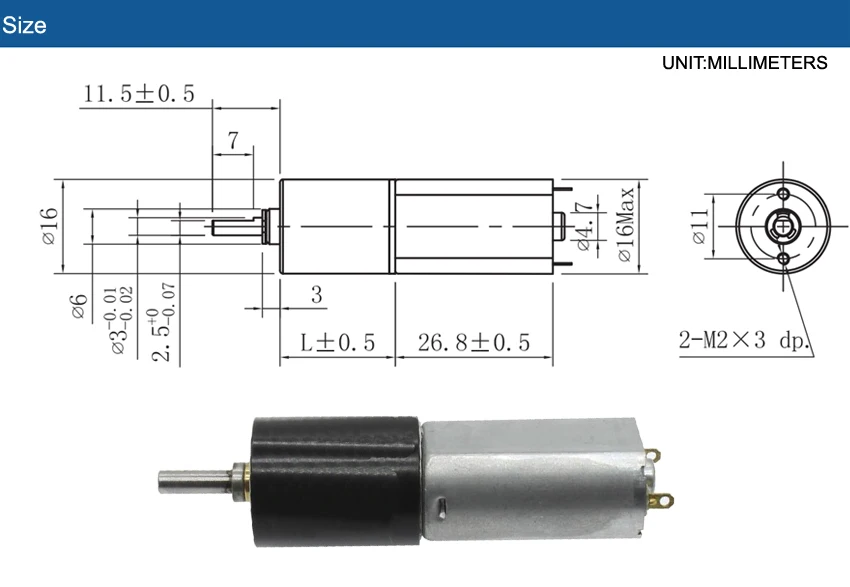

| Reduction box length (L) mm | 15.8 | 19.4 | 23 | 26.6 | ||||||||||
Maybe you also like

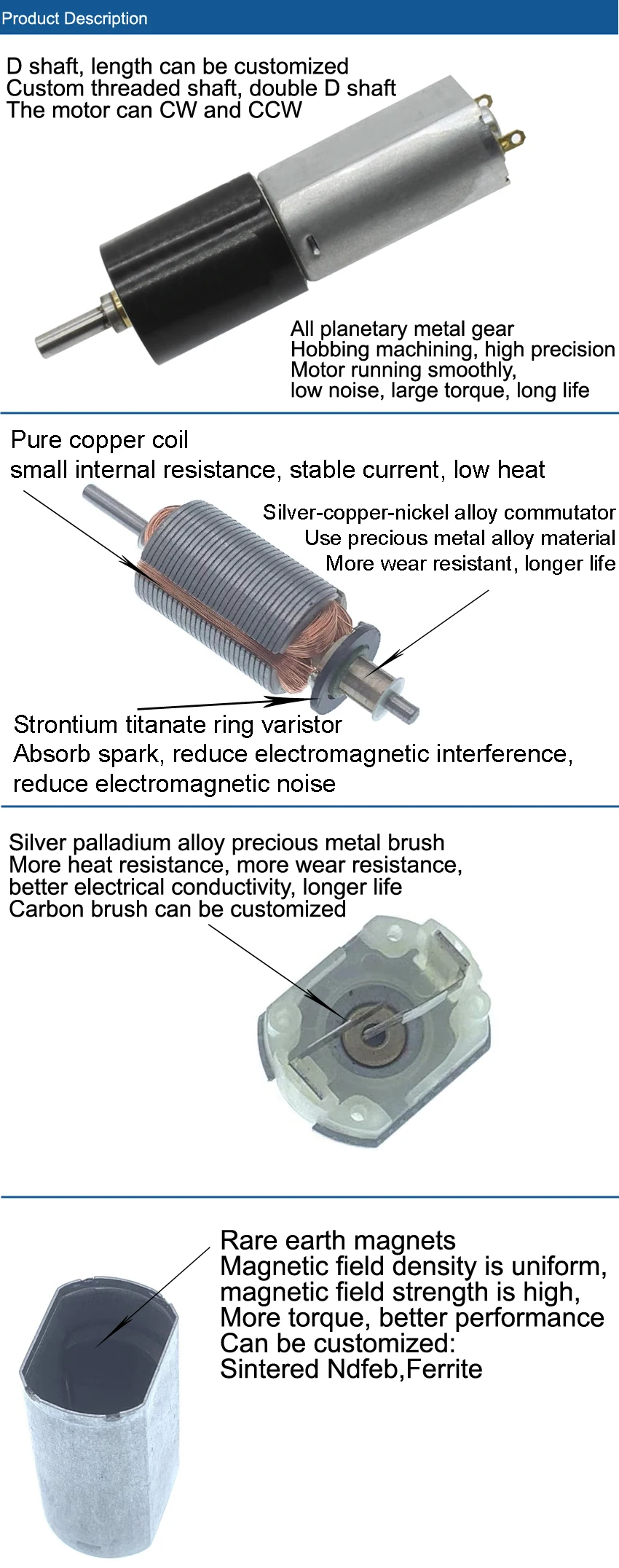

Product Description
Application

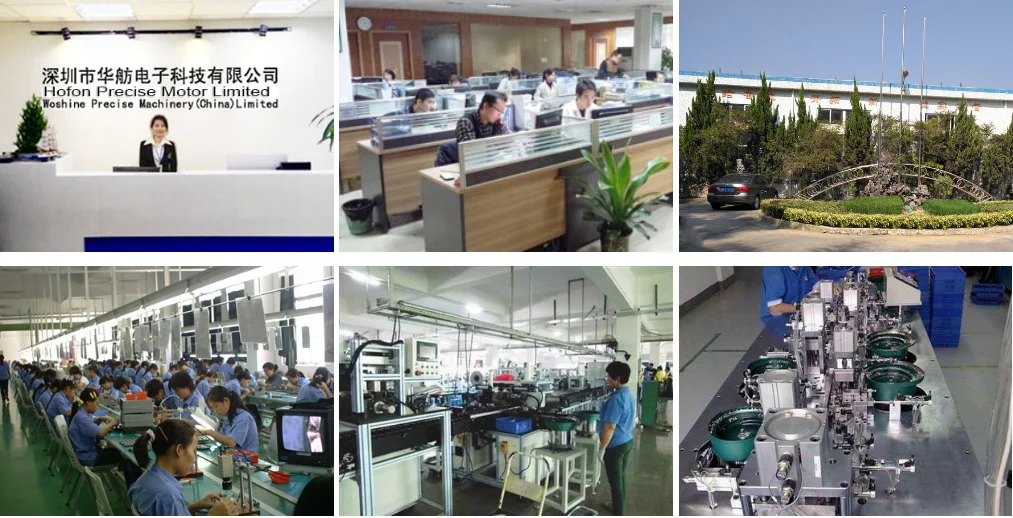

Company Profile
Shenzhen Hofon Electronic Technology Co., Ltd. was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms. Hofon Motor, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the Important component. Hofon Motor is more conductive to customer demand, with customers to design and develop new products, specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.
We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.
- 20 years experience in manufacturing motor and gearbox motor
- Experienced Staff: average 15 years experience in R&D , ODM & OEM
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Prompt Delivery: 20-25 working days after payment
- Quality Approvals
- Small Orders Accepted
- Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
Certifications
Exhibition
Packaging & Shipping
FAQ
Q:1. How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production →cargo ready → balance/delivery → further cooperation.
Q:2. How about Sample order?
A: we can also return your samples fee back when you place order.
Q:3. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:4. What's the lead time for regular order?
A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.
Q:5. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:6. How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 50% deposit is available, the balance money should be paid before shipping.
