Anti Interference Good Price Gas Pressure Regulator
Anti-Interference Good Price Gas Pressure Regulator
Anti-Interference Good Price Gas Pressure Regulator
Anti-Interference Good Price Gas Pressure Regulator
Anti-Interference Good Price Gas Pressure Regulator
Anti-Interference Good Price Gas Pressure Regulator
Anti-Interference Good Price Gas Pressure Regulator

Anti Interference Good Price Gas Pressure Regulator

Share on (1600465467898):


Price:

Quantity:


Product Overview

Description



Products Description


Anti-Interference Good Price Gas Pressure Regulator

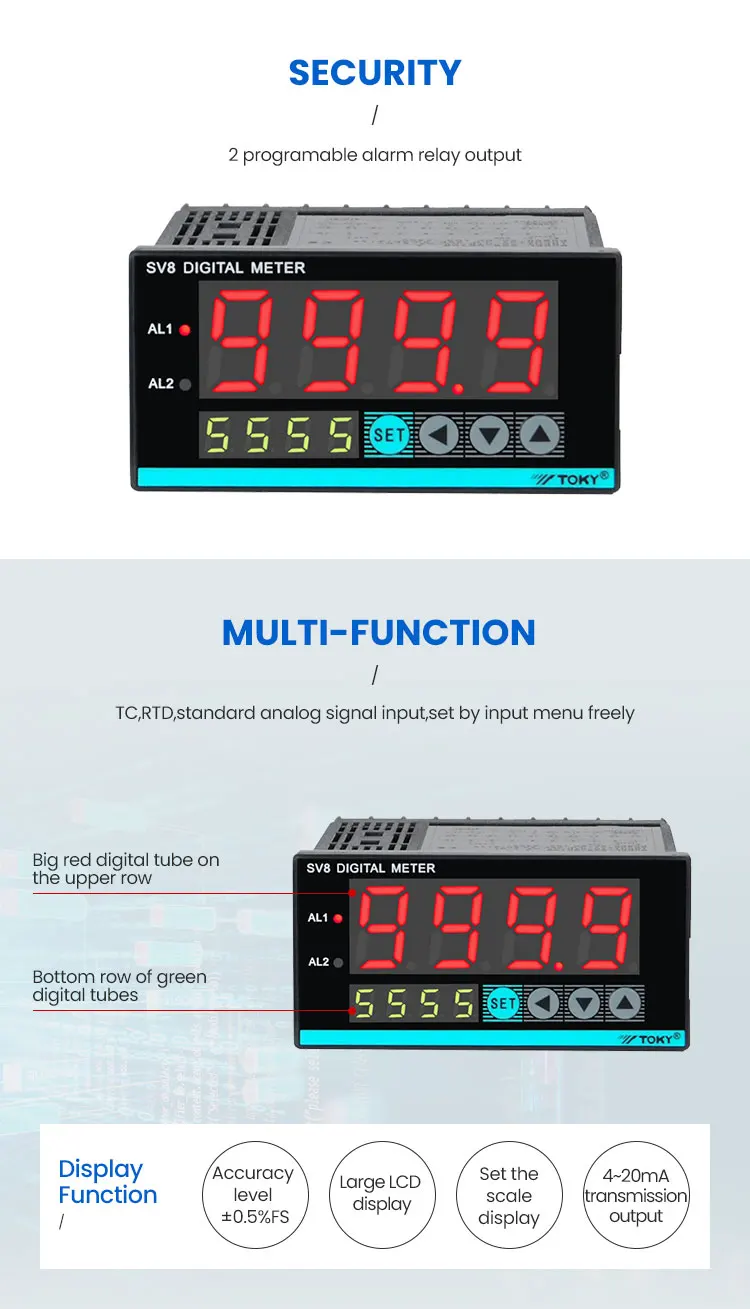

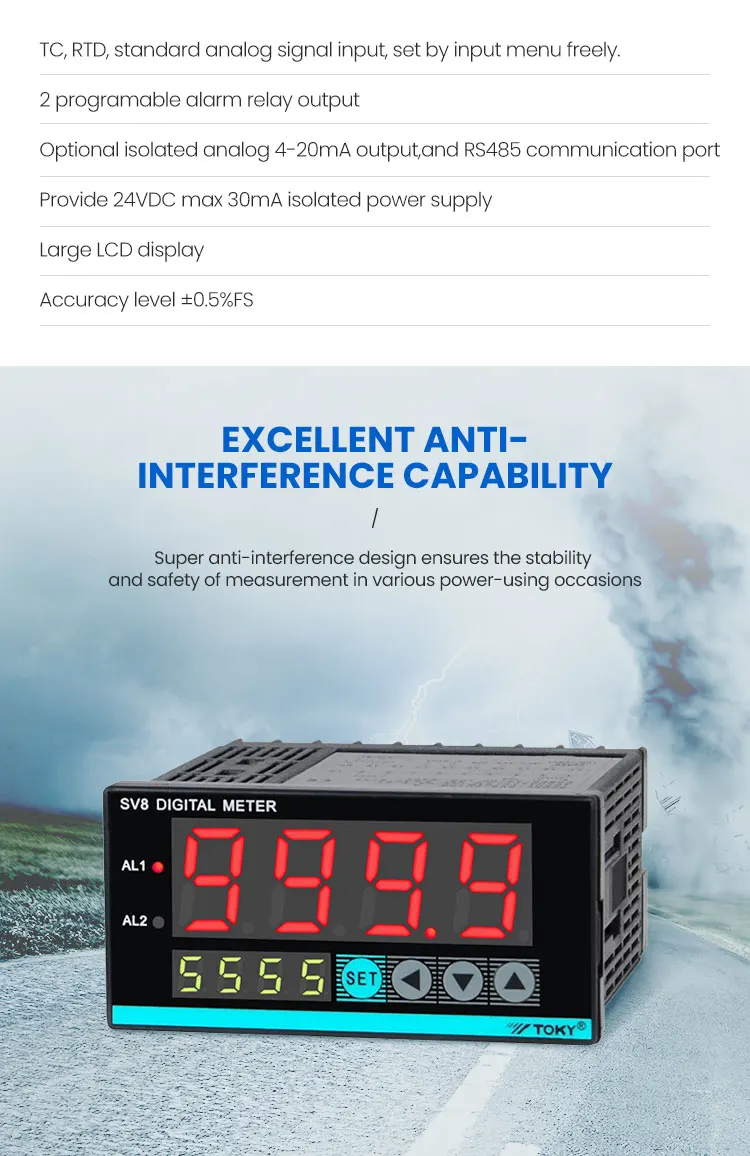

Features
1
TC,RTD, standard work analog signal input,selected by software
2
2 loop settable relay alarm output.
3
Isolated analog 4-20mA output.
4
Supply 24V/12VDC,max 30mA isolated auxiliary power,or±12V/60mA common ground power.
5
With RS485 communication port.
6
Accuracy:±0.5%FS


Ordering Information: A120NA01 A250RS01
Model
Alarm
Analog output
Communication
SV4/6/7/8/9-RC10W
2loop
No
No
SV4/6/7/8/9-DC10W
2loop
4-20mA
No
SV4/6/7/8/9-RC18W
2loop
No
RS485
SV4/6/7/8/9-DC18W
2loop
4-20mA
RS485


Specifications:

Display
Digits
4 digits


Communication
Protocol
RS-485 ModBUS-RTU
Range
-1999~9999
Baud rate
4800bps,9600bps


Signal

input


Input type
TC/RTD universal input
Standard analog signal input(See the table below)
IP range
0-255
Delay
No


Power supply
Voltage
100~240V AC/DC 50/60Hz
Accuracy
0.5%FS
Power consumption
≤5W
Resolution
Freedom setting
Protection
level
Panel
IP54
Sample rate
2.5 time/second
Body
-


Analog
Output
1 loop


Environment
Work environmen
0~50℃ <85%RH
Type
4~20mA
Storage environmen
-20~60℃ <85%RH
Range & load
Load resistance 600Ωmax


Structure
Vibration
10~55Hz X\\Y\\Z 0.75mm
Output accuracy
0.5%FS
Screw torque
0.74n.m~0.9n.m
Resolution
0.01mA 12 digits


Safe
Dielectric strength
2000V AC 50/60Hz 1 minute
Auxiliary voltage
ouput
Voltage
DC 24V
Insulation impedance
100MΩ DC 500V
Capacity
60mA max


EMC
ESD
3 level


Relay
output
Load
3A/250V AC
Pulse train anti-interference
4 level each mode±4000VP-P
Electrical
10W times
Lightning surge
3 level N-L ±2000V
Machanical
100W times
Frequency drop
3 level








Promotion








Company Profile














Recommend Products




FAQ


Q1.Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2.What is your terms of payment?
Usually,we accept T/T, irrevocable L/C at sight. For regular orders, Terms of payment 30% deposit, full payment before delivery the goods.

Q3.What is the lead time?
For standard models, lead time is about 3~5 days after order confirmed and payment received.
For OEM orders, the delivery is about 2~3 weeks after data confirmed and payment received.

Q4.What is your terms of packing?
Under TOKY brand, the standard packing is 1pc item in a colour box or brown inner box, then into standard export carton.
For OEM order, usually 1pc item in a brown inner box, then into standard export carton.

Q5.What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q6.How to solve the quality problems after sales?
Take photos or videos of the problems and send to us.
We will make a satisfied solution for you within 24 hours after we confirm the problems.

Q7.Do you have any MOQ limit for the order?
Low MOQ, 1pc for sample checking is available.

Q8.Is it OK to print my logo on the product?
Yes, OEM service is available.
Please confirm with our sales team formally before production and confirm the design firstly based on our sample.

Q9.Are you manufacturer or trading company?
We are manufacturer for over 30 years. Welcome to visit our factory at anytime.
