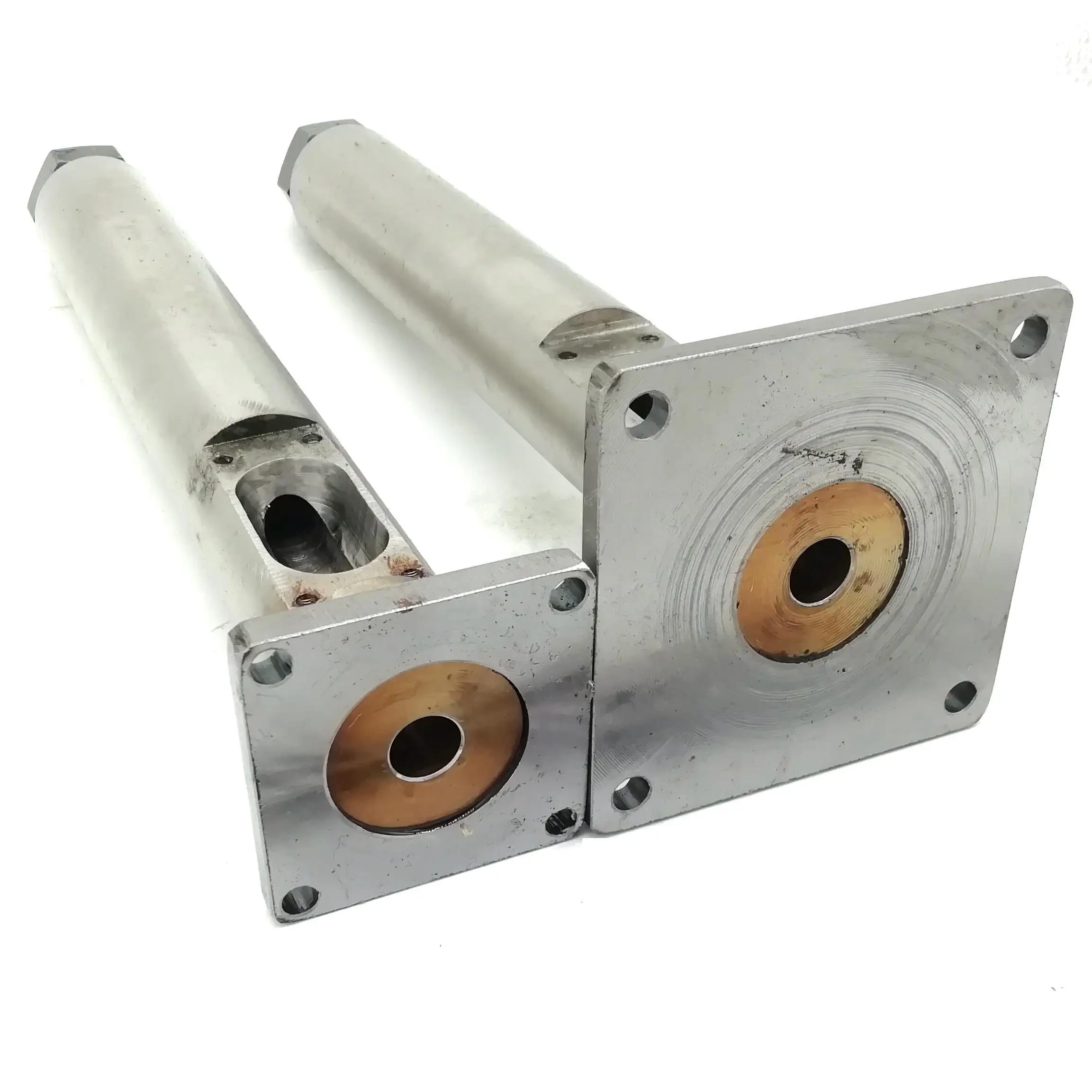

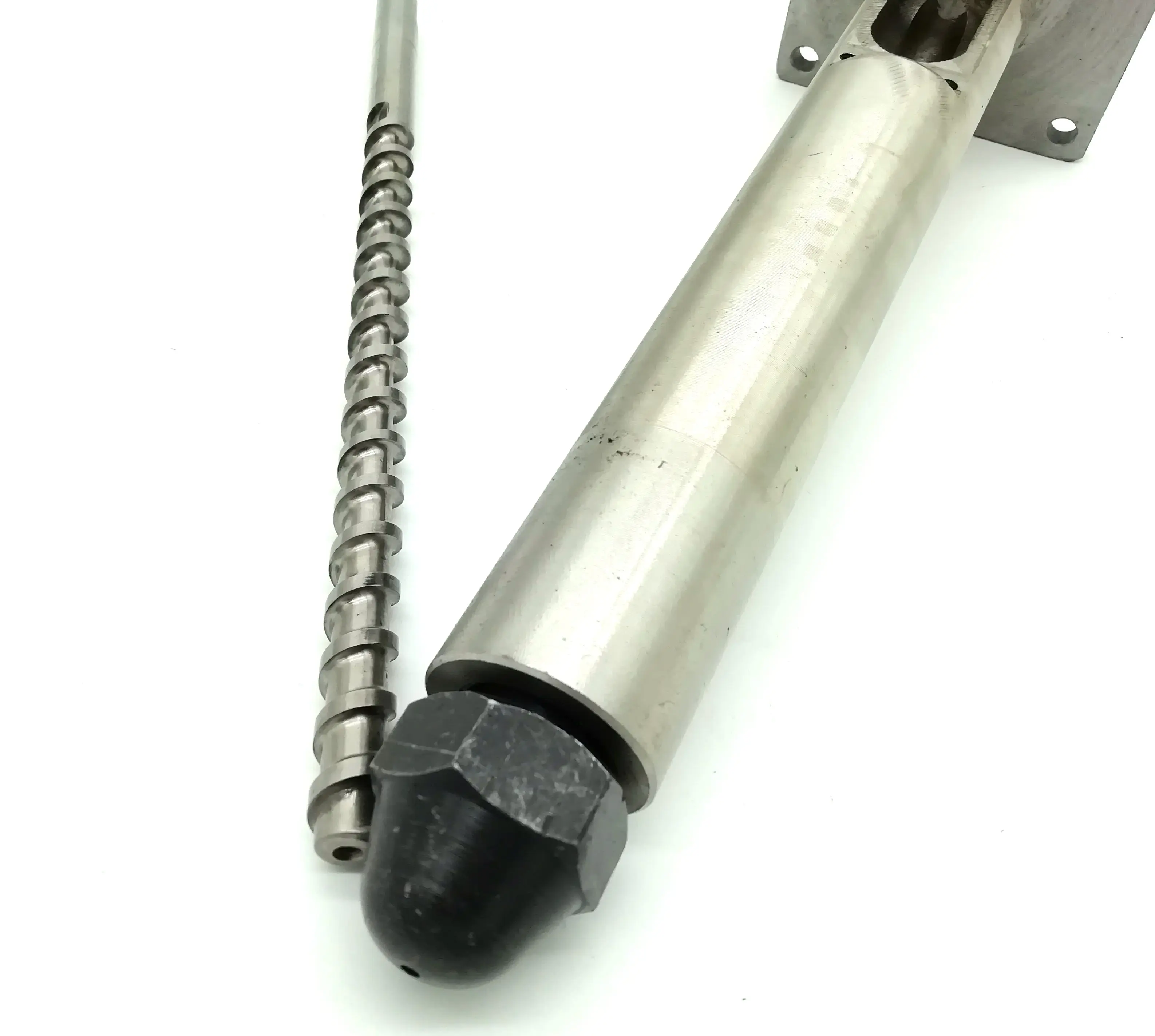

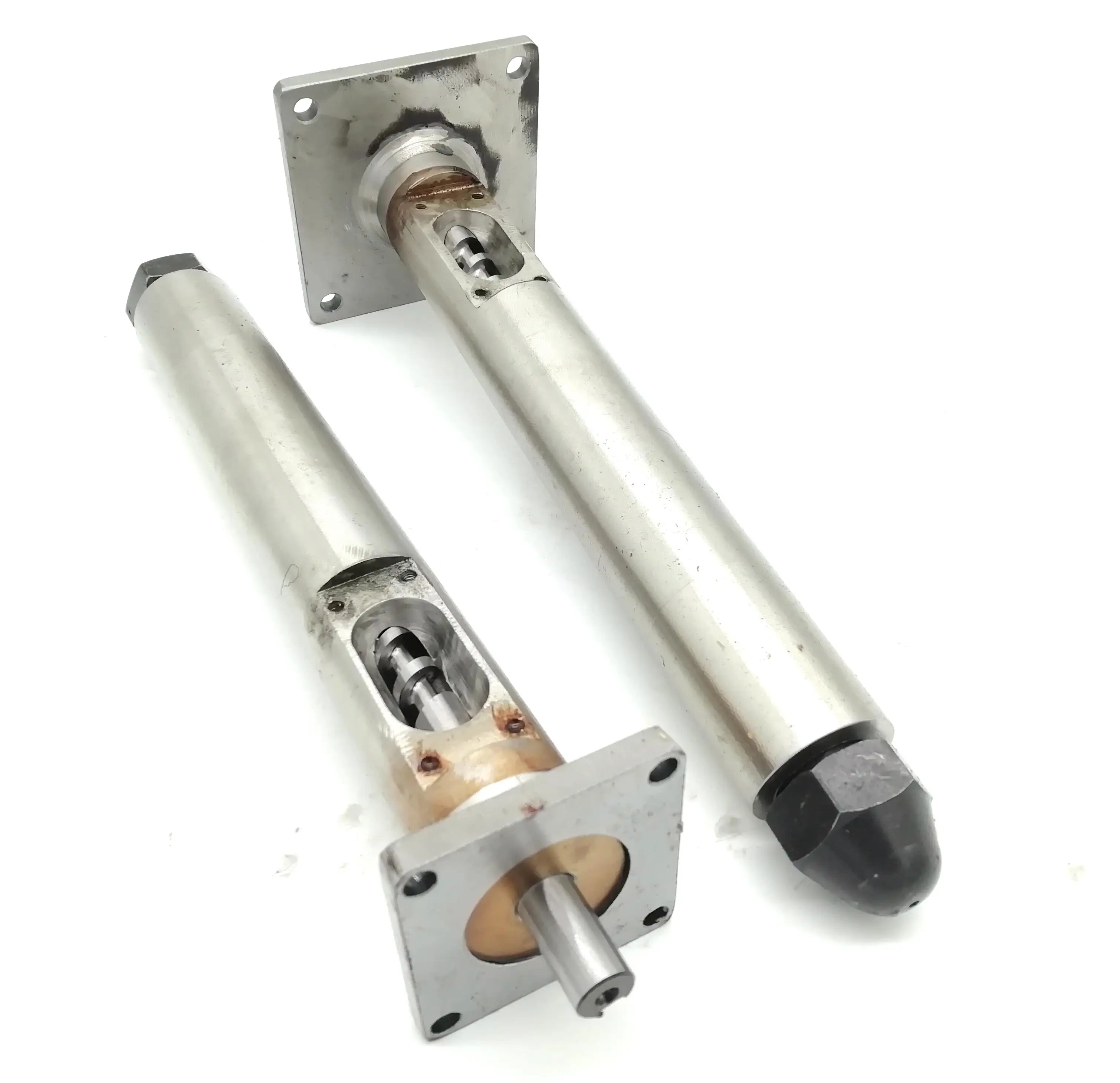

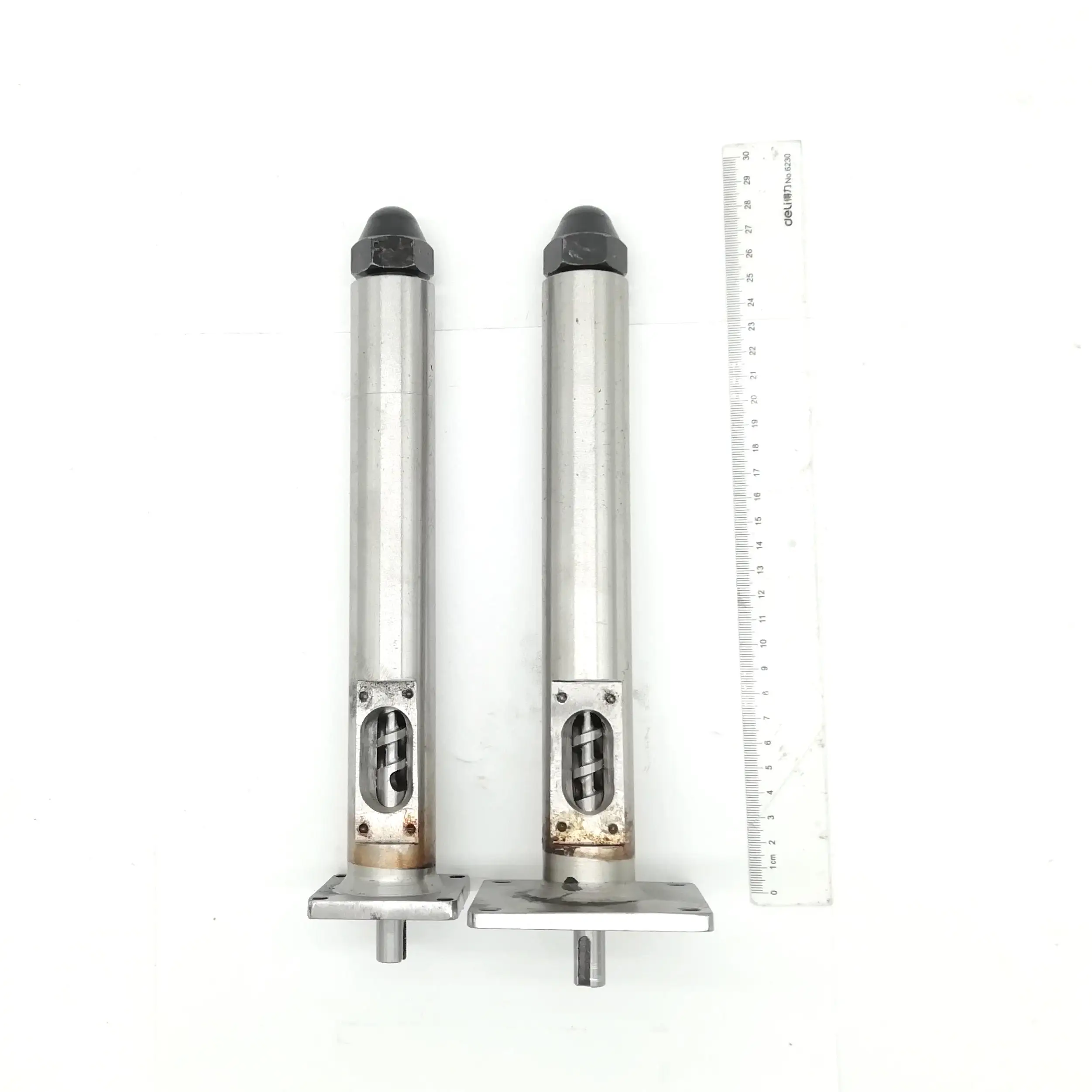

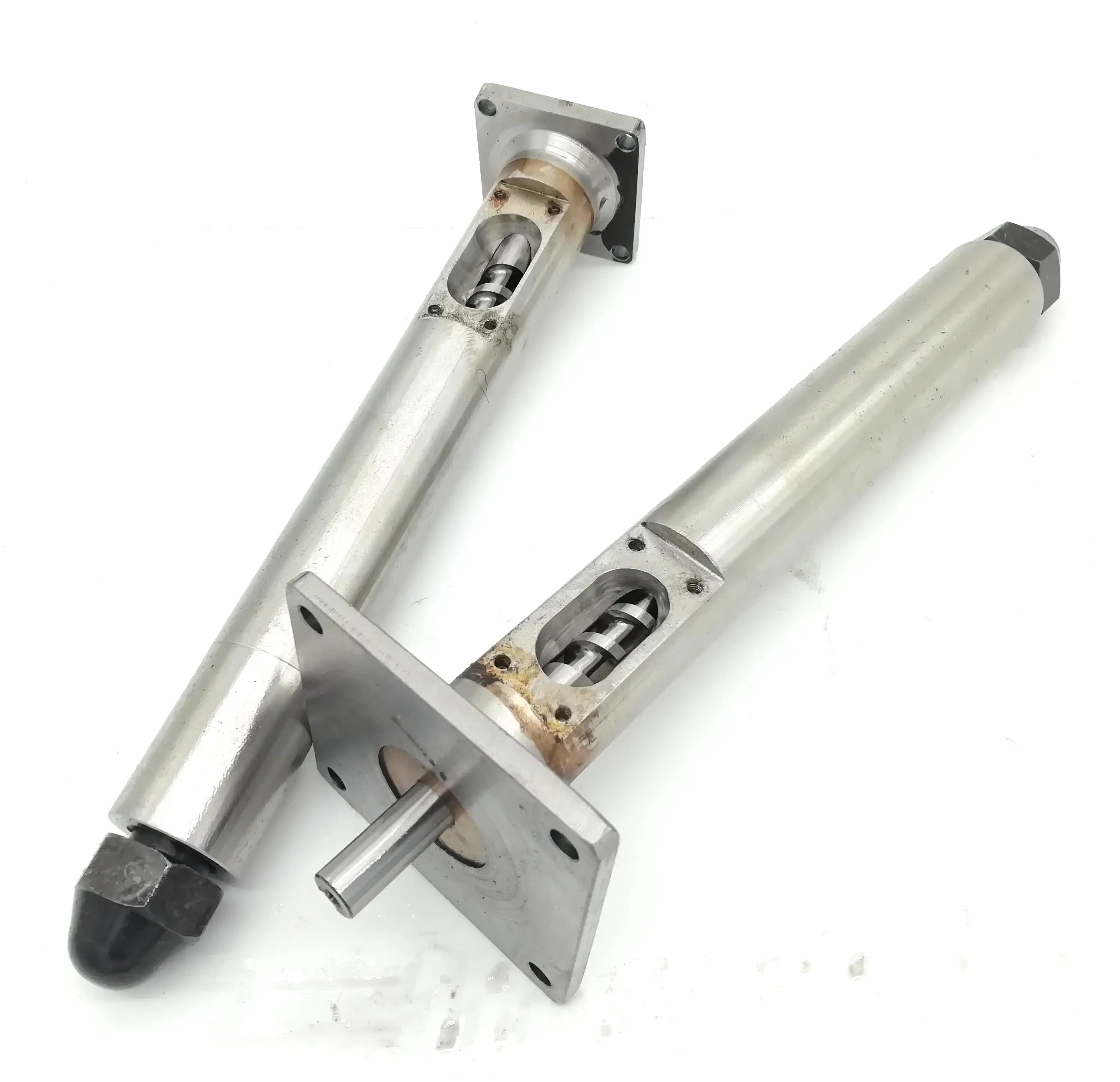

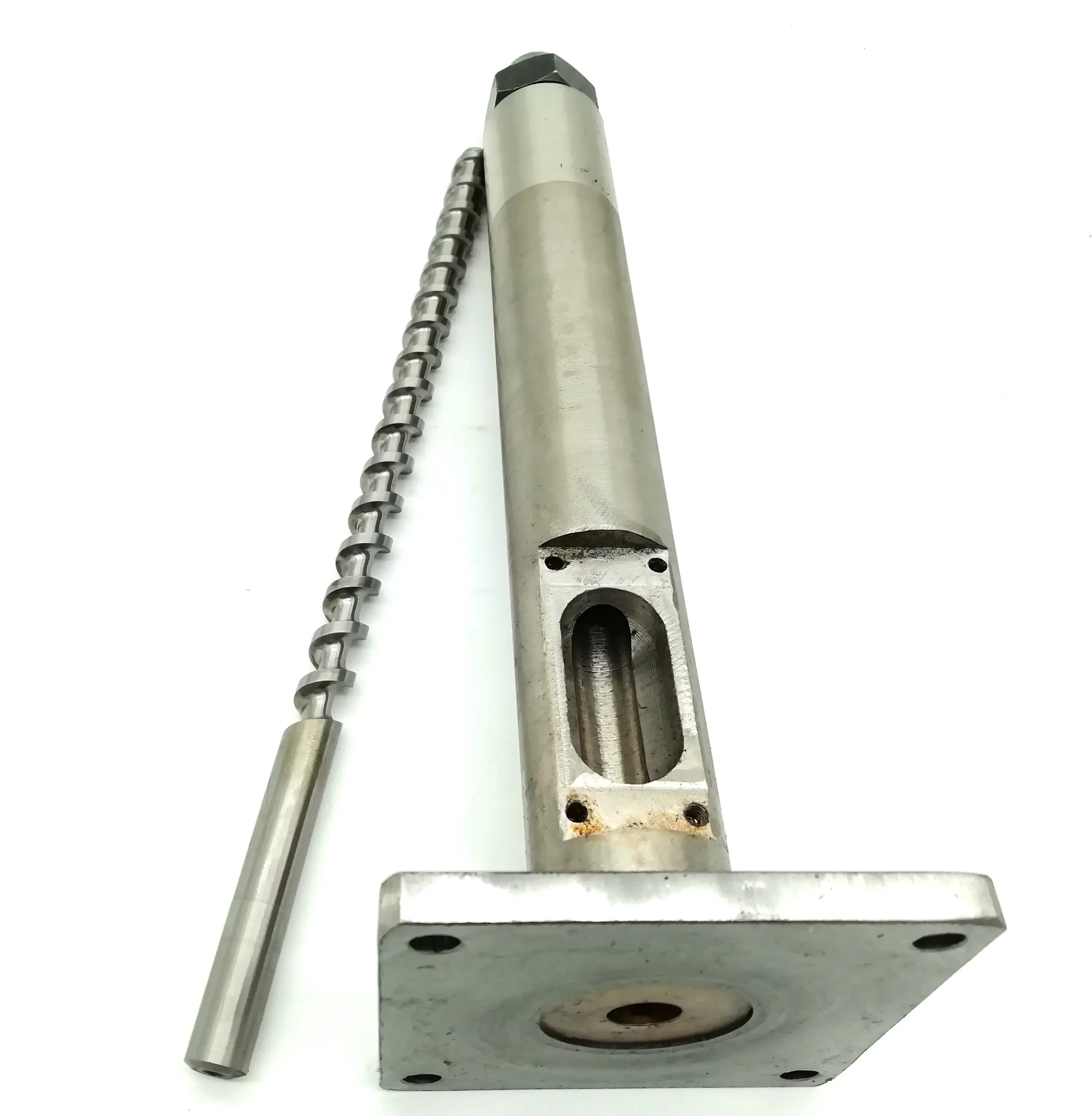

16mm Dia Extruder Screw Barrel with 1.75mm Nozzle for Desktop Extruder
- Category: >>>
- Supplier: Jugetek Co. Ltd.
Share on (1600465481665):
Product Overview
Description
Product Description
Specification
Technical Information:
Maximum Speed: 60 rpm
Maximum Temperature: 450 ℃
Productivity:0.36kg/h
Main Base materials:
1.38CrMoAlA (SACM645)
2.SKD-61 (Special Tool Steel)
3.42CrMo (Ultrahigh Strength Steel)
4.DC53 (Cold Work Die Steel)
5.W6Mo5Cr4V2 (High-Speed Tool Steel)
Main Alloy Materials
1.Ni-based alloy/Deloro alloy
2.Tungsten carbide/Wolfram carbide
3.NiCo-based alloy
4.Fe-based alloy
5.Co-based alloy
Processing Techniques
1. Heat treatment
2. Quenching
3. Nitriding treatment
4. Bimetallic alloy welding for screw
5. Bimetallic alloy centrifugal casting for barrel
6. Hard-chrome electroplating
7. Linearity of screw:0.015mm
Technical parameters
Nitriding layer depth:0.5-0.8mm
Nitrided hardness:900-1000HV
Bimetallic layer depth:3 mm
Bimetallic hardness:57~69HRC
Hard-chrome plating hardness after nitriding:≥950HV
Chrome-plating layer depth:0.03-0.09mm
Surface roughness:Ra 0.4
Suit for HDPE, LDPE, LLDPE, PVC, PP, glass fiber, PPS, PPA and other special plastic recycling.
The barrel for 16mm extruder screw is designed for 35mm diameter band heater
Compression Ratios: 16mm extrusion screw is 2.5.
Maximum Speed: 60 rpm
Maximum Temperature: 450 ℃
Productivity:0.36kg/h
Main Base materials:
1.38CrMoAlA (SACM645)
2.SKD-61 (Special Tool Steel)
3.42CrMo (Ultrahigh Strength Steel)
4.DC53 (Cold Work Die Steel)
5.W6Mo5Cr4V2 (High-Speed Tool Steel)
Main Alloy Materials
1.Ni-based alloy/Deloro alloy
2.Tungsten carbide/Wolfram carbide
3.NiCo-based alloy
4.Fe-based alloy
5.Co-based alloy
Processing Techniques
1. Heat treatment
2. Quenching
3. Nitriding treatment
4. Bimetallic alloy welding for screw
5. Bimetallic alloy centrifugal casting for barrel
6. Hard-chrome electroplating
7. Linearity of screw:0.015mm
Technical parameters
Nitriding layer depth:0.5-0.8mm
Nitrided hardness:900-1000HV
Bimetallic layer depth:3 mm
Bimetallic hardness:57~69HRC
Hard-chrome plating hardness after nitriding:≥950HV
Chrome-plating layer depth:0.03-0.09mm
Surface roughness:Ra 0.4
Suit for HDPE, LDPE, LLDPE, PVC, PP, glass fiber, PPS, PPA and other special plastic recycling.
The barrel for 16mm extruder screw is designed for 35mm diameter band heater
Compression Ratios: 16mm extrusion screw is 2.5.

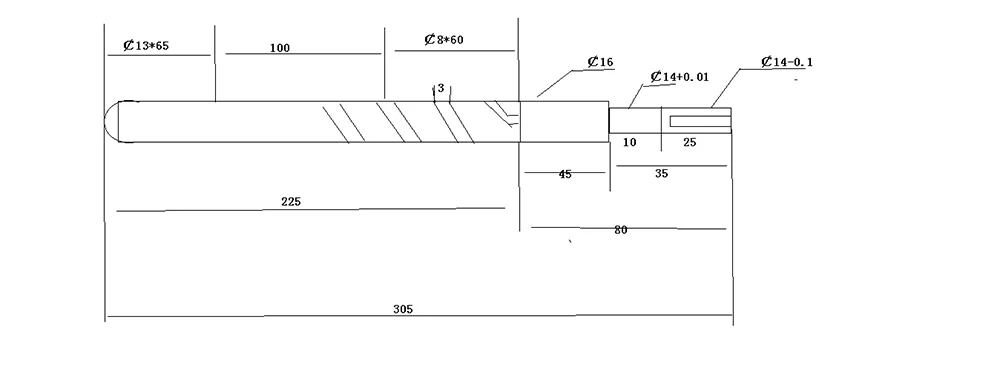

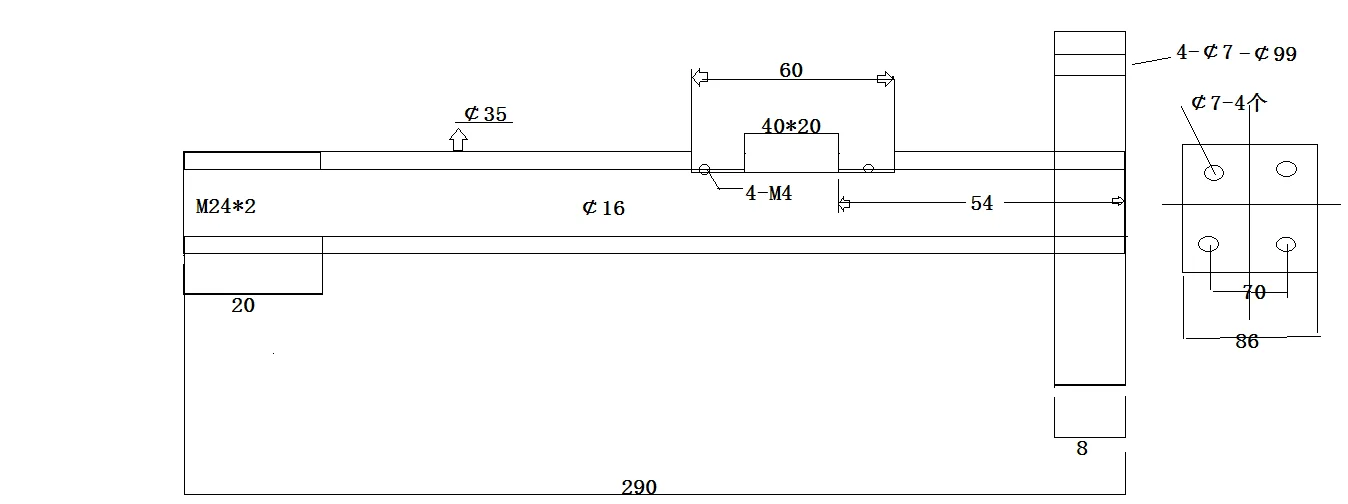

Detailed Drawings
Packing & Delivery
Orders will be shipped by FedEx IP by default.
Wrapped in plastic bubble film and packed by carton.
