Construction machinery equipment QT4 24 concrete block machine in jamaica for sale
- Category: >>>
- Supplier: Linyi Dongyue Building Materials Machinery Co. Ltd.
Share on (1600465491649):
Product Overview
Description
PRODUCT CONFIGURATION

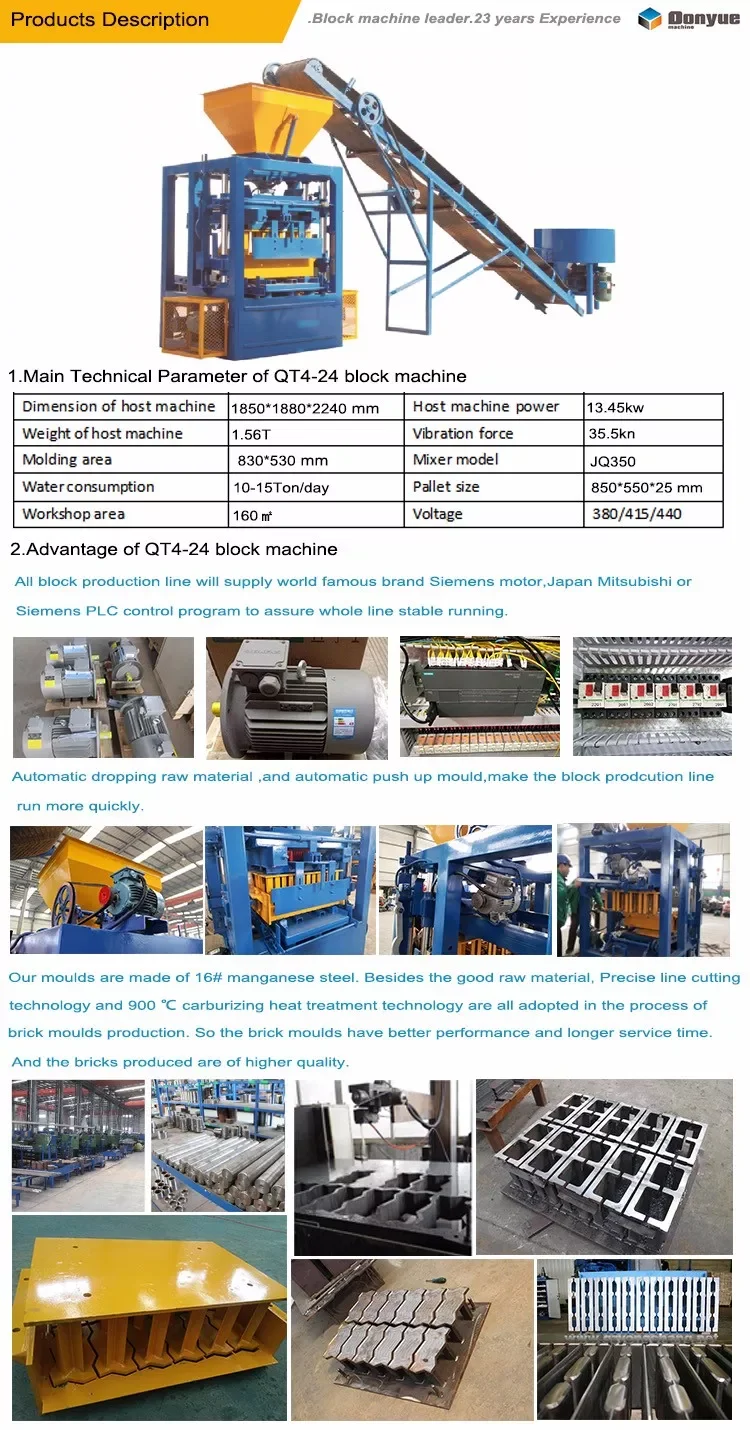

Host machine main technology parameter
Dimension | 1850*1880*2240 | Weight | 1560kg |
Mould Period | 20-24 s | Vibration force | 35.5KN |
Host machine power | 13.45kw | mixer model | JD350 |
Pallets size | 850*550*20 | certification | CE&ISO |
Production requirement
Area | 1000 m² | Worker | 4~6 person |
Workshop | 160 m² | total power | 22.05kw |
Water consumption | 1-2tons | Pallets quanlity | 700-1200pcs |
Theoretical production capacity
NO. | Size(LxWxH) | Pcs/Mould | Pcs/Hour | Pcs/Shift |
1 | 400x200x200mm Hollow | 4 | 400-600 | 3840-4800 |
2 | 400x150x200mm Hollow | 5 | 600-750 | 4800-6000 |
3 | 400x100x200mm Hollow | 7 | 840-1050 | 6720-8400 |
4 | 230x110x70mm Solid | 20 | 3000-3600 | 24000-28800 |
5 | 200x100x60mm Paver | 14 | 2100-2520 | 16800-20160 |
6 | 200x163x60mm Paver | 8 | 1200-1440 | 9600-11520 |
Products description

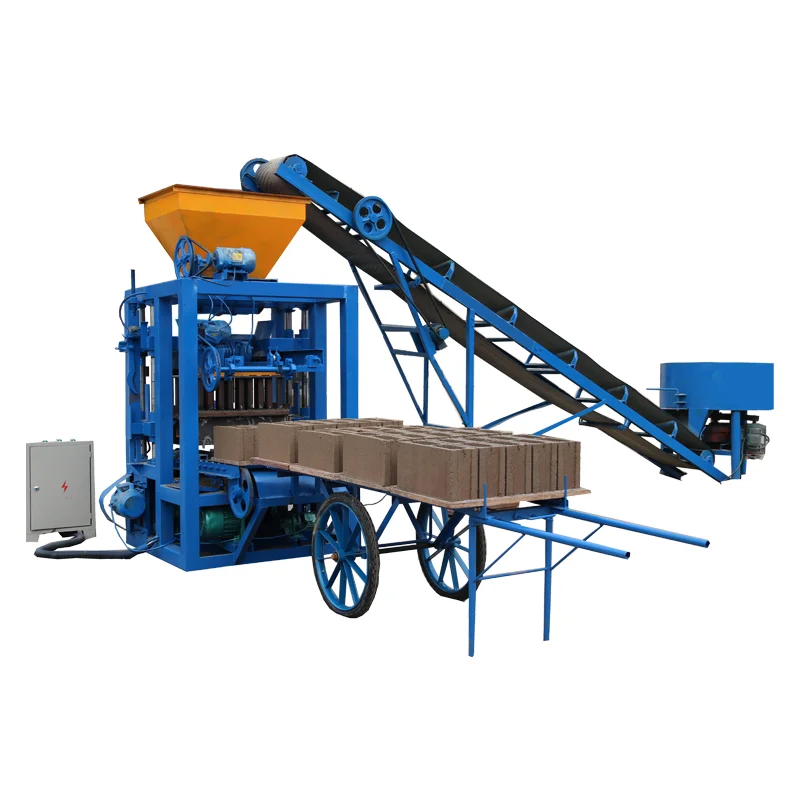

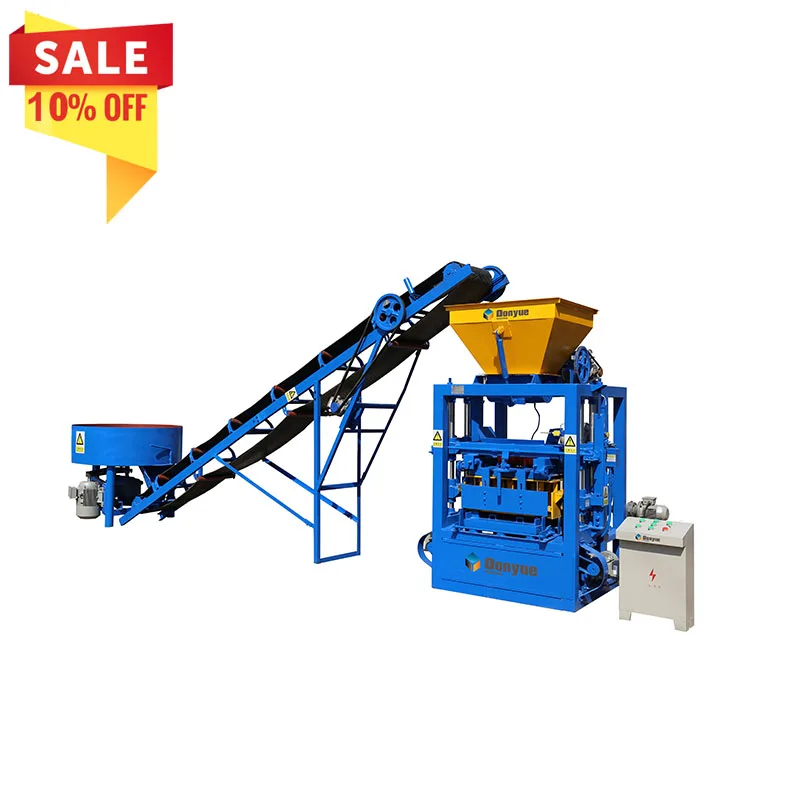

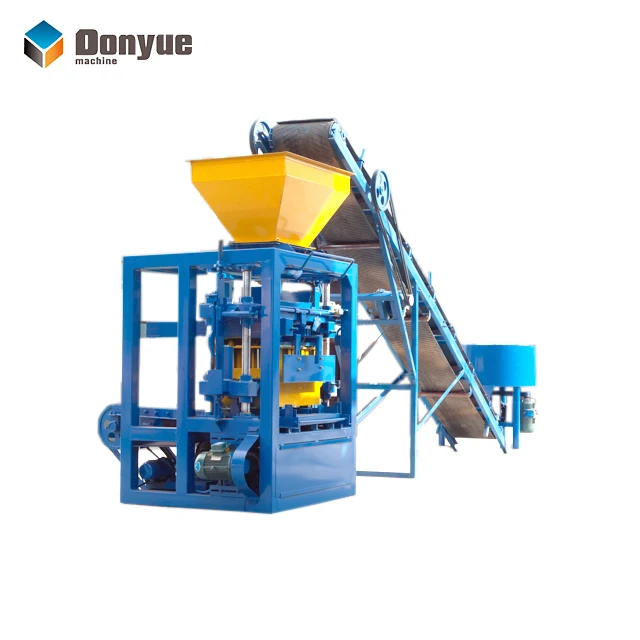

Construction machinery equipment QT4-24 concrete block machine in jamaica for sale
1. QT4-24 block machine is mainly designed to produce concrete bricks with various sizes. By compressing the mixture of cement, sand, crushed stone , it can make high-density concrete bricks which are widely used for construction.

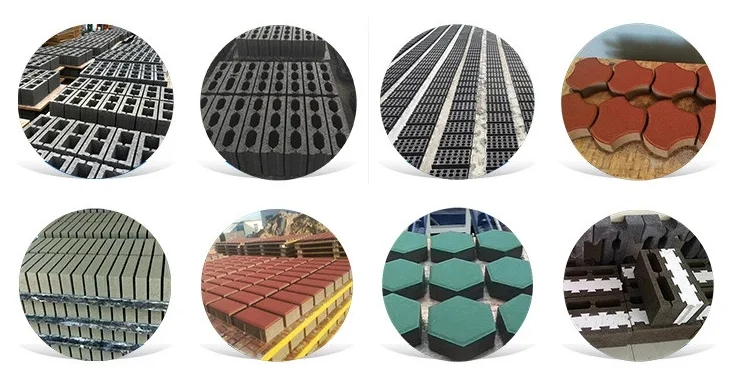

2. It can make various hollow block,solid brick and interlocking paver brick by changing block moulds.The block mould can be customized .
3.The machine does not need engineer to install at site.After connect with power,you can start production.
4.Four labors are required. One labor feeds raw material into mixer,one labor operate the block machine,two labors transport the finished block to stocking area.

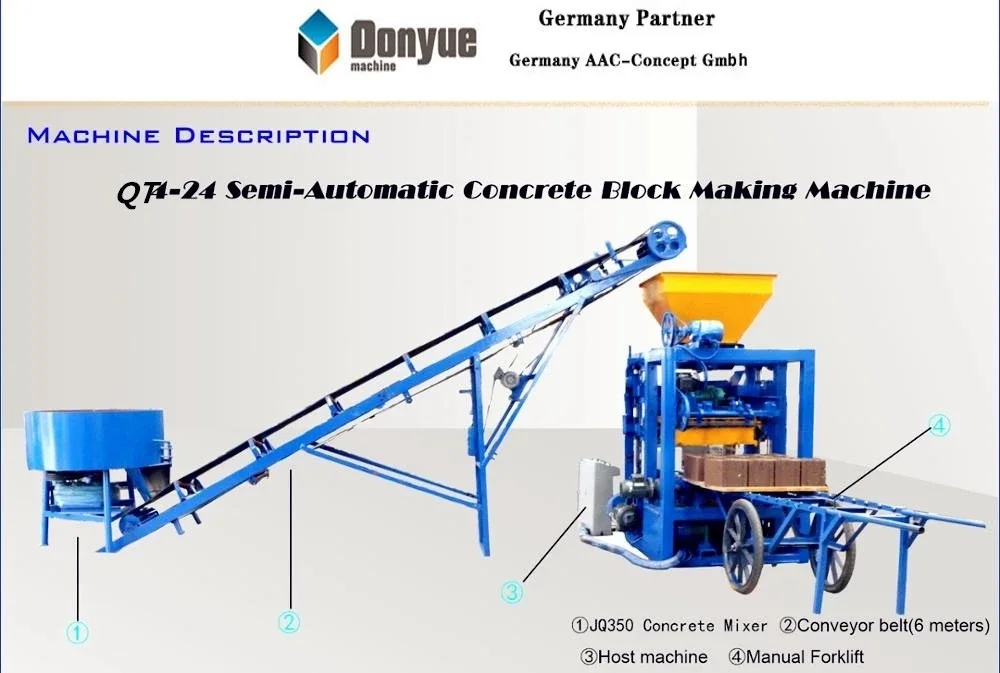

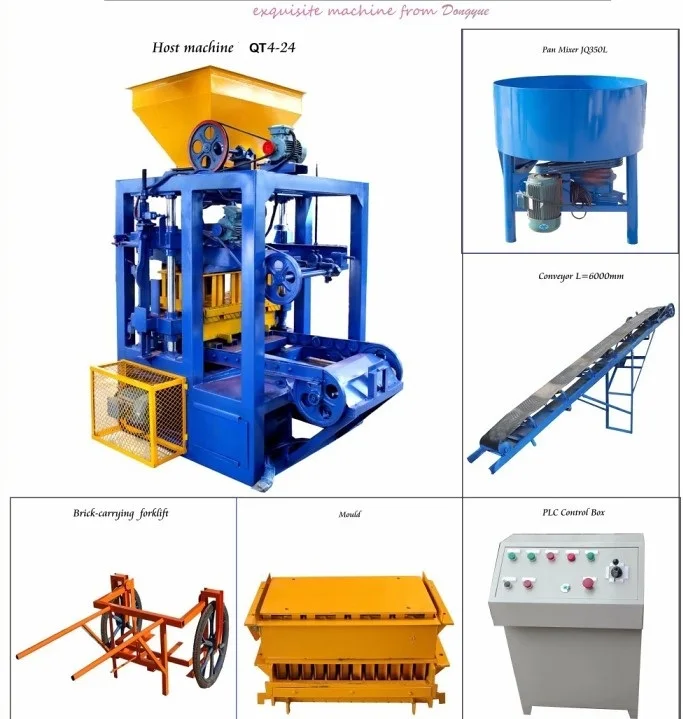

Total line include:
JQ350 Mixer 1 set .
Belt conveyor 1 set.
Host machine 1 set .
PLC control box 1 set .
Block trolley 1 sets.
2. It can make various hollow block,solid brick and interlocking paver brick by changing block moulds.The block mould can be customized .
3.The machine does not need engineer to install at site.After connect with power,you can start production.
4.Four labors are required. One labor feeds raw material into mixer,one labor operate the block machine,two labors transport the finished block to stocking area.
Total line include:
JQ350 Mixer 1 set .
Belt conveyor 1 set.
Host machine 1 set .
PLC control box 1 set .
Block trolley 1 sets.
Our Advantages

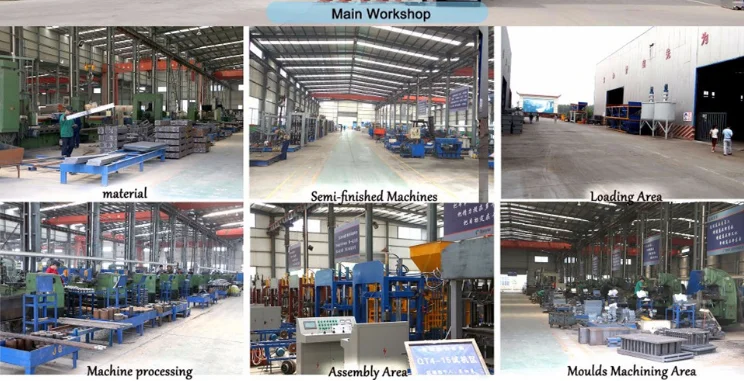

Company Profile
Certifications

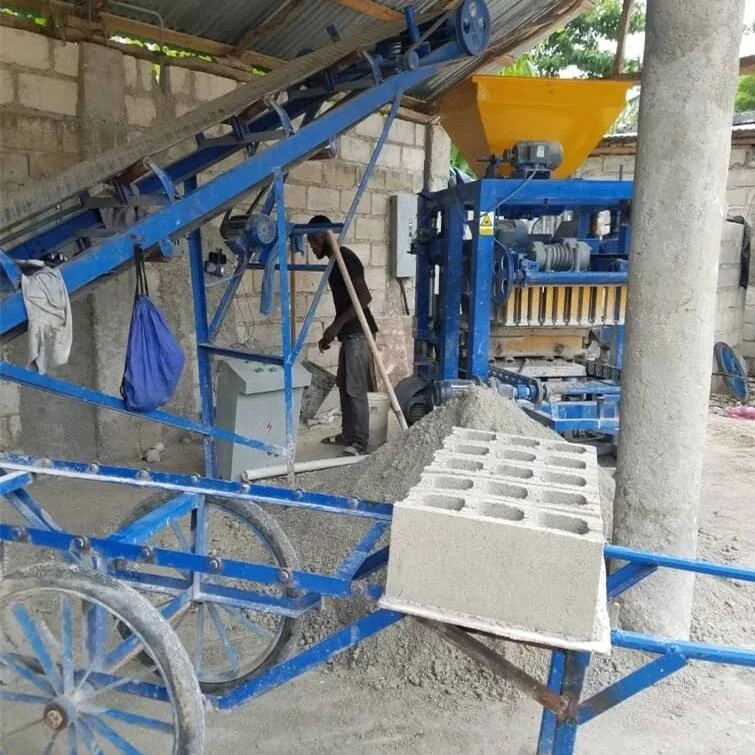

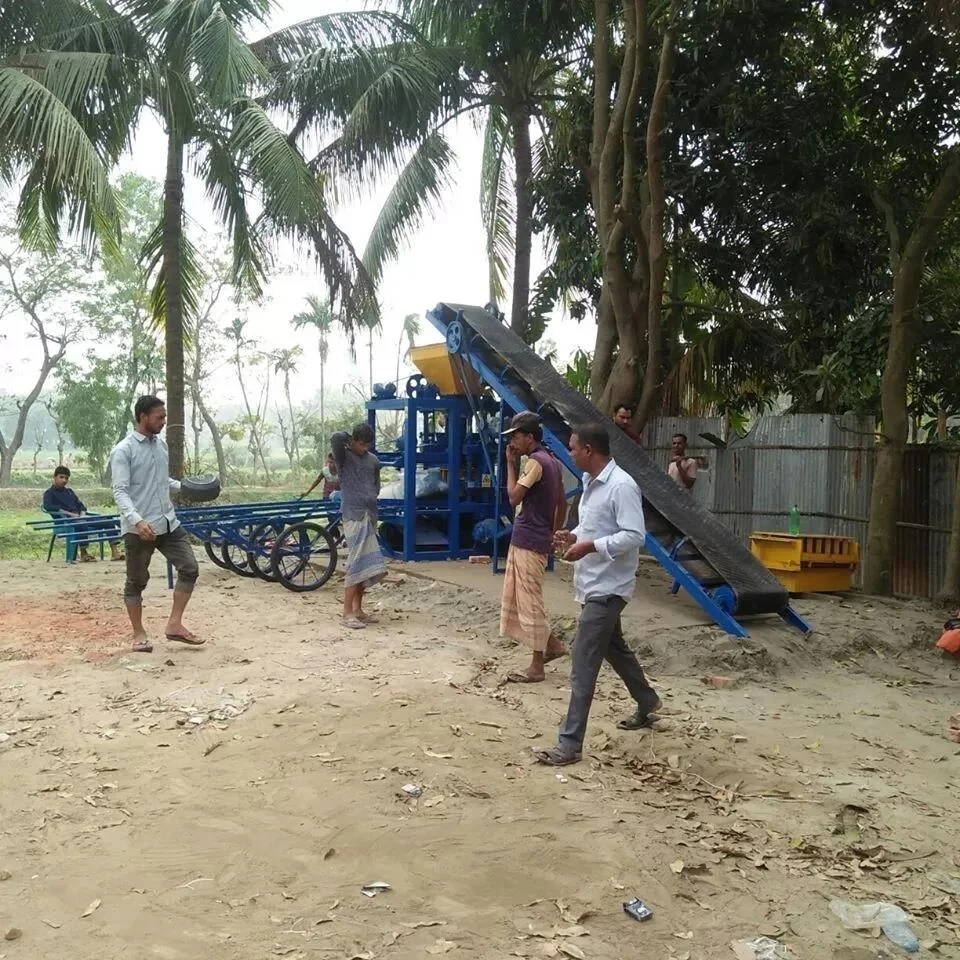

Successful Project
Raw materials
Raw materials ratio :
Construction machinery equipment QT4-24 concrete block machine in jamaica for sale
a. 8-10% cement, 30-40 % sand , 50-60% crushed stone.
b. 8-10% cement, 30% flyash, 60% sand or stone powder
You can change the proportion depend on your needs.but cement must have enough proportion,and the diameter of stone need be within
15mm.
a. 8-10% cement, 30-40 % sand , 50-60% crushed stone.
b. 8-10% cement, 30% flyash, 60% sand or stone powder
You can change the proportion depend on your needs.but cement must have enough proportion,and the diameter of stone need be within
15mm.
Packing&Delivery
EXPORT STANDARD SEA WORTHY PACKAGE,FIXED WELL IN THE CONTAINER
SALES AND SERVICE NETWORK
Pre-sale
Construction machinery equipment QT4-24 concrete block machine in jamaica for sale
(1)Professional suggestions (raw material matching, machine selection, planThe condition of building factory, feasibility analysis for brick machine production line)
(2)Device model choice (recommend the best machine according to the raw material, capacity?and the size of brick)
(3)24 hours on-line service
(4)Welcome to visit our factory and production line anytime,if you need, we can Make Inventation card for you.
(5)Introduce the company file, product categories and production process.
Sale
(1) Update the production scheduling in time
(2)Quality supervision
(3)Product acceptance
(4)Shipping on time
After-sale
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2)Set up, fix,and operate?
(3)offer training to the operator until they are satisfied at clients side.
(4)Skill support the whole using life.
(5)Recall clients regularly ,get feedback in time,keep well communication with each other
(1)Professional suggestions (raw material matching, machine selection, planThe condition of building factory, feasibility analysis for brick machine production line)
(2)Device model choice (recommend the best machine according to the raw material, capacity?and the size of brick)
(3)24 hours on-line service
(4)Welcome to visit our factory and production line anytime,if you need, we can Make Inventation card for you.
(5)Introduce the company file, product categories and production process.
Sale
(1) Update the production scheduling in time
(2)Quality supervision
(3)Product acceptance
(4)Shipping on time
After-sale
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2)Set up, fix,and operate?
(3)offer training to the operator until they are satisfied at clients side.
(4)Skill support the whole using life.
(5)Recall clients regularly ,get feedback in time,keep well communication with each other
