MS302 Horizontal Woodworking single spindle Chisel Mortiser mortising machine

Product Overview

Description

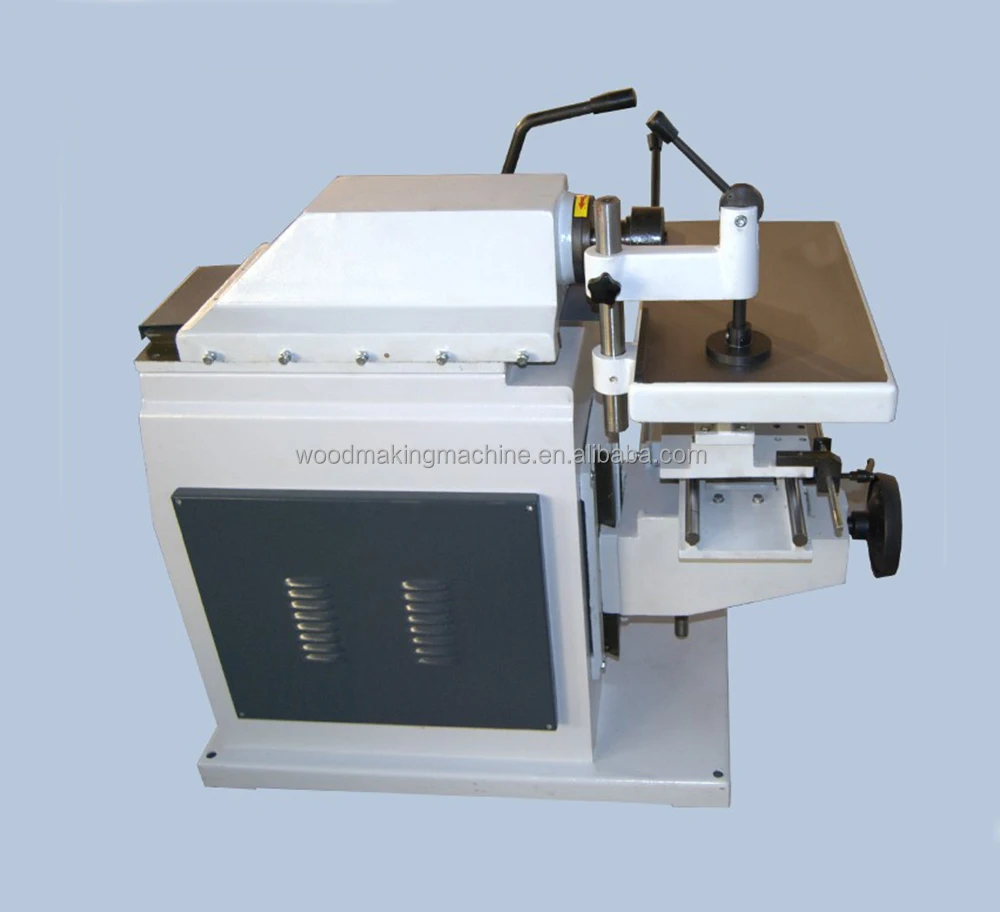

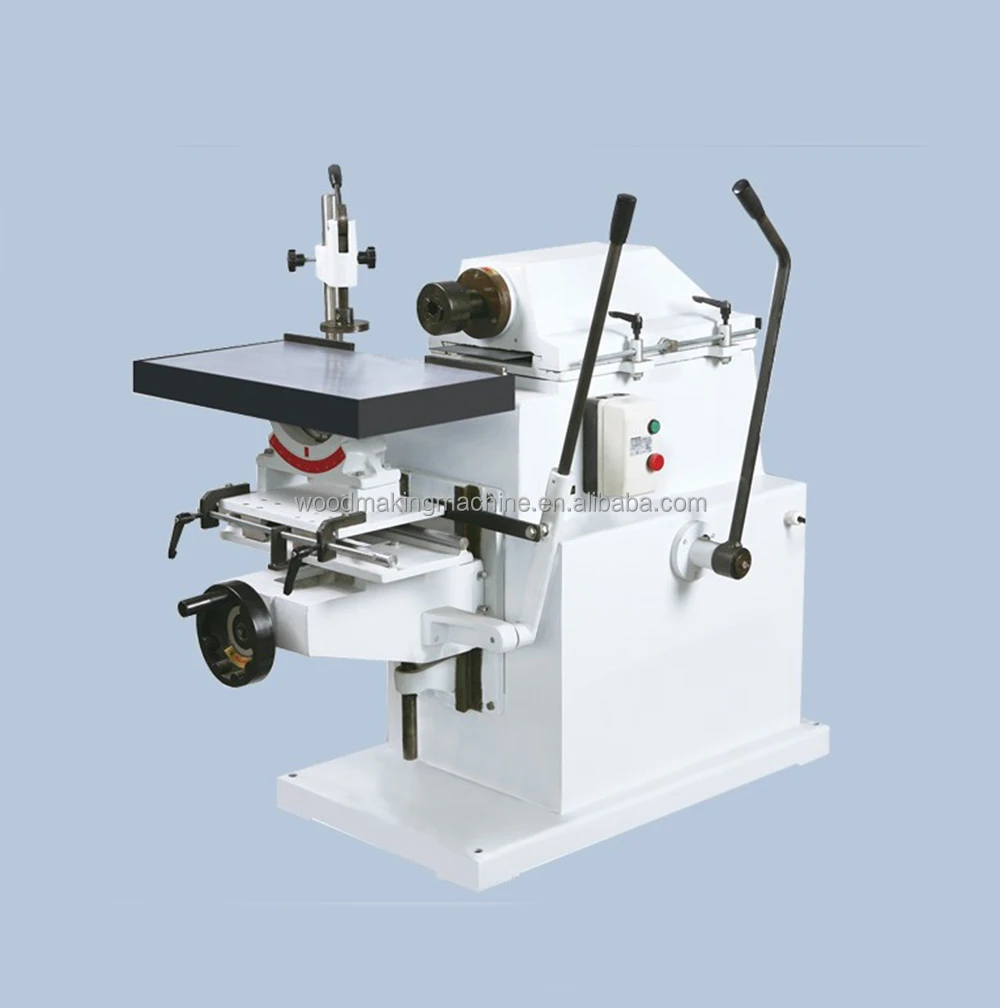

AICHENER MS302 Horizontal Woodworking single spindle Chisel Mortiser mortising machine





Parameter of MS302 Horizontal Woodworking single spindle Chisel Mortiser mortising machine

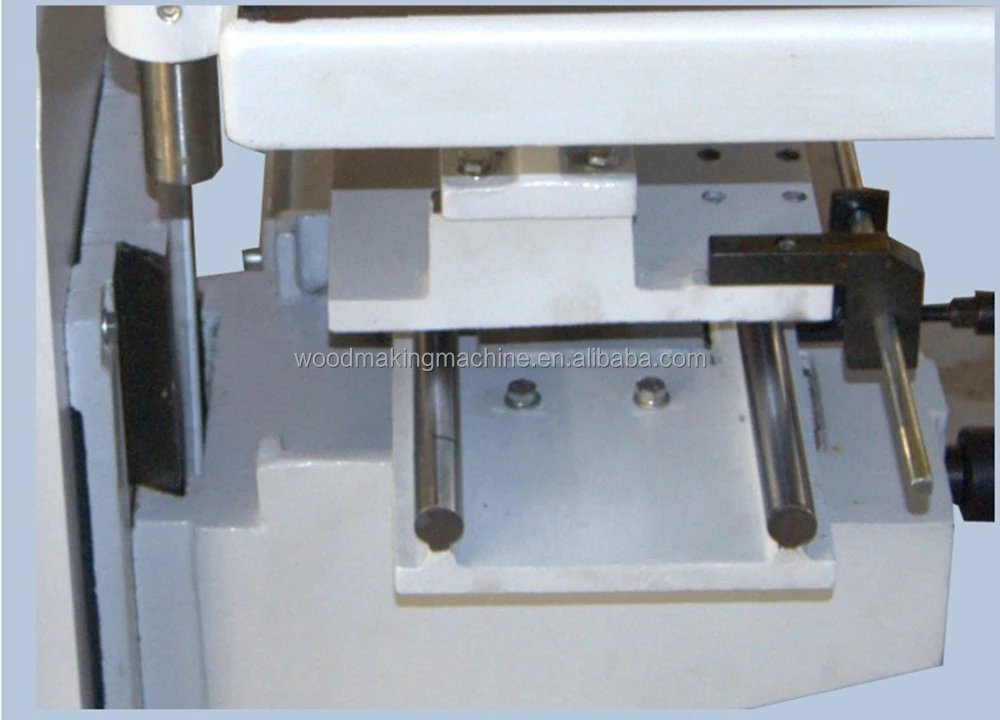

Double linear guide rails are used to move the worktable around, dovetail structure is used to lift up and down. Improved stability.

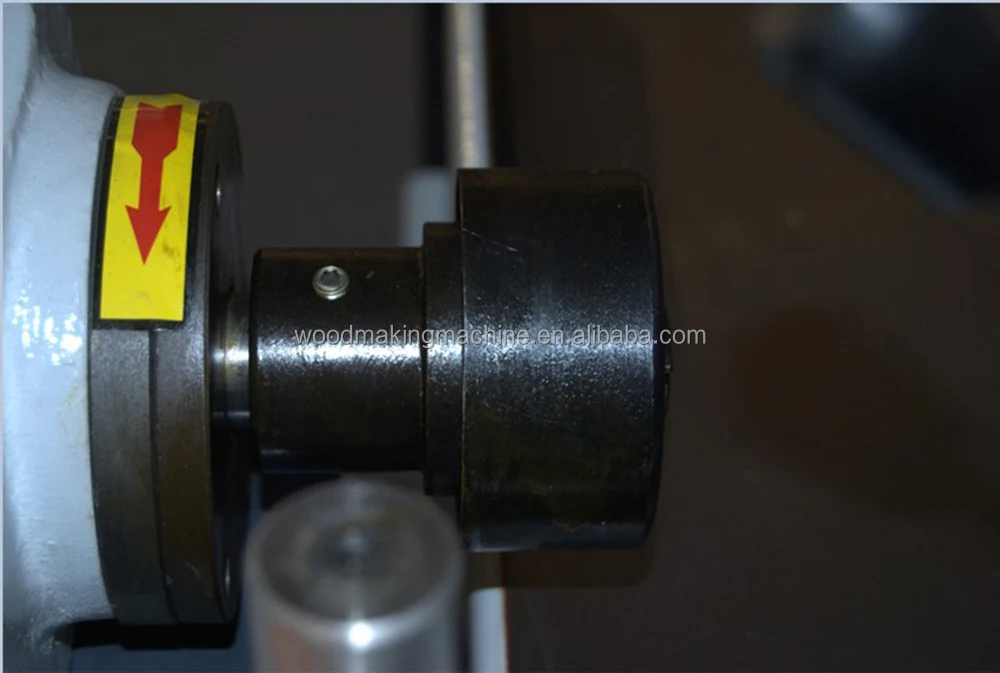

Precision machining, can hold up to 20mm drill.



Model	MS302
Max. mortising length	200mm
Max. mortising Width	0-20mm
Max workpiece width	300mm
Max. mortising Depth	100mm
Working table moving height	160mm
Max tilt angle of working table	0-30degree
Spindle Speed	3500r/min
Motor Power	2.2kw
Overall Dimensions	1183*628*1136mm
Net Weight	200kg



Shandong Aichener Machinery Co., Ltd. mainly supply woodworking thicknesser, flat planer, Multi-functional combination planer,sander machine, polish machine, wood router and miller, band saw, slide table saw, simple or precision panel saw, scroll saw, circular saw ,Woodworking edge banding machine,Rocker saw,Drilling machine, wood engraving machine, splicing machine, finger joint machine, sharpening machine,Log peeling saw,etc , widely used in Logs, solid wood panels, splice panels, plywood and sandwish wood, warm welcomed by Lumber mill and furniture processing plant,highly valued by woodworking enthusiasts.
