10W 10 48Vdc multiple output current 100mA 150mA 200mA 250mA 300mA 350mA 400mA Triac ELV Depth dim adjustable LED driver
- Category: >>>
- Supplier: Ever Shining Optotech Co. Ltd.
Share on (1600465639114):
Product Overview
Description

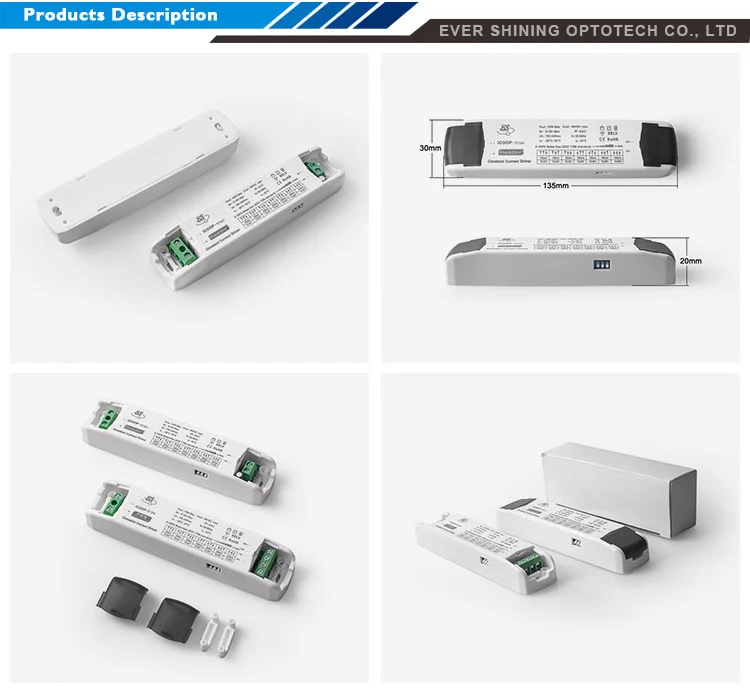

Products Description
Model No. | Model No. | iCOOP-triac | |
Function | Dimming Method | Triac / ELV | |
Output | Output Voltage | 48VDC Max | |
Current Range | 100mA 150mA 200 mA 250mA 300mA 350mA 400mA | ||
Power Range | 1W - 10W | ||
Depth-dim TECH | High frequency exemption level / No Flicker | ||
Dimming Range | 0-100% | ||
Current Accuracy | ±5% | ||
No-load output Voltage | 50VDC | ||
Ripple current | ＜3% | ||
Channel | 1 | ||
Input | Range Input Voltage | 100-240VAC | |
Frequency | 50/60HZ | ||
Power Factor | ≥0.95@230VAC (Full load) | ||
Efficiency | >85%@230VAC (Full load) | ||
THD | 230Vac@THD≤15% (Full load) | ||
Input Current | 115Vac≤0.2A / 230Vac≤0.1A | ||
Inrush Current | Cold start 3.6A/230Vac (test twidth=45us under 50% Ipeak) | ||

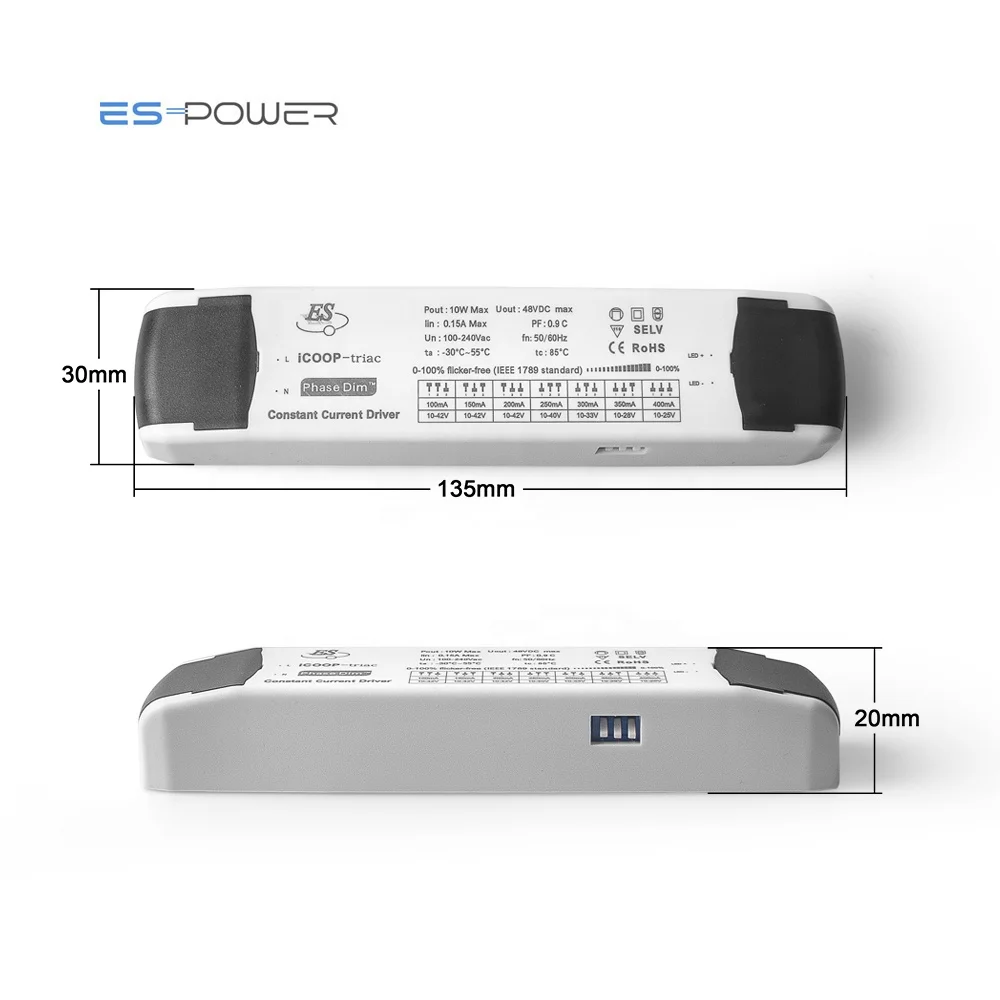

Others | Dimension(L x W x H) | 135×30×20mm (L×W×H) | |
Packing Weight | 80g | ||
The iCOOP-triac series is one 10W AC-DC Constant Current Triac / ELV dimming single output LED driver power supply. It accepts the full range input 100-240VAC and provide 1 model with wide output voltage10-48Vdc and multiple output current 100mA/150mA/200mA/250mA/300mA/350mA/400mA. It is Built-in active PFC function PF : 0.9 C. Also it exploiting Class 2 power supply design and adopting plastic case. What's more, It adopting Depth-dim technology and provide very smooth dimming effect, meanwhile support low end start and 0-100% Flicker-free.

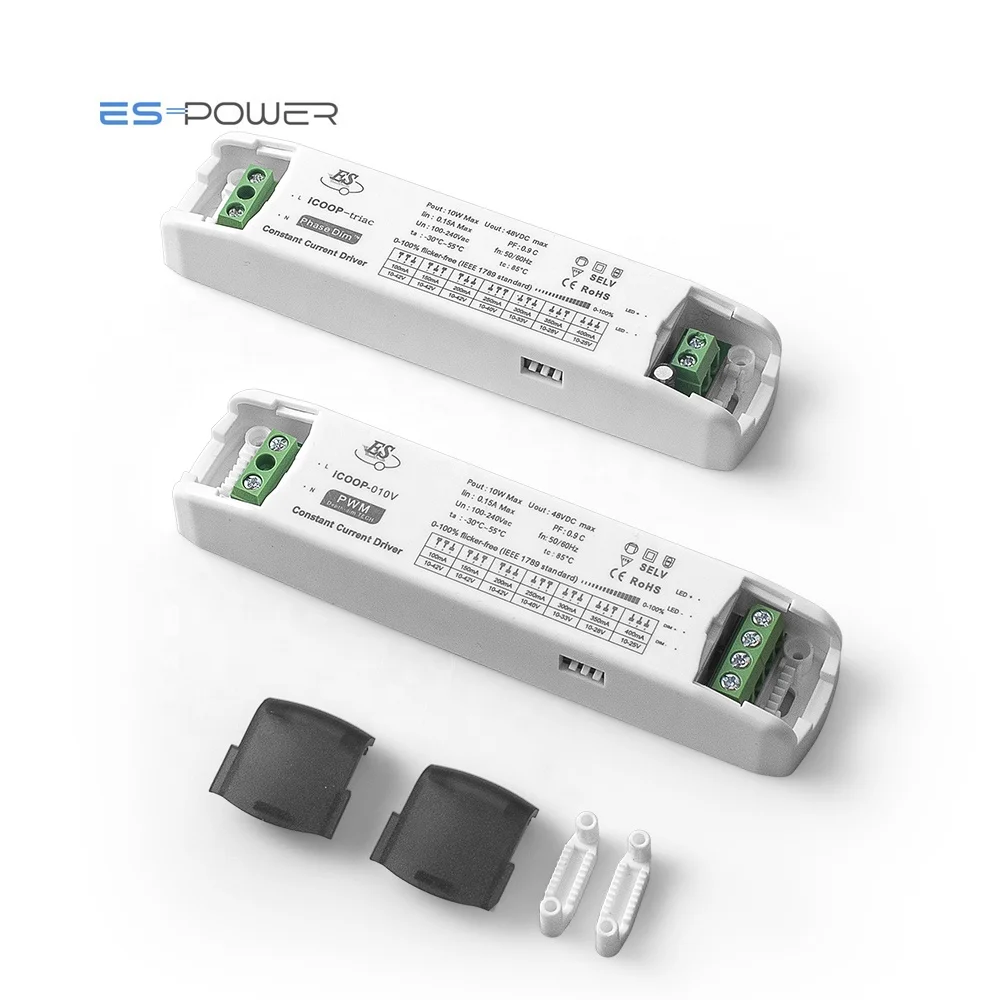

Besides,We also providing 0-10V dimming and DALI dimming optional with the same housing to meet worldwide market demands. Please look at below table,, Please directly conatct us if you have any question or inquiry.
Our Advantages
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
More Product
Company Profile
Certifications
Product Process
Product packaging
FAQ
Q1: What is your MOQ of LED Driver ?
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
