Product Overview

Description

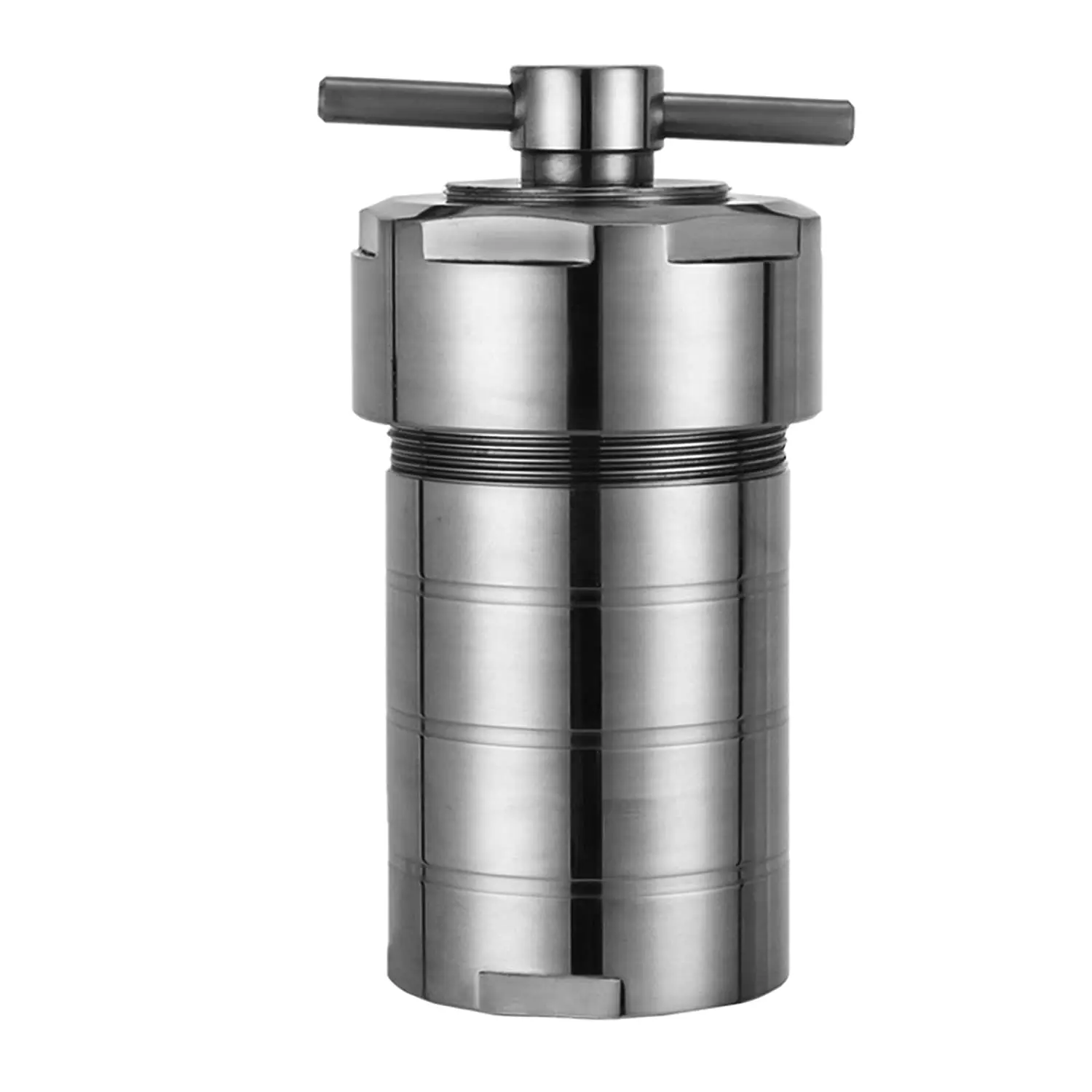

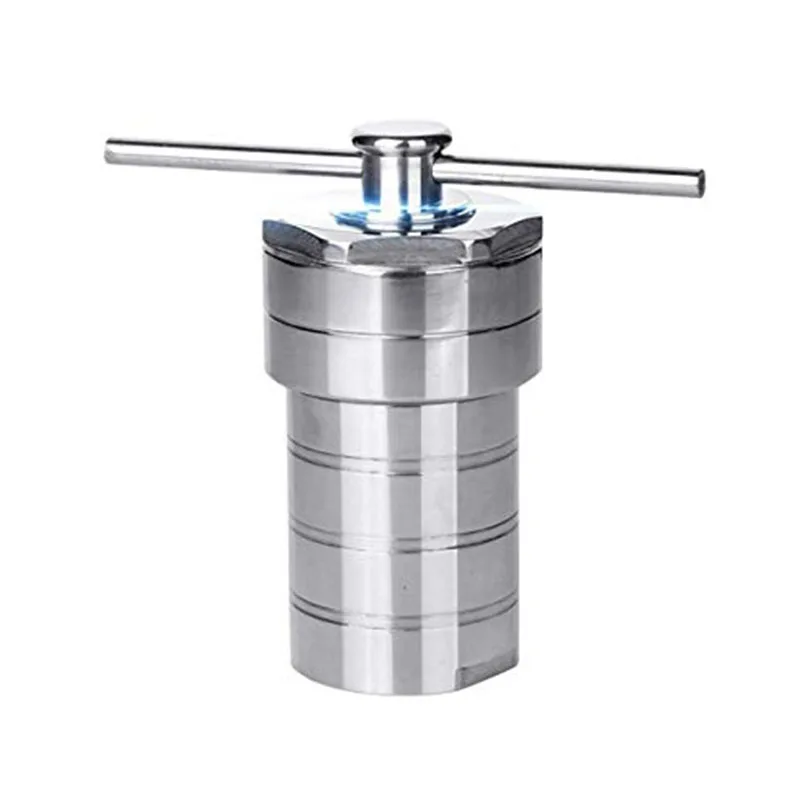

Laboratory Metal organic framework Treatment Hydrothermal Synthesis Reactor

also called pressure vessel, dissolved vessel or hydrothermal synthesis autoclave



Information of Hydrothermal Synthesis Reactor:

Capacity: 20ml 30ml 50ml 75ml 100ml 200ml 400ml 500ml 1000ml 2000ml

Material: stainless steel SS304 SS316, hastelloy, titanium, cladding plate

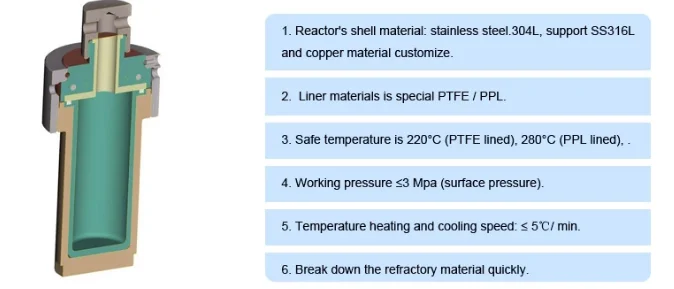

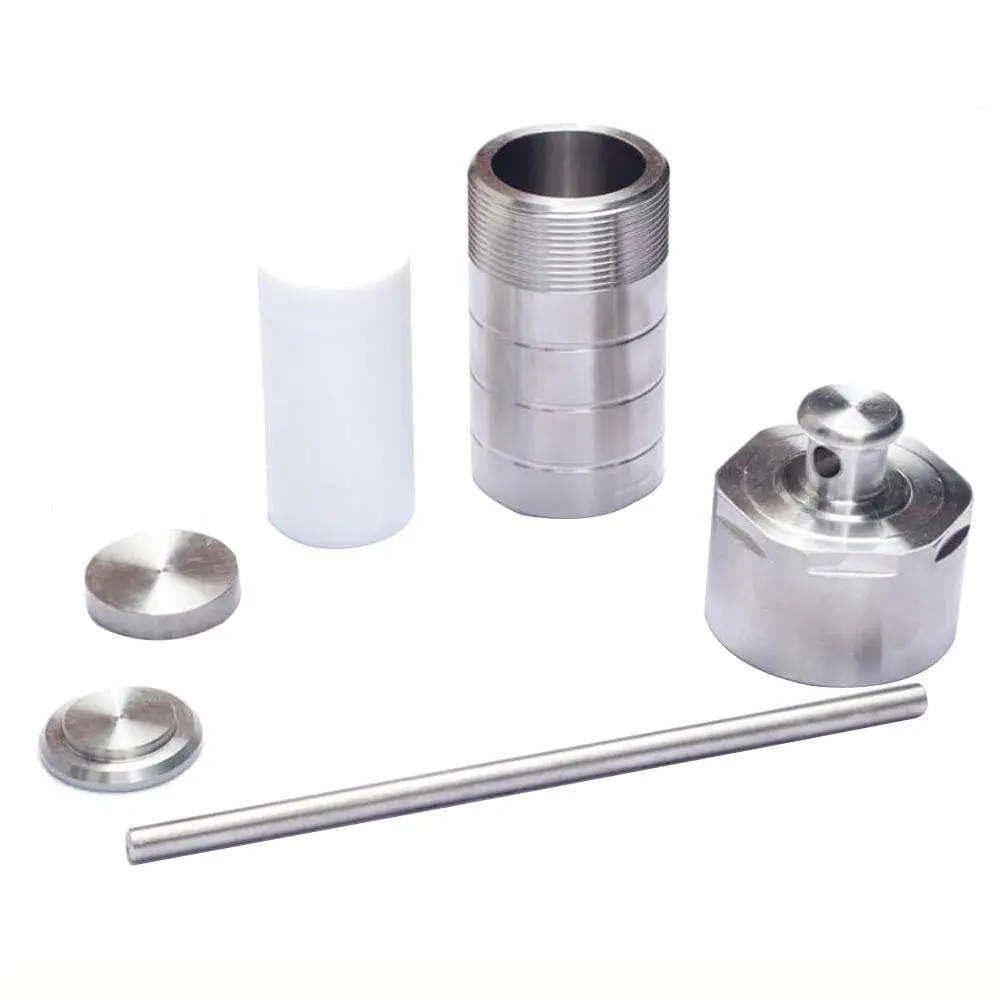

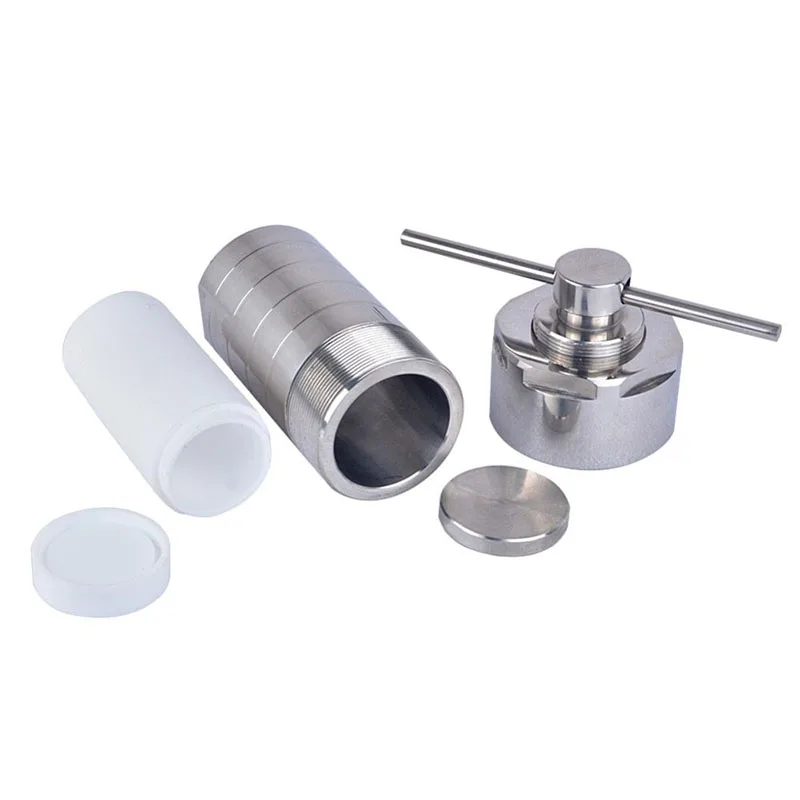

Structure of Hydrothermal Synthesis Reactor:

(1) Jack screw bolt

(2) kettle cover

(3) Butterfly spring pad

(4) Flat Head
(5) Lining cover

(6) Liner

(7) Bottom cover

(8) Kettle body



Function of Hydrothermal Synthesis Reactor:

The design temperature of this product is 300 °C, design pressure 6Mpa.
There are two types of working temperature according to the different liner in the hydrothermal synthesis reactor.

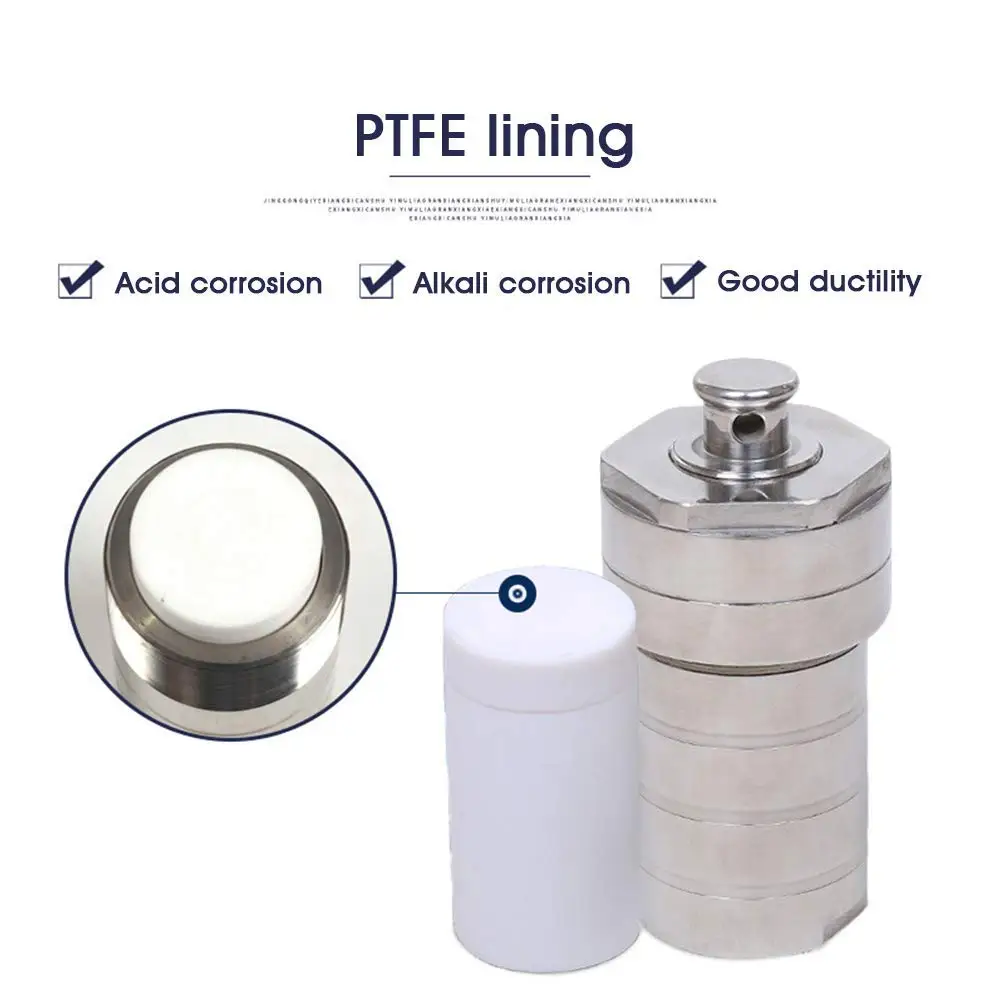

PTFE lining ( also called PTFE, F4): working temperature ≤ 160 °C
PPL lining: temperature ≤ 250 °C

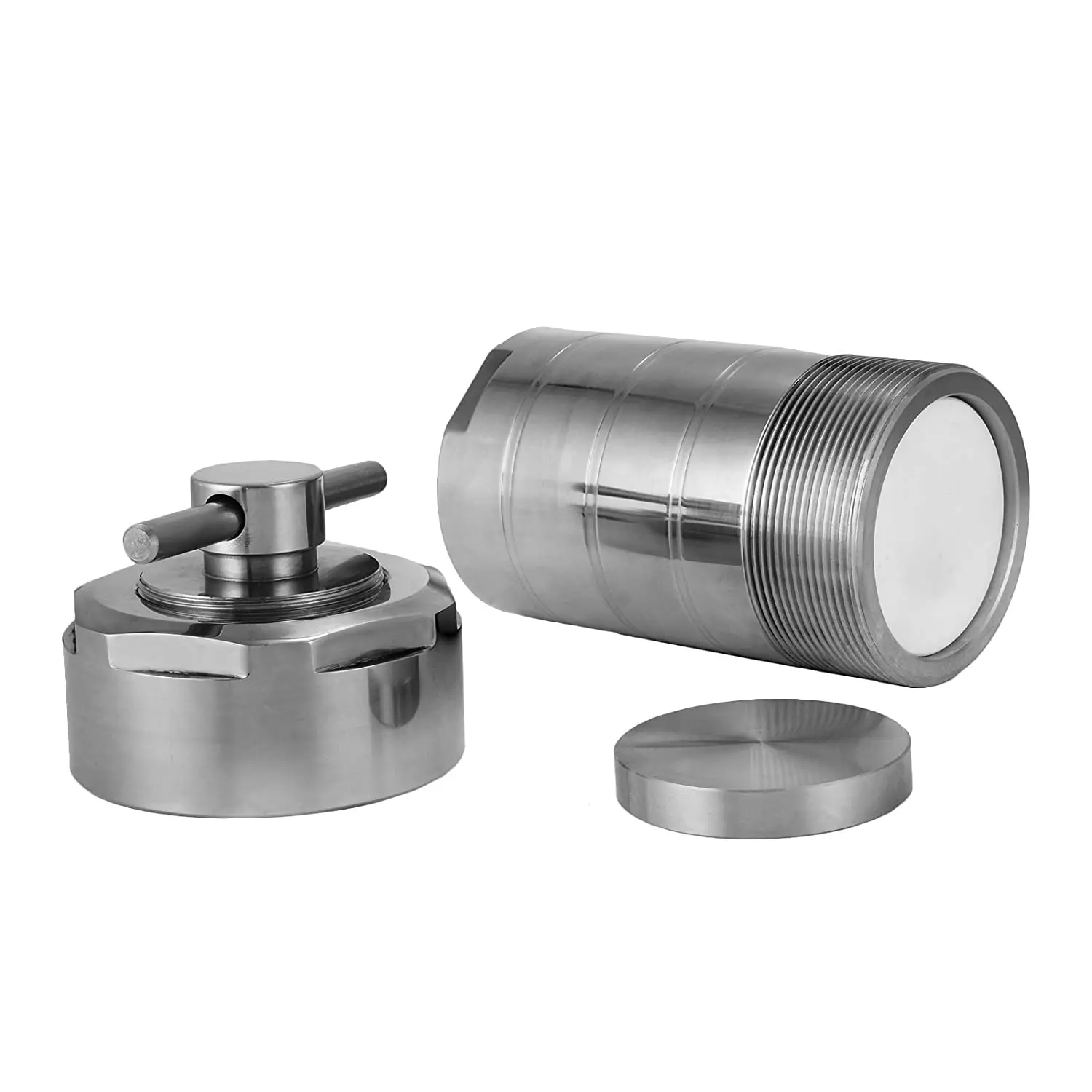

Operation of Hydrothermal Synthesis Reactor:

1. Loose hexagon head bolt with a wrench, do not have to unload and just move freely.

2. The screw cap is screwed down, and then turn to the 304 filter pad , 304 cover and PTFE cover to be taken down.

3. Withstand up the 304 bottom, then remove the 304 PTFE liner from upper part of the kettle.

4. Place the reaction materials inside the PTFE liner, and ensure that feeding coefficient is less than 0.8.

5. Put PTFE liner with reaction materials into the 304 kettle body, and then turn to put on PTFE cover,304 cover, 304 filter pad, then tighten the screw cap, and finally tighten the hex head bolt with a wrench.

6. Fix the micro reactors in blast / thermostatic oven, pending the completion of the reaction to remove micro-reactors.

7. After cooling the micro-reactor, repeat the steps 1-3.

8. Transfer the reaction products to the specified container, then wash PTFE liner and PTFE cover for the next use.

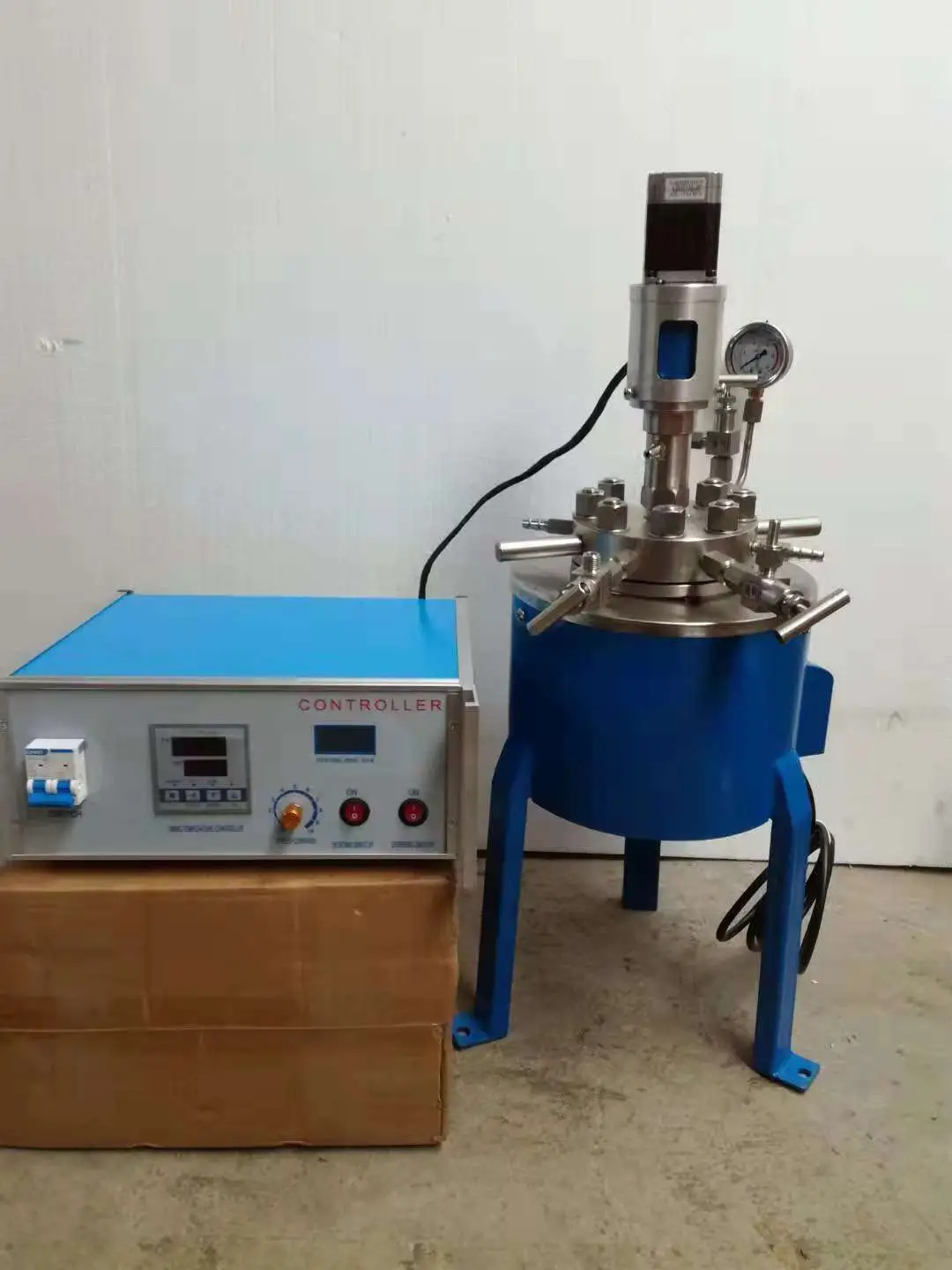

Hydrothermal Synthesis Reactor with high pressure and magnenetic/mechanical stirring function:

Hydrothermal Synthesis Reactor in stock:

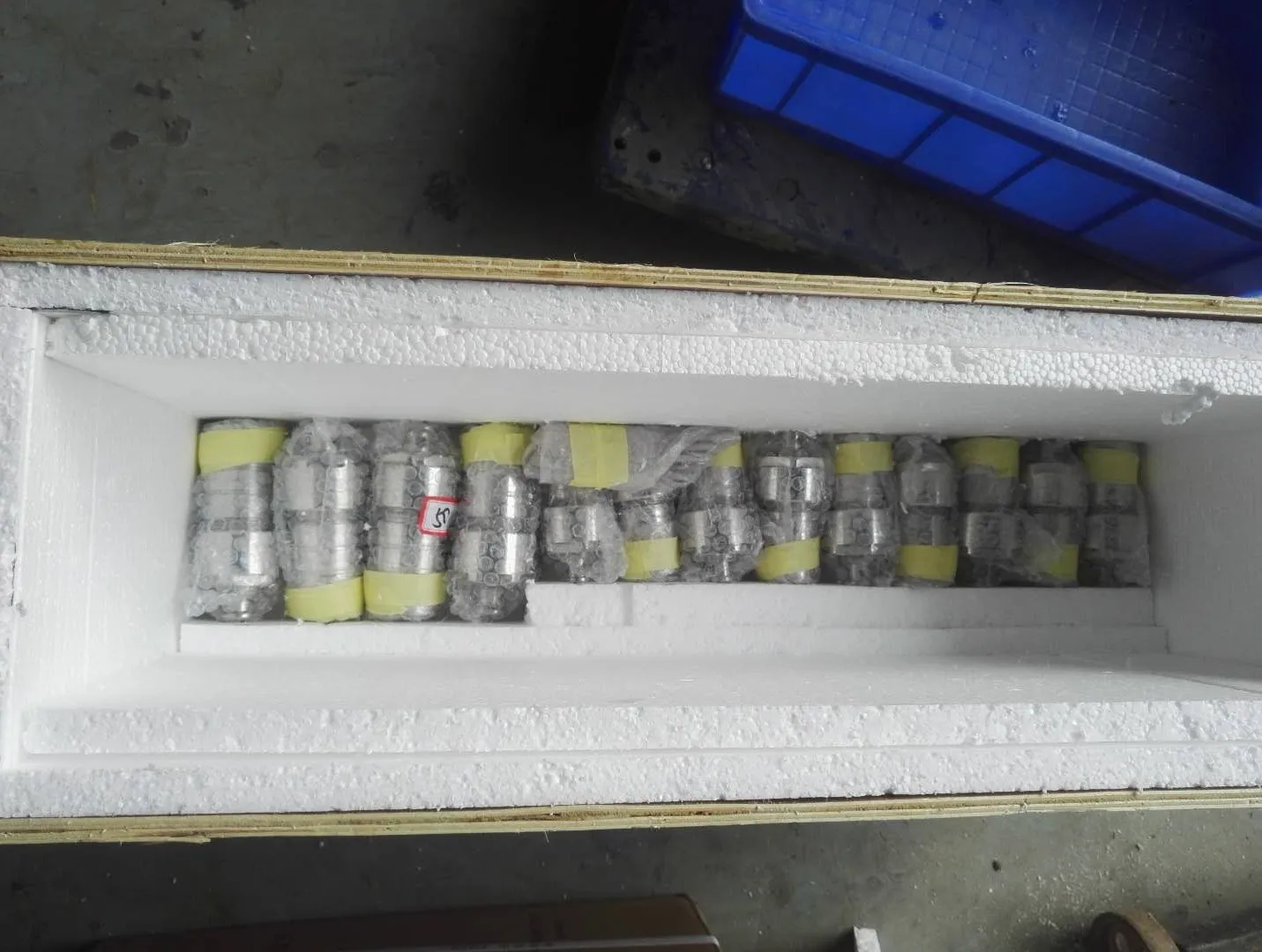

Package of Hydrothermal Synthesis Reactor:



Please feel free to contact us if you want Hydrothermal Synthesis Reactor!
