Product Overview

Description



Product Description


Application Area:

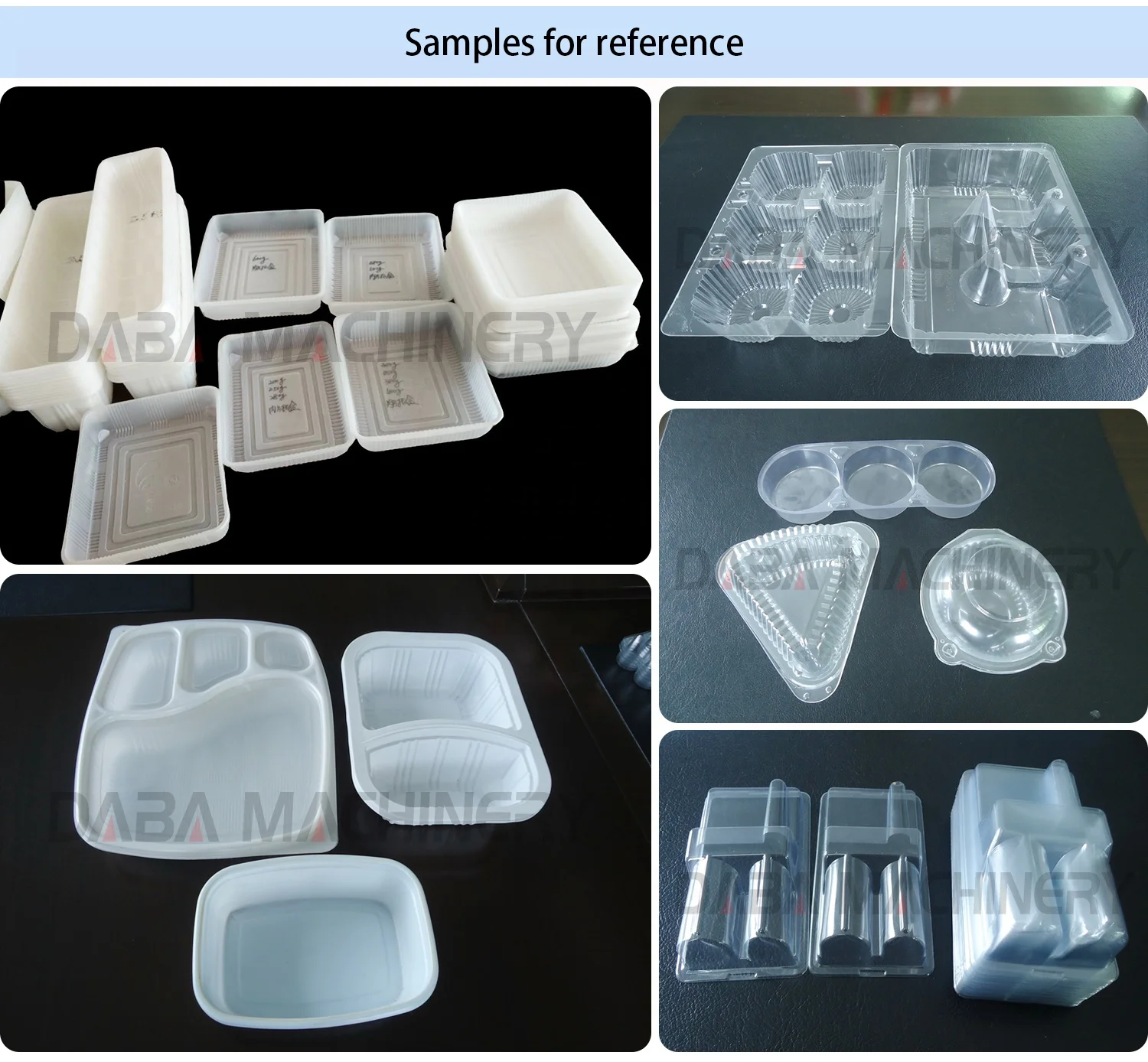

This machine is suitable for forming HIPS, PS, PP, PVC, PET sheet that can produce boxes, trays, fast food,boxes, dishes, lids, cookies tray,egg tray, mobile phone tray & other blister tray.

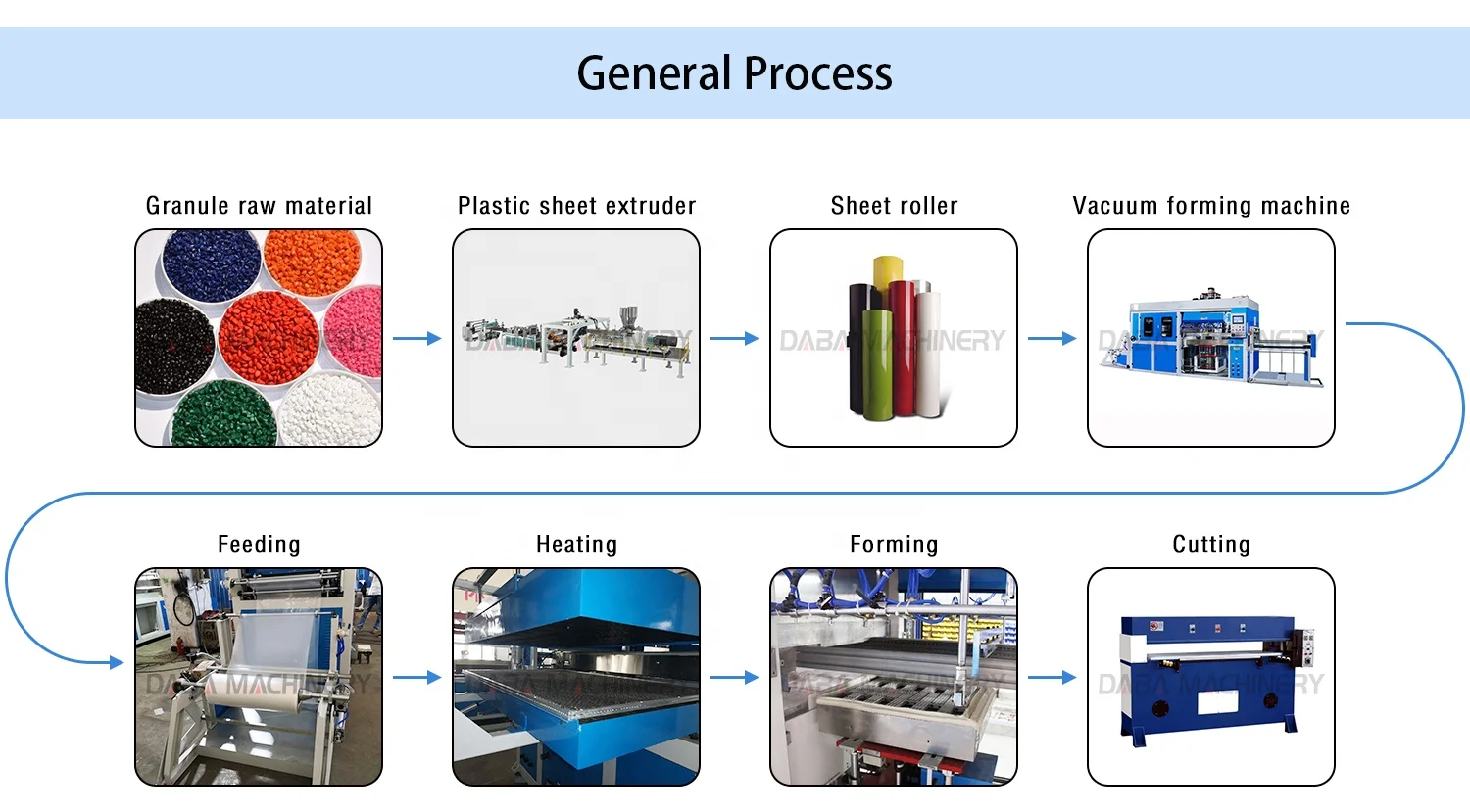

Technological process:
Carrying material(cylinder drives the chain to work)---heating(cylinder drives the electric furnace to lift in order to make a proof)---pulling( cylinder drives the chain)----lifting the lower die, falling the upper die(cylinder drives)—vacuum forming (vacuum pump air admission )---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing).

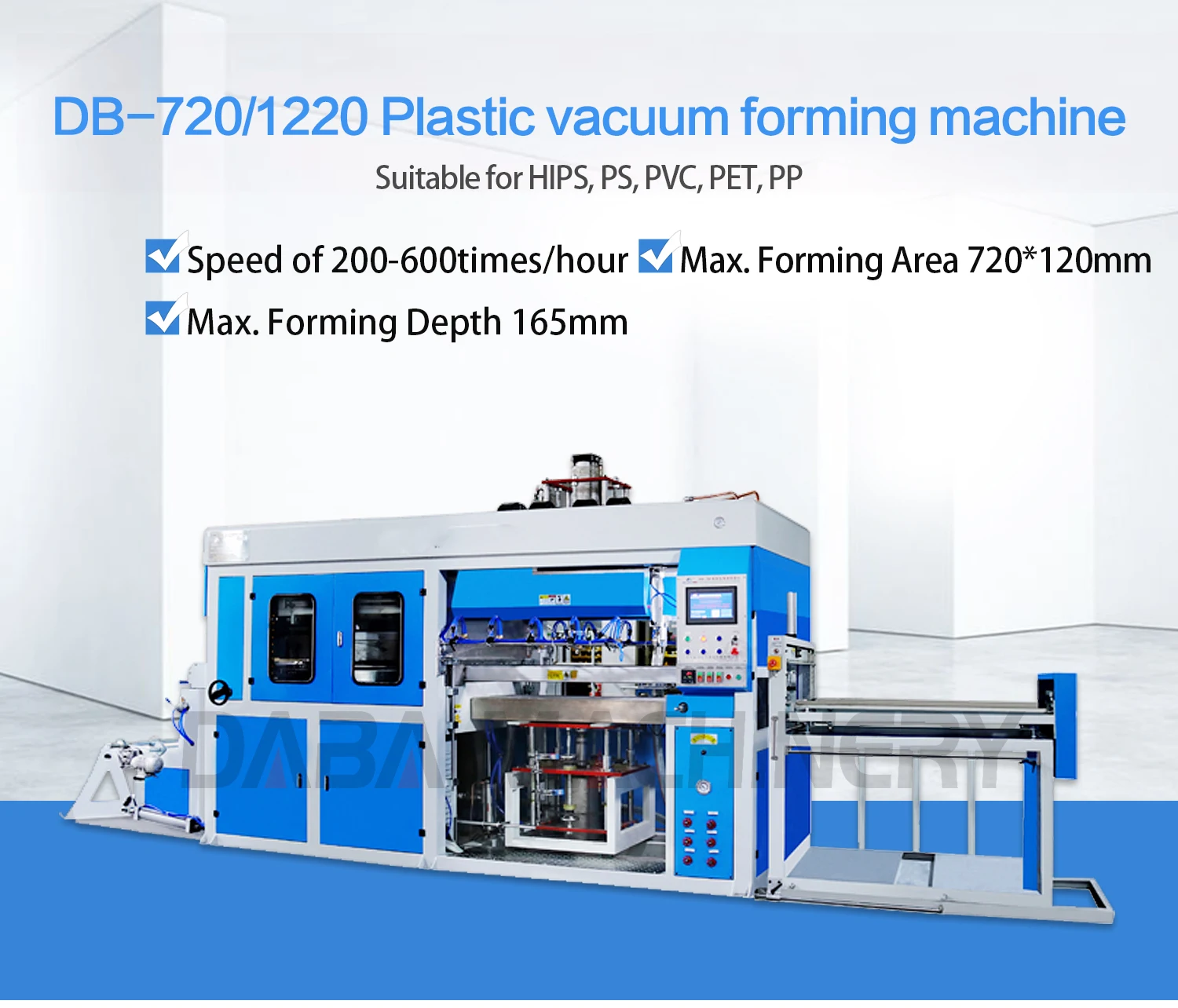

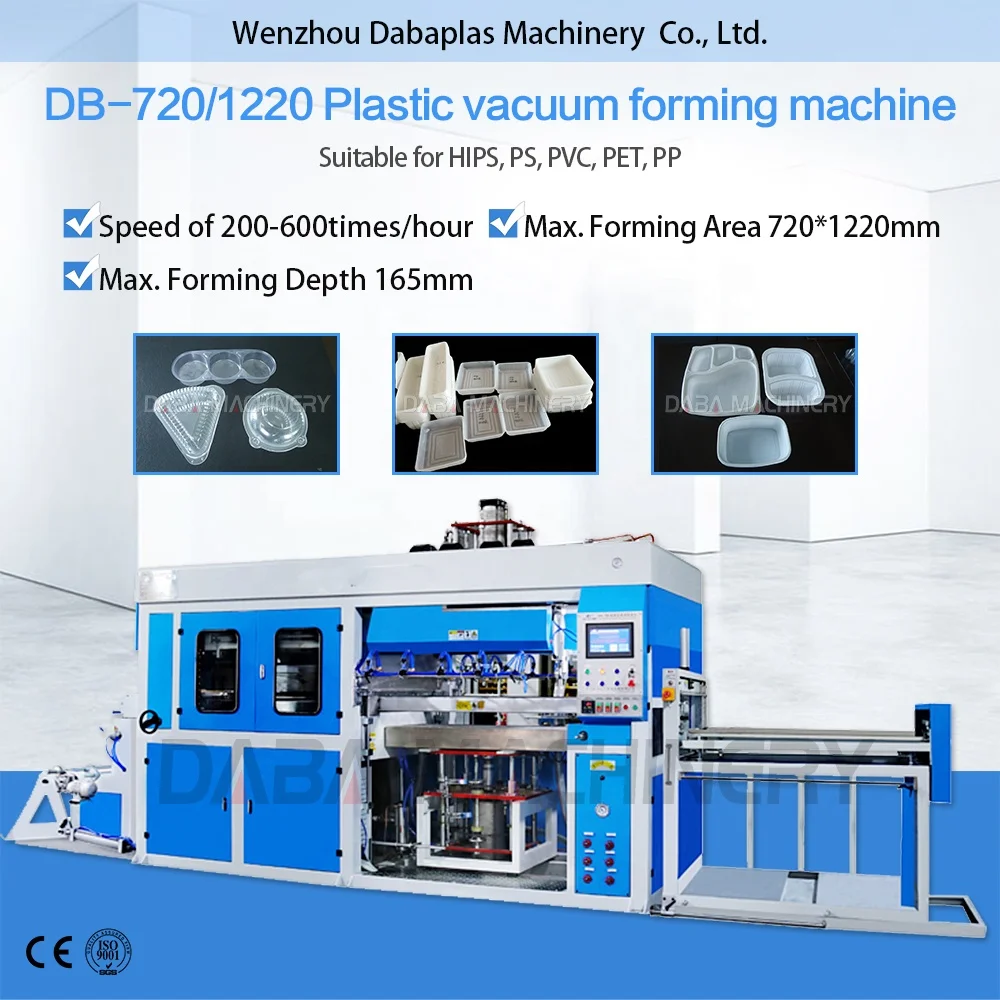

Specification


No
Item
Data
1
Forming area
710*1200mm(can change)
2
Sheet width
610-760mm (can change)
3
Forming height
0-165mm
4
Thickness of sheet
0.15-1.0mm
5
Production speed
200-600times/hour(depend on the shape of product and thickness of sheet)
6
Mould-up move
Electromotion
7
Electric oven power
30 KW
8
Heating device
60 independent electronics non pole adjust(one control one)
9
Traction motor power
2.2KW
10
Vacuum pump power
3.0 KW
11
Cooling-water machine power
3.37 KW
12
Power
380V 50/60HZ three phases
13
Air compressor
15KW/20HP (remarked by customer)
14
Dimension
(L)8800*(W)1500*(H)2800mm
15
Weight
3000kg

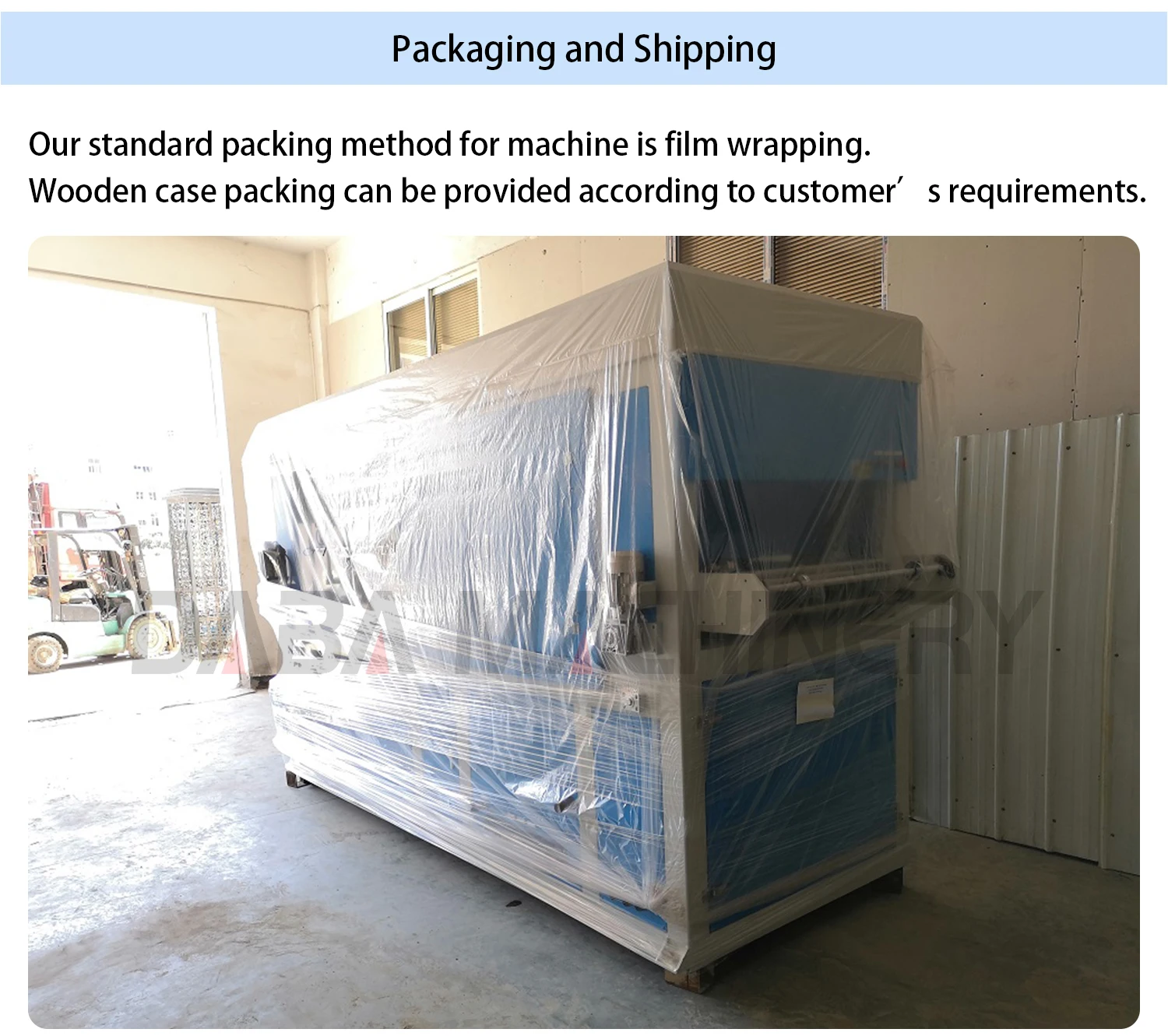

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
