HLC1 150F 150A 4 Pole Magnetic Contactors with Coil Contactor 110V 220V 380V
- Category: >>>
- Supplier: Yueqing Hailai Trading Co. Ltd.
Share on (1600465650527):
Product Overview
Description

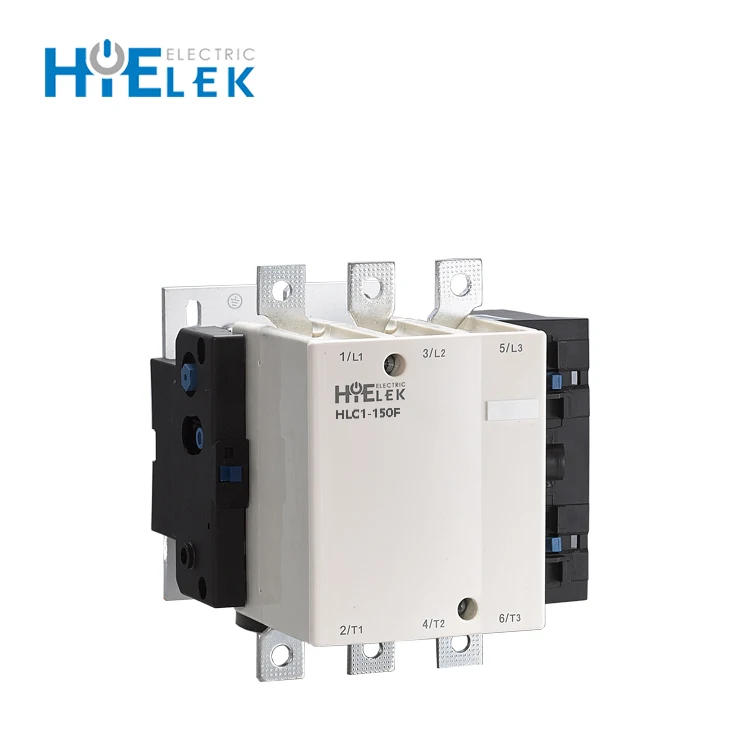

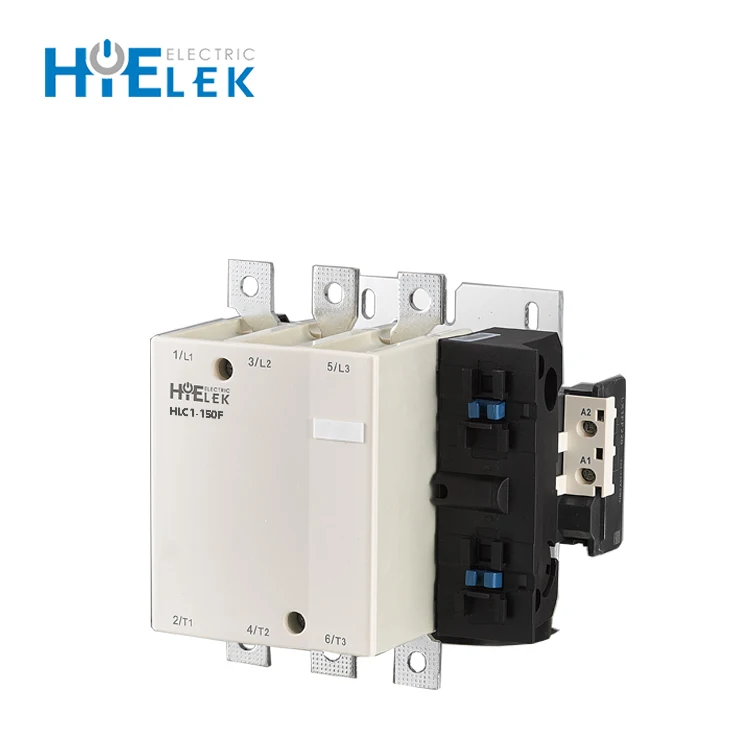

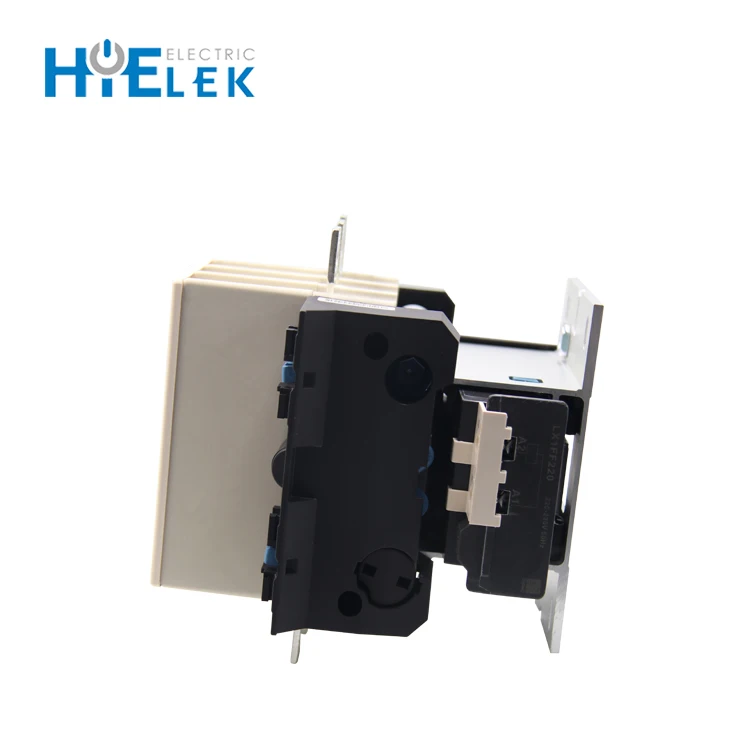

HLC1-150F 150A 4 Pole Magnetic Contactors with Coil Contactor 110V 220V 380V
Application
HLC1-150F 4 Pole Magenetic Contactor
HLF1 series AC Contactor is applicable in the circuit rated voltage up to 690V AC. 50/60 HZ, rated current up to 800A for making
and breaking and frequent starting, controlling the AC motor which is combined with the auxiliary contact group, air
delayer,machine interlocking device and etc.It is combined into the delay contactor, mechanical interlock contactor,switchover
capacitor contactor, star-delta starter, with the thermal JR28 relay; it is combined into the electromagnetic starter.
and breaking and frequent starting, controlling the AC motor which is combined with the auxiliary contact group, air
delayer,machine interlocking device and etc.It is combined into the delay contactor, mechanical interlock contactor,switchover
capacitor contactor, star-delta starter, with the thermal JR28 relay; it is combined into the electromagnetic starter.
My Parameter :
Type | HLC1-115F | HLC1-150F | HLC1-185F | HLC1-225F | HLC1-265F | ||
Rated operation current(A) | Ie max AC-3 (Ue≤440V) | 115A | 150A | 185A | 225A | 265A | |
Ie max AC-1 (θ≤40℃) | 200A | 250A | 275A | 315A | 350A | ||
Rated operational voltage(V) | max | 1000V | 1000V | 1000V | 1000V | 1000V | |
Main contacts(NO) | 3P/4P | 3P/4P | 3P/4P | 3P/4P | 3P/4P | ||
Rated operational power AC-3(kW) | 220/240V | 30kW | 40kW | 55kW | 63kW | 75kW | |
380/400V | 55kW | 75kW | 90kW | 100kW | 132kW | ||
415V | 59kW | 80kW | 100kW | 110kW | 140kW | ||
440V | 59kW | 80kW | 100kW | 110kW | 140kW | ||
500V | 75kW | 90kW | 110kW | 129kW | 160kW | ||
660/690V | 80kW | 100kW | 120kW | 129kW | 180kW | ||
1000V | 65kW | 65kW | 100kW | 140kW | 147kW | ||
Rated short-time withstand current(θ≤40℃) | 10 Secs | 1100A | 1200A | 1500A | 1800A | 2200A | |
30 Secs | 640A | 700A | 920A | 1000A | 1230A | ||
1 Min | 520A | 600A | 740A | 850A | 950A | ||
3 Min | 400A | 450A | 500A | 560A | 620A | ||
10 Min | 320A | 350A | 400A | 440A | 480A | ||
Rated impulse withstand voltage | 8kV | 8kV | 8kV | 8kV | 8kV | ||
Conventional thermal current | 200A | 250A | 275A | 315A | 350A | ||
Tightening torque(N.m) | 10 N.m | 18 N.m | 18 N.m | 35 N.m | 35 N.m | ||
Connection Mining Operation voltage (θ≤40℃) | Line size(mm2) | 2 20x3 | 2 25x3 | 2 25x3 | 2 32x3 | 2 32x4 | |
Cable with spliding | 95 | 120 | 150 | 185 | 240 | ||
Cable with connector | 95 | 120 | 150 | 185 | 240 | ||
Screw Diameter | Φ6 | Φ8 | Φ8 | Φ10 | Φ10 | ||
Model | RT16-2 | RT16-2 | RT16-3 | RT16-3 | RT16-3 | ||
Rated current(A) | 250A | 355A | 425A | 500A | 630A | ||

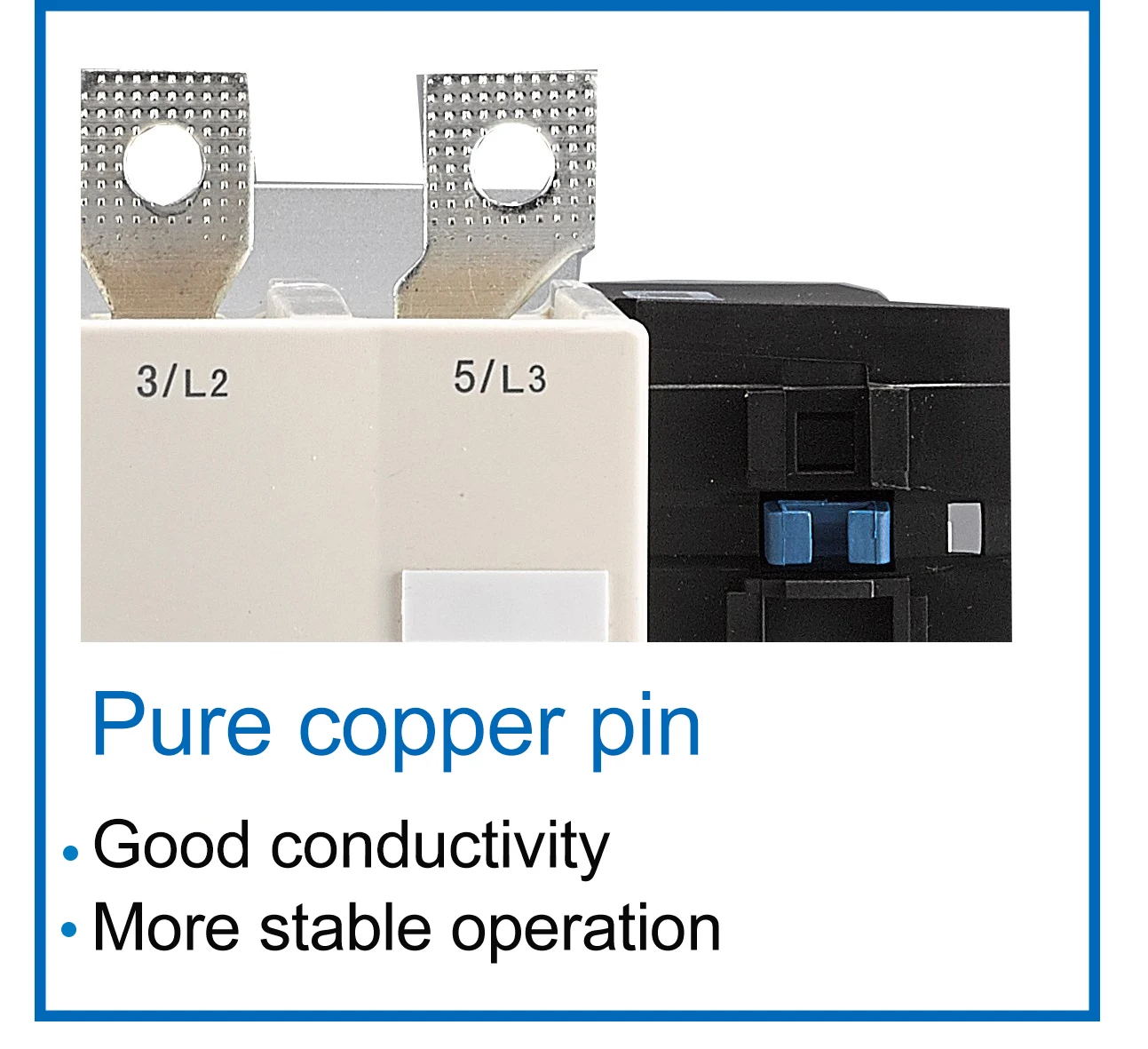

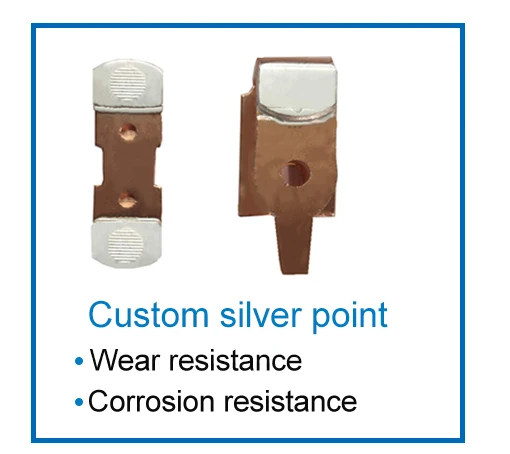

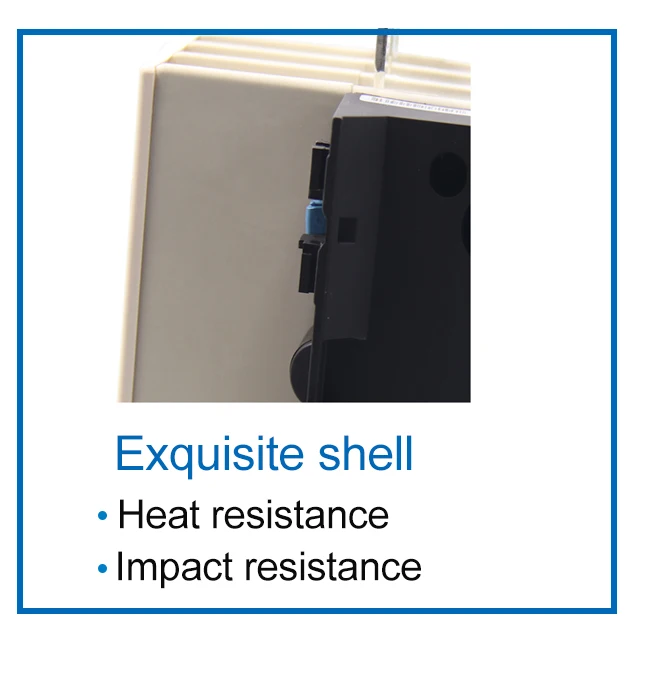

Product Advantages:

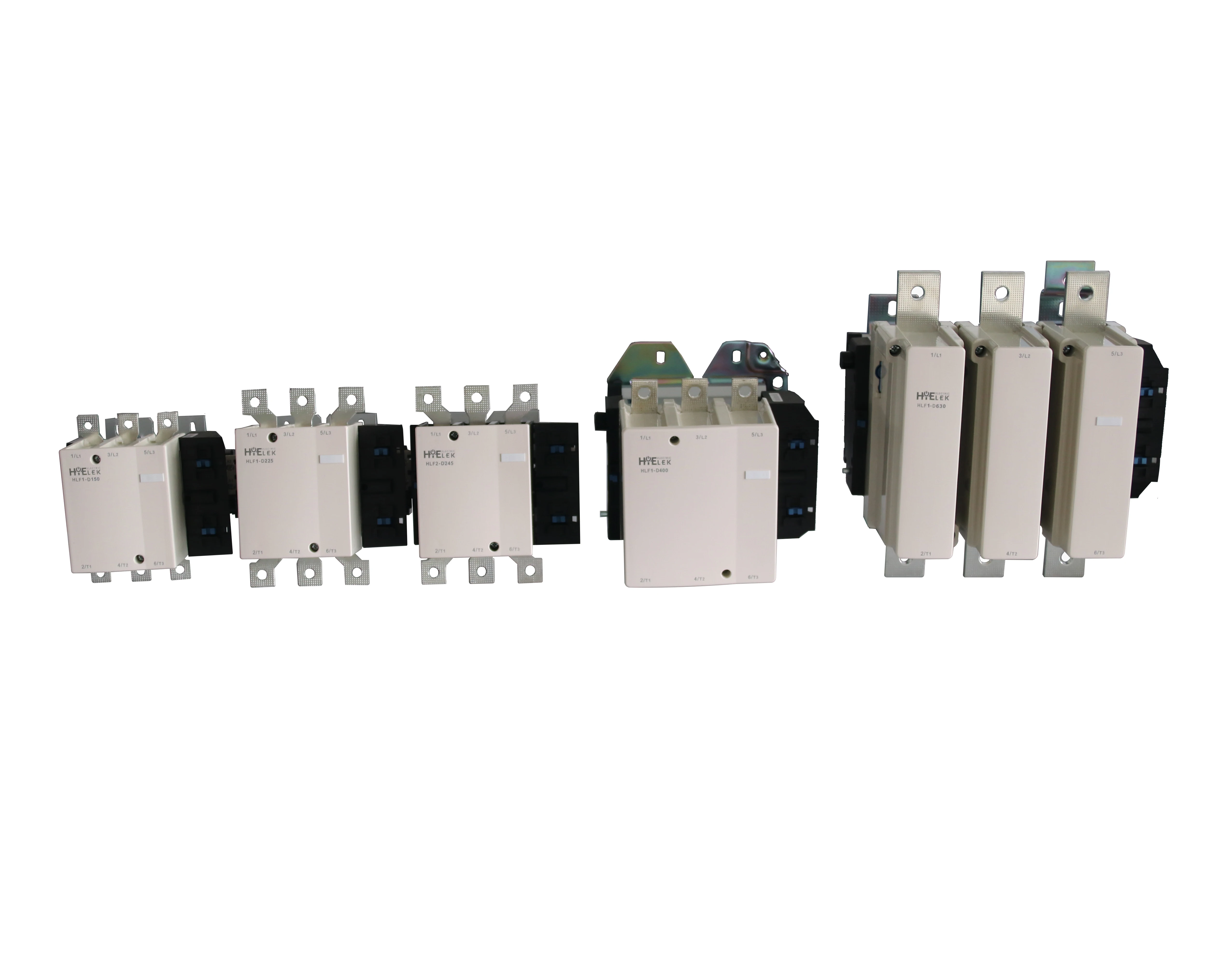

Its my full family photos !
Related Products :
Company Information :

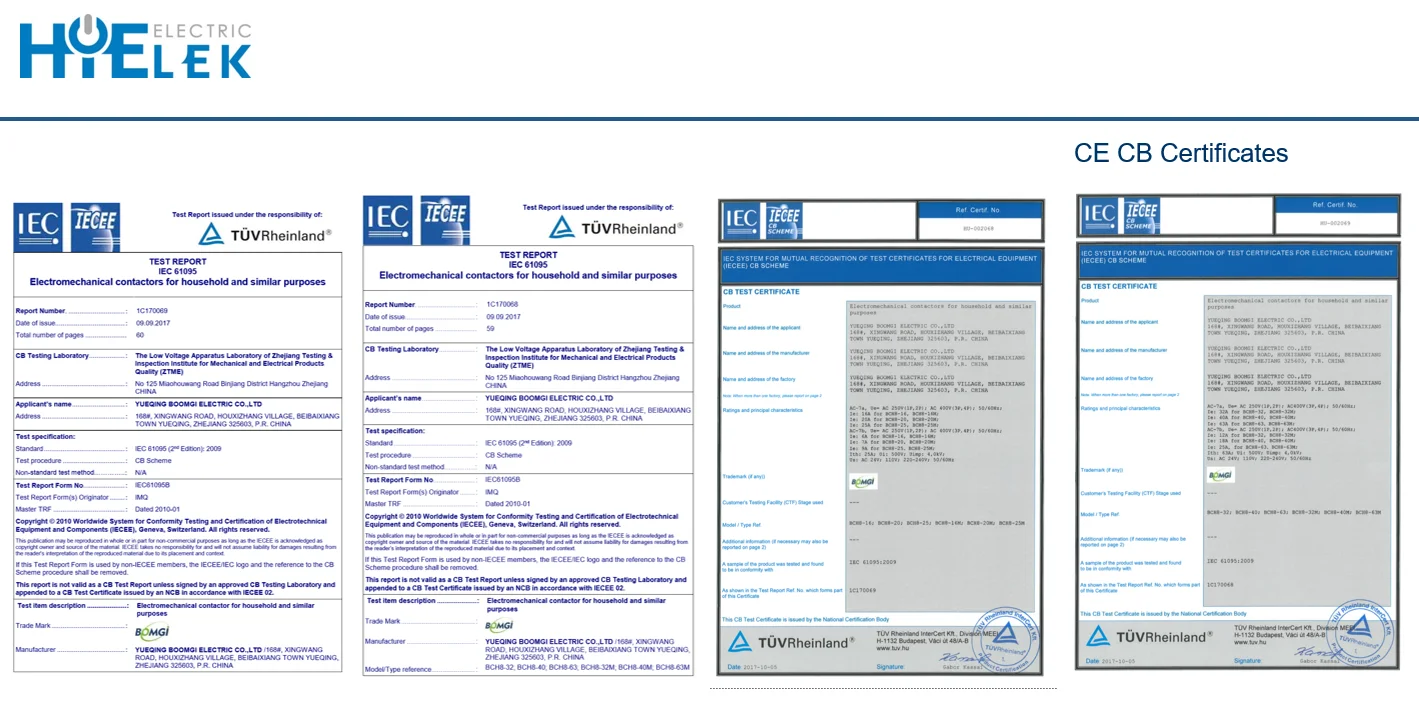

HiELEK is Committed to providing high-quality modular contactor and impulse relay products for high-level customers worldwide. The HCH8 series have pssed the authoritative test by TUV Rheinland laboratories in Germany and have obtained CE, CB, certifications.

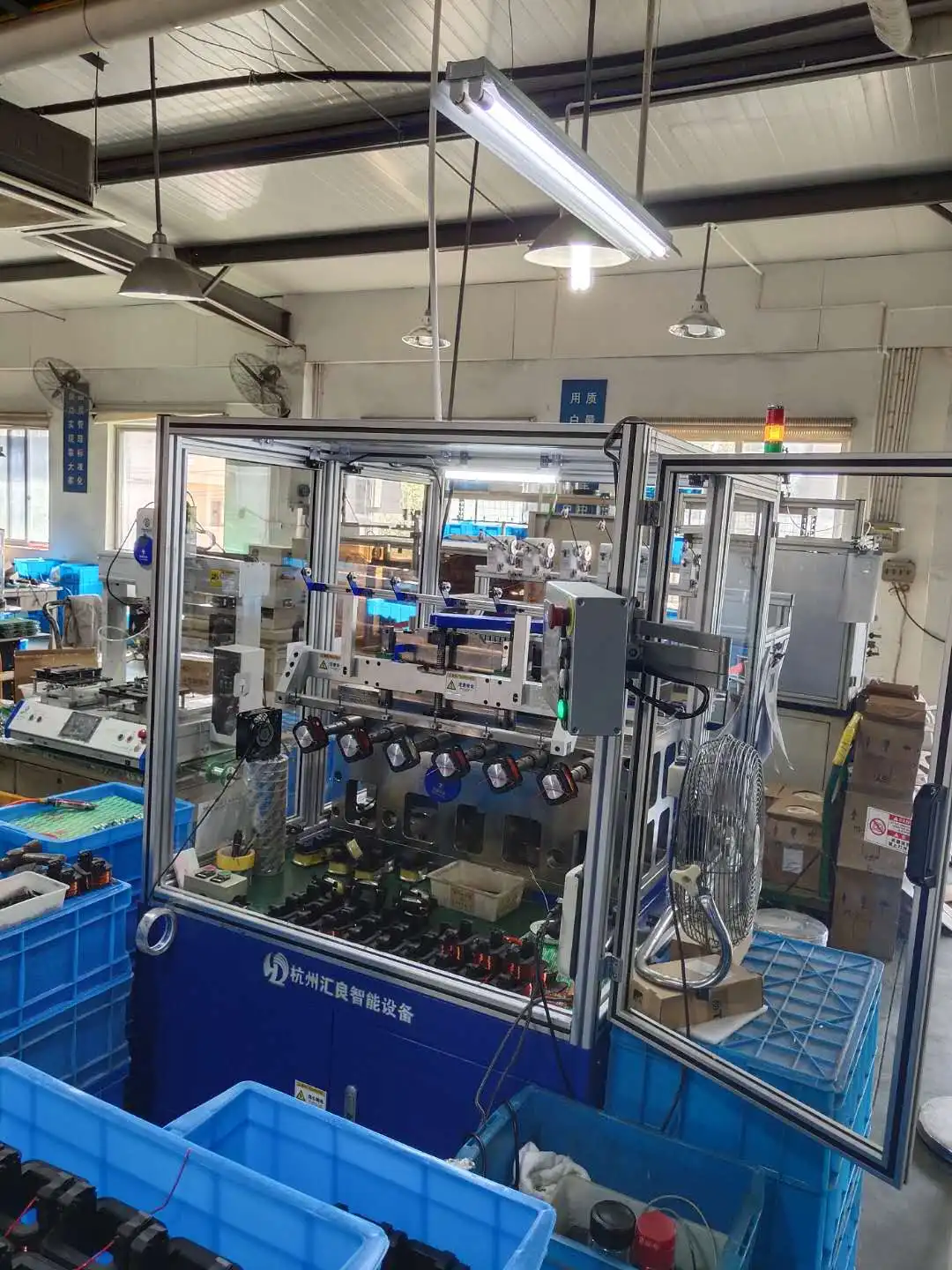

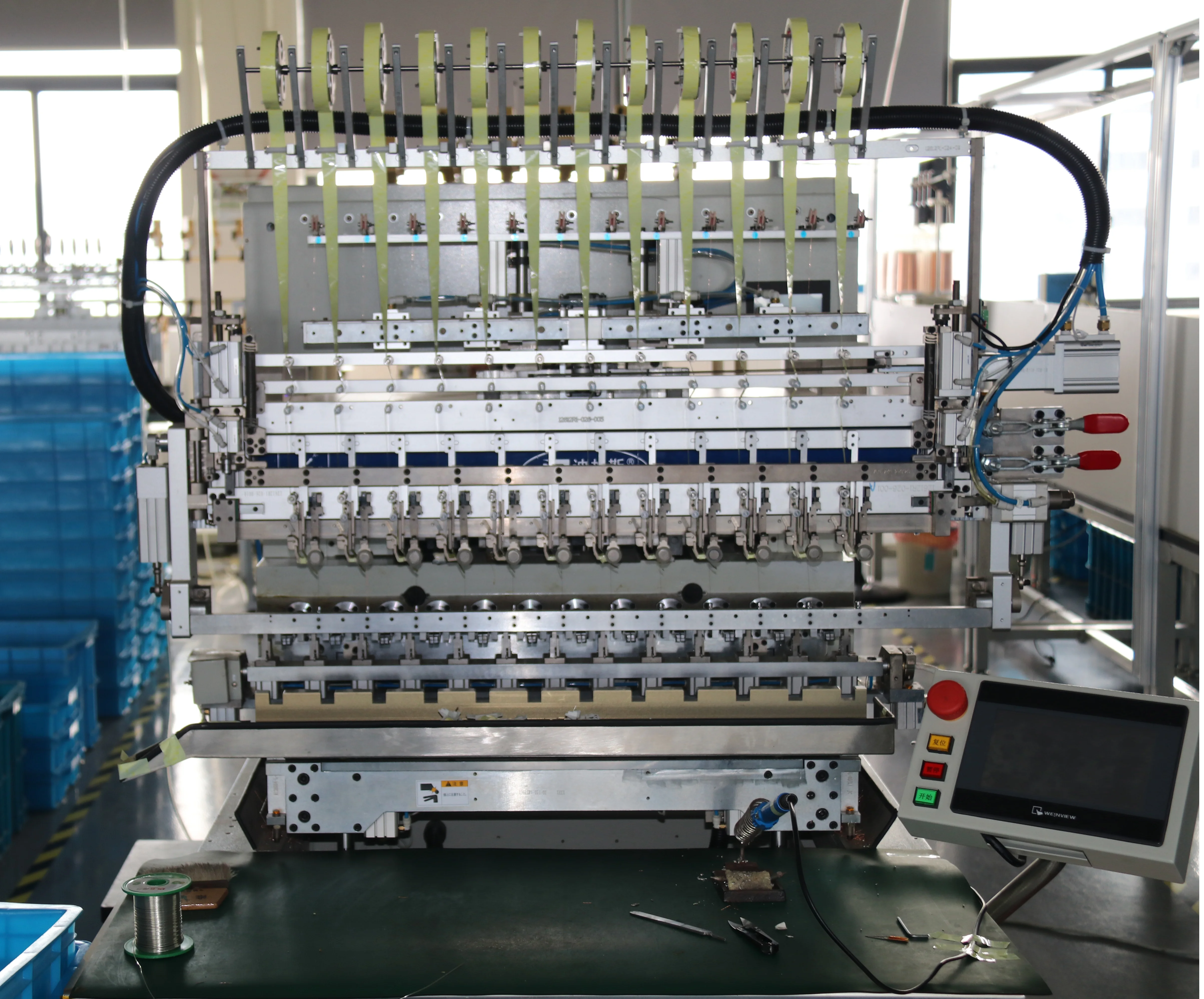

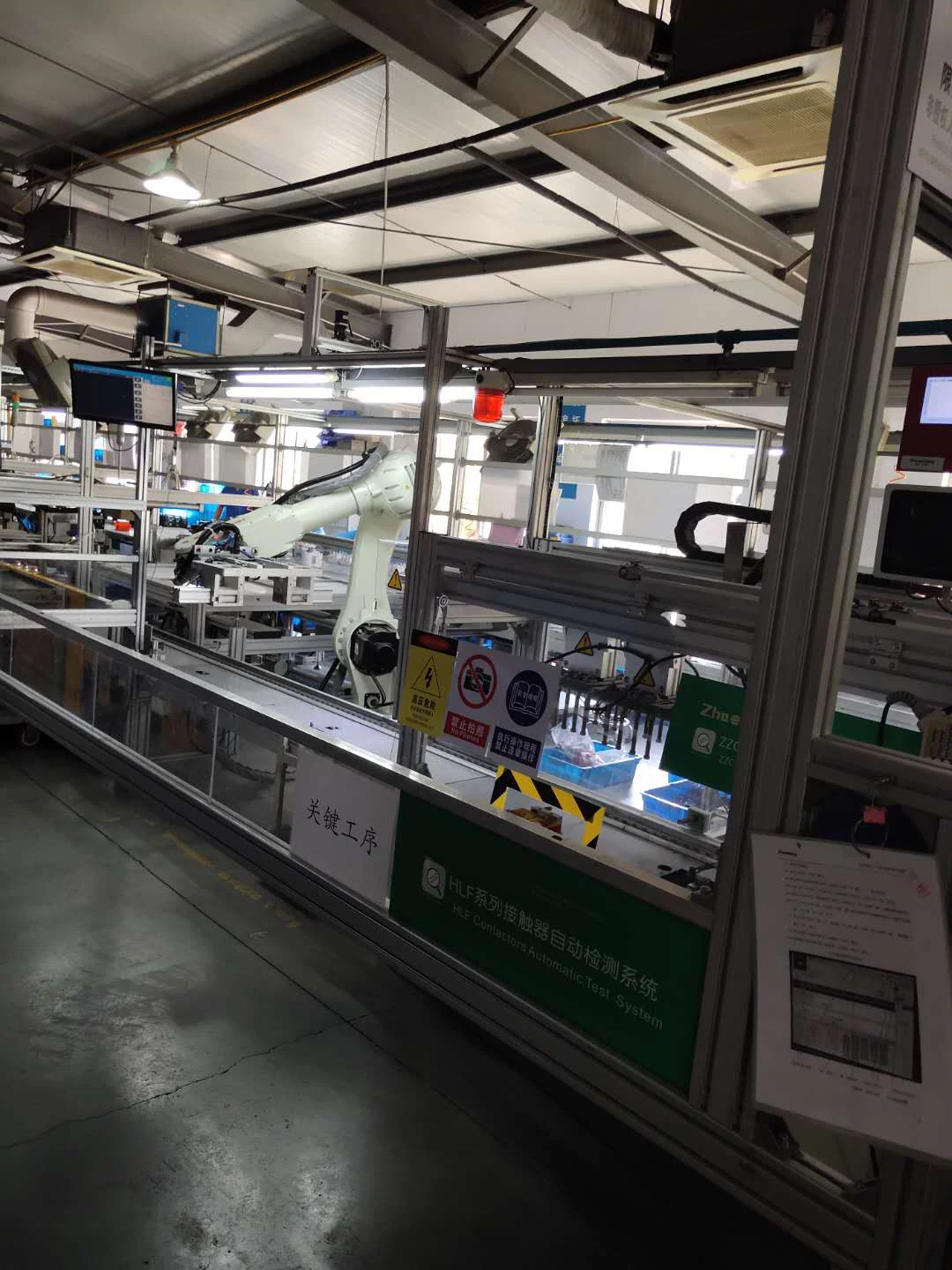

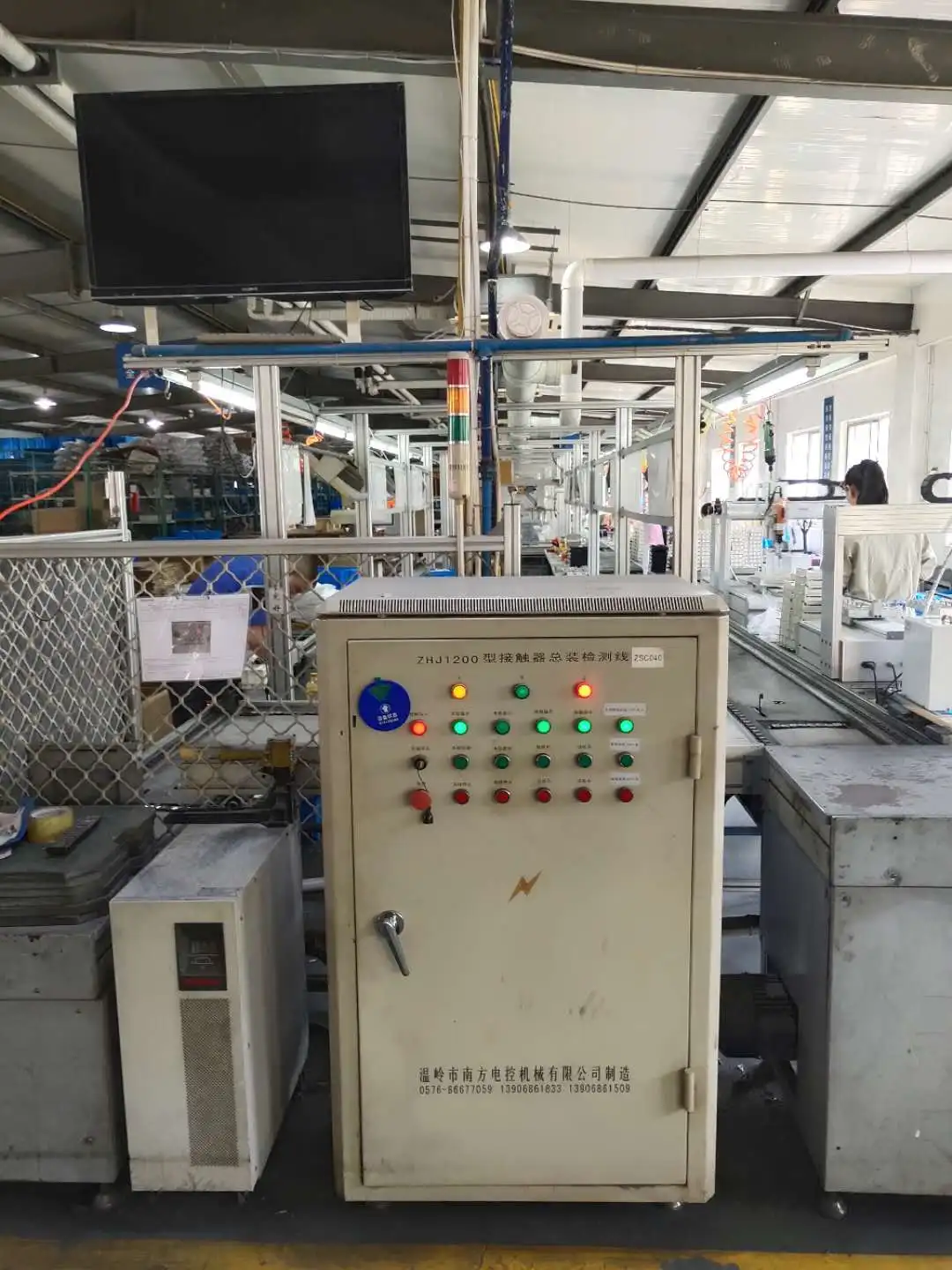

In order to quality control and improve production ability, we always introduce new technologies.
In order to quality control and improve production ability, we always introduce new technologies.
Shippng
FAQ
Q1. What is your benefit for HiELEK agent ?
R1.At moments we offer HiELEK agent 3%-10% discount .
Q2. Could you OEM our logo?
R2. Yes, we can do but need MOQ
Q2. Could you OEM our logo?
R2. Yes, we can do but need MOQ
Q3. How long is the quality guarantee?
R3. 24 month warranty, free replacements if have problem from quality
Q4. What is your deliver time?
R4. It usually takes about 7 working days .
Q5. What about the payment terms?
R5 Our Payment term is T/T, Aliexpress, Western Union, PayPal, L/C at sight.
R3. 24 month warranty, free replacements if have problem from quality
Q4. What is your deliver time?
R4. It usually takes about 7 working days .
Q5. What about the payment terms?
R5 Our Payment term is T/T, Aliexpress, Western Union, PayPal, L/C at sight.
