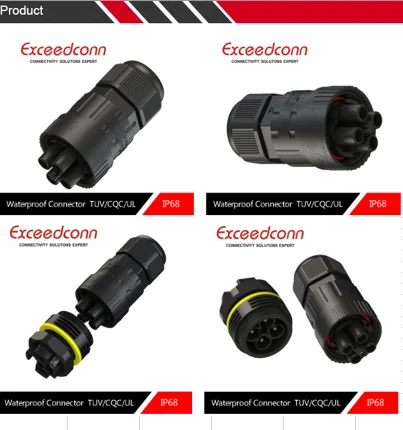

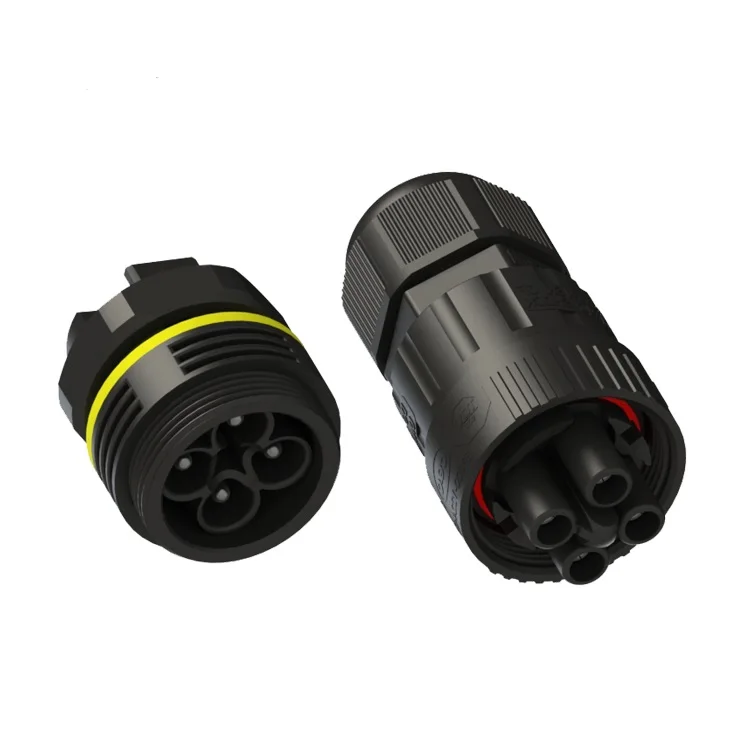

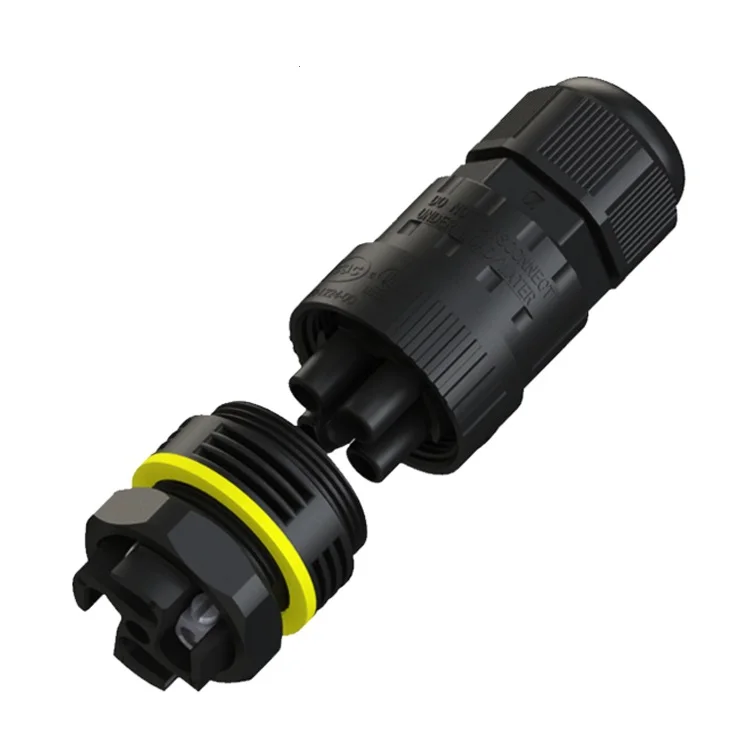

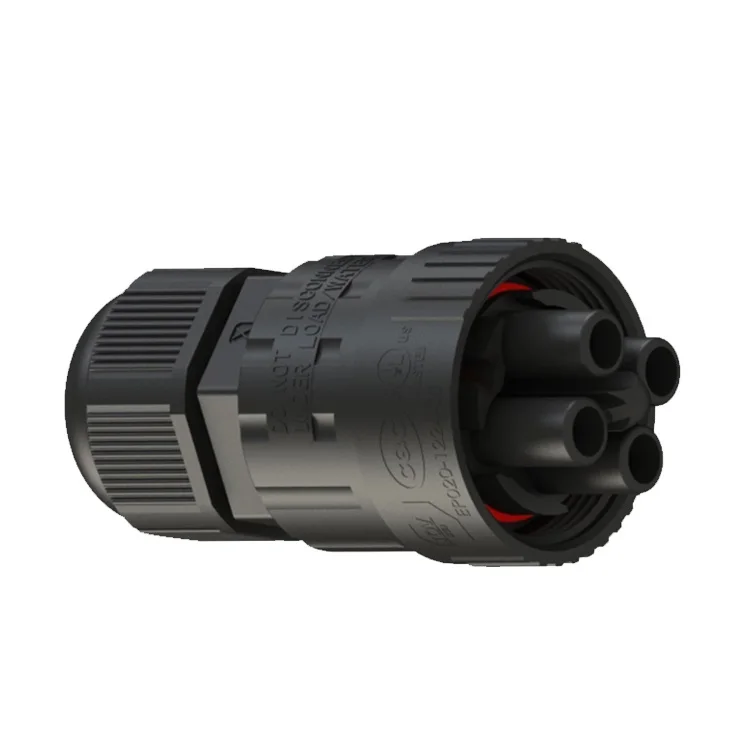

4 Pin Female IP68 waterproof 4 cores with Sealing connection of PA66 connectors
- Category: >>>
- Supplier: Suzhou Exceedconn Technology Co. Ltd.
Share on (1600465665630):
Product Overview
Description
Product Description
| Ordering Information | |
| Ordering No. | |
| 910002905 | 6.0mm |
| 910002906 | 7.0mm |
| 910002901 | 8.0mm |
| 910002902 | 9.5mm |
| 910002903 | 11.5mm |
| 910002904 | 12.5mm |
| HS CODE | 8536300000 |
| Standard Packing Quantity / Carton | 500PCS/Carton |
| Gross Weight / PCS | 20.165 g/PCS |
| Electrical Performance | |
| Rated Voltage | 450V AC(TUV/CQC) |
| 300V AC(UL) | |
| Rated Impulse Voltage | 2500V |
| Rated Current | 17.5A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000MΩ |
| Mechanical Capacity | |
| Cable Retention | OD:5.5~9.0,F≥80N; OD:9~12,F≥100N; OD:12~12.5,F≥120N; |
| Connector insertion force / | ≤80N |
| Pullout force | |
| Connector Insert and pullout frequency | 500 |
| Cable Cross Section | 0.5~2.5mm² |
| Operational Environment | |
| Protection Degree | IP68 1m-1H |
| Ambient Temperature | -40℃~+85℃ |
| Sealing element | 960℃ |
| Flammability class(Insulator) | UL94 V-2 |
| Material | |
| Plastic | PA66 and PA66 30%GF |
| Conductor | Copper Alloy with Ni Plating |
| Sealing element | Silicone |
| Connecting Screw | Iron Alloy Ni Plating |
| Screw type | Straight Screw |
Company Information

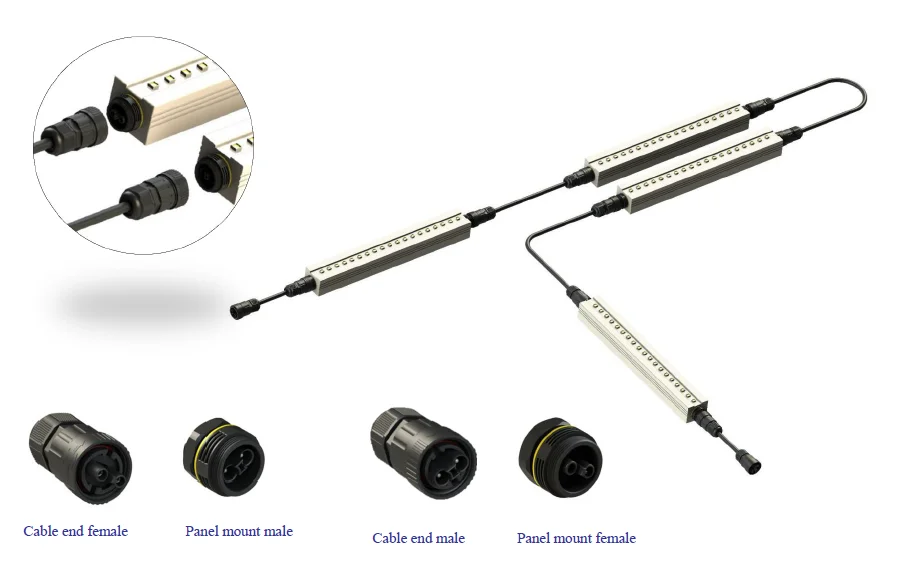

Exceedconn is committed to provide lighting system connection solutions, products R&D, manufacturing and OEM service. The products are widely used in the fields of city lighting, landscape, solar energy and industrial control etc. Main customers are industry leading enterprises.
With many years development, Exceedconn owns a professional and strong technical team. We can provide individualized connection solutions for different customer in different fields. Company has more than 50 patents in connection solutions till now.
Adhering to the "rigorous, responsibility, cooperation" business philosophy, Exceedconn provides customer high quality products and service.Exceedconn---Your strong supports on connection solutions.
Certifications
Packaging & Shipping
FAQ
Q: Can you offer samples?
A: We can supply the sample if we have ready parts in stock, but you need to bear the courier cost.
Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.
Q: What's your after-sales service?
A: We provide you with technical support and can help you to solve your customers' problem.
Q: Do you have a catalogue?
A: Yes, we have product catalogue.Please contact us online or send an Email for catalogue.
