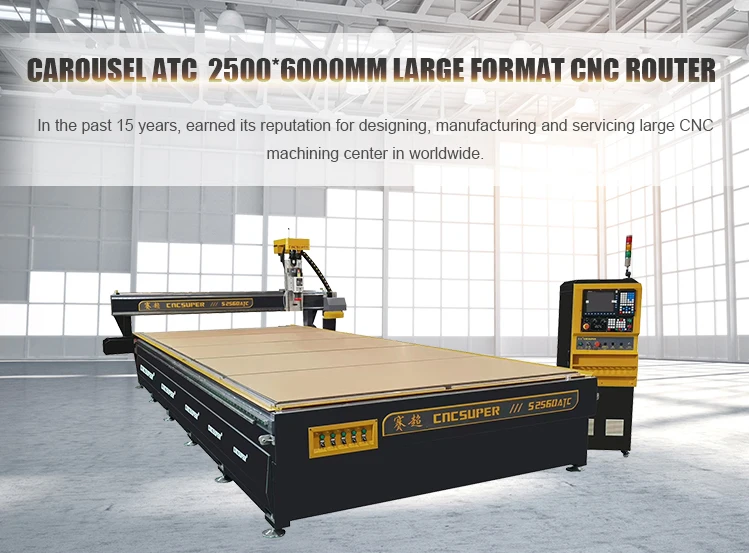

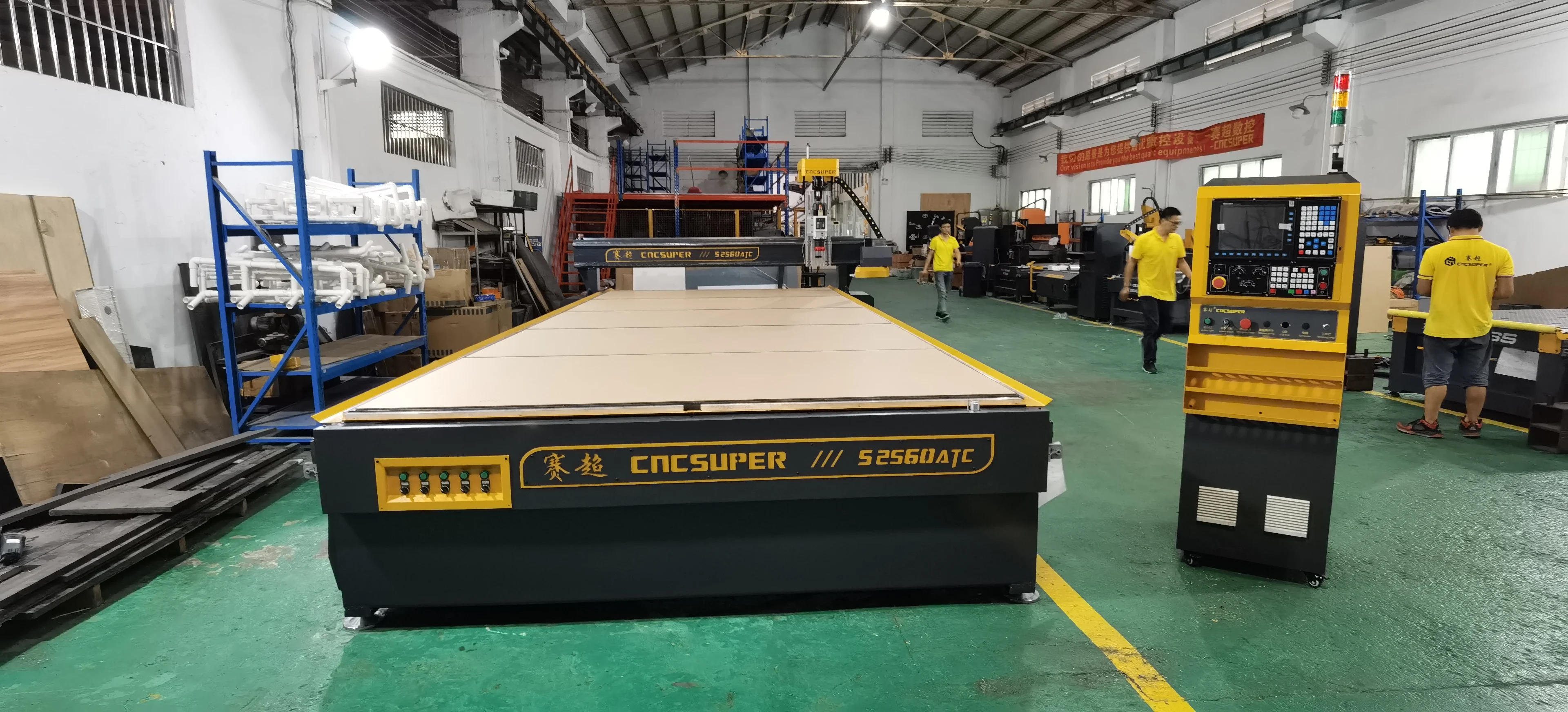

New Model 2560 2040 Maquinas Carpinteria 3d Carving Machine 3 Axis 4 Axis Atc Cnc Router Wood Router For Manufacture Price
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600465667148):
Product Overview
Description
Products Description
Product Parameters
NO. | Description | Parameter |
1 | XYZ working area | 2500*6000*200mm,8*20ft |
2 | Optional working area | 1300*2500*200mm, 4*8ft 1500*3000*200mm, 5*10ft 2000*3000*200mm, 6*10ft 2000*4000*200mm, 6*13ft |
3 | Lathe Structure | Annealing heavy-duty structure |
4 | Guide | Original TAIWAN HIWIN |
5 | Z Structure | Original TAIWAN TBI Ball Screw transmission |
6 | Traveling Positioning Accuracy | ±0.03/300mm |
7 | Repositioning Positioning Accuracy | ±0.03 |
8 | Table | 5 zones large vacuum table controlled by pneumatic ball valve |
9 | Vacuum pump | 7.5KW Taiwan EUROVAC vacuum pump |
10 | Max. Speed | 35000mm/min |
11 | Max. Working Speed | 25000mm/min |
12 | Spindle Power Motor | 9KW air cooling ATC Spindle |
13 | Spindle Speed | 24000RPM |
14 | Drive Mode | DELTA servo motors and drivers |
15 | Reducer | French MOTOREDUCER |
16 | Lubrication system | Automatic lubrication system |
17 | Working Voltage | 380V/50Hz/3 phases |
18 | Command | G Code, *uoo, *mmg, *plt |
19 | Operating System | Original NC Studio controller (NK3000 with hand wheel) |
20 | Tool change type | Rotary type knife library |
21 | Tool magazine motor | MIGE servo motors and drives |
22 | Magazine capacity | 8 positions ATC |
23 | Collet | ER32 |
24 | Software | Type3/Artcam |
25 | Dust cleaning system | Spindle cover+dust collector+pipe+bags |
26 | Weight | 7500KG |

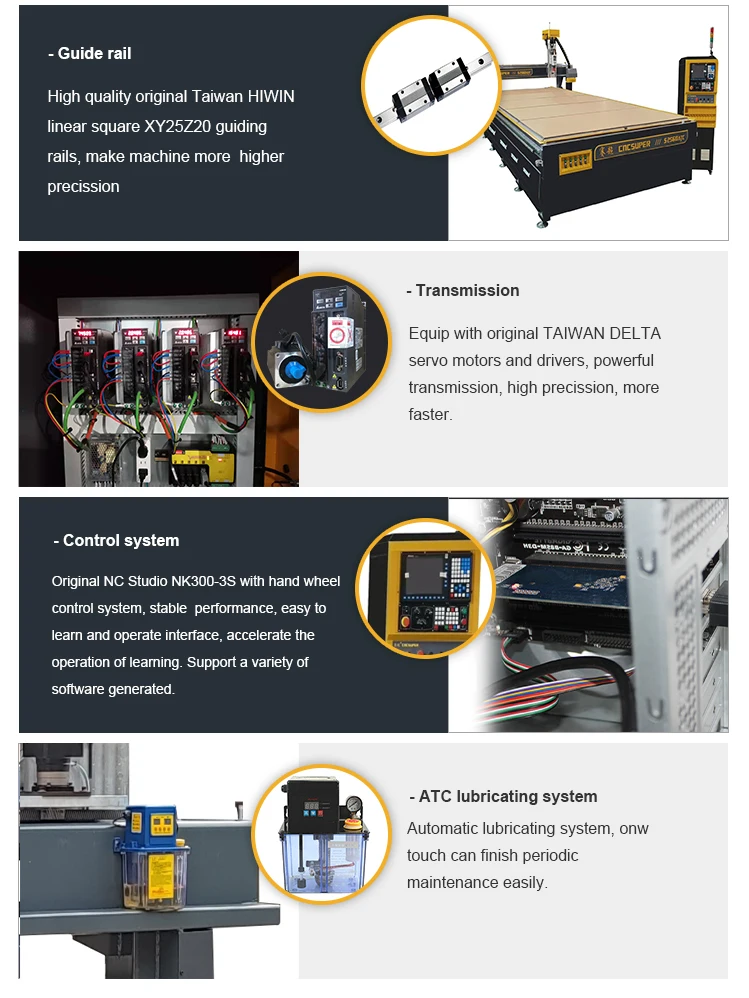

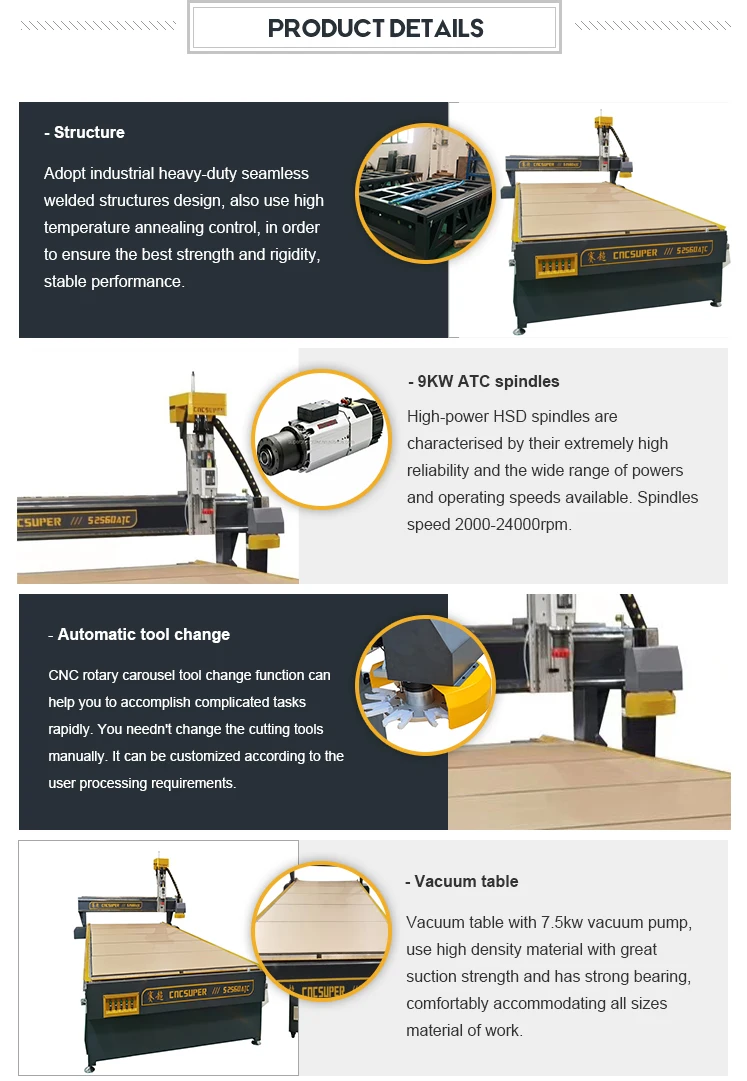

Product Details
Product application
Company Profile
FAQ
