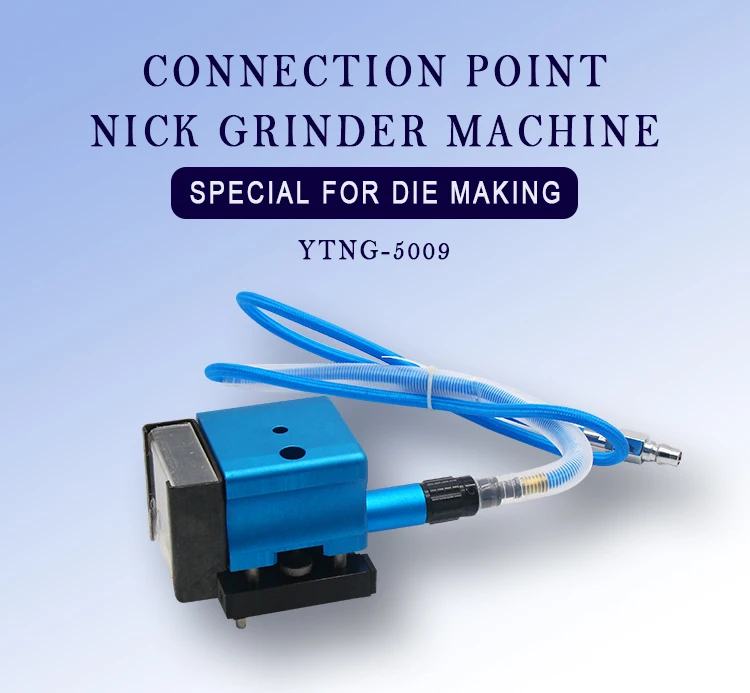

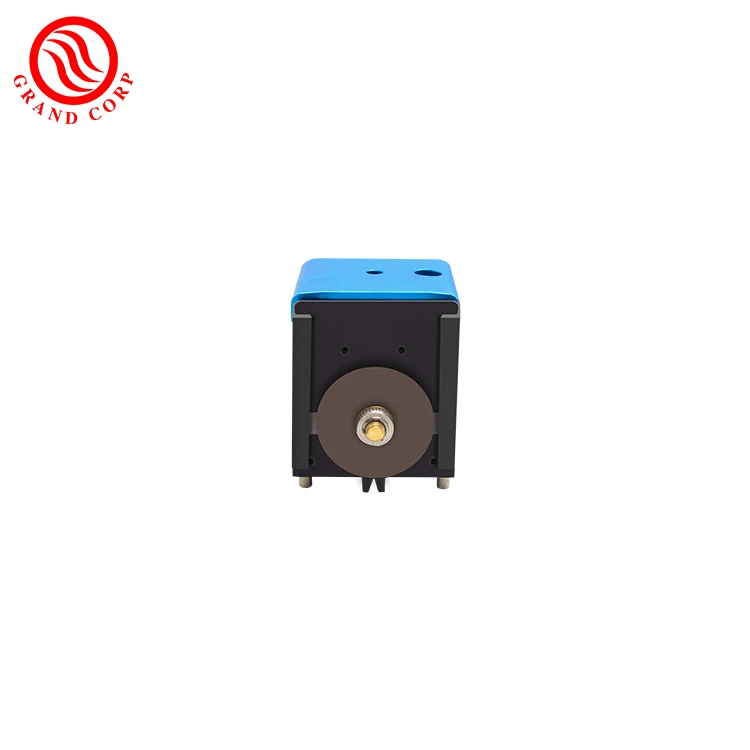

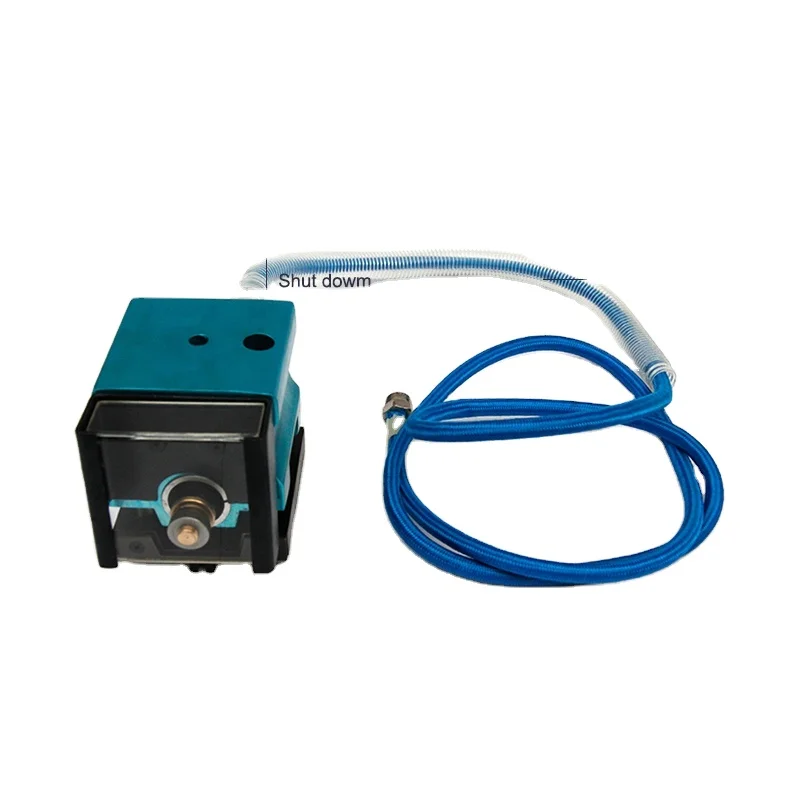

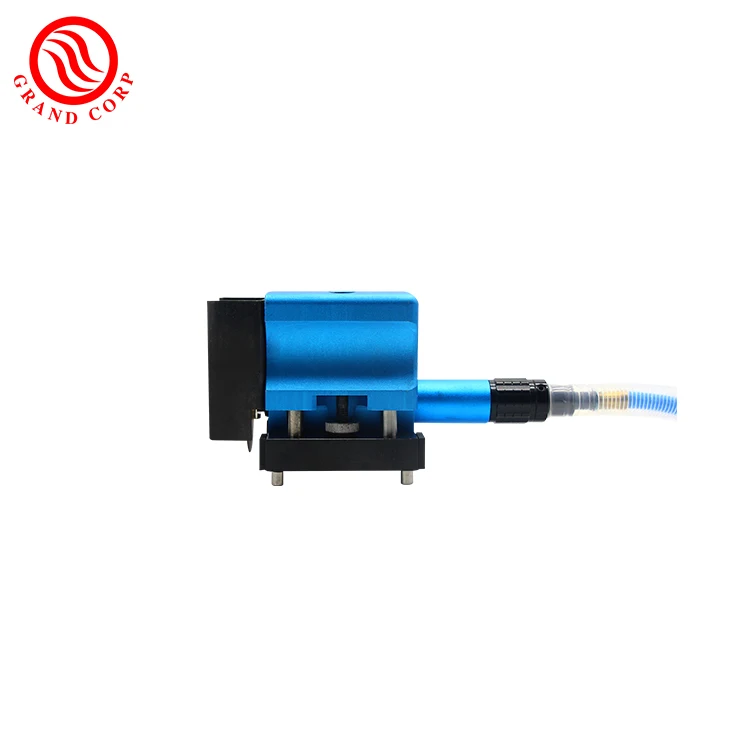

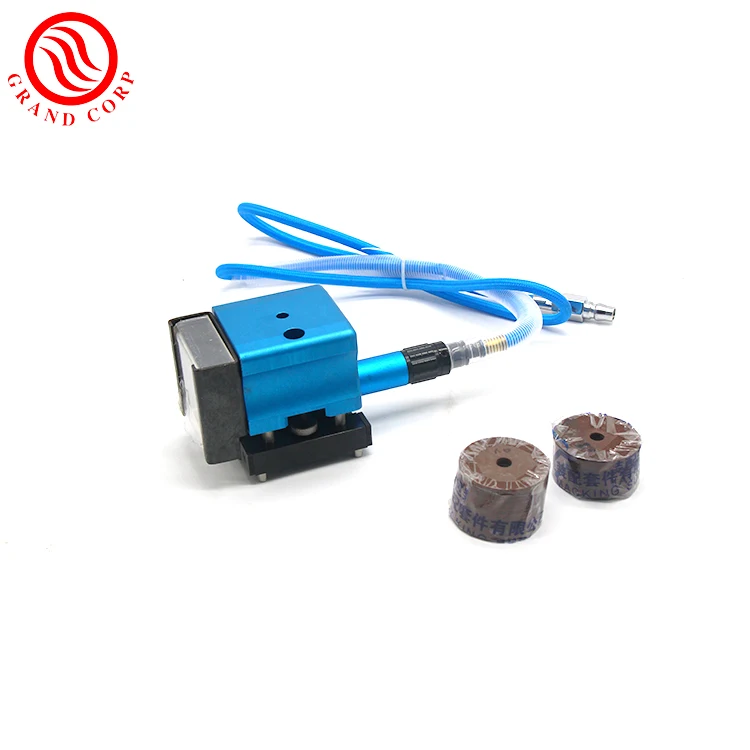

Angle Pneumatic Nick Grinder tools for Flat Die Cut
- Category: >>>
- Supplier: Grandcorp Precision Mould(Kunshan)co. Ltd.
Share on (1600465701299):
Product Overview
Description
Product Description
Specification
Model | YTNG-5009 |
Average Air Consumption | 4CFM |
Driven Type | Pneumatic |
Maximum Torque | Adjustable |
No-Load Speed | 15000RPM |
Color | Blue |
Weight | 2.8kg |

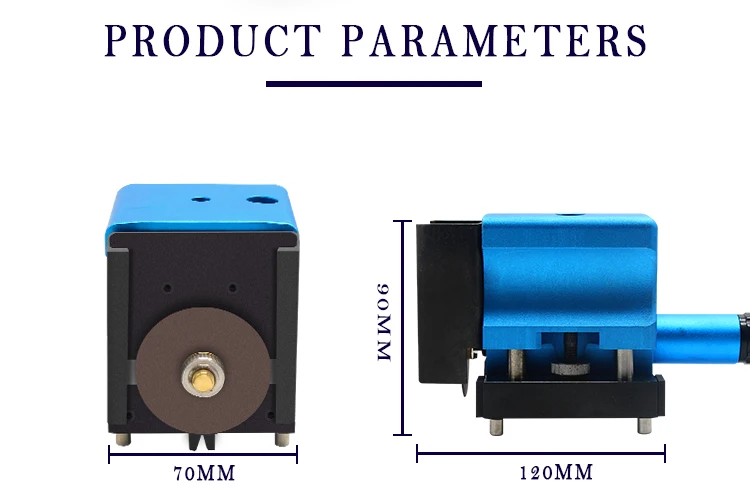

Dimension | 70*90*250MM |
Our Advantages

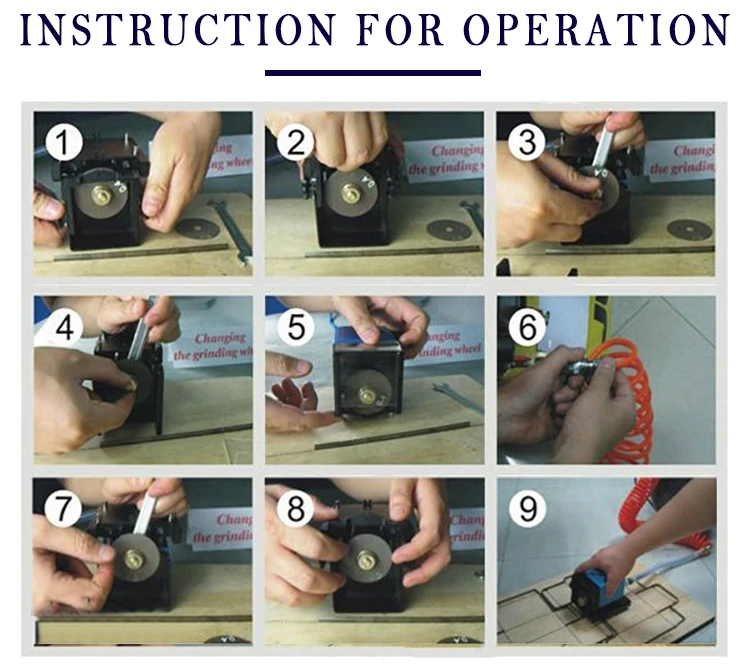

1) When installing the grinding wheel, put it between two brass-sleeves on the transmission-shaft, then use spanner to fix the transmission-shaft and screw the nut.
2) Different depth of nicks can be obtained by adjusting the control screw: Turning the screw clockwise will reduce the depth of nick, contrary, the depth will increase.
3) The depth of nick should be determined by cutting dies, otherwise, will cause abnormal wear on the grinding wheel.
4) The switch on the tail of the device can control the speed of motor, and it can control the mother start or stop as well.
5) When grinding nicks, use locating-device to position the machine on the top of cutting rules, then press the grinding wheel towards the blade of cutting rules stably and quickly.
2) Different depth of nicks can be obtained by adjusting the control screw: Turning the screw clockwise will reduce the depth of nick, contrary, the depth will increase.
3) The depth of nick should be determined by cutting dies, otherwise, will cause abnormal wear on the grinding wheel.
4) The switch on the tail of the device can control the speed of motor, and it can control the mother start or stop as well.
5) When grinding nicks, use locating-device to position the machine on the top of cutting rules, then press the grinding wheel towards the blade of cutting rules stably and quickly.

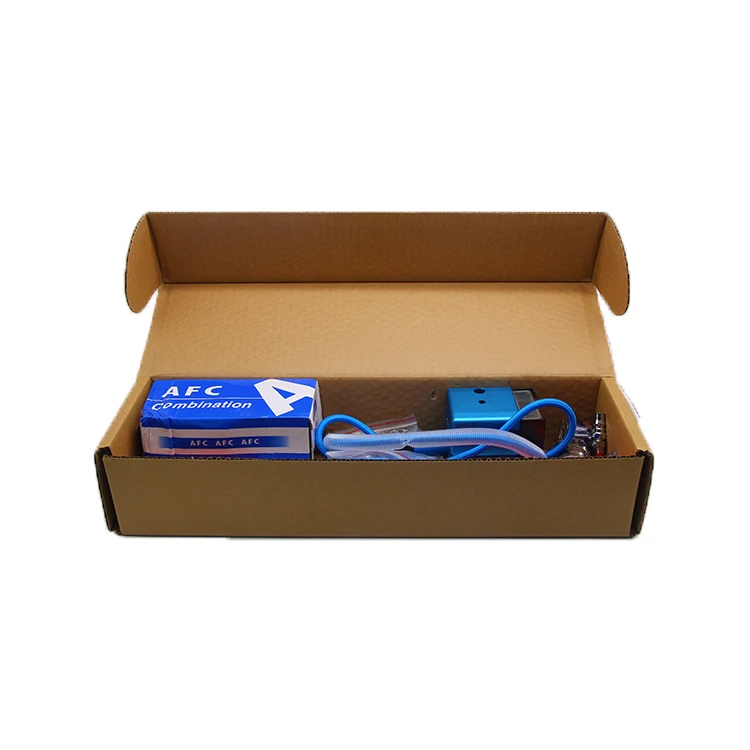

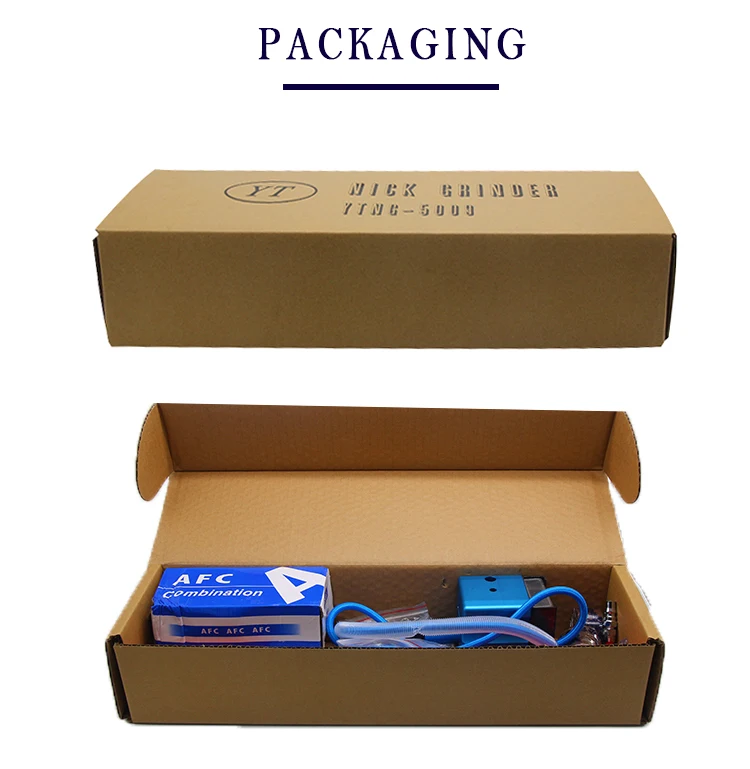

Packing & Delivery

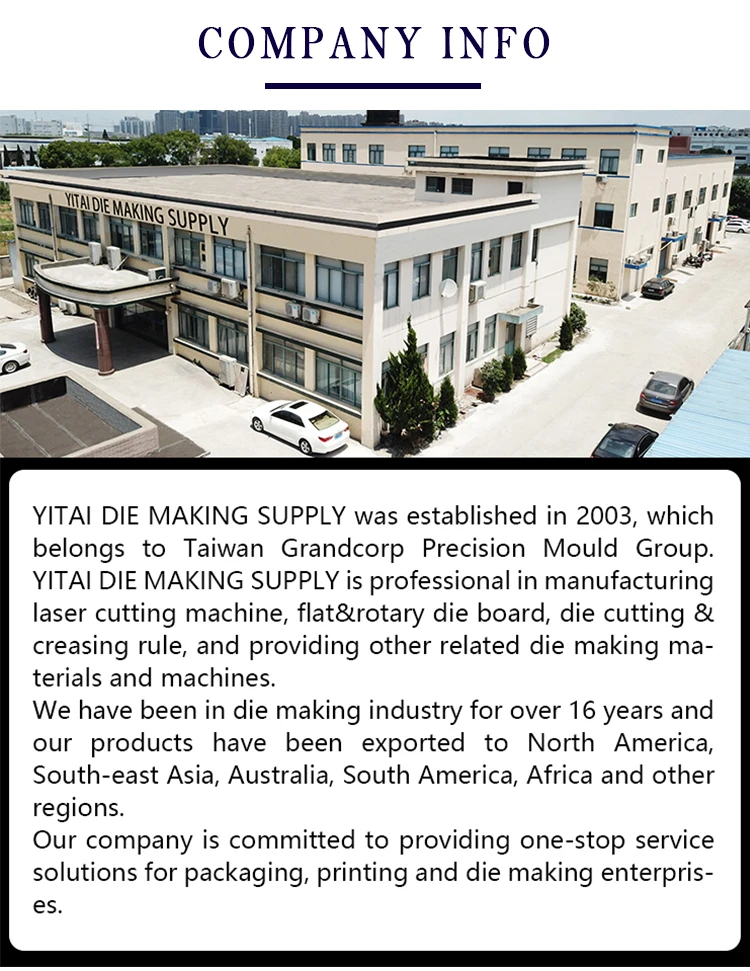

Company Profile
FAQ
1. Do the manual machines has warranty?
Yes, 1 year in normal operation.
2. What manual tools should I prepare for flat die making ?
Manual cutting machine, manual lipping machine, manual punching machine, and manual bending machine.
3. What manual tools should I prepare for rotary die making ?
Manual cutting machine, manual lipping machine, manual punching machine, and manual bending machine, manual bending machine for
curved rules.
4. Does your manual bending machine can bend 4pt rule ?
Yes, our manual bending machine can bend 2pt, 3pt and 4pt rule.
5. What is the package of your manual machines?
Exported wooden case packages.
Yes, 1 year in normal operation.
2. What manual tools should I prepare for flat die making ?
Manual cutting machine, manual lipping machine, manual punching machine, and manual bending machine.
3. What manual tools should I prepare for rotary die making ?
Manual cutting machine, manual lipping machine, manual punching machine, and manual bending machine, manual bending machine for
curved rules.
4. Does your manual bending machine can bend 4pt rule ?
Yes, our manual bending machine can bend 2pt, 3pt and 4pt rule.
5. What is the package of your manual machines?
Exported wooden case packages.
