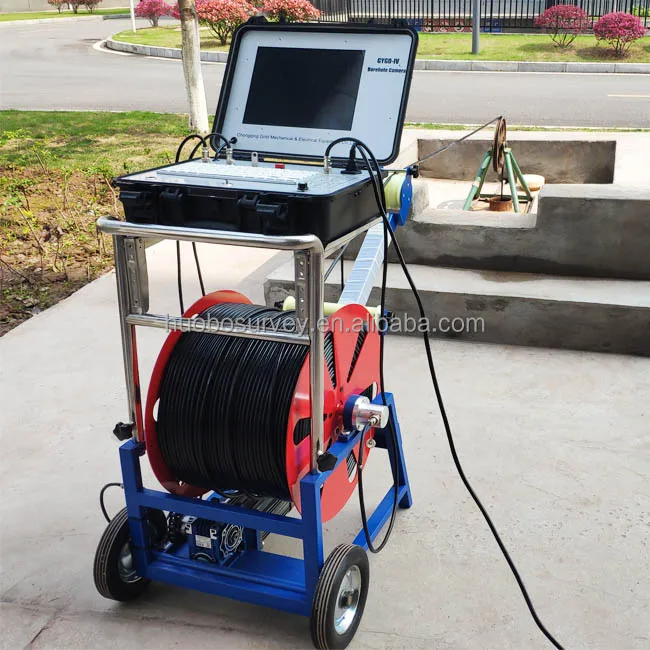

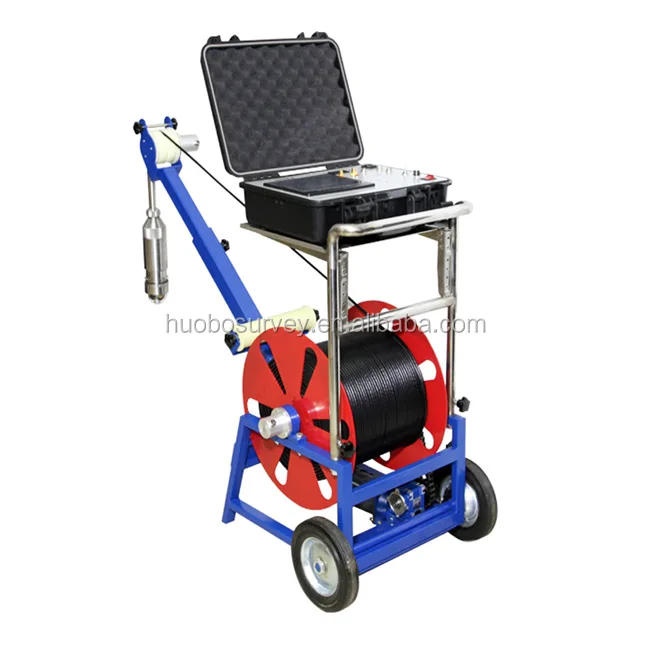

Well Logging Inspection Camera Video Recording Camera for Deep Wells

Product Overview

Description

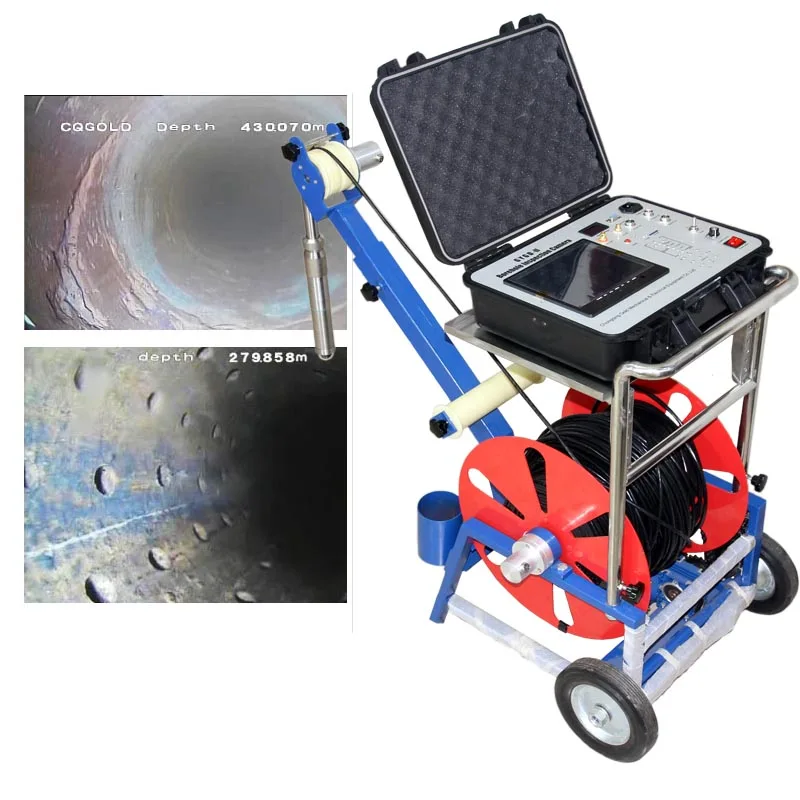

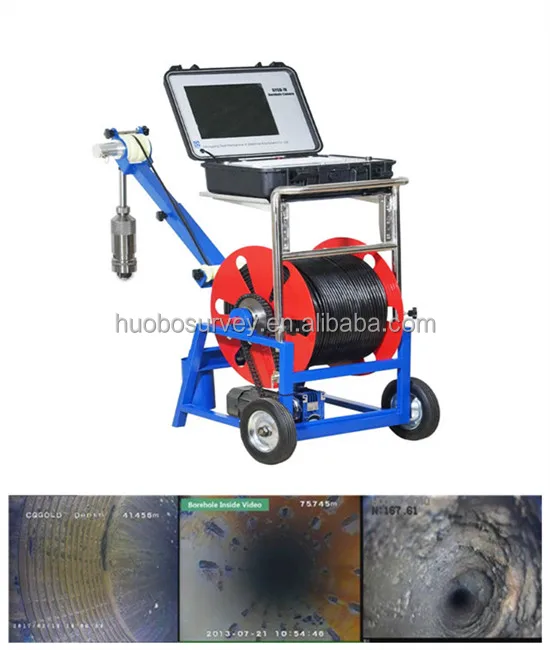

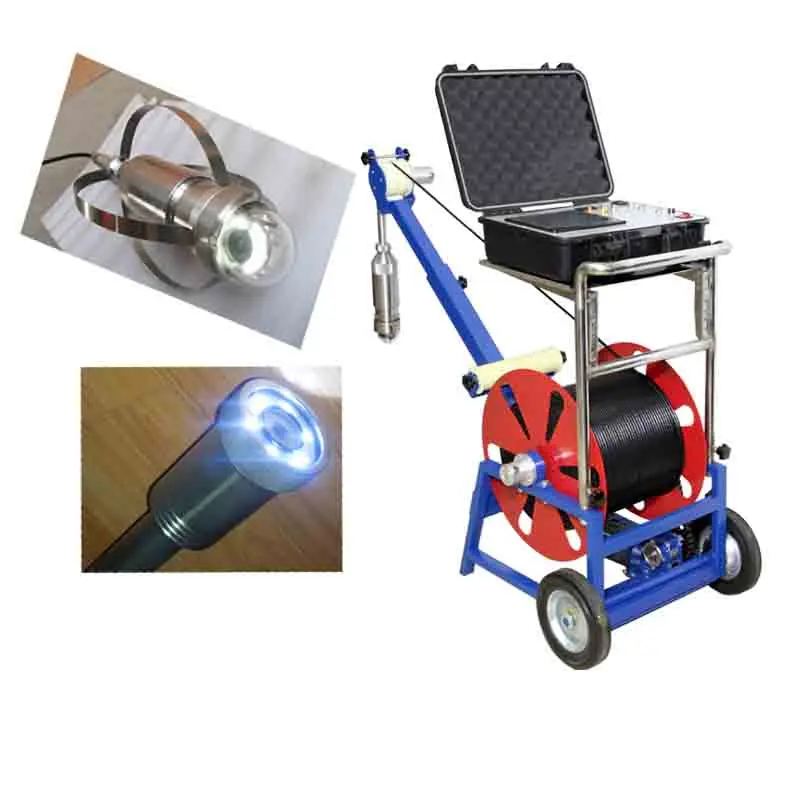

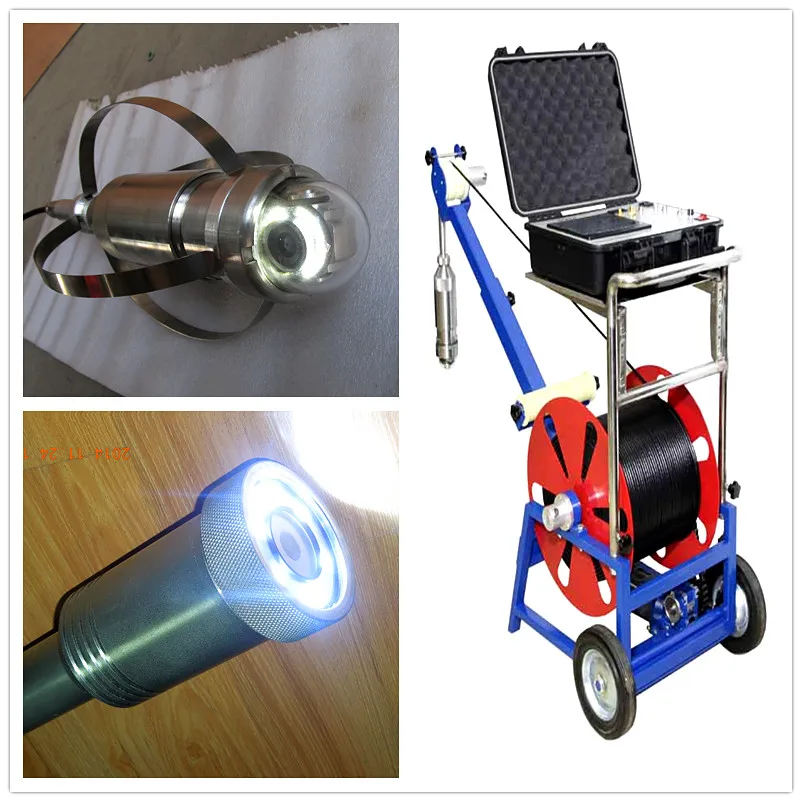

Well Logging Inspection Camera Video Recording Camera for Deep Wells





Introduction:

    It is mainly used in engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments. It can be used to observe the characteristic of geologic body in drill hole, wellhole, well drilling, oil well and pile foundation etc, such as lithology, rock structure, geological structure, rock strike, faults, fissures, dissection, broken karst.



Function of Well Logging Inspection Camera Video Recording Camera for Deep Wells

    It is mainly used for the division of stratigraphic architecture; distinguish borehole wall cracks and karst formations status, the fractured development zone;

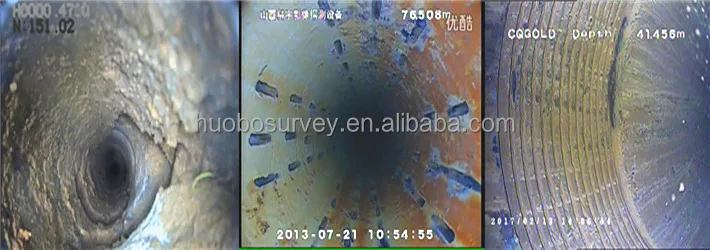

Determine the position of karst distribution and pore long-term monitoring, etc. mainly used to test the tube breakage, well litter, filter tube hole plug in the engineering of repairing deep well. Real-time to shooting and record the deep well casing, casing wall damage and leaking status etc, and then transmit the photographed image to the ground display by a dedicated cable.



Feature of Well Logging Inspection Camera Video Recording Camera for Deep Wells

1. Waterproof, high pressure resistant, high temperature resistant

2. Easy to operating

3. Clear images

4. Real-time image monitoring vand recording



Hole Type: Vertical, Slant Hole

Depth: 0-2000M

Depth Precision: 0.1mm

Pressure: Max15Mpa

Cable Tensile Strength:250KG

Probe Diameter: 75mm

Power: AC220V 50Hz, DC12V

Display: LCD  8 Inch, 700TVL

Resolution:1024*768

Sensor: SONY IC*673AK, 1/3” CCD, 0.1Lux

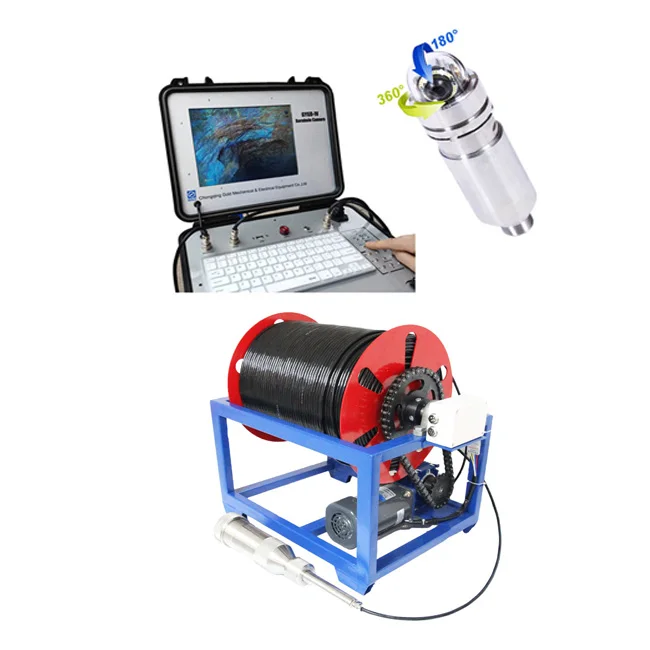

No.	Product Configurations	Dimension	Specifications

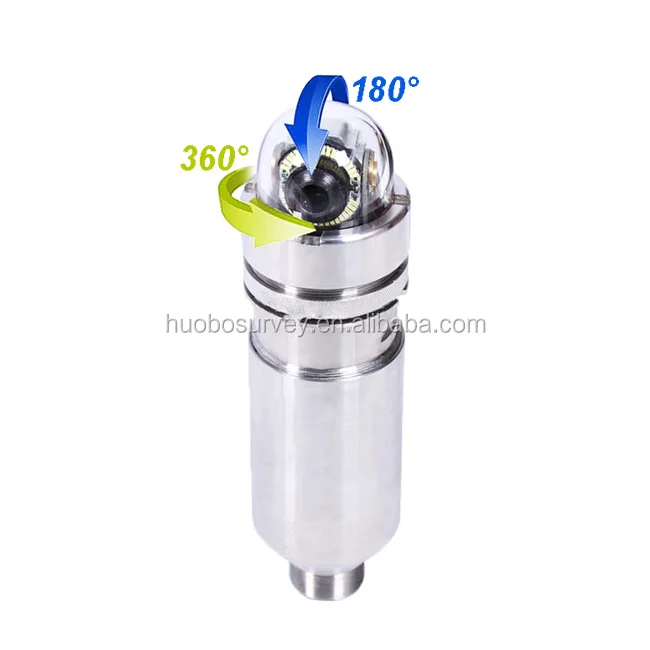

1	Probe		(1) Front lens are imported resins,               (2) Not easy damaged,                             (3) Pressure is 15Mpa                      (can be under 1500m deep water)         (2) (4) Light: 9-16 LED Lights
2	Camera		(1) Light brightness control        (2) Image definition is HD 850 TVL         (3) Camera focus control                        (4) View angle control: 180 degree or 360 degree
3	Professional logging cable	Length:0-1000m    (optional)	(1) With steel wire,                                (2) Tension is 150kg,                              (3) Destroy tension is 260kg

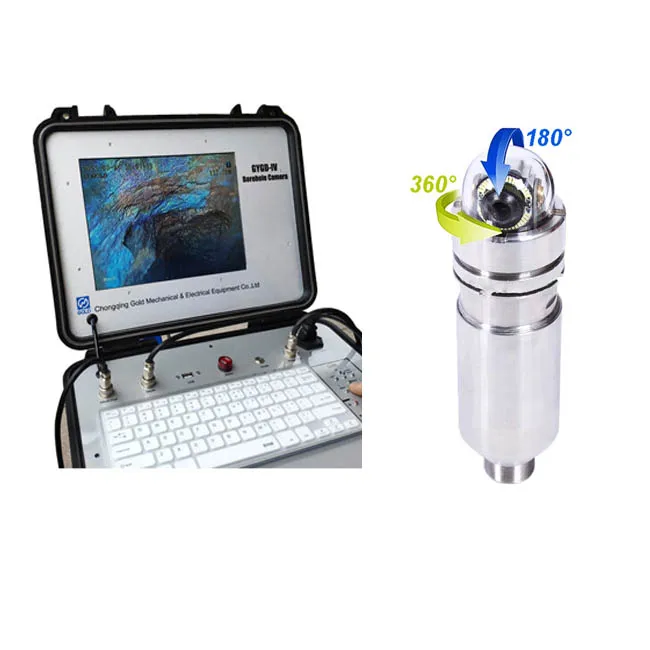

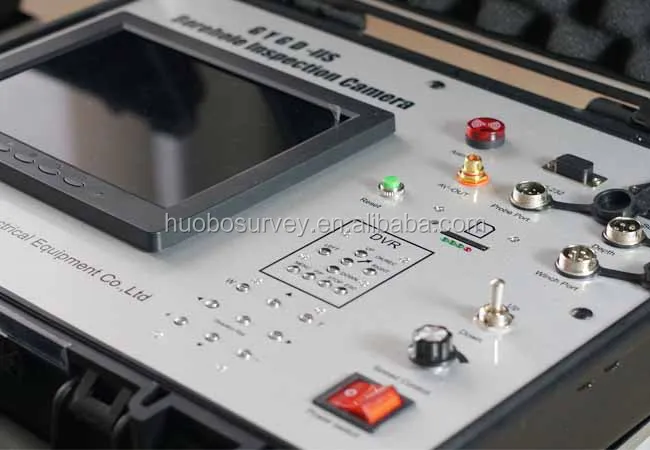

4	Main Control Host		(1) 220V/110V/12V optional.                 (2) (2) LCD display is 8 inches.                (3) Aircraft grade aluminum alloy material
5	Logging Winch		electric winch, speed control
6	Lithography System		Built-in DVR
