CNC Glass Cutting Table Automatic Glass Cutting Machine
- Category: >>>
- Supplier: Jinan Care Machinery Technology Co. Ltd.
Share on (1600465715933):
Product Overview
Description

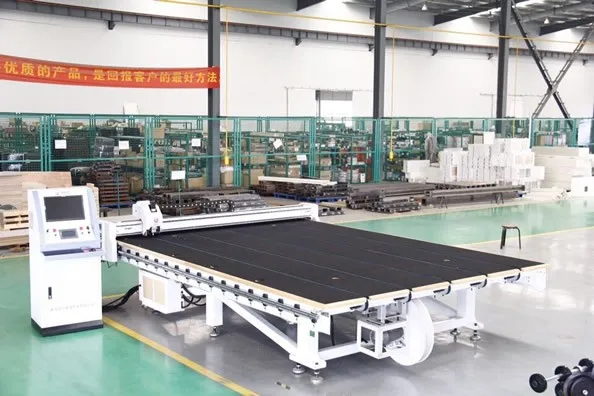

CNC Glass Cutting Machine for Glass Production Machine
Products Description

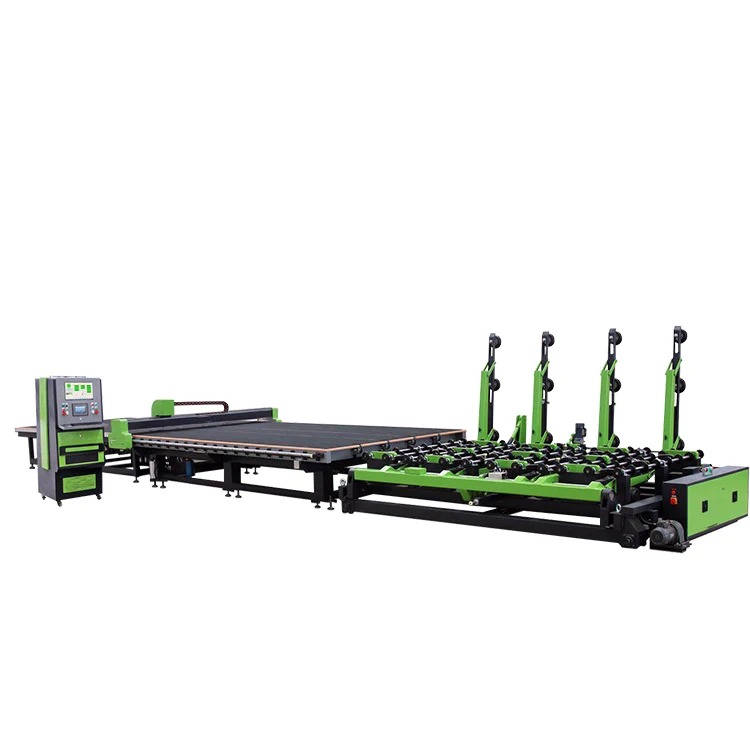

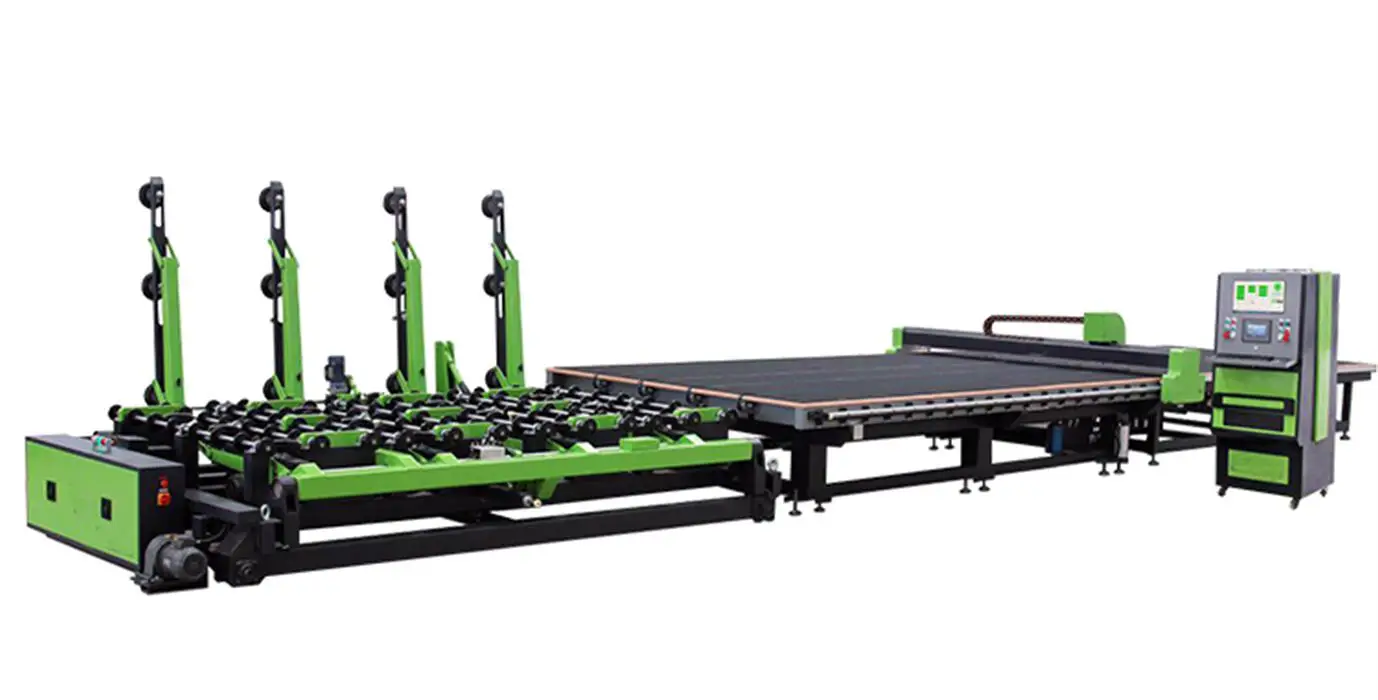

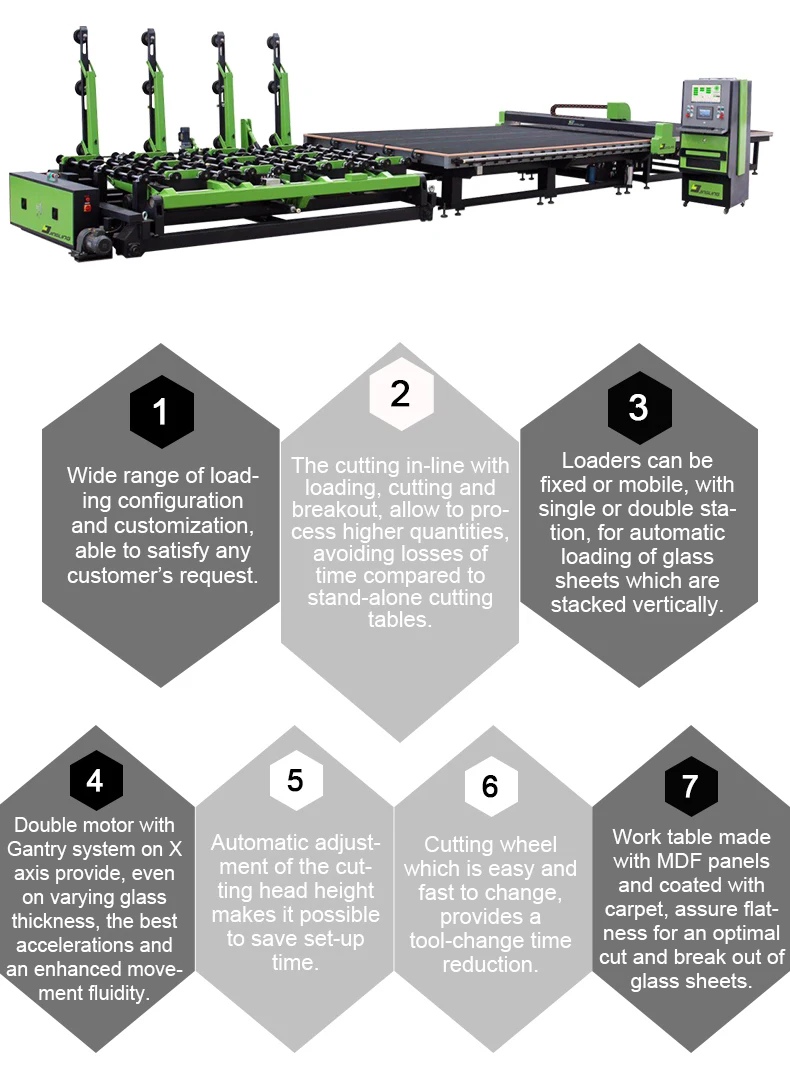

CNC automatic glass cutting line is composed of auto glass loading machine, CNC glass cutting machine and pneumatical glass separating table. The three machines are controlled by one central controller, and compose an automatic glass cutting line in high
efficiency and precision.
efficiency and precision.
Product Parameters
Parameters of CNC automatic glass cutting line | ||||||||
Power supply | 380V 50Hz 3P (or customized) | |||||||
Model | CNC2520 | CNC4228 | CNC6133 | |||||
Process glass scale | Max glass size | 2500x2000mm | 4200×2800mm | 6100x3300mm | ||||
Glass thickness | 2-19mm | 3-19mm | 3-19mm | |||||
Cutting precision | ≤±0.2mm/m | |||||||
Cutting speed | 180m/min | |||||||
Outlook dimension | L×W×H (mm) | 9100×2400x1100 | 14000×3200x1100 | 19000×3700x1100 | ||||

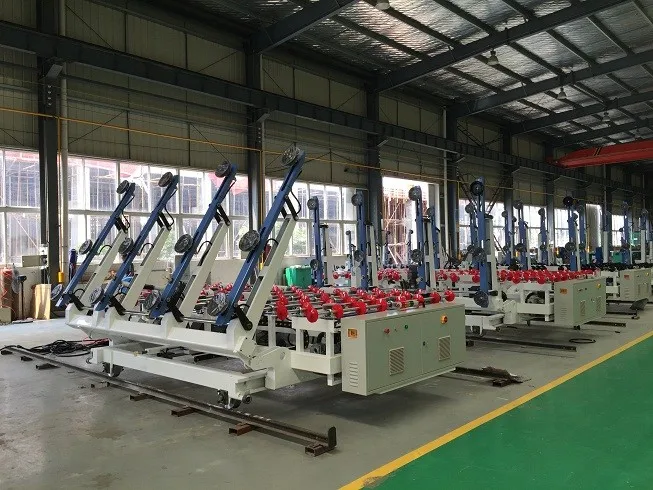

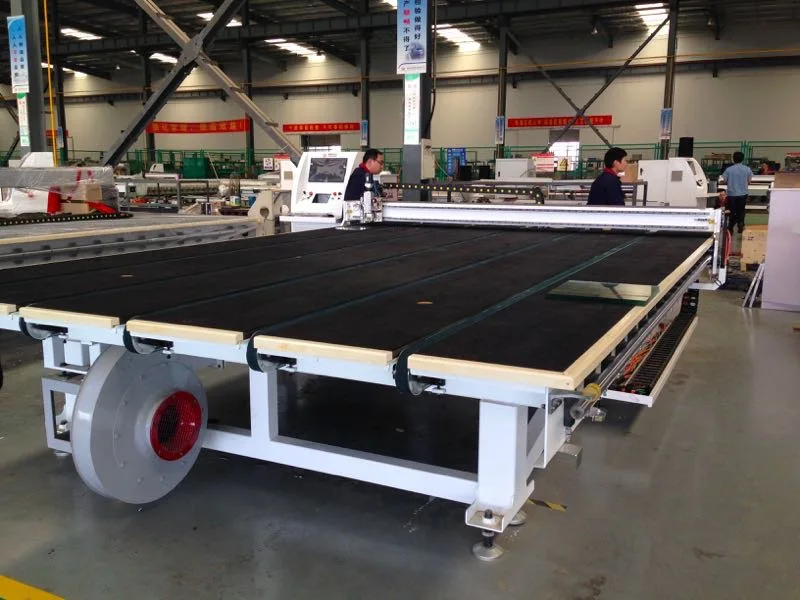

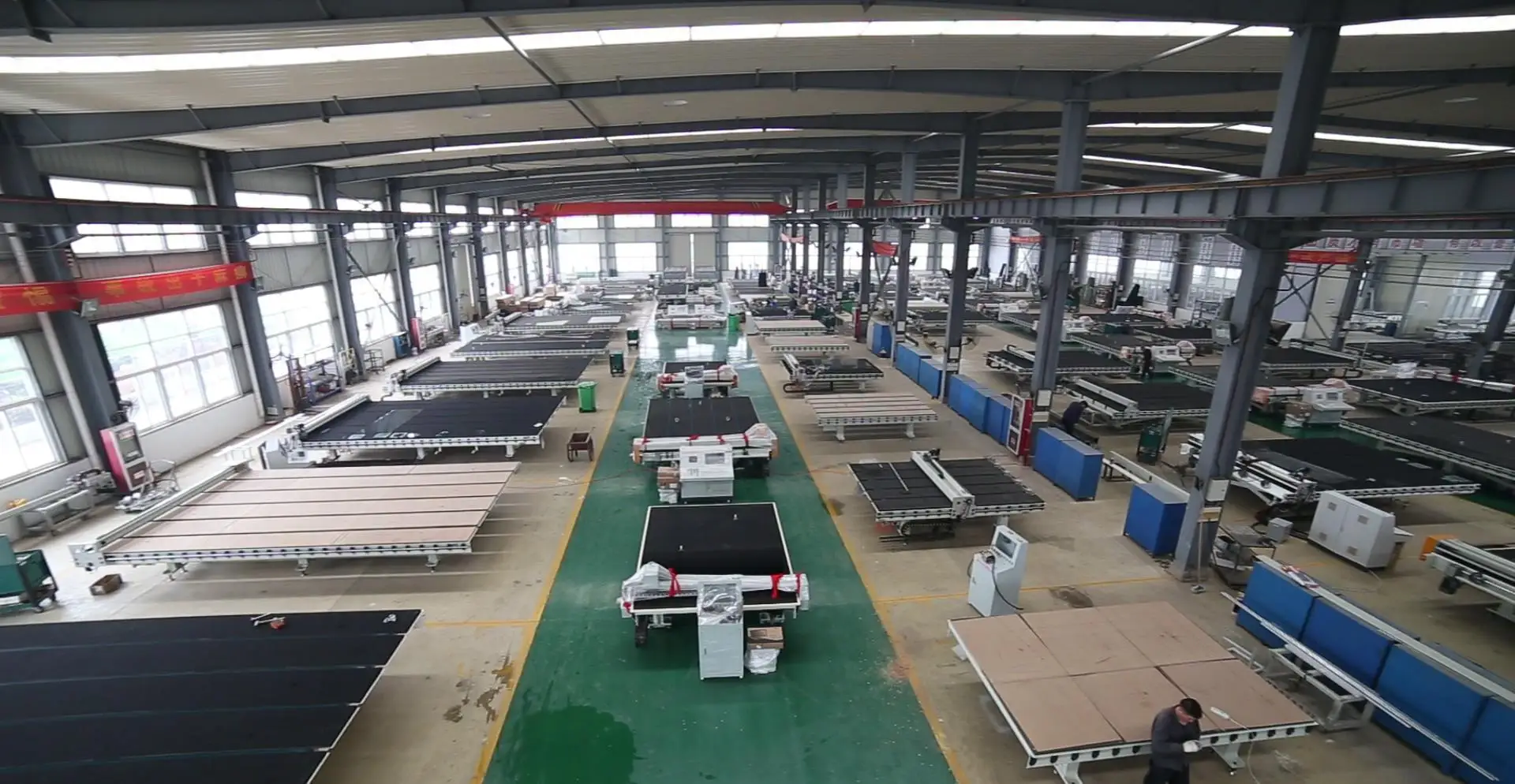

Details Images

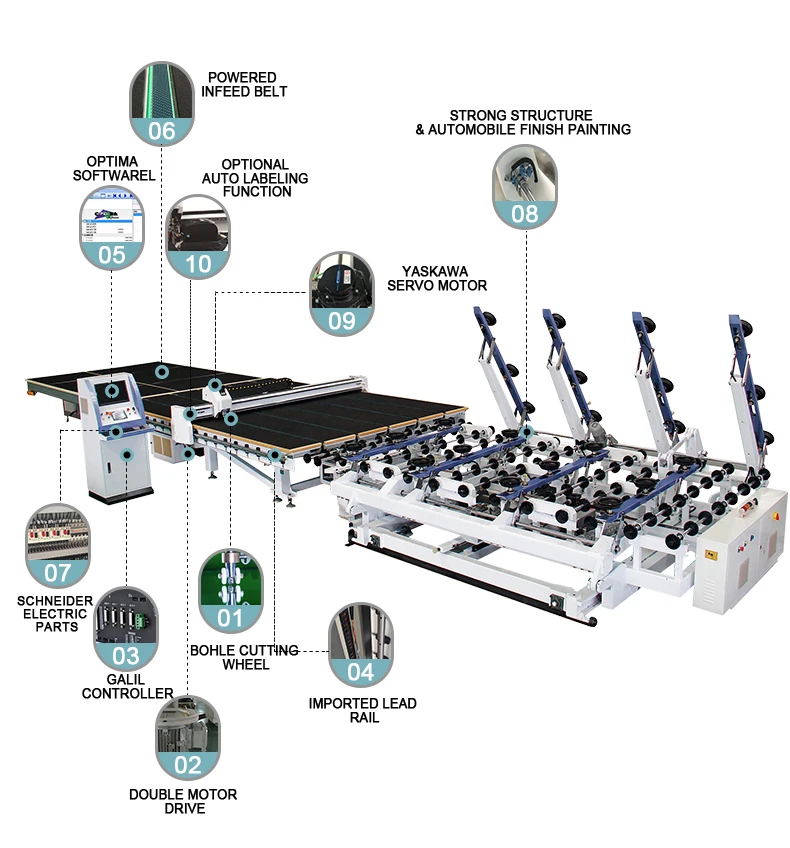

Product Features
1. USA Galil controlling system
2. CNC automatic glass cutting line adopts independent air source
3. Use Italy OPTIMA typesetting optimization software
4. Adopt Japan servo motor and Germany gear & rack, ensure stable operation, high precision and long service life
5. Use imported high hardness cutting wheel as machine cutting knife
6. Available for cutting of common glass and Low-E glass
2. CNC automatic glass cutting line adopts independent air source
3. Use Italy OPTIMA typesetting optimization software
4. Adopt Japan servo motor and Germany gear & rack, ensure stable operation, high precision and long service life
5. Use imported high hardness cutting wheel as machine cutting knife
6. Available for cutting of common glass and Low-E glass
7. Low E film deletion function optional
8. Labeling function optional
9. Multi positions glass loading optional
Product packaging
payment method
Company Profile
Customer Photos
