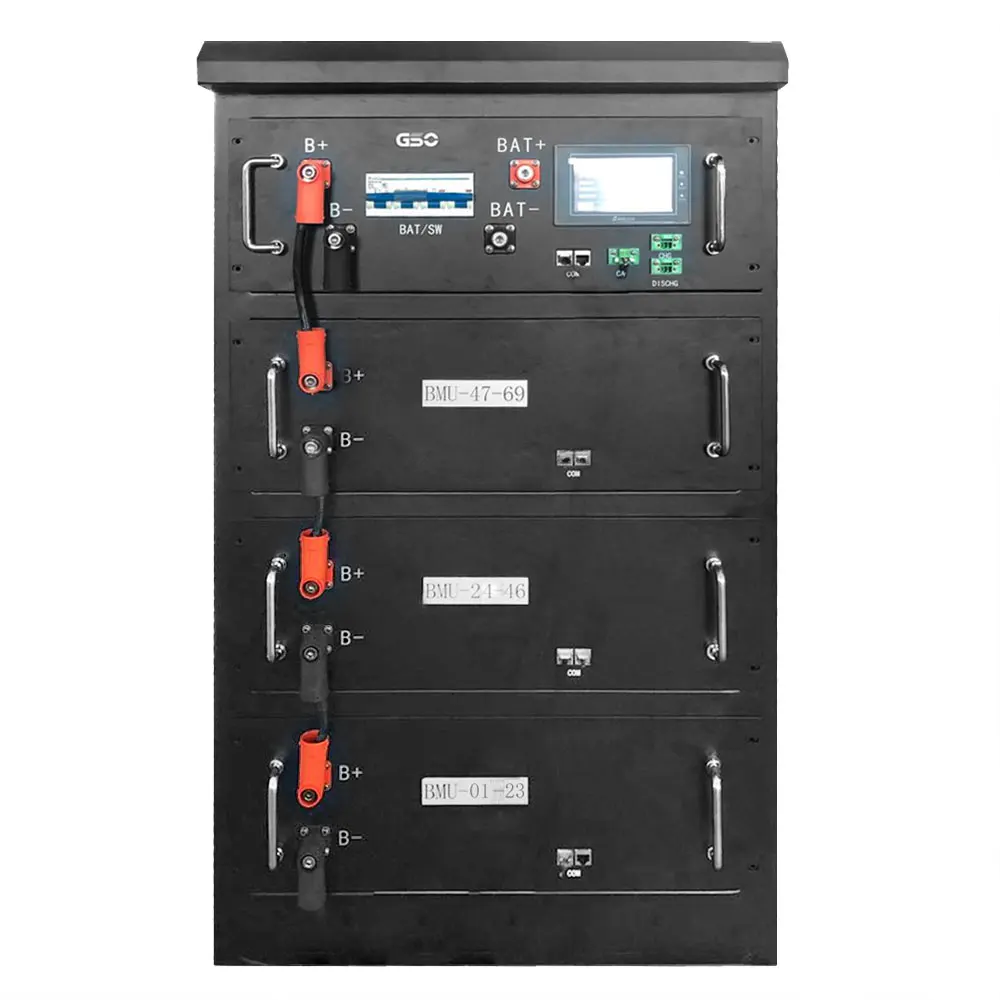

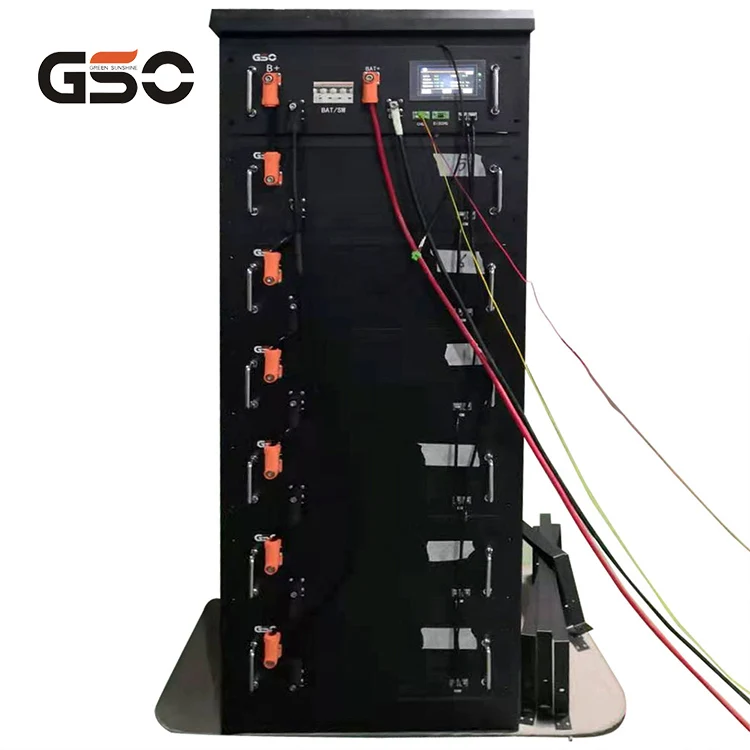

BMS Built in 96V long lifespan LiFePO4 battery 100ah 200Ah 500Ah 50kw battery for Communication base station
- Category: >>>
- Supplier: Jiangsu Gso New Energy Technology Co. Ltd.
Share on (1600465740422):
Product Overview
Description
96v 400ah lithium ion rechargeable battery 40KW solar lithium ion battery
Product Description

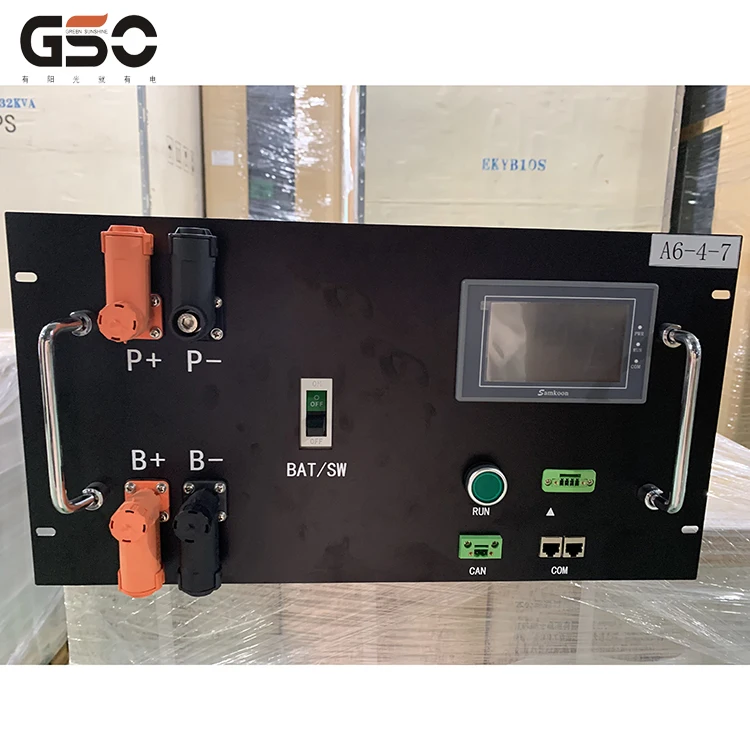

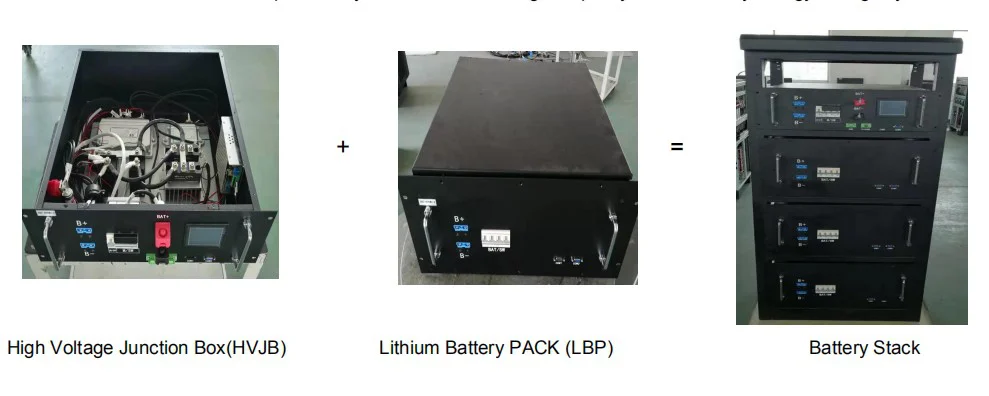

This product is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system. It can be used as independent DC power supply or as "basic unit" to form a variety of energy storage lithium battery power supply systems.
It has high reliability and long life. Products developed for applications such as power grid energy storage, industrial and commercial energy storage, home high voltage energy storage, high voltage UPS, and data room.
Model | GBP96100 | GBP96200 | GBP96300 | GBP96400 | GBP96500 | GBP961000 | |||||
Battery cell type | Lifepo(3.2V Prismatic cell) | ||||||||||
Nominal Voltage | 96V | ||||||||||
Battery Capacity | 100AH | 200AH | 300AH | 400AH | 500AH | 1000AH | |||||
Rated Power(KWH) | 10KWH | 20KWH | 30KWH | 40KWH | 50KWH | 100KWH | |||||
Working Voltage | 84-112.5 | ||||||||||
Recommended Charging Voltage | 106.5 | ||||||||||
Recommended Discharge Cutoff Voltage | 91.5 | ||||||||||
Standard Charging Current | 20 | 40 | 60 | 80 | 100 | 200 | |||||
Standard Discharge Current | 20 | 40 | 60 | 80 | 100 | 200 | |||||
Max Continuous Charging Current | 100 | 200 | 300 | 400 | 500 | 1000 | |||||
Oprating Temperature | -20~65℃ | ||||||||||
Protection Level | IP20 | ||||||||||
Cycle Life | 5000Times | ||||||||||
Communication | CAN/RS485 | ||||||||||
Certification&Safety Standard | CE/UN38.3/MSDS | ||||||||||
Warranty | 5 Years | ||||||||||
Alarms | Overcharge/overdischarge/overcurrent/over temperature/short circuit | ||||||||||
N.W Weight | 160KG | 280KG | 160KG/pack*3 | 160kg/pack*4 | 160kg/pack*5 | 160KG/pack*10 | |||||
Dimension(H*W*D) | 760*530*550mm | 970*625*550mm | 60*530*550mm/pack*3 | 60*530*550mm/pack*4 | 760*530*550mm/pack*5 | 760*530*550mm/pack*10 | |||||

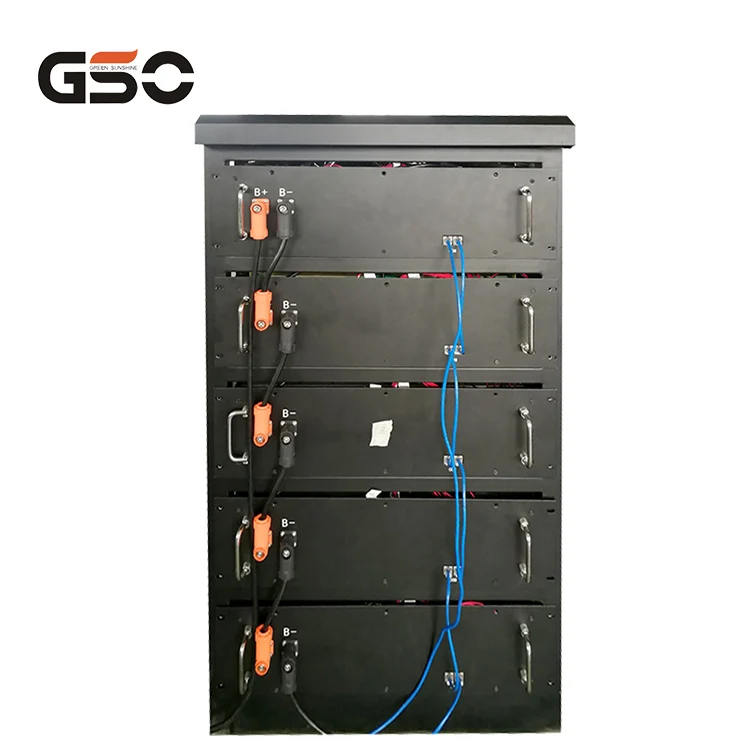

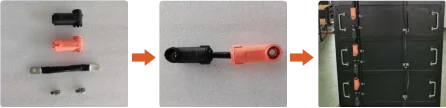

Please follow the following steps to implement battery connection:
First Step:Remove orange and black connectors from battery module
Second Step:Insert the connector into the connectors
Third Step:Tighten the bolt with an inner hexagonal wrench stuck M 6 the connector base
The Fourth Step:Use multimeter to measure the B+ and B- on the high-volt battery box to see if the total pressure is normal
The Fifth Step:Test the temperature on the connector with a temperature measuring gun after electrification for a period of time to prevent the bolt from not tightening and cause the temperature to rise at the connection joint, resulting in the hidden danger of safety
Related Products
Why Choose Us
We believe in the following business principles: 1.Honesty; 2.High quality; 3.Innovation; 4.Professionalism; 5.Dedicated service. We look forward to establishing long term win-win cooperation with our customers.

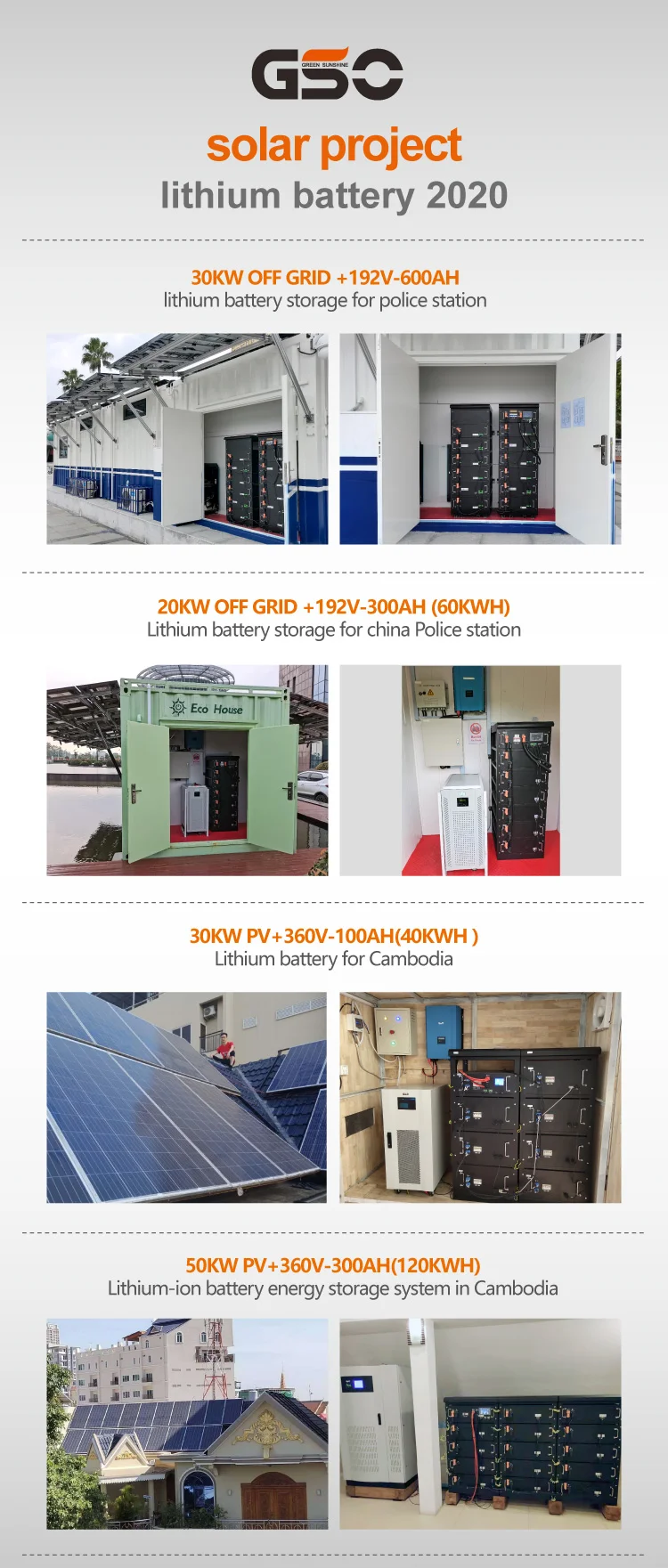

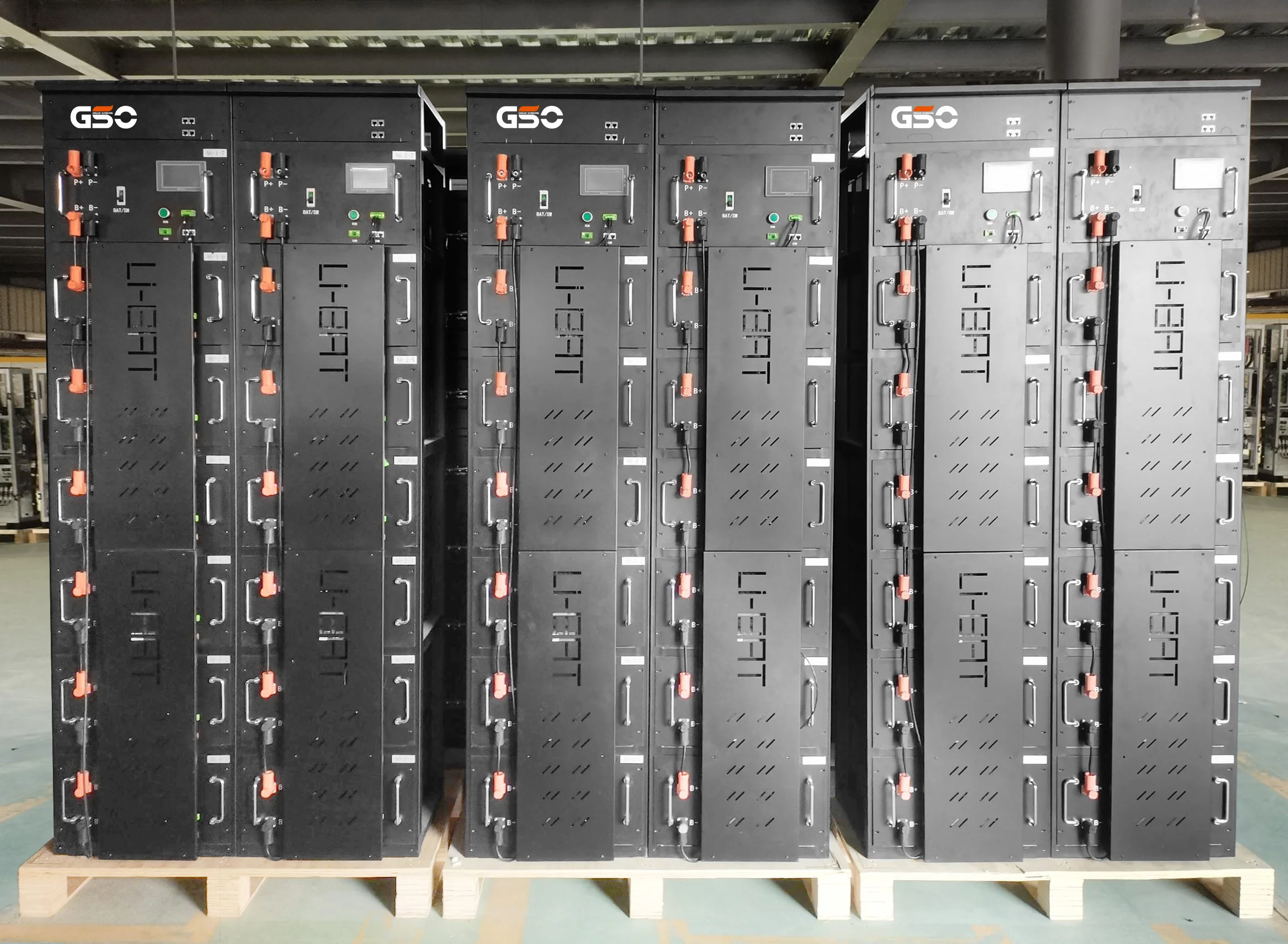

Project cases
