Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables
Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables
Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables
Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables
Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables
Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables
Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables

Industrial Metal Detectors for Cooked Food Carton Tea red dates chocolate potato chips dried fruits dried vegetables

Share on (1600465741649):


Price:$2,800.00 - $3,200.00

Quantity:


Product Overview

Description



Scope of application:
Metal foreign matter detection in various textiles, plastic products, toys, aquatic products,food(food
additives, condiments),pharmaceuticals, health products, cosmetics, etc., such as iron, copper, aluminum, stainless steel and other metal particles, can be tested in bulk , bagged, bottled, boxed.




Performance characteristics：
Suitable for wet and dry products, suitable for products with high product effects such as moisture,sugar, salt, etc...
1. Made of 304 stainless steel, durable and nice appearance, conveyor and pallet assembly used in the food grade materials.
2.Digital machine, memory function for registering various products(Max: 100items).
3. adopt the combine technology of double signal and detection circuit, LCD display, with Chinese and English menu, easy operation.
4. Adopt Germany professional detection technology with balanced principle, more reliable, better performance.Dual-channel and frequency detecting ferrous, non-ferrous and stainless steel.
5. DSP and MCU combination of the detection signal for data sampling and data processing, improve the
detection results.
6. DSP and MCU combination of the detection signal for data sampling and data processing, improve the detection
results.
7. Able to detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials.
8. With the learning function of automatic identification, overcome the effect of products materials efficiently, strong anti-interference and shock proof.
9. Support 24 hours non-stop working.
10. fairly good waterproof ability, apply to high temperature, low temperature,damp, dry, dust, dew and other poor work environment.
11.With product self-learning function,don't need to set the parameter ourselves. And also can store 100 different kinds of products parameters.
12. The sensitivity is the result of testing without any products, and the sensitivity will be some difference according to the different kinds of products, packing materials and weight.
13.Language system can be customized.

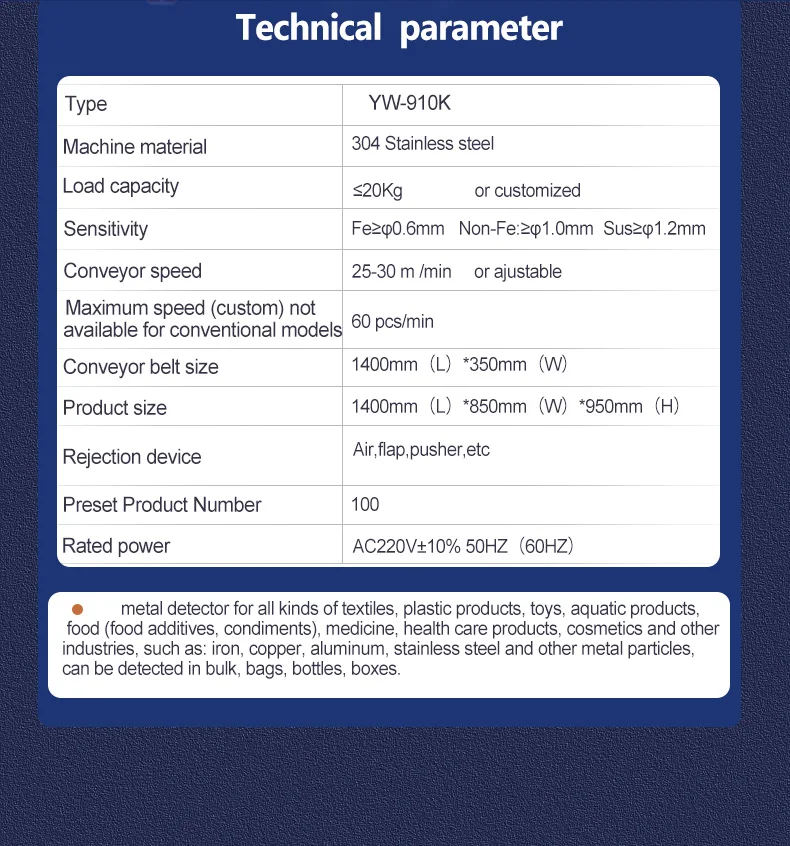

Technical parameters


product Parameter
model
YW-910K
detection channel width(mm)
4010
4012
4015
4020
4025
4030
4035
400(Customizable wdth200~2000)
detection channel heiht(≧Φmm)
conventional mahine detection window height
non-standard custommized detection window width
100
120
150
200
250
300
350
Sensitve (≥Φmm)
lron ball Fe diameter
0.6
0.7
1.0
1.5
2.0
2.5
2.8
Non-ferrous metals such as copper and aluminum
1.0
1.2
1.8
2.0
2.5
2.8
3.7
stainless steel diameter
1.5
1.8
2.0
2.5
3.0
3.3
4.3
Body material
The whole machine is made by 304 stainless steel cold drawing process
Alarm method
Automatic detection of foreign objects stops,and output 12V buzzer alarm sound（A variety of rejection devices can be customized:
flip, pull rod, push rod, air jet, etc.）
Machine size
≈L:1400×W:820×H:900,the size of the costormized product is based on the actual product
Machine weight
≈200kg
Power supply
power supply:220V 50Hz power:120W
weighing capacity
≤20 Speed:25~30m/min(not adjustable)
Working desk
Height:700mm(customzable height)




Company Profile






FAQ


1.How long of the warranty period?
Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
2.How can I trust you for the first time business?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
3.What is your terms of payment?
T/T,L/C,Western Union, etcA:T/T 30% as deposit,and 70% before delivery.We'll show you the?photos?of the products and packages before you paythebalance.or 100% L/C at sight .
4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
5.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
