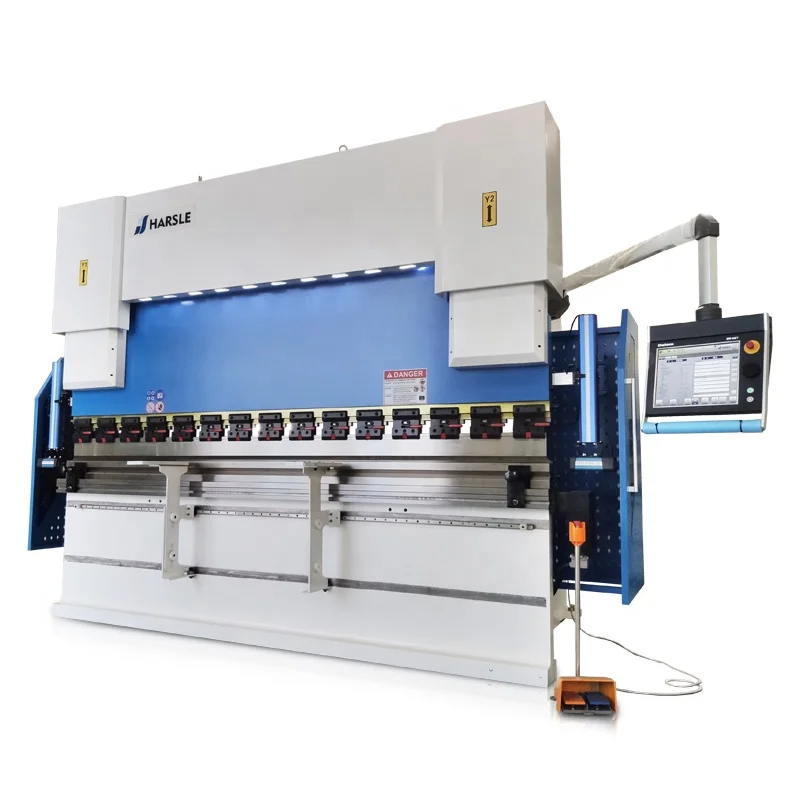

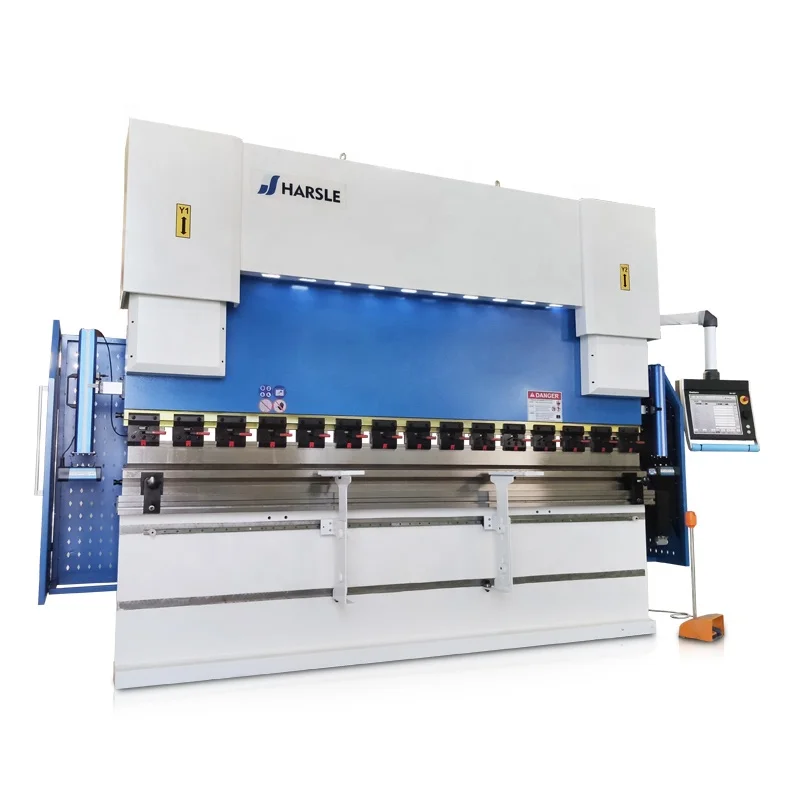

2022 New Arrival 200 Ton Genius DA66T 6 Axis Hydraulic Bending Machine For Metal Plate

HARSLE Genius press brake is the top level of the bending machine, it features multi axis, intelligent touch screen controller and best bending accuracy. Customer can choose different the backgauge from X+R , X+R+Z1+Z2, X+X(Delta)+R+Z1+Z2, X1+X2+R1+R2+Z1+Z2. And the controller can be from DA-66T, DA-69T. HARSLE Bending machine helps you to ease the bending process and improve the bending efficiency largely.

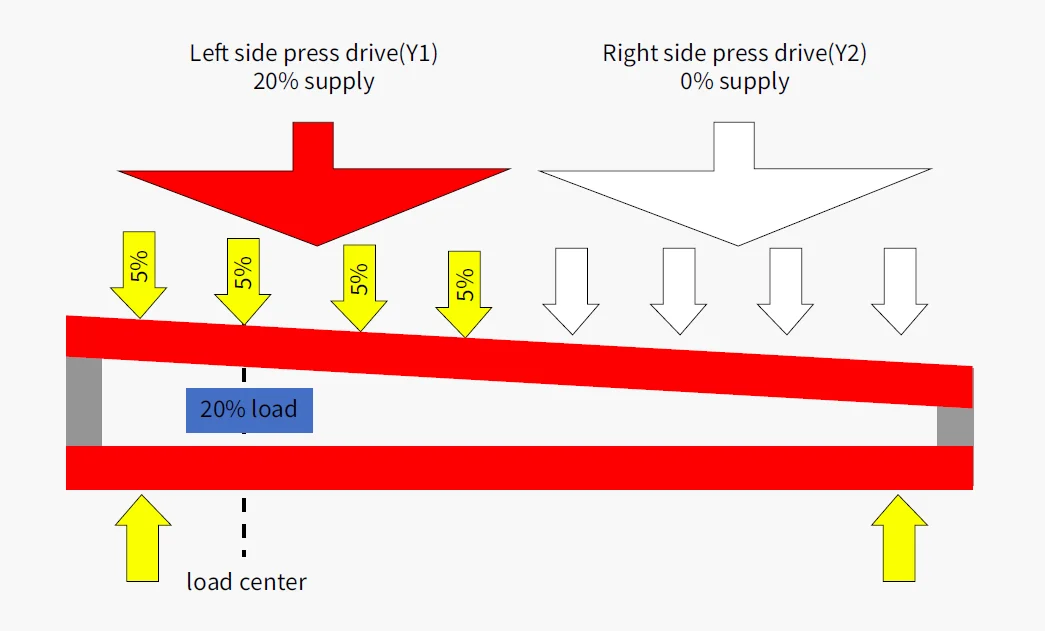

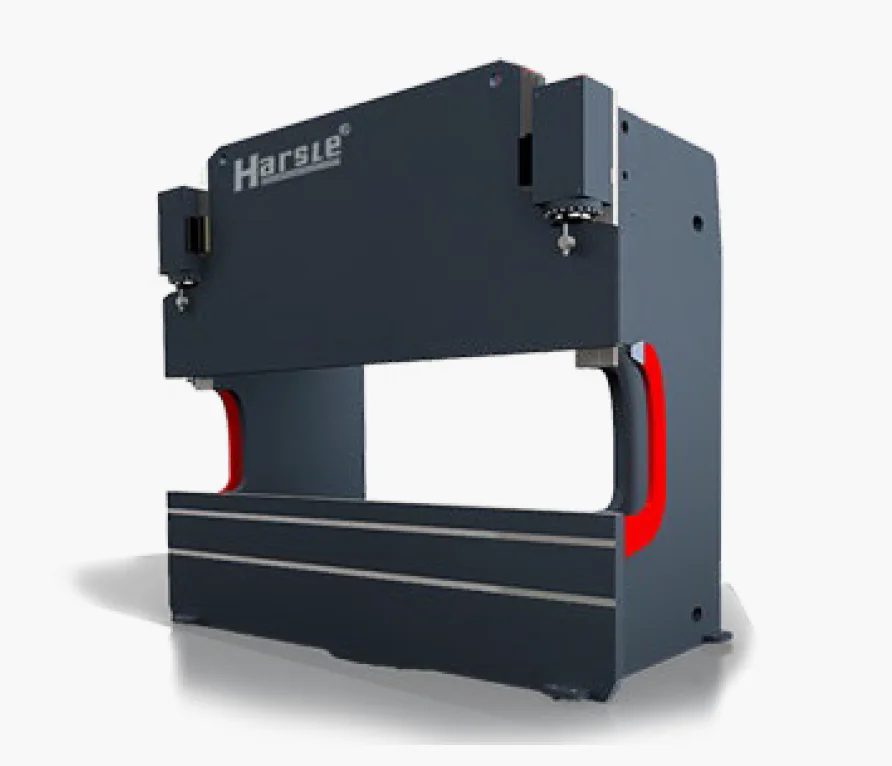

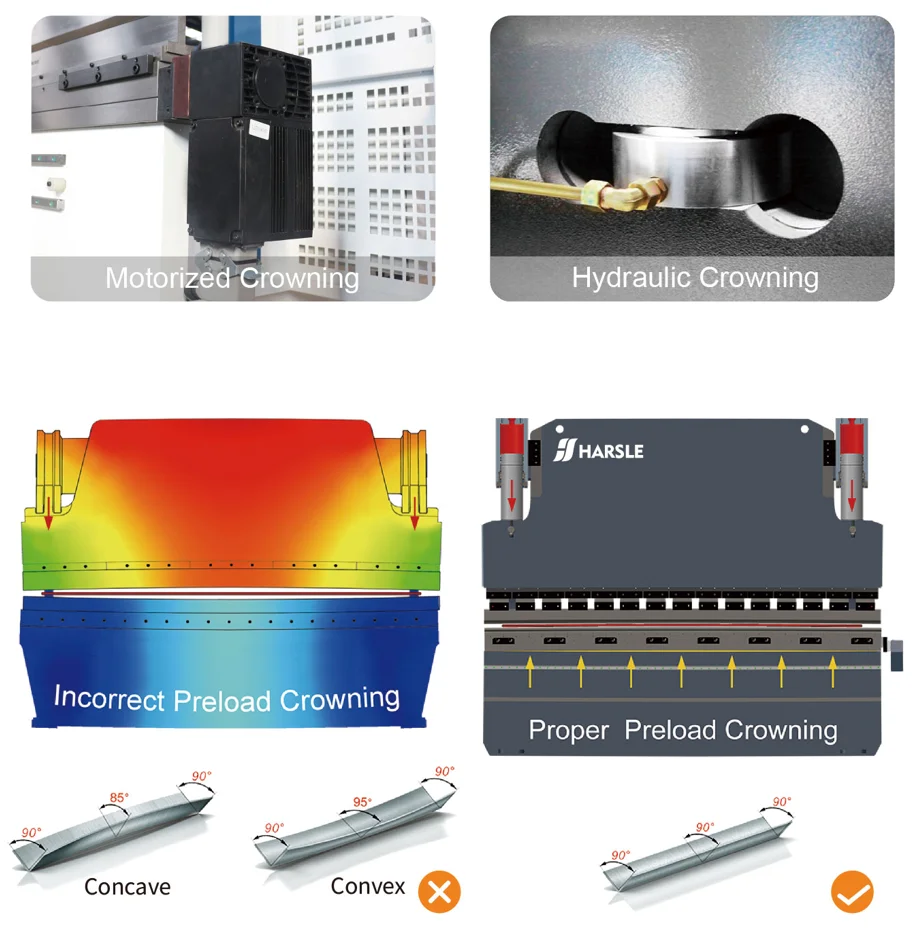

CNC electro-hydraulic bending machine is an important equipment in sheet metal processing, its work accuracy directly affects the bending accuracy of the workpiece. Bending machine in the workpiece bending process, due to the maximum force on both ends of the slider, the reaction force of the plate bending leads to concave deformation on the lower sur-face of the slider, the middle part of the slider deformation variable is the largest, The stress can cause the ram and worktable some deformation during the process of bending; the CNC crowning can make relevant compensation to the ram deformation, which improves the precision of press brake by a wide margin. It is specially applied to make some high precision products such as stainless steel.

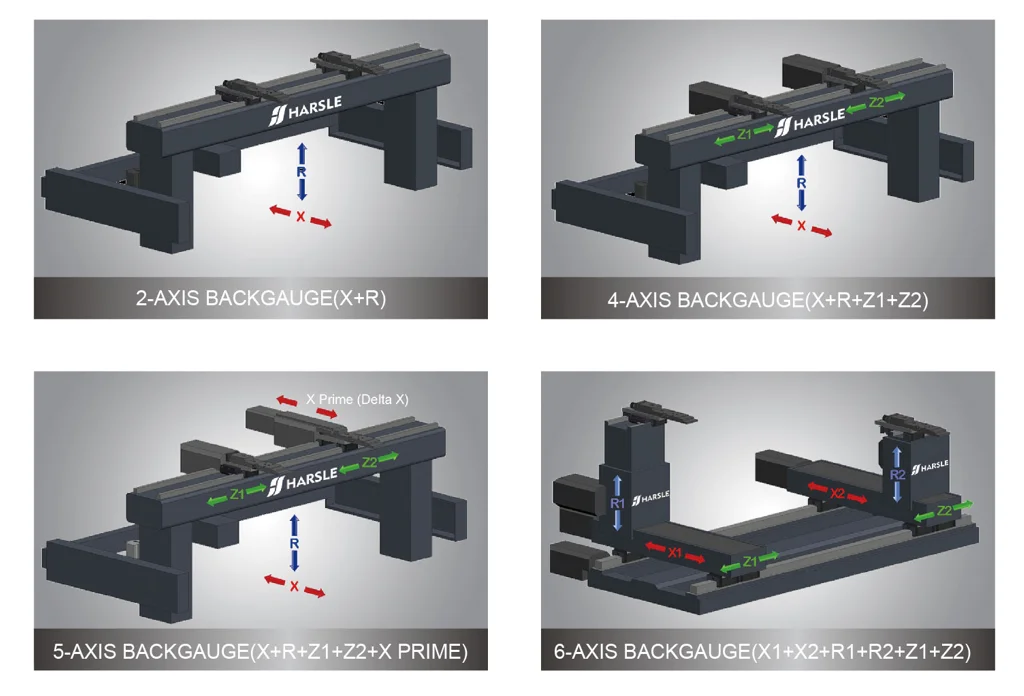

CNC Backgauge is the most important part in the Genius press brake machine, different options will be used in different siuation, The more complex backgauge system, the more complex product can it bend. Actually HARSLE offers 4 types of backgauge systems for selection, they are 2-AXIS backgauge, 4-Axis backgauge, 5-Axis backgauge, 6-Axis backgauge. You can choose different backgauges according to your budget and bending products.

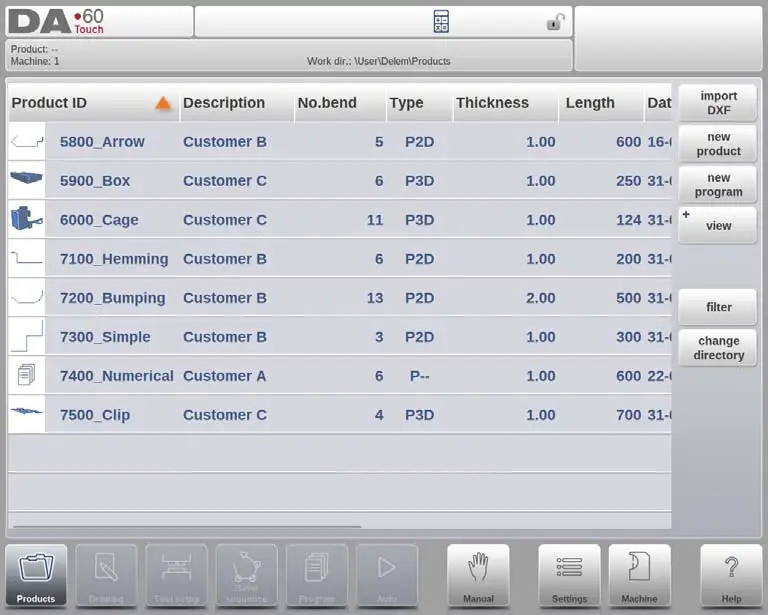

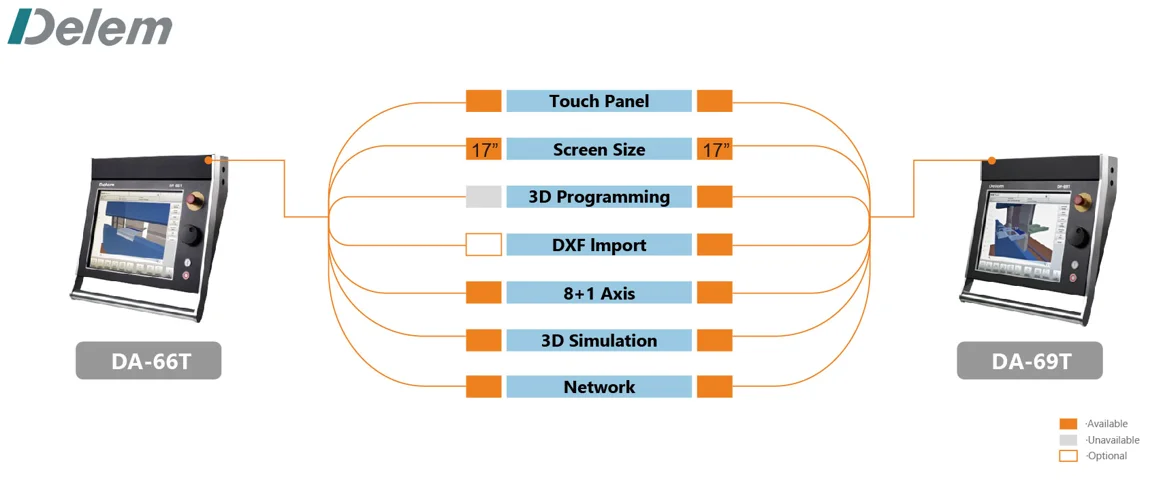

The new generation DA-Touch controls offer an even higher grade of efficiency in programming, operation and control of today’s press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.The touch screen gives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the applica-tion. The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more effi-cient and more versatile than ever.

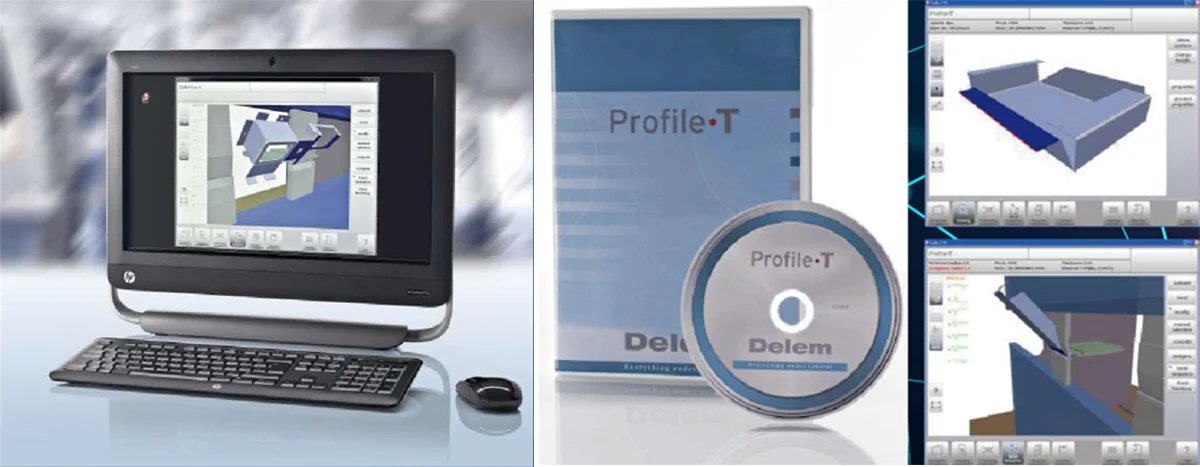

DA-Offline software maximises machine efficiency and production output of press brakes. The Profile-T software facilitates offline programming and simulation the bending process. Production preparation, make ability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline. The Profile-T software offers advanced programming in 2D/3D in line with the DA-Touch controller software. The steps from the start of programming to the desired program including its transfer to the control are clearly embedded in the user interface. Programming the product graphically shows a true scale representation of the intended product. Realistic product visualisation gives feedback on feasibility, collisions, required tools and tool adapters for production.
