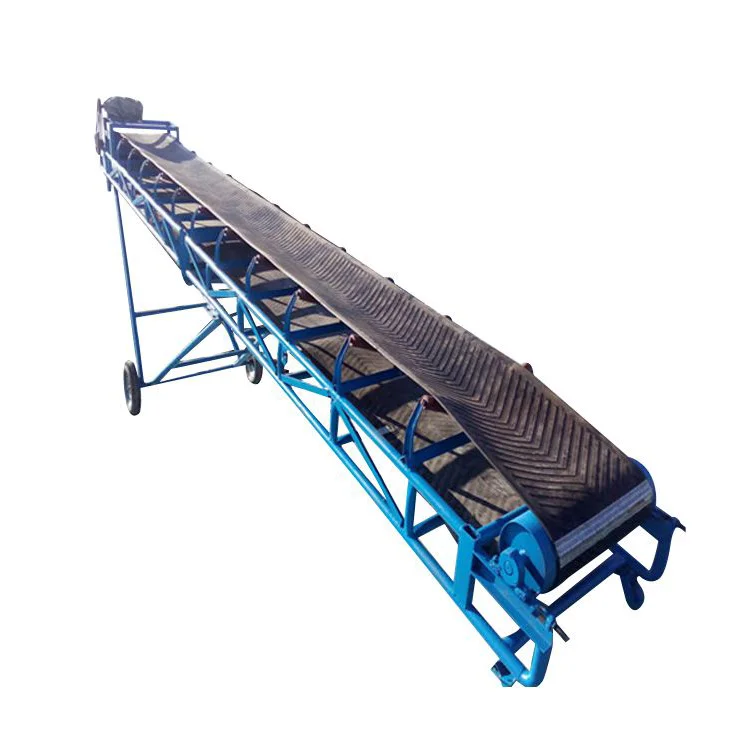

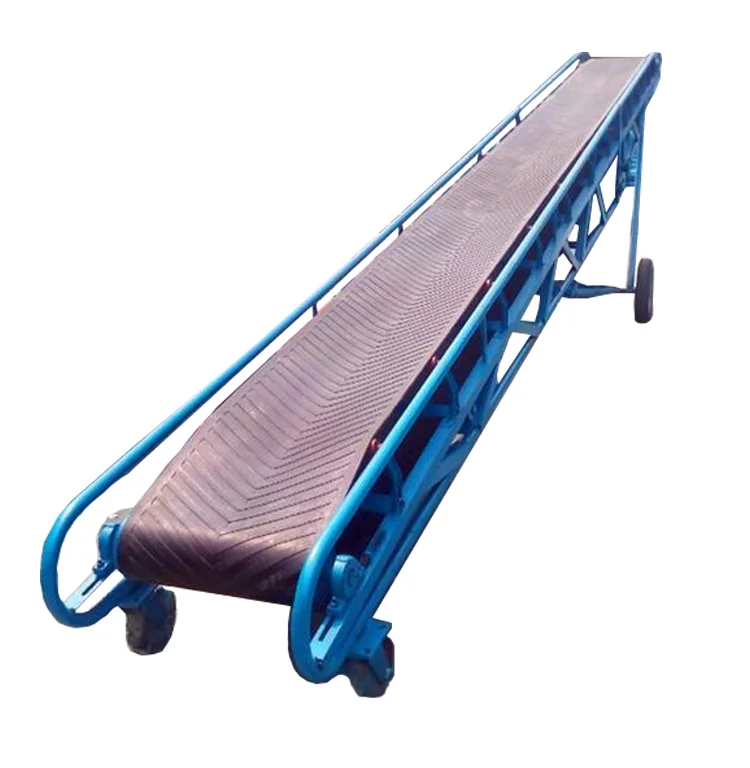

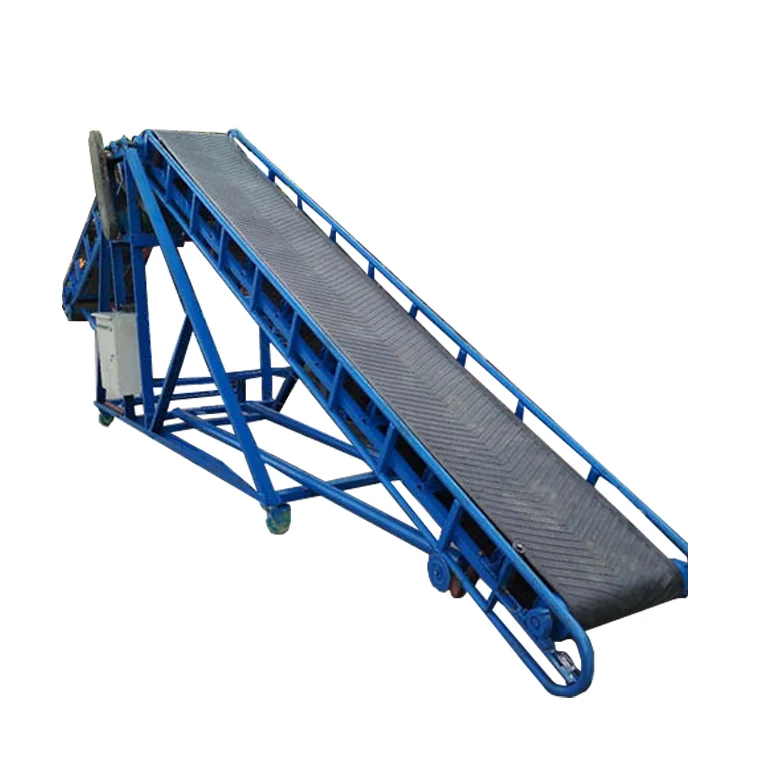

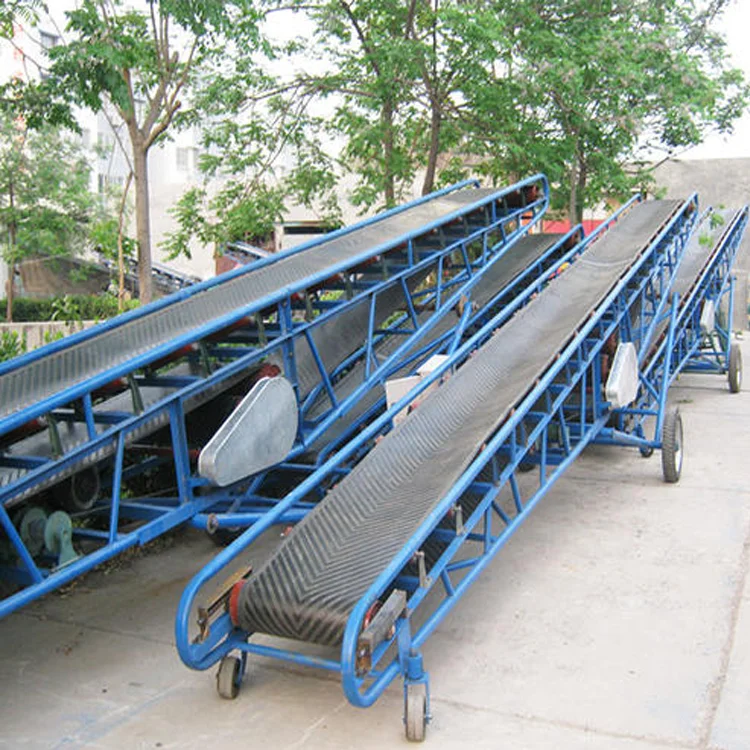

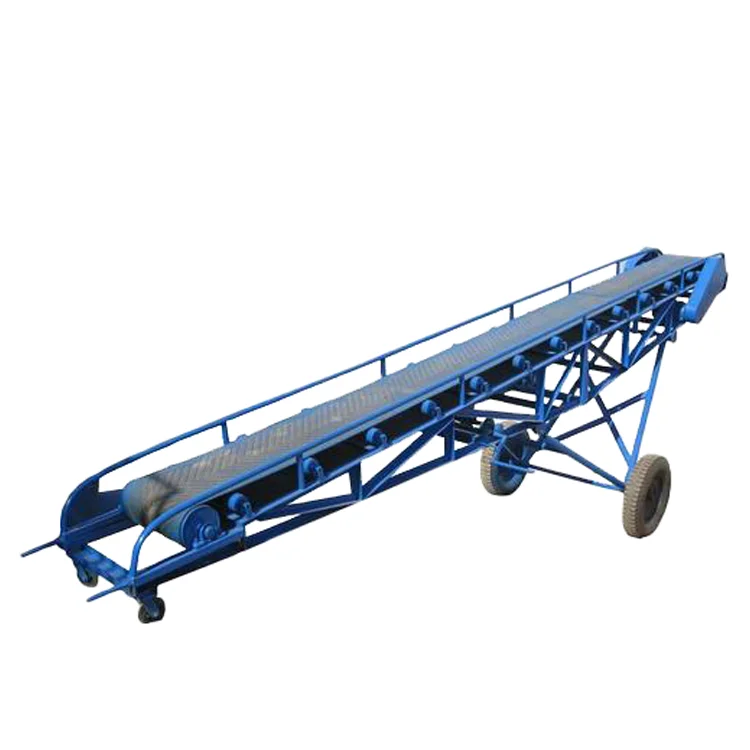

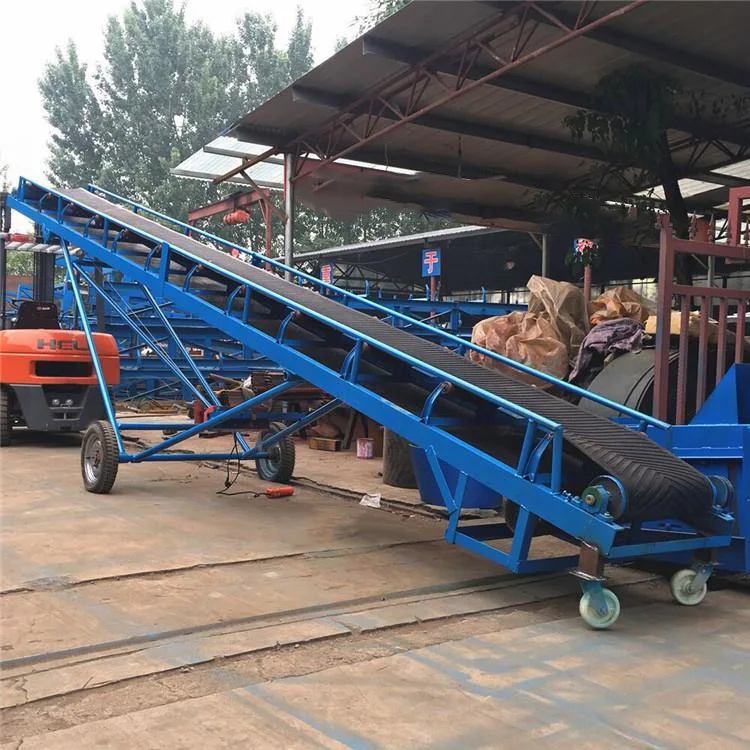

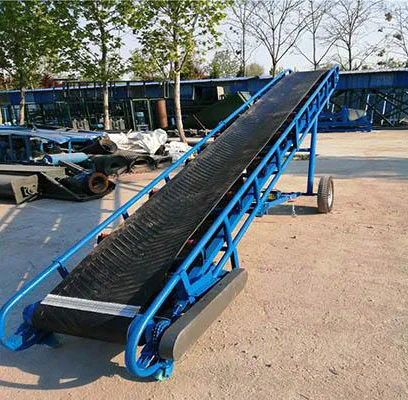

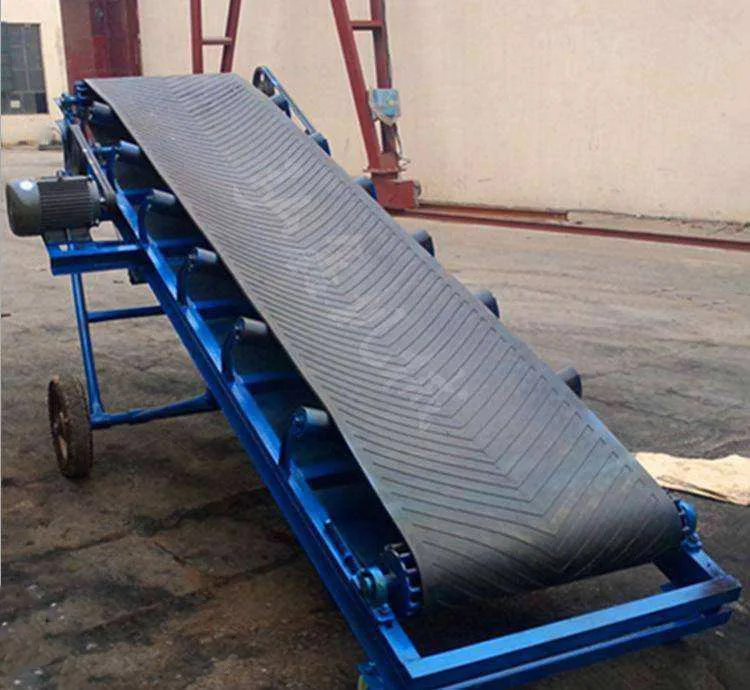

Truck Loading Material Handling Adjustable Height Movable Construction Use Belt Conveyor
- Category: >>>
- Supplier: Henan Yuanzhen Machinery Equipment Co. Ltd.
Share on (1600465750133):
Product Overview
Description
Products Description

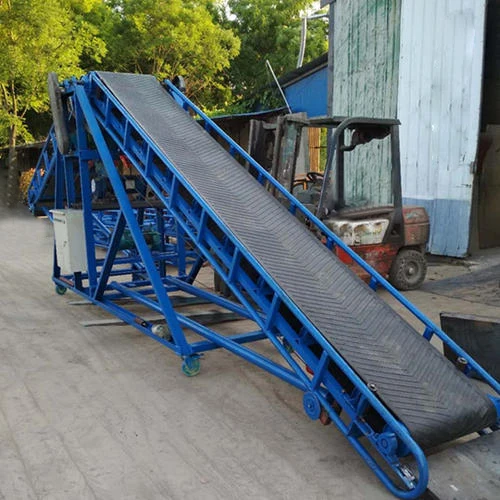

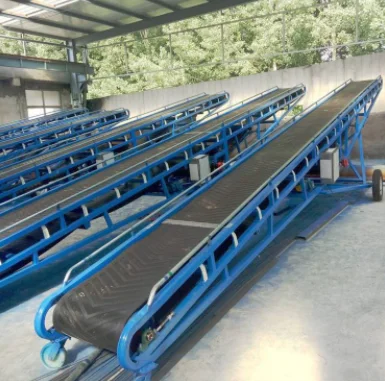

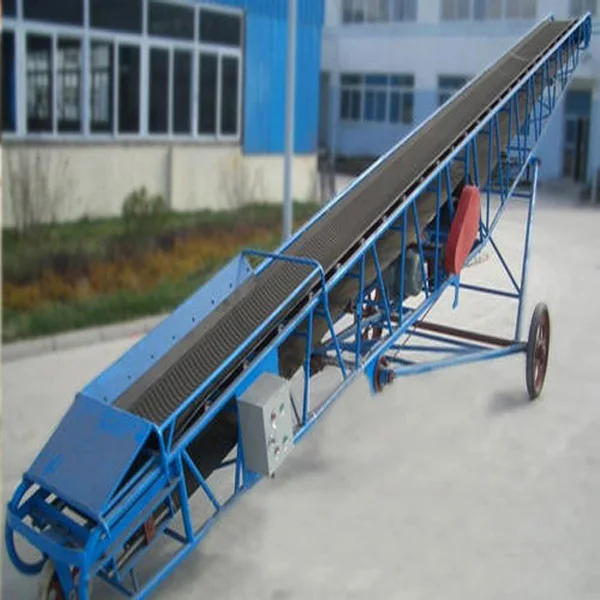

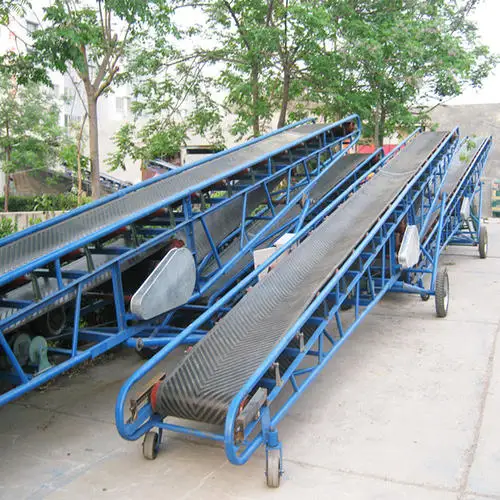

Belt conveying equipment - Belt Conveyor
The belt conveyor designed by Henan Yuanzhen Machinery is a kind of friction-driven machine that transports materials in a continuous manner. The machine is mainly composed of frame, conveyor belt, rollers, rollers, tensioning device, transmission device and so on.
It can form a kind of material conveying process between the initial supply point and the final discharge point in a certain conveying line. It can convey both broken and loose materials as well as finished goods. In addition to pure material conveying, it can also cooperate with the requirements of the process in the production process of each industrial enterprise to form a rhythmic flow operation transportation line.
It can form a kind of material conveying process between the initial supply point and the final discharge point in a certain conveying line. It can convey both broken and loose materials as well as finished goods. In addition to pure material conveying, it can also cooperate with the requirements of the process in the production process of each industrial enterprise to form a rhythmic flow operation transportation line.

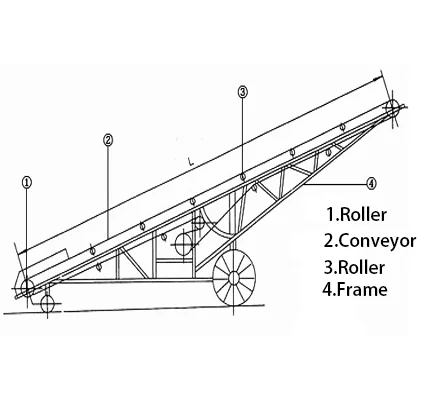

Structural principle
The conveyor belt of belt conveyor moves according to the principle of friction transmission, which is suitable for conveying low abrasive materials and bagged materials that can be easily hollowed out to obtain powder, granular, small lumps, such as coal, gravel, sand, cement, fertilizer, grain, etc.
The belt conveyor can be used in the ambient temperature range of -20℃ to +40℃, and the temperature of the material to be conveyed is less than 60℃. The machine length and assembly form can be determined according to the user's requirements, the drive can be used with electric drums, or the drive device with drive frame.
Product Features
1. Low cost of construction, low maintenance cost, large conveying capacity, but can not convey materials with high temperature.
2. Belt conveyor is reliable, and it is used in many important production units that need continuous operation, such as coal conveying in power plants, bulk material conveying in iron and steel plants and cement plants, and ship loading and unloading in ports.
3. low power consumption of belt conveyor, because the material and the conveyor belt almost no relative movement, not only make the running resistance is small (about 1/3-1/5 of the scraper conveyor), and the wear and tear of the load are small, high productivity. These are conducive to reducing production costs.
4. Belt conveyor conveying line is highly adaptable, the line length depends on the need, short is a few meters, long can be more than 10km.
2. Belt conveyor is reliable, and it is used in many important production units that need continuous operation, such as coal conveying in power plants, bulk material conveying in iron and steel plants and cement plants, and ship loading and unloading in ports.
3. low power consumption of belt conveyor, because the material and the conveyor belt almost no relative movement, not only make the running resistance is small (about 1/3-1/5 of the scraper conveyor), and the wear and tear of the load are small, high productivity. These are conducive to reducing production costs.
4. Belt conveyor conveying line is highly adaptable, the line length depends on the need, short is a few meters, long can be more than 10km.
Common Model
Carrying roller form | Belt speed (m/s) | Belt width(mm) | ||||||||||||
500 | 600 | 800 | 1000 | 1200 | 1400 | |||||||||
Convey quantity(T/h) | ||||||||||||||
Trough roller | 0.8 | 78 | 131 | —— | —— | —— | —— | |||||||
1 | 97 | 164 | 278 | 435 | 655 | 891 | ||||||||
1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | ||||||||
1.6 | 156 | 264 | 445 | 969 | 1048 | 1427 | ||||||||
2 | 191 | 323 | 546 | 853 | 1284 | 1748 | ||||||||
2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | ||||||||
3.15 | —— | —— | 824 | 1233 | 1858 | 2528 | ||||||||
4 | —— | —— | —— | —— | 2202 | 2996 | ||||||||
Parallel roller | 0.8 | 41 | 67 | 118 | —— | —— | —— | |||||||
1 | 52 | 88 | 147 | 230 | 345 | 460 | ||||||||
1.25 | 66 | 110 | 184 | 288 | 432 | 588 | ||||||||
1.6 | 84 | 142 | 236 | 368 | 553 | 753 | ||||||||
2 | 103 | 174 | 289 | 451 | 677 | 922 | ||||||||
2.5 | 125 | 211 | 350 | 546 | 821 | 1110 | ||||||||
Support customized production（Click here to get accurate quotation） | ||||||||||||||
How to select the right type?
Attention:
The selection of screening equipment and your use of demand has a lot to do with the following information you need to provide.
Ⅰ.If you have ever used the screen machine
Kindly please tell us its Model、Size、Other parameters.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.Conveying output, distance and height.
In this way,we can precisely choose the matching model for you to meet your use requirements.
4.Voltage(V),Frequency(Hz),Phase(P)
Ⅰ.If you have ever used the screen machine
Kindly please tell us its Model、Size、Other parameters.
Ⅱ. If never use the machine until now
Please offer us the info about material as below:
1.the name of the material.
2.Material characteristics (e.g. specific gravity, bulk density, water content, fluidity, adhesion, electrostatic properties, etc.)
3.Conveying output, distance and height.
In this way,we can precisely choose the matching model for you to meet your use requirements.
4.Voltage(V),Frequency(Hz),Phase(P)
---------------------------------------------------------------------------------------------------------
In order to make it more convenient for you, you can compare the following table to clear your machine configuration
Show Details

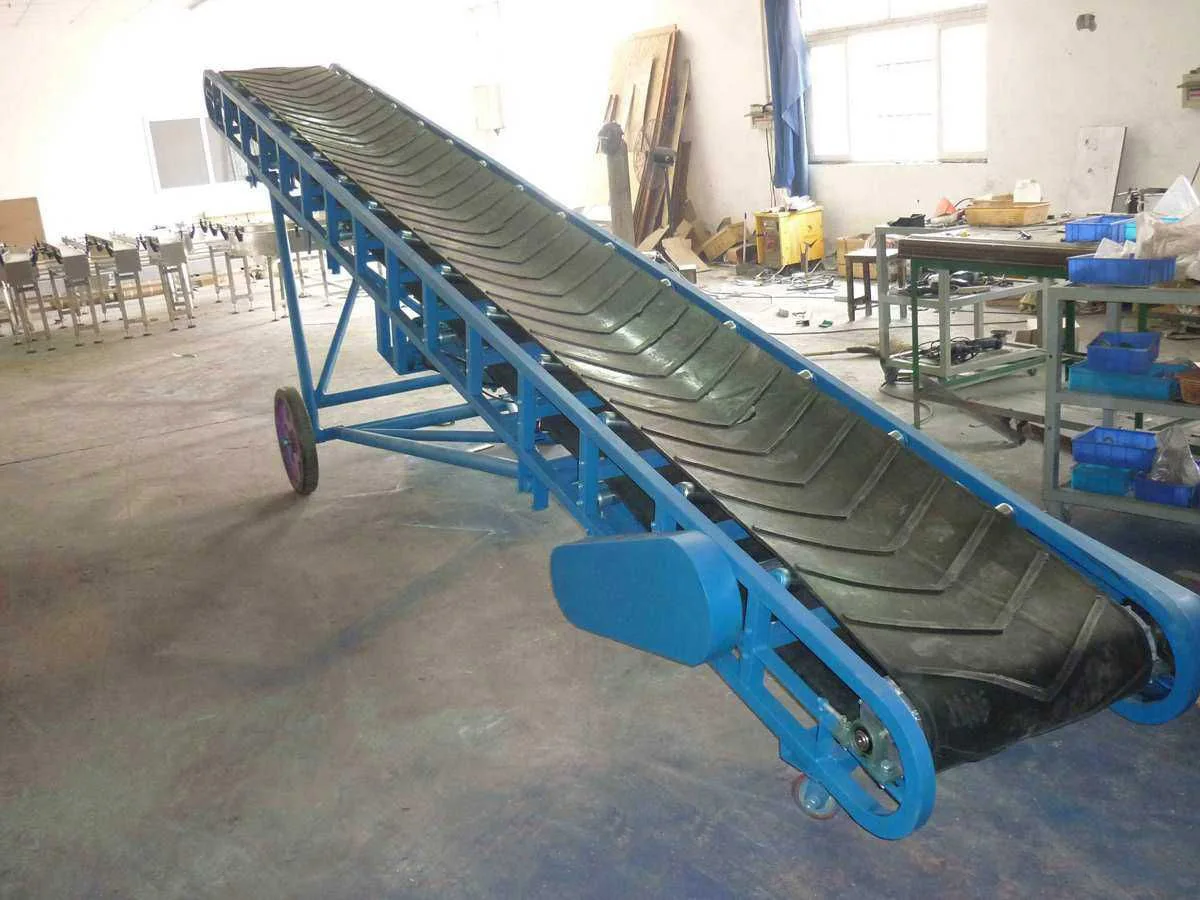

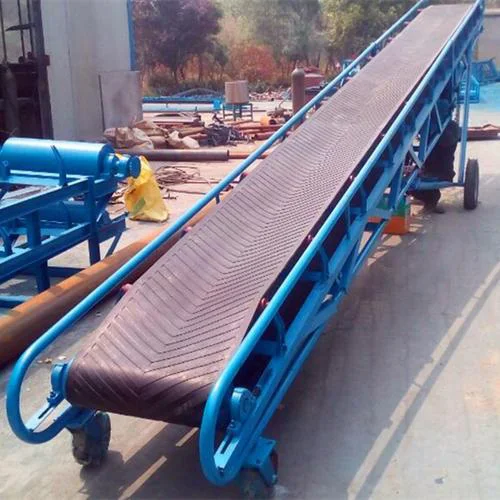

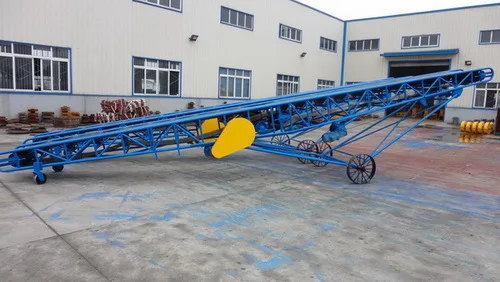

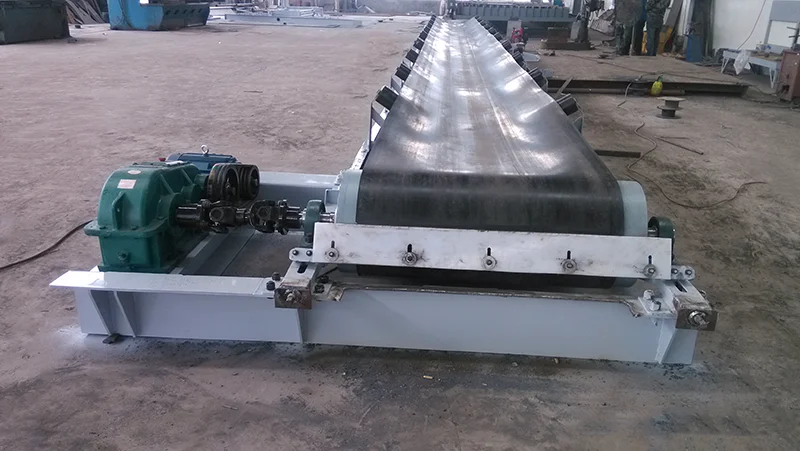

Product Show
We provide you with quality products and services.
---------------------------------------------------------------------------------------------------------
Please click on the pictures below to learn about related products
Application

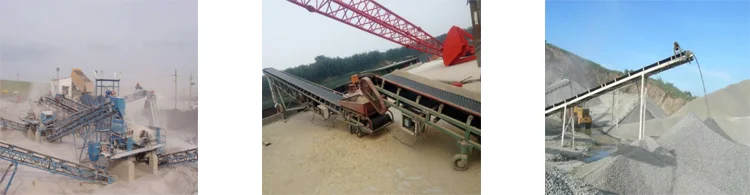

Application Scenario Description
The belt conveyor can carry out the transportation of broken and bulk materials, and can also carry out the transportation of finished items. In addition to carrying out pure material transportation, it can also be matched with the requirements of the technological process in the production process of various industrial enterprises to form a rhythmic assembly line.
Common conveying materials are:
Common conveying materials are:
The belt conveyor is suitable for conveying powder, granular, small lumpy low abrasive materials and bagged materials that are easy to pull out, such as coal, gravel, sand, cement, fertilizer, grain, etc.
Customer Case
Why Choose Us
What can I do for you？
1.Rich production experience
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
2.Numerous industry application cases
3.Provide suitable design solutions according to user requirements
4.Reliable quality and cost-effective price
5.Perfect service
6.International sales route
Factory Display
Creating a trustworthy factory

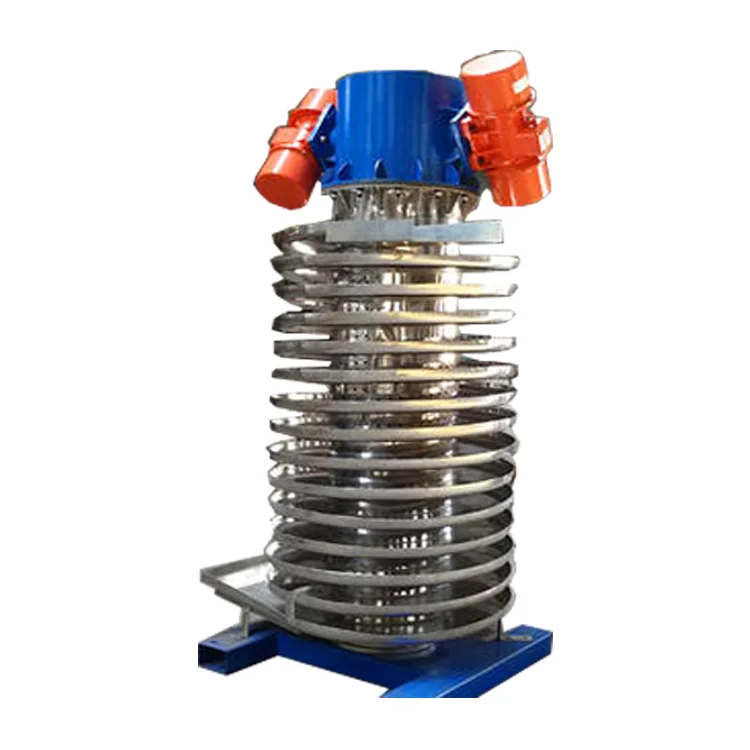

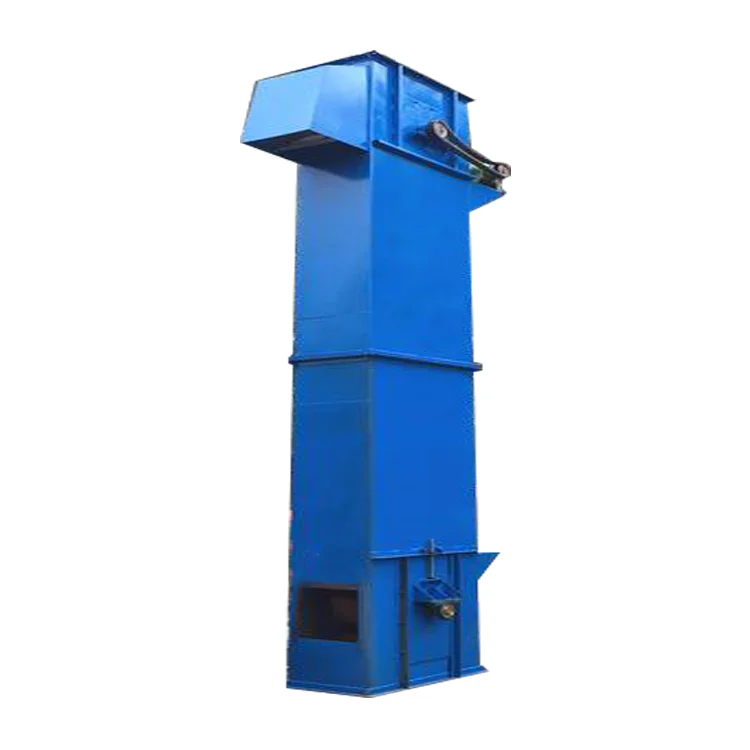

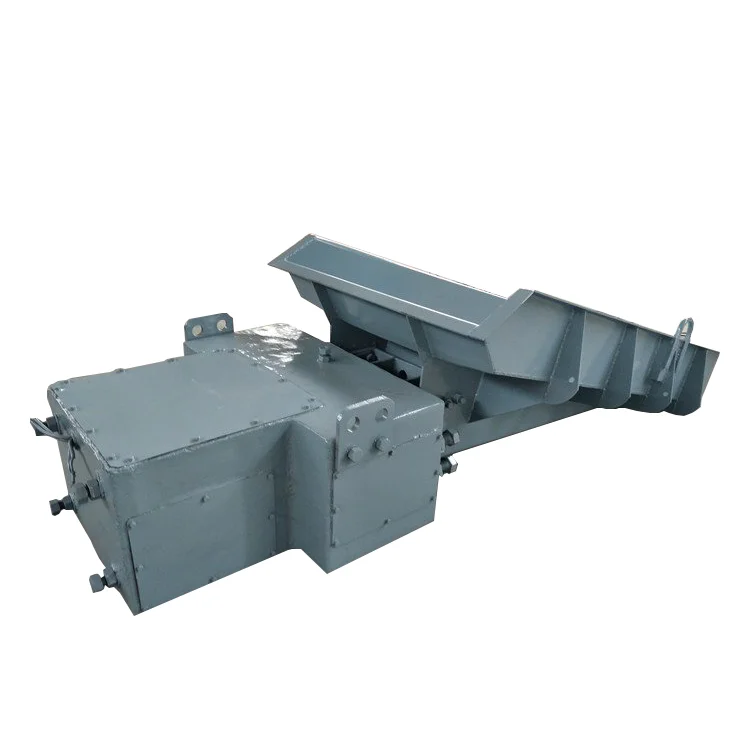

More Products
Company Profile
Logistics Packaging
FAQ
Q:What is the quality of the product?
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
A:We have complete quality control system. We have team leader, section leader and quality control manager to control the quality by each step. Welcome to our factory for cooperation!
Q:What factors I need to get a quotation?
A: Name & bulk density of materials;Capacity per hour;Mesh size and decks;Material of the machine;Voltage Frequency(Hz).
Q:How about price?
A:We are a factory, we provide you with quality and reliable products while giving you better prices, "high cost performance" - that's what we are.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
Q:Service and Payment Terms?
A:We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery;
We take pictures of finished products before delivery.
---------------------------------------------------------------------------------------------------------
