5 axis cnc mill GMC4018 cnc vertical machining center with controller kit
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (1600465750137):
Product Overview
Description
5 axis cnc mill GMC4018 cnc vertical machining center with controller kit
Products Description

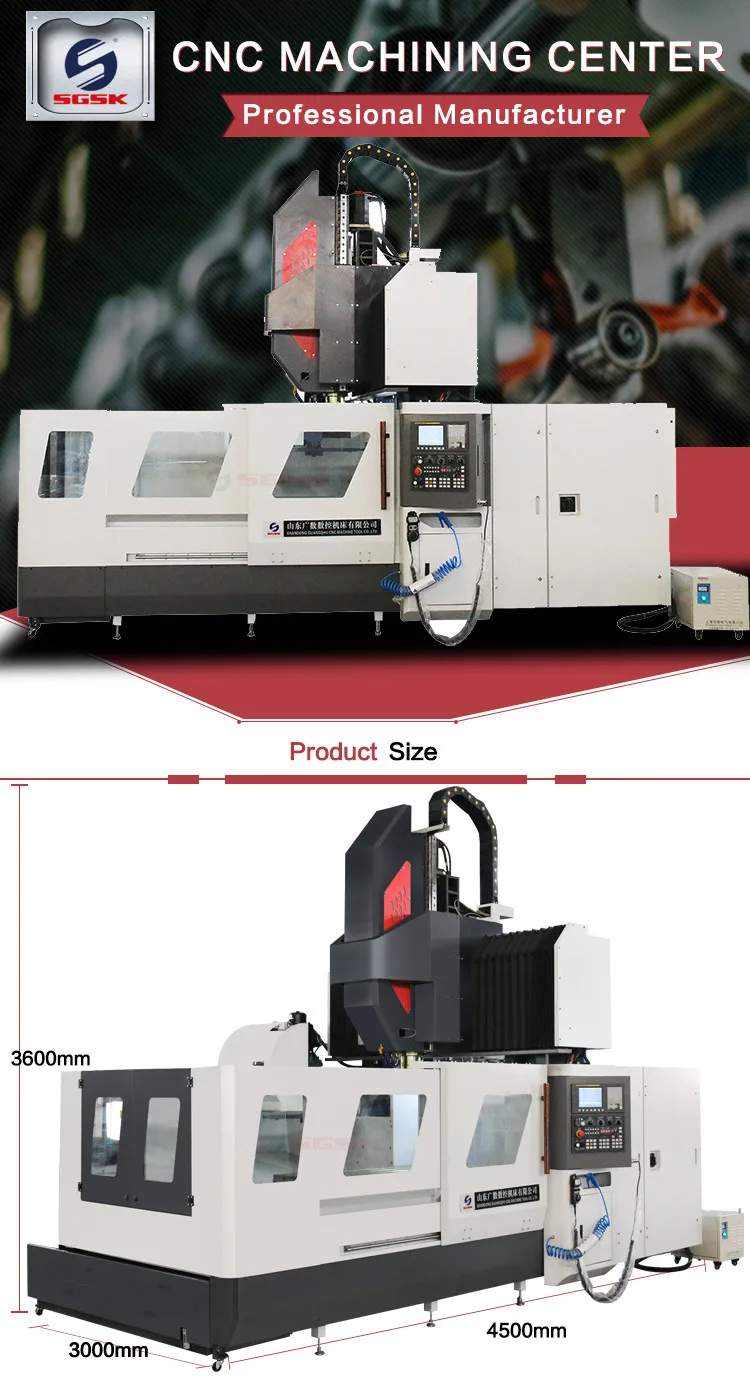

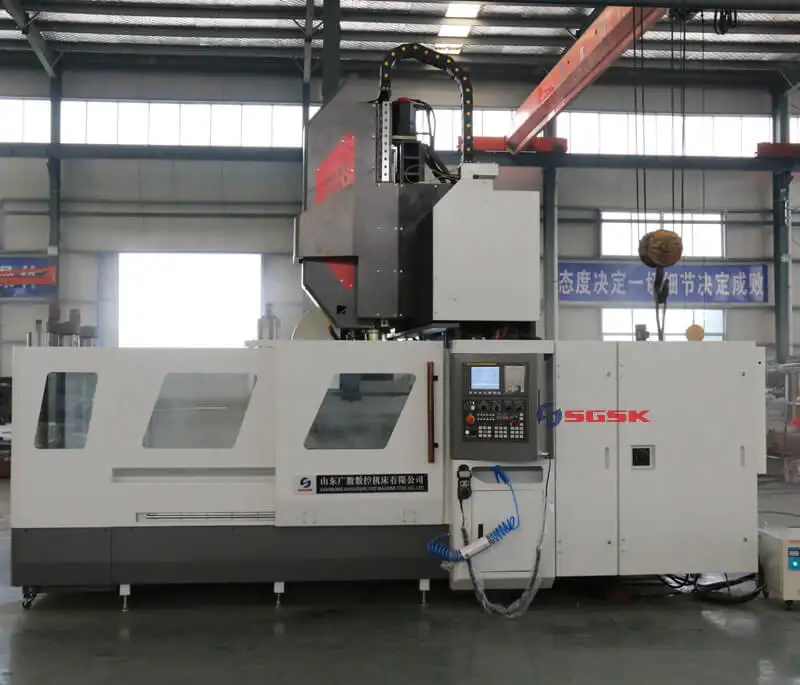

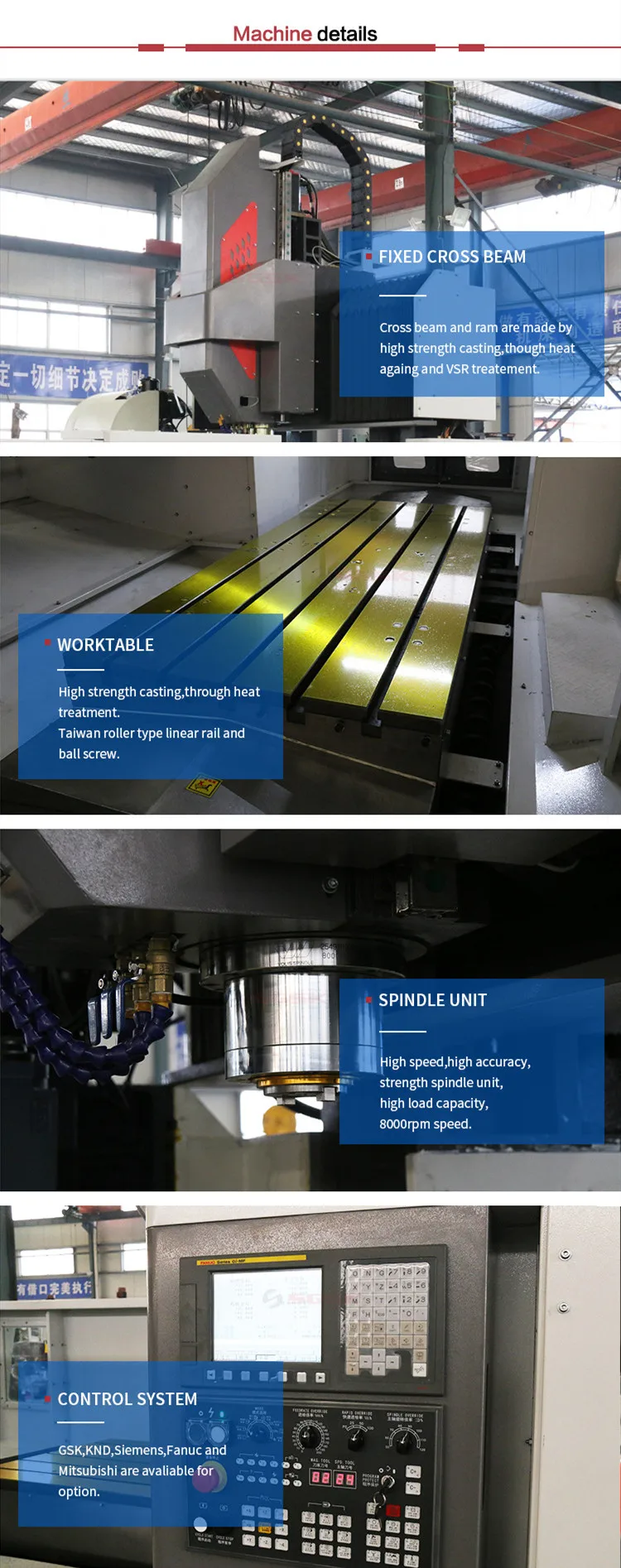

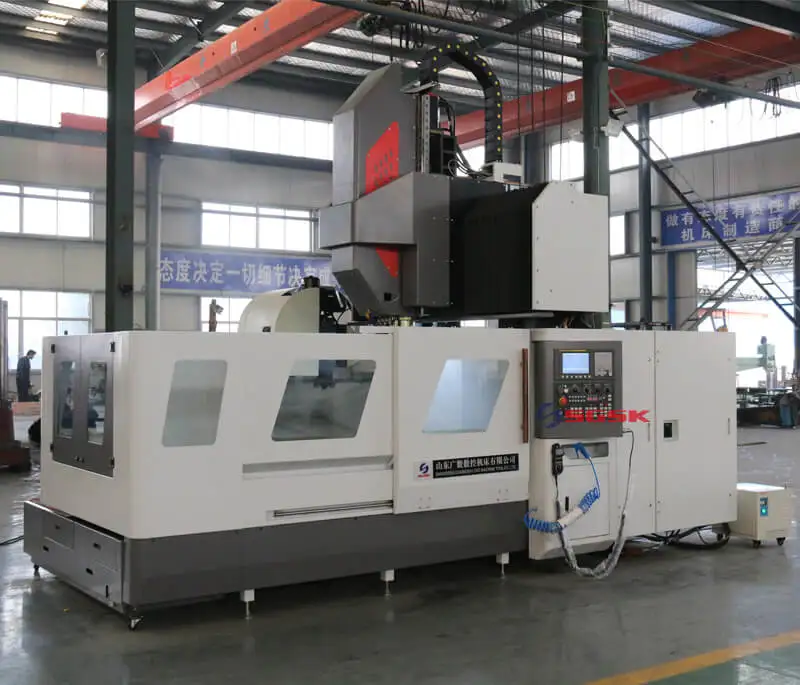

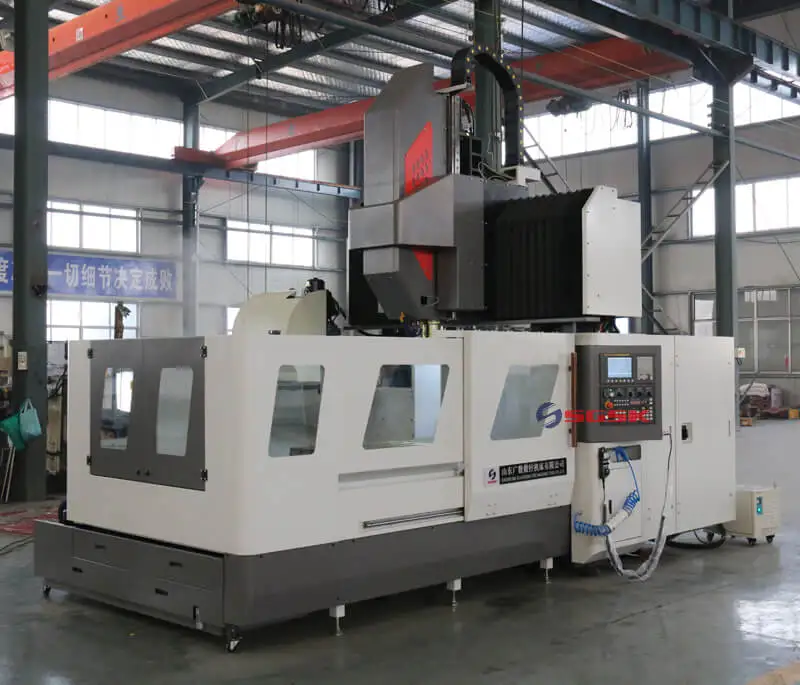

Details Images
Product Paramenters
Product main technical specifications:
Specifications | GMC4018 |
X axis travel | 4000mm |
Y axis travel | 1800mm |
Z axis travel | 800mm |
Distance between spindle nose and worktable surface | 140-940mm |
Distance from spindle axis to column surface | 450mm |
Distance between two columns | 1800mm |
Distance between worktable and beam | 1200mm |
X rapid traverse speed | 10m/min |
Y rapid traverse speed | 12m/min |
Z rapid traverse speed | 12m/min |
Cutting feed speed | 1-10m/min |
Three-axis servo motor torque | X/Y/Z:40/30/30N.m |

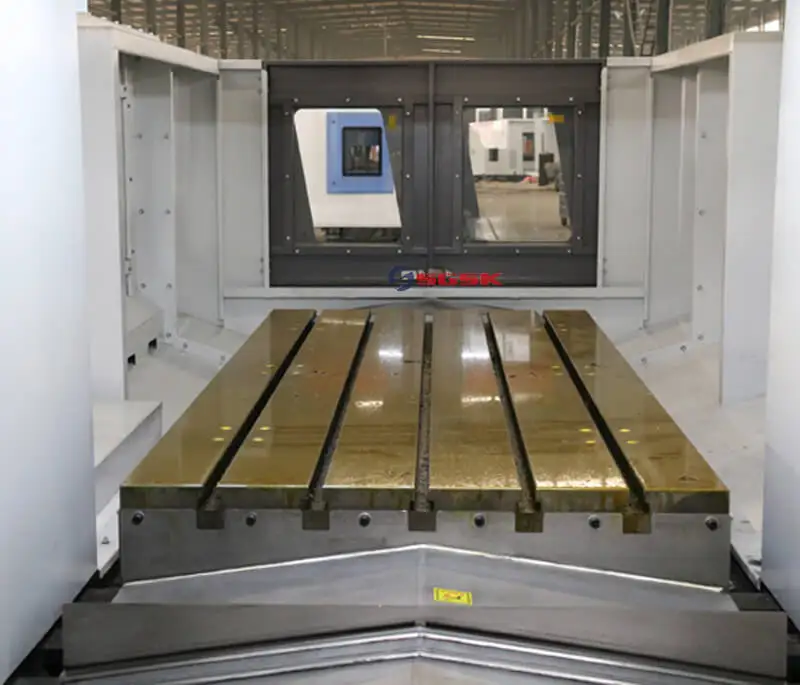

Table size | 4000×1600mm |
Max. worktable load | 3500Kg |
Distance from table to floor | Approx 950mm |
T slot(number-width-pitch) | 9×22mm |
Connection Type | belt |
Max. spindle speed | 6000 rpm |
Spindle taper | BT50 |
Main motor power | 15KW |
Positioning accuracy(JIS standard) | ±0.005/300mm |
Repeat positioning accuracy(JIS standard) | ±0.003mm |
Machine weight | Approx 38000Kg |
Overall dimension | Approx 8500×3000×3400mm |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

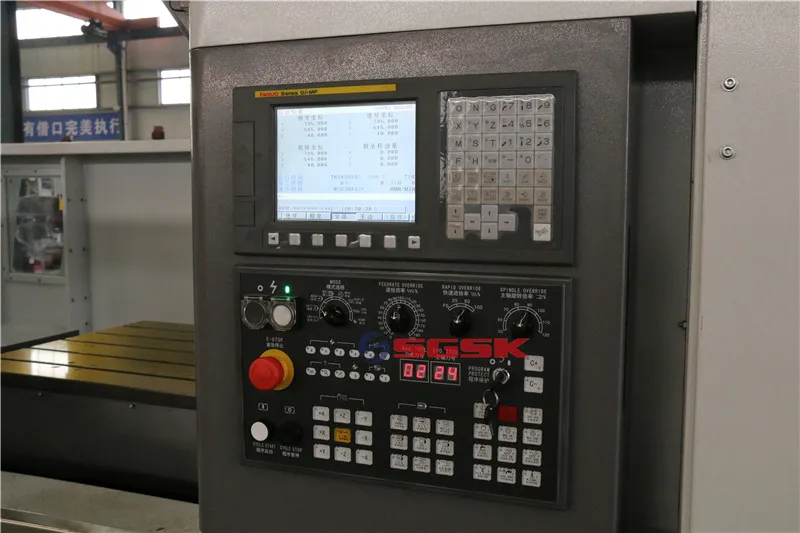

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
