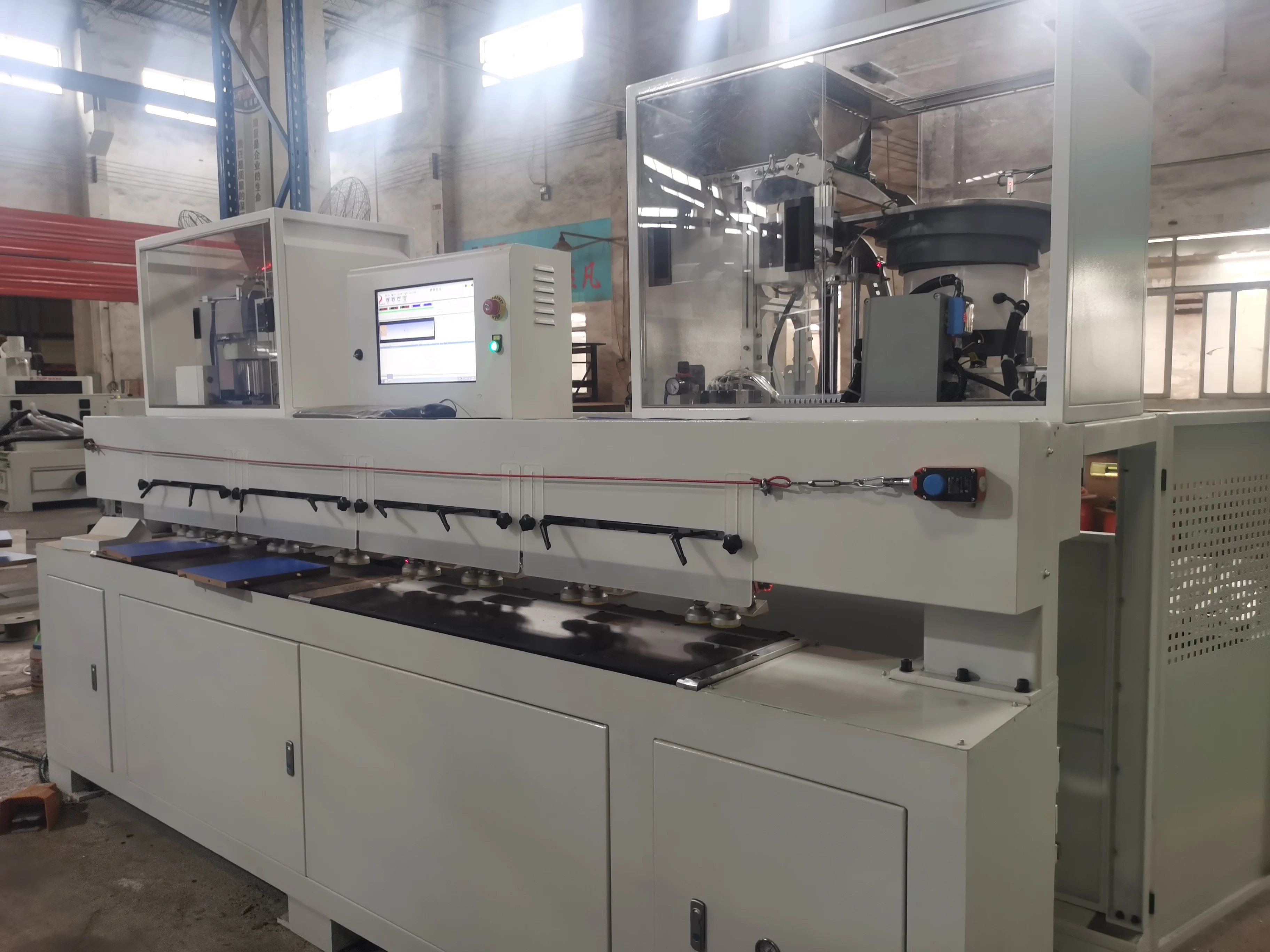

Woodwonewng Drilling Machine Bore and Dowel Machine Insert Dowel CNC 1 Spindle Drilling Holes Alternator Customized Cabinet 1650
- Category: >>>
- Supplier: Qingdao High-Class Service Import & Export Co. Ltd.
Share on (1600465760243):
Product Overview
Description
Product Description
Product Parameter

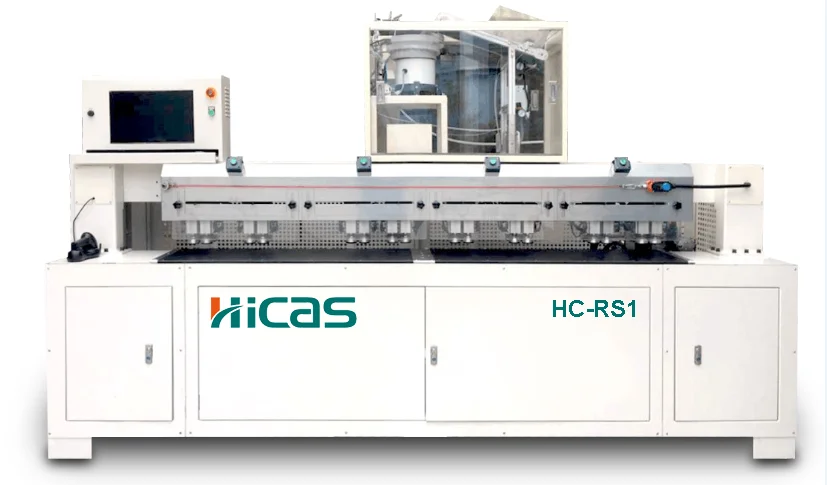

Model | HC-RS1 | HC-RS2 | |
Spindle motor & QTY | 1.5kw*1pcs (Air cooling motor) | 1.5kw*2pcs (Air cooling motor) | |
Feeding system | One unit | Two units | |
Overall dimension | 3462*1133*2015MM | 3462*1133*2015MM | |
Weight | 1650kg | 1780kg | |
Travelling | 2420*30*30MM | ||

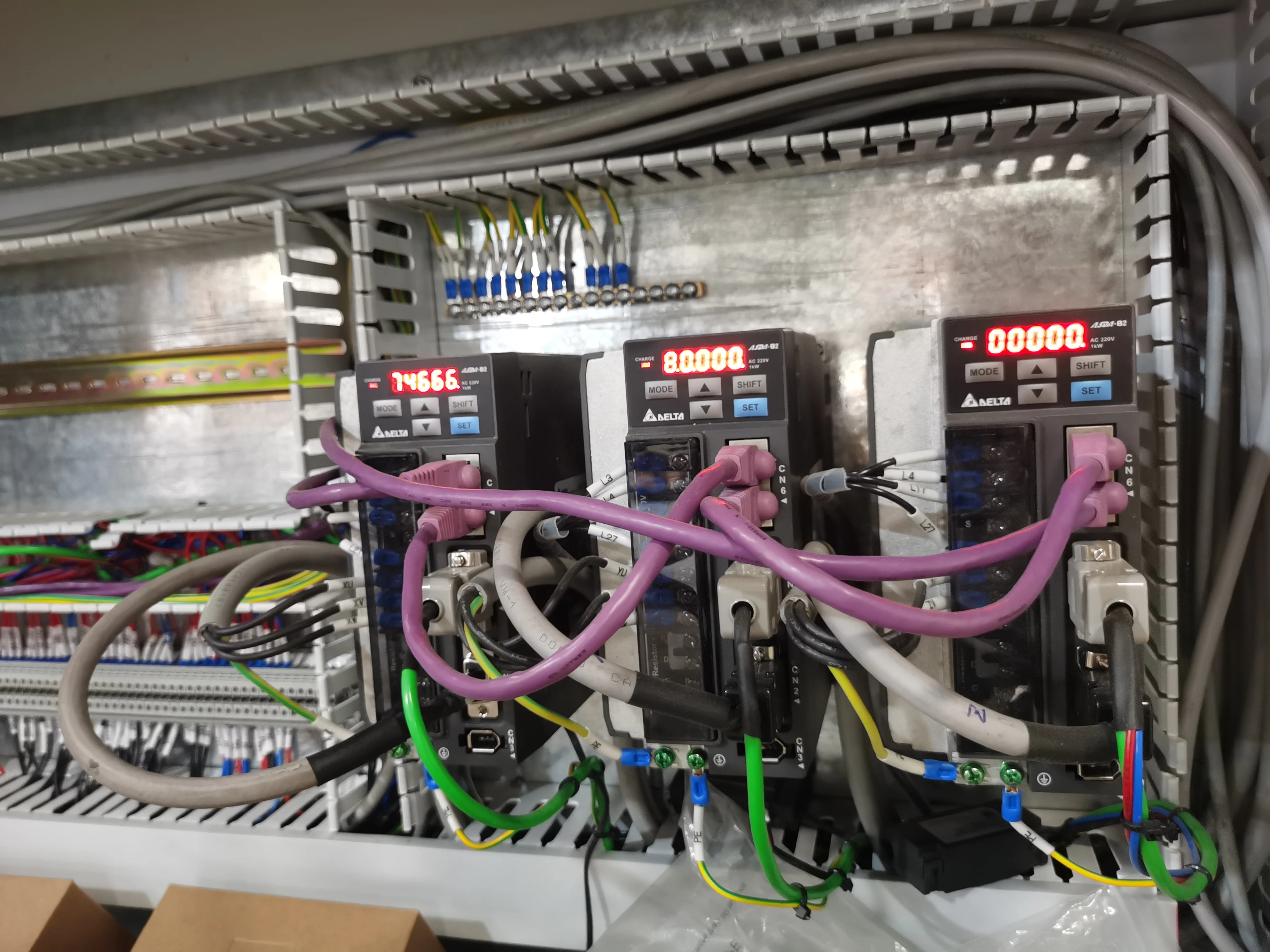

driving system | Servo driver,servo motor | ||
Frequency converter | 1.5kw | ||
Spindle speed | 0-2400rpm. Adjusted by VFD Knob control | ||
X speed & stroke | 40m/min , 2440mm | ||
Y speed & stroke | 10m/min , 80mm | ||
Z speed & stroke | 10m/min , 50mm | ||
Capacity of insertion | 60 insertion /min | ||
Max drilling depth | 50mm | ||
Max dowel insertion depth | 40mm | ||
Cutter shaft diameter | Φ3.175-Φ8MM | ||
Code scanner | Wireless scanning & code reading | ||
operating system | Control system (including computer) | ||
Guide | Taiwan guide rail | ||
Operation instruction | RCN | ||
Standard Voltage | 380V 50Hz 3Ph(can be customized) | ||
Function introduction

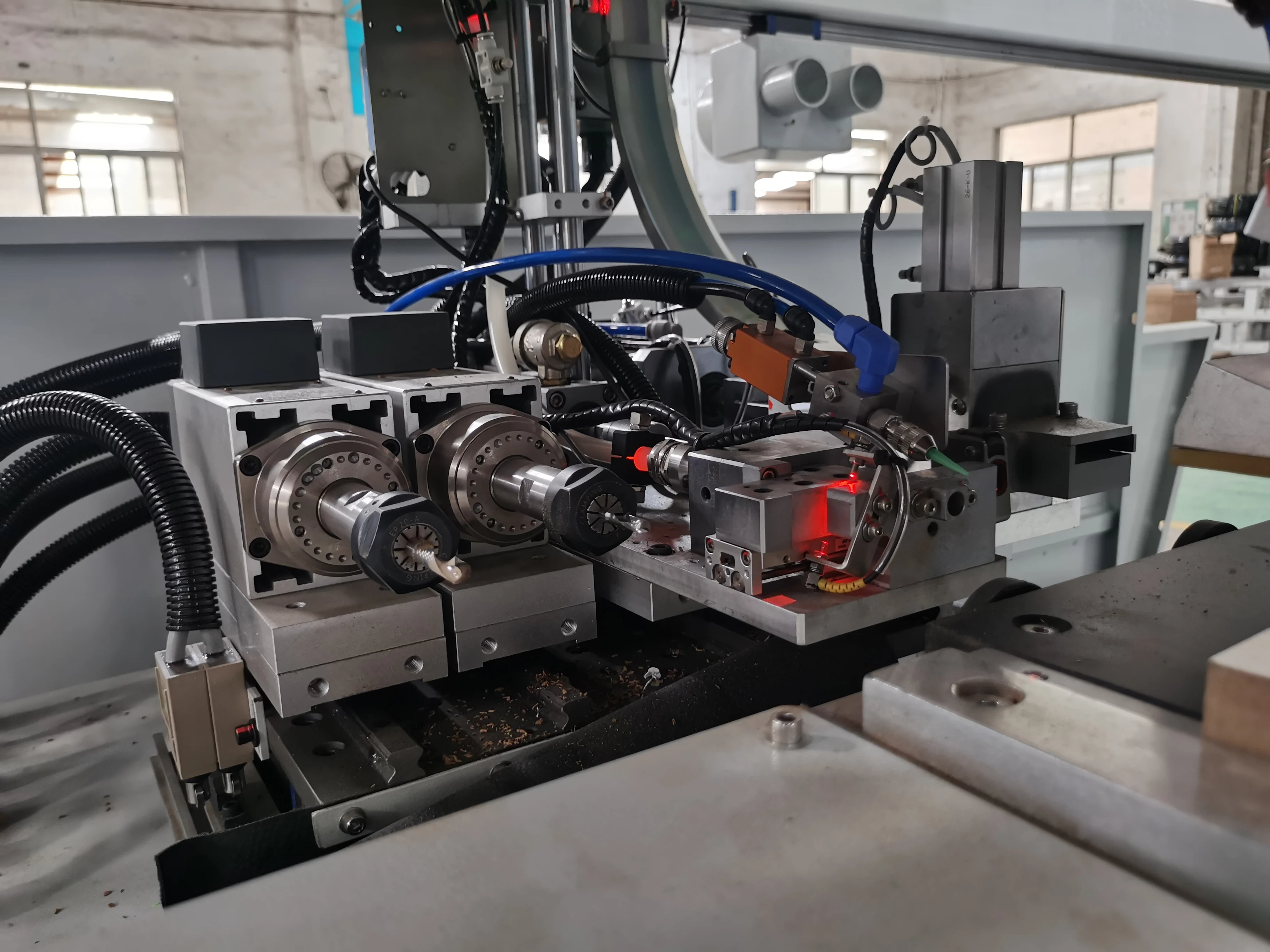

This is made for the automatic board side processing machining center, integrated side drilling, milling slot, doweling (auxiliary automatic glue), it supports the processing of bar code scanning import and manual import.

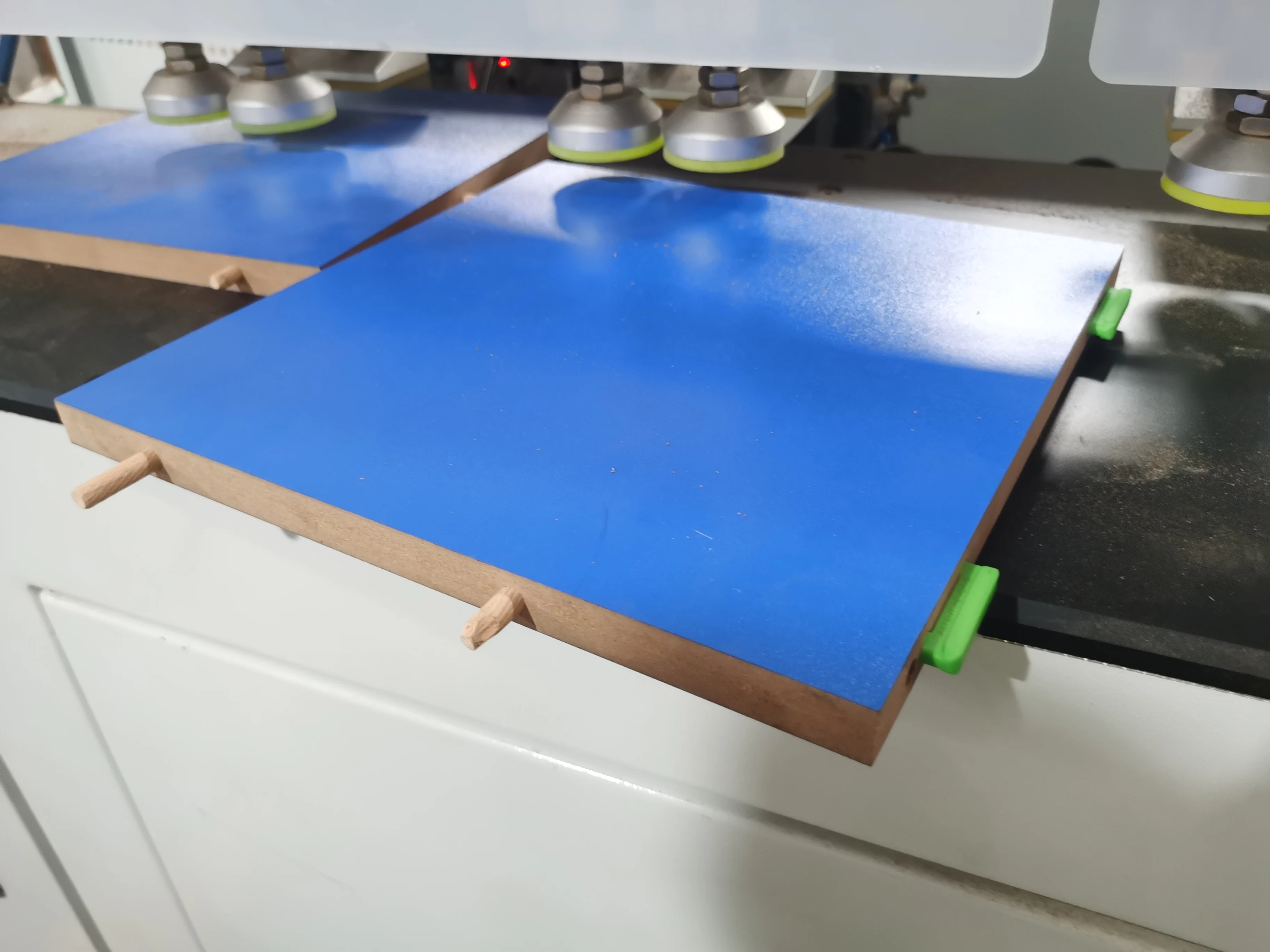

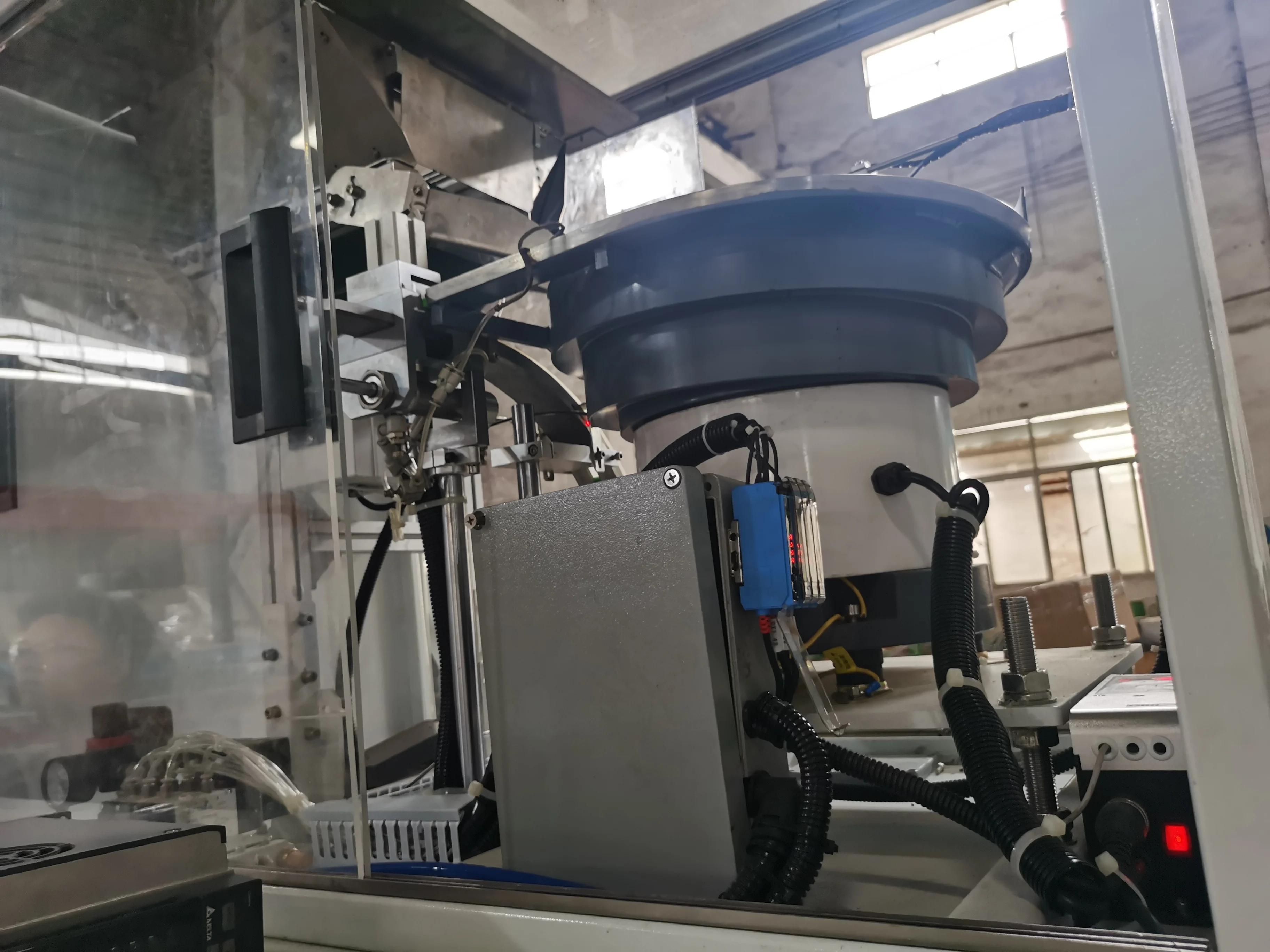

1.Dowels automatic indentation

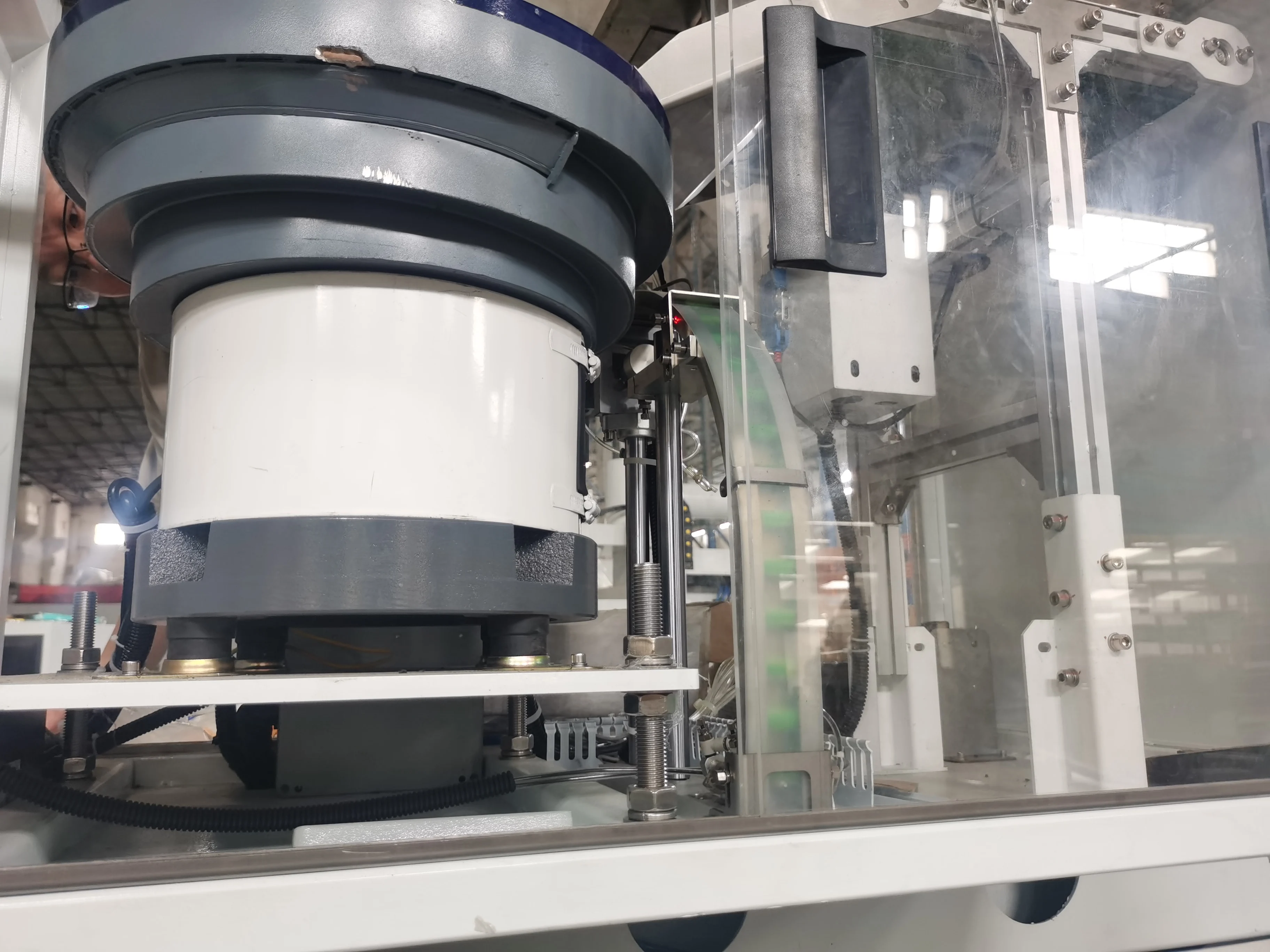

Precision wood glue into the pressure, to ensure that the pin fastening; high-speed nail into the shock plate for rapid feeding, free waiting; auxiliary silo automatic feeding, to solve the frequent artificial feeding troubles
2.One click glue gun cleaner
One click, easy to achieve the glue gun move to the designated location of automatic cleaning.
3.Multi-work processing
According to the length of the plate,up to four processing areas can be independently processed to reduce processing waiting
4.Reliable positioning precision
There's 3 stop device at the left,middle,right of X-axis direction,Y axis direction positioning wheel and correlation fiber positioning,clamping cylinder press in the Z-axis direction.

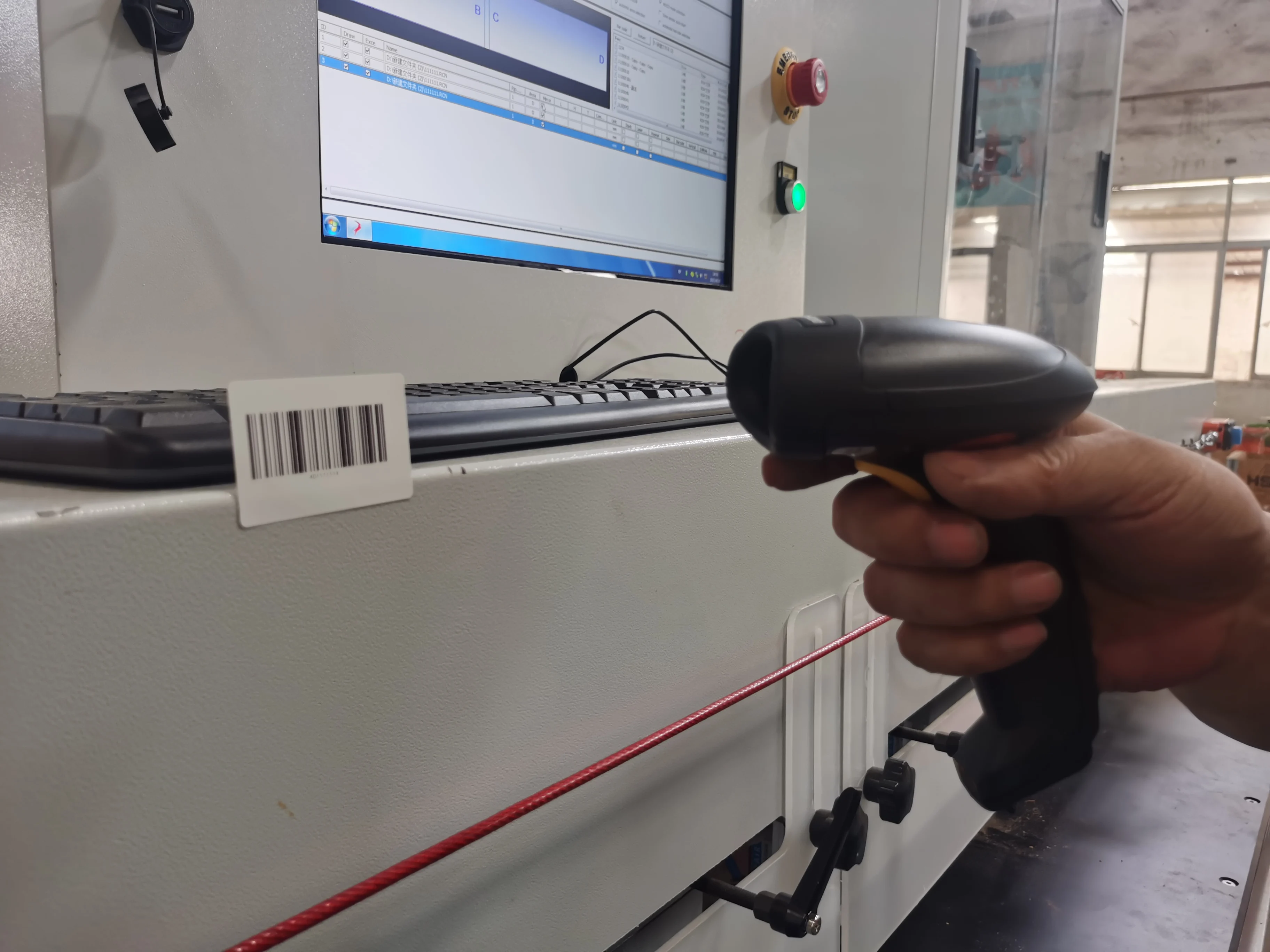

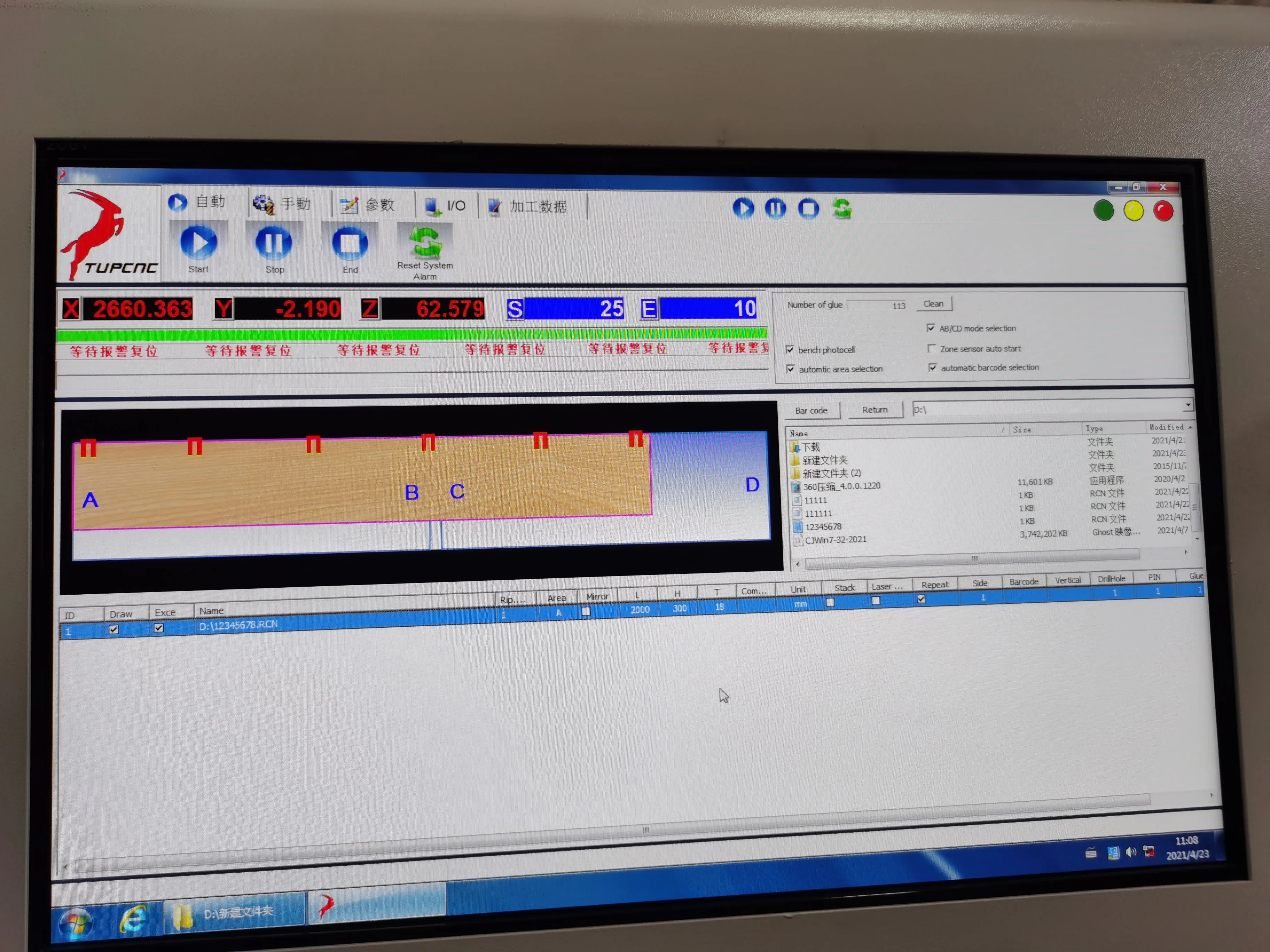

5.Processing file is loaded by code scanned
Through the scanning gun to load the file quickly, serial communication to ensure reliable and efficient data transmission

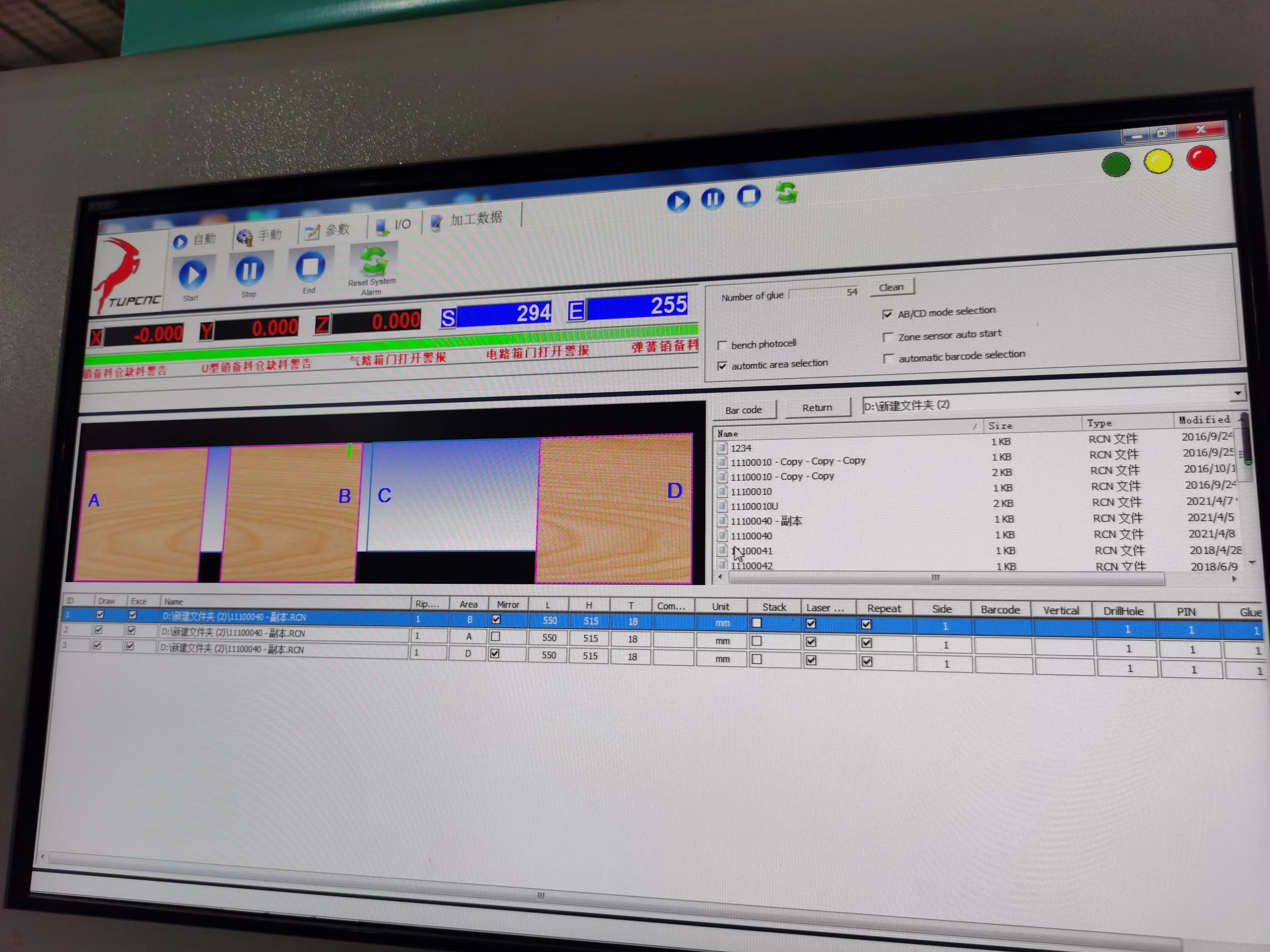

6.Easy to edit processing
documents Processing documents using plain text numerical editing, simple and easy to operate. 7.Security
documents Processing documents using plain text numerical editing, simple and easy to operate. 7.Security
Emergency Stop Switch,pull switch,threshold switch.

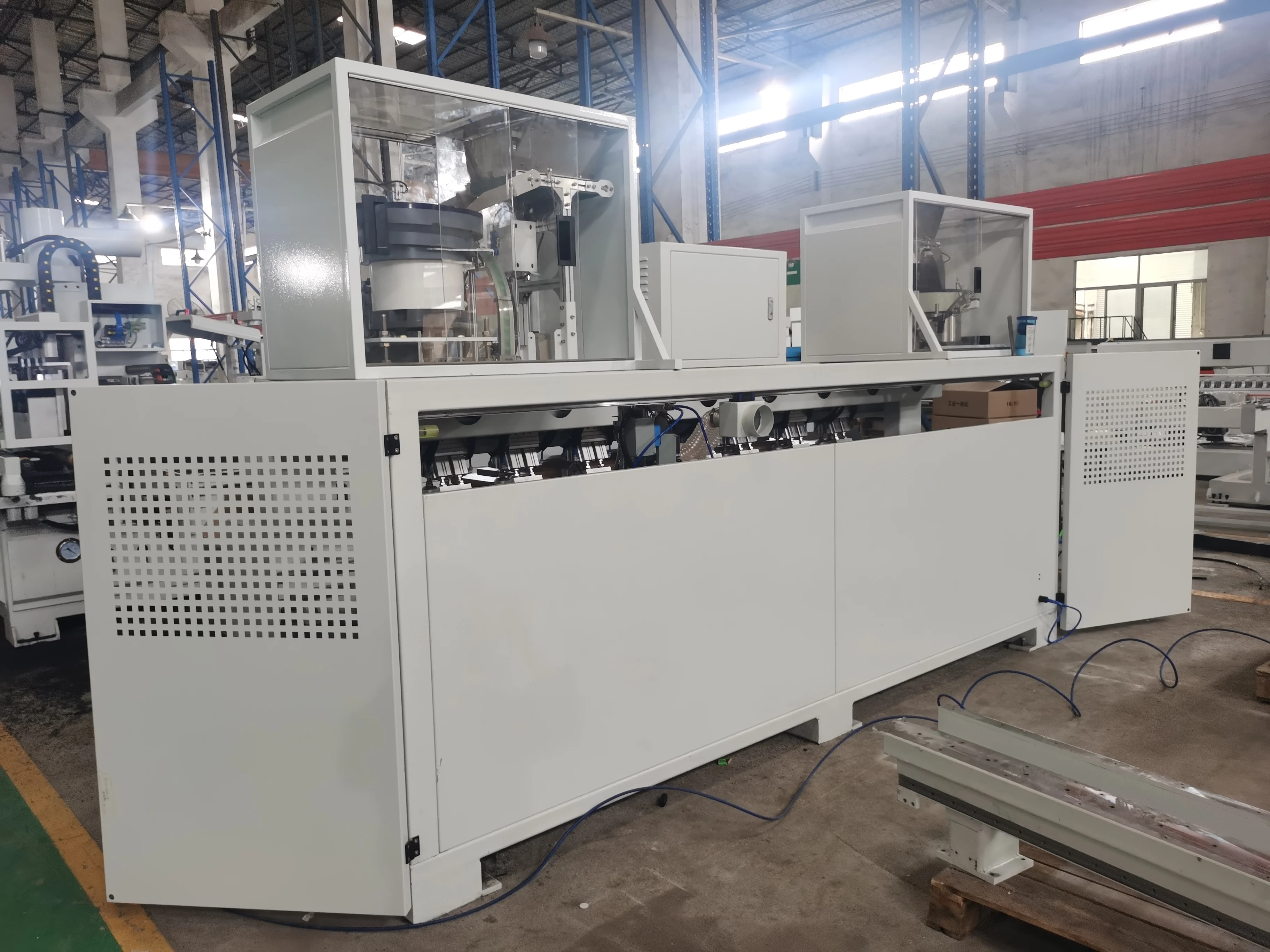

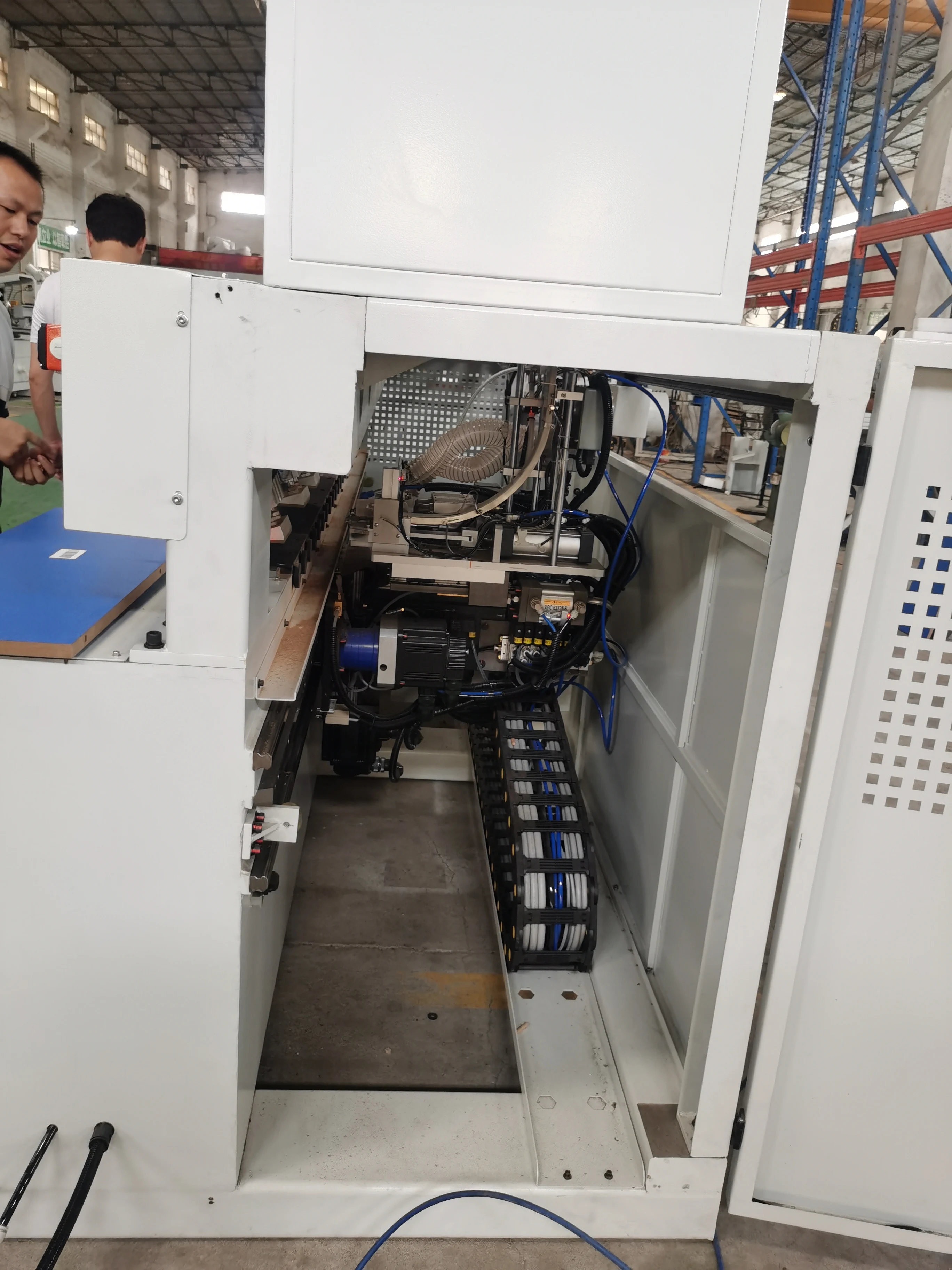

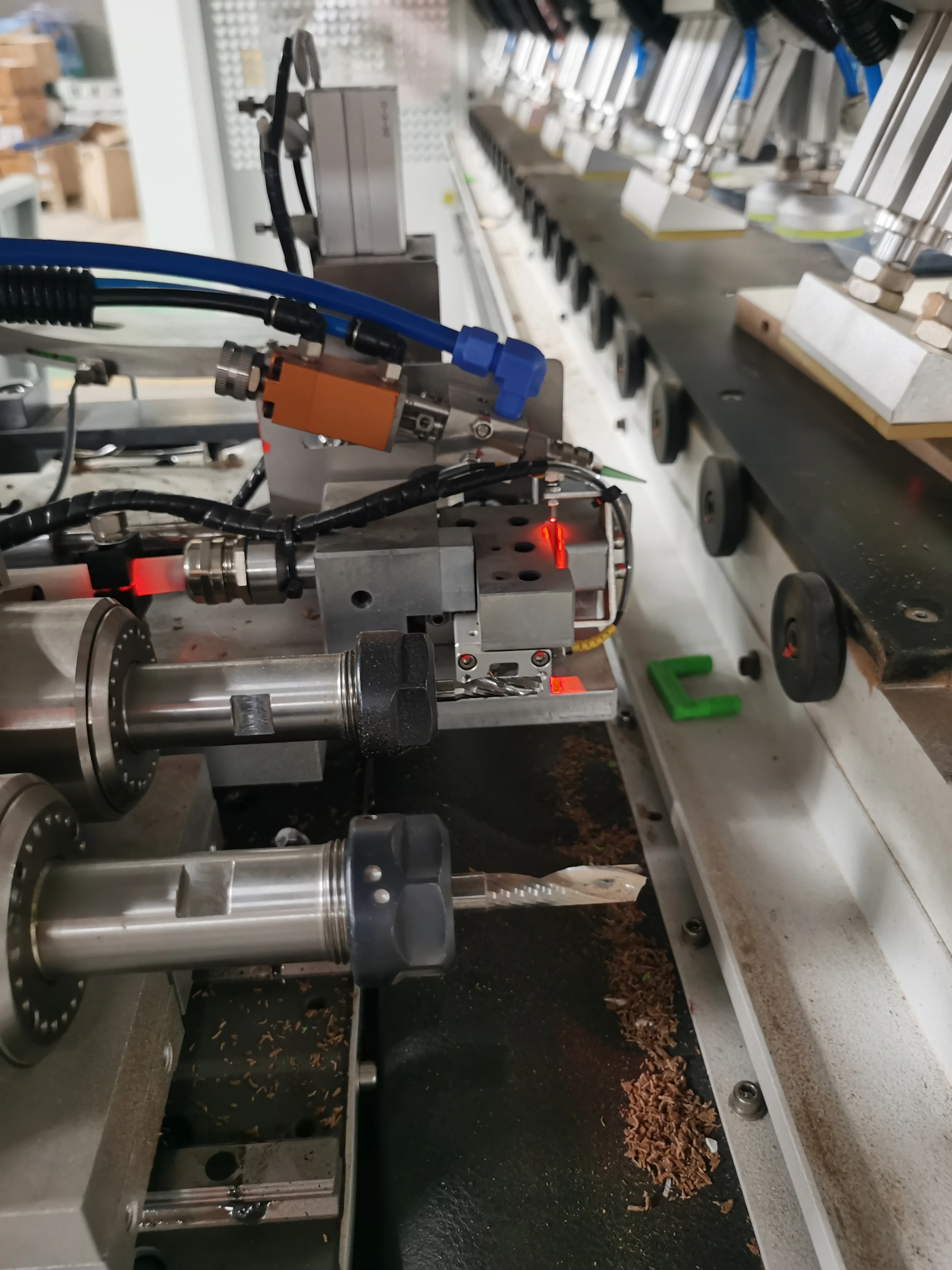

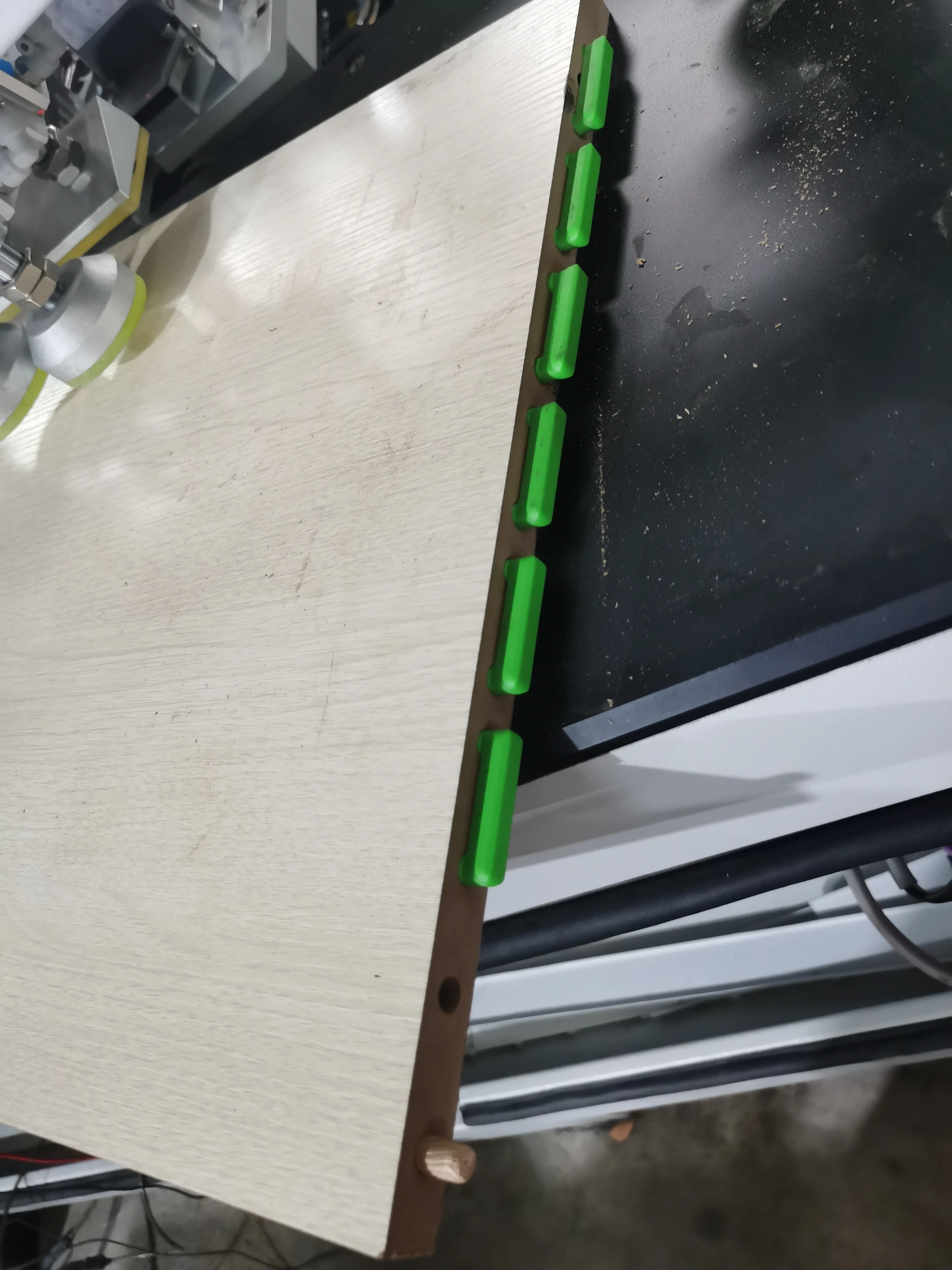

Details Images

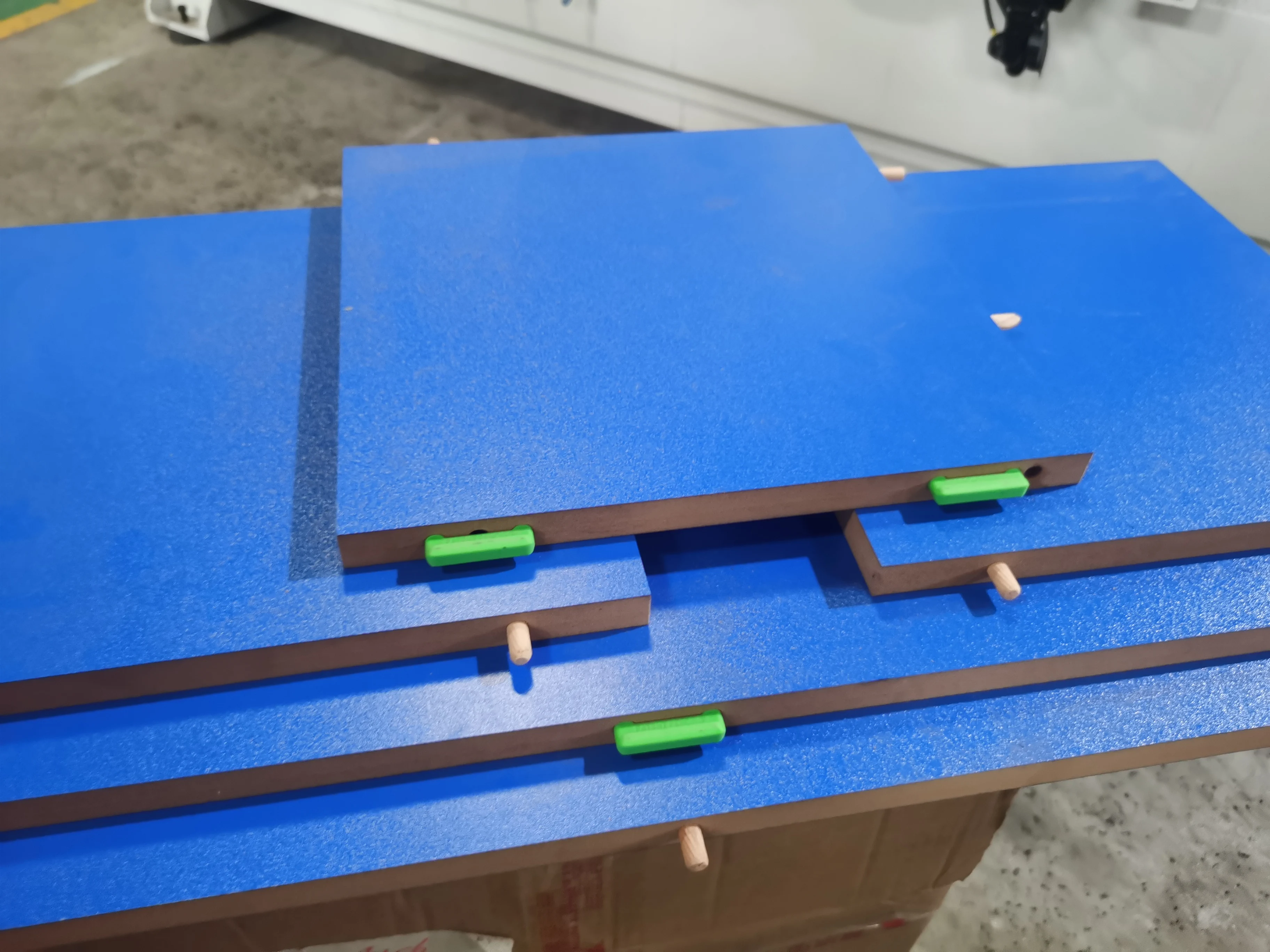

Final Application
Company Profile
VR
Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.

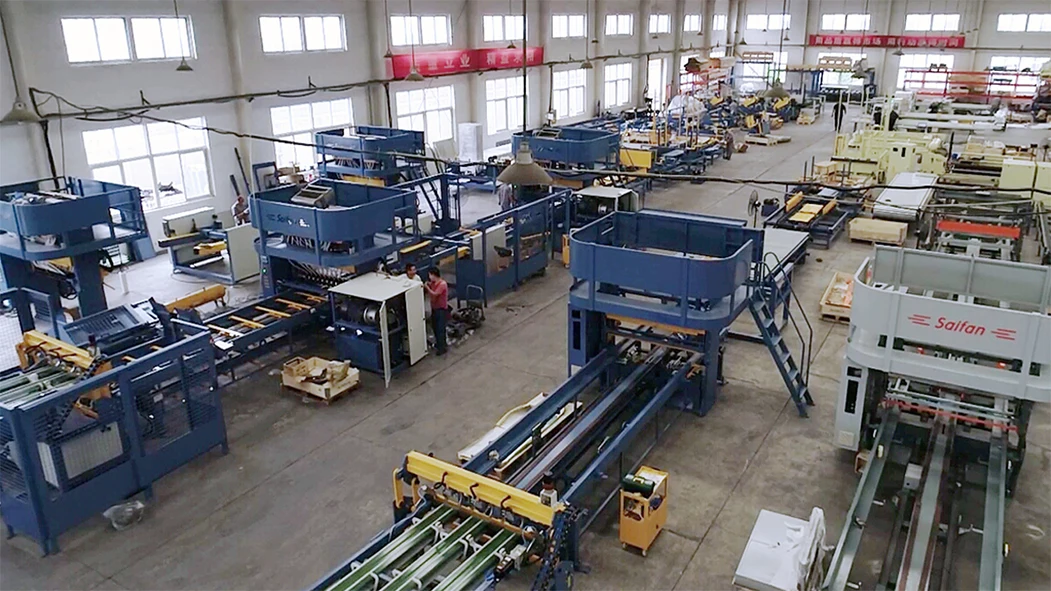

HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback

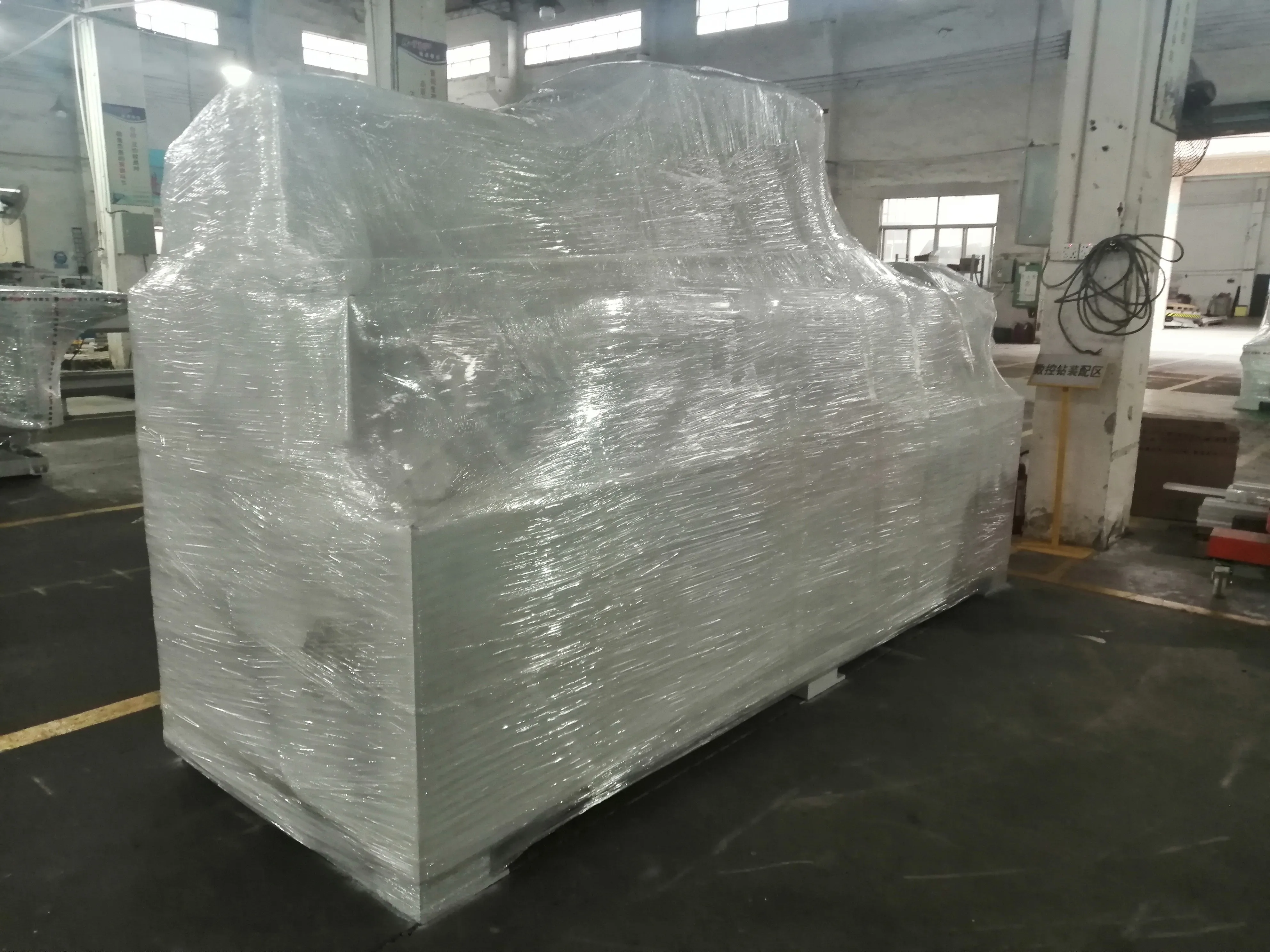

Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you offer installation?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
