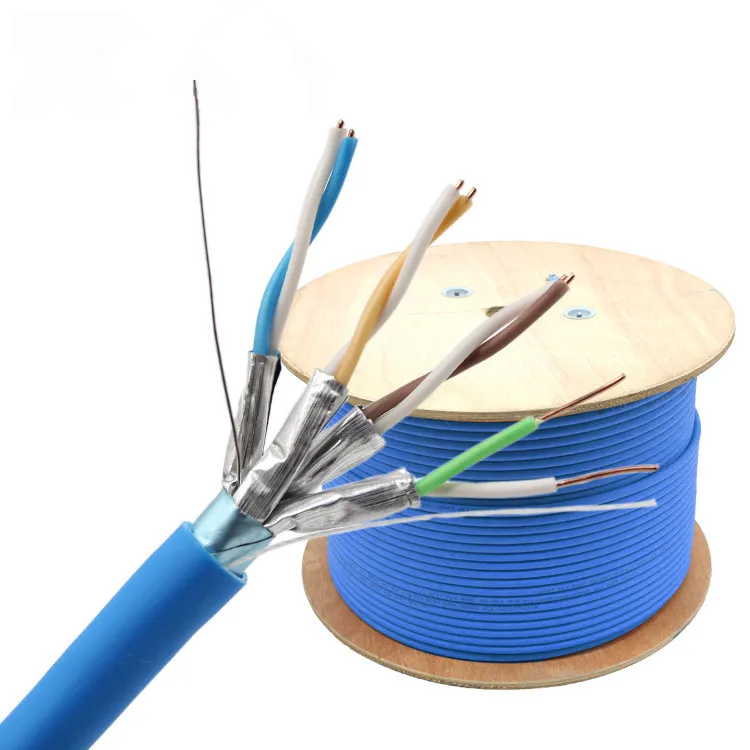

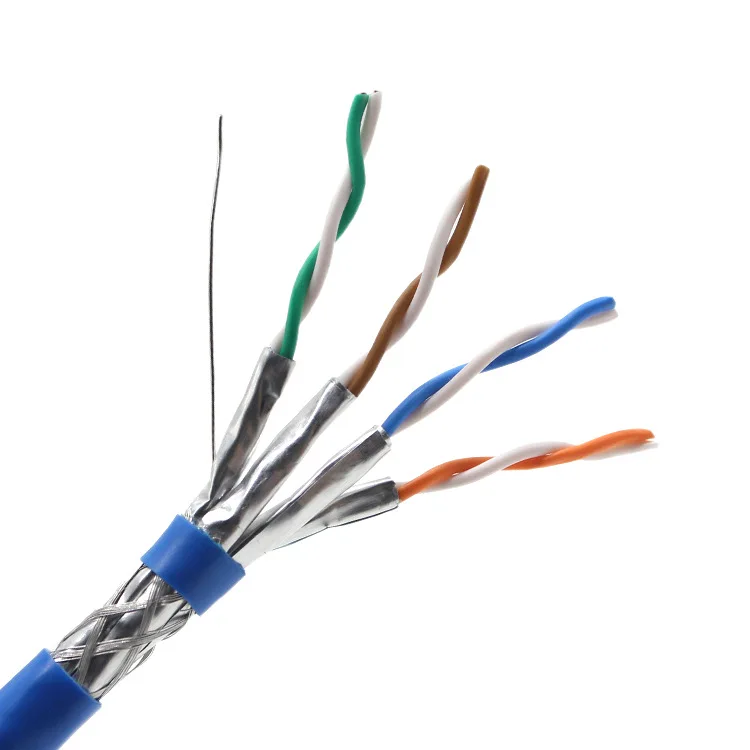

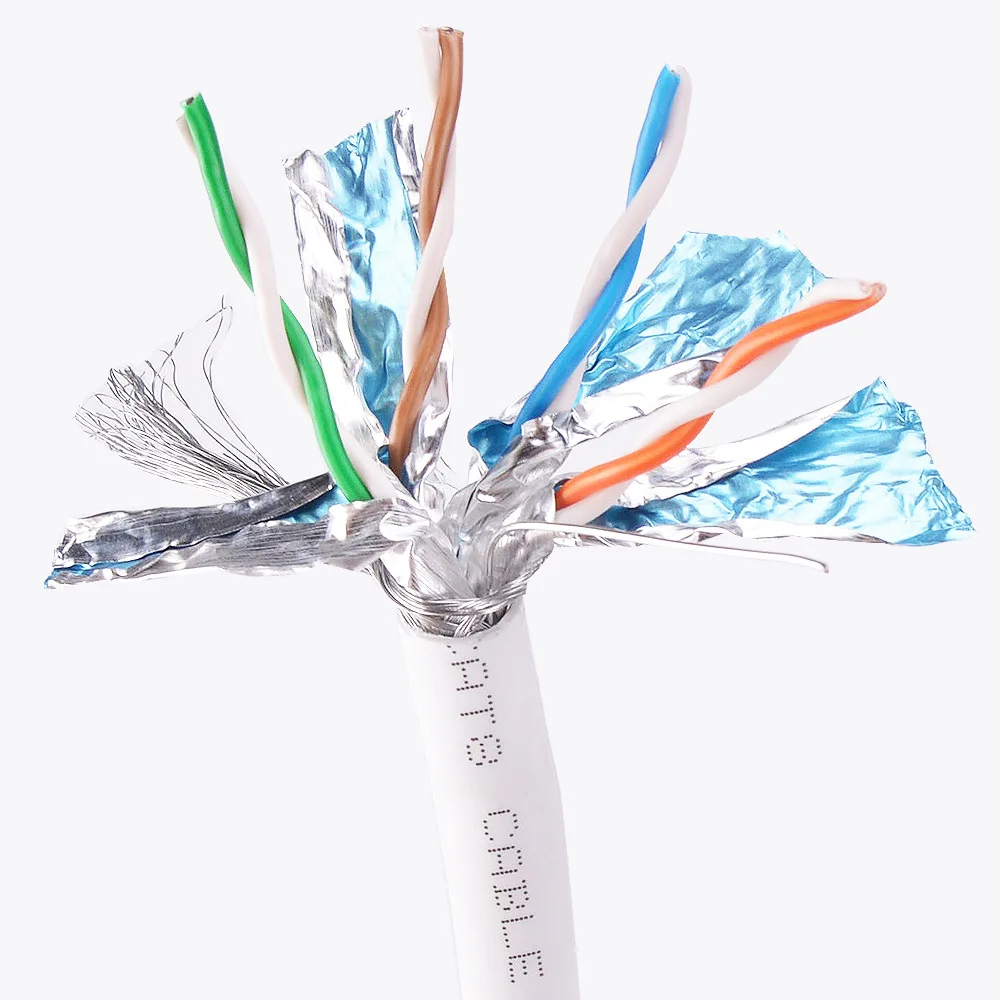

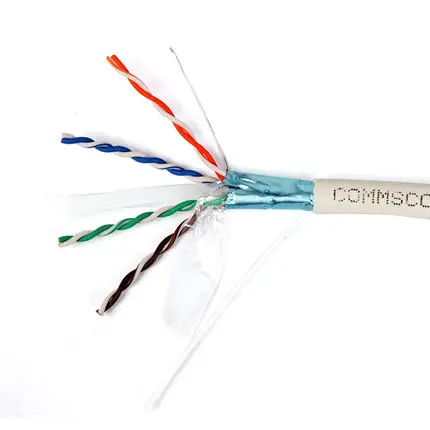

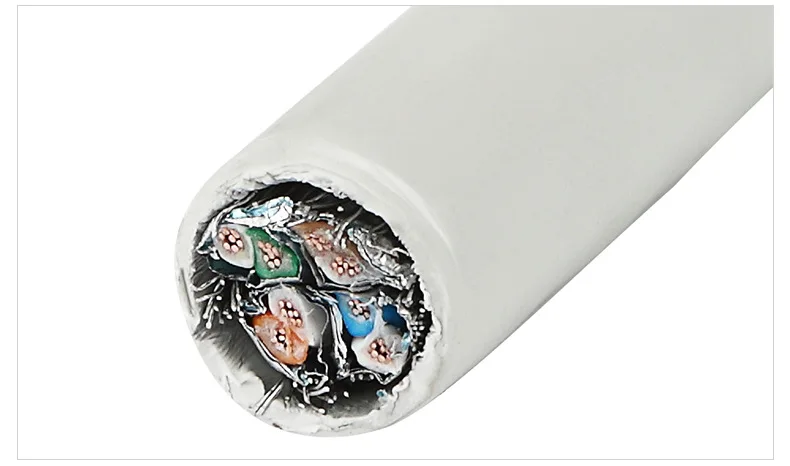

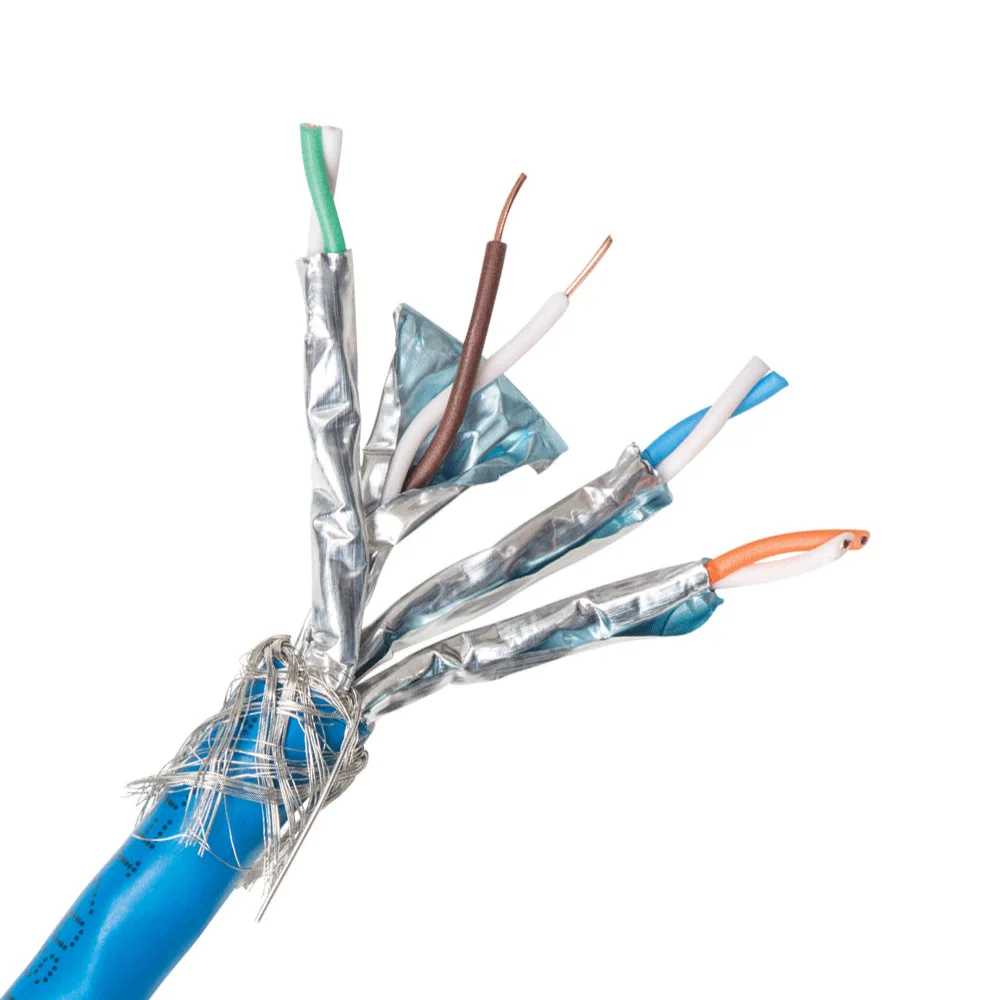

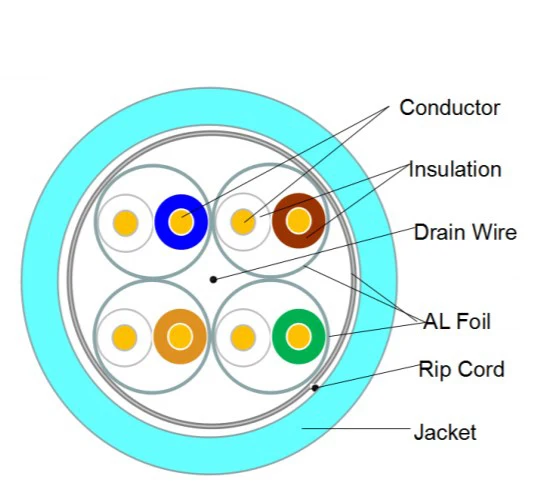

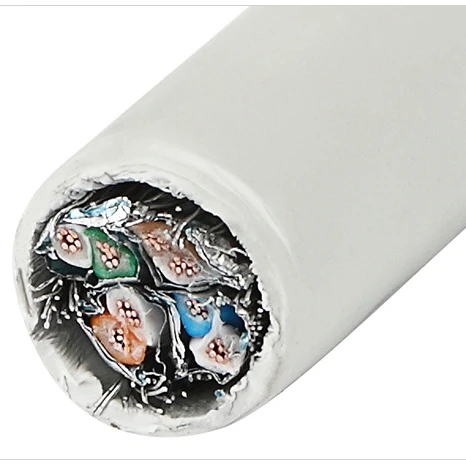

Category 6A F/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet. The cable consists of four individually screened pairs, drain wire and additional outer foil to provide excellent NEXT and alien crosstalk performance. The sheath is a low smoke zero halogen (LSZH) material
Standards:
ISO/IEC 11801;EN 50173-1, ANSI/TIA 568-C Category 6A, IEEE802.3an 10-Gigabit Ethernet
| DC Resistance | < 9.38 Ω /100 m |
| Conductor | Solid - Bare copper wire (AWG 23) |
| Drain Wire | Tinned copper |
| Insulation Material | Skin-foam-skin PE Ø 1.45 mm |
| Insulation Diameter | 1.330 +/- 0.05mm |
| Screening Material | Alu / Mylar |
| Sheath Thickness | 0.65+/-0.1mm |
| Sheath External OD | 7.6 +/- 0.5mm |
| Sheath Surface | Clean |







ZhengZhou SITONG Cable Co.LTD is founded in 2011 and it is the factory of trading company named ZhengZhou SANHE Cable Co.LTD who founded in 2008.
SITONG CABLE is one of the most professional manufacturers in wire & cable industry in china,
We specialize in producing and exporting all kinds of wires and cables ,
We have advanced tech-staff and advanced equipment .
Since we were founded , We have been built favorabale business relationships with many customers from different markets all over the world,Such as Middle East,Africa,Europe,South America,Austrilia and so on
1.Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM /ODM
2.Own Factory: Reliable source of raw materials,we can offer you the factory price.
3.Free sample: Free Sample to provide ,but the sample freight must be paied by customers;
4.Speed Delivery: 15-30 days,Professional transport team.
5.All type test: Professional technical equipment ensure the high quality.
