Factory direct supply graphite heat exchanger for Acid alkali corrosive media heat
Specification
Range of Application
With extreme corrosive resistance to acid, alkali and other corrosive media as well as good thermal conductivity, graphite heat exchanger is widely used in organic and inorganic chemistry.
Graphite heat exchanger is mainly used in chemical processing, such as heating, cooling, condensing and absorbing. We can provide different design according to different medium. It could be identified as cylindrical blocks, cubic blocks, shell & tube, spray, immersion and other types based on different structures.
Graphite heat exchanger is mainly used in chemical processing, such as heating, cooling, condensing and absorbing. We can provide different design according to different medium. It could be identified as cylindrical blocks, cubic blocks, shell & tube, spray, immersion and other types based on different structures.
Performance features
* Medium for both tube side and shell side could be corrosive ones
* Different medium is allowed by choosing different impregnation resin
* Good thermal conductivity and expansion coefficient
* Heat exchange area could be designed above 1500m2
* Abrasive resistance could be obtained by surface treatment
* Venting is available for both process side and service side
* Convenient for installation, dismantling, cleaning and maintenance
* Standard modular design, larger surface area is available through adding more blocks or tubes
* Reasonable stocks enable us to dispatch spare parts to customers in time
* Different medium is allowed by choosing different impregnation resin
* Good thermal conductivity and expansion coefficient
* Heat exchange area could be designed above 1500m2
* Abrasive resistance could be obtained by surface treatment
* Venting is available for both process side and service side
* Convenient for installation, dismantling, cleaning and maintenance
* Standard modular design, larger surface area is available through adding more blocks or tubes
* Reasonable stocks enable us to dispatch spare parts to customers in time
Structure Features
It’s mainly used to medium’s cooling condensation,heating and evaporation.

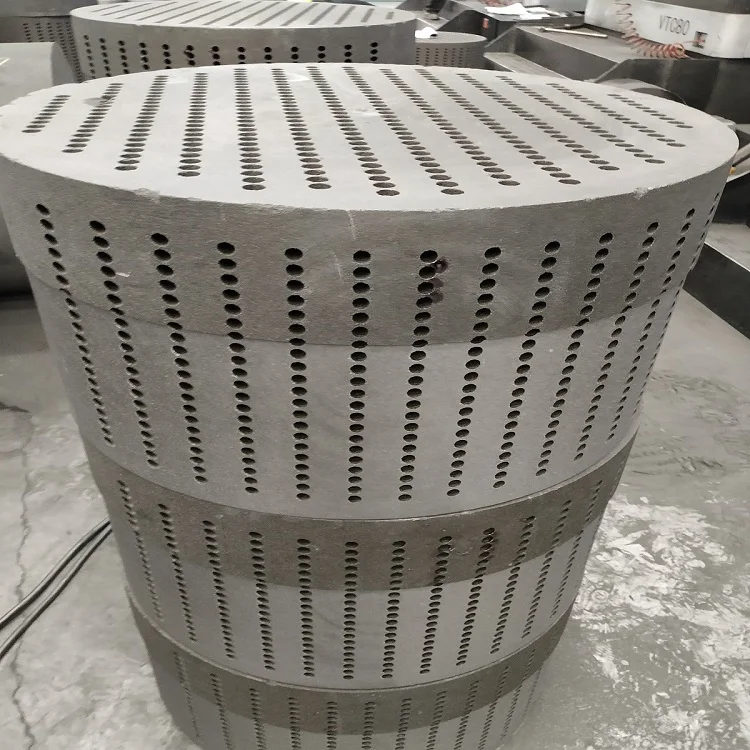

It is composed of some round blocks and top&bottom heads .Between each block is anti-corrosive gasket(O-ring PTFE rubber or PTFE gasket)

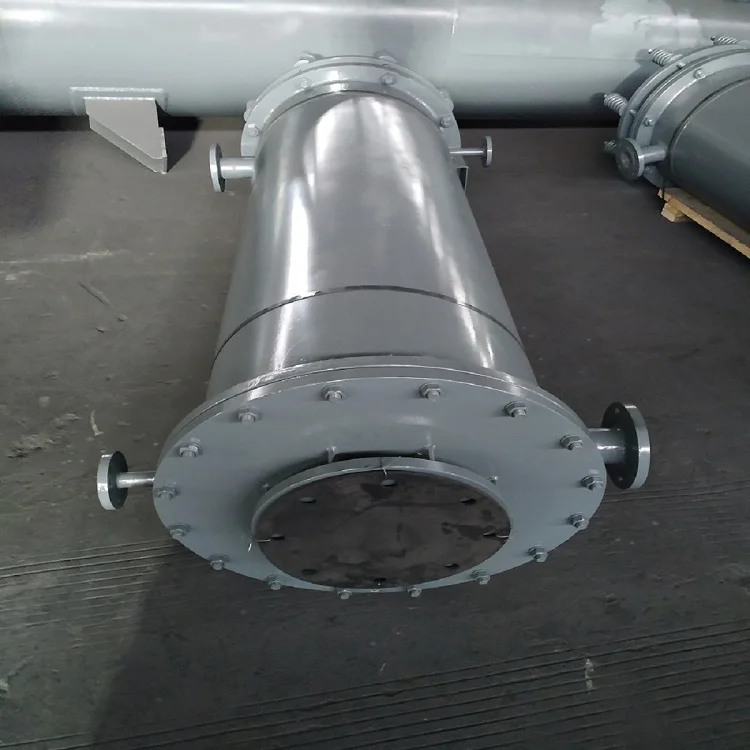

The metal shell and graphite head is sealed by O ring,which allows free slide between steel shell and graphite.Changes in length due to thermal expansion or contraction are compensated for by helical springs.

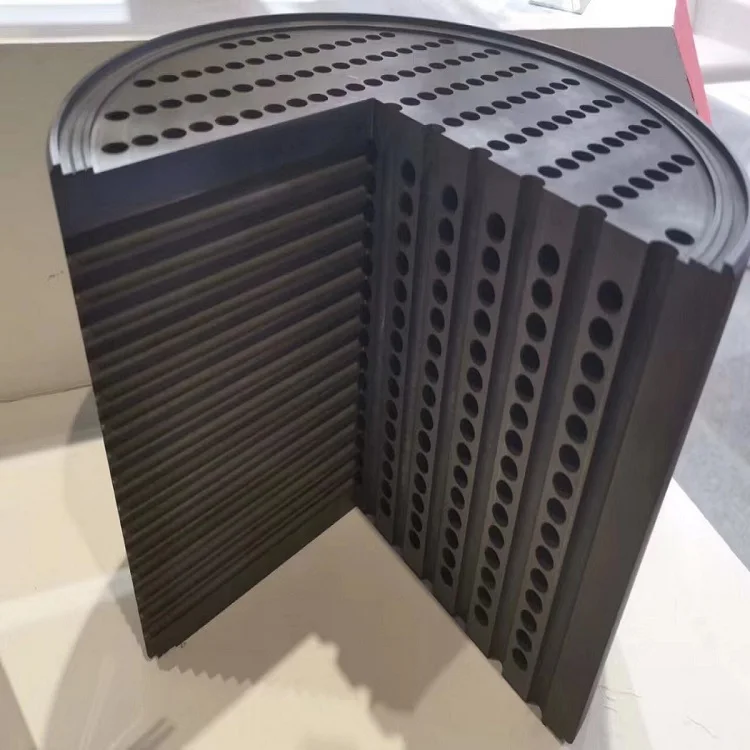

Axial direction and radical direction round hole passages are distributed in the heat exchanger.
If the medium in tube pass is corrosive medium,the steel shell must be painted or lined with an anti-corrosive layer.
When vapor medium is condensing, add one gas-liquid separator must be added on the bottom of equipment to separate gas and liquid.
The material of gas-liquid separator:graphite,steel lined or PTFE.Different separator can be chosen by different working condition.
It is composed of some round blocks and top&bottom heads .Between each block is anti-corrosive gasket(O-ring PTFE rubber or PTFE gasket)
The metal shell and graphite head is sealed by O ring,which allows free slide between steel shell and graphite.Changes in length due to thermal expansion or contraction are compensated for by helical springs.
Axial direction and radical direction round hole passages are distributed in the heat exchanger.
If the medium in tube pass is corrosive medium,the steel shell must be painted or lined with an anti-corrosive layer.
When vapor medium is condensing, add one gas-liquid separator must be added on the bottom of equipment to separate gas and liquid.
The material of gas-liquid separator:graphite,steel lined or PTFE.Different separator can be chosen by different working condition.
Technical Characteristic
Name | Process side | Service side | |
Operating pressure | -0.1~1.0MPa | -0.1~1.0Mpa | |
Max operating Temp. | 220℃ | 220℃ | |
Medium | corrosive medium | Water,Steam,Conduction Oil | |
Heating exchange area | 2~1000m2 | ||
Hole diameter | 10,12,16,18,20 or larger | ||

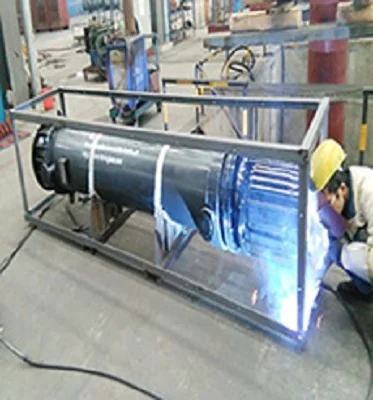

Packing & Delivery

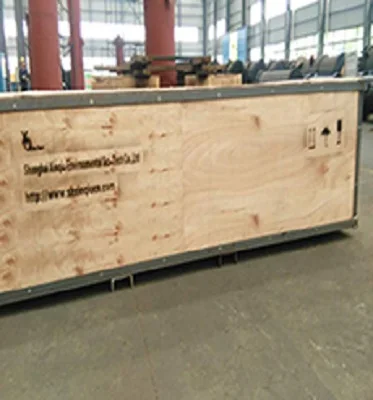

Steel and standard export wood case. All the equipment could delivery by ship ro airplane as customer's wish.
Company Profile
About us

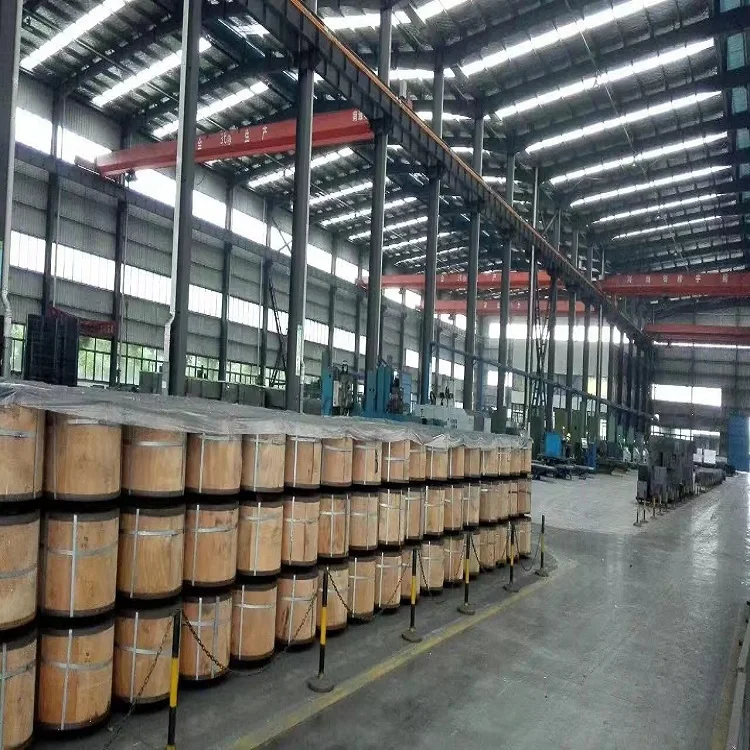

Shanghai Xinqiu Environmental Sci-tech Co.,Ltd, was established in Shanghai and our factories located in Jiangsu and Anhui two provinces covering land area of 268000 square meters. Our main service range,
