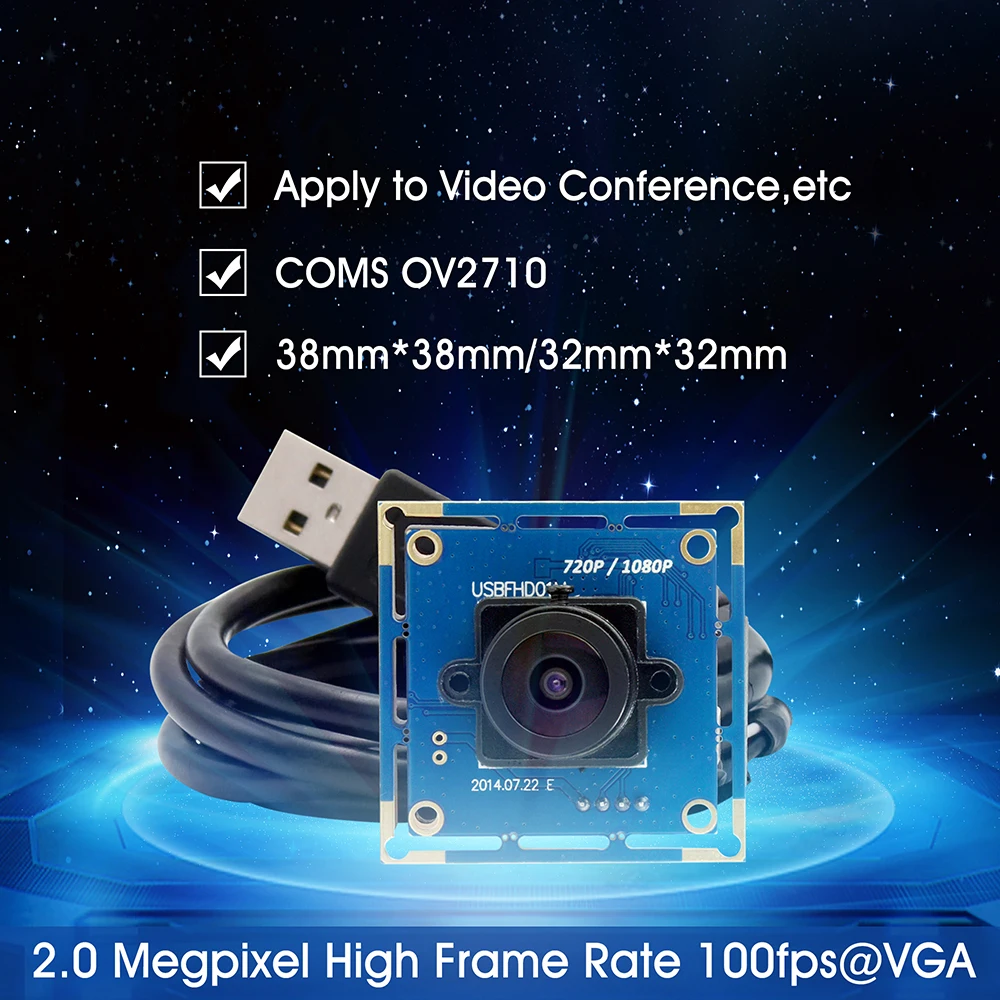

ELP 2MP 1080P USB Camera Module 100 Degree No Distortion Lens OV2710 Sensor USB2.0 Webcam Board
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600465790105):
Product Overview
Description

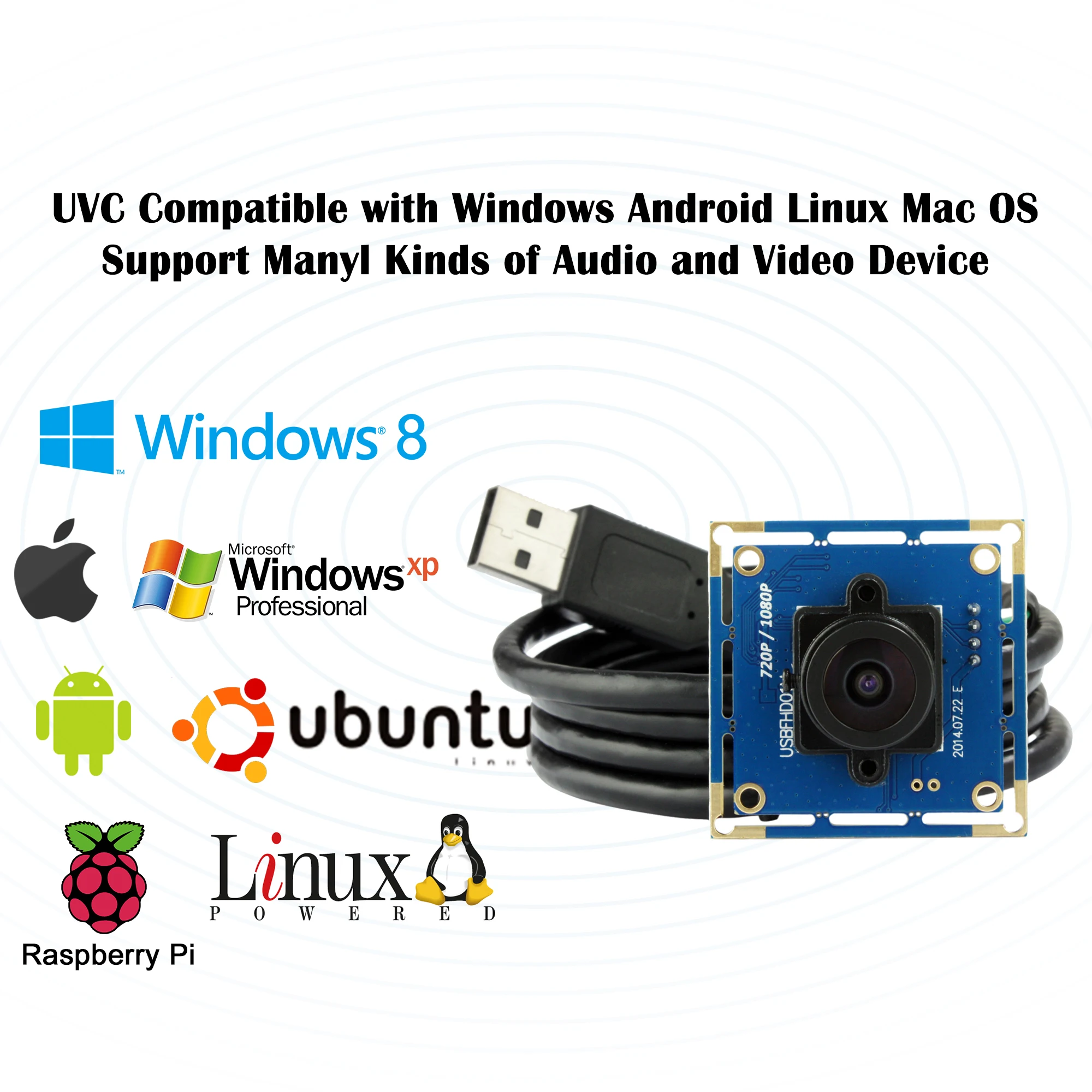

1080P USB Camera Module 100 Degree No Distortion Lens Mini UVC USB2.0 Webcam Board For Windows Linux Android and Mac OS
Key Features
*High Speed1080PHD USB Camera*Equiped with 100 degree no distortion lens

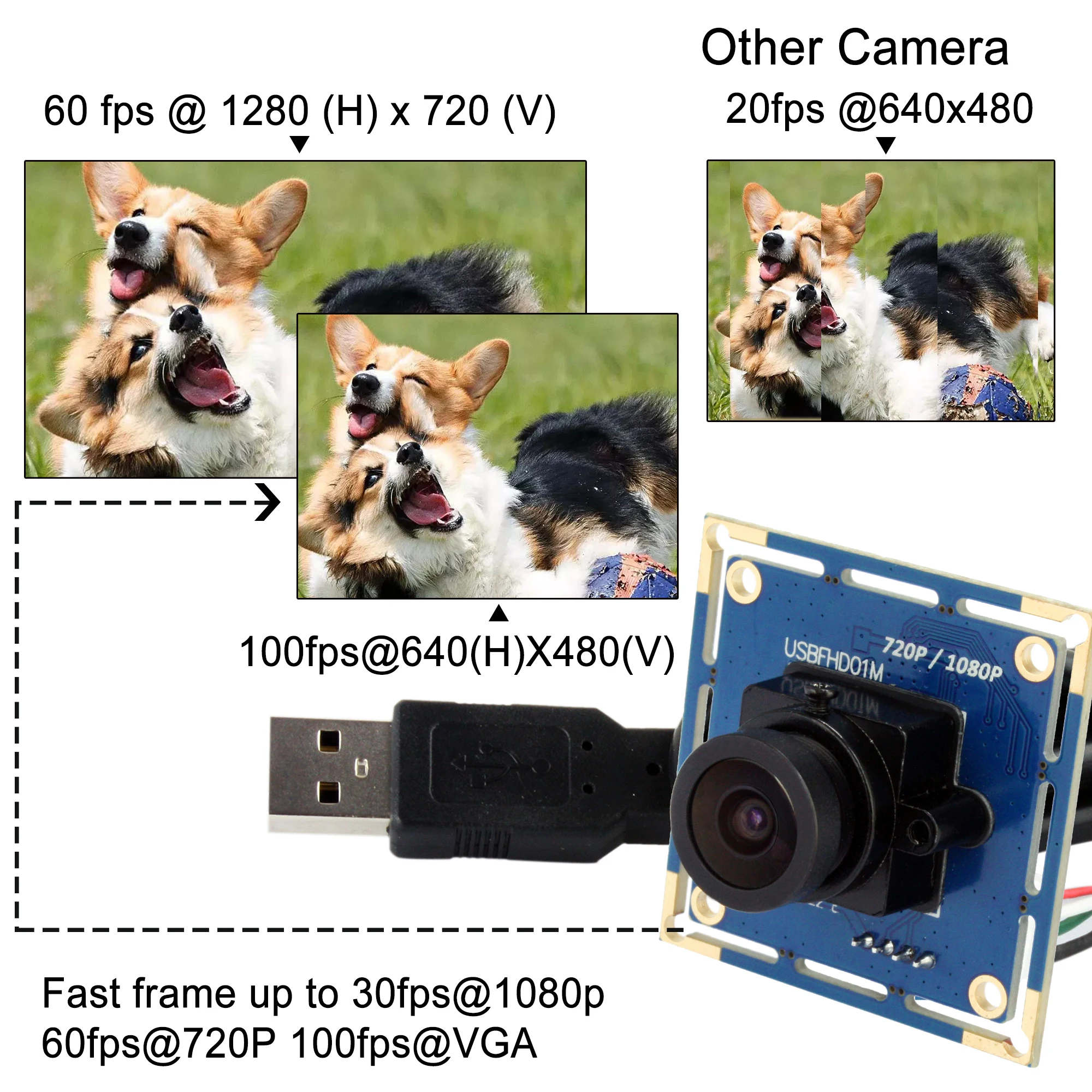

*Can drive 30fps@1080P and 60fps@720p, 100fps @ 480P
*CMOS OV2710 1080P sensor for high qualitysharp image .
*High speedUSB 2.0 interfacefor high resolution PC camera interface.
*Super small outline 38*38mm/32*32mm and thin profile for embedded applications
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use inLinux, Windows XP, WIN CE, MAC, SP2 or above.
Specification
Optional models | ELP-USBFHD01M-H100 |
Sensor | 1/2.7" CMOS OV2710 |
Lens size | 200W, 2.0megapixel, 1920(H)x1080(V)pixels |
Max. Resolution | 1920X1080 |
Picture format | MJPEG /YUY2 |
USB Protocal | USB2.0 HS/FS, USB1.1 FS |
Support free driver | USB Video Class(UVC)1.1 |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 100fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps |
Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
Night vision | optional |
Lens | 120 degree no distortion lens |
voltage | DC 5V |
current | 150mA |
work temperature | DEGREES(-20~70) |
Size | 32x32mm/38*38mm |
Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC |
USB Cable | 1m cable default |
Details Images
Company Profile
Packing & Delivery
Packing
1. Camera module without case,
2PCS/ Box, 48 Boxes(96PCS)/Carton, Dimension:39x36x32cm
2.Camera with case:
1PCS/ Box, 48 Boxes (48PCS)/Carton, Dimension: 39x36x32cm
Delivery
We send goods to all over the world via experess: DHL ,UPS, Fedex, TNT, EMS ,etc.
We mainly use DHL, which 3-7 working days to arrive.
Air way bill is also available for us.
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

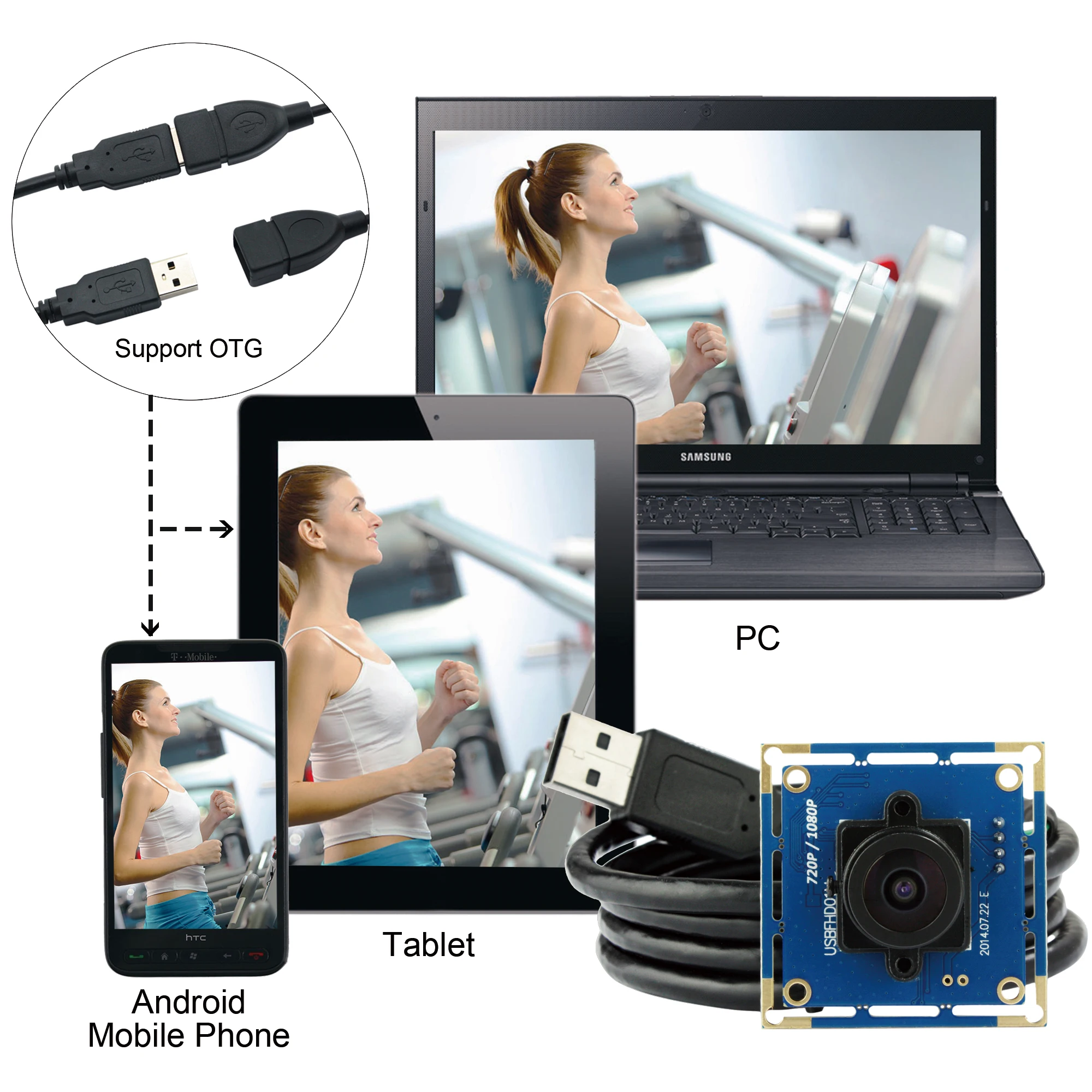

9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
