Minerals Microscope Prepared Slides Rock sample stone grinding slides thin section slides geography for teaching and studying
- Category: >>>
- Supplier: Henan Yulin Edu. Project Co. Ltd.
Share on (1600465815034):
Product Overview
Description

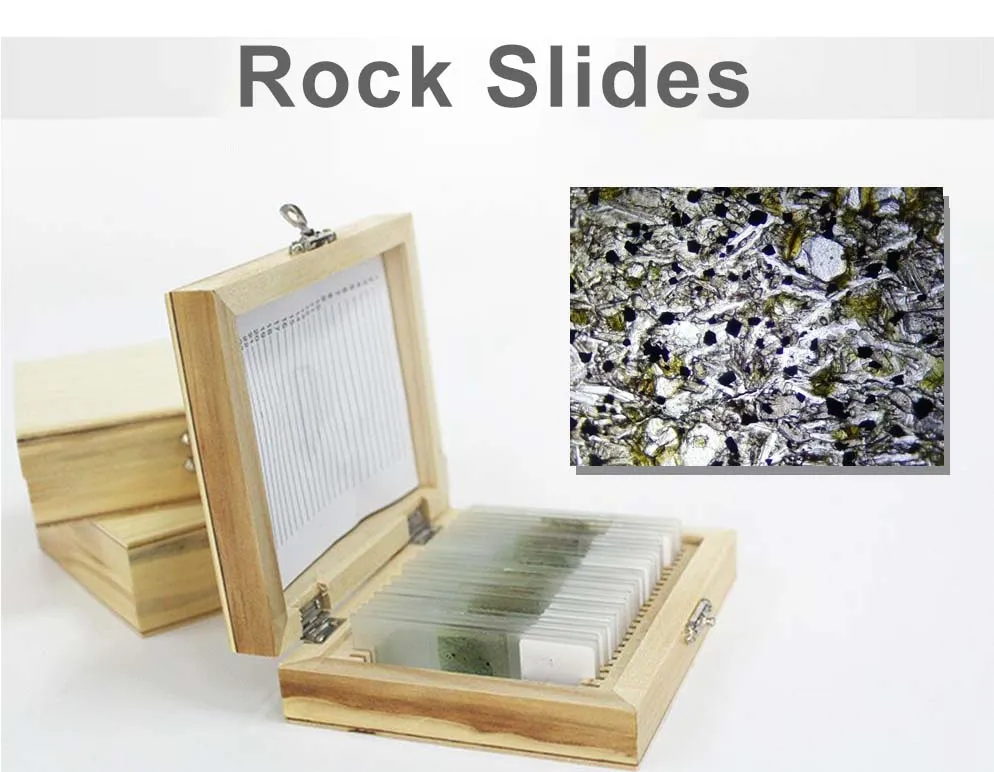

Rock Slides

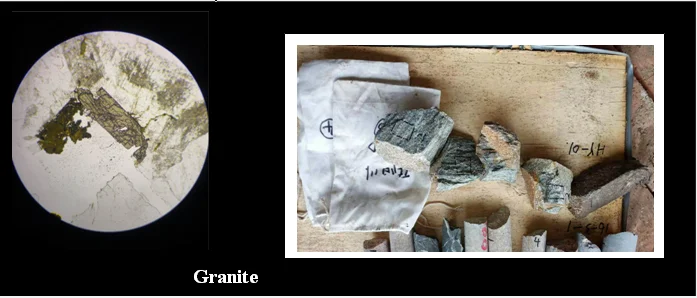

To see the rock under the Polarized light microscopy, it must first be “Thin”enough for light to penetrate the specimen, with a standard thickness of 30μm, or 0.003 cm. Because the speed of light passing through minerals varies with species, we can use the optical properties of minerals as an important basis for mineral identification.
Rock Thin Section Prepared Slides Microscope Mineral Stone Grinding Geography slides For studying and teaching
A: Cutting
The fresh and unweathered rock samples collected in the field were first selected, and then the diamond saw blades were cut to the proper size of the glass slides. Since diamonds are by far the hardest material, the laboratory saw blades and grinding plates are coated with diamonds in order to cut rock samples of varying hardness.
B: Grounding
C: Gluing
The finished sample is bonded to the ground glass with Epoxy Resin. Before gluing, the contact surface should be cleaned with alcohol, and no air bubbles between the sample and the glass should be formed during gluing, so as not to affect the adhesion strength during slicing.
D: Slicing
After the glue is hardened, the specimen is cut and ground into 100 ~ 150μm thickness by Petro-thin machine. Because the machine is too fast, it can not be ground into thin specimen.
E: Grinding
A micrometer was used to determine the thickness of the specimen. The specimen of 100 ~ 150μm thickness was fixed on the vacuum chuck by vacuum principle, and then ground directly on the Lapping plate to the standard thickness of 30μm.

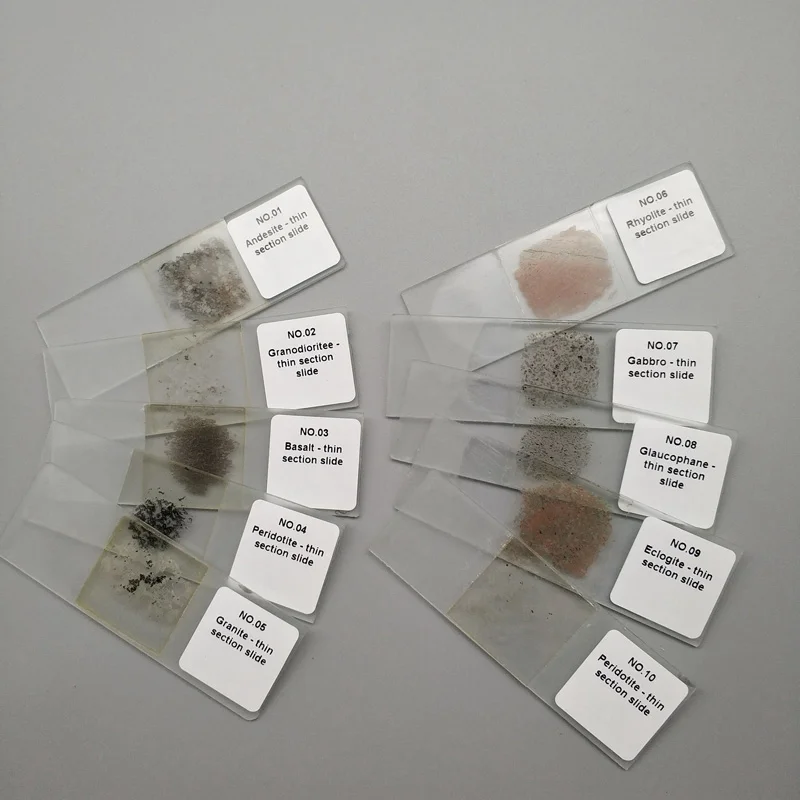

Rock Slides List

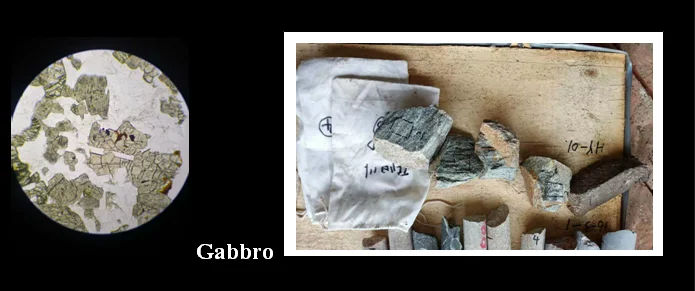

Rock Thin Section Prepared Slides Microscope Mineral Stone Grinding Geography slides For studying and teaching

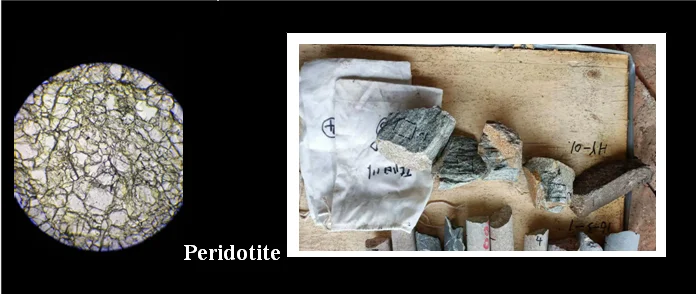

Rock Thin Section Prepared Slides Microscope Mineral Stone Grinding Geography slides For studying and teaching
Rock thin Section Slides | ||
YOM010059 | Garnet | |
YOM010060 | Andalusite | |
YOM010061 | Sillimanite | |
YOM010062 | Kyanite | |
YOM010063 | Cross stone | |
YOM010064 | Epidote | |
YOM010065 | tourmaline | |
YOM010066 | pyroxene | |
YOM010067 | Clinopyrite | |
YOM010068 | Orthopyroxene | |
YOM010069 | Tremolite | |
YOM010070 | Amphibole | |
YOM010071 | muscovite | |
YOM010072 | Biotite | |
YOM010073 | Talc; mica | |
YOM010074 | Chlorite | |
YOM010075 | Serpentine | |
YOM010076 | Potassium plagioclase | |
YOM010077 | Plagioclase | |
YOM010078 | quartz | |
YOM010079 | Nepheline | |
YOM010080 | Leucite | |
YOM010081 | Calcite | |
YOM010082 | dolomite | |
YOM010083 | fluorite | |

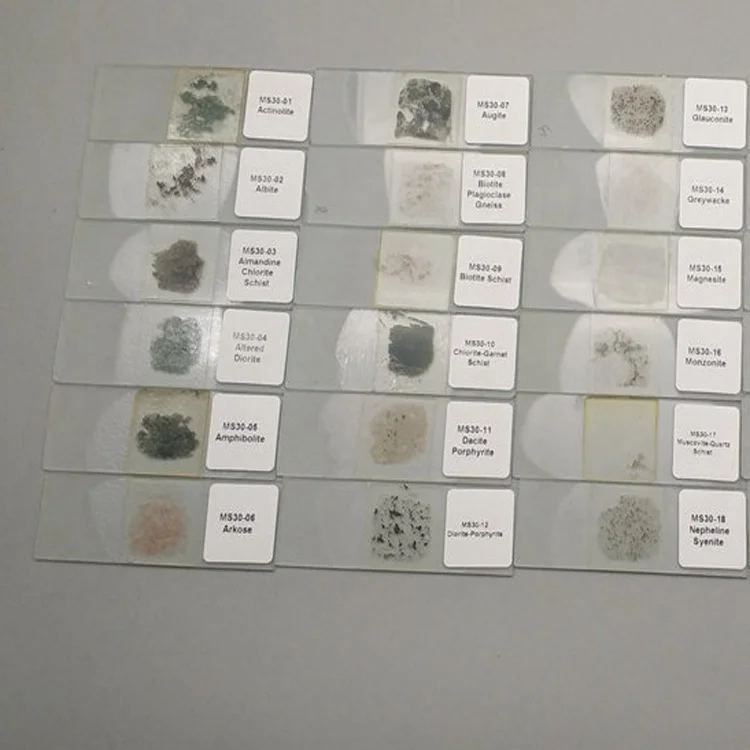

slides Detail

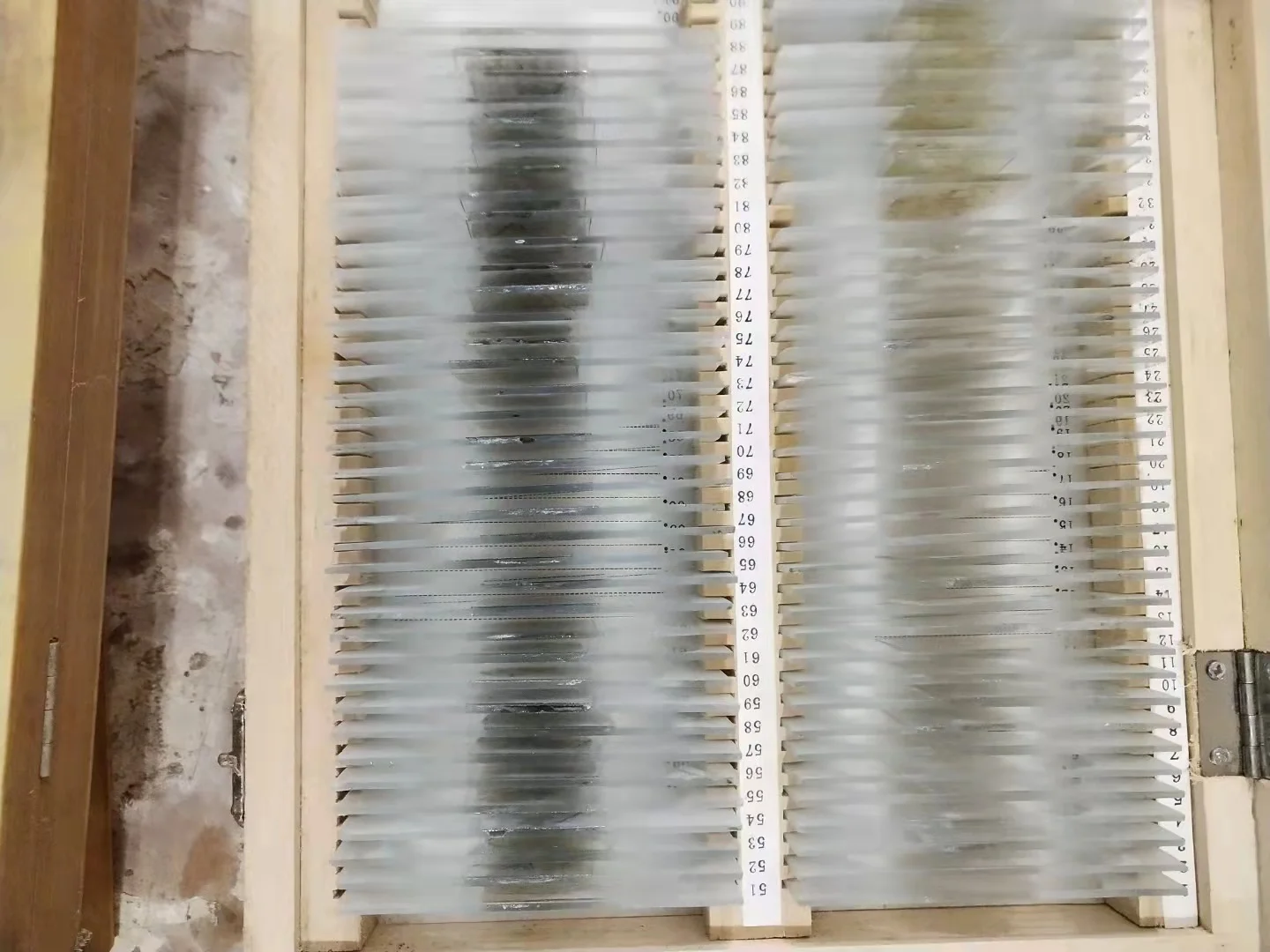

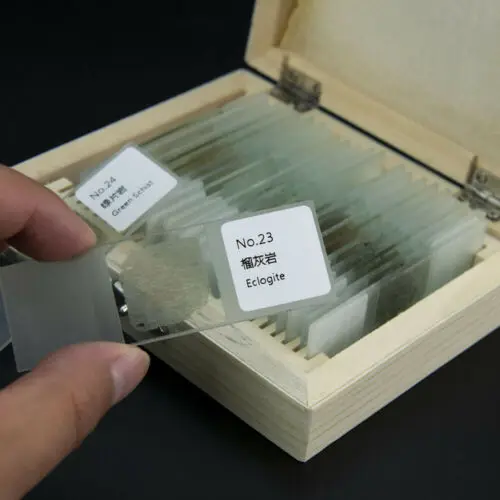

Prepared slides box

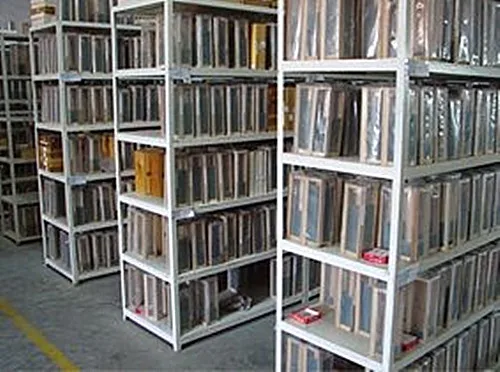

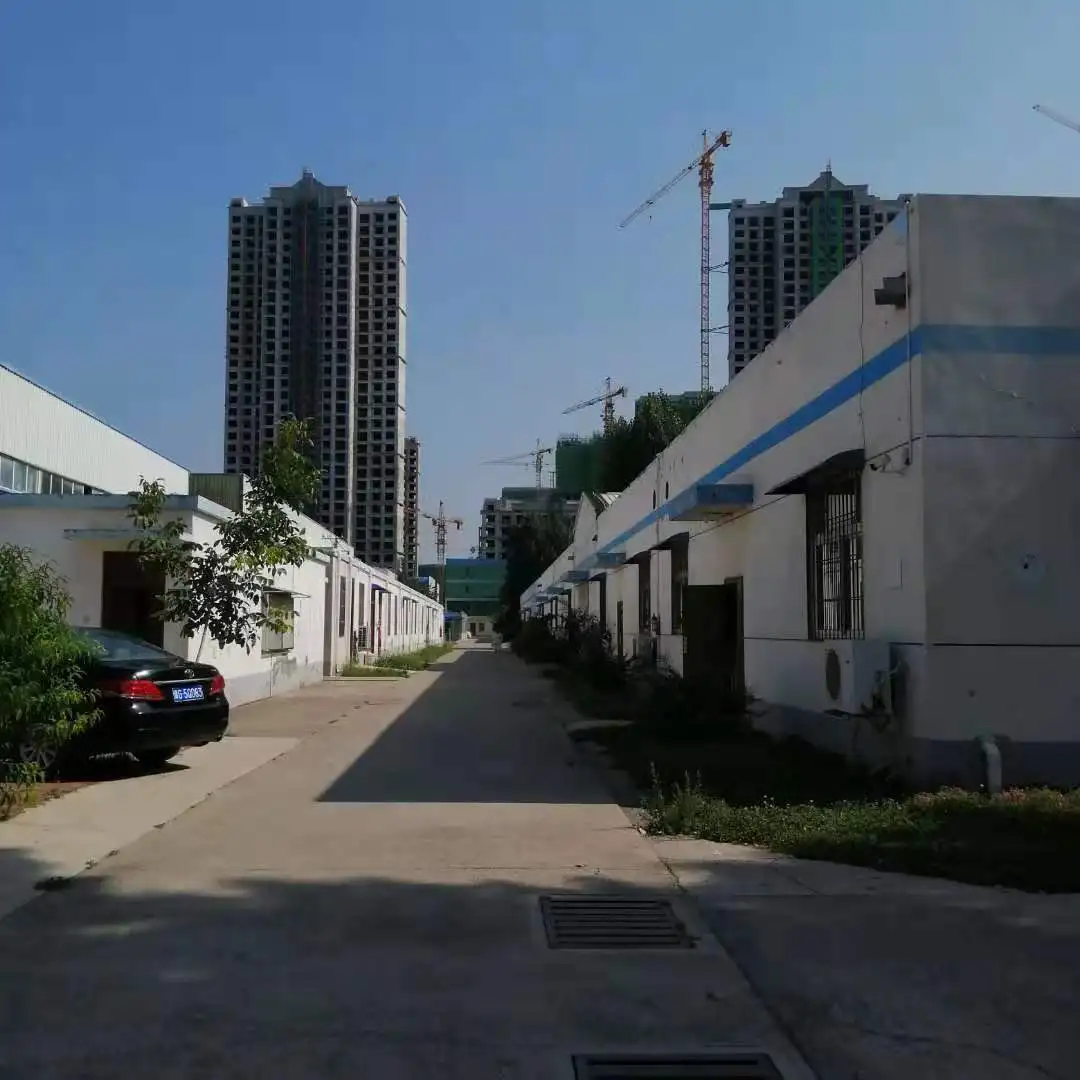

Slides Workshop
