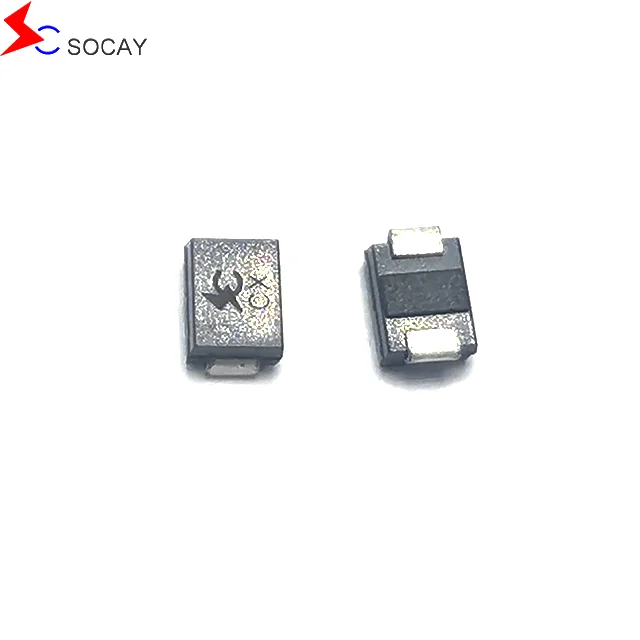

Factory Price 600W SMBJ12A SMB TVS DIODE
- Category: >>>
- Supplier: Shenzhen Socay Electronics Co. Ltd.
Share on (1600465849176):
Product Overview
Description
For surface mounted applications in order to optimize board space Low leakage Uni and Bidirectional unit Glass passivated junction Low inductance Excellent clamping capability 600W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% Fast response time: typically less than 1.0ps from 0 Volts to VBR min Typical IR less than 5μA above 12V. High Temperature soldering: 260°C/40 seconds at terminals |

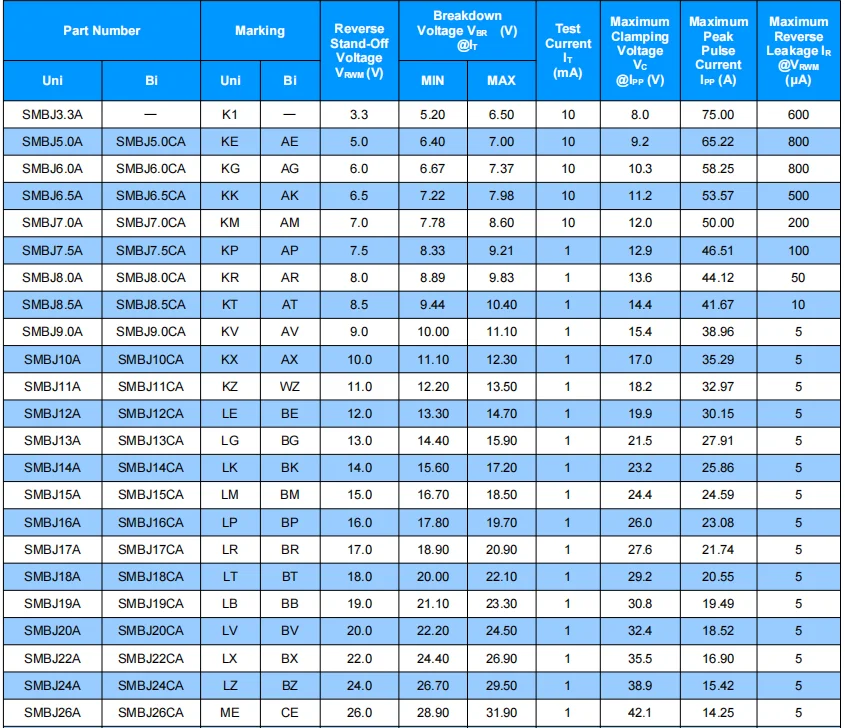

Electrical Characteristics (TA=25°C unless otherwise noted)

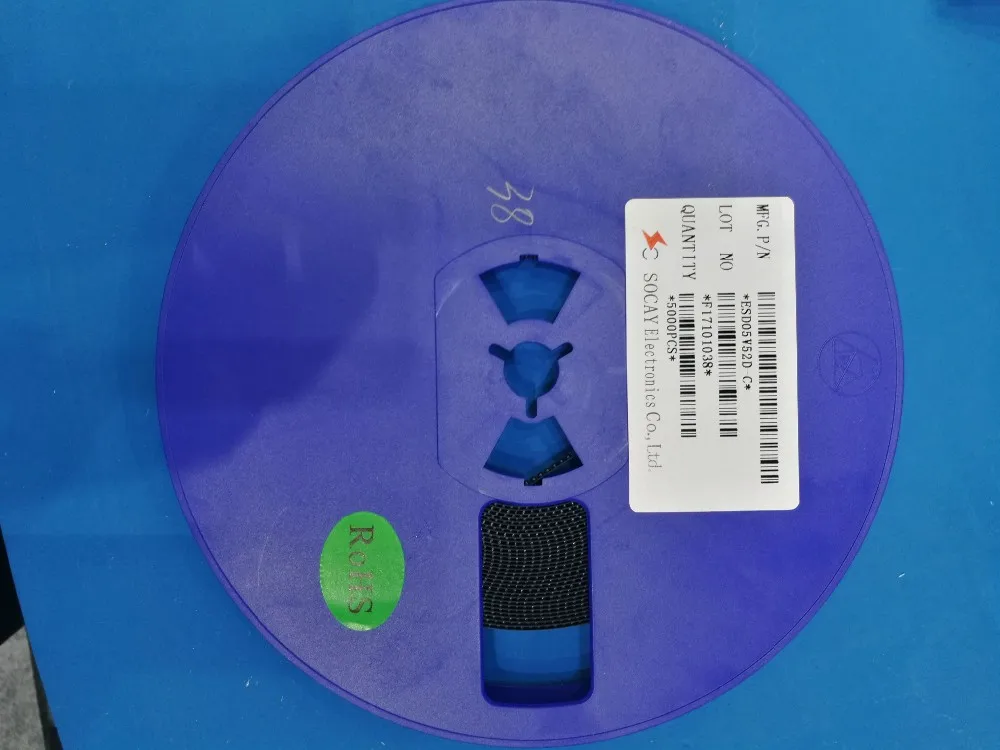

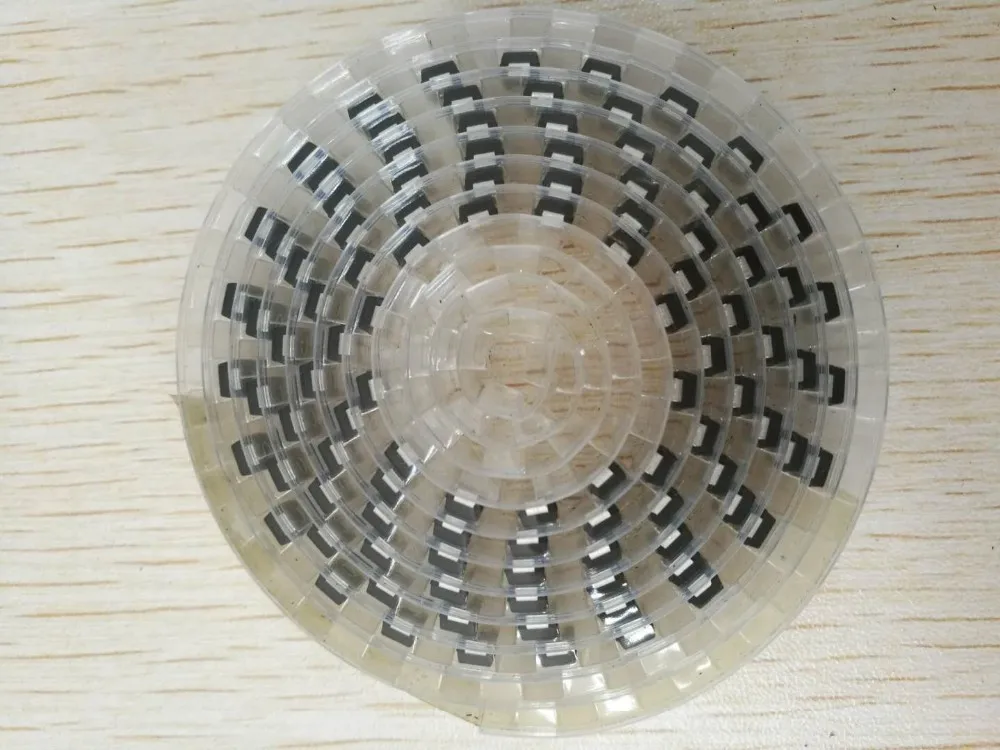

Packaging Information
Company Profile
Please feel free to contact us if you have any question.
Contact Person: Alice Xu
Phone Number/WhatsApp/Wechat: +8618775040331
Email Address: socay122@socay.com Factory Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
Website: www.socay.com
FAQ
Q: May we get some samples?
A: Of course,samples are available.
Q: What is product lead time?
A: For GDT,TVS and ESD,lead time will take 3-4 weeks.For TSS,MOV,MLV,NTC,and PPTC,lead time will take 4-6 weeks.Accurate lead time will be further confirmed when we know your specific requirement.
Q: Do you support customization?
A: Yes,we do.
