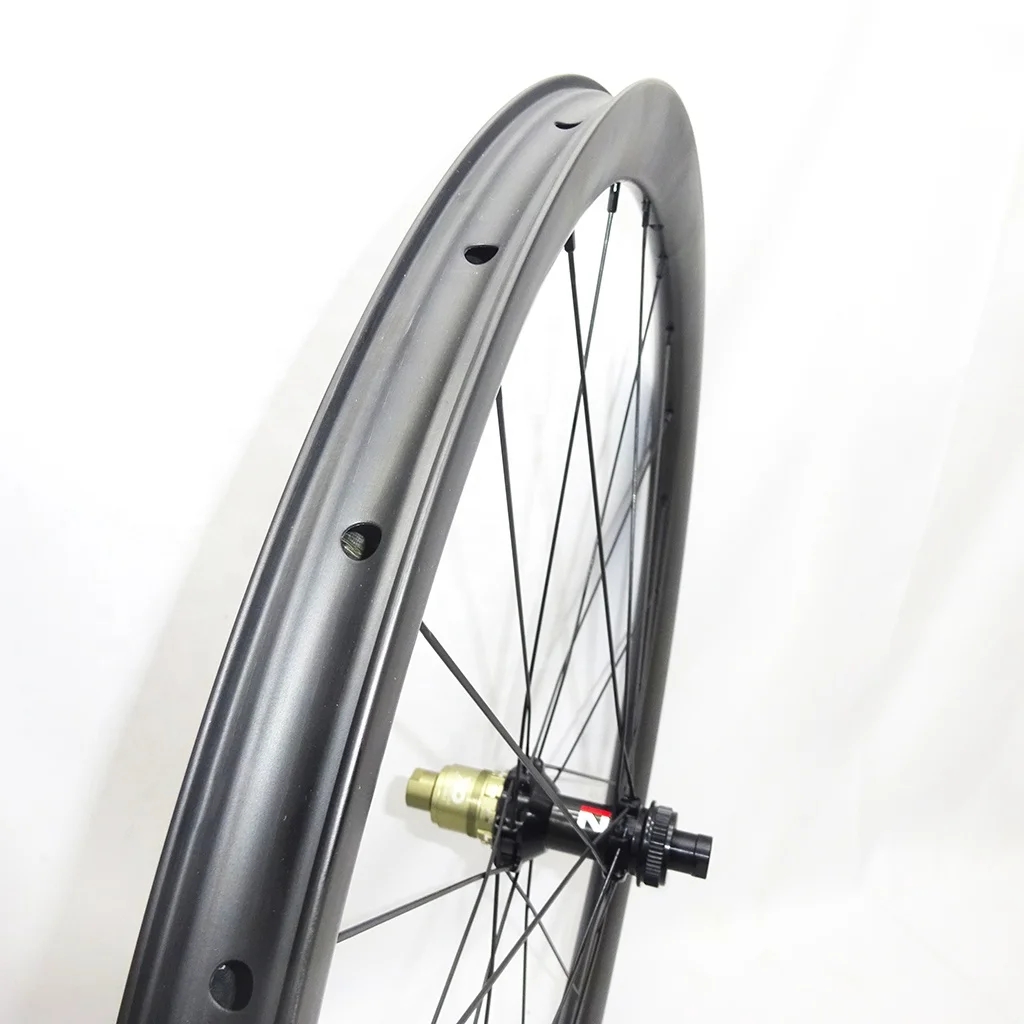

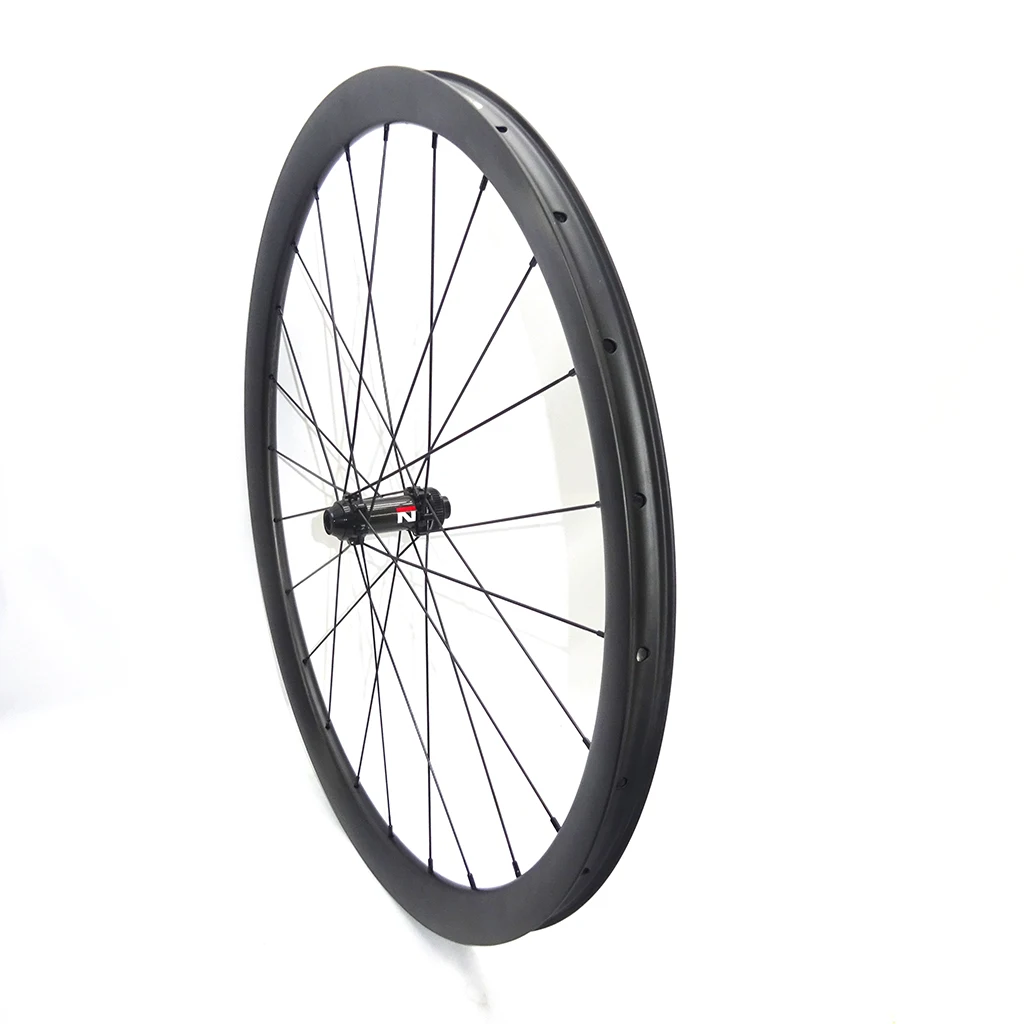

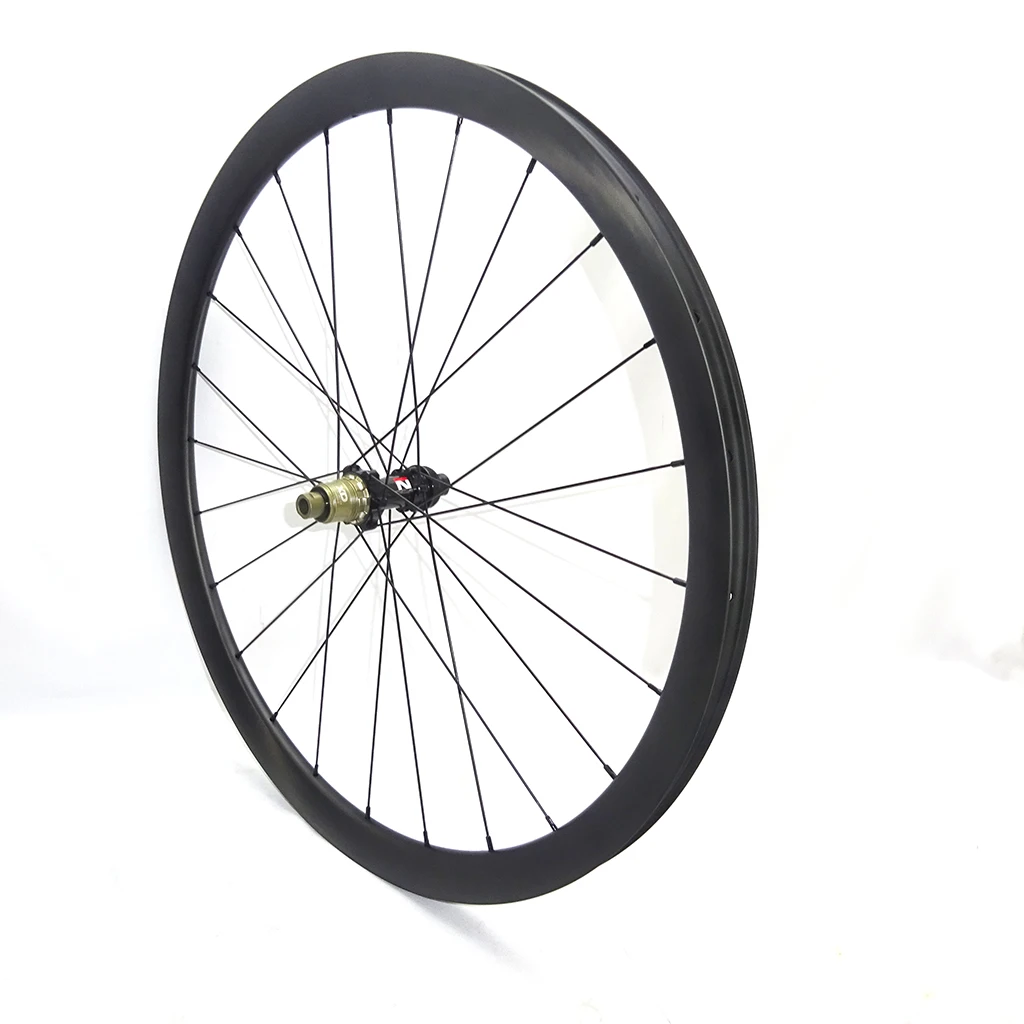

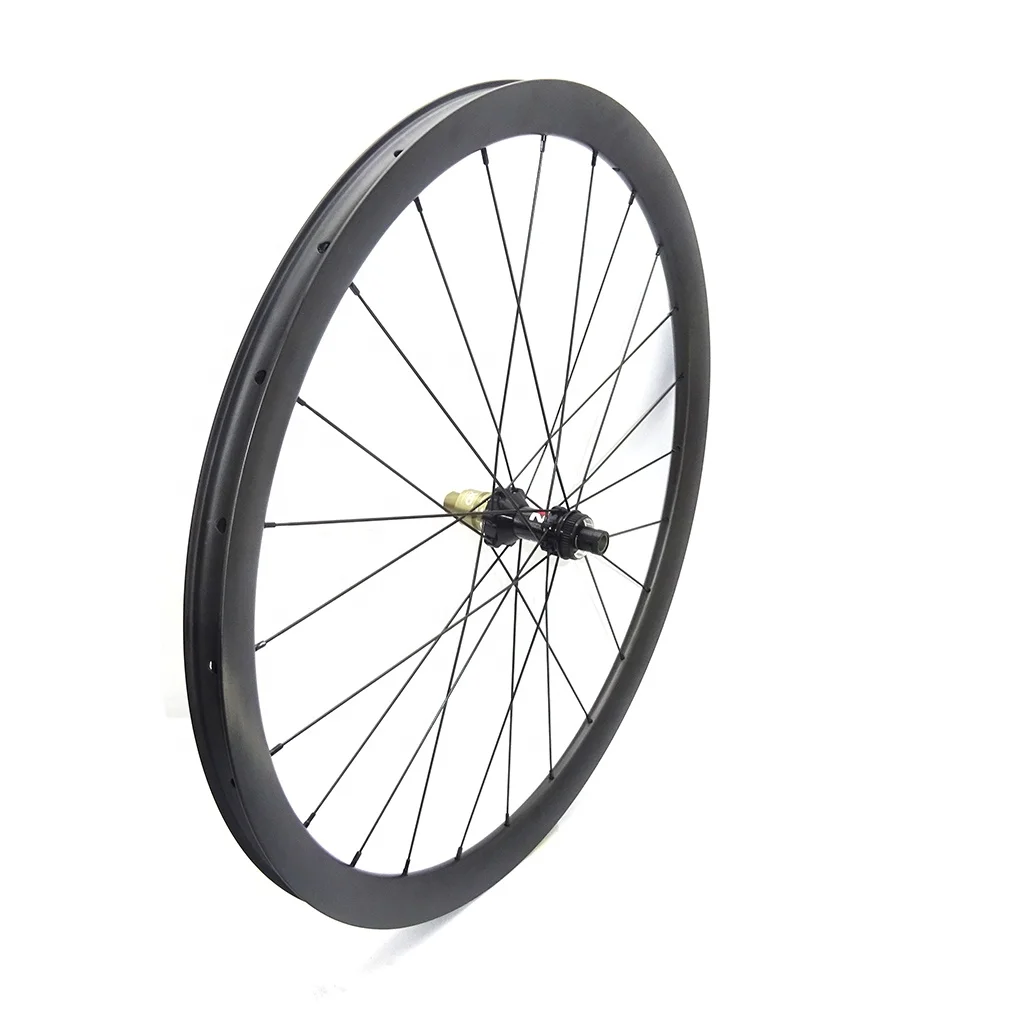

7 Tiger 35mm Customized Gravel Bike Cyclocross Cycle Carbon Wheels Disc Brake Center Lock Type Tubeless Tire
- Category: Bicycle Wheel >>>
- Supplier: Kuashan 7-Tiger Trade Co. Ltd.
Share on (1600465859477):
Product Overview
Description
Specification
Carbon gravel bike wheelset 31mm wide 35mm depth tubeless tubular rim with Novatec D411CB 412CB Hub
FEATURES
Carbon gravel wheelset an optimized blend of weight, strength and durability
The Dual Directional Design profile cuts drag at the tire-leading and rim-leading edges
24mm inner rim width (31mm outer) for added tyre support to suit larger-volume road and gravel tyres
Tubeless Ready rims allow for quick transition to a tubeless system
Carbon gravel wheelset an optimized blend of weight, strength and durability
The Dual Directional Design profile cuts drag at the tire-leading and rim-leading edges
24mm inner rim width (31mm outer) for added tyre support to suit larger-volume road and gravel tyres
Tubeless Ready rims allow for quick transition to a tubeless system

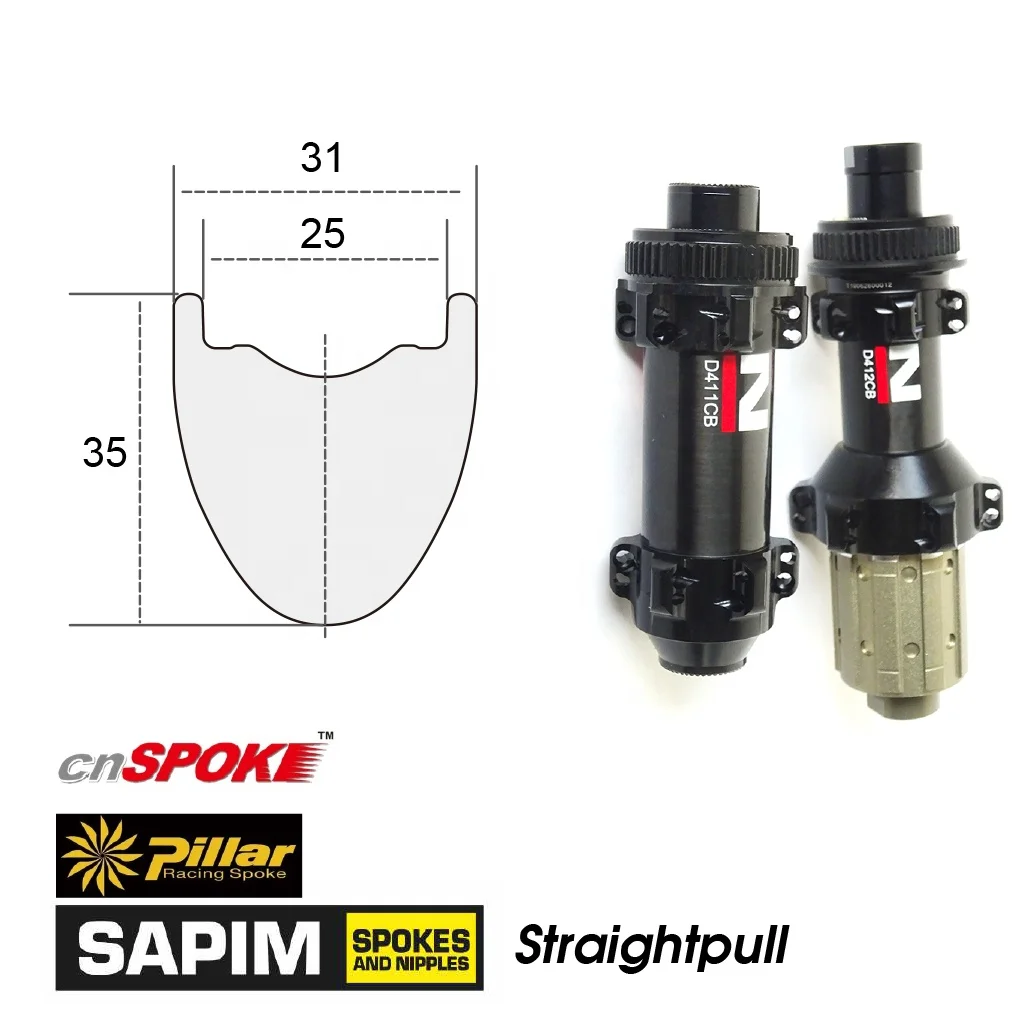

Rim:
Rim outer width: 31mm
Innver width: 24mm
Rim depth: 35mm
Diameter: 700C
Hub:
Centerlock disc with 12mm thru-axle, it is available for 15mm conversion
Hub width: Frton 100 x 12/15mm, rear 142 x 12mm
Hub width: Frton 100 x 12/15mm, rear 142 x 12mm
Spoke count: 24
Freehub: HG, XDR
Spoke cross-section: Bladed
Compatible brake type: CenterLock disc
Compatible brake type: CenterLock disc
ANipple Type: Alloy locking
Valve: Presta
Valve: Presta
Weight:
clincher: 1328+/-5% grams, ( CX-ray )depends on the spoke
Tubular: 1130+/-5% grams, depends on the spoke
Product Description
Products Description
.Rims wide: | 21mm, 23mm, 25mm, 28mm, 31mm | ||||||
.Size: | 700C | ||||||
.Use | Road / Gravel /Triathlon / Allraod / CX | ||||||
.Type: | Clincher/tubeless/tubular | ||||||
.Material | Toray T700 50% + T800 50% carbon fibre | ||||||
.Brake | Rim brake ( Basalt, 3K Twill, UD, AC1,AC3), Disc brake ( None brake edge) | ||||||
.Depth: | 20mm,30mm,35mm,38mm,40mm,45mm,50mm,55mm,60mm,65mm,80mm,88mm | ||||||
.Spoke holes: | 16/18/20/21/24/28/32H | ||||||
.ERD & Weight | 20mm height = 600mm, Tubular 270+/-15g, Clincher 400+/-15g | ||||||
30mm height = 580mm, Tubular 285+/-15g, Clincher 360+/-15g | |||||||
35mm height = 580mm, Tubular 300+/-15g, Clincher 360+/-15g | |||||||
38mm height = 564mm, Tubular 305+/-15g, Clincher 385+/-15g | |||||||
40mm height = 560mm, Tubular 350+/-15g, Clincher 390+/-15g | |||||||
45mm height = 550mm, Tubular 335+/-15g, Clincher 415+/-15g | |||||||
50mm height = 540mm, Tubular 350+/-15g, Clincher 430+/-15g | |||||||
55mm height = 530mm, Tubular 405+/-15g, Clincher 460+/-15g | |||||||
60mm height = 520mm, Tubular 420+/-15g, Clincher 480+/-15g | |||||||
80mm height = 480mm, Tubular 460+/-15g, Clincher 630+/-15g | |||||||
88mm height = 464mm, Tubular 480+/-15g, Clincher 650+/-15g | |||||||
.Spoke Hole Angle: | ±7° | ||||||
.Standard: | En Standard | ||||||
.Assembly Hole Dia: | 8.5mm | ||||||
.Spoke Hole Dia: | 4.5mm | ||||||
.Valve Hole Dia: | 6.5mm | ||||||
.Roundess: | <0.25mm | ||||||
.Flatness: | <0.15mm | ||||||
.Weight limit: | <100kg | ||||||
.Spoke Tension: | 100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear | ||||||
.Tyre Pressure: | 130psi recommended max | ||||||
.Tire: | 23C~38C recommended | ||||||
Products Description
Title goes here.

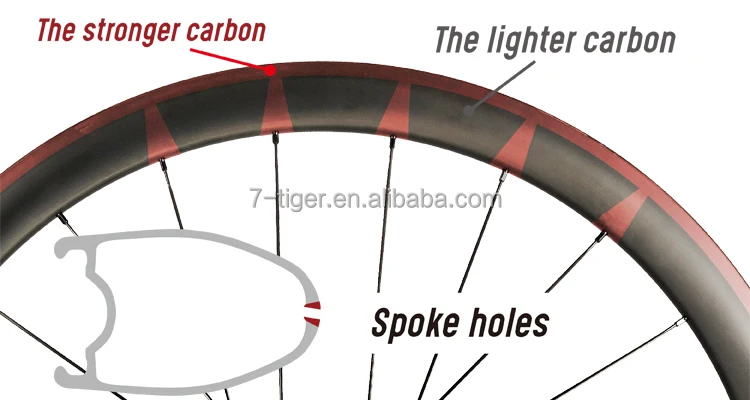

1. Using the frame's construction to allow more reinforcement in the groove and spoke hole areas.
2. Using a unique resin that does not change under prolonged exposure to UV rays.
3. More suitable spoke hole angle, All spoke hole angles must be tailored to the geometry of the hub. If you have a unique wheel
construction, you can request a custom drilling pattern.
4.No residue, not only effectively improves the tightness of the carbon fiber yarn, but also makes the spoke nipple and the spoke
hole more closely combined.
5. One Piece Technology, Has a perfect appearance and enhances the rigidity of the rim.
6. Various carbon fiber appearance options, UD, 3K, 3K twill, 12K, 12K twill, X-weave.
2. Using a unique resin that does not change under prolonged exposure to UV rays.
3. More suitable spoke hole angle, All spoke hole angles must be tailored to the geometry of the hub. If you have a unique wheel
construction, you can request a custom drilling pattern.
4.No residue, not only effectively improves the tightness of the carbon fiber yarn, but also makes the spoke nipple and the spoke
hole more closely combined.
5. One Piece Technology, Has a perfect appearance and enhances the rigidity of the rim.
6. Various carbon fiber appearance options, UD, 3K, 3K twill, 12K, 12K twill, X-weave.

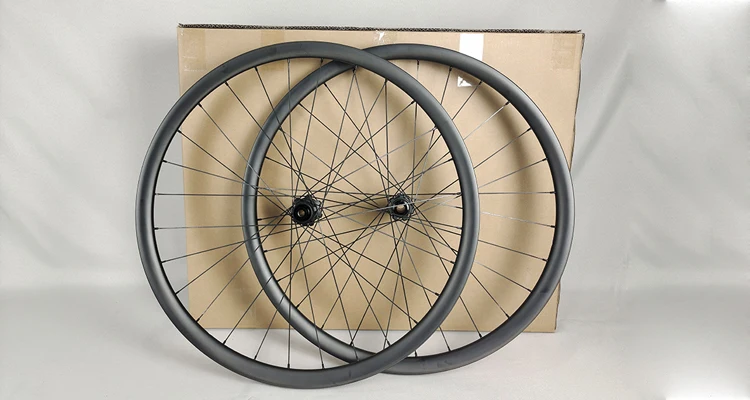

The package size and weight
1, 2 rims box , 68*8*68 cm, 1.5kg
2, 1 wheels box, 84*19*68cm, 4.5kg, We used double carton, 0 problem on shipping
3, 10pcs rim, 68*38*68cm, 6.5~ 7.5 kgs.
2, 1 wheels box, 84*19*68cm, 4.5kg, We used double carton, 0 problem on shipping
3, 10pcs rim, 68*38*68cm, 6.5~ 7.5 kgs.
About shipping
We need to know your specific goods and quantities to customize the program,
Routes that can be used:
air, rail, sea,
If you are in Asia, we have a dedicated line company with the best price in the same industry.
If you are in Europe, end-haul DPD, UPS, is a good choice. Most samples will use DPD.
If you are in North America, USPS is a good choice, and the timeliness and price are relatively stable.
Routes that can be used:
air, rail, sea,
If you are in Asia, we have a dedicated line company with the best price in the same industry.
If you are in Europe, end-haul DPD, UPS, is a good choice. Most samples will use DPD.
If you are in North America, USPS is a good choice, and the timeliness and price are relatively stable.
