Factory Outlet Fast High Precision 80 Large Angle Green Light Galvanometer Scanner

Descriptions for general product features

 Laser scanning galvo motor series

   Galvo motor is set of core parts of lase scanning system.

Through simulating the voltage signal,change of laser reflecting lens

into various angles driven by galvo motor can be controlled to make

the incidence point of laser beam into different locatioms.

  The galvo motor responses very fast to make the laser point quickly

move on a two-dimensional surface,with a controllable movement

trajectory,so that the required diagrams and texts can be drawn

and scanned by laser.

Shenzhen Tianchuanqi is a Manufacturing &Trading .

We specialize in the laser industry for 10 + years.

Independent research and development.

Support Customization.

    Optional:

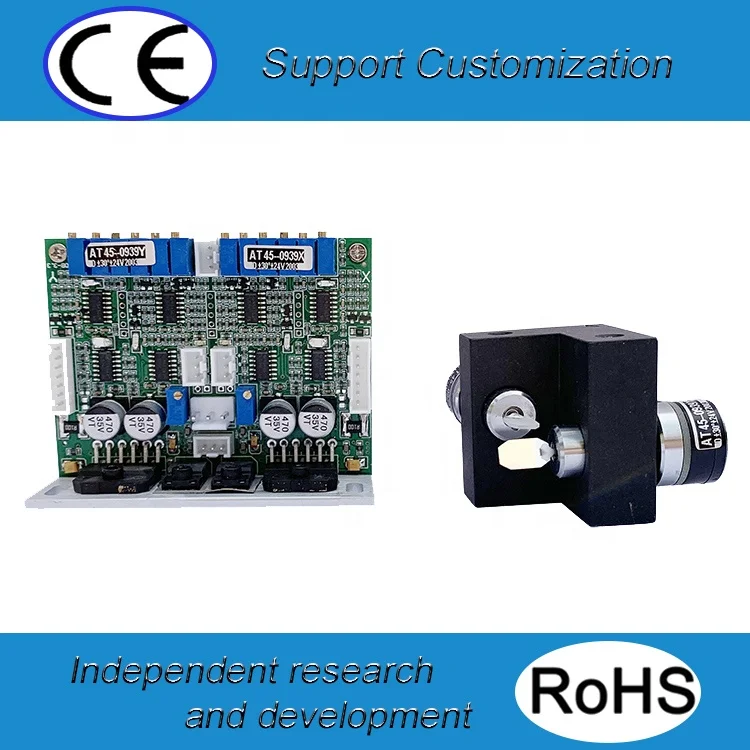

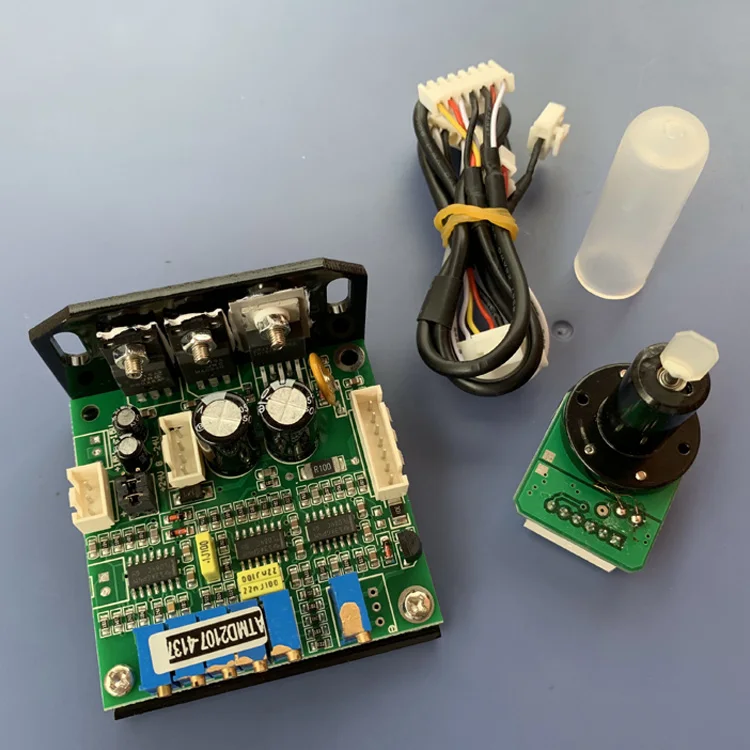

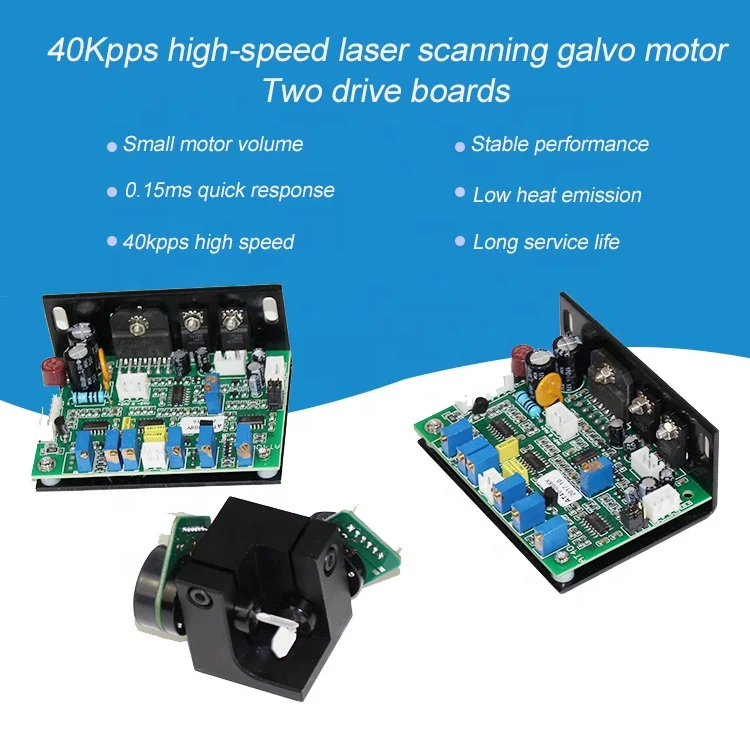

  Choose two driver boards, or choose one driver board,

 Please let me know!!!

                  Tell me your needs
    For different application areas,

replace the lens with a suitable motor to achieve your requirements.

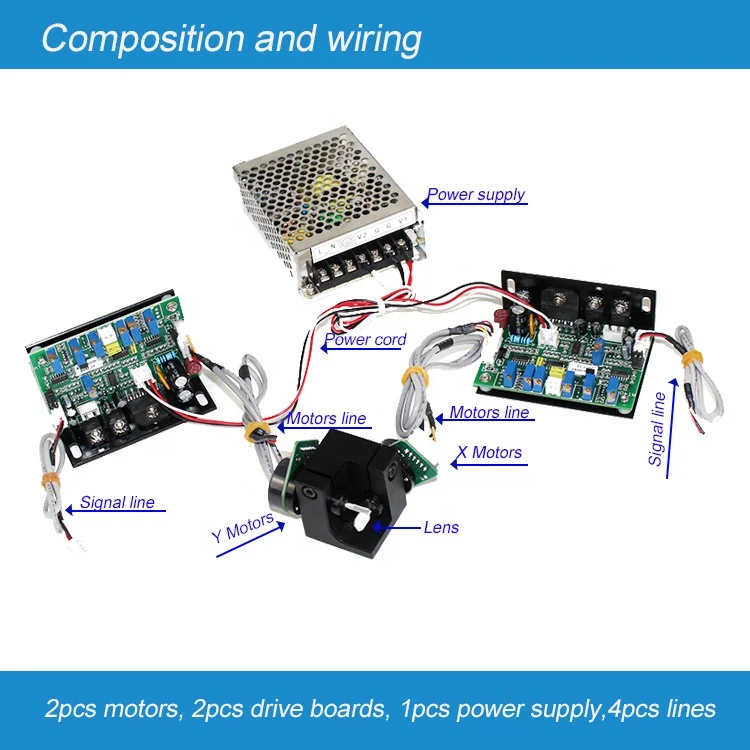

  Single axis, free combination of  X  Y  axis.

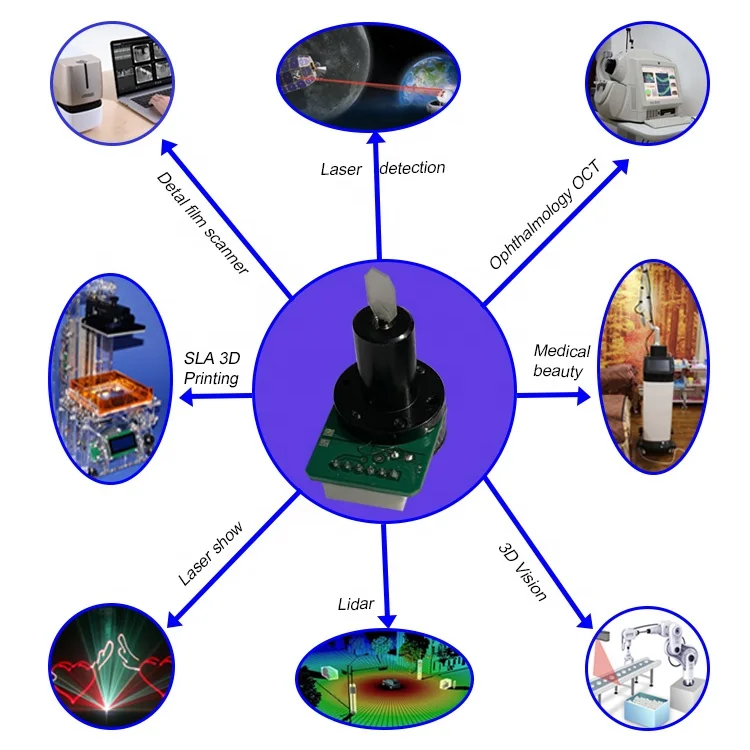

Which are being widely used in many sectors including medical equipment, industrial

automation devices,robots etc.For example laser shows ,laser graphic imaging,

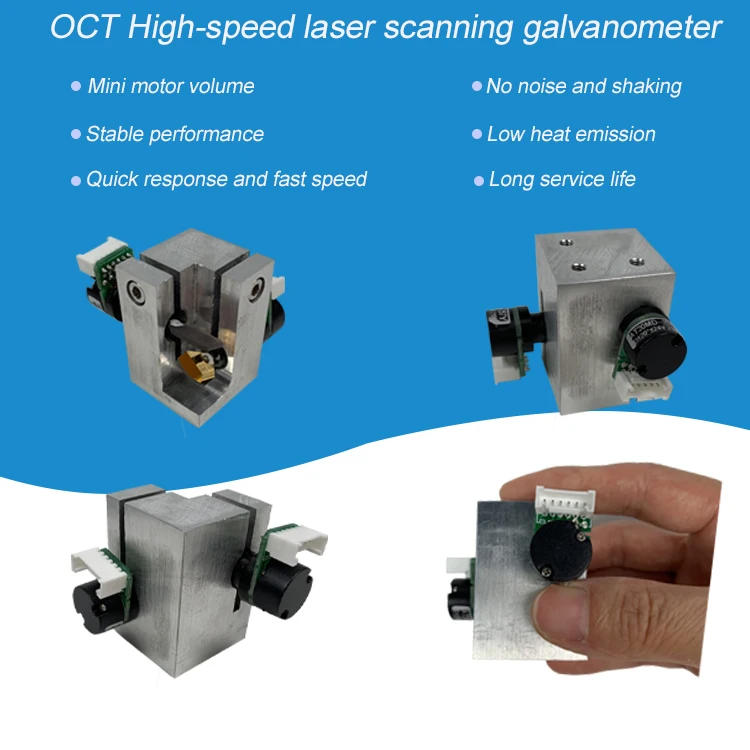

Laser detetion, Lidar, 3D vsion,SLA 3D printing,cosmetic laser surgery,dentistry

and ophthalmology at present.

After-sales service:

The warranty period is 1 year.

  The use of galvanometer has a certain technical content and

is often damaged due to improper operation.

During the warranty period, the round-trip freight will be paid by you;

the material and labor costs will be paid by us.

Outside the warranty period, you will pay for round-trip shipping,

material costs and labor costs.

1. How is the galvanometer controlled?

Give the galvanometer voltage analog signal to control,
The change from negative five volts to positive five volts corresponds to the angle change of the galvanometer lens from negative 20 degrees to positive 20 degrees;
Linear relationship, 99% linearity;
The signal frequency determines the mechanical change speed of the lens swing;
But the signal frequency cannot exceed 200HZ, otherwise the reaction will not be able to come;
The signal current does not need to be too large, generally within 500mA;
The control signal should use a sine wave signal;
The galvanometer can identify voltage fluctuations of 0.001V;

2. Is there a control system?
The motor is made by ourselves, the motor is swinging, special motor;
We don’t have a control board, only a driver board, no programs,
You need to use a control panel with a program as the main control, and give signals to control the galvanometer movement;

3. What are the light spots and wavelengths of the galvanometer?
The spot of our conventional galvanometer is 5mm, 8mm, 10mm, 12mm, and the wavelength is 380-700nm, 1550nm, 10600nm. You can also provide us with lenses to customize for you.

4. Is your galvanometer uniaxial?
All our galvanometer models can be made into single axis, and X, Y two axis

5. How long will it take to deliver after payment
The delivery time is determined according to your quantity, one or two samples, generally can be delivered within 3-5 days, and small batches can be delivered within 10-15 days
