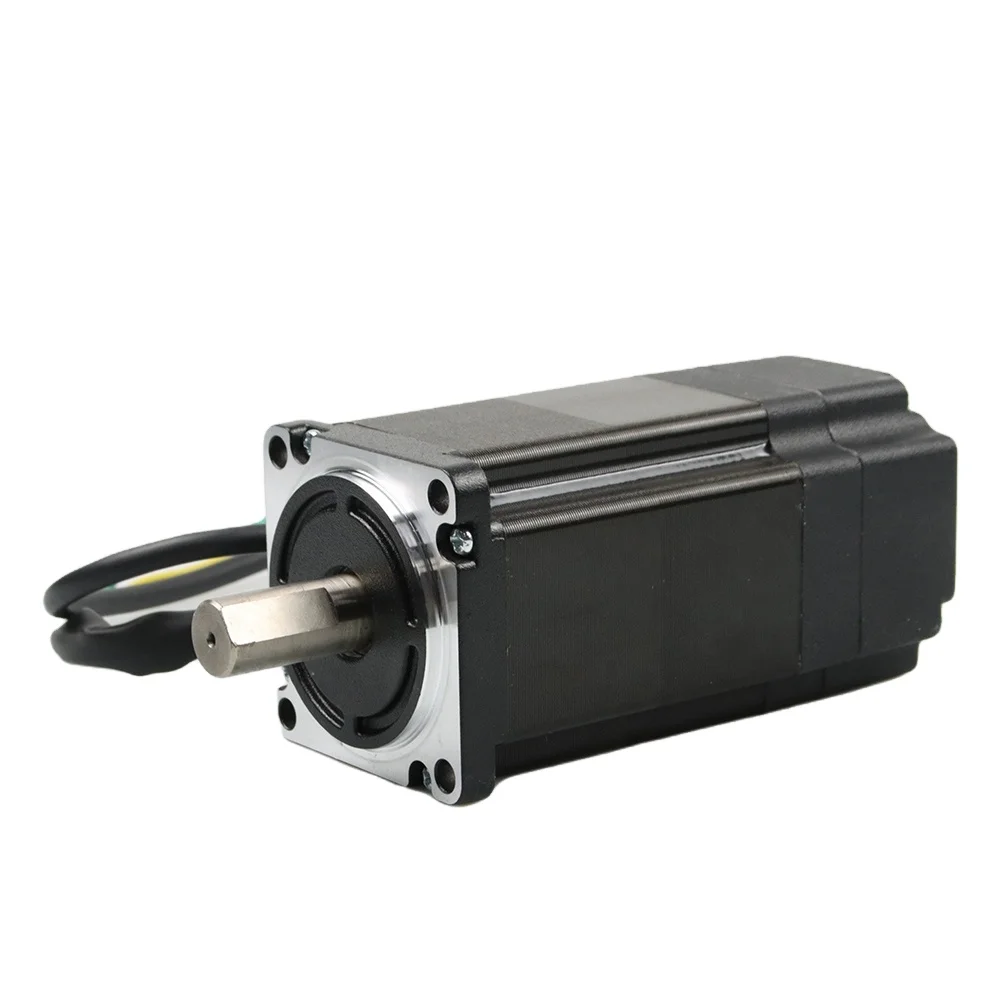

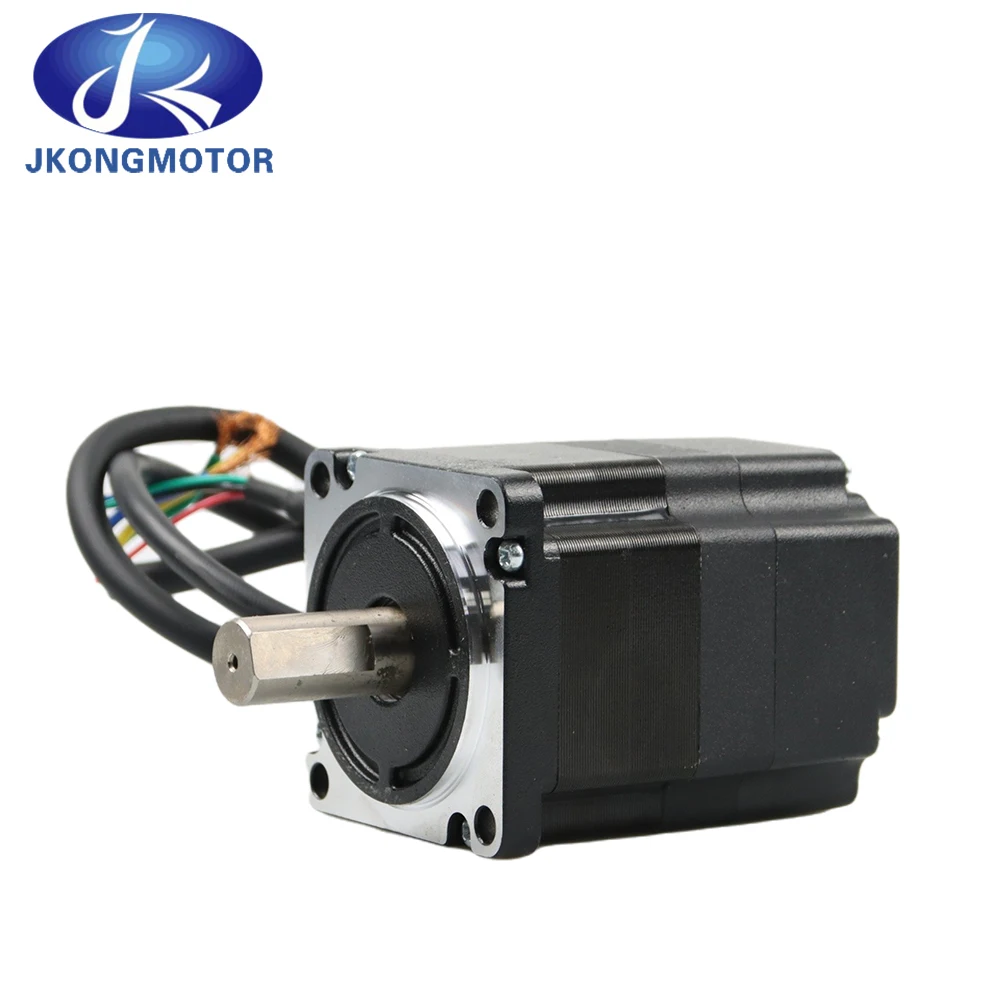

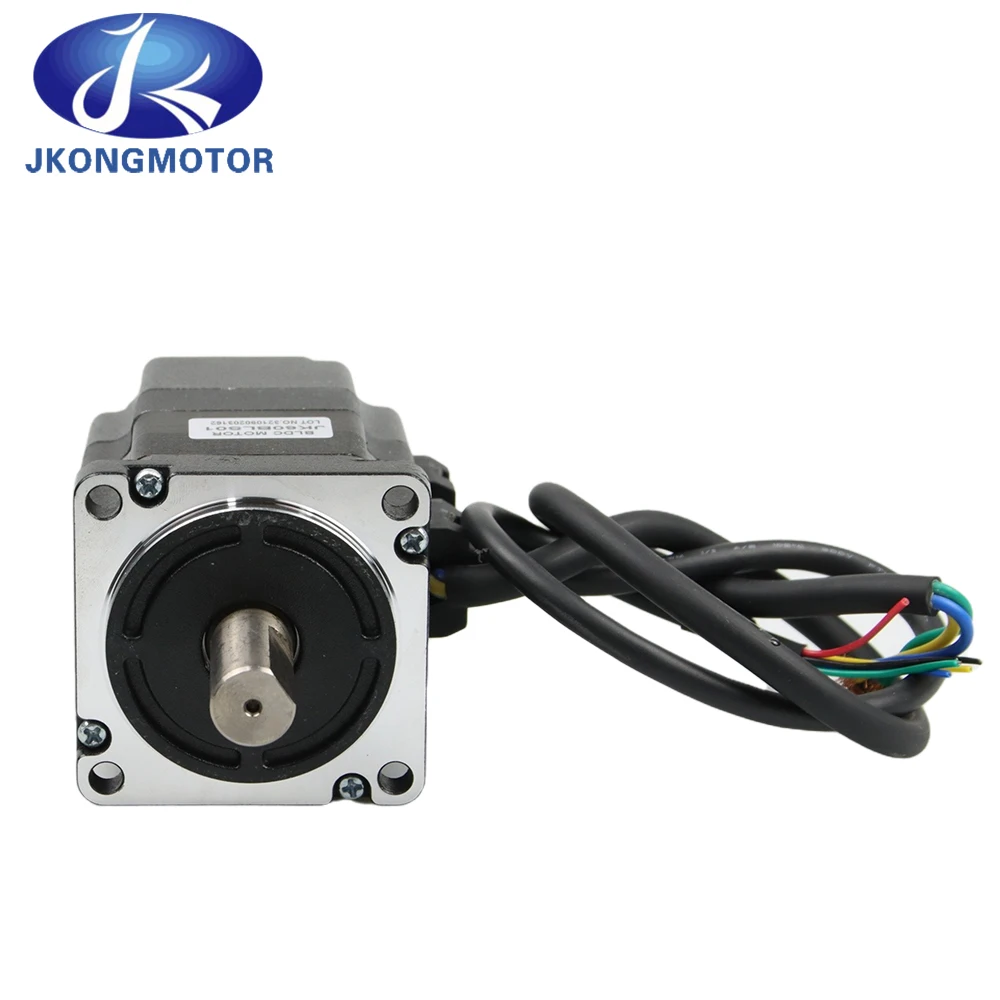

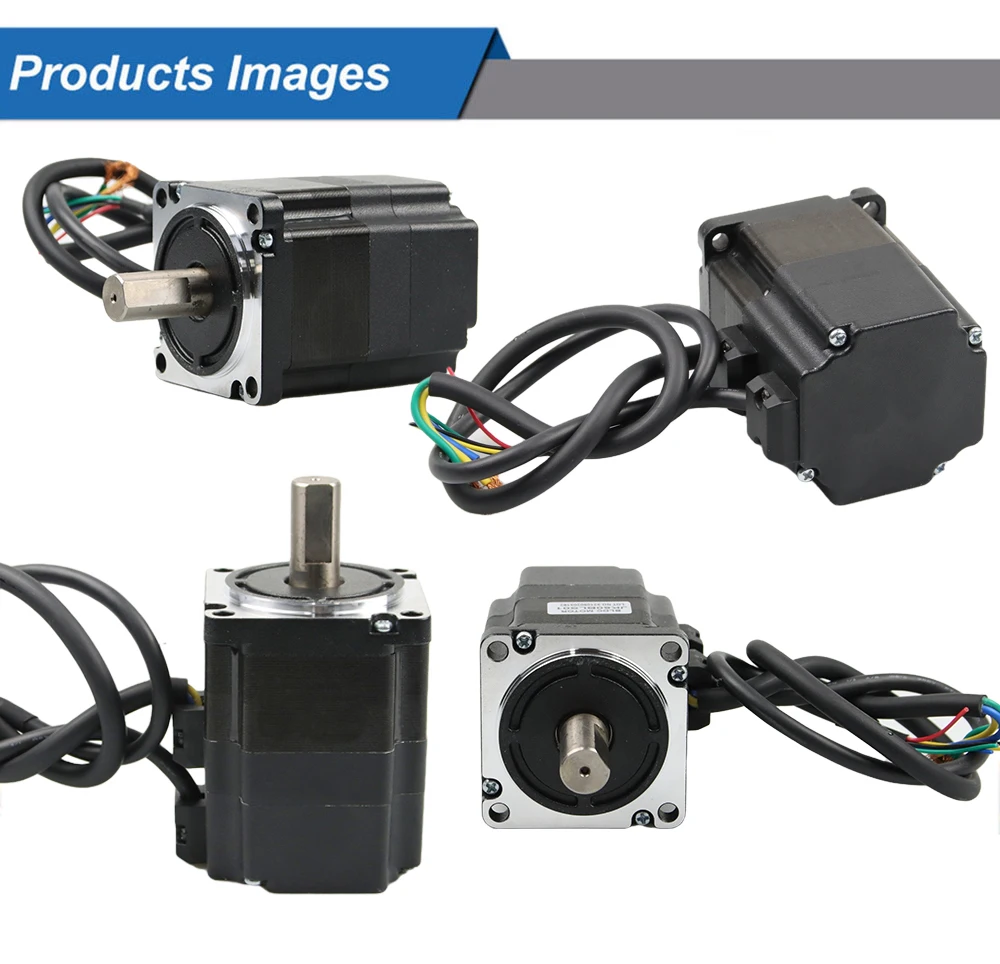

12v 24v 36v 48v High Quality Durable Steady state Speed Error Small Micro Mini Controller Brushless DC Bldc Motor 30w upto 2000w
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600465952840):
Product Overview
Description
Brand: Jkongmotor

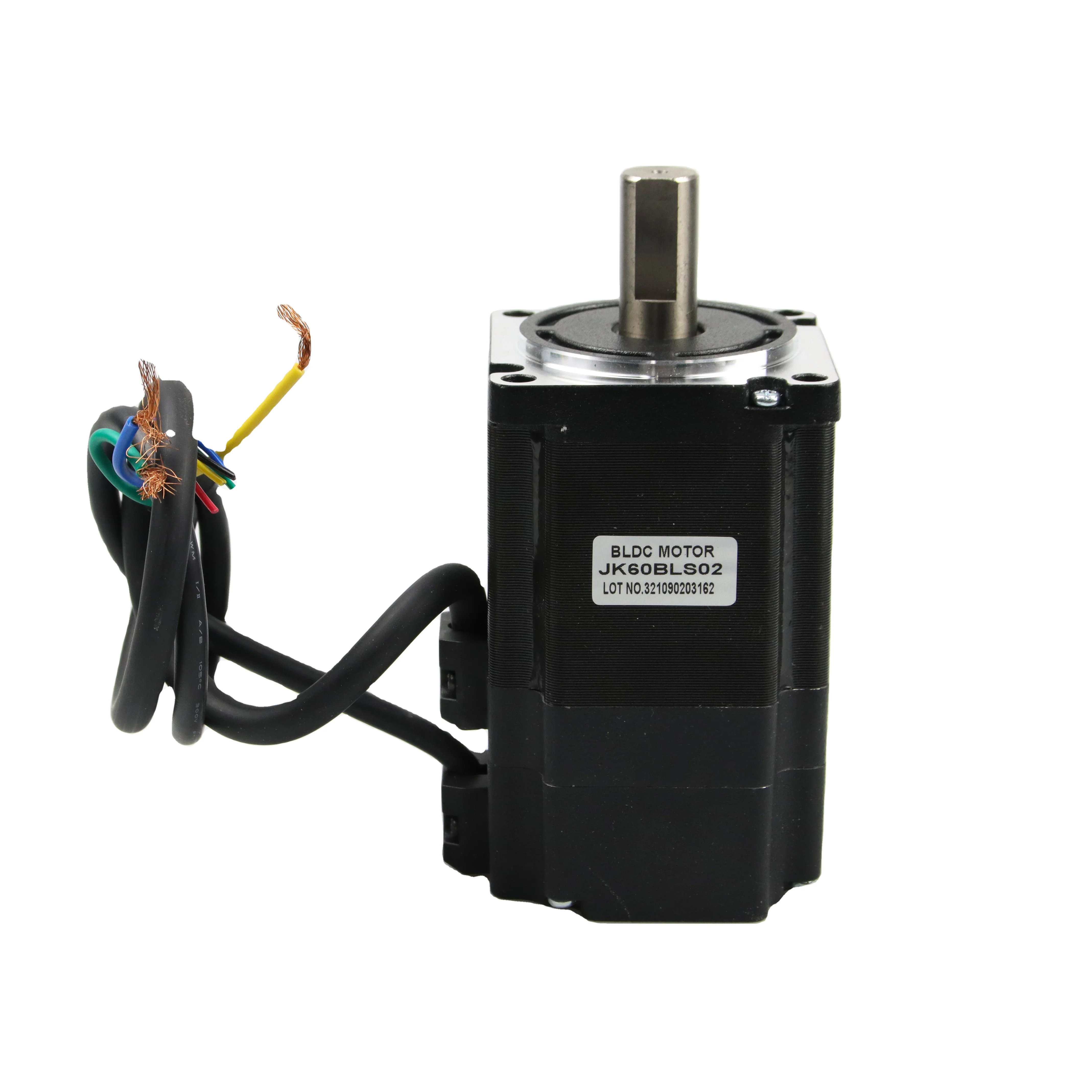

Model No.: JK60BLS02
Number of Phase: 3phase
Number of Poles: 8poles
Rated Voltage: 48V
Rated Speed: 3000Rpm
Rated Torque: 0.6Nm
Rated Current: 5.2A
Rated Power: 188W
Peak Torque: 1.8Nm
Peak Current: 15.6A
Rotor Interia: 0.48kg.cm²
Body Length: 99mm
Senser: Honeywell
Insulation Class: B
Degree of Protection: IP30
Storage Temperature: -15~+70℃
Operation Temperature: -15~50℃
Number of Phase: 3phase
Number of Poles: 8poles
Rated Voltage: 48V
Rated Speed: 3000Rpm
Rated Torque: 0.6Nm
Rated Current: 5.2A
Rated Power: 188W
Peak Torque: 1.8Nm
Peak Current: 15.6A
Rotor Interia: 0.48kg.cm²
Body Length: 99mm
Senser: Honeywell
Insulation Class: B
Degree of Protection: IP30
Storage Temperature: -15~+70℃
Operation Temperature: -15~50℃
Genaral Specification: | ||||||||||
Item | Specification | |||||||||
Winding type | Delta | |||||||||
Hall effect angle | 120 degree electrical angle | |||||||||
Shaft run out | 0.025mm | |||||||||
Radial play | 0.02mm@450g | |||||||||
End play | 0.08mm@450g | |||||||||
Max. radial force | 220N@20mm form the flange | |||||||||
Max. axial force | 60N | |||||||||
Insulation class | Class B | |||||||||
Dielectric strength | 500VDC for one minute | |||||||||
Insulation resistance | 100MΩ Min., 500VDC | |||||||||
Electrical Specification: | ||||||||||

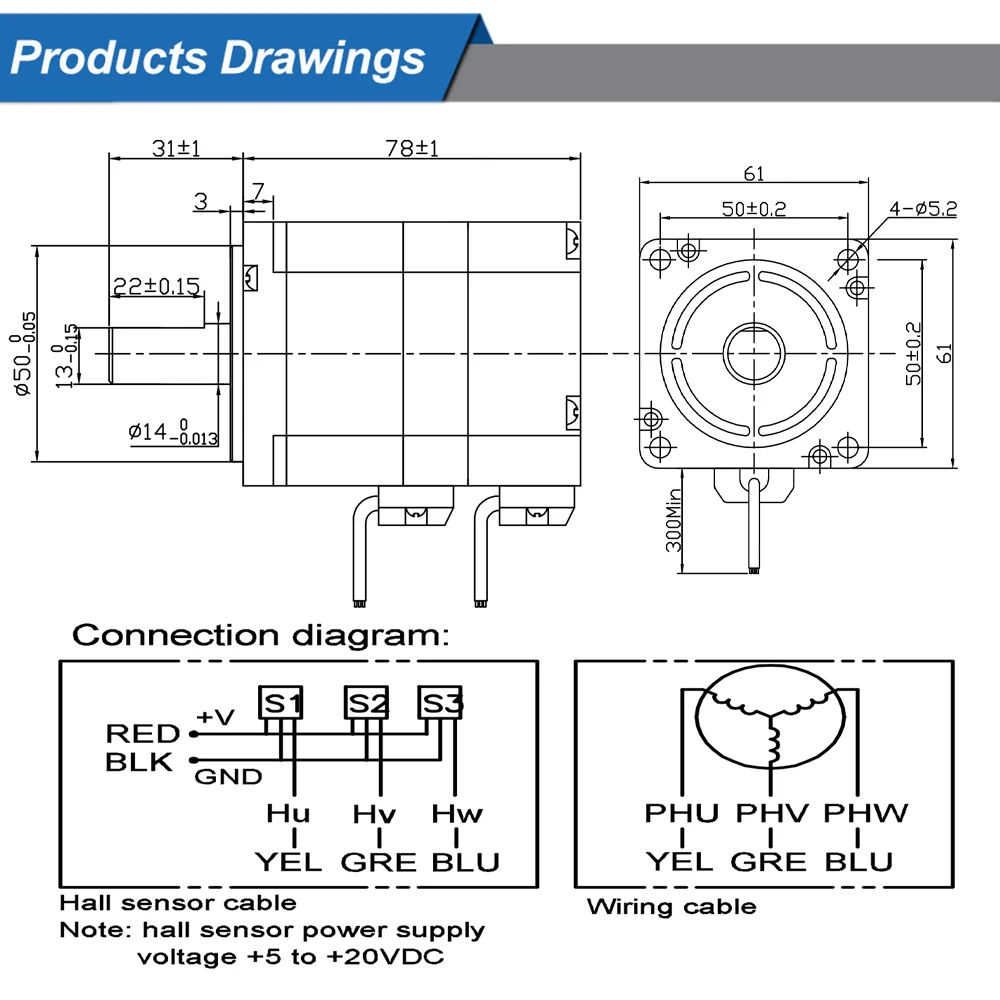

Model | ||||||||||
JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 | |||||||
Number of phase | Phase | 3 | ||||||||
Number of poles | Poles | 8 | ||||||||
Rated voltage | VDC | 48 | ||||||||
Rated speed | Rpm | 3000 | ||||||||
Rated torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 | |||||
Rated current | Amps | 2.8 | 5.2 | 7.5 | 9.5 | |||||
Rated power | W | 94 | 188 | 283 | 377 | |||||
Peak torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 | |||||
Peak current | Amps | 8.4 | 15.6 | 22.5 | 28.5 | |||||
Back E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 | |||||
Torque constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 | |||||
Rotor inertia | g.cm2 | 0.24 | 0.48 | 0.72 | 0.96 | |||||
Body length | mm | 78 | 99 | 120 | 141 | |||||
Weight | kg | 0.85 | 1.25 | 1.65 | 2.05 | |||||
Sensor | Honeywell | |||||||||
Insulation class | IP30 | |||||||||
Degree of protection | -25~ +70℃ | |||||||||
Storage temperature | -15~ +50℃ | |||||||||
Operating temperature | <= 85% RH | |||||||||
Working environment | No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust. | |||||||||
Altitude | 1000m or below | |||||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||

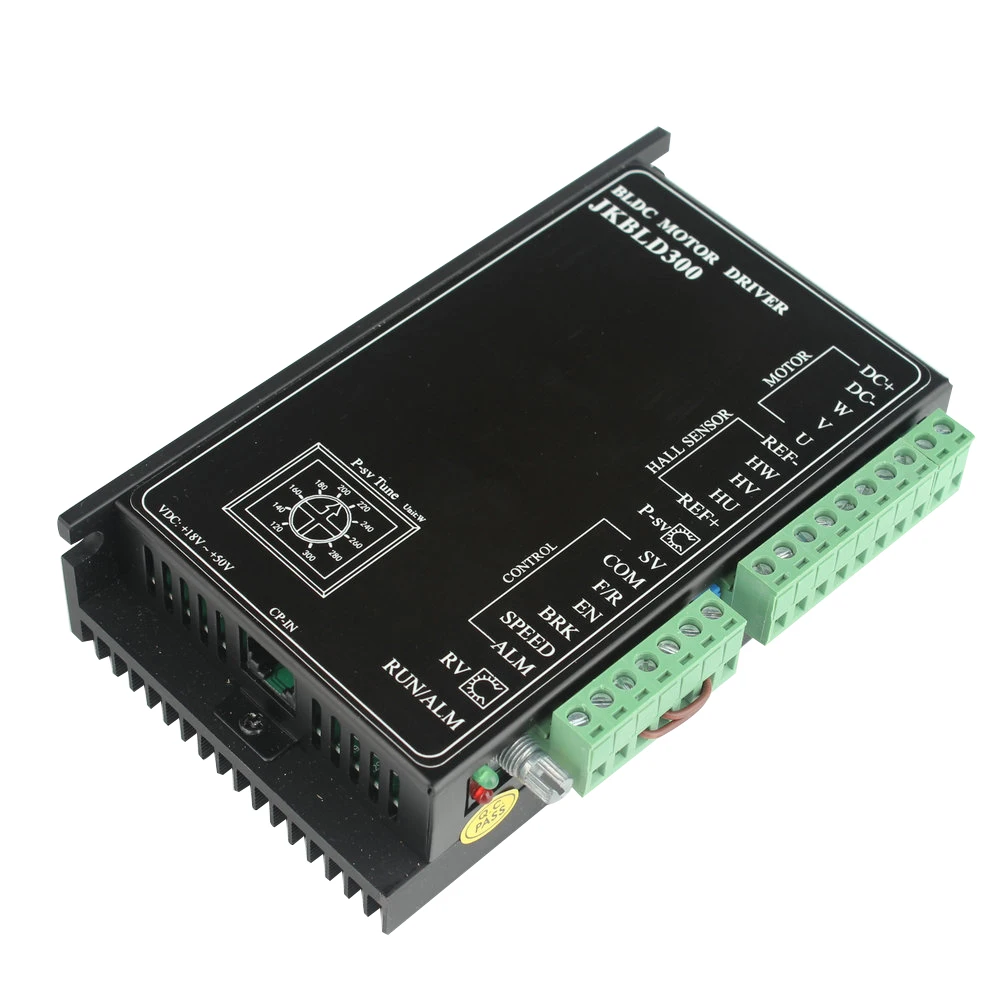

JKBLD120 JKBLD300 Brushless DC Motor Driver | ||||||||||
Environment Temperature | JKBLD120 | JKBLD300 | ||||||||
-10℃~ 50℃ | -10℃~ 50℃ | |||||||||
Input Voltage | +12V~ +30V | +18V~ +50V | ||||||||
Output Current | 8A~30A | 15A~35A | ||||||||
Suitable Motor Speed | 0~20000Rpm | 0~20000Rpm | ||||||||
Hall Sensor Voltage | 4.5V~ 6.5V | 4.5V~ 5.5V | ||||||||
External Potentiometer | 10KΩ | 10KΩ | ||||||||
Support Motor | Brushless dc motor less of 120w | Brushless dc motor less of 300w | ||||||||
JKBLD120 brushless dc driver is suit the following three-phase sine wave power is 120W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive &negative switching, combination of manual and automatic control. | ||||||||||
JKBLD300 brushless dc driver is suit the following 3 phase sine wave power and 48VDC 300W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control. | ||||||||||
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
