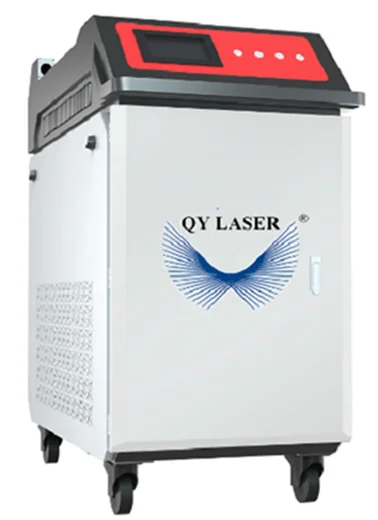

2022 Well designed Low Price Factory 1000W 1500W 2000W Raycus Continuous Handheld Portable CNC Fiber Laser Welding Machine
- Category: Laser Welders >>>
- Supplier: WUXI QINGYUAN LASER TECHNOLOGY CO. LTD
Share on (1600465953966):
Product Overview
Description
2022 Well-designed Low Price Factory 1000W 1500W 2000W Raycus Continuous Handheld Portable CNC Fiber Laser Welding Machine
Features and Advantages:
1. Handheld welding head is flexible and convenient.2. High welding efficiency, 2 to 10 times faster than conventional welding.
3. The operation mode of the handheld torch enables the workpiece to be welded at any angle in any part.
4. It is suitable for spot welding of various complex welded joints and various equipment.
5. Compared with traditional welding, the weld seam is flat and beautiful, with very few defects, deeper welding depth and smaller thermal stress deformation.
6. Suitable for stainless steel, carbon steel and other metal materials.
Specification
Part Name | Description | Brand |
Laser | 1Kw-2Kw | Raycus |
Welding Head | SUP15S | QY |
Cooling Chiller | 1Kw-2Kw | Hanli |
Controller System | Hand-held feeding system | QY |
Electrical Box | Chiller and laser integrated | QY |
Electrical Components | Schneider | French |
Pneumatic Valve | SMC | Japan brand |
Wire Feeder | WF-007A | |
Holder | MT-602(0.5-1.5) | Optional |
Welding Material and Thickness
Material | 1000W | 1500W | 2000W |
Stainless Steel | 0.3mm—2mm | 0.3mm—3mm | 0.3mm—4mm |
Mild Steel | 0.3mm—1.5mm | 0.3mm—2.5mm | 0.3mm—3.5mm |
Aluminum | 0.8mm—1mm | 0.8mm—1.5mm | 0.8mm—2.5mm |
Brass | 0.8mm—1mm | 0.8mm—1.5mm | 0.8mm—2.5mm |
Applications
Professionally used for cutting 0.3-4mm stainless steel, 0.3-3.5mm carbon steel, 0.8-2.5mm aluminum, 0.8-2.5mm copper and other metal materials (thickness and material are related to the laser).
Fiber laser weldeine VS TIG welding and MIG welding
TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper and limited welding metals of dissimilar thicknesses.
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
Laser welding enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Fiber Laser welder welds dissimilar metals of different thicknesses with ease and creates aesthetic high-strength joints with minimal or no consumable wire.
TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper and limited welding metals of dissimilar thicknesses.
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
Laser welding enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Fiber Laser welder welds dissimilar metals of different thicknesses with ease and creates aesthetic high-strength joints with minimal or no consumable wire.
Laser Welding Machine Parts

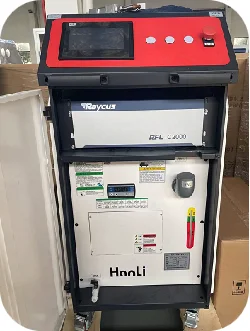

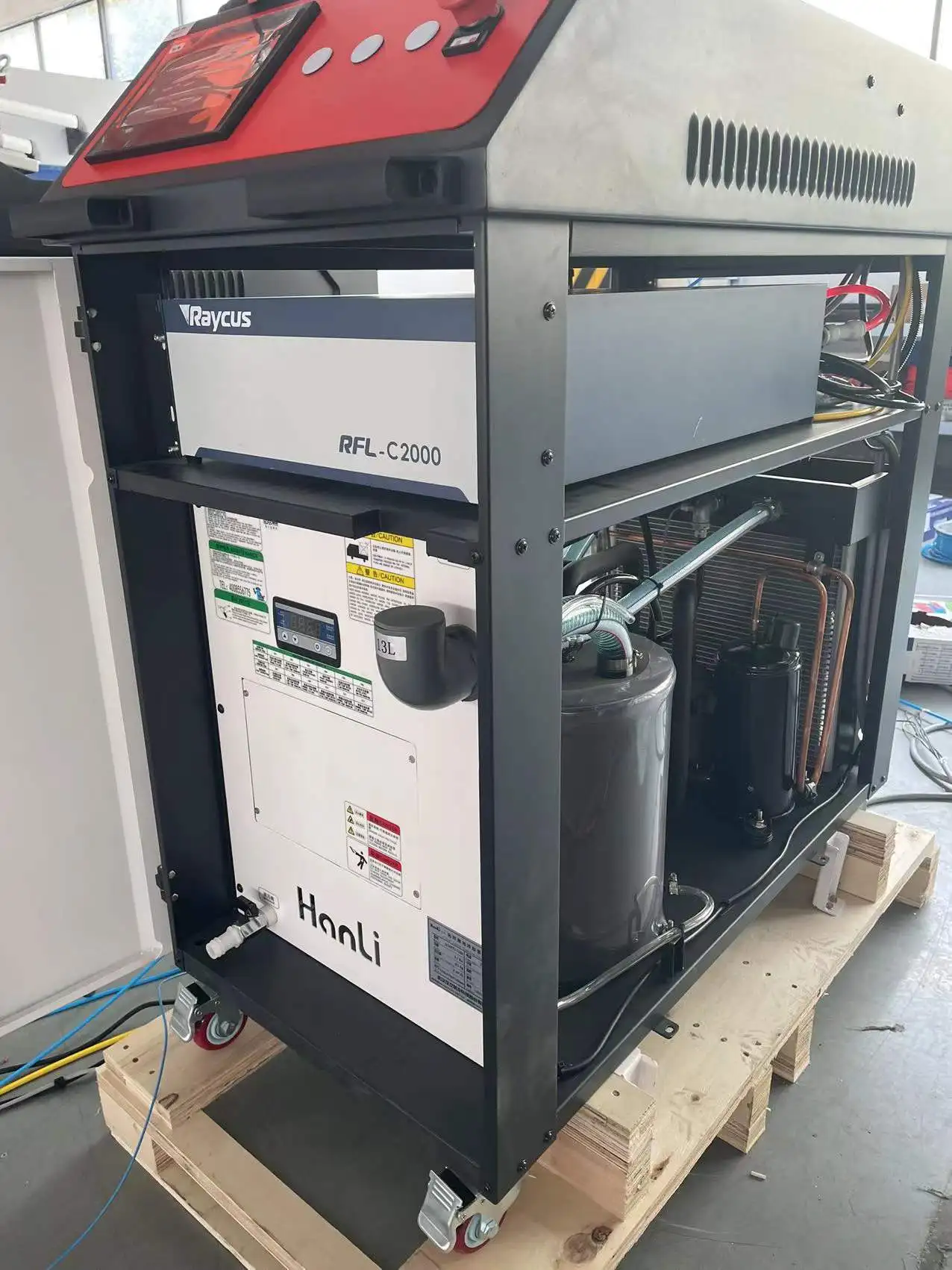

Laser and water chiller
Welding head
Wire feeder
Welding Samples
Packaging
Company Profile
FAQ
1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.We will recommend you the suitable model with the reasonable price.
2. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.We also can provide the training on line by free.
4. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
Tell us your material, detail requirements by words, pictures or video.We will recommend you the suitable model with the reasonable price.
2. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.We also can provide the training on line by free.
3. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.phone, or video communication.
You can send the wrong information to us by mail, we can help us solve it by mail.phone, or video communication.
4. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
