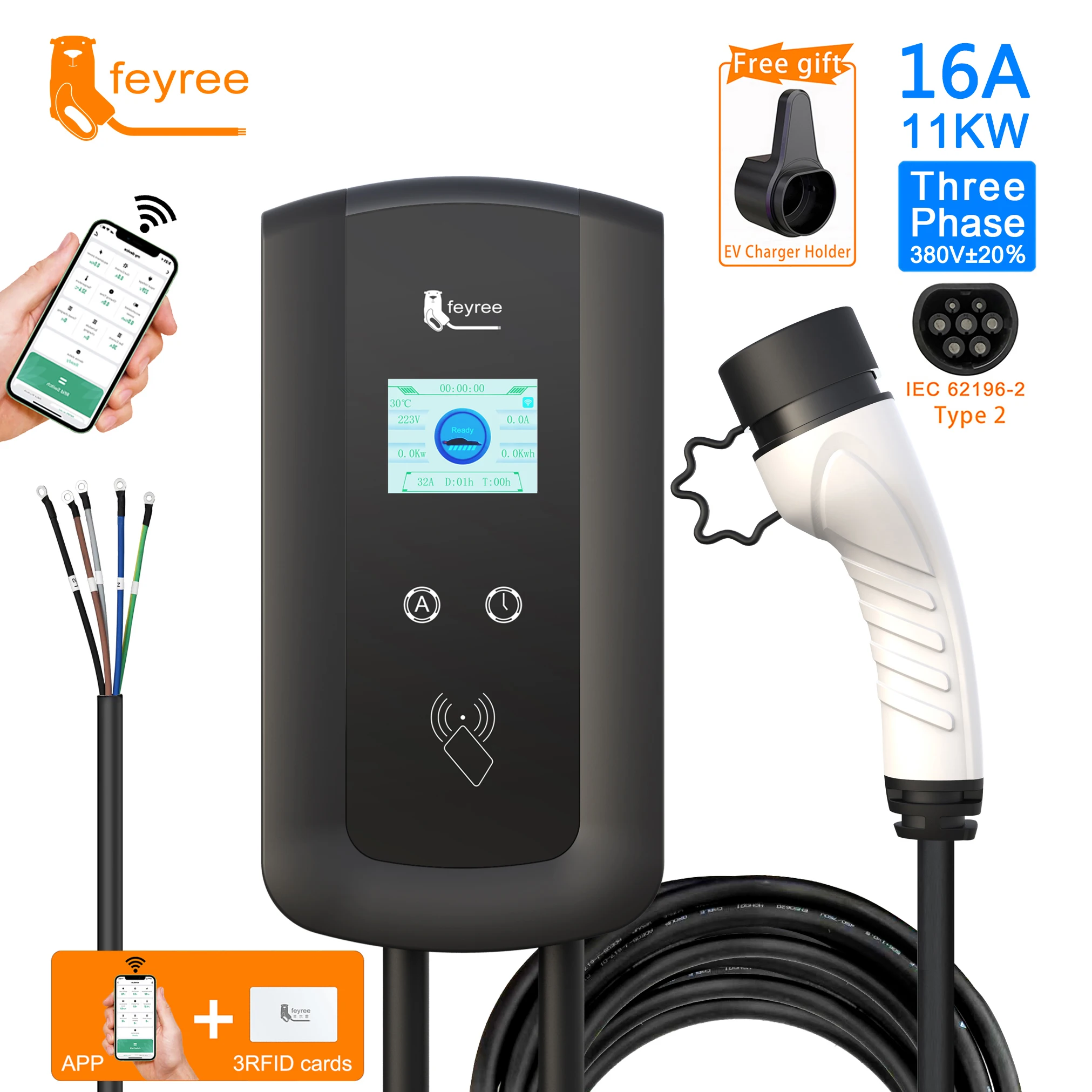

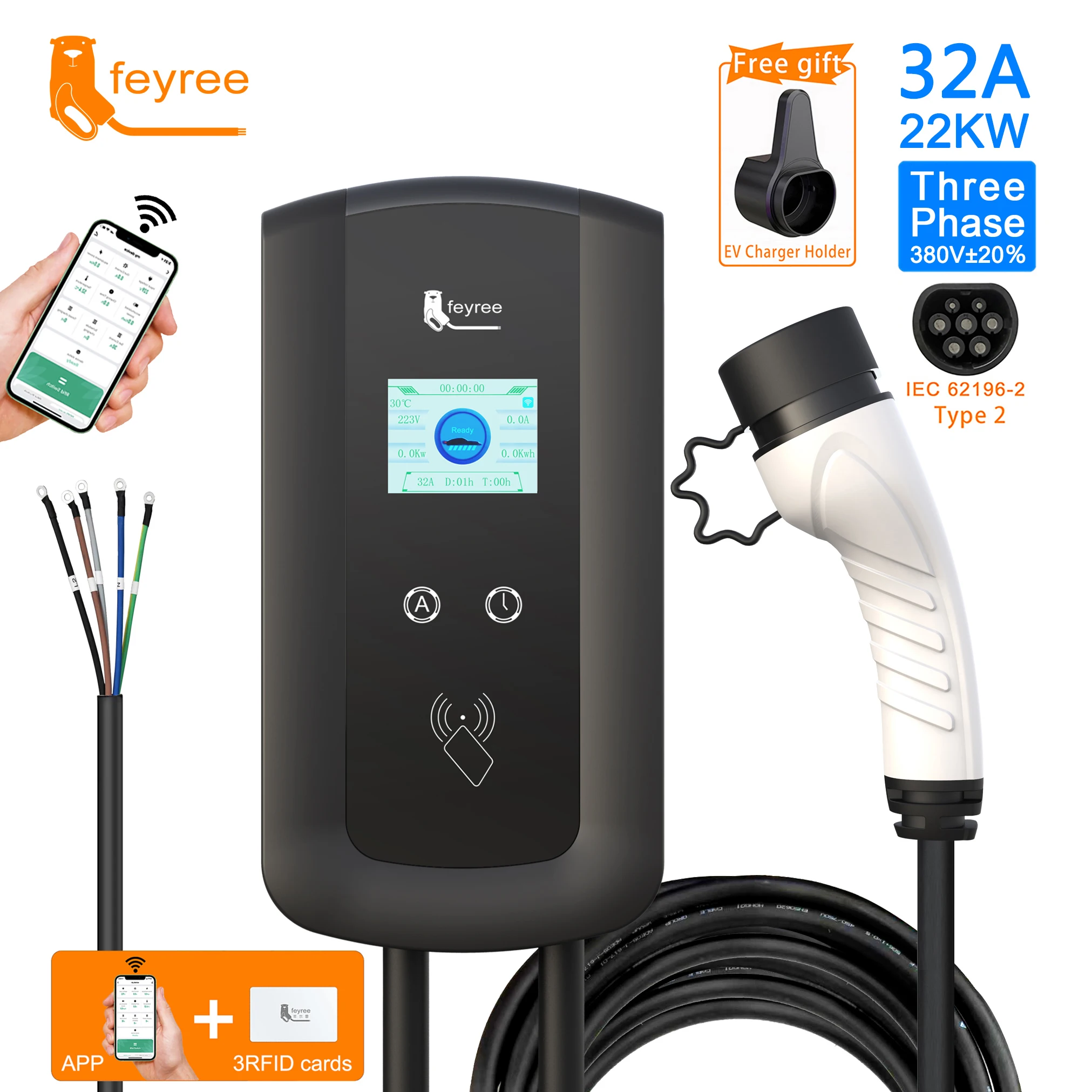

Electric Car Type 2 Plug 7KW 32a AC home EV Charger Wallbox wifi App IEC 62196 EV Charging station
- Category: >>>
- Supplier: Shenzhen ruinuopawo Technology Co. Ltd
Share on (1600465993094):
Product Overview
Description
Specification

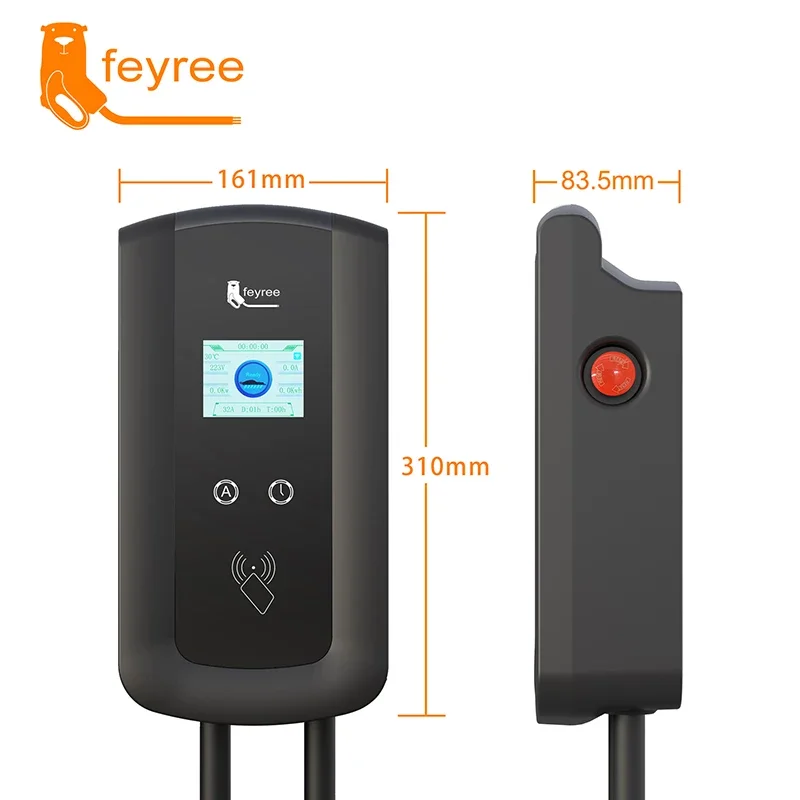

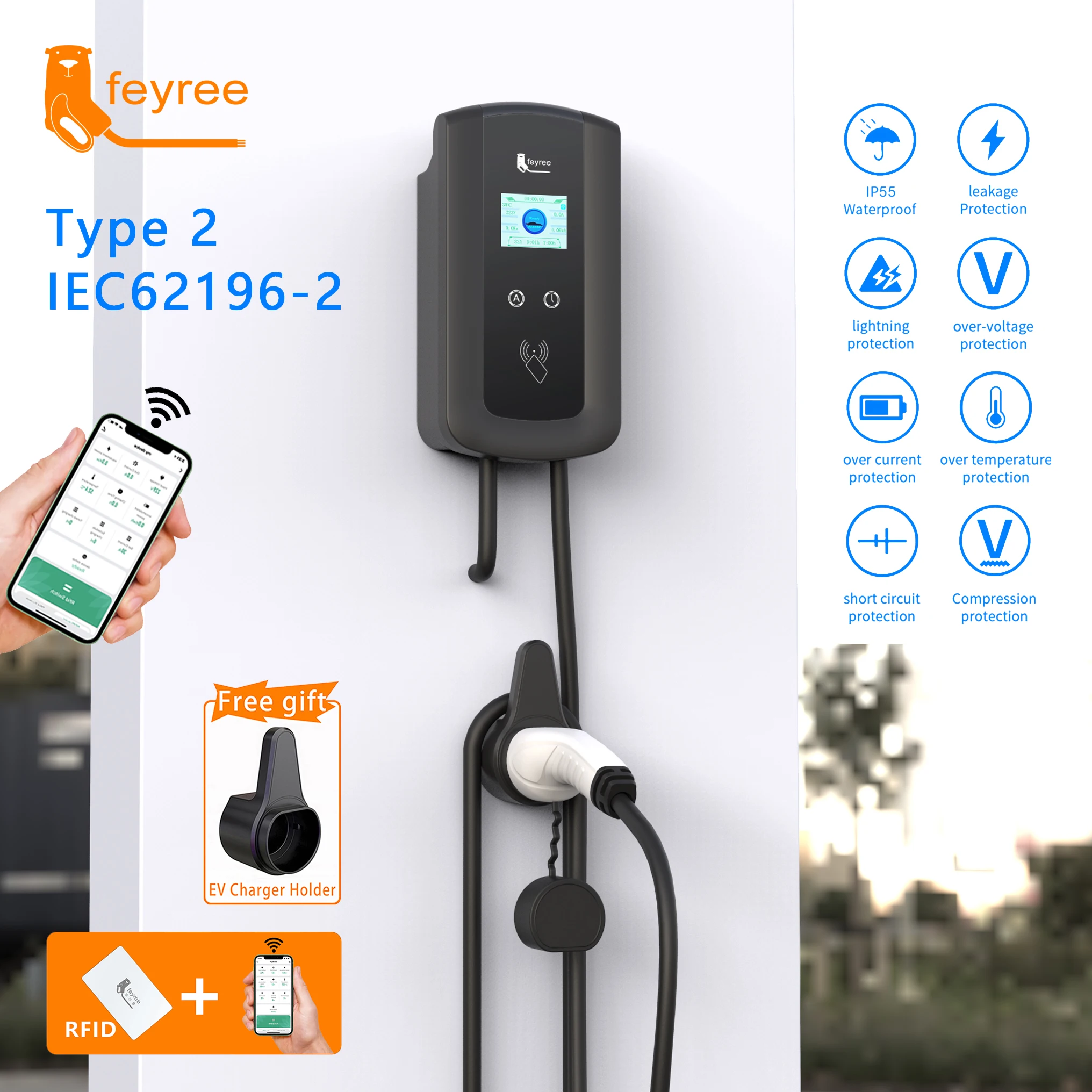

EVSE Electric Car Type 2 Plug 7KW 32a AC home EV Charger Wallbox wifi App IEC 62196 EV Charging station
Technical SPECS | ||||||||||
Cable specifications | 7KW:3G6mm²+1*0.5mm² | Insulation Resistance | 1000MD(DC50OV) | |||||||
Rated voltage | 250V±20% | Terminal Temperature Rise | < 50K | |||||||
Rated current | 8A/10A/13A/16A/32A （Adjustable） | Mechanical life | no-load plug in/pull out>10000times | |||||||
Rated power | 7.6KW/11KW/22KW | Impact of external force | can afford 1m drop and 2T vehicle run over pressure | |||||||
Control box function | ||||||||||
Leakage protection | √ | Lightning protection | √ | |||||||
Overvoltage or undervoltage protection | √ | Change the current | 8A/10A/13A/16A/32A | |||||||
Overload protection | √ | Overheat protection | √ | |||||||
WIFI | √ | Ground protection | √ | |||||||
Charging time to make an appointment | √ | RFID card function （Can be set according to user needs） | √ | |||||||
OLED display | ||||||||||
Power indicator | √ | Charging indicator | √ | |||||||
Connection status | √ | Fault alarm | √ | |||||||
Product Description
1. Stable and Fast Charging -- This EV charger Amps adjustable(8A/10A/13A/16A/32A), which can realize a variety of chargng options such as fast charging and slow charging! 32A AC charging stations support indoor and outdoor installation and use. It usually takes about 7 hours to fully charge an electric car, it usually can travel 50-100 kilometers per hour on average. It is suitable for all SAE J1772 standard, the station uses aluminum alloy body and alloy plate to be stronger. Button start mode and easy installation.
2. Well-designed -- The special socket effectively prevents dust from entering the EV charger interface. 5M cable is sturdy and durable, suitable for use in various parking lots or family garages. It can be hung on the holder after use, which is flexible and convenient. When fully charged, the device will automatically power off. In case of emergency use, press the reset button to turn off the device.
3. Safe and Reliable -- Waterproof protection(IP66), lightning protection, over voltage protection, under voltage protection, grounding protection, overload protection, over temperature protection, short circuit protection, low temperature protection, leakage protection. It can work normally even in rainy days and can be applied to various scenarios.
4. Smart EV Charger Station --The color and dynamics of the LCD indicator will convey the working status of charging to you, effectively protecting the charger and the vehicle. It can track your charging status information with a large LCD screen display that can show voltage, current, temperatures etc.
Support Tuya APP wireless connection, mobile phone remote control
Features：
Control box meet IEC 61851 control principle.
Excellent protection performance, protection grade IP55-Working condition.
Operating temperature:-30℃ to 55℃.
Number of phases: 1-phase 3-phase
Contact bush: copper alloy, silver plating
Electric Performance：
Insulation Resistance>1000MD(DC50OV)
Terminal Temperature Rise:< 50K
Mechanical life: no-load plug in/pull out>10000times
Impact of external force: can afford 1m drop and 2T vehicle run over pressure
Control Box Function：
Leakage protection (restart recover).
Over voltage under-voltage protection (self-checking recover).
Lightning protection.
Over current protection.
Overheat protection.
Ground protection.
Change the current: 8A/10A/13A/16A/32A
RFID card function （Can be set according to user needs）
Charging time to make an appointment
APP WIFI Version
2. Well-designed -- The special socket effectively prevents dust from entering the EV charger interface. 5M cable is sturdy and durable, suitable for use in various parking lots or family garages. It can be hung on the holder after use, which is flexible and convenient. When fully charged, the device will automatically power off. In case of emergency use, press the reset button to turn off the device.
3. Safe and Reliable -- Waterproof protection(IP66), lightning protection, over voltage protection, under voltage protection, grounding protection, overload protection, over temperature protection, short circuit protection, low temperature protection, leakage protection. It can work normally even in rainy days and can be applied to various scenarios.
4. Smart EV Charger Station --The color and dynamics of the LCD indicator will convey the working status of charging to you, effectively protecting the charger and the vehicle. It can track your charging status information with a large LCD screen display that can show voltage, current, temperatures etc.
Support Tuya APP wireless connection, mobile phone remote control
Features：
Control box meet IEC 61851 control principle.
Excellent protection performance, protection grade IP55-Working condition.
Operating temperature:-30℃ to 55℃.
Number of phases: 1-phase 3-phase
Contact bush: copper alloy, silver plating
Electric Performance：
Insulation Resistance>1000MD(DC50OV)
Terminal Temperature Rise:< 50K
Mechanical life: no-load plug in/pull out>10000times
Impact of external force: can afford 1m drop and 2T vehicle run over pressure
Control Box Function：
Leakage protection (restart recover).
Over voltage under-voltage protection (self-checking recover).
Lightning protection.
Over current protection.
Overheat protection.
Ground protection.
Change the current: 8A/10A/13A/16A/32A
RFID card function （Can be set according to user needs）
Charging time to make an appointment
APP WIFI Version
CAUTION：
1. Don't submerge the EV charging cable in water.
2. Don't step on, fold, or knot the cable.
3. Don't drop the EV charging box place a heavy object on it.
4. Don't place the charging cable near a high-temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put your fingers into the charging connector when the power plug is still connected to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging.
10. Don't use this device with another brand's extension cord or adaptor.
1. Don't submerge the EV charging cable in water.
2. Don't step on, fold, or knot the cable.
3. Don't drop the EV charging box place a heavy object on it.
4. Don't place the charging cable near a high-temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5 mm recommended 3*4 mm), with a standard 16A socket. It is suggested that
the power distribution is done by the professionals.
7. Don't put your fingers into the charging connector when the power plug is still connected to the power.
8. Don't use this EV charging box when the cable is damaged.
9. The EV charging box is only for EV charging.
10. Don't use this device with another brand's extension cord or adaptor.

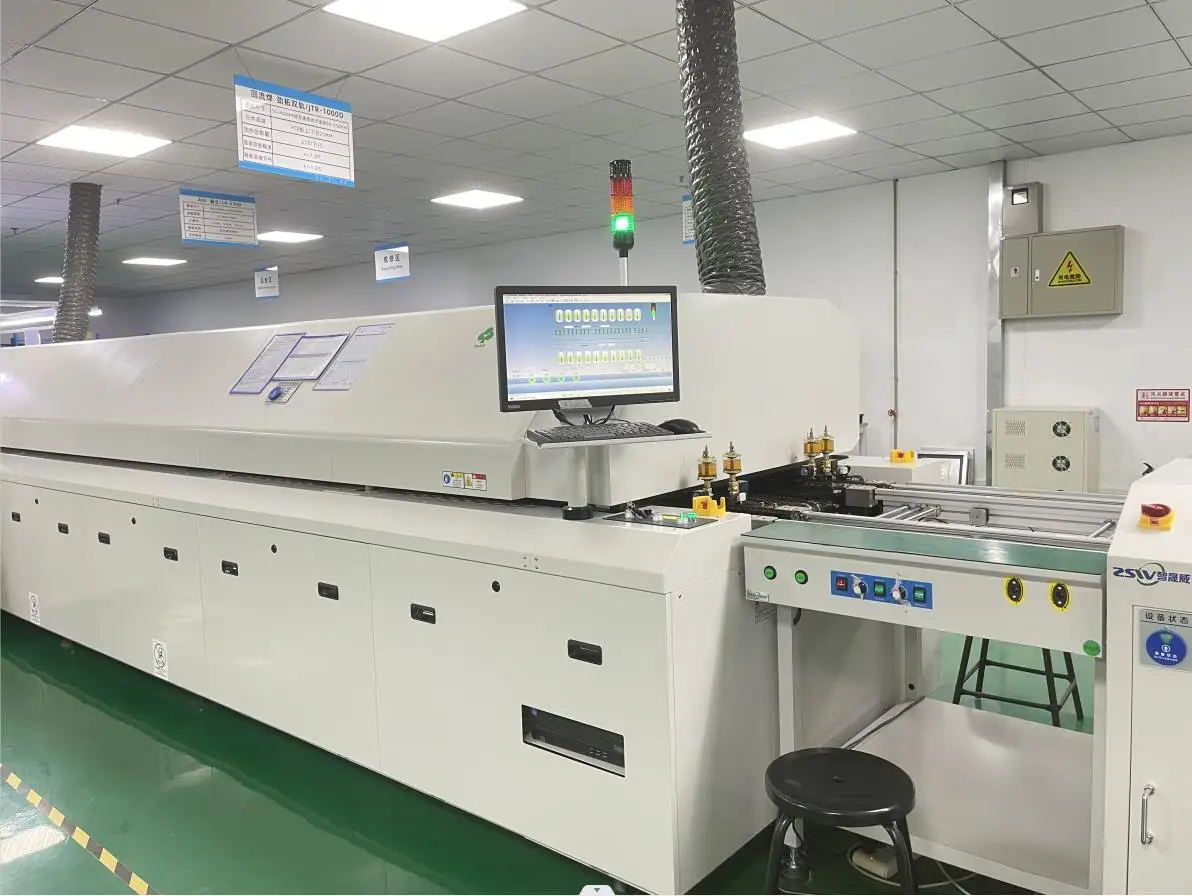

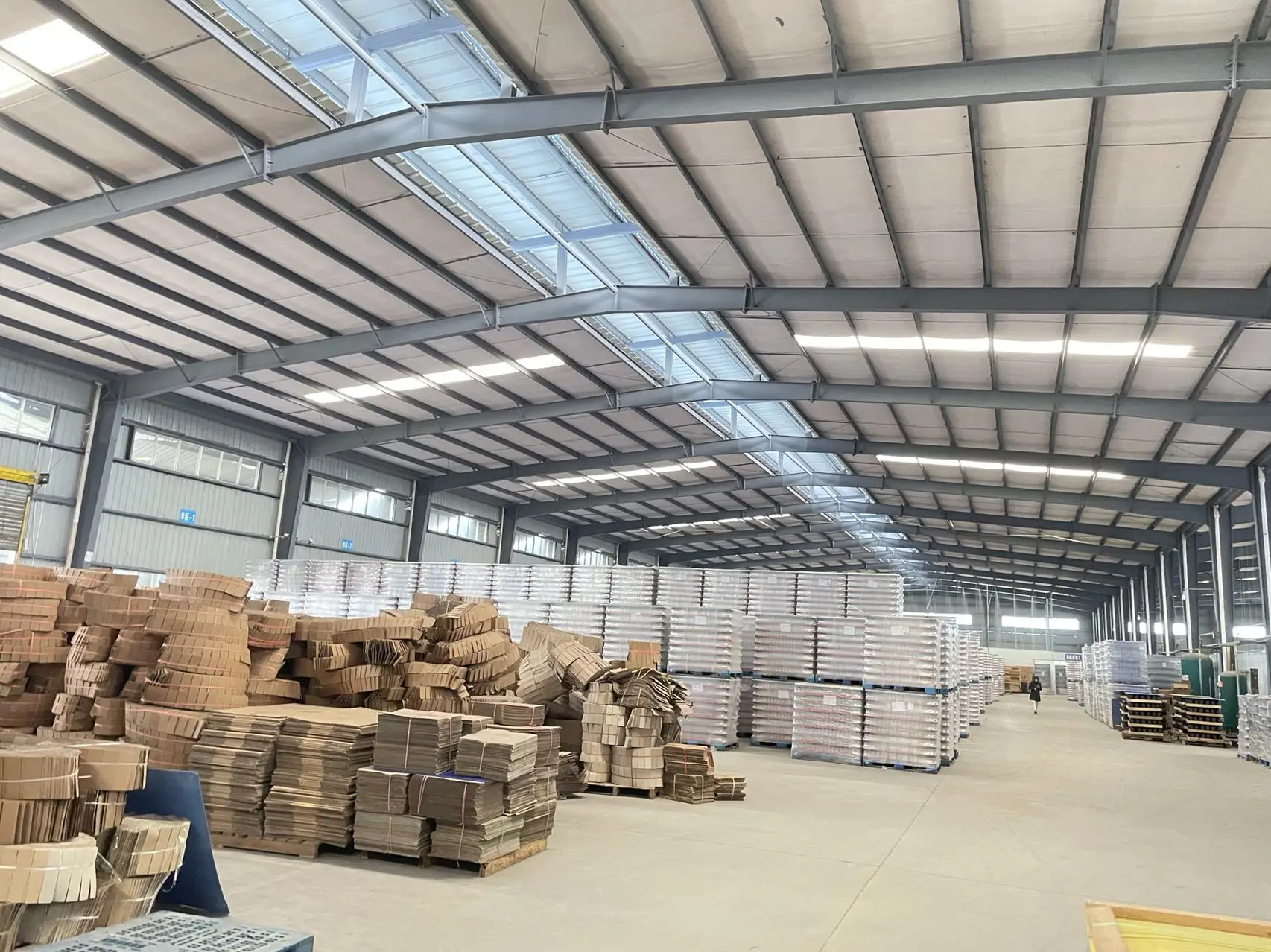

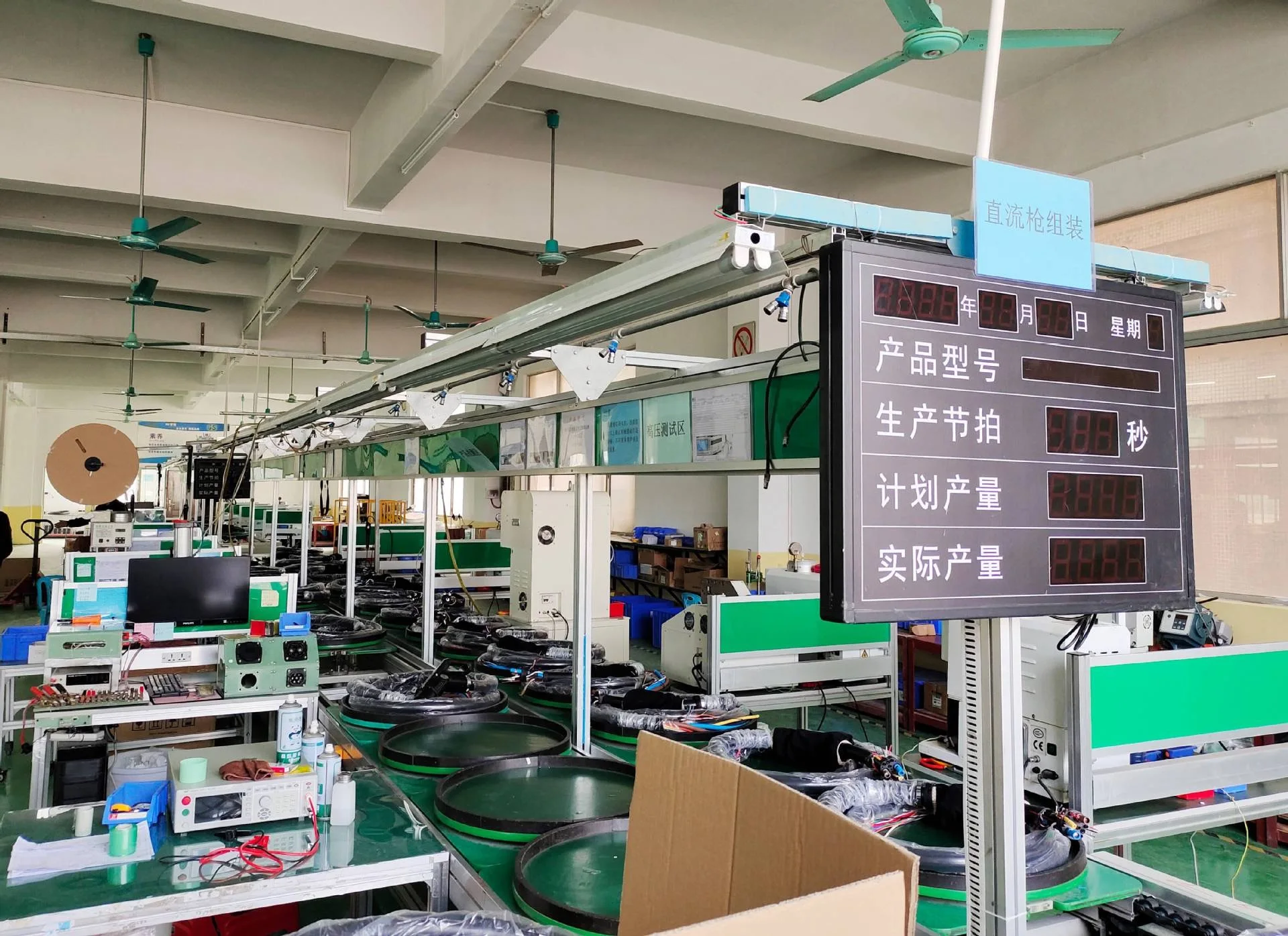

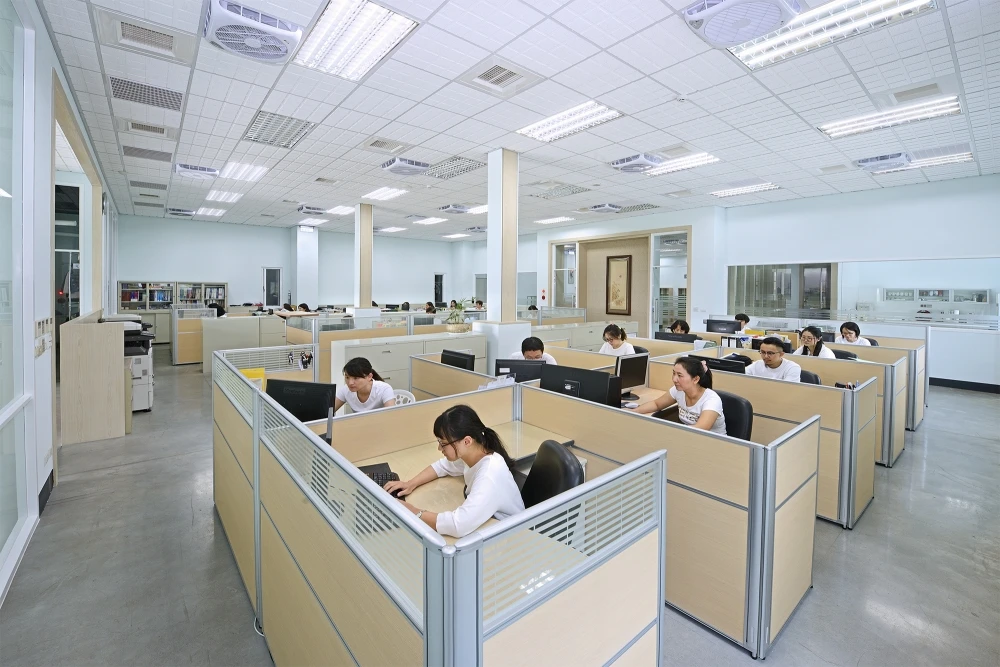

Company Profile
As a professional EVSE manufacturer, Shenzhen Ruinuo Pawo Technology Co., Ltd.，focuses on providing customers with professional charging equipment that is safer, more efficient and more stable.
Our products are oriented to both household and commercial markets in the EV charging field. Our main products include EV chargers (APP, OCPP),Wall Box, portable EV chargers, EV charging cables, EV connectors and EV adaptors.
Our products have necessary patents in terms of the appearance and functions, ensuring that our customers are more advantaged in the local market and not interfered by imitators. All products have all the certifications required by the local market, including CE, TUV, CSA, FCC, ETL, UL, ROHS, CCC and so on.
Our products are oriented to both household and commercial markets in the EV charging field. Our main products include EV chargers (APP, OCPP),Wall Box, portable EV chargers, EV charging cables, EV connectors and EV adaptors.
Our products have necessary patents in terms of the appearance and functions, ensuring that our customers are more advantaged in the local market and not interfered by imitators. All products have all the certifications required by the local market, including CE, TUV, CSA, FCC, ETL, UL, ROHS, CCC and so on.
✔For Europe market, we've got CE, ROHS, for 7kw, 11kw, 22kw wallbox ev charger.
✔ For North America, we're getting CSA and UL certification of 7kw, 9.6kw wallbox for whole charger.
✔ Customize designs, logos, colors available even for small quantity and small business.
✔4.3 inch LED screen, Type B RCD leakage protection for ev chargers.
✔Manual available in different languages, English, German, Dutch, Italian, Spanish etc.
✔1 year warranty, 2 years and 3 years warranty(optional).
✔Each EV charging station is with emergency stop button.
✔ Each wallbox EV charger comes with its own MCB/OCCP.
✔ Independently designed, different from other existing models in the market.
✔ Easy installation, maintaining and stable functioning.
✔ Solid durable metal box and full size LCD screen.
✔ For North America, we're getting CSA and UL certification of 7kw, 9.6kw wallbox for whole charger.
✔ Customize designs, logos, colors available even for small quantity and small business.
✔4.3 inch LED screen, Type B RCD leakage protection for ev chargers.
✔Manual available in different languages, English, German, Dutch, Italian, Spanish etc.
✔1 year warranty, 2 years and 3 years warranty(optional).
✔Each EV charging station is with emergency stop button.
✔ Each wallbox EV charger comes with its own MCB/OCCP.
✔ Independently designed, different from other existing models in the market.
✔ Easy installation, maintaining and stable functioning.
✔ Solid durable metal box and full size LCD screen.
Certifications
Recommend Products
Our Service
1. Custom Logo on the Product
2. Provide Droppshiping Service
3. Custom Professional Packaging and User Manual
4. Provide Barcode Stickers
5. Provide High- Definition Photograph Service for your Website
6. Provide DDP Shipping Service to Amazon FBA
2. Provide Droppshiping Service
3. Custom Professional Packaging and User Manual
4. Provide Barcode Stickers
5. Provide High- Definition Photograph Service for your Website
6. Provide DDP Shipping Service to Amazon FBA
Packing & Delivery
Review
FAQ
1.Can we require you to do our trademark?
Trademark service is available，and the order quantity should be more than 100pcs.
2.What are your terms of payment?
T/T 30%as deposit， and 70% balance before delivery.
For small orders,Paypal is available
3.What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU, etc.
4.Can you produce according to the samples?
Yes,we could produce based on your samples or technical drawings.
We could build corresponding molds and fixtures.
5.What is your sample policy?
We can provide a sampleupon request.
Customers need to pay for the shipping cost.
Trademark service is available，and the order quantity should be more than 100pcs.
2.What are your terms of payment?
T/T 30%as deposit， and 70% balance before delivery.
For small orders,Paypal is available
3.What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU, etc.
4.Can you produce according to the samples?
Yes,we could produce based on your samples or technical drawings.
We could build corresponding molds and fixtures.
5.What is your sample policy?
We can provide a sampleupon request.
Customers need to pay for the shipping cost.
