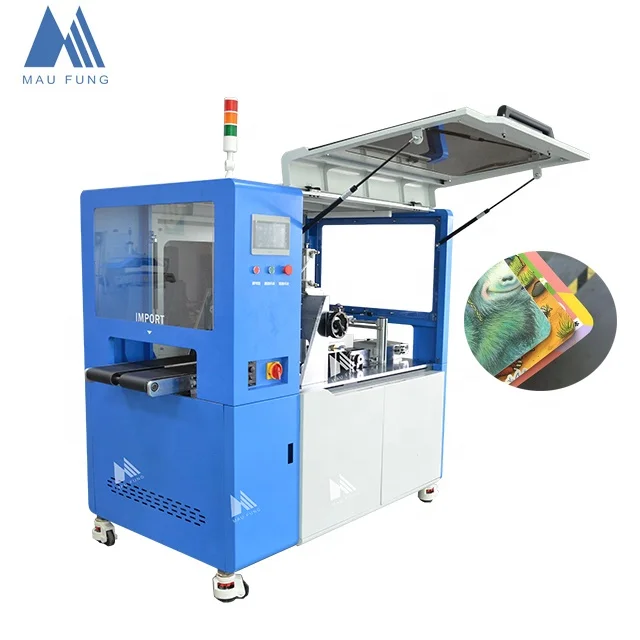

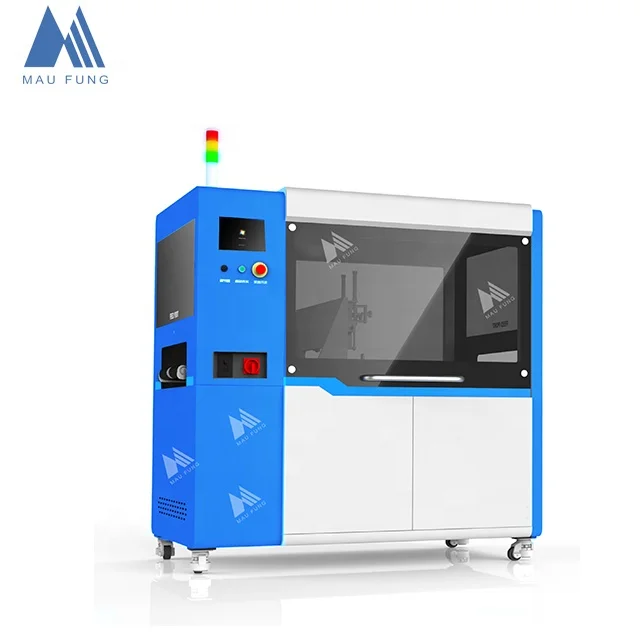

Note Book Making Machine / Fully Auto Round Corner Cutting Machine for Diaries Notebooks MF ACM380 /Book Binding Machine
- Category: >>>
- Supplier: Dongguan Maufung Machinery Co. Ltd.
Share on (1600466008984):
Product Overview
Description
Product Description

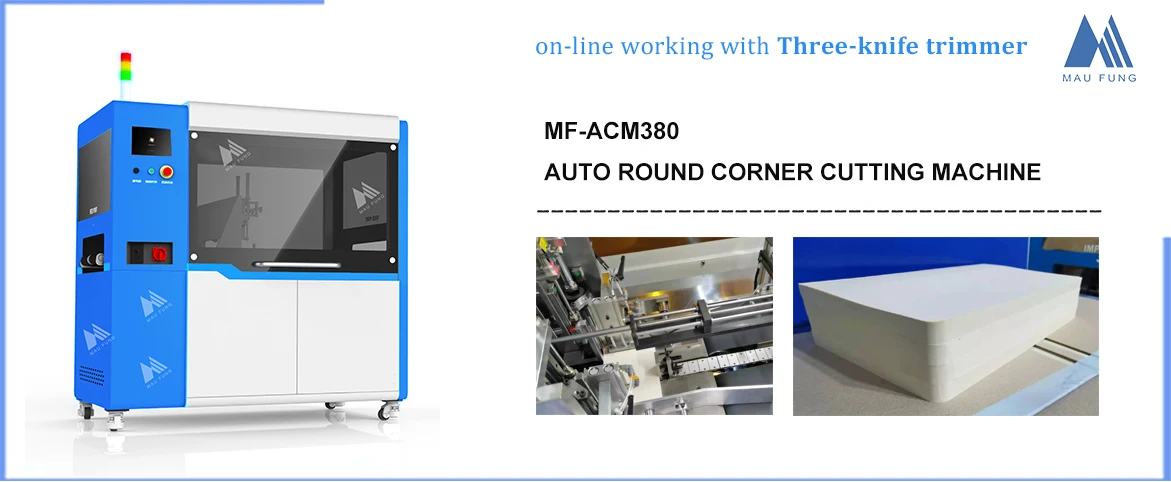

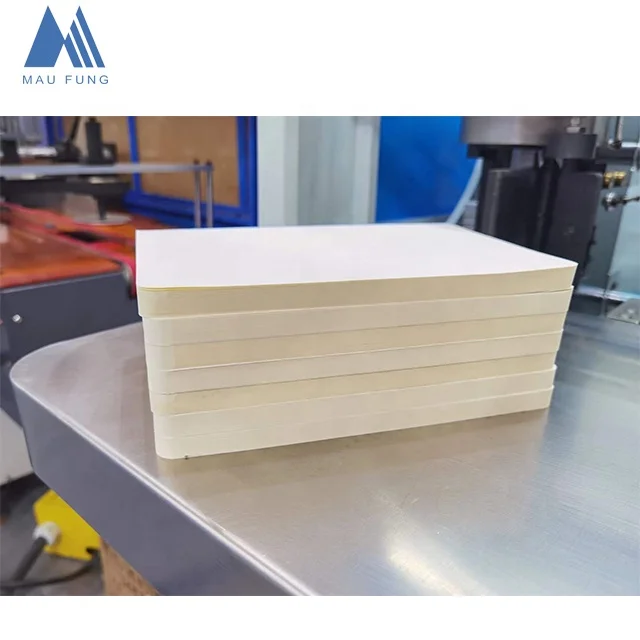

This model is Auto Round Corner Cutting machine. It is right for the rounding corner cutting of notebooks, blocks, children board books, etc. It auto flaps the products for double side cutting in one time. It could be used individually or linked up with Three Sides Trimmer or Hard Cover Binding Line. It enhance the production efficiency and saves the labor.
Model No | MF-ACM380 |
Power Supply | 380V /50HZ |
Max size | 380*230mm |
Min size | 120*90mm |
cutting thickness | 3-50mm |
Round corner mold | 1/8''，3/16''，1/4''，5/16''，3/8''，7/16''， 1/2''，9/16''，5/8''，3/4''，7/8''， 1' |
Air pressure | 6bar |
Machine Dimensions(L*W*H) | 1800x1260x1750MM |
Working Speed | 40 times/min |
Weight | 350kg |

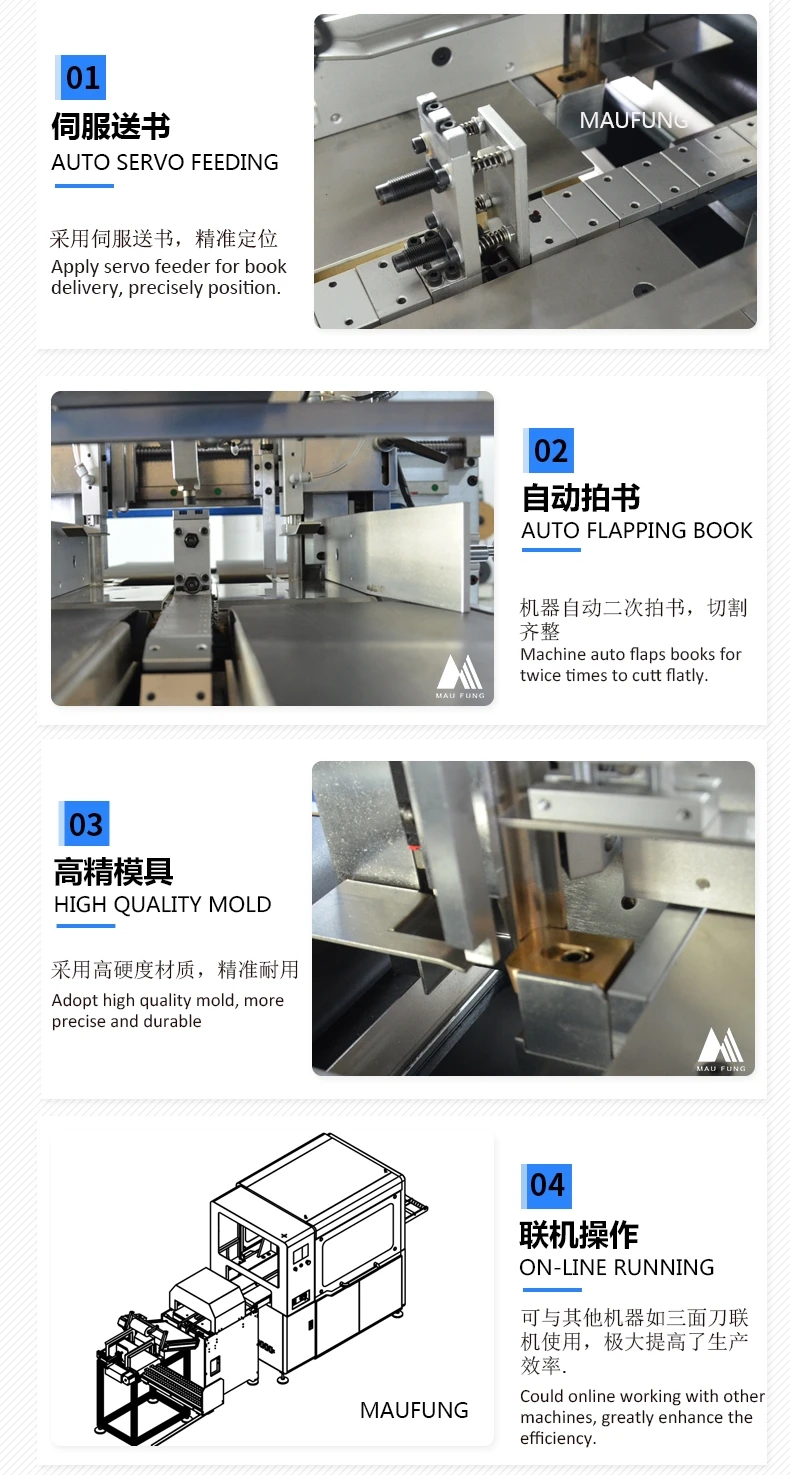

Features
Applications
Recommend Products

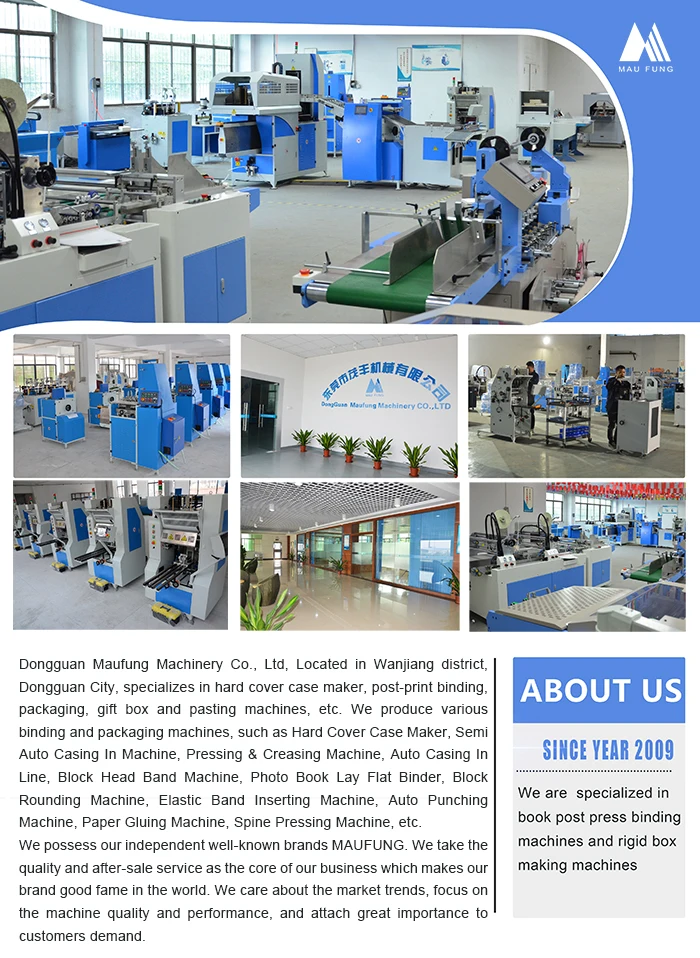

Company
Certifications
On constantly upgrading product quality and after-sales service, we also focus on self-developing adhering to “People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy” and “Rooting in Quality, Developing via Brand” strategy. As a professional company for binding and packaging who integrate R&D, manufacturing and selling, we gain CE certificate, and won many patents, and obtain National "High Tech Enterprise”
Sales Network

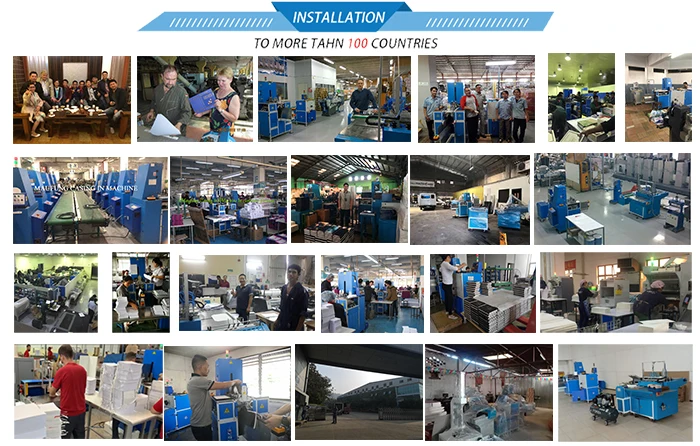

Our Brand “MAUFUNG” enjoy a good reputation in the world. Our machines are popular in China domestic market and also in the world. We have exported to more than 100 countries.
