Paving stone machines brick making brick machine making automatic concrete ghana brick making machine for sale
- Category: >>>
- Supplier: Henan Shangshi Machinery Manufacturing Co. Ltd.
Share on (1600466019762):
Product Overview
Description
Paving stone machines brick making brick machine making automatic concrete ghana brick making machine for sale

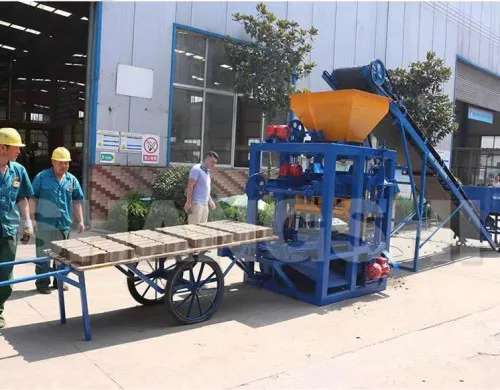

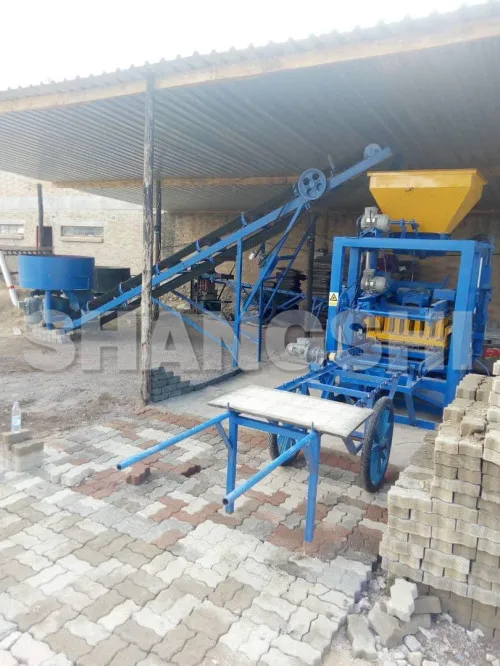

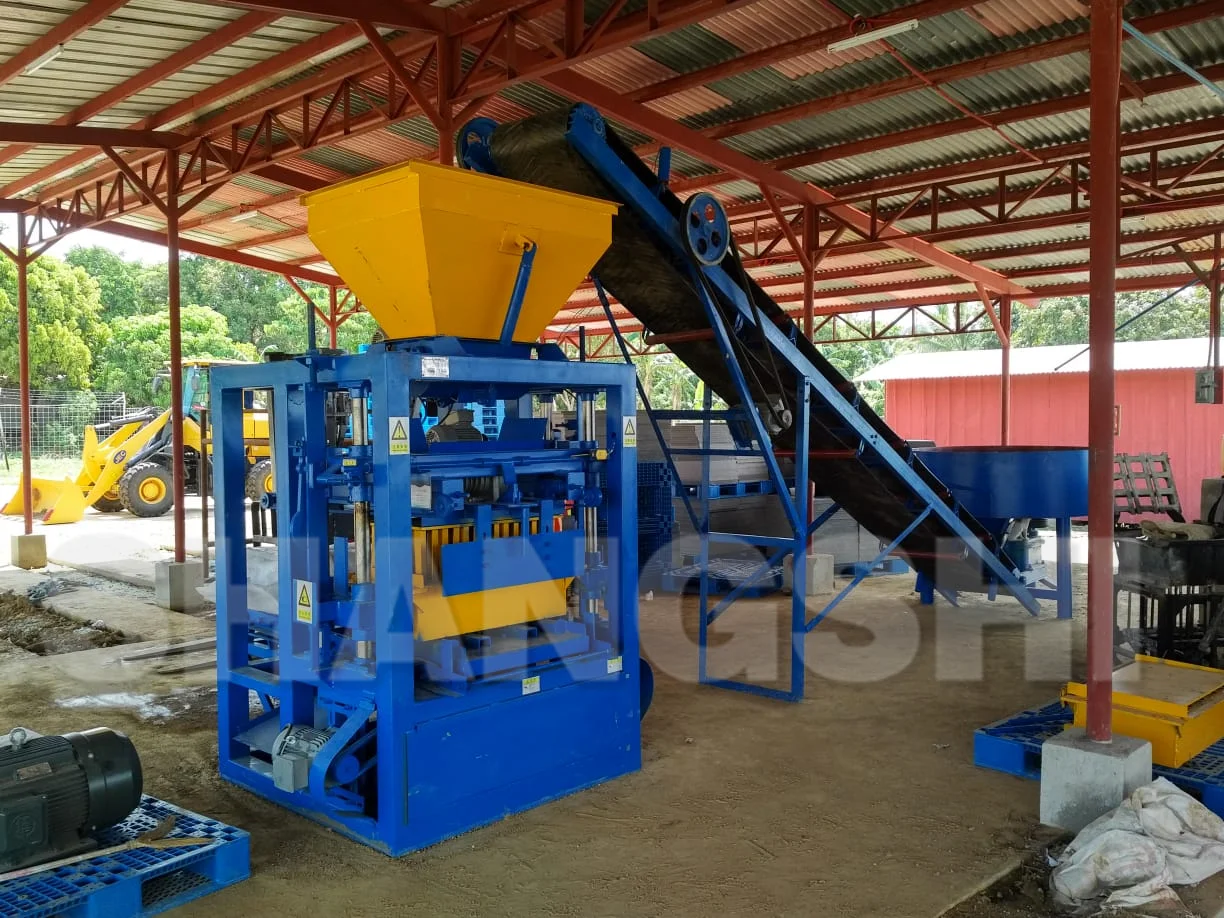

Brick making machinery to make hollow block concrete blocks/maquinas para hacer bloques de cemento precio adopts the combination of vibration between platform and the upper die and the worker can operate by control the PLC control.The produced block has the advantages of high compactness,high strength,beautiful appearance.Regular vibration,automatic lifting,simple operation and high production efficiency,it's a better choice for users.
QT4-26 concrete block machine | ||||||||
Dimension (mm) | 2070*1760*2190 | |||||||
Weight (kg) | 1700kg | |||||||
Power (kw) | 17.7kw | |||||||
Cycle | 15-25s | |||||||
Working mode | Vibratory compaction | |||||||
JW350 Concrete Mixer Machine | ||
Dimension | 1150*1150*1100mm | |
Discharging cpacity | 350L | |
Mixer power | 7.5KW | |
Charging cpacity | 500L | |
Weight | 450KG | |
Conveyor belt | ||
Dimension | Length 7m | |
Mixer power | 3kw | |
Weight | 450kg | |
Kinds of raw materials:
Sand, gravel, cement, fly ash, slag, steel slag, coal gangue, ceramsite, perlite and so on.
The application of bricks:
Widely used in housing construction, roads, squares, water conservancy projects, landscape construction.
Main Technical Specifications | ||||||||
Brick size | Moldig quantity | Molding cycle | Daily output | |||||
390*190*190mm | 4 | 35 seconds | 3300 blocks | |||||
400*150*200mm | 5 | 35 seconds | 4100 blocks | |||||
400*120*200mm | 6 | 35 seconds | 5000 blocks | |||||
400*100*200mm | 7 | 35 seconds | 5800 blocks | |||||
240*115*53mm | 24 | 35 seconds | 18000 blocks | |||||

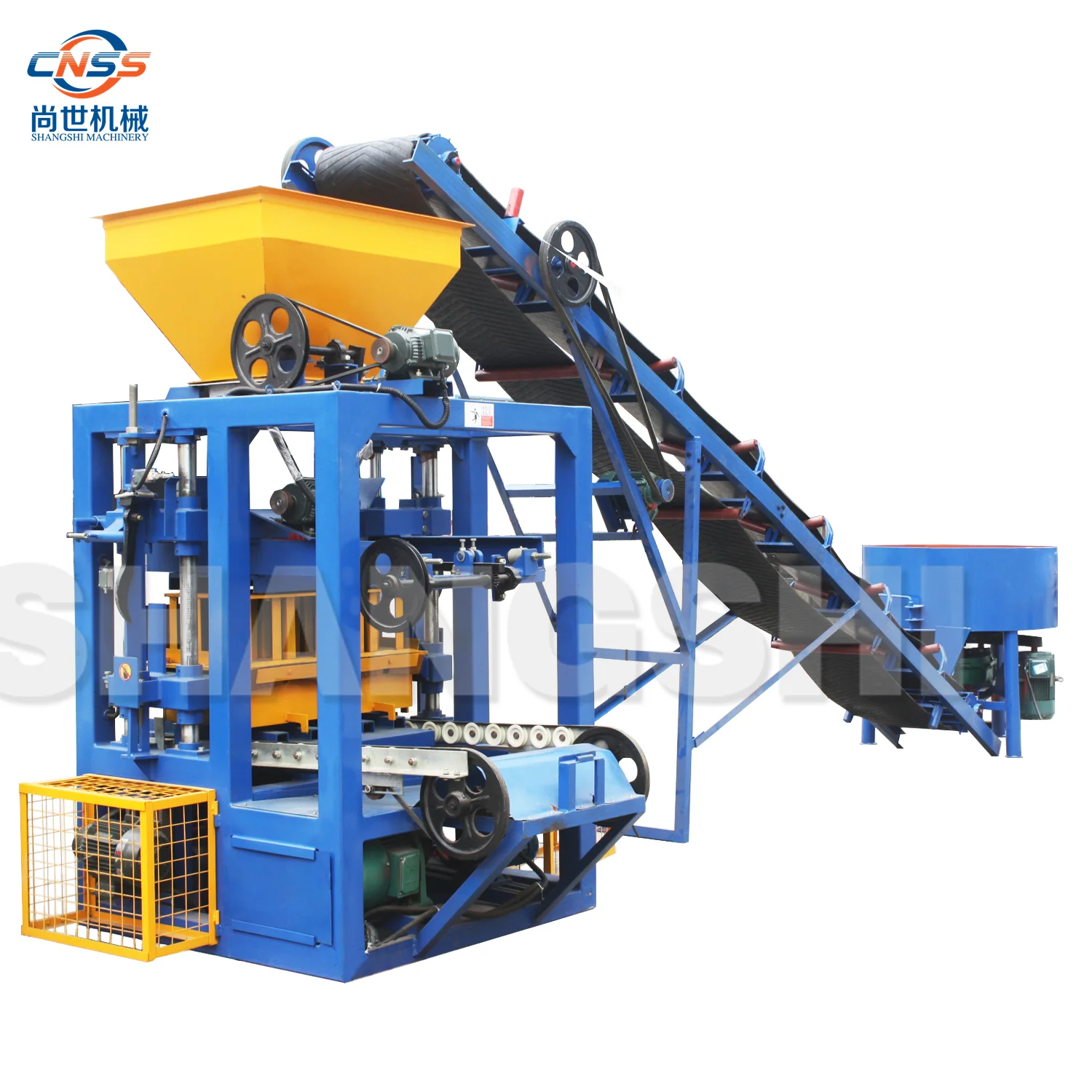

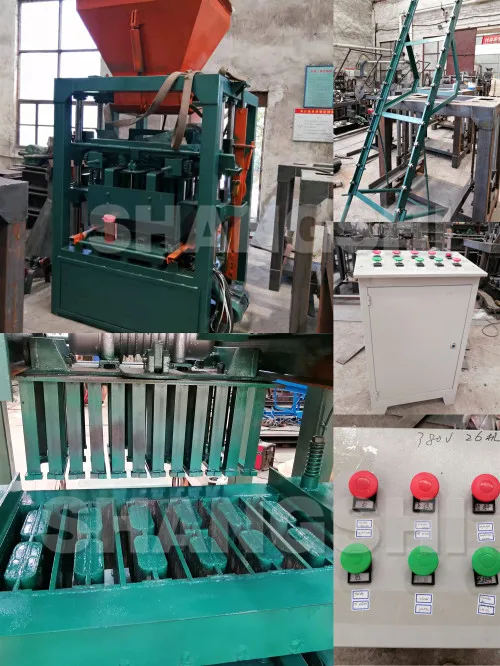

1.QT4-26 concrete block machine is four columns oriented,with vibrating electrical machine.During working time,the lower
vibrostand and upside pressure head vertically vibrate synchronously,make the raw materials dense.
vibrostand and upside pressure head vertically vibrate synchronously,make the raw materials dense.
2.Timing vibration,automatically lift mold,with hopper and conveyor can save manpower.
3.Machine's body is made from profiles,strong earthquake resistance,and suspension use the"spring vibration isolation"and directional vertical vibration technology to reduce power onsumption as well as loss of mould.
4.The pressure head is longitudinal traverse for convenient to feeding,maintaining and washing.
5. The plate vibrate with mold box synchronously,without impact force and with a long life.
6. Multi–usage,with a variety of mold can produce the block with various specifications.Easy and convenient.
Delivery details
1.Standard export packing or according to customer's requirements.
2.Use crane/forklist to load the machines into the container.
3.Use the wire to fasten the machines in order to keep them stable.
4.Use the cork wood forbid collision.
2.Use crane/forklist to load the machines into the container.
3.Use the wire to fasten the machines in order to keep them stable.
4.Use the cork wood forbid collision.
Shipping details
1.Lead time for mass production:within 3 days after received 30% down payment.
2.Delivery date:within 5 days after received 70% down payment.
2.Delivery date:within 5 days after received 70% down payment.
1.Are you a trading company or a manufacturer?
We are a manufacturer.
2.How to study to operate this machine?
You may View the operation video to study how to operate it.
3. If the machine is damaged during use, how to maintain it?
Please contact us to obtain the spare parts support.
4. What is the price?
We offer a price range on the website, If you want to know the exact price, please inform us of the port of destination.
5. I'm a stranger to large machines, what should I do?
we provide paid services such as the installation, debugging and technical training to customers who buy large machines. Of
course, You can also come to our factory for free training.
6.How to become a local agent?
If you want to be an agent to develop the local market, please contact us.
We are a manufacturer.
2.How to study to operate this machine?
You may View the operation video to study how to operate it.
3. If the machine is damaged during use, how to maintain it?
Please contact us to obtain the spare parts support.
4. What is the price?
We offer a price range on the website, If you want to know the exact price, please inform us of the port of destination.
5. I'm a stranger to large machines, what should I do?
we provide paid services such as the installation, debugging and technical training to customers who buy large machines. Of
course, You can also come to our factory for free training.
6.How to become a local agent?
If you want to be an agent to develop the local market, please contact us.
