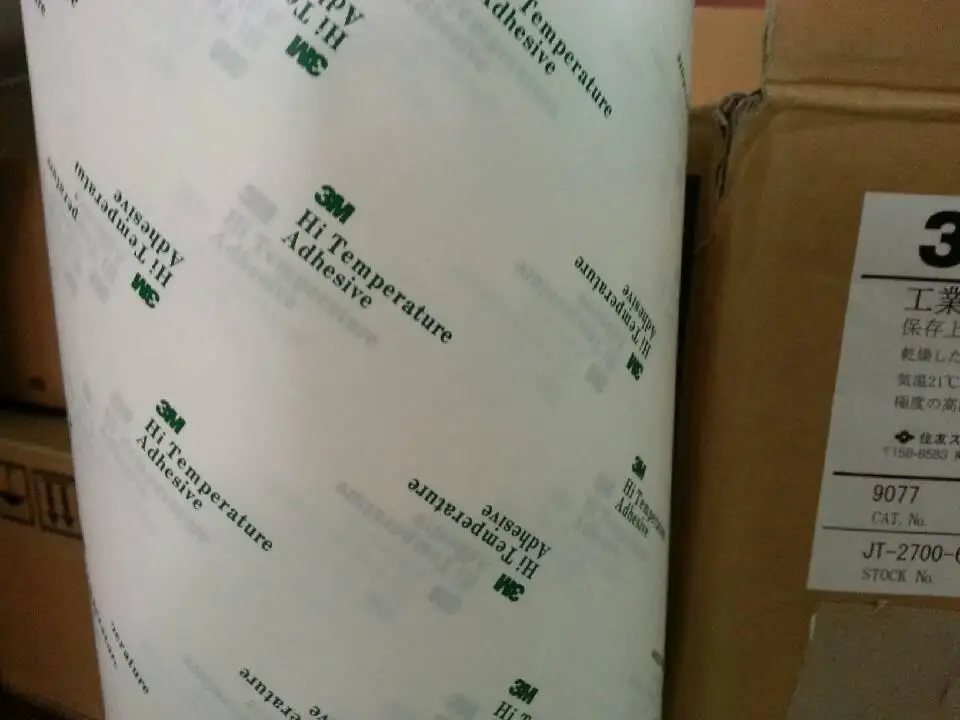

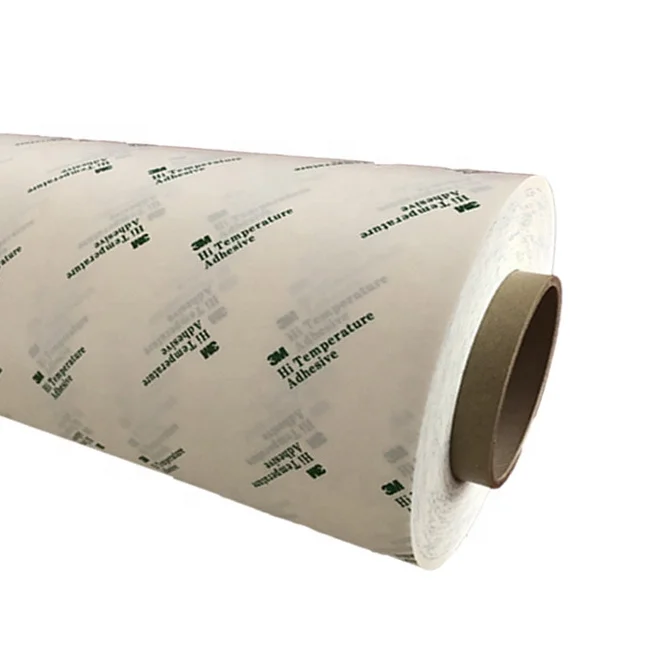

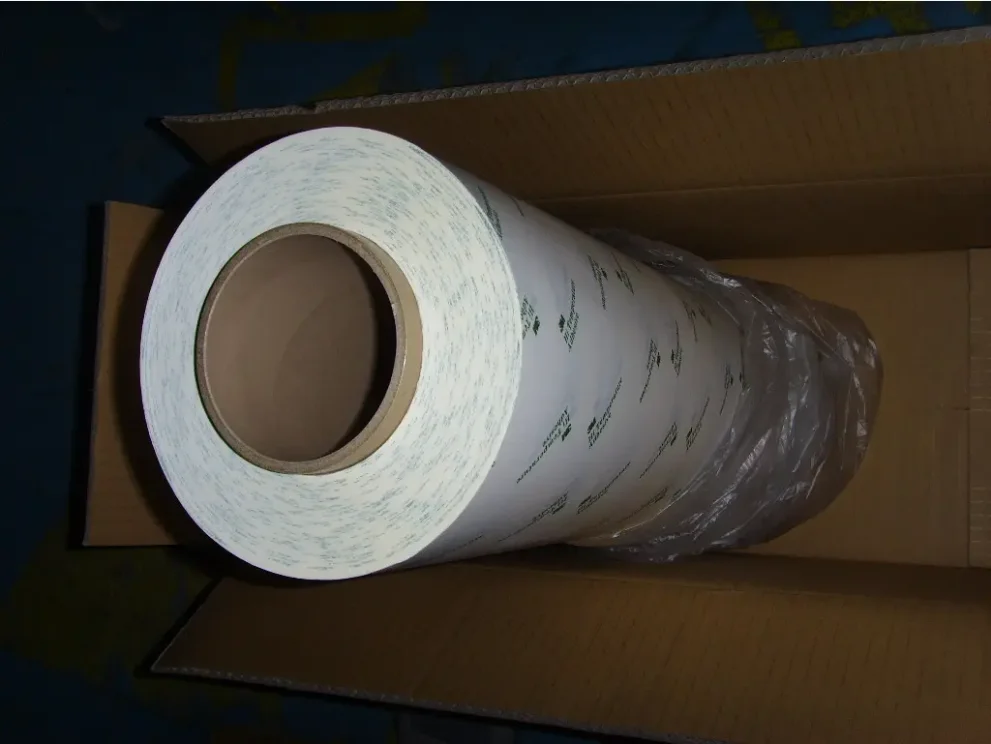

3M Ult ra High Temperature Double Coated Tape 9077

• High temperature adhesive and release liner survives short term exposure to 500°F/260°C for lead-free solder reflow


• Maintains high adhesion strength in high temperatures, excellent for heat-intensive processing


• Ideal for flexible printed circuit (FPC) attachments and HSE metals


• High adhesion, excellent holding power and low outgassing

3M Ultra High Temperature Double Coated Tape 9077 is a 2.0 mil clear double-coated adhesive tape designed for continued adhesion in high-temperature environments up to 500°F/260°C. It features a 2 mil 3M Ultra High Temperature Acrylic Adhesive 100HT, excellent for use in FPC attachment and for HSE metals. A 3.6 mil heat-resistant non-woven liner adds stability for die-cutting and converting.

High-Temperature Performance, Efficient Processing and Conversion
Featuring 3M Ultra High Temperature Acrylic Adhesive 100HT, our 3M Ultra High Temperature Double Coated Tape 9077 is double-coated adhesive transfer tape designed to withstand high temps and still deliver efficient conversion. The 2 mil pressure-sensitive adhesive can withstand temperatures as high as 540°F (280°C) for short periods, suitable for a wide range of processing and operating environments including automotive underhood.

A 3.6 mil release liner resists temps up to 500°F/260°C — excellent for lead-free solder reflow processes commonly used for flexible printed circuit (FPC) attachments. The liner also adds dimensional and structural stability during die-cutting and other conversion processes.

Recommended Applications

• Printed circuit boards


• Flexible circuits


• Automotive underhood


• Heat sink bonding
